◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#8744) — 25 parça

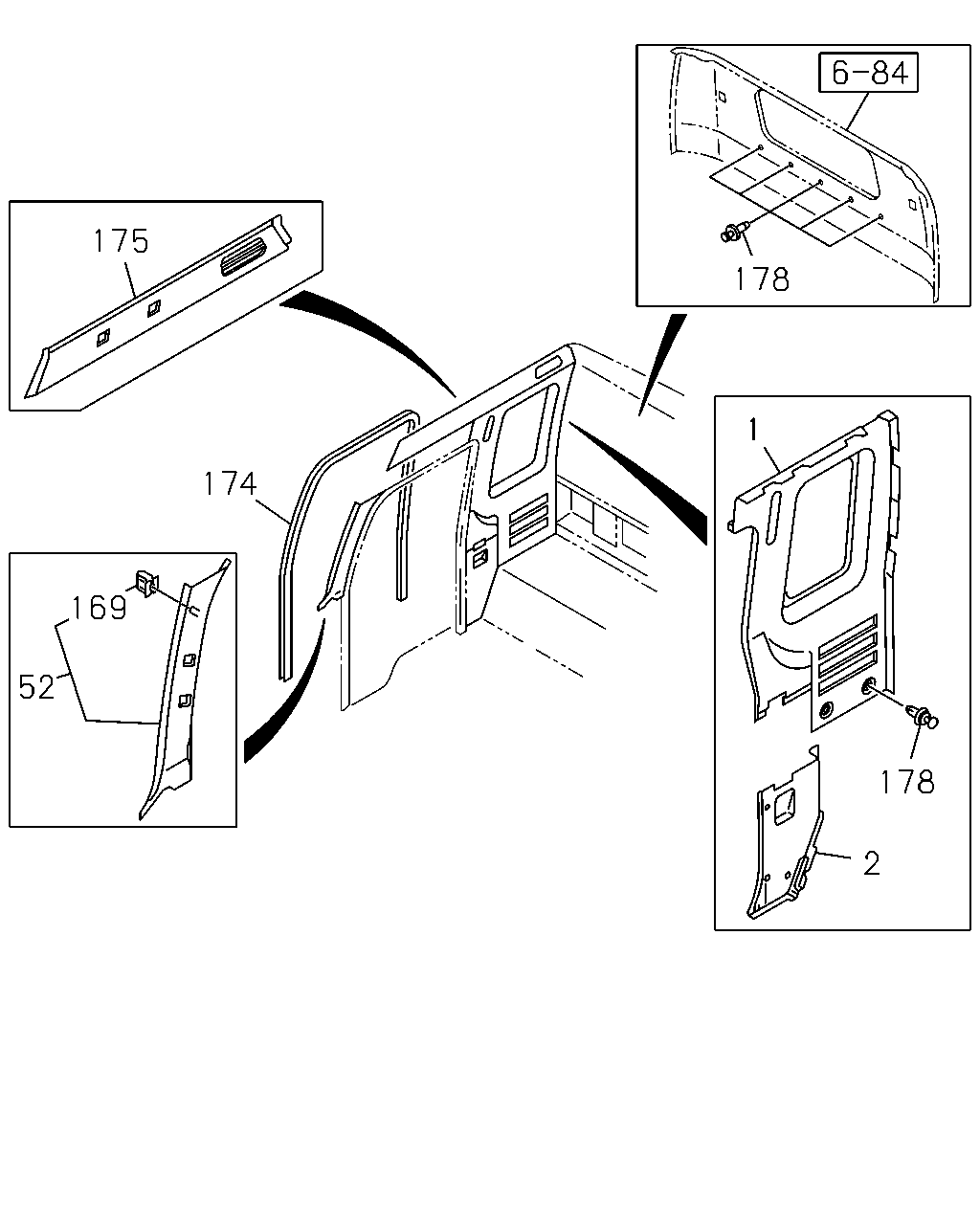

çizim 43812
175 178 1 174 169 52 178 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-4 01 1 0005-0212 ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-941-4 01 1 0301-0405 ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-941-7 01 1 0406- ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-996-1 01 1 0301-0405 ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-4 01 1 0005-0212 ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-934-4 01 1 0301-0405 ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73348-934-7 01 1 0406- ● ● ● ●
1 TRIM; ROOM,QUARTER WINDOW UPR
PROVISIONAL PACKAGE<NLY> 		1-73348-995-1 01 1 0301-0405 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-2 01 1 0005-0212 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-927-2 01 1 0301-0405 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-3 01 1 0406- ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73348-978-1 01 1 0301-0405 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-980-0 01 1 0005-0212 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. PROVISIONAL PACKAGE<NLY> 		1-73348-980-0 01 1 0301-0405 ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-980-1 01 1 0406- ● ● ● ●
2 TRIM; ROOM,QUARTER WINDOW LWR
PROVISIONAL PACKAGE<NLY> 		1-73346-032-0 01 1 0301-0405 ● ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0005- ● ● ● ●
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0005- ● ● ● ●
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 0005- ● ● ● ●
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 0005- ● ● ● ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-994-0 01 1 0005-0210 ● ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-994-0 01 1 0211-0305 ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-992-0 01 1 0005-0210 ● ●
175 COVER; TRIM,SIDE
CUSTOM CAB(SR5) 		1-73348-992-0 01 1 0211-0305 ●
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 09 1 0005- ● ● ● ●
