Sayfa 6-31 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶

6-31 — FRONT DOOR GLASS AND REGULATOR (#8740) — 120 parça

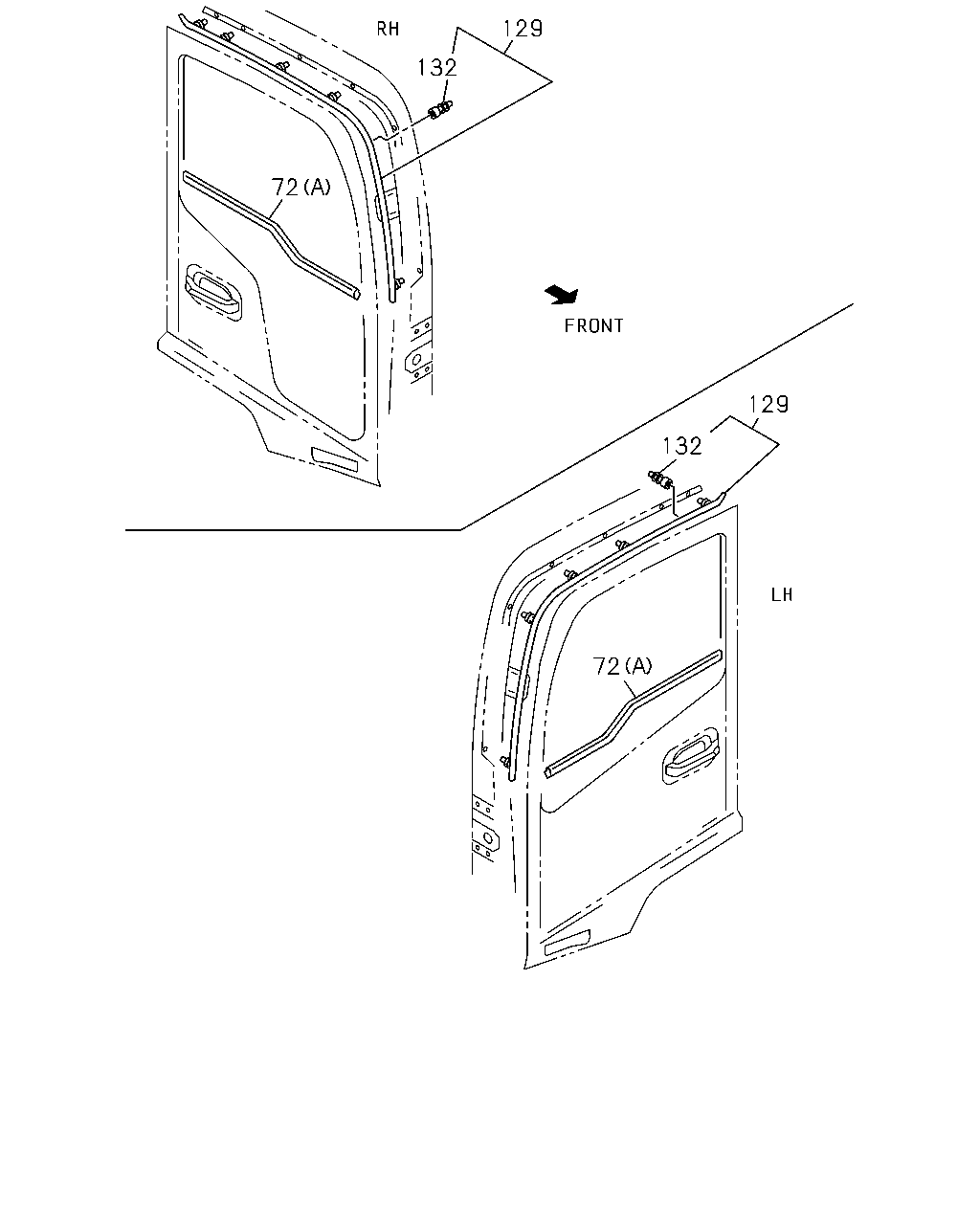

129 132 72 129 132 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0005-1207	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0005-1207	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0005-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0005-	●	●	●	●
129	SEAL; DOOR,SUB UPR	1-76718-199-0	01	1	0005-	●	●	●	●
129	SEAL; DOOR,SUB UPR	1-76718-198-0	01	1	0005-	●	●	●	●
132	CLIP; SEAL,DOOR YELLOW	1-09987-254-1	06	1	0005-	●	●	●	●
132	CLIP; SEAL,DOOR NATURAL	1-09987-253-1	06	1	0005-	●	●	●	●

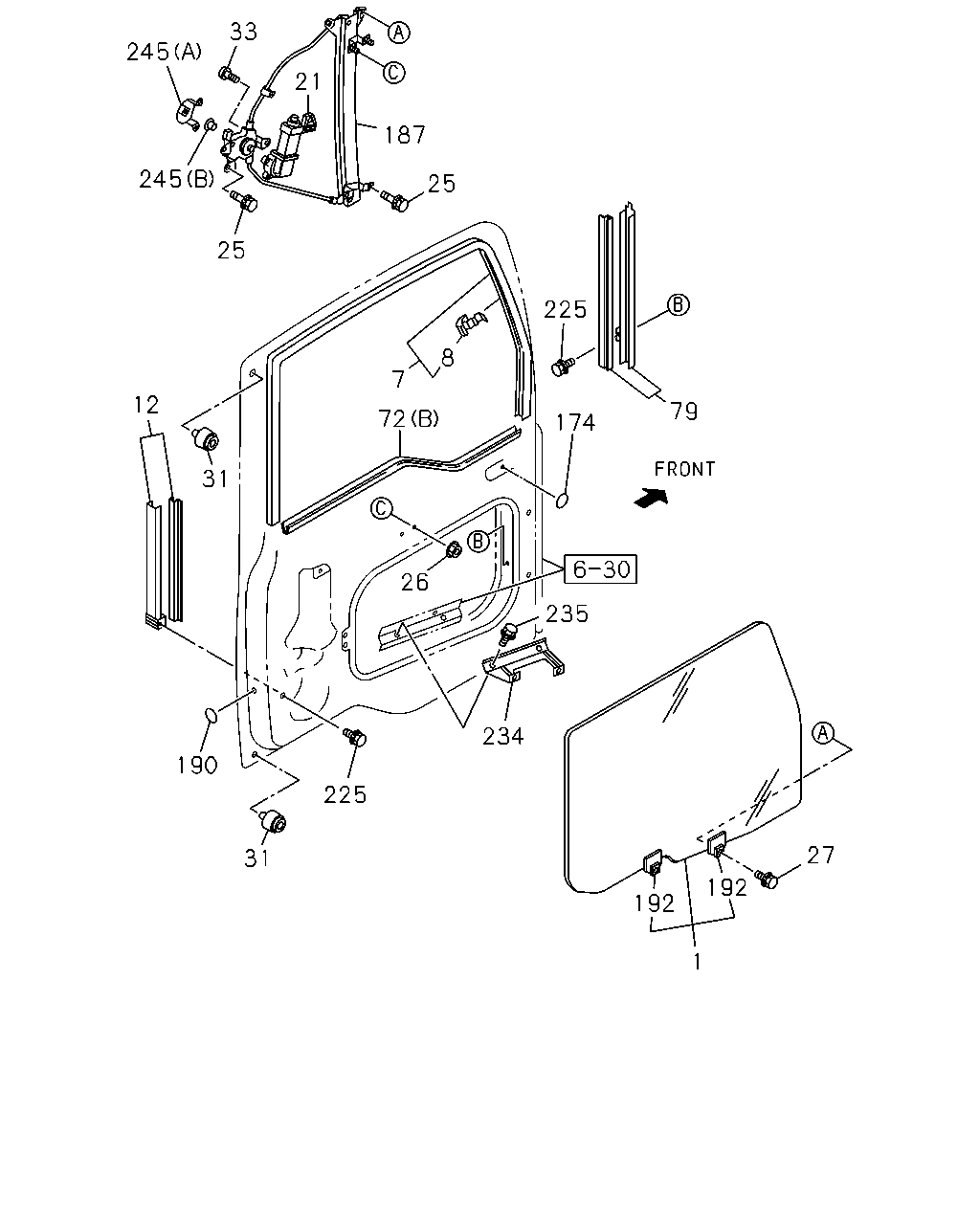

33 245 21 187 245 25 25 225 8 7 12 79 72 174 31 26 235 234 190 225 27 31 192 192 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-0	01	1	0005-0210	●	●
1	GLASS; FRT DOOR	1-76148-095-2	01	1	0211-	●	●	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-0	01	1	0005-0210	●	●
1	GLASS; FRT DOOR	1-76167-177-2	01	1	0211-	●	●	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-094-0	01	1	0005-0210	●	●	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76167-174-0	01	1	0005-0210	●	●	●	●
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0005-	●	●	●	●
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0005-	●	●	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0005-	●	●	●	●
12	CHANNEL; GLASS RUN,FRT	1-74338-071-3	01	1	0005-	●	●	●	●
12	CHANNEL; GLASS RUN,FRT	1-74338-070-3	01	1	0005-	●	●	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-177-0	01	1	0005-0210	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR	1-74418-177-0	01	1	0211-	●	●	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR POWER WINDOW<A30>	1-74418-176-0	01	1	0005-0210	●	●
21	MOTOR; POWER WINDOW REG,FRT DOOR	1-74418-176-0	01	1	0211-	●	●	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0005-0210	●	●
25	BOLT; WINDOW REG M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0211-0405	●	●	●	●
25	BOLT; WINDOW REG M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●	●	●
25	BOLT; WINDOW REG M6X16 FLANGE	0-28050-616-0	10	1	0601-0710	●	●	●	●
25	BOLT; WINDOW REG M6X10 FLANGE	0-28050-610-0	10	1	0711-	●	●	●	●
25	BOLT; WINDOW REG DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0005-0210	●	●	●	●
26	NUT; FLANGE,WINDOW REG POWER WINDOW<A30> M6 FLANGE	1-09984-141-0	06	1	0005-0210	●	●
26	NUT; FLANGE,WINDOW REG M6 FLANGE	1-09984-141-0	06	1	0211-	●	●	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0005-	●	●	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0005-	●	●	●	●
33	SCREW; REG MOTOR	8-98099-646-0	06	1	1204-	●	●	●	●
33	SCREW; REG MOTOR POWER WINDOW<A30>	8-98099-646-0	06	1	0005-0210	●	●
33	SCREW; REG MOTOR	8-98099-646-0	06	1	0211-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0005-1207	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0005-1207	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0005-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0005-	●	●	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0005-	●	●	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0005-	●	●	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	14	1	0005-0210	●	●
174	SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	14	1	0211-0212	●	●	●	●
174	SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	20	1	0005-0210	●	●	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK	1-76798-041-0	06	1	0005-0210	●	●	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-179-1	01	1	0005-0210	●	●
187	REGULATOR ASM; DOOR	1-74418-179-3	01	1	0211-	●	●	●	●
187	REGULATOR ASM; DOOR POWER WINDOW<A30>	1-74418-178-1	01	1	0005-0210	●	●
187	REGULATOR ASM; DOOR	1-74418-178-3	01	1	0211-	●	●	●	●
190	REFLECTOR; FRT DOOR INNER	5-76777-060-1	01	1	0005-	●	●	●	●
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0005-	●	●	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0005-0512	●	●	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0005-	●	●	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0005-	●	●	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-0210	●	●	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-0210	●	●	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0211-	●	●	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-181-0	01	1	0005-0210	●	●
245	DAMPER; WINDOW REGULATOR (A)	1-74418-181-0	01	1	0211-	●	●	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (A)	1-74418-180-0	01	1	0005-0210	●	●
245	DAMPER; WINDOW REGULATOR (A)	1-74418-180-0	01	1	0211-	●	●	●	●
245	DAMPER; WINDOW REGULATOR POWER WINDOW<A30> (B)	1-74417-074-0	02	1	0112-0210	●	●
245	DAMPER; WINDOW REGULATOR (B)	1-74417-074-0	02	1	0211-	●	●	●	●

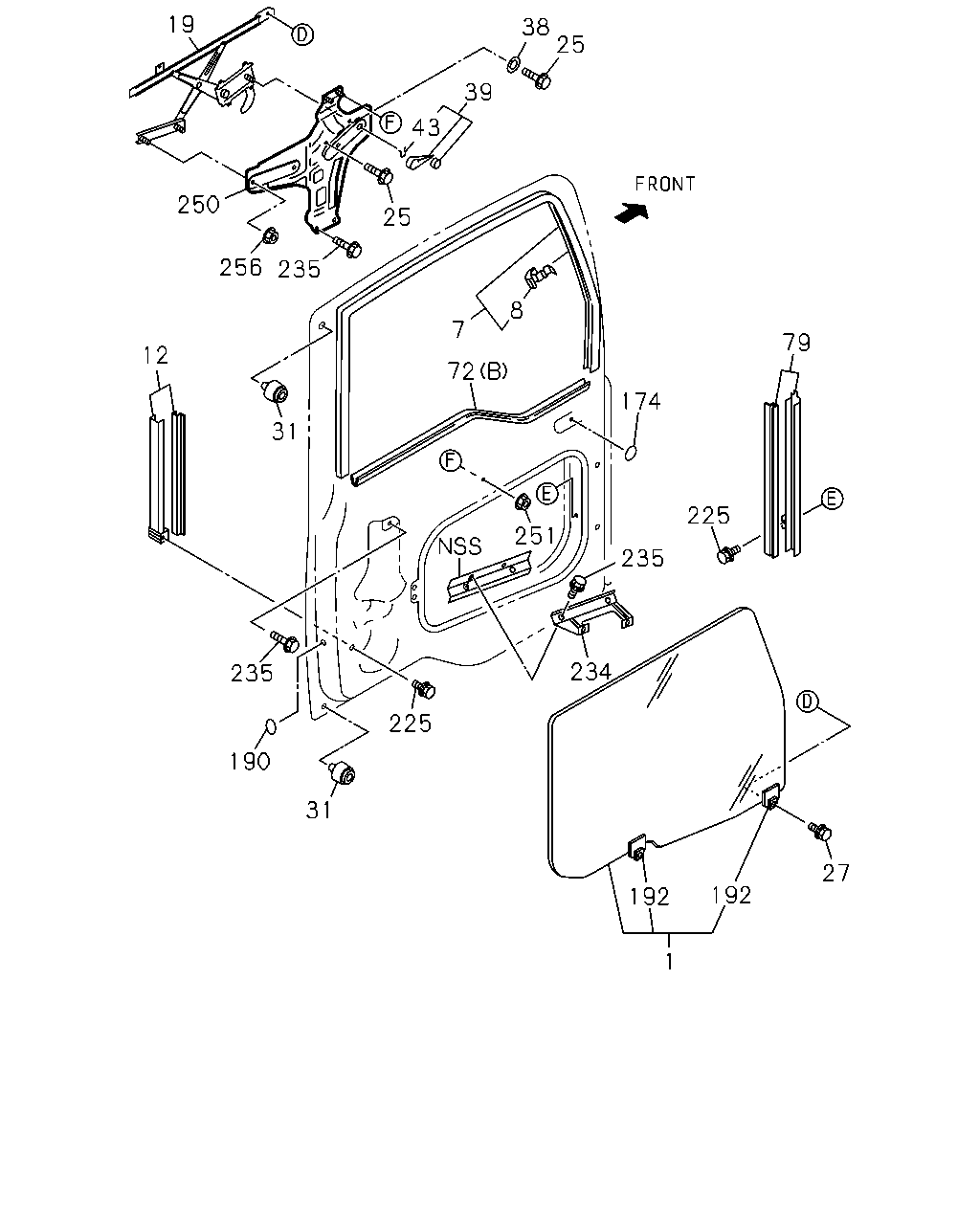

19 38 25 39 43 250 25 256 235 8 7 79 12 72 174 31 225 251 235 234 235 225 190 31 27 192 192 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76148-095-0	01	1	0005-0210	●	●
1	GLASS; FRT DOOR	1-76148-095-2	01	1	0211-	●	●	●	●
1	GLASS; FRT DOOR POWER WINDOW<A30>	1-76167-177-0	01	1	0005-0210	●	●
1	GLASS; FRT DOOR	1-76167-177-2	01	1	0211-	●	●	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76148-094-0	01	1	0005-0210	●	●	●	●
1	GLASS; FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-76167-174-0	01	1	0005-0210	●	●	●	●
7	GLASS RUN; FRT DOOR	1-74318-022-8	01	1	0005-	●	●	●	●
7	GLASS RUN; FRT DOOR	1-74318-021-8	01	1	0005-	●	●	●	●
8	CLIP; GLASS GUIDE	1-74318-029-1	02	1	0005-	●	●	●	●
12	CHANNEL; GLASS RUN,FRT	1-74338-071-3	01	1	0005-	●	●	●	●
12	CHANNEL; GLASS RUN,FRT	1-74338-070-3	01	1	0005-	●	●	●	●
19	REGULATOR; WINDOW,FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-134-4	01	1	0005-0210	●	●	●	●
19	REGULATOR; WINDOW,FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-144-4	01	1	0005-0210	●	●	●	●
25	BOLT; WINDOW REG POWER WINDOW<A30> M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0005-0210	●	●
25	BOLT; WINDOW REG M6X19.5 W/LK&PL WASHER	8-94279-201-0	10	1	0211-0405	●	●	●	●
25	BOLT; WINDOW REG M6X16 FLANGE	0-28080-616-0	10	1	0406-0512	●	●	●	●
25	BOLT; WINDOW REG M6X16 FLANGE	0-28050-616-0	10	1	0601-0710	●	●	●	●
25	BOLT; WINDOW REG M6X10 FLANGE	0-28050-610-0	10	1	0711-	●	●	●	●
25	BOLT; WINDOW REG DOOR WINDOW MANUAL CONT<SKF> M6X12 W/LK&PL WASHER	8-94279-200-0	08	1	0005-0210	●	●	●	●
27	BOLT; GLASS FIX M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0005-	●	●	●	●
31	STOPPER; RUBBER,DOOR INNER	1-09983-169-0	04	1	0005-	●	●	●	●
38	WASHER; PL,WINDOW REG DOOR WINDOW MANUAL CONT<SKF> ID=6.4 OD=14 T=1	1-09985-187-0	04	1	0005-0210	●	●	●	●
39	HANDLE; WINDOW REG,FRT DOOR DOOR WINDOW MANUAL CONT<SKF> BLACK	8-94371-427-0	02	1	0005-0210	●	●	●	●
43	CLIP; REG HANDLE,FRT DOOR DOOR WINDOW MANUAL CONT<SKF>	8-94220-591-0	02	1	0005-0210	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-089-9	01	1	0005-1207	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-040-0	01	1	1208-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	1-76738-088-9	01	1	0005-1207	●	●	●	●
72	SEAL; WAIST,FRT DOOR (A) OUTER	8-98219-039-0	01	1	1208-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-092-6	01	1	0005-	●	●	●	●
72	SEAL; WAIST,FRT DOOR (B) INNER	1-76738-091-6	01	1	0005-	●	●	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-069-3	01	1	0005-	●	●	●	●
79	CHANNEL; DOOR GLASS,FRT	1-74338-068-3	01	1	0005-	●	●	●	●
174	SEAL; LOCATION HOLE POWER WINDOW<A30> OD=25 BLACK	1-76798-019-0	14	1	0005-0210	●	●
174	SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	14	1	0211-0212	●	●	●	●
174	SEAL; LOCATION HOLE OD=25 BLACK	1-76798-019-0	16	1	0301-	●	●	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=25 BLACK	1-76798-019-0	20	1	0005-0210	●	●	●	●
174	SEAL; LOCATION HOLE DOOR WINDOW MANUAL CONT<SKF> OD=52 BLACK	1-76798-041-0	06	1	0005-0210	●	●	●	●
190	REFLECTOR; FRT DOOR INNER	5-76777-060-1	01	1	0005-	●	●	●	●
192	HOLDER; DOOR GLASS	1-74427-170-0	04	1	0005-	●	●	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28080-610-0	04	1	0005-0512	●	●	●	●
225	BOLT; FRT CHANNEL M6X10 FLANGE	0-28050-610-0	04	1	0601-	●	●	●	●
234	BRACKET; OK WINDOW	1-74998-057-4	01	1	0005-	●	●	●	●
234	BRACKET; OK WINDOW	1-74998-062-4	01	1	0005-	●	●	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-0210	●	●	●	●
235	BOLT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0005-0210	●	●	●	●
235	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	08	1	0211-	●	●	●	●
250	BRACKET; REGULATOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-149-0	01	1	0005-0210	●	●	●	●
250	BRACKET; REGULATOR DOOR WINDOW MANUAL CONT<SKF>	1-74418-148-0	01	1	0005-0210	●	●	●	●
251	NUT; BRKT DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE	1-09984-141-0	04	1	0005-0210	●	●	●	●
256	NUT DOOR WINDOW MANUAL CONT<SKF> M6 FLANGE W/RUBBER	1-09984-180-0	04	1	0005-0210	●	●	●	●
