Sayfa 0-50 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-50 - OIL COOLER AND OIL FILTER ▶

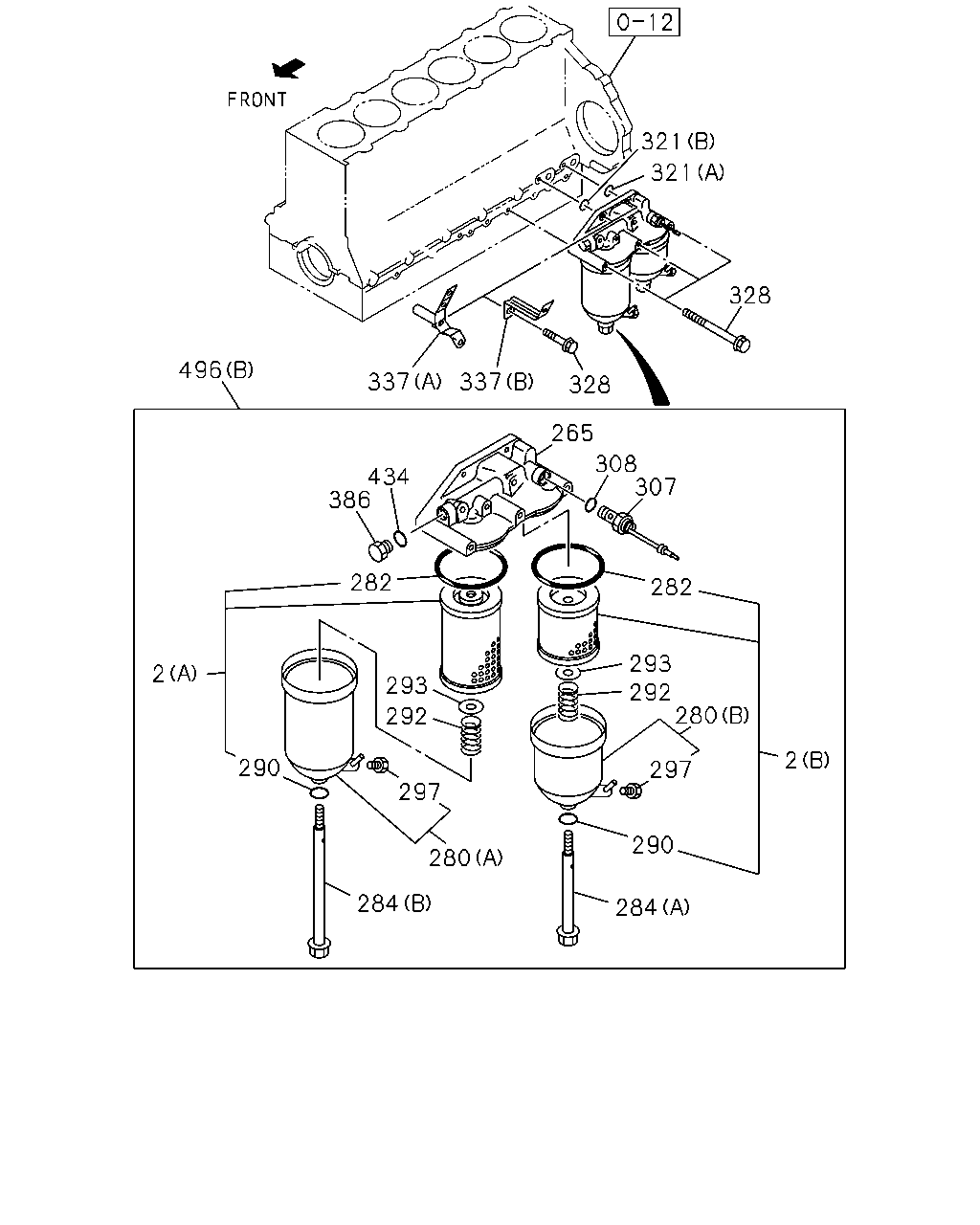

0-50 — OIL COOLER AND OIL FILTER (#874) — 123 parça

496 307 308 265 328 337 328 2 321 321 321

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9202-9210	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-13240-132-0	01	1	9211-	●	●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9202-9210	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-87810-372-1	01	1	9211-	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-501-0	01	1	9211-9302	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-375-4	01	1	9303-	●	●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9202-9210	●	●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-503-0	01	1	9211-	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-373-0	01	1	9211-9403	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94394-527-0	01	1	9404-	●	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9202-9210	●	●
307	VALVE; OVERFLOW EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13260-066-1	01	1	9211-	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-374-0	01	1	9211-	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9202-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9202-9203	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9204-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9202-	●	●
328	BOLT; OIL FILTER M10X140 FLANGE	8-94373-016-1	01	1	9202-	●
328	BOLT; OIL FILTER M10X120	8-94396-689-0	01	1	9202-	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	01	1	9202-	●	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	02	1	9202-9210	●	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> M10X135	8-94397-139-1	02	1	9211-	●	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	01	1	9202-	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2> M10X90	0-28181-090-0	02	1	9211-	●	●
337	BRACKET; FUEL PIPE (A)	8-94393-088-1	01	1	9202-	●
337	BRACKET; FUEL PIPE (B)	8-94399-726-0	01	1	9202-9210	●	●
337	BRACKET; FUEL PIPE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94399-726-0	01	1	9211-	●	●
496	FILTER ASM; OIL (B)	8-94393-427-0	01	1	9202-9210	●	●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	8-94393-427-1	01	1	9211-	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	8-94393-450-0	01	1	9211-9403	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	8-94396-315-3	01	1	9404-	●	●

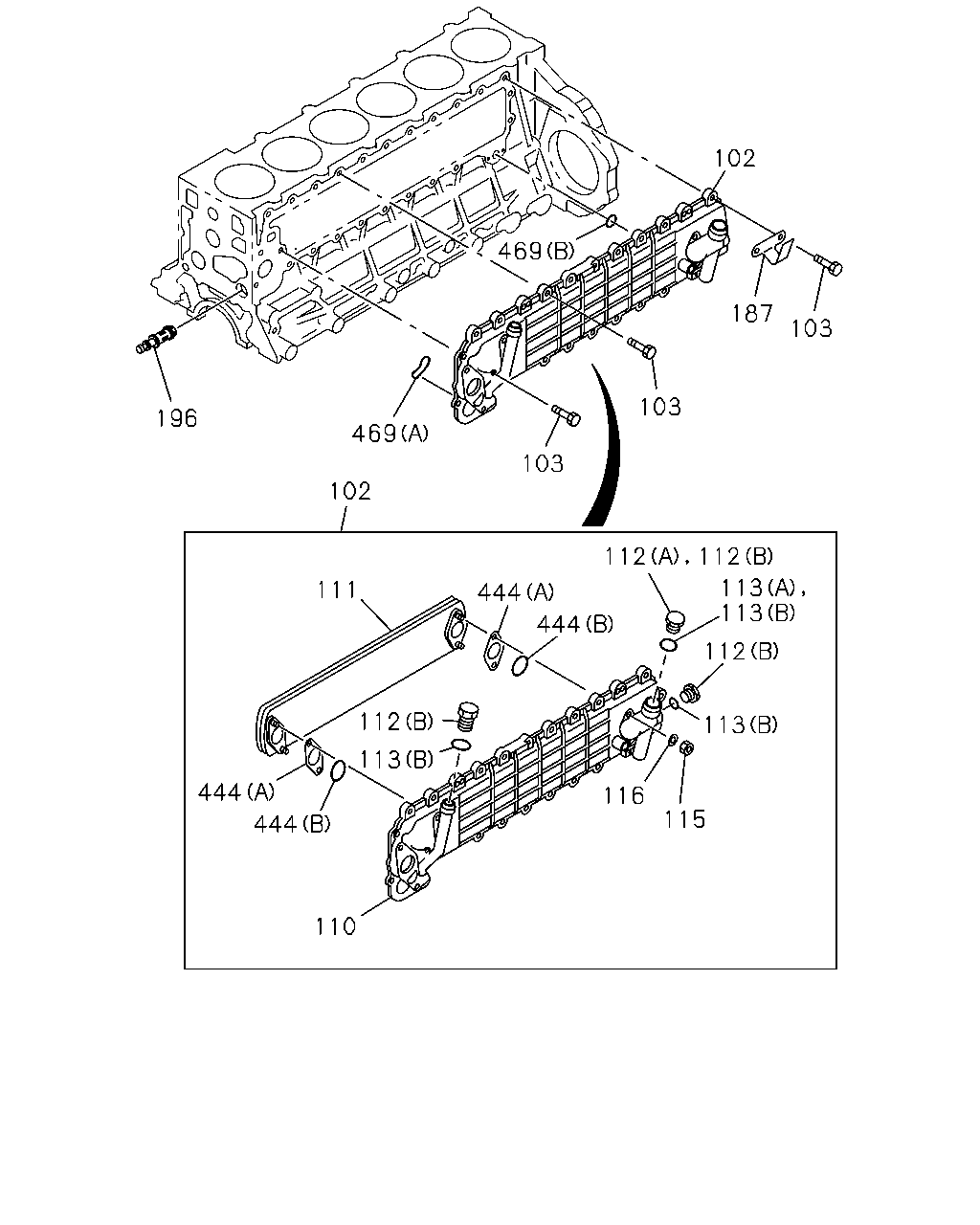

102 469 187 103 103 196 469 103 102 112 112 113 113 111 444 444 112 112 113 113 444 116 115 444 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94397-459-3	01	1	9202-9307	●
102	COOLER ASM; OIL AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94393-320-1	01	1	9308-	●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94397-458-3	01	1	9202-9307	●
102	COOLER ASM; OIL	8-94397-458-3	01	1	9202-9307		●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-405-4	01	1	9308-9312	●
102	COOLER ASM; OIL	8-94396-405-4	01	1	9308-9312		●
102	COOLER ASM; OIL EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THERMOSTAT VAR1<Q1U>	8-94396-405-4	01	1	9401-	●
102	COOLER ASM; OIL	8-94396-405-4	01	1	9401-		●
102	COOLER ASM; OIL THERMOSTAT VAR 1<Q1U>	8-94393-750-3	01	1	9401-	●
103	BOLT; OIL COOLER M8X22 FLANGE	0-28080-822-0	25	1	9202-	●	●
103	BOLT; OIL COOLER M8X35 FLANGE	0-28080-835-0	02	1	9202-	●	●
110	BODY; CASE,OIL COOLER AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-714-2	01	1	9202-	●
110	BODY; CASE,OIL COOLER EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),THERMOSTAT VAR1<Q1U>	8-94396-713-2	01	1	9202-	●
110	BODY; CASE,OIL COOLER	8-94396-713-2	01	1	9202-		●
110	BODY; CASE,OIL COOLER THERMOSTAT VAR 1<Q1U>	8-94393-606-3	01	1	9401-	●
111	CORE; OIL COOLER THERMOSTAT VAR 1<Q1U>	8-94393-773-0	01	1	9401-	●
111	CORE; OIL COOLER	8-94396-715-0	01	1	9202-9307	●	●
111	CORE; OIL COOLER	8-94396-716-0	01	1	9308-9312	●	●
111	CORE; OIL COOLER EXC. THERMOSTAT VAR 1<Q1U>	8-94396-716-0	01	1	9401-	●
111	CORE; OIL COOLER	8-94396-716-0	01	1	9401-		●
112	PLUG; OIL COOLER CASE THERMOSTAT VAR 1<Q1U> (A)	8-94393-604-0	01	1	9401-	●
112	PLUG; OIL COOLER CASE EXC. THERMOSTAT VAR 1<Q1U> (B)	8-94396-753-0	03	1	9401-	●
112	PLUG; OIL COOLER CASE (B)	8-94396-753-0	03	1	9401-		●
112	PLUG; OIL COOLER CASE (B)	8-94396-753-0	03	1	9202-9312	●	●
112	PLUG; OIL COOLER CASE THERMOSTAT VAR 1<Q1U> (B)	8-94396-753-0	02	1	9401-	●
113	GASKET; PLUG,OIL COOLER CASE THERMOSTAT VAR 1<Q1U> (A)	1-09623-499-0	01	1	9401-	●
113	GASKET; PLUG,OIL COOLER CASE EXC. THERMOSTAT VAR 1<Q1U> (B) M24	8-94396-755-0	03	1	9401-	●
113	GASKET; PLUG,OIL COOLER CASE (B) M24	8-94396-755-0	03	1	9401-		●
113	GASKET; PLUG,OIL COOLER CASE (B) M24	8-94396-755-0	03	1	9202-9312	●	●
113	GASKET; PLUG,OIL COOLER CASE THERMOSTAT VAR 1<Q1U> (B) M24	8-94396-755-0	02	1	9401-	●
115	NUT; ELEMENT M10	9-09111-410-0	04	1	9202-	●	●
116	WASHER; PL,ELEMENT ID=10.5	9-09164-510-0	04	1	9202-	●	●
187	CLIP; PIPE TO PIPE	8-94396-688-1	01	1	9202-	●	●
196	THERMOSTAT; OIL COOLER 90?C	8-94393-347-2	01	1	9202-9412	●	●
196	THERMOSTAT; OIL COOLER 90?C	8-94394-815-2	01	1	9501-	●	●
444	GASKET; ELEMENT TO BODY (A)	8-94396-754-0	02	1	9202-	●	●
444	GASKET; ELEMENT TO BODY (B)	8-94396-810-0	02	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94399-002-0	01	1	9202-	●	●
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=25.7	8-94399-279-0	01	1	9202-	●	●

321 321 328 496 337 337 328 265 308 307 434 386 282 282 293 292 280 2 293 292 2 290 297 297 290 280 284 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	ELEMENT; OIL FILTER (A)	1-13240-132-0	01	1	9202-9210	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-13240-132-0	01	1	9211-	●	●
2	ELEMENT; OIL FILTER (B)	1-87810-372-1	01	1	9202-9210	●	●
2	ELEMENT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-87810-372-1	01	1	9211-	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-501-0	01	1	9211-9302	●	●
2	ELEMENT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-375-4	01	1	9303-	●	●
265	BODY; OIL FILTER	8-94393-503-0	01	1	9202-9210	●	●
265	BODY; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94393-503-0	01	1	9211-	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-373-0	01	1	9211-9403	●	●
265	BODY; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94394-527-0	01	1	9404-	●	●
280	CASE ASM; OIL FILTER (B)	8-94393-504-0	01	1	9202-9210	●	●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	8-94393-504-1	01	1	9211-	●	●
280	CASE ASM; OIL FILTER (A)	8-94393-505-0	01	1	9202-9210	●	●
280	CASE ASM; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	8-94393-505-1	01	1	9211-	●	●
282	GASKET; BODY TO CASE	9-09920-311-0	02	1	9202-9210	●	●
282	GASKET; BODY TO CASE EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09920-311-0	02	1	9211-	●	●
284	BOLT; CENTER,OIL FILTER (A)	1-13231-069-0	01	1	9202-9210	●	●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	1-13231-069-0	01	1	9211-	●	●
284	BOLT; CENTER,OIL FILTER (B)	1-13231-070-1	01	1	9202-9210	●	●
284	BOLT; CENTER,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	1-13231-070-1	01	1	9211-	●	●
290	GASKET; PLUG,OIL DRAIN ID=15.5	9-09920-694-0	02	1	9202-9210	●	●
290	GASKET; PLUG,OIL DRAIN EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> ID=15.5	9-09920-694-0	02	1	9211-	●	●
292	SPRING; ELEMENT	9-09941-283-0	02	1	9202-9210	●	●
292	SPRING; ELEMENT EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09941-283-0	02	1	9211-	●	●
293	SEAT; SPR	9-13239-025-0	02	1	9202-9210	●	●
293	SEAT; SPR EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-13239-025-0	02	1	9211-	●	●
297	PLUG; COVER	1-13219-275-0	02	1	9202-9210	●	●
297	PLUG; COVER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13219-275-0	02	1	9211-	●	●
307	VALVE; OVERFLOW	1-13260-066-1	01	1	9202-9210	●	●
307	VALVE; OVERFLOW EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	1-13260-066-1	01	1	9211-	●	●
307	VALVE; OVERFLOW PARTIAL OIL FILTER CARTRIDGE<KC2>	8-94396-374-0	01	1	9211-	●	●
308	GASKET; VLV,OVERFLOW ID=15.8	1-09623-163-0	01	1	9202-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	02	1	9202-9203	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	9204-	●	●
321	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=22.1	8-94399-399-0	02	1	9202-	●	●
328	BOLT; OIL FILTER M10X140 FLANGE	8-94373-016-1	01	1	9202-	●
328	BOLT; OIL FILTER M10X120	8-94396-689-0	01	1	9202-	●
328	BOLT; OIL FILTER M10X30 FLANGE	0-28181-030-0	01	1	9202-	●	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	02	1	9202-9210	●	●
328	BOLT; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> M10X135	8-94397-139-1	02	1	9211-	●	●
328	BOLT; OIL FILTER M10X135	8-94397-139-1	01	1	9202-	●	●
328	BOLT; OIL FILTER PARTIAL OIL FILTER CARTRIDGE<KC2> M10X90	0-28181-090-0	02	1	9211-	●	●
337	BRACKET; FUEL PIPE (A)	8-94393-088-1	01	1	9202-	●
337	BRACKET; FUEL PIPE (B)	8-94399-726-0	01	1	9202-9210	●	●
337	BRACKET; FUEL PIPE EXC. ENGINE OIL LEVEL GAUGE WIDE NECK<WY9> (B)	8-94399-726-0	01	1	9211-	●	●
386	PLUG; OIL FILTER M16X9	9-13226-011-0	01	1	9202-9210	●	●
386	PLUG; OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> M16X9	9-13226-011-0	01	1	9211-	●	●
434	GASKET; PLUG,OIL FILTER	9-09920-526-0	01	1	9202-9210	●	●
434	GASKET; PLUG,OIL FILTER EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>	9-09920-526-0	01	1	9211-	●	●
496	FILTER ASM; OIL (B)	8-94393-427-0	01	1	9202-9210	●	●
496	FILTER ASM; OIL EXC. PARTIAL OIL FILTER CARTRIDGE<KC2> (B)	8-94393-427-1	01	1	9211-	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	8-94393-450-0	01	1	9211-9403	●	●
496	FILTER ASM; OIL PARTIAL OIL FILTER CARTRIDGE<KC2> (A)	8-94396-315-3	01	1	9404-	●	●
