Sayfa 5-30 - Isuzu EPC

5-30 — SPARE TIRE CARRIER AND COVER (#8732) — 244 parça

1 21 5 9 10 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0005-0005	●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (A)	1-53630-219-0	01	1	0005-0005		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0005-0005			●
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0006-0203	●		●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (A)	1-53630-219-0	01	1	0006-0203		●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0005-0203		●
1	HANGER ASM; TIRE FT (B)	1-53630-210-1	01	1	0204-0210	●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0204-0210		●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (B)	1-53630-210-1	01	1	0204-0210		●
1	HANGER ASM; TIRE FT EXC. A/T<X9D> (B)	1-53630-210-1	01	1	0204-0210			●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0211-0302	●	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0211-0302			●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0303-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0303-		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0303-			●
5	BOLT; BRKT TO FRAME TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28081-035-0	08	1	0409-0512		●
5	BOLT; BRKT TO FRAME TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28051-035-0	08	1	0601-		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0005-0005	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0005-0005		●	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0006-0210	●		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0006-0210		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0211-0302	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0211-0302			●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0303-0512	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0303-0512		●	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28051-245-0	06	1	0601-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	0601-		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0303-0408		●
5	BOLT; BRKT TO FRAME TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0409-0512		●
5	BOLT; BRKT TO FRAME TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0601-		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0005-0005	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0005-0005		●	●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0006-0006	●		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0006-0006		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0007-0210	●		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0211-0302	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0211-0302			●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0303-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0303-0512		●	●
9	NUT; BRKT TO FRAME M12	0-91110-512-0	06	1	0601-	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	0601-		●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0005-0210		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0303-0602		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0603-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	0007-0210		●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28681-230-0	04	1	0005-0012	●	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0101-0210	●		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0211-0302	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0211-0302			●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0303-0512	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0303-0512		●	●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28051-225-0	04	1	0601-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28051-225-0	04	1	0601-		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0303-0512		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0601-		●
21	BRACKET; SPARE TIRE HANGER TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-395-1	02	1	0409-		●
21	BRACKET; SPARE TIRE HANGER	1-53631-390-0	01	1	0005-0005	●
21	BRACKET; SPARE TIRE HANGER 6SD1 TCN ENG(31L)	1-53631-390-0	01	1	0005-0005		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-390-0	01	1	0005-0005			●
21	BRACKET; SPARE TIRE HANGER	1-53631-390-0	01	1	0006-0203	●		●
21	BRACKET; SPARE TIRE HANGER 6SD1 TCN ENG(31L)	1-53631-390-0	01	1	0006-0203		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-394-0	02	1	0005-0210		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-394-0	02	1	0303-0408		●
21	BRACKET; SPARE TIRE HANGER TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-394-0	02	1	0409-		●

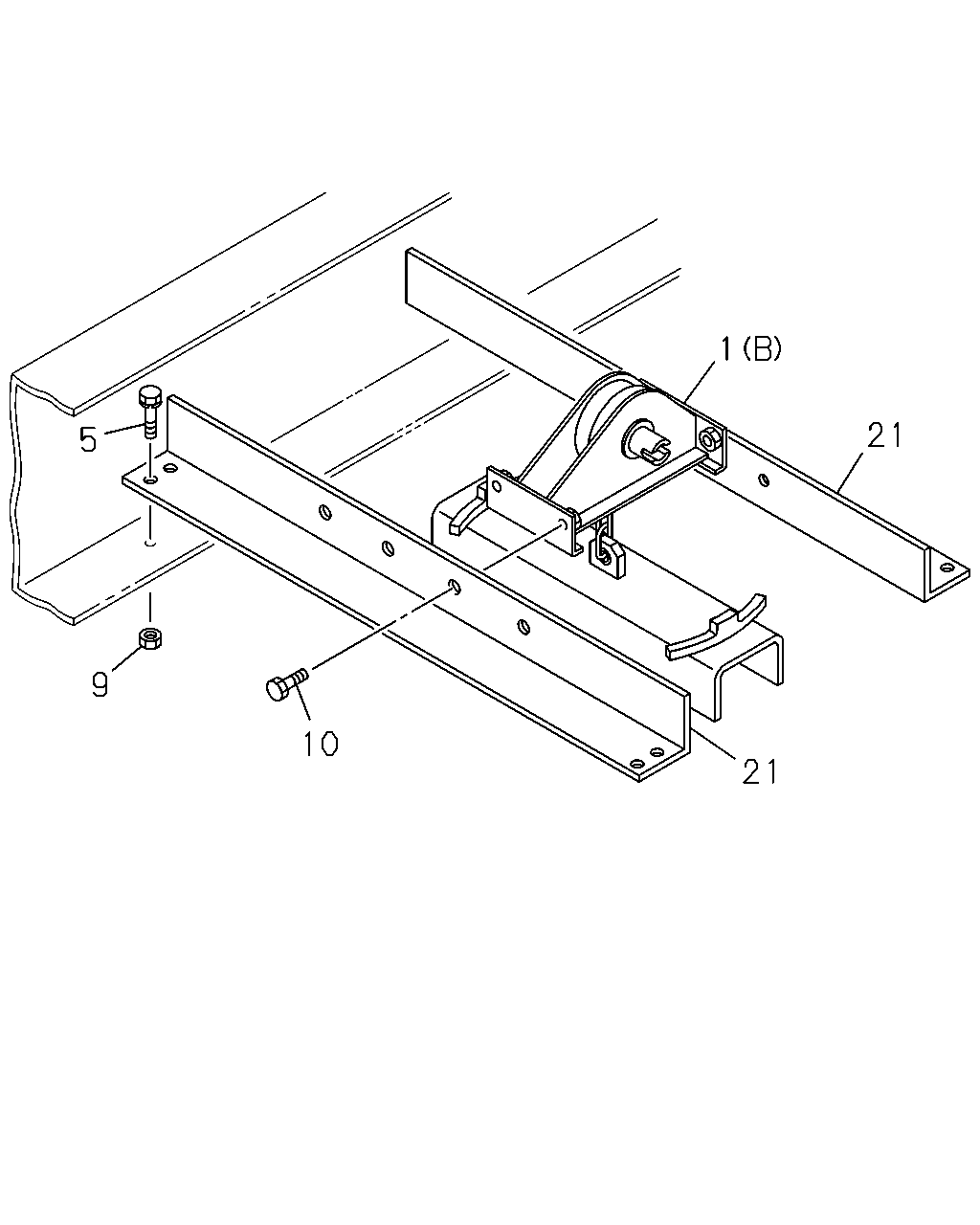

5 21 9 10 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0005-0005	●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (A)	1-53630-219-0	01	1	0005-0005		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0005-0005			●
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0006-0203	●		●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (A)	1-53630-219-0	01	1	0006-0203		●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0005-0203		●
1	HANGER ASM; TIRE FT (B)	1-53630-210-1	01	1	0204-0210	●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0204-0210		●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (B)	1-53630-210-1	01	1	0204-0210		●
1	HANGER ASM; TIRE FT EXC. A/T<X9D> (B)	1-53630-210-1	01	1	0204-0210			●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0211-0302	●	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0211-0302			●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0303-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0303-		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0303-			●
5	BOLT; BRKT TO FRAME TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28081-035-0	08	1	0409-0512		●
5	BOLT; BRKT TO FRAME TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28051-035-0	08	1	0601-		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0005-0005	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0005-0005		●	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0006-0210	●		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0006-0210		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0211-0302	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0211-0302			●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0303-0512	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0303-0512		●	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28051-245-0	06	1	0601-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	0601-		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0303-0408		●
5	BOLT; BRKT TO FRAME TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0409-0512		●
5	BOLT; BRKT TO FRAME TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0601-		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0005-0005	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0005-0005		●	●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0006-0006	●		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0006-0006		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0007-0210	●		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0211-0302	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0211-0302			●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0303-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0303-0512		●	●
9	NUT; BRKT TO FRAME M12	0-91110-512-0	06	1	0601-	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	0601-		●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0005-0210		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0303-0602		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0603-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	0007-0210		●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28681-230-0	04	1	0005-0012	●	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0101-0210	●		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0211-0302	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0211-0302			●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0303-0512	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0303-0512		●	●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28051-225-0	04	1	0601-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28051-225-0	04	1	0601-		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0303-0512		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0601-		●
21	BRACKET; SPARE TIRE HANGER TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-395-1	02	1	0409-		●
21	BRACKET; SPARE TIRE HANGER	1-53631-390-0	01	1	0005-0005	●
21	BRACKET; SPARE TIRE HANGER 6SD1 TCN ENG(31L)	1-53631-390-0	01	1	0005-0005		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13>	1-53631-390-0	01	1	0005-0005			●
21	BRACKET; SPARE TIRE HANGER	1-53631-390-0	01	1	0006-0203	●		●
21	BRACKET; SPARE TIRE HANGER 6SD1 TCN ENG(31L)	1-53631-390-0	01	1	0006-0203		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-394-0	02	1	0005-0210		●
21	BRACKET; SPARE TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-394-0	02	1	0303-0408		●
21	BRACKET; SPARE TIRE HANGER TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10>	1-53631-394-0	02	1	0409-		●

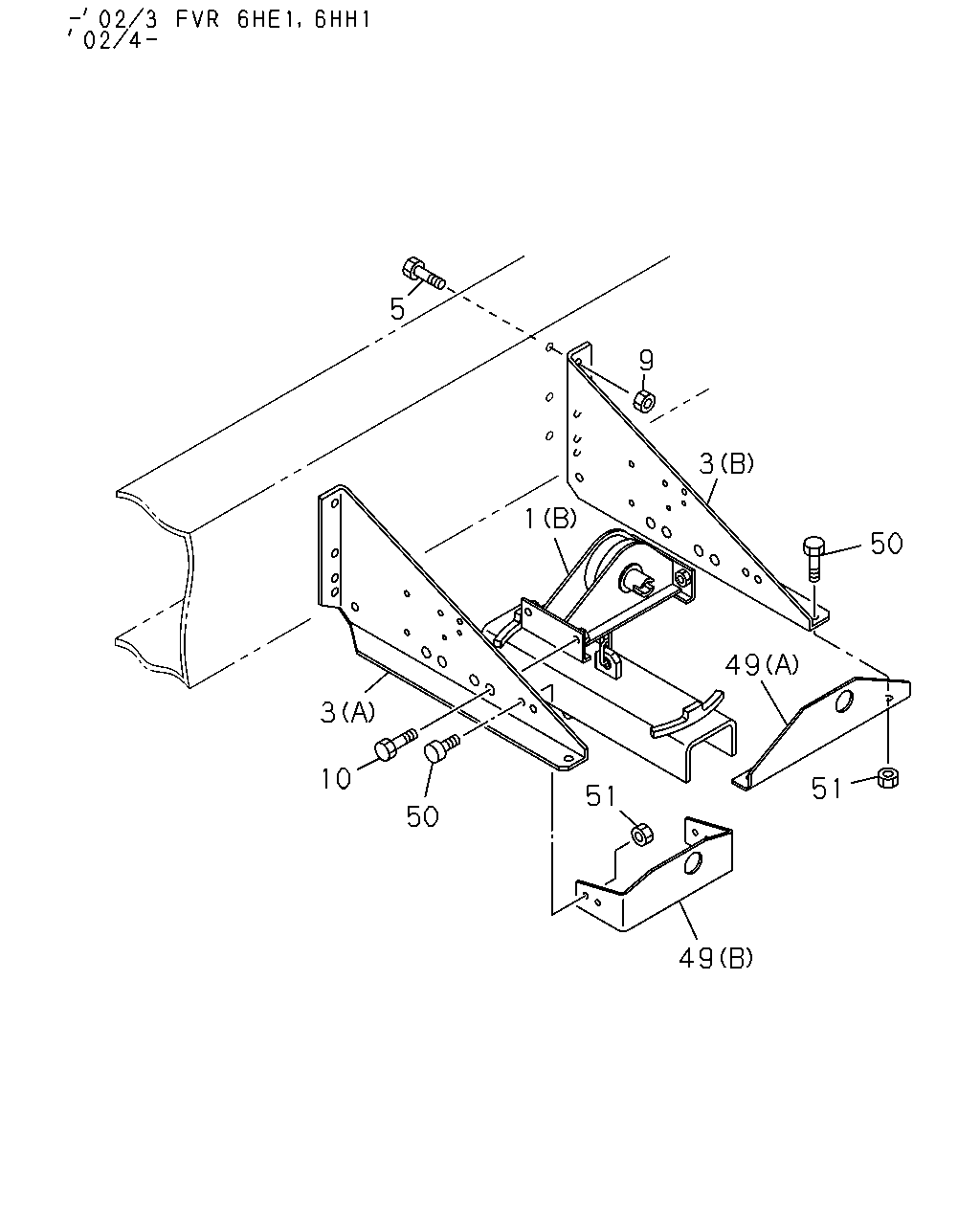

5 9 3 1 50 49 3 10 51 51 50 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0005-0005	●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (A)	1-53630-219-0	01	1	0005-0005		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53630-219-0	01	1	0005-0005			●
1	HANGER ASM; TIRE FT (A)	1-53630-219-0	01	1	0006-0203	●		●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (A)	1-53630-219-0	01	1	0006-0203		●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0005-0203		●
1	HANGER ASM; TIRE FT (B)	1-53630-210-1	01	1	0204-0210	●
1	HANGER ASM; TIRE FT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-1	01	1	0204-0210		●
1	HANGER ASM; TIRE FT 6SD1 TCN ENG(31L) (B)	1-53630-210-1	01	1	0204-0210		●
1	HANGER ASM; TIRE FT EXC. A/T<X9D> (B)	1-53630-210-1	01	1	0204-0210			●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0211-0302	●	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0211-0302			●
1	HANGER ASM; TIRE FT (B)	1-53630-210-4	01	1	0303-	●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0303-		●
1	HANGER ASM; TIRE FT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53630-210-4	01	1	0303-			●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-391-0	01	1	0005-0203		●
3	BRACKET; TIRE CARRIER,FRT (A)	1-53631-391-0	01	1	0204-0210	●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-391-0	01	1	0204-0210		●
3	BRACKET; TIRE CARRIER,FRT 6SD1 TCN ENG(31L) (A)	1-53631-391-0	01	1	0204-0210		●
3	BRACKET; TIRE CARRIER,FRT EXC. A/T<X9D> (A)	1-53631-391-0	01	1	0204-0210			●
3	BRACKET; TIRE CARRIER,FRT (A)	1-53631-391-0	01	1	0211-0302	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-391-0	01	1	0211-0302			●
3	BRACKET; TIRE CARRIER,FRT (A)	1-53631-391-0	01	1	0303-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-391-0	01	1	0303-		●	●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-392-0	01	1	0005-0203		●
3	BRACKET; TIRE CARRIER,FRT (B)	1-53631-392-0	01	1	0204-0210	●
3	BRACKET; TIRE CARRIER,FRT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-392-0	01	1	0204-0210		●
3	BRACKET; TIRE CARRIER,FRT 6SD1 TCN ENG(31L) (B)	1-53631-392-0	01	1	0204-0210		●
3	BRACKET; TIRE CARRIER,FRT EXC. A/T<X9D> (B)	1-53631-392-0	01	1	0204-0210			●
3	BRACKET; TIRE CARRIER,FRT (B)	1-53631-392-0	01	1	0211-0302	●	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-392-0	01	1	0211-0302			●
3	BRACKET; TIRE CARRIER,FRT (B)	1-53631-392-0	01	1	0303-	●
3	BRACKET; TIRE CARRIER,FRT SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-392-0	01	1	0303-		●	●
5	BOLT; BRKT TO FRAME TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28081-035-0	08	1	0409-0512		●
5	BOLT; BRKT TO FRAME TIRE FRT 295/80R22.5 RR 11R22.5-16 AUSTRALIA(97N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X35 FLANGE	0-28051-035-0	08	1	0601-		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0005-0005	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0005-0005		●	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0006-0210	●		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0006-0210		●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0211-0302	●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0211-0302			●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28081-245-0	06	1	0303-0512	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28081-245-0	06	1	0303-0512		●	●
5	BOLT; BRKT TO FRAME M12X45 FLANGE	0-28051-245-0	06	1	0601-	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12X45 FLANGE	0-28051-245-0	06	1	0601-		●	●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0005-0210		●
5	BOLT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0303-0408		●
5	BOLT; BRKT TO FRAME TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28081-025-0	08	1	0409-0512		●
5	BOLT; BRKT TO FRAME TIRE 275/70R22.5 SPECIAL AUSTRALIA(84N),TIRE 11R22.5-16 SPECIAL AUSTRALIA(85N) SPARE WHEEL CARRIER FRAME REAR<P10> M10X25 FLANGE	0-28051-025-0	08	1	0601-		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0005-0005	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0005-0005		●	●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0006-0006	●		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0006-0006		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0007-0210	●		●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0211-0302	●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0211-0302			●
9	NUT; BRKT TO FRAME M12	9-99110-512-0	06	1	0303-0512	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	06	1	0303-0512		●	●
9	NUT; BRKT TO FRAME M12	0-91110-512-0	06	1	0601-	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	0-91110-512-0	06	1	0601-		●	●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0005-0210		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91150-210-0	08	1	0303-0602		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME REAR<P10> M10 FLANGE	0-91180-210-0	08	1	0603-		●
9	NUT; BRKT TO FRAME SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	03	1	0007-0210		●
10	BOLT; TIRE HANGER M12X30 FLANGE	0-28681-230-0	04	1	0005-0012	●	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0101-0210	●		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0101-0210		●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0211-0302	●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0211-0302			●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28081-225-0	04	1	0303-0512	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28081-225-0	04	1	0303-0512		●	●
10	BOLT; TIRE HANGER M12X25 FLANGE	0-28051-225-0	04	1	0601-	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME SIDE<P13> M12X25 FLANGE	0-28051-225-0	04	1	0601-		●	●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28681-230-0	04	1	0303-0512		●
10	BOLT; TIRE HANGER SPARE WHEEL CARRIER FRAME REAR<P10> M12X30 FLANGE	0-28651-230-0	04	1	0601-		●
49	STAY; TIRE CARRIER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> (A)	1-53631-376-0	01	1	0005-0104		●
49	STAY; TIRE CARRIER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-466-1	01	1	0105-0203		●
49	STAY; TIRE CARRIER (B)	1-53631-466-1	01	1	0204-0210	●
49	STAY; TIRE CARRIER 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-466-1	01	1	0204-0210		●
49	STAY; TIRE CARRIER 6SD1 TCN ENG(31L) (B)	1-53631-466-1	01	1	0204-0210		●
49	STAY; TIRE CARRIER EXC. A/T<X9D> (B)	1-53631-466-1	01	1	0204-0210			●
49	STAY; TIRE CARRIER (B)	1-53631-466-1	01	1	0211-0302	●	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-466-1	01	1	0211-0302			●
49	STAY; TIRE CARRIER (B)	1-53631-466-1	01	1	0303-	●
49	STAY; TIRE CARRIER SPARE WHEEL CARRIER FRAME SIDE<P13> (B)	1-53631-466-1	01	1	0303-		●	●
50	BOLT; BRKT TO STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> M12X30 FLANGE	0-28681-230-0	02	1	0005-0104		●
50	BOLT; BRKT TO STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0105-0203		●
50	BOLT; BRKT TO STAY M8X30 FLANGE	0-28680-830-0	04	1	0204-0210	●
50	BOLT; BRKT TO STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0204-0210		●
50	BOLT; BRKT TO STAY 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	04	1	0204-0210		●
50	BOLT; BRKT TO STAY EXC. A/T<X9D> M8X30 FLANGE	0-28680-830-0	04	1	0204-0210			●
50	BOLT; BRKT TO STAY M8X30 FLANGE	0-28680-830-0	04	1	0211-0302	●	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0211-0302			●
50	BOLT; BRKT TO STAY M8X30 FLANGE	0-28680-830-0	04	1	0303-0512	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28680-830-0	04	1	0303-0512		●	●
50	BOLT; BRKT TO STAY M8X30 FLANGE	0-28650-830-0	04	1	0601-	●
50	BOLT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8X30 FLANGE	0-28650-830-0	04	1	0601-		●	●
51	NUT; BRKT TO STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> M12	9-99110-512-0	02	1	0005-0104		●
51	NUT; BRKT TO STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0105-0203		●
51	NUT; BRKT TO STAY M8	9-09110-508-0	04	1	0204-0210	●
51	NUT; BRKT TO STAY 6HE1 TC ENG(57L),6HH1 STD ENG(65L) SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0204-0210		●
51	NUT; BRKT TO STAY 6SD1 TCN ENG(31L) M8	9-09110-508-0	04	1	0204-0210		●
51	NUT; BRKT TO STAY EXC. A/T<X9D> M8	9-09110-508-0	04	1	0204-0210			●
51	NUT; BRKT TO STAY M8	9-09110-508-0	04	1	0211-0302	●	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0211-0302			●
51	NUT; BRKT TO STAY M8	9-09110-508-0	04	1	0303-0512	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	9-09110-508-0	04	1	0303-0512		●	●
51	NUT; BRKT TO STAY M8	0-91110-508-0	04	1	0601-	●
51	NUT; BRKT TO STAY SPARE WHEEL CARRIER FRAME SIDE<P13> M8	0-91110-508-0	04	1	0601-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
