◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#8731) — 25 parça

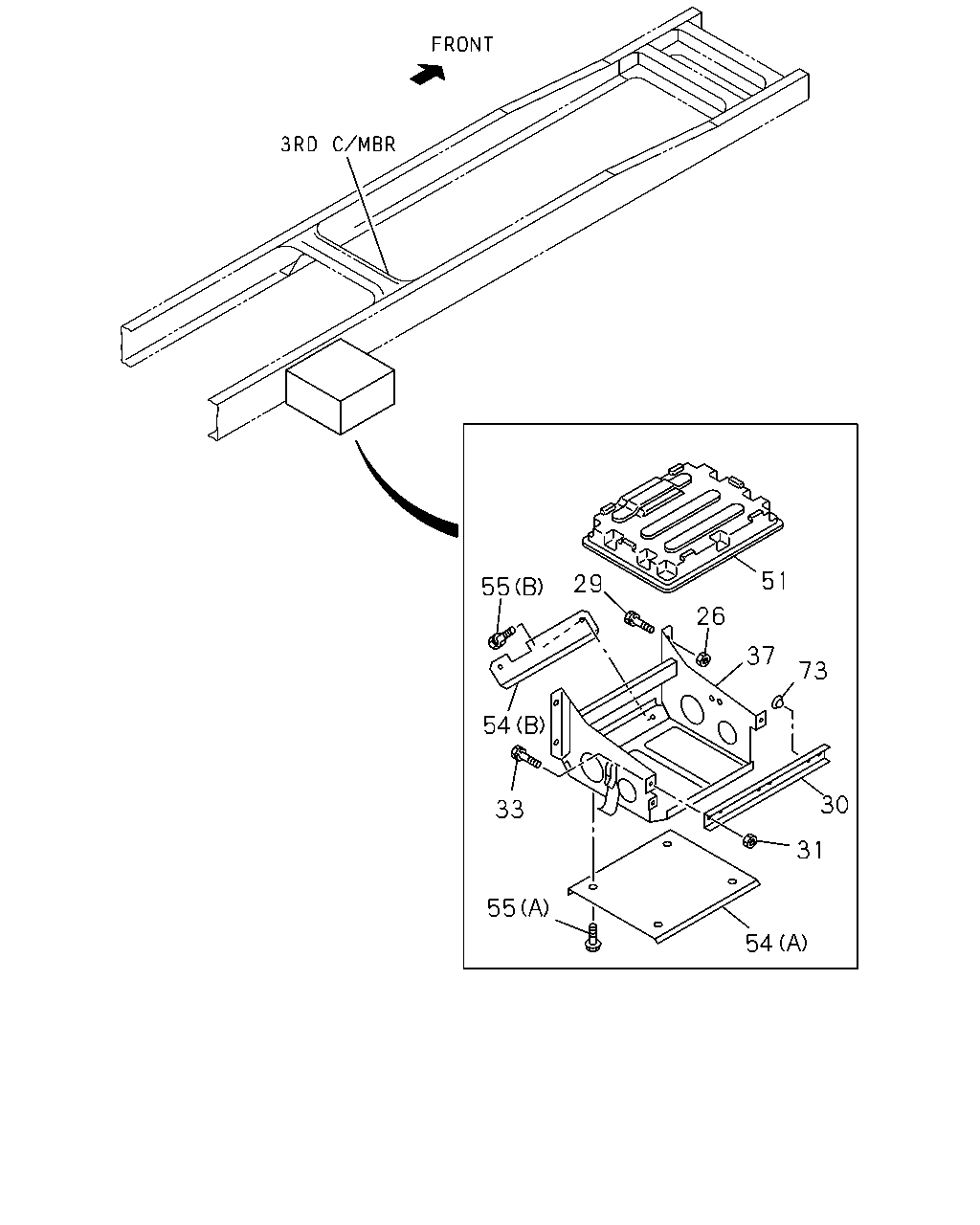

çizim 45455
51 29 55 26 37 73 54 30 33 31 55 54
BalonParca AdiParca NoAdetTipApplied Date A B C D
26 NUT; BRKT
M10 		9-09110-510-0 04 1 0005-0512 ● ● ● ●
26 NUT; BRKT
M10 		0-91110-510-0 04 1 0601- ● ● ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0512 ● ● ● ●
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ● ●
30 PLATE; BATTERY 1-53616-046-3 01 1 0005- ● ● ● ●
31 NUT; PLATE
M8 		9-09110-408-0 02 1 0005-0512 ● ● ● ●
31 NUT; PLATE
M8 		0-91110-508-0 02 1 0601- ● ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0512 ● ● ● ●
33 BOLT; PLATE TO BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ● ● ●
37 BRACKET; BATTERY 1-53613-407-0 01 1 0005- ● ● ●
37 BRACKET; BATTERY 1-53613-354-3 01 1 0005-0210 ●
37 BRACKET; BATTERY 1-53613-354-3 01 1 0211- ●
51 COVER; BATTERY 1-53612-019-1 01 1 0005- ● ● ● ●
54 PROTECTOR; HEAT,BATTERY
(A) 		1-53619-083-3 01 1 0005- ● ● ●
54 PROTECTOR; HEAT,BATTERY
(B) 		1-53619-069-1 01 1 0005-0006 ●
54 PROTECTOR; HEAT,BATTERY
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) 		1-53619-069-1 01 1 0007-0007 ●
54 PROTECTOR; HEAT,BATTERY
6HE1 TC ENG(57L) (B) 		1-53619-069-1 01 1 0008-0210 ●
54 PROTECTOR; HEAT,BATTERY
WHEEL BASE 4200MM(42W) (B) 		1-53619-069-1 01 1 0303- ●
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28680-820-0 04 1 0005-0512 ● ● ●
55 BOLT; HEAT PROTECTOR
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601- ● ● ●
55 BOLT; HEAT PROTECTOR
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0006 ●
55 BOLT; HEAT PROTECTOR
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0007-0210 ●
55 BOLT; HEAT PROTECTOR
WHEEL BASE 4200MM(42W) (B) M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ●
55 BOLT; HEAT PROTECTOR
WHEEL BASE 4200MM(42W) (B) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
73 RUBBER; CUSHION,PLATE 1-09337-002-0 04 1 0005- ● ● ● ●
