◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-65 - REAR LEAF SPRING ▶
4-65 — REAR LEAF SPRING (#8726) — 312 parça

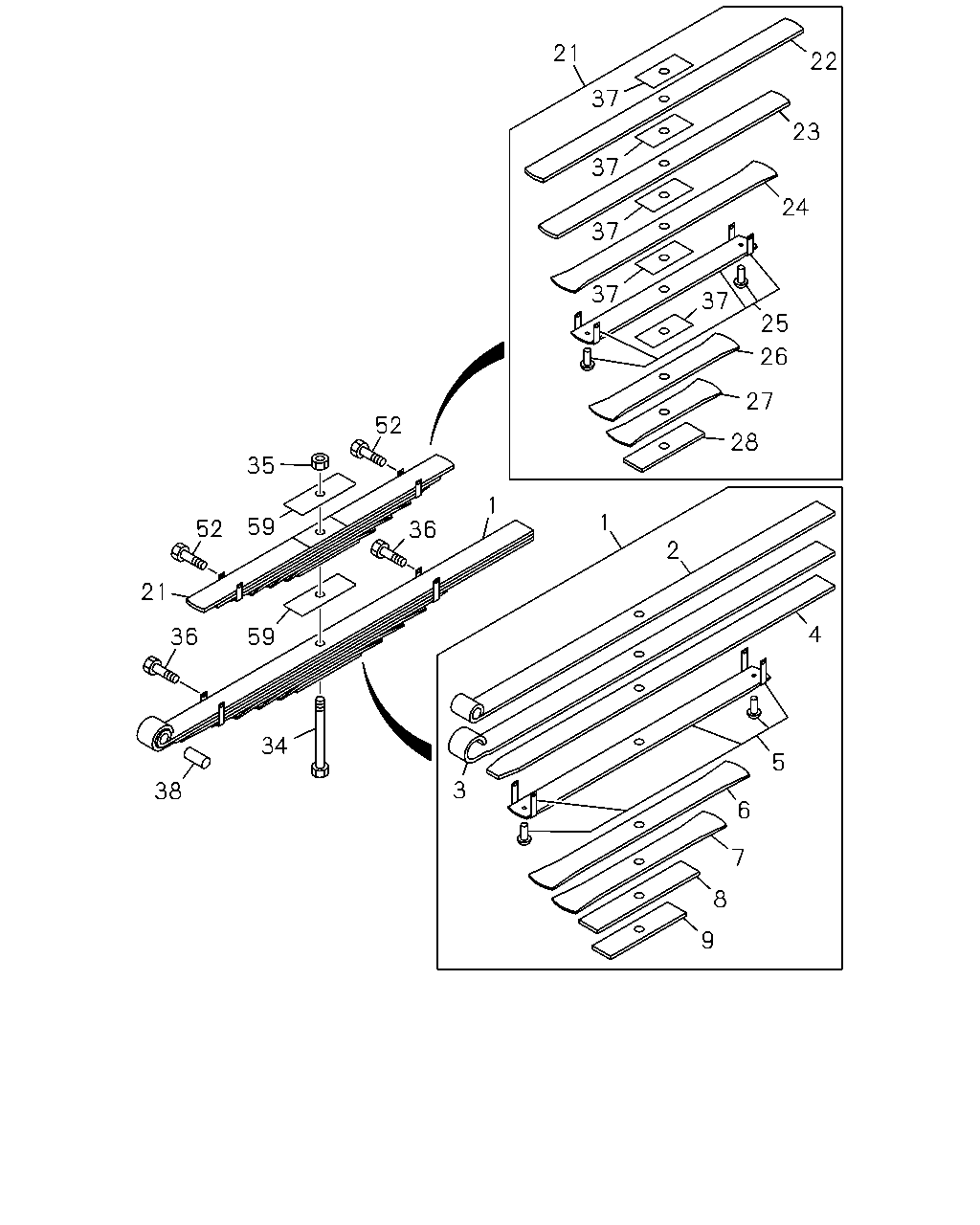

çizim 43670
21 22 37 23 37 24 37 37 37 25 26 27 52 28 35 1 1 59 52 36 2 21 4 36 59 34 5 3 38 6 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51310-721-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51410-168-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51311-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51311-729-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51311-880-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51311-952-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51411-168-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51312-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51312-729-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51312-880-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51312-952-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51412-168-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51313-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51313-729-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51313-880-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51313-952-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51413-168-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51314-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51314-729-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51314-880-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51314-952-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-560-0 		1-51414-168-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: A = 1-51300-532-0 		1-51315-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51315-729-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
8 LEAF, W/CLIP ASM PART: D = 1-51310-880-0 		1-51315-880-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10 LEAF, W/CLIP ASM PART: E = 1-51310-952-0 		1-51315-952-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51415-168-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51316-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11 LEAF, W/CLIP ASM PART: C = 1-51310-729-1 		1-51316-729-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51316-880-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51316-952-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51416-168-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51317-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51317-729-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51317-880-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51317-952-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51417-168-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51318-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51318-729-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51318-880-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51318-952-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51418-168-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51340-450-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51340-647-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51341-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51341-647-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51342-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51342-647-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51343-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51343-647-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF, W/CLIP ASM PART: A = 1-51300-532-0 		1-51344-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: B = 1-51300-560-0 		1-51344-647-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51345-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51345-647-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51346-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51346-647-0 01 1 -
28 SPRING; LEAF,NO 7,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51347-647-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: B = 1-51300-560-0 		1-51356-129-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-532-0 		1-51356-146-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: C = 1-51310-729-1 		1-51356-236-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: E = 1-51310-952-0 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-880-0 		1-51356-284-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0, E = 1-51310-952-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: D = 1-51310-880-0 		1-09400-061-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M14 ASM PART: C = 1-51310-729-1 		1-09400-065-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X98 ASM PART: C = 1-51310-729-1 		1-09000-325-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: E = 1-51310-952-0 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-09000-334-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: D = 1-51310-880-0 		1-09000-494-0 01 1 -
37 SPACER; CENTER,LEAF SPR,RR
T=1 ASM PART: B = 1-51300-560-0 		1-51377-159-0 05 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-51351-010-0 01 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: B = 1-51300-560-0 		1-51377-118-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-532-0 		1-51377-118-0 01 1 -
çizim 44832
35 9 8 7 6 5 4 3 34 36 2
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51311-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51311-729-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51311-880-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51311-952-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51411-168-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51312-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51312-729-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51312-880-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51312-952-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51412-168-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51313-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51313-729-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51313-880-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51313-952-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51413-168-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51314-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51314-729-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51314-880-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51314-952-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-560-0 		1-51414-168-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: A = 1-51300-532-0 		1-51315-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51315-729-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
8 LEAF, W/CLIP ASM PART: D = 1-51310-880-0 		1-51315-880-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10 LEAF, W/CLIP ASM PART: E = 1-51310-952-0 		1-51315-952-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51415-168-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51316-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11 LEAF, W/CLIP ASM PART: C = 1-51310-729-1 		1-51316-729-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51316-880-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51316-952-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51416-168-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51317-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51317-729-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51317-880-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51317-952-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51417-168-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51318-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51318-729-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51318-880-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51318-952-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51418-168-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: B = 1-51300-560-0 		1-51356-129-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-532-0 		1-51356-146-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: C = 1-51310-729-1 		1-51356-236-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: E = 1-51310-952-0 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-880-0 		1-51356-284-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0, E = 1-51310-952-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: D = 1-51310-880-0 		1-09400-061-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M14 ASM PART: C = 1-51310-729-1 		1-09400-065-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X98 ASM PART: C = 1-51310-729-1 		1-09000-325-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: E = 1-51310-952-0 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-09000-334-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: D = 1-51310-880-0 		1-09000-494-0 01 1 -

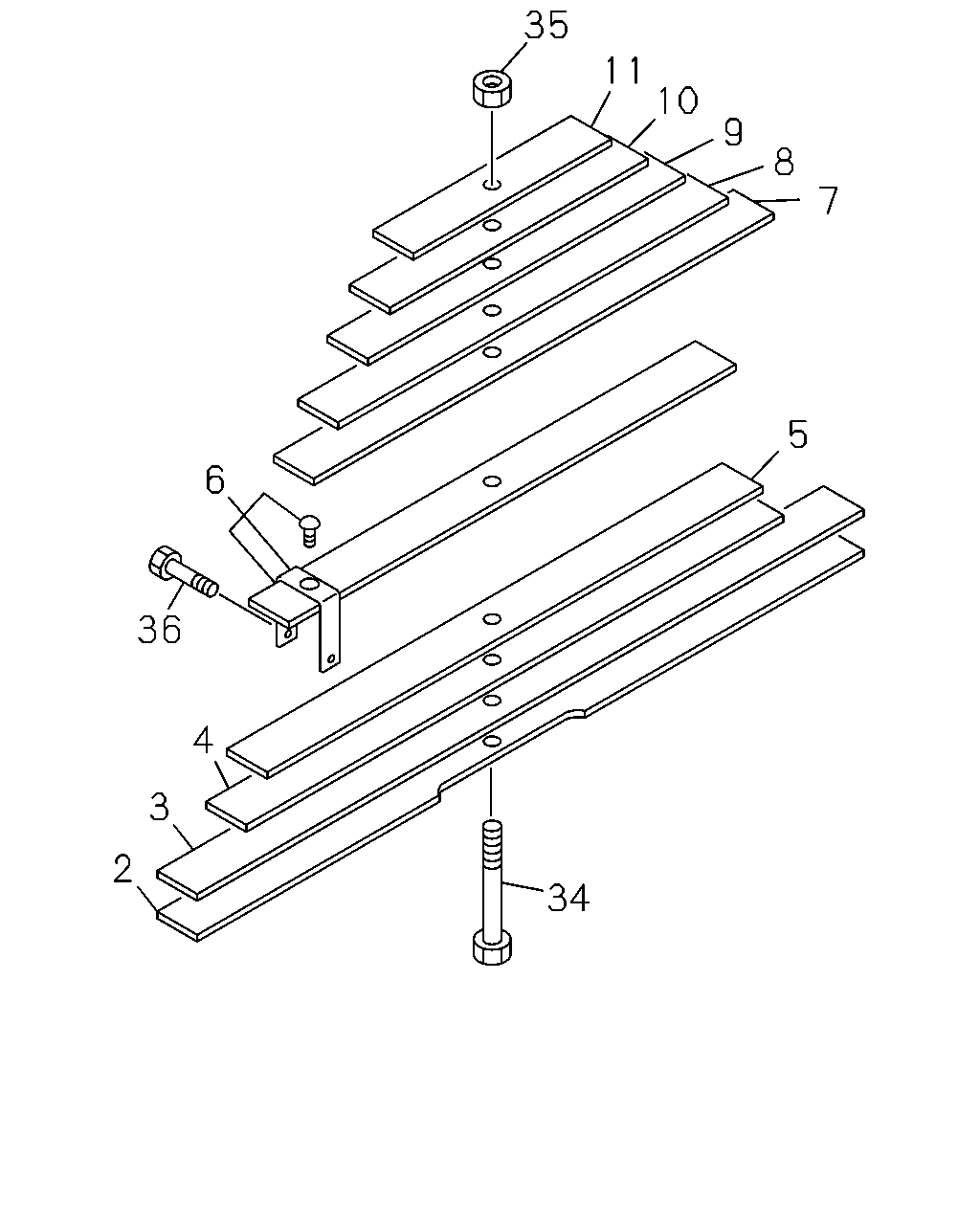

çizim 44869
35 11 10 9 8 7 5 6 36 4 3 2 34
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51311-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51311-729-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51311-880-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51311-952-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51411-168-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51312-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51312-729-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51312-880-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51312-952-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51412-168-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51313-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51313-729-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51313-880-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51313-952-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51413-168-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51314-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51314-729-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51314-880-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51314-952-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-560-0 		1-51414-168-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: A = 1-51300-532-0 		1-51315-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51315-729-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
8 LEAF, W/CLIP ASM PART: D = 1-51310-880-0 		1-51315-880-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10 LEAF, W/CLIP ASM PART: E = 1-51310-952-0 		1-51315-952-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51415-168-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51316-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11 LEAF, W/CLIP ASM PART: C = 1-51310-729-1 		1-51316-729-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51316-880-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51316-952-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51416-168-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51317-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51317-729-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51317-880-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51317-952-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51417-168-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51318-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51318-729-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51318-880-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51318-952-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51418-168-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51319-729-1 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51319-952-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51321-729-1 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51321-952-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: B = 1-51300-560-0 		1-51356-129-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-532-0 		1-51356-146-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: C = 1-51310-729-1 		1-51356-236-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: E = 1-51310-952-0 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-880-0 		1-51356-284-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0, E = 1-51310-952-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: D = 1-51310-880-0 		1-09400-061-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M14 ASM PART: C = 1-51310-729-1 		1-09400-065-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X98 ASM PART: C = 1-51310-729-1 		1-09000-325-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: E = 1-51310-952-0 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-09000-334-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: D = 1-51310-880-0 		1-09000-494-0 01 1 -

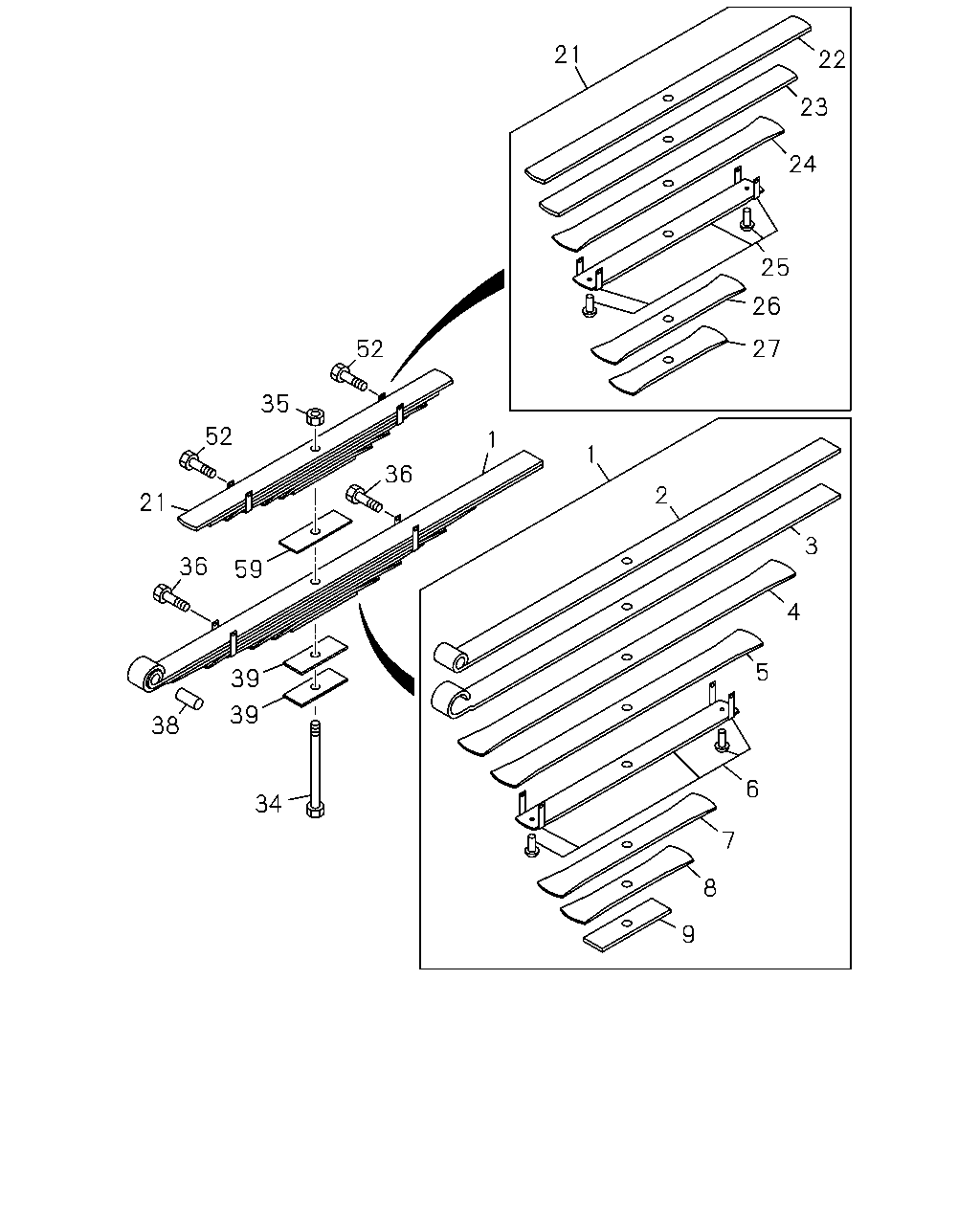

çizim 45454
21 22 23 24 25 26 27 52 35 52 1 1 36 2 21 3 36 59 4 5 39 39 38 6 34 7 8 9
BalonParca AdiParca NoAdetTipApplied Date
1 SPRING ASM; LEAF,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51310-721-0 01 1 -
1 SPRING ASM; LEAF,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51410-168-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51311-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51311-729-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51311-880-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51311-952-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51411-168-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51312-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51312-729-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51312-880-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51312-952-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51412-168-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51313-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51313-729-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51313-880-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51313-952-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51413-168-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51314-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51314-729-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51314-880-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51314-952-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-560-0 		1-51414-168-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: A = 1-51300-532-0 		1-51315-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51315-729-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
8 LEAF, W/CLIP ASM PART: D = 1-51310-880-0 		1-51315-880-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10 LEAF, W/CLIP ASM PART: E = 1-51310-952-0 		1-51315-952-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51415-168-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51316-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11 LEAF, W/CLIP ASM PART: C = 1-51310-729-1 		1-51316-729-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51316-880-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51316-952-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51416-168-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51317-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51317-729-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51317-880-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51317-952-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51417-168-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51318-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51318-729-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51318-880-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51318-952-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51418-168-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51340-450-0 01 1 -
21 SPRING ASM; LEAF,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51340-647-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51341-450-0 01 1 -
22 SPRING; LEAF,NO 1,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51341-647-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51342-450-0 01 1 -
23 SPRING; LEAF,NO 2,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51342-647-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51343-450-0 01 1 -
24 SPRING; LEAF,NO 3,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51343-647-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
14 LEAF, W/CLIP ASM PART: A = 1-51300-532-0 		1-51344-450-0 01 1 -
25 SPRING; LEAF,NO 4,RR SUB
15 LEAF, W/CLIP ASM PART: B = 1-51300-560-0 		1-51344-647-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51345-450-0 01 1 -
26 SPRING; LEAF,NO 5,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51345-647-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
14 LEAF ASM PART: A = 1-51300-532-0 		1-51346-450-0 01 1 -
27 SPRING; LEAF,NO 6,RR SUB
15 LEAF ASM PART: B = 1-51300-560-0 		1-51346-647-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: B = 1-51300-560-0 		1-51356-129-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-532-0 		1-51356-146-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: C = 1-51310-729-1 		1-51356-236-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: E = 1-51310-952-0 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-880-0 		1-51356-284-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0, E = 1-51310-952-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: D = 1-51310-880-0 		1-09400-061-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M14 ASM PART: C = 1-51310-729-1 		1-09400-065-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X98 ASM PART: C = 1-51310-729-1 		1-09000-325-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: E = 1-51310-952-0 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-09000-334-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: D = 1-51310-880-0 		1-09000-494-0 01 1 -
38 BUSHING; LEAF SPR,RR
ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-51351-010-0 01 1 -
39 SEAT; LEAF SPR,RR MAIN
T=10 ASM PART: A = 1-51300-532-0 		1-51377-118-0 02 1 -
52 BOLT; CLIP,LEAF SPR,RR SUB
M10X117 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-09000-334-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: B = 1-51300-560-0 		1-51377-118-0 02 1 -
59 SEAT; RR SPRING,SUB
T=10 ASM PART: A = 1-51300-532-0 		1-51377-118-0 01 1 -

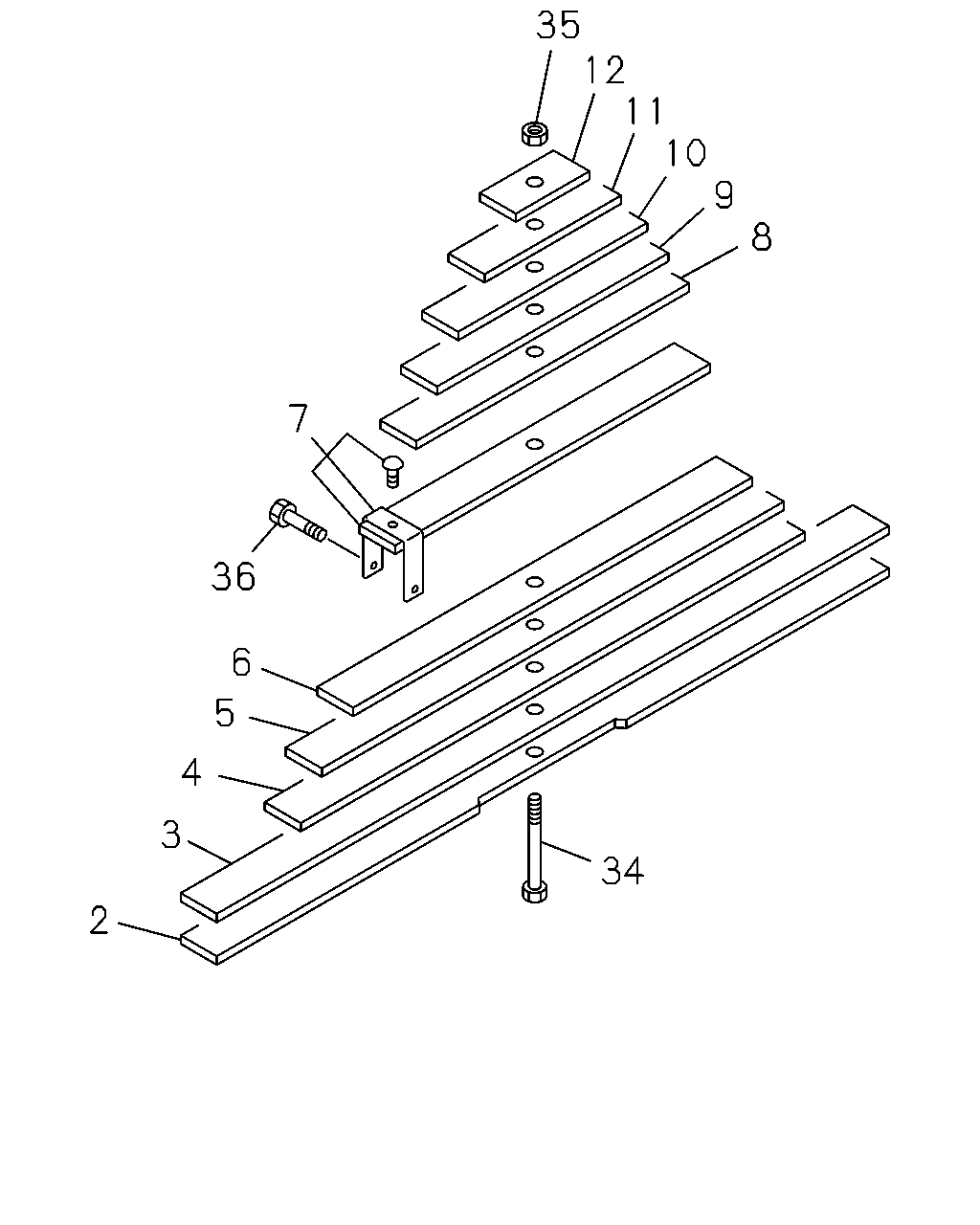

çizim 47111
35 12 11 10 9 8 7 36 6 5 4 3 34 2
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING; LEAF,NO 1,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51311-721-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51311-729-1 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51311-880-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51311-952-0 01 1 -
2 SPRING; LEAF,NO 1,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51411-168-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51312-721-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51312-729-1 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51312-880-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51312-952-0 01 1 -
3 SPRING; LEAF,NO 2,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51412-168-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51313-721-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51313-729-1 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51313-880-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51313-952-0 01 1 -
4 SPRING; LEAF,NO 3,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51413-168-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51314-721-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51314-729-1 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51314-880-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51314-952-0 01 1 -
5 SPRING; LEAF,NO 4,RR MAIN
15 LEAF, W/CLIP ASM PART: B = 1-51300-560-0 		1-51414-168-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
14 LEAF, W/CLIP ASM PART: A = 1-51300-532-0 		1-51315-721-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51315-729-1 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
8 LEAF, W/CLIP ASM PART: D = 1-51310-880-0 		1-51315-880-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
10 LEAF, W/CLIP ASM PART: E = 1-51310-952-0 		1-51315-952-0 01 1 -
6 SPRING; LEAF,NO 5,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51415-168-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51316-721-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
11 LEAF, W/CLIP ASM PART: C = 1-51310-729-1 		1-51316-729-1 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51316-880-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51316-952-0 01 1 -
7 SPRING; LEAF,NO 6,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51416-168-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51317-721-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51317-729-1 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51317-880-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51317-952-0 01 1 -
8 SPRING; LEAF,NO 7,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51417-168-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
14 LEAF ASM PART: A = 1-51300-532-0 		1-51318-721-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51318-729-1 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
8 LEAF ASM PART: D = 1-51310-880-0 		1-51318-880-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51318-952-0 01 1 -
9 SPRING; LEAF,NO 8,RR MAIN
15 LEAF ASM PART: B = 1-51300-560-0 		1-51418-168-0 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51319-729-1 01 1 -
10 SPRING; LEAF,NO 9,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51319-952-0 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51321-729-1 01 1 -
11 SPRING; LEAF,NO 10,RR MAIN
10 LEAF ASM PART: E = 1-51310-952-0 		1-51321-952-0 01 1 -
12 SPRING; LEAF,NO 11,RR MAIN
11 LEAF ASM PART: C = 1-51310-729-1 		1-51322-729-1 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=195 ASM PART: B = 1-51300-560-0 		1-51356-129-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=210 ASM PART: A = 1-51300-532-0 		1-51356-146-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=240 ASM PART: C = 1-51310-729-1 		1-51356-236-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=200 ASM PART: E = 1-51310-952-0 		1-51356-270-0 01 1 -
34 BOLT; CENTER,LEAF SPR,RR MAIN
L=180 ASM PART: D = 1-51310-880-0 		1-51356-284-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0, E = 1-51310-952-0 		1-09400-054-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M16 ASM PART: D = 1-51310-880-0 		1-09400-061-0 01 1 -
35 NUT; CENTER BOLT,LEAF SPR,RR
M14 ASM PART: C = 1-51310-729-1 		1-09400-065-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X98 ASM PART: C = 1-51310-729-1 		1-09000-325-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: E = 1-51310-952-0 		1-09000-326-0 01 1 -
36 BOLT; CLIP,LEAF SPR,RR
M10X117 ASM PART: A = 1-51300-532-0, B = 1-51300-560-0 		1-09000-334-0 02 1 -
36 BOLT; CLIP,LEAF SPR,RR
ASM PART: D = 1-51310-880-0 		1-09000-494-0 01 1 -
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
