Sayfa 4-60 - Isuzu EPC

4-60 — REAR SUSPENSION (#8724) — 259 parça

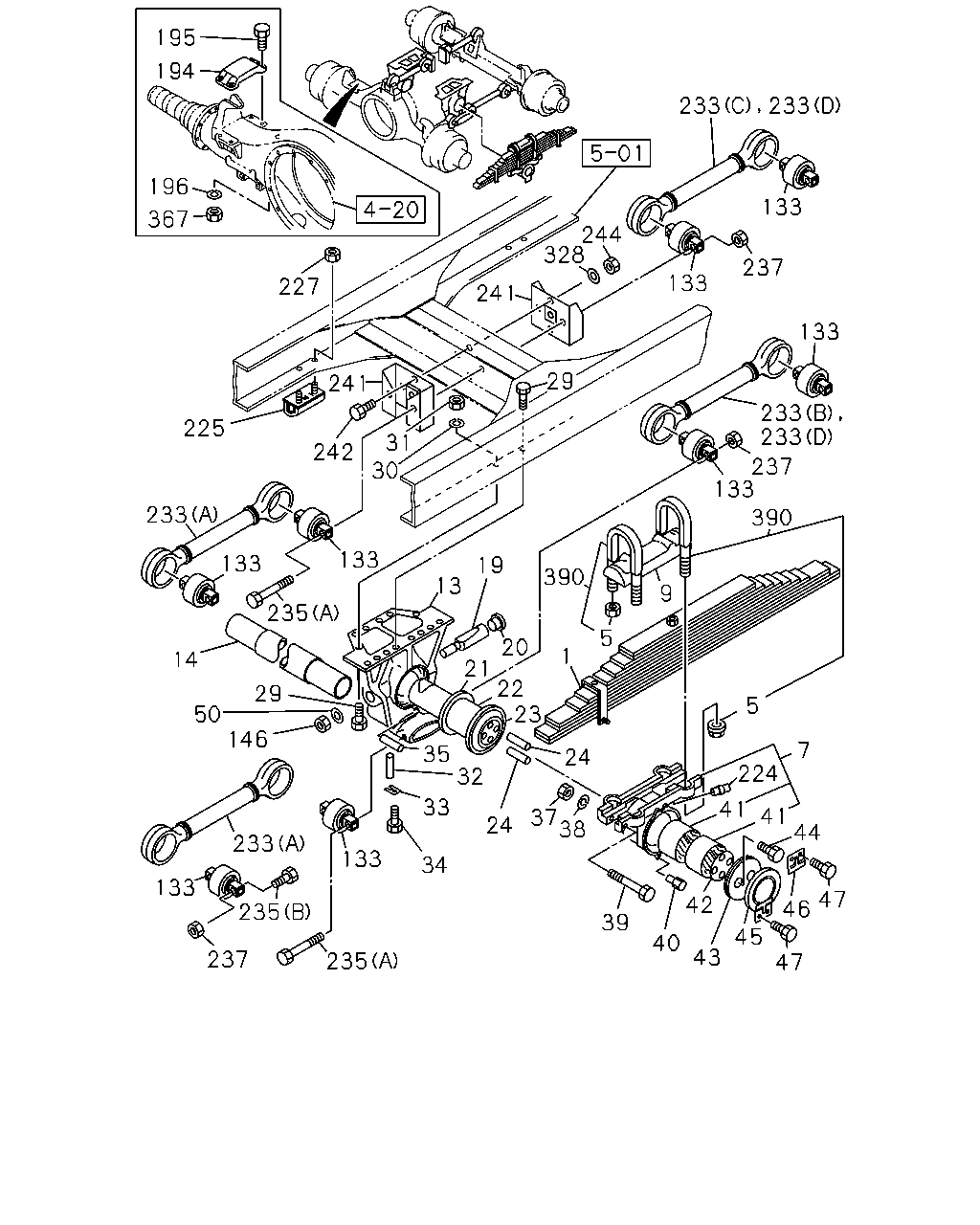

195 194 196 133 367 244 328 237 133 227 241 133 29 241 233 233 31 30 225 242 237 133 233 390 133 133 19 390 13 9 235 5 20 22 23 1 14 21 29 5 50 146 7 35 32 24 37 38 224 41 33 41 24 44 233 133 34 133 47 46 42 235 39 45 40 43 237 235 47 233 233

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF	1-51310-729-1	02	1	0005-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF	1-51300-532-0	02	1	0005-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-952-0	02	1	0005-0308			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 8-LEAF	1-51310-880-0	02	1	0309-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF	1-51300-560-0	02	1	0005-				●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	08	1	0005-0801	●
5	NUT; U-BOLT,RR SPR M24 FLANGE	8-98012-878-0	08	1	0802-	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	0005-0512		●		●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●		●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0005-			●
7	SEAT; SPR,LWR	1-51385-097-2	02	1	0005-	●
7	SEAT; SPR,LWR	1-51385-091-2	02	1	0005-0604			●
7	SEAT; SPR,LWR	8-97614-049-2	02	1	0605-			●
9	PAD; U BOLT,RR SPR	1-51372-028-0	02	1	0005-	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	0005-		●		●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0005-1010			●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-			●
13	BRACKET; TRUNNION SHAFT	1-53361-066-0	02	1	0005-	●
13	BRACKET; TRUNNION SHAFT	1-53361-065-0	02	1	0005-0609			●
13	BRACKET; TRUNNION SHAFT	1-53361-079-0	02	1	0610-			●
14	PIPE; TRUNNION BRKT	1-51541-014-0	01	1	0005-	●
14	PIPE; TRUNNION BRKT	1-51389-032-1	01	1	0005-			●
19	BOLT; KEY,SHAFT	1-51389-066-0	02	1	0005-	●		●
20	GROMMET; KEY BOLT	1-09333-057-0	02	1	0005-	●		●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-030-0	02	1	0005-	●
21	WASHER; THRUST,TRUNNION SHAFT	1-51389-058-0	02	1	0005-			●
22	SHAFT; TRUNNION,RR SUSP	1-51381-015-0	02	1	0005-0111	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-021-0	02	1	0112-	●
22	SHAFT; TRUNNION,RR SUSP	1-51381-022-3	02	1	0005-			●
23	SEAL; OIL,TRUNNION SHAFT	1-09625-146-0	02	1	0005-	●
23	SEAL; OIL,TRUNNION SHAFT	1-51389-005-0	02	1	0005-			●
24	PIN; SIDE PLATE TO SHAFT	1-09740-022-0	04	1	0005-	●
24	PIN; SIDE PLATE TO SHAFT	1-09740-009-0	04	1	0005-			●
29	BOLT; BRKT TO FRAME M18X75	1-09000-221-2	24	1	0005-0712	●		●
29	BOLT; BRKT TO FRAME M18X75	8-98012-872-0	24	1	0801-	●		●
29	BOLT; BRKT TO FRAME M18X55	9-92061-855-0	04	1	0005-	●		●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	32	1	0005-	●
30	WASHER; PL,TRUNNION BRKT ID=19	1-09503-162-0	28	1	0005-			●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	24	1	0005-0512	●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	24	1	0601-	●
31	NUT; TRUNNION BRKT M18	9-99110-518-0	28	1	0005-0512			●
31	NUT; TRUNNION BRKT M18	0-91110-518-0	28	1	0601-			●
32	PIN; STRAIGHT	1-09740-027-0	02	1	0005-	●
32	PIN; STRAIGHT	1-09740-027-0	04	1	0005-			●
33	PLATE; LK KNOCK PIN	1-53369-012-0	02	1	0005-0910	●
33	PLATE; LK KNOCK PIN	8-98012-860-0	02	1	0911-	●
33	PLATE; LK KNOCK PIN	1-53369-032-1	02	1	0005-			●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28081-016-0	02	1	0005-0512	●		●
34	BOLT; LOCK PLATE M10X16 FLANGE	0-28051-016-0	02	1	0601-	●		●
35	PIN; TRUNNION SHAFT	1-09749-030-1	04	1	0005-			●
37	NUT; SPR SETTING M22	9-09110-522-0	04	1	0005-0512			●
37	NUT; SPR SETTING M22	0-91110-522-0	04	1	0601-			●
38	WASHER; LK,SPR SETTING ID=18.2	9-09150-618-0	04	1	0005-0603	●
38	WASHER; LK,SPR SETTING ID=18.2	0-91510-618-0	04	1	0604-	●
38	WASHER; LK,SPR SETTING ID=22.5	9-09150-622-0	04	1	0005-0603			●
38	WASHER; LK,SPR SETTING ID=22.5	0-91510-622-0	04	1	0604-			●
39	BOLT; SPR SETTING	1-09000-022-2	04	1	0005-	●
39	BOLT; SPR SETTING M22X155	9-09801-290-1	04	1	0005-			●
40	VALVE; GREASE ESCAPE	9-51389-010-0	02	1	0005-			●
41	BUSHING; TRUNNION SHAFT	1-51386-003-0	04	1	0005-0902	●
41	BUSHING; TRUNNION SHAFT	8-98081-831-0	04	1	0903-	●
41	BUSHING; TRUNNION SHAFT	1-51386-004-0	04	1	0005-0902			●
41	BUSHING; TRUNNION SHAFT	8-98081-832-0	04	1	0903-			●
42	SHIM; SIDE PLATE TO SHAFT	1-51389-033-1	12	1	0005-			●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-004-1	02	1	0005-	●
43	PLATE; SIDE,TRUNNION SHAFT	1-51382-010-4	02	1	0005-			●
44	BOLT; SIDE PLATE TO SHAFT M18X48.5 FLANGE	1-09044-038-2	04	1	0005-	●		●
45	COVER; SPR SEAT	1-51387-012-0	02	1	0005-	●
45	COVER; SPR SEAT	1-51387-013-2	02	1	0005-			●
46	BRACKET; COVER	1-51387-015-2	02	1	0005-			●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28080-812-0	08	1	0005-0512	●		●
47	BOLT; COVER TO SEAT M8X12 FLANGE	0-28050-812-0	08	1	0601-	●		●
50	WASHER; PL,TRUNNION SHAFT	1-09503-071-0	02	1	0005-	●		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	04	1	0005-0210	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	0211-	●		●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	08	1	0005-0210	●
133	BUSHING; RUBBER,TORQUE ROD OD=105	1-51519-113-1	12	1	0005-0210			●
133	BUSHING; RUBBER,TORQUE ROD BEST VALUE PARTS	1-87411-074-1	12	1	0005-	●		●
146	NUT; KEY BOLT M24	9-99110-524-0	02	1	0005-0512	●		●
146	NUT; KEY BOLT M24	0-91110-524-0	02	1	0601-	●		●
194	PAD; CONTACT	1-42124-101-0	04	1	0005-			●
195	BOLT; PAD FIX M14X45	9-92061-445-0	16	1	0005-0805			●
195	BOLT; PAD FIX M14X40	0-20951-440-0	16	1	0806-			●
196	WASHER; LK ID=14.2	9-09150-514-0	16	1	0005-0603			●
196	WASHER; LK ID=14.2	0-91510-514-0	16	1	0604-			●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	9-09031-010-0	02	1	0005-0512	●		●
224	NIPPLE; GREASE,SPR SEAT PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-	●		●
225	RUBBER; CUSHION,RR SPR REARWARD	1-53366-093-3	02	1	0005-	●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-146-1	01	1	0005-	●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-082-2	01	1	0005-	●
225	RUBBER; CUSHION,RR SPR	1-53366-081-1	02	1	0005-		●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-072-2	01	1	0005-			●
225	RUBBER; CUSHION,RR SPR REARWARD	1-53366-077-3	01	1	0005-			●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-076-1	01	1	0005-0111			●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) FORWARD	1-53366-076-1	01	1	0112-0210			●
225	RUBBER; CUSHION,RR SPR REARWARD	1-53366-100-2	01	1	0005-			●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W) FORWARD	1-53366-143-0	01	1	0112-0210			●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-143-1	01	1	0211-			●
225	RUBBER; CUSHION,RR SPR	1-53366-045-1	02	1	0005-				●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	0005-0602	●		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0603-	●		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	0005-0602		●		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-		●		●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD LOWER L=520	1-51511-605-0	02	1	0005-	●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER L=505	1-51511-670-0	01	1	0005-	●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD UPPER L=510	1-51511-671-0	01	1	0005-0210	●
233	ROD ASM; TORQUE,RR SUSP (D) REARWARD L=510	1-51511-671-0	03	1	0211-	●
233	ROD ASM; TORQUE,RR SUSP (B) REARWARD LOWER L=510	1-51511-671-0	02	1	0005-0210	●
233	ROD ASM; TORQUE,RR SUSP (C) REARWARD UPPER L=545	1-51511-658-0	01	1	0005-			●
233	ROD ASM; TORQUE,RR SUSP (B) REARWARD LOWER L=550	1-51511-659-0	02	1	0005-			●
233	ROD ASM; TORQUE,RR SUSP (A) FORWARD UPPER,LOWER L=530	1-51511-678-0	03	1	0005-			●
235	BOLT; TORQUE ROD (A) M18X265	1-09000-078-1	06	1	0005-0805	●		●
235	BOLT; TORQUE ROD (A) M18X265	8-98012-875-0	06	1	0806-	●		●
235	BOLT; TORQUE ROD (B) M18X102	1-09000-568-0	12	1	0005-0805	●		●
235	BOLT; TORQUE ROD (B) M18X102	8-98012-877-0	12	1	0806-	●		●
237	NUT; TORQUE ROD M18	1-09464-011-0	18	1	0005-	●		●
241	BRACKET; TORQUE ROD	1-53363-053-1	02	1	0005-	●
242	BOLT; BRKT TO FRAME M14X50	9-91066-450-0	02	1	0005-0512	●
242	BOLT; BRKT TO FRAME M14X50	0-10956-450-0	02	1	0601-	●
244	NUT; BRKT M14	9-99110-514-0	02	1	0005-0512	●
244	NUT; BRKT M14	0-91110-514-0	02	1	0601-	●
328	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0005-0910	●
328	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	0911-	●
328	WASHER; PL,BRKT REAR STABILIZER SHAFT<F61> ID=15	9-09651-069-0	12	1	0005-0210		●
328	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	0005-0210				●
328	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	0211-0910		●		●
328	WASHER; PL,BRKT ID=15	8-98010-627-1	12	1	0911-		●		●
367	NUT M14	9-99110-514-0	16	1	0005-0512			●
367	NUT M14	0-91110-514-0	16	1	0601-			●
390	U-BOLT SET; RR SPRING L=350	1-87870-316-1	04	1	0005-	●
390	U-BOLT SET; RR SPRING REAR STABILIZER SHAFT<F61> L=490	1-87870-299-0	04	1	0005-0210		●
390	U-BOLT SET; RR SPRING L=490	1-87870-299-1	04	1	0211-		●
390	U-BOLT SET; RR SPRING EXC. REAR STABILIZER SHAFT<F61> L=470	1-87870-300-0	04	1	0005-0210		●
390	U-BOLT SET; RR SPRING L=470	1-87870-300-0	04	1	0005-0210				●
390	U-BOLT SET; RR SPRING L=470	1-87870-300-1	04	1	0211-				●
390	U-BOLT SET; RR SPRING L=340	1-87870-146-1	04	1	0005-0308			●
390	U-BOLT SET; RR SPRING L=310	1-87870-166-3	04	1	0309-			●

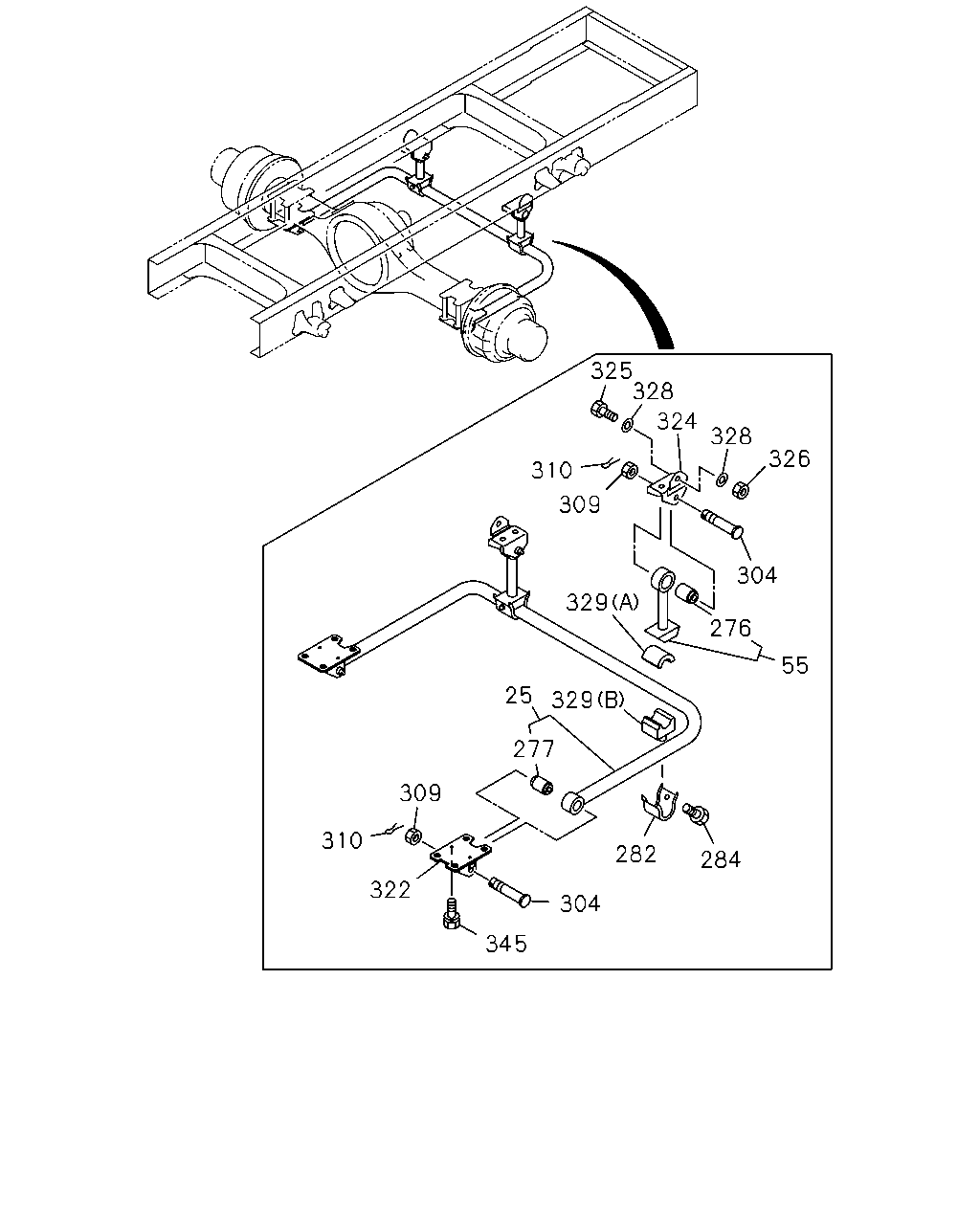

325 328 324 328 326 310 309 304 329 276 55 25 329 277 309 310 282 284 322 304 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	D
25	BAR ASM; STAB,RR SUSP REAR STABILIZER SHAFT<F61>	1-51770-030-2	01	1	0005-0210		●
25	BAR ASM; STAB,RR SUSP	1-51770-030-2	01	1	0005-0210			●
25	BAR ASM; STAB,RR SUSP	1-51770-030-2	01	1	0211-		●	●
55	ROD; STAB REAR STABILIZER SHAFT<F61>	1-51770-035-1	02	1	0005-0210		●
55	ROD; STAB	1-51770-035-1	02	1	0005-0210			●
55	ROD; STAB	1-51770-035-1	02	1	0211-		●	●
276	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61>	1-51779-019-0	04	1	0005-0210		●
276	BUSHING; STAB ROD	1-51779-019-0	04	1	0005-0210			●
276	BUSHING; STAB ROD	1-51779-019-0	04	1	0211-0401		●	●
276	BUSHING; STAB ROD	1-51779-019-0	02	1	0402-		●	●
277	BUSHING; STAB,RR UPR REAR STABILIZER SHAFT<F61>	1-51779-067-0	02	1	0005-0210		●
277	BUSHING; STAB,RR UPR	1-51779-067-0	02	1	0005-0210			●
277	BUSHING; STAB,RR UPR	1-51779-067-0	02	1	0211-		●	●
282	RETAINER; STAB BAR REAR STABILIZER SHAFT<F61>	1-51789-015-2	02	1	0005-0210		●
282	RETAINER; STAB BAR	1-51789-015-2	02	1	0005-0210			●
282	RETAINER; STAB BAR	1-51789-015-2	02	1	0211-		●	●
284	BOLT; RET TO RET REAR STABILIZER SHAFT<F61> M10X25	8-94463-351-0	08	1	0005-0210		●
284	BOLT; RET TO RET M10X25	8-94463-351-0	08	1	0005-0210			●
284	BOLT; RET TO RET M10X25	8-94463-351-0	08	1	0211-		●	●
304	PIN; STAB ROD REAR STABILIZER SHAFT<F61>	1-51789-020-2	04	1	0005-0210		●
304	PIN; STAB ROD	1-51789-020-2	04	1	0005-0210			●
304	PIN; STAB ROD	1-51789-020-2	04	1	0211-		●	●
309	NUT; STAB ROD REAR STABILIZER SHAFT<F61> M24	9-99116-424-0	04	1	0005-0210		●
309	NUT; STAB ROD M24	9-99116-424-0	04	1	0005-0210			●
309	NUT; STAB ROD M24	9-99116-424-0	04	1	0211-		●	●
310	PIN; SPLIT,STAB ROD REAR STABILIZER SHAFT<F61> OD=4.6 L=45	9-08115-045-0	04	1	0005-0210		●
310	PIN; SPLIT,STAB ROD OD=4.6 L=45	9-08115-045-0	04	1	0005-0210			●
310	PIN; SPLIT,STAB ROD OD=4.6 L=45	9-08115-045-0	04	1	0211-0606		●	●
310	PIN; SPLIT,STAB ROD OD=4.6 L=45	0-81125-045-0	04	1	0607-		●	●
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61>	1-51781-127-0	01	1	0005-0210		●
322	BRACKET; STAB BAR TO RR AXLE	1-51781-127-0	01	1	0005-0210			●
322	BRACKET; STAB BAR TO RR AXLE	1-51781-127-0	01	1	0211-		●	●
322	BRACKET; STAB BAR TO RR AXLE REAR STABILIZER SHAFT<F61>	1-51781-048-4	01	1	0005-0210		●
322	BRACKET; STAB BAR TO RR AXLE	1-51781-048-4	01	1	0005-0210			●
322	BRACKET; STAB BAR TO RR AXLE	1-51781-048-4	01	1	0211-		●	●
324	BRACKET; STAB BAR TO FRAME REAR STABILIZER SHAFT<F61>	1-51781-059-0	02	1	0005-0210		●
324	BRACKET; STAB BAR TO FRAME	1-51781-059-0	02	1	0005-0210			●
324	BRACKET; STAB BAR TO FRAME	1-51781-059-0	02	1	0211-		●	●
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14X40	9-92061-440-0	02	1	0005-0210		●
325	BOLT; BRKT TO FRAME M14X40	9-92061-440-0	02	1	0211-0512		●
325	BOLT; BRKT TO FRAME M14X40	0-20951-440-0	02	1	0601-		●
325	BOLT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14X45	9-92061-445-0	04	1	0005-0210		●
325	BOLT; BRKT TO FRAME M14X45	9-92061-445-0	04	1	0211-		●
325	BOLT; BRKT TO FRAME M14X35	9-92061-435-0	02	1	0005-0512			●
325	BOLT; BRKT TO FRAME M14X35	0-20951-435-0	02	1	0601-			●
325	BOLT; BRKT TO FRAME M14X40	9-92061-440-0	04	1	0005-0512			●
325	BOLT; BRKT TO FRAME M14X40	0-20951-440-0	04	1	0601-			●
326	NUT; BRKT TO FRAME REAR STABILIZER SHAFT<F61> M14	9-99110-514-0	06	1	0005-0210		●
326	NUT; BRKT TO FRAME M14	9-99110-514-0	06	1	0005-0210			●
326	NUT; BRKT TO FRAME M14	9-99110-514-0	06	1	0211-0512		●	●
326	NUT; BRKT TO FRAME M14	0-91110-514-0	06	1	0601-		●	●
328	WASHER; PL,BRKT ID=15	9-09651-069-0	04	1	0005-0910	●
328	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	0911-	●
328	WASHER; PL,BRKT REAR STABILIZER SHAFT<F61> ID=15	9-09651-069-0	12	1	0005-0210		●
328	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	0005-0210			●
328	WASHER; PL,BRKT ID=15	9-09651-069-0	12	1	0211-0910		●	●
328	WASHER; PL,BRKT ID=15	8-98010-627-1	12	1	0911-		●	●
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (A)	1-51789-051-1	02	1	0005-0210		●
329	BUSHING; STAB ROD (A)	1-51789-051-1	02	1	0005-0210			●
329	BUSHING; STAB ROD (A)	1-51789-051-1	02	1	0211-		●	●
329	BUSHING; STAB ROD REAR STABILIZER SHAFT<F61> (B)	1-51789-052-0	02	1	0005-0210		●
329	BUSHING; STAB ROD (B)	1-51789-052-0	02	1	0005-0210			●
329	BUSHING; STAB ROD (B)	1-51789-052-0	02	1	0211-		●	●
345	BOLT; BRKT REAR STABILIZER SHAFT<F61> M10X16 FLANGE	0-28081-016-0	04	1	0005-0210		●
345	BOLT; BRKT M10X16 FLANGE	0-28081-016-0	04	1	0005-0210			●
345	BOLT; BRKT M10X16 FLANGE	0-28081-016-0	04	1	0211-0512		●	●
345	BOLT; BRKT M10X16 FLANGE	0-28051-016-0	04	1	0601-		●	●

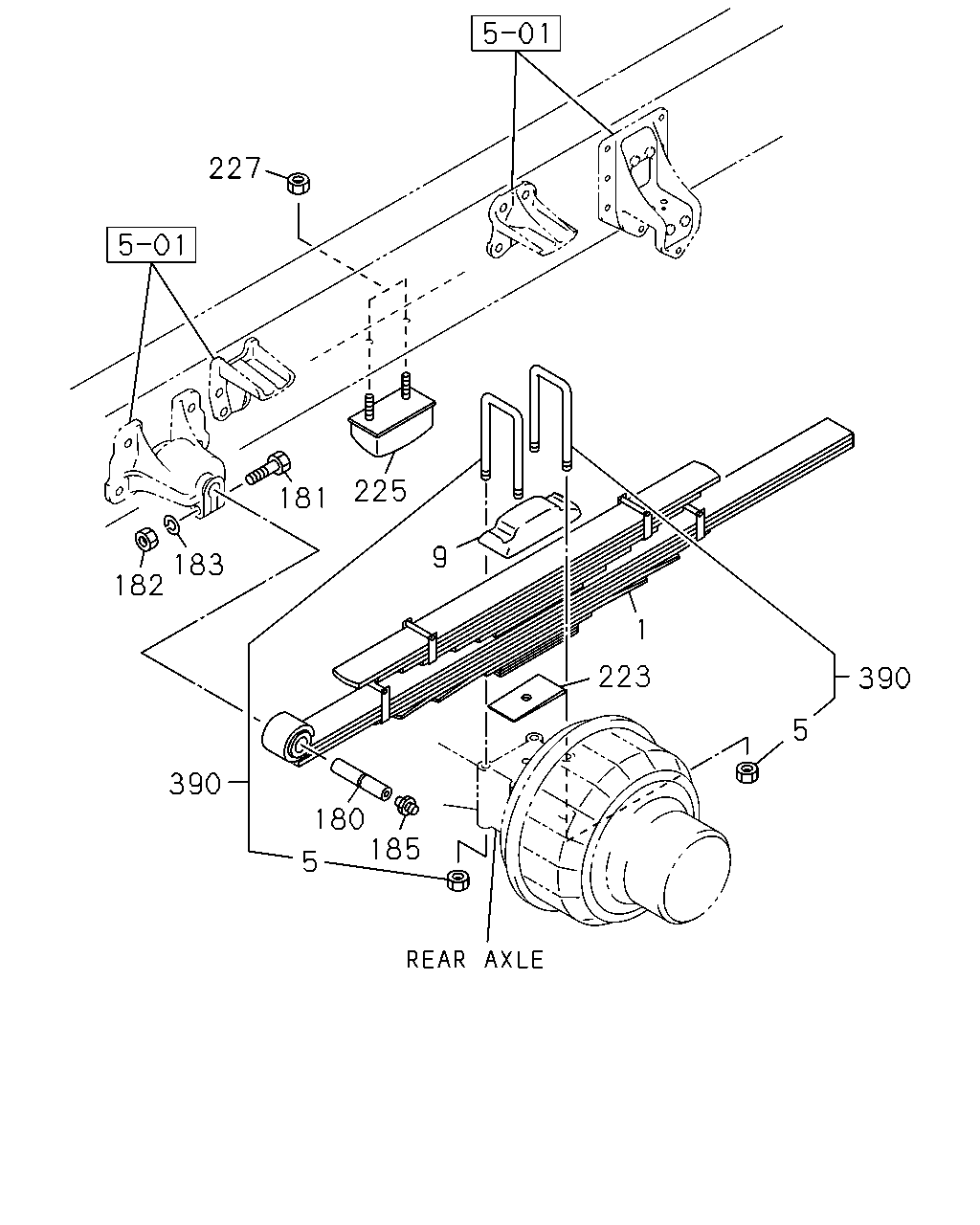

227 225 181 9 183 182 1 223 390 5 390 180 185 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 11-LEAF	1-51310-729-1	02	1	0005-	●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF	1-51300-532-0	02	1	0005-		●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 10-LEAF	1-51310-952-0	02	1	0005-0308			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 8-LEAF	1-51310-880-0	02	1	0309-			●
1	SPRING ASM; LEAF,RR SEE FIG-NO 4-65 FOR COMPONENT. 15-LEAF	1-51300-560-0	02	1	0005-				●
5	NUT; U-BOLT,RR SPR M24 FLANGE	1-09440-001-1	08	1	0005-0801	●
5	NUT; U-BOLT,RR SPR M24 FLANGE	8-98012-878-0	08	1	0802-	●
5	NUT; U-BOLT,RR SPR M24	9-99112-824-0	08	1	0005-0512		●		●
5	NUT; U-BOLT,RR SPR M24	0-91112-824-0	08	1	0601-		●		●
5	NUT; U-BOLT,RR SPR M27 FLANGE	1-09440-058-0	08	1	0005-			●
9	PAD; U BOLT,RR SPR	1-51372-028-0	02	1	0005-	●
9	PAD; U BOLT,RR SPR	1-51372-030-0	02	1	0005-		●		●
9	PAD; U BOLT,RR SPR	1-51372-019-1	02	1	0005-1010			●
9	PAD; U BOLT,RR SPR	8-98177-265-0	02	1	1011-			●
180	PIN; RR SPR	1-51361-020-0	02	1	0005-		●		●
181	BOLT; SPR & SHACKLE M14X80	0-10806-480-0	02	1	0005-0512		●		●
181	BOLT; SPR & SHACKLE M14X80	0-10856-480-0	02	1	0601-		●		●
182	NUT; PIN,RR SPR M14	9-99110-414-0	02	1	0005-0512		●		●
182	NUT; PIN,RR SPR M14	0-91110-514-0	02	1	0601-		●		●
183	WASHER; LK,PIN,RR SPR ID=14.2	9-09150-514-0	02	1	0005-0603		●		●
183	WASHER; LK,PIN,RR SPR ID=14.2	0-91510-514-0	02	1	0604-		●		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	9-09031-010-0	02	1	0005-0512		●		●
185	NIPPLE; GREASE,PIN,RR SPR PT1/8 STRAIGHT	0-90301-410-0	02	1	0601-		●		●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4200MM(42W)	1-51377-368-0	02	1	0005-0210		●
223	SPACER; U BOLT,RR SPR	1-51377-368-0	02	1	0005-0210				●
223	SPACER; U BOLT,RR SPR	1-51377-368-0	02	1	0211-0302				●
223	SPACER; U BOLT,RR SPR WHEEL BASE 4200MM(42W)	1-51377-368-1	02	1	0303-1212		●
223	SPACER; U BOLT,RR SPR	1-51377-368-1	02	1	0303-1212				●
223	SPACER; U BOLT,RR SPR WHEEL BASE 6000MM(60W)	1-51377-370-0	02	1	0005-0405		●
223	SPACER; U BOLT,RR SPR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-51377-370-0	02	1	0406-1306		●
223	SPACER; U BOLT,RR SPR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	8-98220-147-0	02	1	1307-		●
225	RUBBER; CUSHION,RR SPR REARWARD	1-53366-093-3	02	1	0005-	●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-146-1	01	1	0005-	●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-082-2	01	1	0005-	●
225	RUBBER; CUSHION,RR SPR	1-53366-081-1	02	1	0005-		●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-072-2	01	1	0005-			●
225	RUBBER; CUSHION,RR SPR REARWARD	1-53366-077-3	01	1	0005-			●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-076-1	01	1	0005-0111			●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) FORWARD	1-53366-076-1	01	1	0112-0210			●
225	RUBBER; CUSHION,RR SPR REARWARD	1-53366-100-2	01	1	0005-			●
225	RUBBER; CUSHION,RR SPR WHEEL BASE 5900MM(59W) FORWARD	1-53366-143-0	01	1	0112-0210			●
225	RUBBER; CUSHION,RR SPR FORWARD	1-53366-143-1	01	1	0211-			●
225	RUBBER; CUSHION,RR SPR	1-53366-045-1	02	1	0005-				●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	08	1	0005-0602	●		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	08	1	0603-	●		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91150-212-0	04	1	0005-0602		●		●
227	NUT; CUSHION RUBBER M12 FLANGE	0-91180-212-0	04	1	0603-		●		●
390	U-BOLT SET; RR SPRING L=350	1-87870-316-1	04	1	0005-	●
390	U-BOLT SET; RR SPRING REAR STABILIZER SHAFT<F61> L=490	1-87870-299-0	04	1	0005-0210		●
390	U-BOLT SET; RR SPRING L=490	1-87870-299-1	04	1	0211-		●
390	U-BOLT SET; RR SPRING EXC. REAR STABILIZER SHAFT<F61> L=470	1-87870-300-0	04	1	0005-0210		●
390	U-BOLT SET; RR SPRING L=470	1-87870-300-0	04	1	0005-0210				●
390	U-BOLT SET; RR SPRING L=470	1-87870-300-1	04	1	0211-				●
390	U-BOLT SET; RR SPRING L=340	1-87870-146-1	04	1	0005-0308			●
390	U-BOLT SET; RR SPRING L=310	1-87870-166-3	04	1	0309-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
