4-36 — POWER STEERING CONTROL; ENGINE SIDE (#8719) — 146 parça

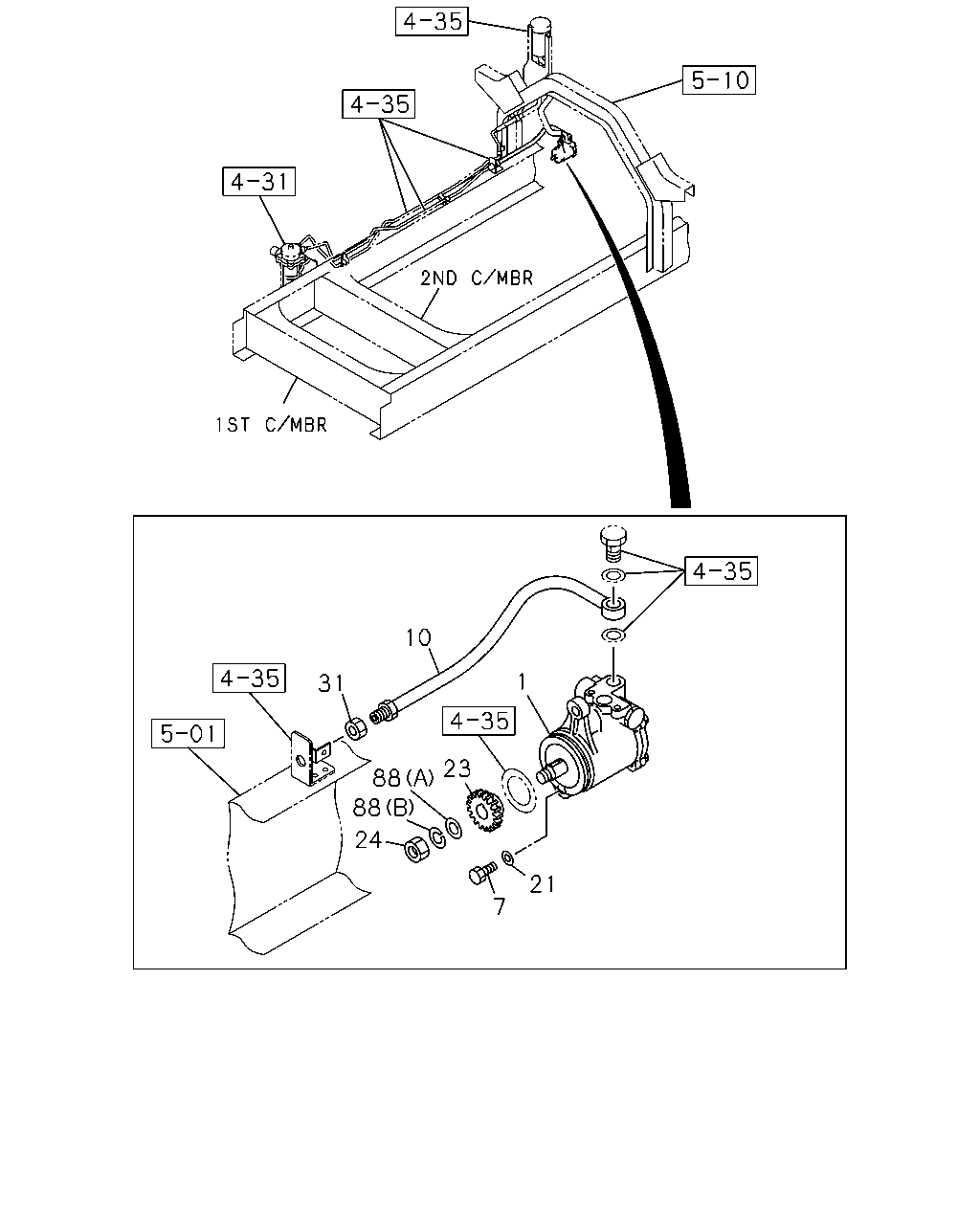

çizim 7846
10 1 31 23 88 88 24 21 7
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-1 01 1 0005-0210 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L) 		1-19500-504-1 01 1 0005-0210 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 0211- ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 0005-0210 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		1-19500-548-1 01 1 0303- ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0005-0210 ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L) M12X75 		9-01666-275-0 02 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0211- ● ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0303- ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 01 1 0303-0805 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 0005-0210 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L) 		0-09539-520-0 01 1 0005-0210 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-984-1 01 1 0005-0210 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) 		1-09364-983-1 01 1 0005-0210 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) 		1-09365-274-0 01 1 0303- ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0005-0210 ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L) ID=12.5 		9-09160-512-0 02 1 0005-0210 ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0211-0302 ● ● ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0303-0605 ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L) ID=12.5 		9-09160-512-0 02 1 0303-0605 ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ● ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0005-0210 ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L) Z=17 		1-19581-030-0 01 1 0005-0210 ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0211- ● ● ● ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 0005-0210 ●
23 GEAR; OIL PUMP
6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0303- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0303- ● ● ● ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 0005-0210 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0303-0712 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0005- ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L) M16 		9-19519-112-0 01 1 0005- ●
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 0005-0512 ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L) M20 		9-99111-420-0 01 1 0005-0512 ●
31 NUT; FLEX HOSE
M20 		0-91111-520-0 01 1 0601- ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L) M20 		0-91111-520-0 01 1 0601- ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0005- ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L) (A) 		1-19519-293-0 01 1 0005- ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0005- ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L) (B) 		9-09150-016-0 01 1 0005- ●

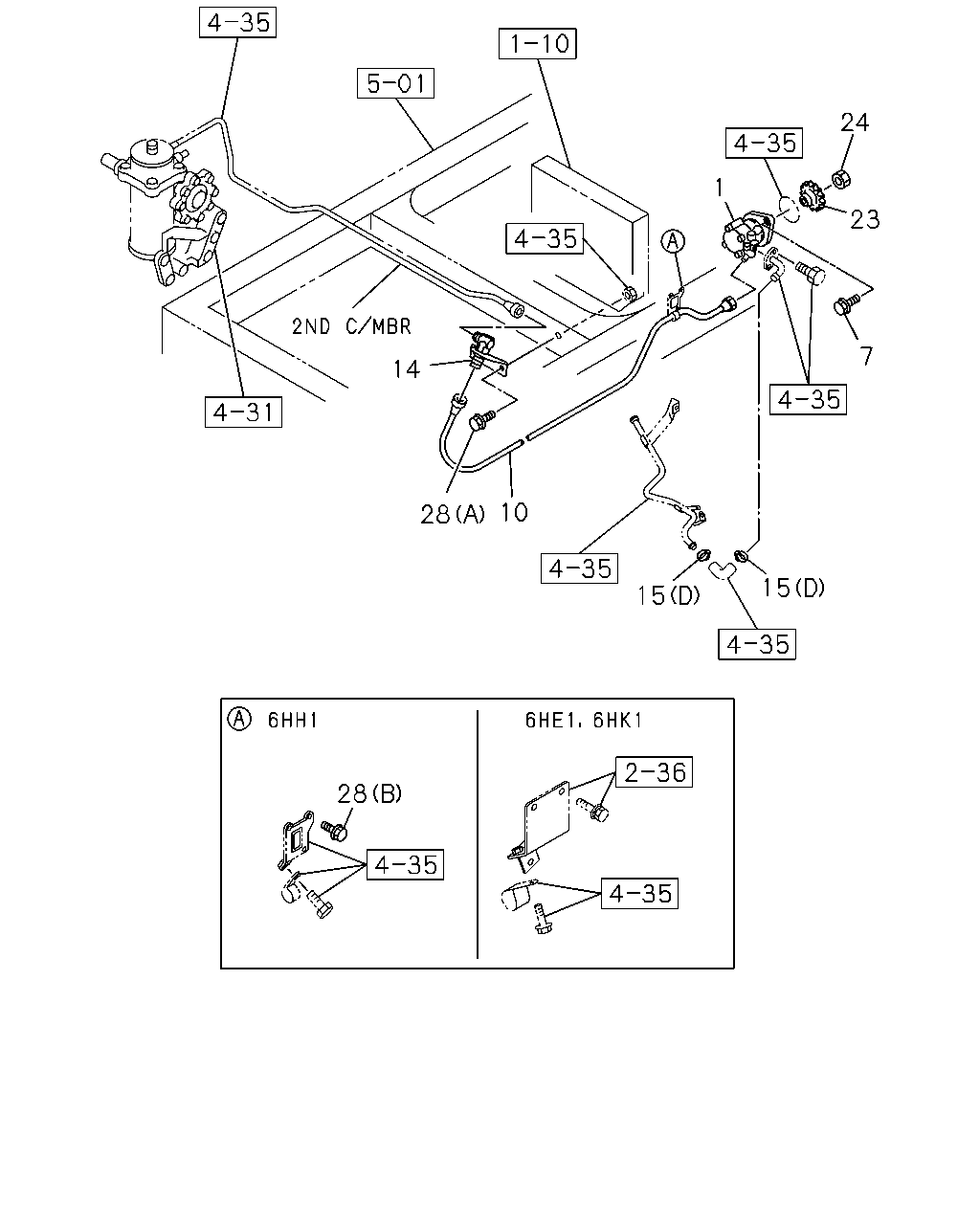

çizim 44738
24 1 23 7 14 10 28 15 15 28
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-1 01 1 0005-0210 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L) 		1-19500-504-1 01 1 0005-0210 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 0211- ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 0005-0210 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		1-19500-548-1 01 1 0303- ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0005-0210 ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L) M12X75 		9-01666-275-0 02 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0211- ● ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0303- ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 01 1 0303-0805 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
10 HOSE; FLEX,P/S OIL PUMP,INL 0-09539-520-0 01 1 0005-0210 ● ● ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6SD1 TCN ENG(31L) 		0-09539-520-0 01 1 0005-0210 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> 		1-09364-984-1 01 1 0005-0210 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HH1 STD ENG(65L) 		1-09364-983-1 01 1 0005-0210 ●
10 HOSE; FLEX,P/S OIL PUMP,INL
6HK1 TCS ENG(80L) 		1-09365-274-0 01 1 0303- ●
14 UNION; FLEX HOSE,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-47470-463-1 01 1 0005-0210 ●
14 UNION; FLEX HOSE,P/S
6HK1 TCS ENG(80L) 		1-47470-663-0 01 1 0303- ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-193-1 01 1 0211- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-194-1 01 1 0211- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) ID=32 		1-09704-085-0 02 1 0005-0210 ●
15 CLIP; OIL PIPE SUCTION
(C) 		1-09701-210-0 02 1 0211- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCS ENG(80L) (D) ID=32 		1-09704-085-0 02 1 0303- ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0005-0210 ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L) Z=17 		1-19581-030-0 01 1 0005-0210 ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0211- ● ● ● ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 0005-0210 ●
23 GEAR; OIL PUMP
6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0303- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0303- ● ● ● ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 0005-0210 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0303-0712 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0005- ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L) M16 		9-19519-112-0 01 1 0005- ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HH1 STD ENG(65L) (B) M8X16 W/LK&PL WASHER 		1-09980-498-0 02 1 0005-0210 ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1 TCS ENG(80L) (A) M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ●
28 BOLT; BRKT,FLEX HOSE,P/S
6HK1 TCS ENG(80L) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●

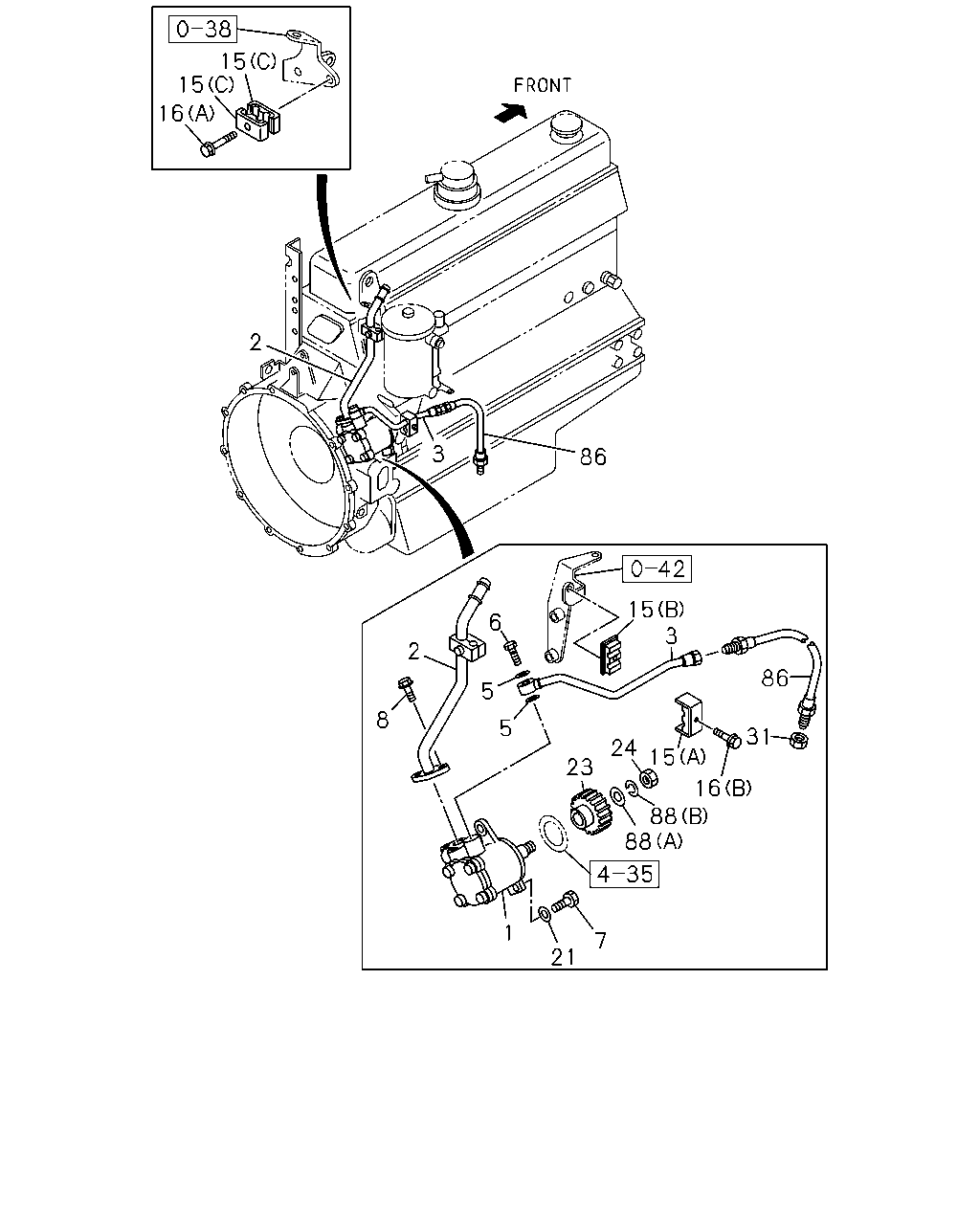

çizim 46709
15 15 16 2 3 86 15 3 6 2 86 5 8 5 31 24 15 23 16 88 88 1 7 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-1 01 1 0005-0210 ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6SD1 TCN ENG(31L) 		1-19500-504-1 01 1 0005-0210 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 		1-19500-504-2 01 1 0211- ● ● ● ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HE1 TC ENG(57L),6HH1 STD ENG(65L) 		1-19500-548-0 01 1 0005-0210 ●
1 PUMP ASM; OIL,P/S
SEE FIG-NO 4-42 FOR COMPONENT. 6HK1 TCS ENG(80L) 		1-19500-548-1 01 1 0303- ●
2 PIPE ASM; OIL,SUCTION 1-13313-963-0 01 1 0211- ● ● ● ●
3 PIPE; OIL,CHARGE,P/S 1-13313-992-0 01 1 0211- ● ● ● ●
5 GASKET; EYE BOLT,POWER STRG PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=18.2 OD=24.4 		1-09630-087-0 02 1 0211- ● ● ● ●
6 BOLT; EYE,P/S PIPE
M18X36 		1-09675-205-0 01 1 0211- ● ● ● ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0005-0210 ● ● ●
7 BOLT; OIL PUMP,P/S
6SD1 TCN ENG(31L) M12X75 		9-01666-275-0 02 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
M12X75 		9-01666-275-0 02 1 0211- ● ● ● ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X55 FLANGE 		8-94399-863-1 01 1 0005-0210 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X18,M10X58 L=83 W/LK WASHER 		1-09302-136-1 01 1 0303- ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-94399-863-1 01 1 0303-0805 ●
7 BOLT; OIL PUMP,P/S
6HK1 TCS ENG(80L) M10X55 FLANGE 		8-97365-449-0 01 1 0806- ●
8 BOLT; OIL PIPE
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0211-0302 ● ● ● ●
8 BOLT; OIL PIPE
M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0303-0906 ● ● ●
8 BOLT; OIL PIPE
6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER 		0-50140-818-0 02 1 0303-0906 ●
8 BOLT; OIL PIPE
M8X18 W/LK&PL WASHER 		0-50640-818-0 02 1 0907- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
(A) 		1-09701-193-1 01 1 0211- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
(B) 		1-09701-194-1 01 1 0211- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D) ID=32 		1-09704-085-0 02 1 0005-0210 ●
15 CLIP; OIL PIPE SUCTION
(C) 		1-09701-210-0 02 1 0211- ● ● ● ●
15 CLIP; OIL PIPE SUCTION
6HK1 TCS ENG(80L) (D) ID=32 		1-09704-085-0 02 1 0303- ●
16 BOLT; STAY,P/S OIL PUMP
(A) M6X45 FLANGE 		0-28080-645-0 01 1 0211-0302 ● ● ● ●
16 BOLT; STAY,P/S OIL PUMP
(A) M6X45 FLANGE 		0-28080-645-0 01 1 0303-0512 ● ● ●
16 BOLT; STAY,P/S OIL PUMP
6SD1 TCN ENG(31L) (A) M6X45 FLANGE 		0-28080-645-0 01 1 0303-0512 ●
16 BOLT; STAY,P/S OIL PUMP
(A) M6X45 FLANGE 		0-28050-645-0 01 1 0601- ● ● ● ●
16 BOLT; STAY,P/S OIL PUMP
(B) M6X40 FLANGE 		0-28680-640-0 01 1 0211-0302 ● ● ● ●
16 BOLT; STAY,P/S OIL PUMP
(B) M6X40 FLANGE 		0-28680-640-0 01 1 0303-0512 ● ● ●
16 BOLT; STAY,P/S OIL PUMP
6SD1 TCN ENG(31L) (B) M6X40 FLANGE 		0-28680-640-0 01 1 0303-0512 ●
16 BOLT; STAY,P/S OIL PUMP
(B) M6X40 FLANGE 		0-28650-640-0 01 1 0601- ● ● ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0005-0210 ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L) ID=12.5 		9-09160-512-0 02 1 0005-0210 ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0211-0302 ● ● ● ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 		9-09160-512-0 02 1 0303-0605 ● ● ●
21 WASHER; PL,P/S OIL PUMP
6SD1 TCN ENG(31L) ID=12.5 		9-09160-512-0 02 1 0303-0605 ●
21 WASHER; PL,P/S OIL PUMP
ID=12.5 OD=22 		0-91610-512-0 02 1 0606- ● ● ● ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0005-0210 ● ● ●
23 GEAR; OIL PUMP
6SD1 TCN ENG(31L) Z=17 		1-19581-030-0 01 1 0005-0210 ●
23 GEAR; OIL PUMP
Z=17 		1-19581-030-0 01 1 0211- ● ● ● ●
23 GEAR; OIL PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) Z=30 		8-94396-957-3 01 1 0005-0210 ●
23 GEAR; OIL PUMP
6HK1 TCS ENG(80L) Z=30 		8-94396-957-3 01 1 0303- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0303- ● ● ● ●
24 NUT; GEAR,P/S PUMP
6HE1 TC ENG(57L),6HH1 STD ENG(65L) M14 FLANGE 		0-91150-114-0 01 1 0005-0210 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91150-114-0 01 1 0303-0712 ●
24 NUT; GEAR,P/S PUMP
6HK1 TCS ENG(80L) M14 FLANGE 		0-91180-114-0 01 1 0801- ●
24 NUT; GEAR,P/S PUMP
M16 		9-19519-112-0 01 1 0005- ● ● ●
24 NUT; GEAR,P/S PUMP
6SD1 TCN ENG(31L) M16 		9-19519-112-0 01 1 0005- ●
31 NUT; FLEX HOSE
M20 		9-99111-420-0 01 1 0005-0512 ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L) M20 		9-99111-420-0 01 1 0005-0512 ●
31 NUT; FLEX HOSE
M20 		0-91111-520-0 01 1 0601- ● ● ●
31 NUT; FLEX HOSE
6SD1 TCN ENG(31L) M20 		0-91111-520-0 01 1 0601- ●
86 HOSE; FLEX,P/S 0-09536-340-0 01 1 0211-0302 ● ● ● ●
86 HOSE; FLEX,P/S 0-09536-340-0 01 1 0303-0608 ● ● ●
86 HOSE; FLEX,P/S
6SD1 TCN ENG(31L) 		0-09536-340-0 01 1 0303-0608 ●
86 HOSE; FLEX,P/S 0-89536-340-0 01 1 0609- ● ● ● ●
88 WASHER; GEAR,P/S PUMP
(A) 		1-19519-293-0 01 1 0005- ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L) (A) 		1-19519-293-0 01 1 0005- ●
88 WASHER; GEAR,P/S PUMP
(B) 		9-09150-016-0 01 1 0005- ● ● ●
88 WASHER; GEAR,P/S PUMP
6SD1 TCN ENG(31L) (B) 		9-09150-016-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
