Sayfa 4-35 - Isuzu EPC

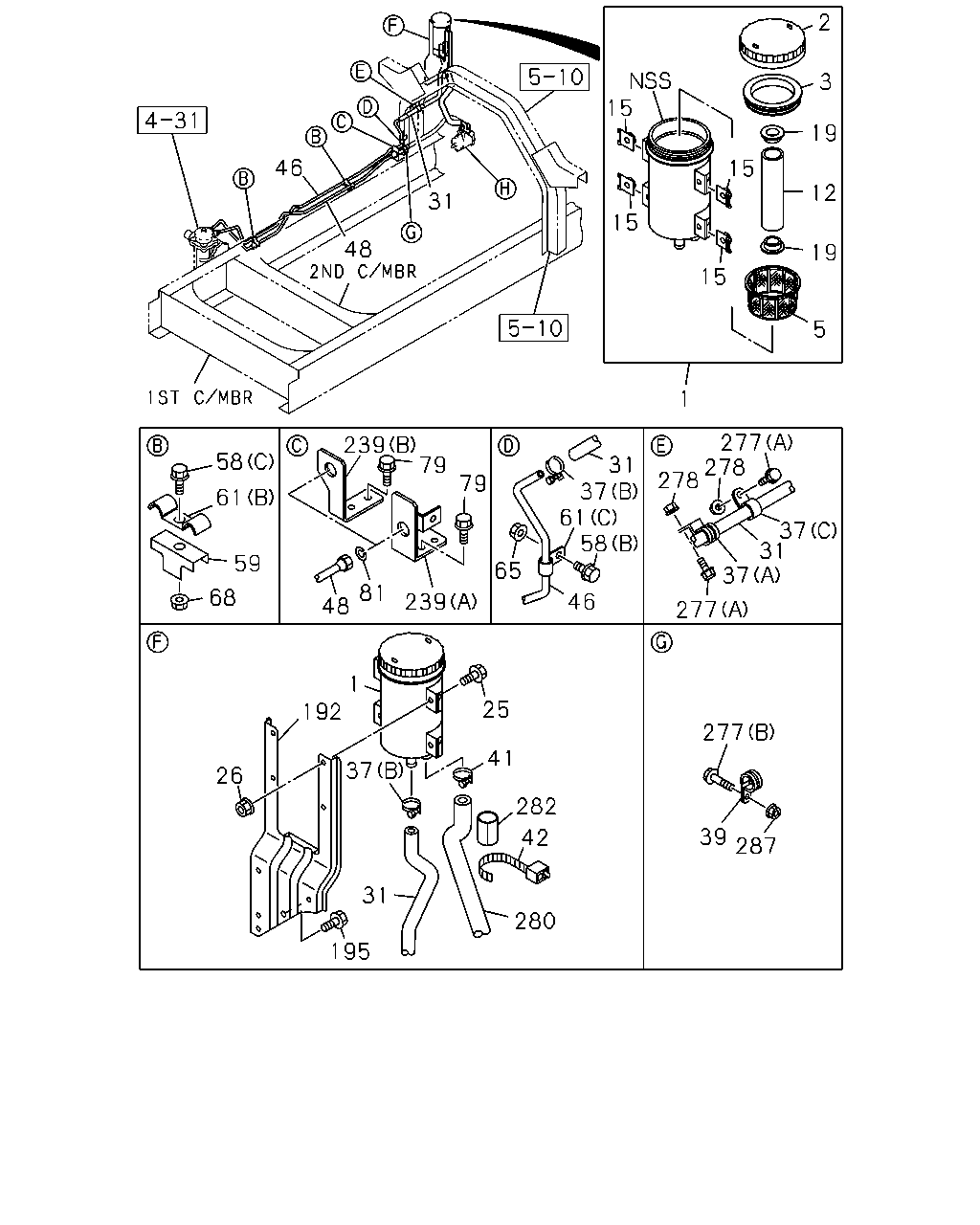

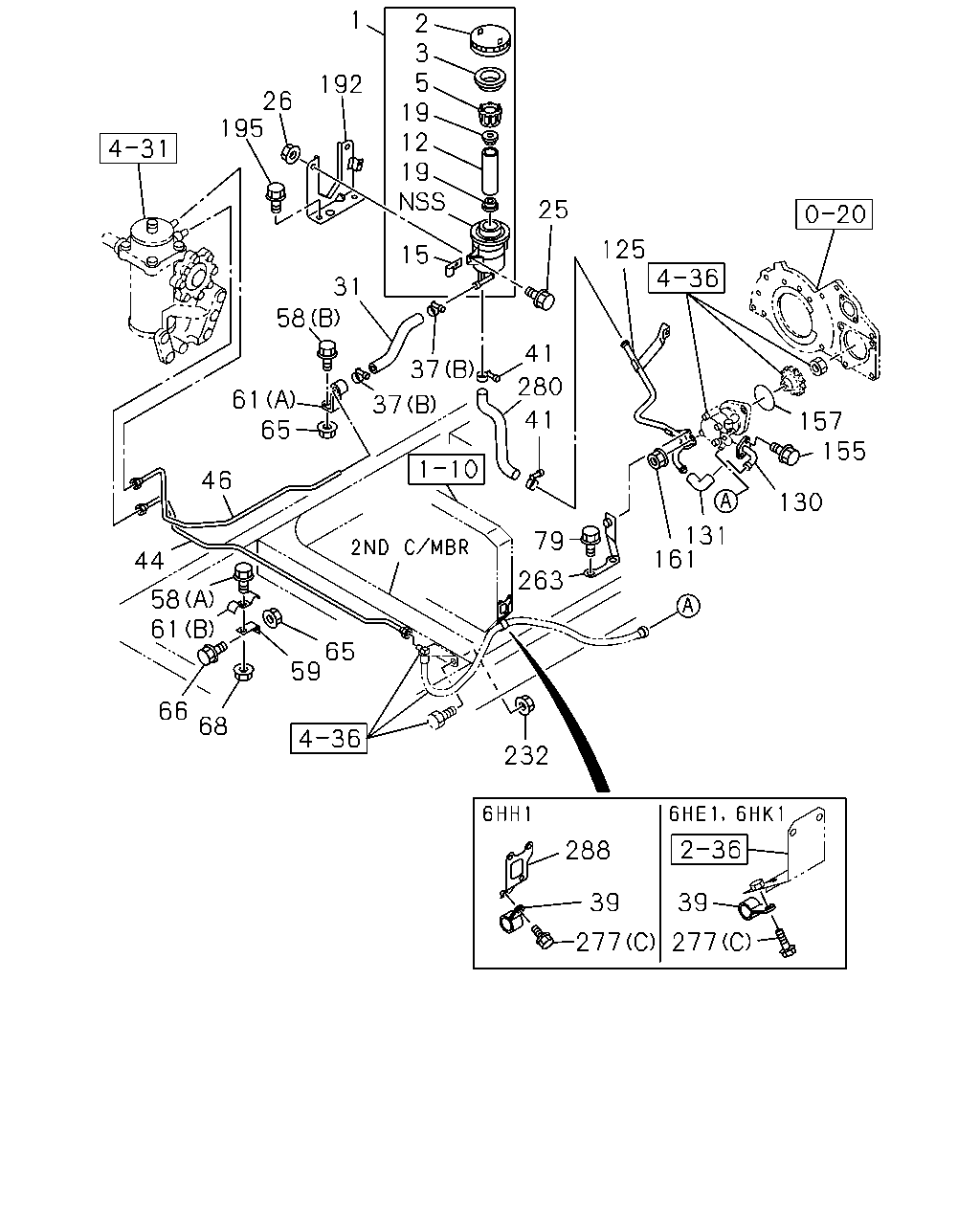

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#8718) — 470 parça

2 15 3 19 46 15 12 31 15 48 19 15 5 1 277 278 278 239 79 58 31 37 61 58 79 61 37 31 37 59 65 81 48 68 239 46 277 1 192 25 277 41 37 26 282 39 287 42 31 280 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	0005-0508	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	0005-0508				●
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0509-1006	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-237-2	01	1	0509-1006				●
1	TANK ASM; OIL,P/S	8-98166-927-0	01	1	1007-	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	8-98166-927-0	01	1	1007-				●
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21210-205-0	01	1	0005-0210				●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-205-0	01	1	0303-0508				●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-238-1	01	1	0509-1006				●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	8-98166-928-0	01	1	1007-				●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0005-1006	●	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0005-	●	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0005-	●	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0005-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0005-				●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21235-011-0	01	1	0005-0210				●
12	FILTER; MICROBON,OIL TANK,P/S 6HK1 TCS ENG(80L)	1-21235-011-0	01	1	0303-				●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0005-0508	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	0005-0508				●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-016-0	04	1	0509-				●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21249-007-1	02	1	0005-0210				●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-007-1	02	1	0303-0508				●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-016-0	02	1	0509-				●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0005-	●	●	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512				●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-				●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210				●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512				●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0005-0602				●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-				●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-				●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0005-0111	●	●	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21115-465-2	01	1	0005-0111				●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0112-0210	●		●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21115-465-2	01	1	0112-0210				●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-21115-465-2	01	1	0112-0210		●
31	HOSE; P/S OIL TANK,INL	1-21116-974-0	01	1	0211-	●	●	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21116-974-0	01	1	0211-				●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21113-590-0	01	1	0005-0210				●
31	HOSE; P/S OIL TANK,INL 6HK1 TCS ENG(80L)	1-21113-590-0	01	1	0303-				●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-21116-787-0	01	1	0112-0210		●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0005-	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=24 L=24	1-09701-001-1	01	1	0211-	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (C) ID=24 L=24	1-09701-001-1	01	1	0211-				●
37	CLIP; HOSE,P/S (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-				●
39	CLIP; FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=40	8-94226-553-0	01	1	0005-0210				●
39	CLIP; FLEX HOSE 6HK1 TCS ENG(80L) ID=40	8-94226-553-0	01	1	0303-				●
39	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) ID=18 L=28	1-09701-067-0	01	1	0112-0210		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-	●	●	●	●
42	CLIP; HOSE,P/S L=250	1-09707-126-0	01	1	0005-	●	●	●
42	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) L=250	1-09707-126-0	01	1	0005-				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D>	1-21117-912-0	01	1	0610-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0005-0111	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21116-786-0	01	1	0005-0111				●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0112-0210	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21116-786-0	01	1	0112-0210				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-21116-786-0	01	1	0112-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-296-0	01	1	0211-0609	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21117-296-0	01	1	0211-0609				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21117-296-0	01	1	0610-	●		●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21117-296-0	01	1	0610-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) A/T<X9D> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-296-0	01	1	0610-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=786	1-21115-336-0	01	1	0005-0210				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCS ENG(80L) L=786	1-21115-336-0	01	1	0303-				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-21117-179-0	01	1	0112-0210		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D>	1-21117-913-0	01	1	0610-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-563-0	01	1	0005-0111	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L)	1-21115-563-0	01	1	0005-0111				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21115-563-0	01	1	0112-0210	●		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L)	1-21115-563-0	01	1	0112-0210				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-21115-563-0	01	1	0112-0210		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT	1-21117-234-0	01	1	0211-0609	●	●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L)	1-21117-234-0	01	1	0211-0609				●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L)	1-21117-234-0	01	1	0610-	●		●	●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21117-234-0	01	1	0610-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) A/T<X9D> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-234-0	01	1	0610-		●
48	PIPE; OIL,FLEX HOSE TO STRG UNIT 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-21116-047-0	01	1	0112-0210		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0111	●	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0111				●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0112-0512	●		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	0112-0512				●
58	BOLT; CLIP 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (C) M8X45 FLANGE	0-28080-845-0	02	1	0112-0512		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-				●
58	BOLT; CLIP 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●
58	BOLT; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210				●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512				●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0609				●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-				●
58	BOLT; CLIP 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (C) M8X45 FLANGE	0-28080-845-0	01	1	0112-0512		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0005-0111	●	●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	0005-0111				●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0112-	●		●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	0112-				●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-47475-427-1	02	1	0112-		●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=60	1-47475-455-0	01	1	0005-0210				●
59	BRACKET; CLIP,OIL PIPE 6HK1 TCS ENG(80L) L=60	1-47475-455-0	01	1	0303-				●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-47475-427-1	01	1	0112-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0111	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0111				●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0112-0609	●		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0112-0609				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0112-0609		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-	●		●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-		●
61	CLIP; OIL PIPE (C) ID=16 L=40	9-09525-576-0	01	1	0005-0606	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	0005-0606				●
61	CLIP; OIL PIPE (C) ID=16 L=40	0-95235-576-0	01	1	0607-	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	0-95235-576-0	01	1	0607-				●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0210				●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0111				●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0112-0210				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0112-0210		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0211-0302		●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609		●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-		●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0303-				●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0111	●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0005-0111				●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0005-0111				●
65	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	0005-0111		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0210	●
65	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	02	1	0112-0210		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0302	●	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0303-0602	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0303-0602				●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-				●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0111	●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0111				●
65	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	02	1	0005-0111		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0112-0210	●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0112-0210				●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0112-0210				●
65	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	01	1	0112-0210		●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0005-0210				●
65	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0111	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0005-0111				●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0112-0210	●		●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0112-0210				●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) M8 FLANGE	0-91150-108-0	02	1	0112-0210		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-0609	●	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0610-	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0610-				●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> M8 FLANGE	0-91180-108-0	01	1	0610-		●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0005-0111				●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0112-0210				●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0112-0210		●
79	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512				●
79	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28050-825-0	02	1	0601-				●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210				●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28080-812-0	02	1	0303-0512				●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●
81	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●	●	●
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L) ID=20.2	9-09150-520-0	01	1	0005-0603				●
81	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●	●	●
81	WASHER; LK,FLEX HOSE 6SD1 TCN ENG(31L) ID=20.2	0-91510-520-0	01	1	0604-				●
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0005-	●	●	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	0005-				●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21119-142-1	01	1	0005-0210				●
192	BRACKET; P/S OIL TANK 6HK1 TCS ENG(80L)	1-21119-142-1	01	1	0303-				●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	0005-0406	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	0005-0406				●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	03	1	0407-0512	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512				●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	03	1	0601-	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28051-025-0	03	1	0601-				●
195	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X30 FLANGE	0-28681-030-0	02	1	0005-0210				●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28681-030-0	02	1	0303-0512				●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28651-030-0	02	1	0601-				●
239	BRACKET; FLEX HOSE (A)	1-47477-639-0	01	1	0005-0210	●	●	●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG(31L) (A)	1-47477-639-0	01	1	0005-0210				●
239	BRACKET; FLEX HOSE (B)	1-47479-427-0	01	1	0211-	●	●	●
239	BRACKET; FLEX HOSE 6SD1 TCN ENG(31L) (B)	1-47479-427-0	01	1	0211-				●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210				●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210				●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512				●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (B) M8X20 FLANGE	0-28680-820-0	01	1	0112-0210		●
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210	●	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	01	1	0005-0210				●
278	NUT; HOSE CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602	●	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0211-0602				●
278	NUT; HOSE CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●
278	NUT; HOSE CLIP 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-				●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	0005-0210	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0005-0210				●
280	HOSE; P/S OIL PUMP,INL	1-21116-804-0	01	1	0211-	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0211-				●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21116-721-0	01	1	0005-0210				●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0303-				●
282	SLEEVE; RUBBER,PIPE ID=32 OD=36 L=50	1-09337-023-0	01	1	0005-	●	●	●
282	SLEEVE; RUBBER,PIPE 6SD1 TCN ENG(31L) ID=32 OD=36 L=50	1-09337-023-0	01	1	0005-				●
287	NUT; CLIP 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0112-0210		●

1 2 3 5 19 12 19 192 26 195 25 125 15 31 58 41 37 280 61 65 37 41 157 155 46 130 131 161 79 44 263 58 61 65 59 66 68 232 288 39 39 277 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; OIL,P/S	1-21210-152-6	01	1	0005-0508	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-152-6	01	1	0005-0508				●
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0509-1006	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	1-21210-237-2	01	1	0509-1006				●
1	TANK ASM; OIL,P/S	8-98166-927-0	01	1	1007-	●	●	●
1	TANK ASM; OIL,P/S 6SD1 TCN ENG(31L)	8-98166-927-0	01	1	1007-				●
1	TANK ASM; OIL,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21210-205-0	01	1	0005-0210				●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-205-0	01	1	0303-0508				●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	1-21210-238-1	01	1	0509-1006				●
1	TANK ASM; OIL,P/S 6HK1 TCS ENG(80L)	8-98166-928-0	01	1	1007-				●
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0005-1006	●	●	●	●
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-	●	●	●	●
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0005-	●	●	●	●
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0005-	●	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0005-	●	●	●
12	FILTER; MICROBON,OIL TANK,P/S 6SD1 TCN ENG(31L)	1-21235-004-1	01	1	0005-				●
12	FILTER; MICROBON,OIL TANK,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21235-011-0	01	1	0005-0210				●
12	FILTER; MICROBON,OIL TANK,P/S 6HK1 TCS ENG(80L)	1-21235-011-0	01	1	0303-				●
15	PLATE; FILTER,OIL TANK	1-21249-007-1	04	1	0005-0508	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-007-1	04	1	0005-0508				●
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0509-	●	●	●
15	PLATE; FILTER,OIL TANK 6SD1 TCN ENG(31L)	1-21249-016-0	04	1	0509-				●
15	PLATE; FILTER,OIL TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21249-007-1	02	1	0005-0210				●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-007-1	02	1	0303-0508				●
15	PLATE; FILTER,OIL TANK 6HK1 TCS ENG(80L)	1-21249-016-0	02	1	0509-				●
19	SEAT; OIL TANK	1-21249-004-0	02	1	0005-	●	●	●	●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28680-825-0	04	1	0005-0512	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0512				●
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0601-	●	●	●
25	BOLT; OIL TANK BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	04	1	0601-				●
25	BOLT; OIL TANK BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210				●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512				●
25	BOLT; OIL TANK BRKT 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91150-108-0	04	1	0005-0602	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0005-0602				●
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
26	NUT; OIL TANK TO BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	04	1	0603-				●
26	NUT; OIL TANK TO BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
26	NUT; OIL TANK TO BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-				●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0005-0111	●	●	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21115-465-2	01	1	0005-0111				●
31	HOSE; P/S OIL TANK,INL	1-21115-465-2	01	1	0112-0210	●		●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21115-465-2	01	1	0112-0210				●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-21115-465-2	01	1	0112-0210		●
31	HOSE; P/S OIL TANK,INL	1-21116-974-0	01	1	0211-	●	●	●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L)	1-21116-974-0	01	1	0211-				●
31	HOSE; P/S OIL TANK,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21113-590-0	01	1	0005-0210				●
31	HOSE; P/S OIL TANK,INL 6HK1 TCS ENG(80L)	1-21113-590-0	01	1	0303-				●
31	HOSE; P/S OIL TANK,INL 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-21116-787-0	01	1	0112-0210		●
37	CLIP; HOSE,P/S (B) ID=26	1-09704-082-0	02	1	0005-	●	●	●	●
37	CLIP; HOSE,P/S (C) ID=24 L=24	1-09701-001-1	01	1	0211-	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (C) ID=24 L=24	1-09701-001-1	01	1	0211-				●
37	CLIP; HOSE,P/S (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-	●	●	●
37	CLIP; HOSE,P/S 6SD1 TCN ENG(31L) (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0005-				●
39	CLIP; FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=40	8-94226-553-0	01	1	0005-0210				●
39	CLIP; FLEX HOSE 6HK1 TCS ENG(80L) ID=40	8-94226-553-0	01	1	0303-				●
39	CLIP; FLEX HOSE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) ID=18 L=28	1-09701-067-0	01	1	0112-0210		●
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-	●	●	●	●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21115-902-0	01	1	0005-0210				●
44	PIPE; OIL,P/S UNIT TO NIPPLE 6HK1 TCS ENG(80L) L=965	1-21117-226-0	01	1	0303-				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D>	1-21117-912-0	01	1	0610-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0005-0111	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21116-786-0	01	1	0005-0111				●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21116-786-0	01	1	0112-0210	●		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21116-786-0	01	1	0112-0210				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-21116-786-0	01	1	0112-0210		●
46	PIPE; OIL,P/S UNIT TO OIL TANK	1-21117-296-0	01	1	0211-0609	●	●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21117-296-0	01	1	0211-0609				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L)	1-21117-296-0	01	1	0610-	●		●	●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) EXC. A/T<X9D>	1-21117-296-0	01	1	0610-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) A/T<X9D> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21117-296-0	01	1	0610-		●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=786	1-21115-336-0	01	1	0005-0210				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6HK1 TCS ENG(80L) L=786	1-21115-336-0	01	1	0303-				●
46	PIPE; OIL,P/S UNIT TO OIL TANK 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-21117-179-0	01	1	0112-0210		●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28680-830-0	01	1	0005-0512	●	●	●	●
58	BOLT; CLIP (B) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●	●	●	●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0111	●	●	●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	0005-0111				●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28080-845-0	02	1	0112-0512	●		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28080-845-0	02	1	0112-0512				●
58	BOLT; CLIP 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (C) M8X45 FLANGE	0-28080-845-0	02	1	0112-0512		●
58	BOLT; CLIP (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-	●		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-				●
58	BOLT; CLIP 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (C) M8X45 FLANGE	0-28050-845-0	02	1	0601-		●
58	BOLT; CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210				●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512				●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0601-0609				●
58	BOLT; CLIP 6HK1 TCS ENG(80L) (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-				●
58	BOLT; CLIP 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> (A) M8X20 FLANGE	0-28650-820-0	01	1	0610-		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (C) M8X45 FLANGE	0-28080-845-0	01	1	0112-0512		●
58	BOLT; CLIP 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (C) M8X45 FLANGE	0-28050-845-0	01	1	0601-		●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0005-0111	●	●	●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	0005-0111				●
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0112-	●		●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L)	1-47475-427-1	02	1	0112-				●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P)	1-47475-427-1	02	1	0112-		●
59	BRACKET; CLIP,OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=60	1-47475-455-0	01	1	0005-0210				●
59	BRACKET; CLIP,OIL PIPE 6HK1 TCS ENG(80L) L=60	1-47475-455-0	01	1	0303-				●
59	BRACKET; CLIP,OIL PIPE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B)	1-47475-427-1	01	1	0112-		●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0111	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0005-0111				●
61	CLIP; OIL PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0112-0609	●		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0112-0609				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0112-0609		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-	●		●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) EXC. A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	02	1	0610-		●
61	CLIP; OIL PIPE (C) ID=16 L=40	9-09525-576-0	01	1	0005-0606	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	9-09525-576-0	01	1	0005-0606				●
61	CLIP; OIL PIPE (C) ID=16 L=40	0-95235-576-0	01	1	0607-	●	●	●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) (C) ID=16 L=40	0-95235-576-0	01	1	0607-				●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0005-0210				●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0005-0111				●
61	CLIP; OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0112-0210				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0112-0210		●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0211-0302		●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0303-0609		●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-				●
61	CLIP; OIL PIPE 6SD1 TCN ENG(31L) A/T<X9D> EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0610-		●
61	CLIP; OIL PIPE 6HK1 TCS ENG(80L) (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0303-				●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0005-0111	●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0005-0111				●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0005-0111				●
65	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	0005-0111		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0112-0210	●
65	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	02	1	0112-0210		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0211-0302	●	●	●	●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0303-0602	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	01	1	0303-0602				●
65	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0603-	●	●	●	●
65	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0603-				●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0111	●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0111				●
65	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	02	1	0005-0111		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0112-0210	●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0112-0210				●
65	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0112-0210				●
65	NUT; BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	01	1	0112-0210		●
65	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	03	1	0005-0210				●
65	NUT; BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	03	1	0005-0210		●
65	NUT; BRKT M8 FLANGE	0-91150-108-0	03	1	0005-0210			●
66	BOLT; BRKT,OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210				●
66	BOLT; BRKT,OIL PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512				●
66	BOLT; BRKT,OIL PIPE 6HK1 TCS ENG(80L) M8X20 FLANGE	0-28650-820-0	01	1	0601-				●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0005-0111	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0005-0111				●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0112-0210	●		●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0112-0210				●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) M8 FLANGE	0-91150-108-0	02	1	0112-0210		●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	01	1	0211-0602	●	●	●	●
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	01	1	0603-0609	●	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	01	1	0610-	●	●	●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	01	1	0610-				●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) AUXILIARY TRANSMISSION OIL COOLER<V14> A/T<X9D> M8 FLANGE	0-91180-108-0	01	1	0610-		●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0005-0111				●
68	NUT; CLIP,OIL PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	01	1	0112-0210				●
68	NUT; CLIP,OIL PIPE 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0112-0210		●
79	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0005-0512	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	0005-0512				●
79	BOLT; BRKT M8X25 FLANGE	0-28050-825-0	02	1	0601-	●	●	●
79	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28050-825-0	02	1	0601-				●
79	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210				●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28080-812-0	02	1	0303-0512				●
79	BOLT; BRKT 6HK1 TCS ENG(80L) M8X12 FLANGE	0-28050-812-0	02	1	0601-				●
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	0005-0210	●	●	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	0005-0210				●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-584-1	01	1	0005-0210				●
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L)	8-94391-745-0	01	1	0005-0210				●
125	CONNECTOR; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-584-1	01	1	0303-				●
130	ADAPTER; P/S PUMP 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94390-583-0	01	1	0005-0210				●
130	ADAPTER; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-583-0	01	1	0303-				●
131	HOSE; RUBBER,P/S 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-94396-331-1	01	1	0005-0210				●
131	HOSE; RUBBER,P/S 6HK1 TCS ENG(80L)	8-94396-331-1	01	1	0303-				●
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0210	●	●	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0210				●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210				●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0303-	●	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=96.4	1-09623-178-0	01	1	0005-0210				●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1 TCS ENG(80L) ID=96.4	1-09623-178-0	01	1	0303-				●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-143-0	01	1	0005-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCN ENG(31L) ID=77	1-09623-143-0	01	1	0005-				●
161	NUT; P/S PIPE 6HK1 TCS ENG(80L) M10 FLANGE	0-91150-110-0	02	1	0303-0602				●
161	NUT; P/S PIPE 6HK1 TCS ENG(80L) M10 FLANGE	0-91180-110-0	02	1	0603-				●
161	NUT; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10 FLANGE	0-91150-110-0	01	1	0005-0210				●
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0005-	●	●	●
192	BRACKET; P/S OIL TANK 6SD1 TCN ENG(31L)	1-21219-093-2	01	1	0005-				●
192	BRACKET; P/S OIL TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21119-142-1	01	1	0005-0210				●
192	BRACKET; P/S OIL TANK 6HK1 TCS ENG(80L)	1-21119-142-1	01	1	0303-				●
195	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	03	1	0005-0406	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	03	1	0005-0406				●
195	BOLT; BRKT M10X25 FLANGE	0-28081-025-0	03	1	0407-0512	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28081-025-0	03	1	0407-0512				●
195	BOLT; BRKT M10X25 FLANGE	0-28051-025-0	03	1	0601-	●	●	●
195	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28051-025-0	03	1	0601-				●
195	BOLT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M10X30 FLANGE	0-28681-030-0	02	1	0005-0210				●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28681-030-0	02	1	0303-0512				●
195	BOLT; BRKT 6HK1 TCS ENG(80L) M10X30 FLANGE	0-28651-030-0	02	1	0601-				●
232	NUT; BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
232	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
232	NUT; BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-				●
263	BRACKET; P/S PIPE 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	8-97600-117-0	01	1	0005-0210				●
263	BRACKET; P/S PIPE 6HK1 TCS ENG(80L)	8-97600-117-0	01	1	0303-				●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210				●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
277	BOLT; HOSE CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
277	BOLT; HOSE CLIP 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210				●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512				●
277	BOLT; HOSE CLIP 6HK1 TCS ENG(80L) (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-				●
277	BOLT; HOSE CLIP 6SD1 TCN ENG(31L) ALLISON MD3560P A/T(Y3B) (B) M8X20 FLANGE	0-28680-820-0	01	1	0112-0210		●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	0005-0210	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0005-0210				●
280	HOSE; P/S OIL PUMP,INL	1-21116-804-0	01	1	0211-	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0211-				●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21116-721-0	01	1	0005-0210				●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0303-				●
288	BRACKET; CLIP,P/S 6HH1 STD ENG(65L)	1-82659-149-0	01	1	0005-0210				●

205 207 41 155 207 280 125 157 280 41 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0005-	●	●	●	●
125	CONNECTOR; P/S PUMP	1-21122-019-2	01	1	0005-0210	●	●	●
125	CONNECTOR; P/S PUMP 6SD1 TCN ENG(31L)	1-21122-019-2	01	1	0005-0210				●
125	CONNECTOR; P/S PUMP 6HE1 TC ENG(57L)	8-94390-584-1	01	1	0005-0210				●
125	CONNECTOR; P/S PUMP 6HH1 STD ENG(65L)	8-94391-745-0	01	1	0005-0210				●
125	CONNECTOR; P/S PUMP 6HK1 TCS ENG(80L)	8-94390-584-1	01	1	0303-				●
155	BOLT; CONNECTOR M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0210	●	●	●
155	BOLT; CONNECTOR 6SD1 TCN ENG(31L) M8X18 W/LK&PL WASHER	0-50140-818-0	02	1	0005-0210				●
155	BOLT; CONNECTOR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210				●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
155	BOLT; CONNECTOR 6HK1 TCS ENG(80L) M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=77	1-09623-143-0	01	1	0303-	●	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=96.4	1-09623-178-0	01	1	0005-0210				●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6HK1 TCS ENG(80L) ID=96.4	1-09623-178-0	01	1	0303-				●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-143-0	01	1	0005-	●	●	●
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). 6SD1 TCN ENG(31L) ID=77	1-09623-143-0	01	1	0005-				●
205	BOLT; EYE,FLEX HOSE,P/S M18X36	1-09675-205-0	01	1	0005-0210	●	●	●
205	BOLT; EYE,FLEX HOSE,P/S 6SD1 TCN ENG(31L) M18X36	1-09675-205-0	01	1	0005-0210				●
207	GASKET; FLEX HOSE,P/S PUMP ID=18	9-09571-418-0	02	1	0005-0210	●	●	●
207	GASKET; FLEX HOSE,P/S PUMP 6SD1 TCN ENG(31L) ID=18	9-09571-418-0	02	1	0005-0210				●
280	HOSE; P/S OIL PUMP,INL	1-21115-048-1	01	1	0005-0210	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21115-048-1	01	1	0005-0210				●
280	HOSE; P/S OIL PUMP,INL	1-21116-804-0	01	1	0211-	●	●	●
280	HOSE; P/S OIL PUMP,INL 6SD1 TCN ENG(31L)	1-21116-804-0	01	1	0211-				●
280	HOSE; P/S OIL PUMP,INL 6HE1 TC ENG(57L),6HH1 STD ENG(65L)	1-21116-721-0	01	1	0005-0210				●
280	HOSE; P/S OIL PUMP,INL 6HK1 TCS ENG(80L)	1-21116-721-0	01	1	0303-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
