Sayfa 4-25B - Isuzu EPC

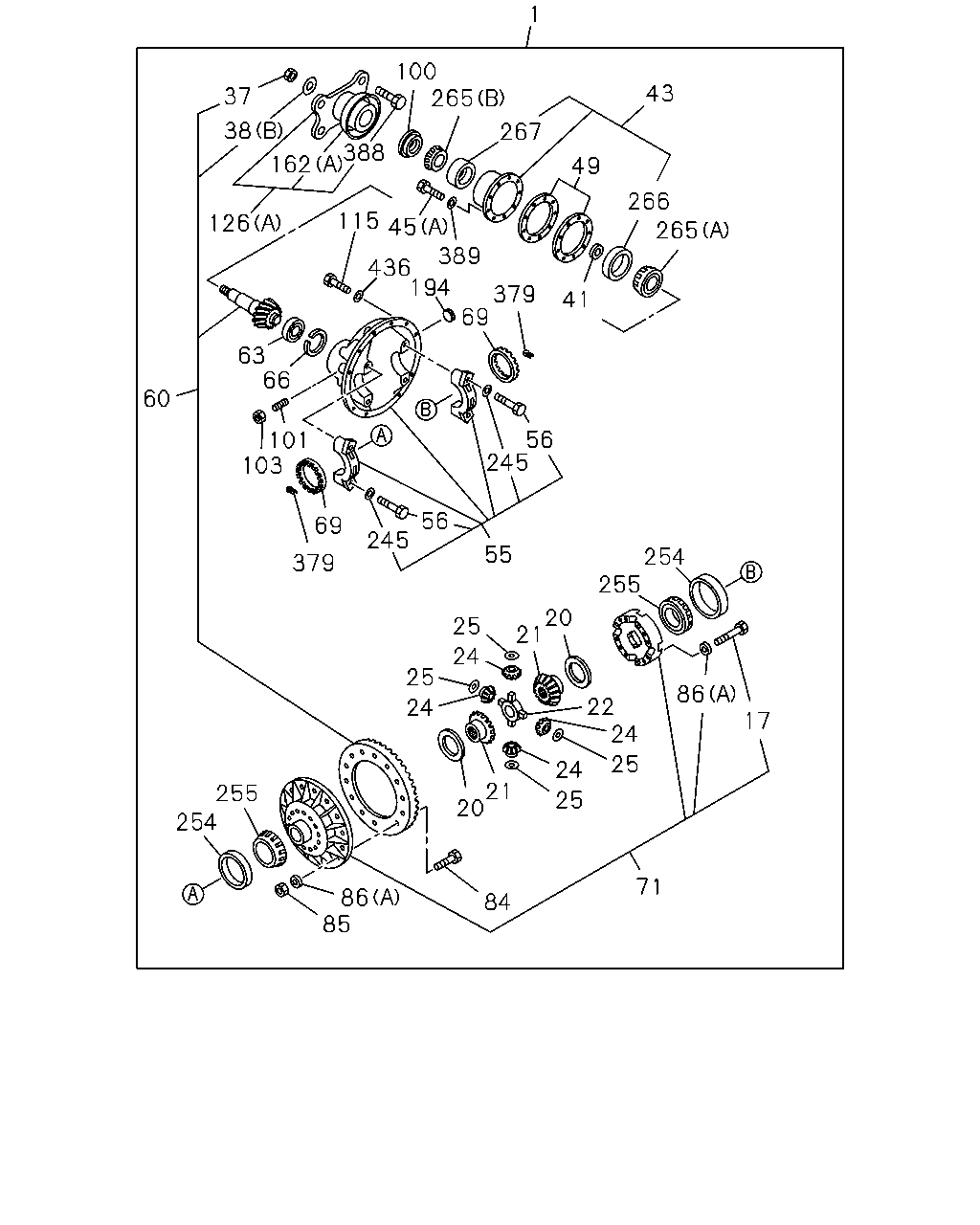

4-25B — REAR FINAL DRIVE (#8713) — 435 parça

1 100 265 43 37 38 267 388 162 49 266 115 45 126 265 389 436 194 379 69 41 63 66 60 101 103 56 245 56 69 245 55 254 255 379 20 21 25 24 25 86 17 22 24 24 25 24 21 20 255 25 254 71 86 85 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR 43/10	1-41002-742-0	01	1	0610-	●
1	DRIVE ASM; FINAL,RR 43/11	1-41002-741-0	01	1	0005-0210		●
1	DRIVE ASM; FINAL,RR FVR(FVR***) 43/11	1-41002-741-0	01	1	0211-		●
1	DRIVE ASM; FINAL,RR 43/10	1-41002-331-0	01	1	0005-0210	●
1	DRIVE ASM; FINAL,RR 43/8	1-41002-743-0	01	1	0005-0210			●
1	DRIVE ASM; FINAL,RR 45/8	1-41002-744-0	01	1	0005-0210				●
1	DRIVE ASM; FINAL,RR 45/8	1-41002-744-0	01	1	0303-				●
1	DRIVE ASM; FINAL,RR 43/7	1-41002-745-0	01	1	0005-0210					●
1	DRIVE ASM; FINAL,RR 41/6	1-41002-747-0	01	1	0005-0210						●
1	DRIVE ASM; FINAL,RR 43/12	1-41002-740-0	01	1	0005-							●
1	DRIVE ASM; FINAL,RR GVR(GV****) 43/11	1-41001-868-0	01	1	0211-		●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0005-0210	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0211-0302		●					●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0303-0609		●		●			●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0610-	●	●		●			●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0303-0609				●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	02	1	0610-	●			●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	0005-0210		●	●	●	●	●	●
20	WASHER; THRUST,SIDE GEAR	1-41562-269-0	04	1	0211-		●					●
21	GEAR; SIDE,DIFF	1-41561-116-0	02	1	0005-0210		●	●	●	●	●	●
21	GEAR; SIDE,DIFF	1-41561-116-0	02	1	0211-0302		●					●
21	GEAR; SIDE,DIFF	1-41561-116-0	02	1	0303-0609		●		●			●
21	GEAR; SIDE,DIFF	1-41561-116-0	02	1	0610-	●	●		●			●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0005-0210	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0211-0302		●					●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0303-0609		●		●			●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0610-	●	●		●			●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0005-0210		●	●	●	●	●	●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0211-0302		●					●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0303-0609		●		●			●
24	GEAR; PINION,DIFF	1-41551-035-0	04	1	0610-	●	●		●			●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0005-0210		●	●	●	●	●	●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0211-0302		●					●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0303-0609		●		●			●
25	WASHER; THRUST,PINION	1-41552-037-0	04	1	0610-	●	●		●			●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0005-0210	●	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0211-0302		●					●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0303-0609		●		●			●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0610-	●	●		●			●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0005-0111	●	●	●	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0112-0210	●	●	●	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0211-0302		●					●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0303-0609		●		●			●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0610-	●	●		●			●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0005-0210		●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0211-0302		●					●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0303-0609		●		●			●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0610-	●	●		●			●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-294-0	01	1	0005-0210	●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0005-0210		●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0211-0302		●					●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0303-0609		●		●			●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0610-	●	●		●			●
43	CAGE; FINAL PINION	1-41151-069-0	01	1	0005-0210	●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0005-0111	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0112-0210	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0211-0302		●					●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0303-		●		●			●
49	SHIM; FINAL PINION CAGE	1-41154-114-0	01	1	0005-0210		●	●	●	●	●	●
49	SHIM; FINAL PINION CAGE	1-41154-114-0	01	1	0211-0302		●					●
49	SHIM; FINAL PINION CAGE	1-41154-114-0	01	1	0303-0609		●		●			●
49	SHIM; FINAL PINION CAGE	1-41154-114-0	01	1	0610-	●	●		●			●
55	CARRIER; DIFF	1-41110-126-0	01	1	0005-0210		●	●	●	●	●	●
55	CARRIER; DIFF FVR(FVR***)	1-41110-126-0	01	1	0211-0302		●
55	CARRIER; DIFF	1-41110-126-0	01	1	0211-0302							●
55	CARRIER; DIFF FVR(FVR***)	1-41110-126-0	01	1	0303-0609		●
55	CARRIER; DIFF	1-41110-126-0	01	1	0303-0609				●			●
55	CARRIER; DIFF FVR(FVR***)	1-41110-126-0	01	1	0610-		●
55	CARRIER; DIFF	1-41110-126-0	01	1	0610-	●			●			●
55	CARRIER; DIFF	1-41110-110-0	01	1	0005-0210	●
55	CARRIER; DIFF GVR(GV****)	1-41110-110-0	01	1	0211-		●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0005-0210	●	●	●	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0211-0302		●					●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0303-0609		●		●			●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0610-	●	●		●			●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-649-0	01	1	0610-	●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-648-0	01	1	0005-		●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-587-0	01	1	0005-0210	●
60	GEAR SET; FINAL DRIVE,RR 43/8	1-41210-650-0	01	1	0005-0210			●
60	GEAR SET; FINAL DRIVE,RR 45/8	1-41210-651-0	01	1	0005-0210				●
60	GEAR SET; FINAL DRIVE,RR 45/8	1-41210-651-0	01	1	0303-				●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-652-0	01	1	0005-0210					●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-654-0	01	1	0005-0210						●
60	GEAR SET; FINAL DRIVE,RR 43/12	1-41210-647-0	01	1	0005-							●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0005-0210	●	●	●	●	●	●	●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0211-0302		●					●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0303-0609		●		●			●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0610-	●	●		●			●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0005-0210	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0211-0302		●					●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0303-0609		●		●			●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0610-	●	●		●			●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0005-0210		●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0211-0302		●					●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0303-0609		●		●			●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0610-	●	●		●			●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0005-0210		●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FVR(FVR***)	1-41121-049-0	01	1	0211-0302		●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0211-0302							●
69	NUT; ADJ,DIFF CAGE FVR(FVR***)	1-41121-049-0	01	1	0303-0609		●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0303-0609				●			●
69	NUT; ADJ,DIFF CAGE FVR(FVR***)	1-41121-049-0	01	1	0610-		●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0610-	●			●			●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	02	1	0005-0210	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	01	1	0005-0609		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	01	1	0610-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-246-0	01	1	0005-0210	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-286-0	01	1	0005-0210			●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-286-0	01	1	0303-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-284-0	01	1	0005-							●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0005-0210	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0211-0302		●					●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0303-0609		●		●			●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0610-	●	●		●			●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0005-0210	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0211-0302		●					●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0303-0609		●		●			●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0610-	●	●		●			●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41229-121-0	24	1	0610-	●
86	WASHER; PL,DIFF CAGE SETTING GVR(GV****) (A)	1-41519-035-0	24	1	0211-		●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0005-0111		●	●	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0112-0210		●	●	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING FVR(FVR***) (A)	1-41229-168-0	24	1	0211-0302		●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0211-0302							●
86	WASHER; PL,DIFF CAGE SETTING FVR(FVR***) (A)	1-41229-168-0	24	1	0303-		●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0303-				●			●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41519-035-0	24	1	0005-0210	●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0005-0210		●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0211-0302		●					●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0303-0609		●		●			●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0610-	●	●		●			●
100	SEAL; OIL,FINAL PINION	1-41219-029-0	01	1	0005-0210	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	0005-0210	●
101	BOLT; ADJ,DRIVEN GEAR THRUST GVR(GV****)	1-41259-001-0	01	1	0211-		●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	0005-0210	●
103	NUT; ADJ BOLT GVR(GV****)	1-41259-002-0	01	1	0211-		●
115	BOLT; DIFF CARRIER	1-41119-072-0	01	1	0005-0210		●	●	●	●	●	●
115	BOLT; DIFF CARRIER	1-41119-072-0	01	1	0211-0302		●					●
115	BOLT; DIFF CARRIER	1-41119-072-0	01	1	0303-0609		●		●			●
115	BOLT; DIFF CARRIER	1-41119-072-0	01	1	0610-	●	●		●			●
126	COUPLING; DRIVING PINION GVR(GV****) (A)	1-37245-409-0	01	1	0211-		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0005-0111	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0112-0210	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION FVR(FVR***) (A)	1-37245-301-0	01	1	0211-0302		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0211-0302							●
126	COUPLING; DRIVING PINION FVR(FVR***) (A)	1-37245-301-0	01	1	0303-0609		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0303-0609				●			●
126	COUPLING; DRIVING PINION FVR(FVR***) (A)	1-37245-301-0	01	1	0610-		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0610-	●			●			●
162	COVER; DUST,INPUT FLANGE GVR(GV****) (A)	1-37249-190-0	01	1	0211-		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0005-0111	●	●	●	●	●	●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0112-0210	●	●	●	●	●	●	●
162	COVER; DUST,INPUT FLANGE FVR(FVR***) (A)	1-37249-161-0	01	1	0211-0302		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0211-0302							●
162	COVER; DUST,INPUT FLANGE FVR(FVR***) (A)	1-37249-161-0	01	1	0303-0609		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0303-0609				●			●
162	COVER; DUST,INPUT FLANGE FVR(FVR***) (A)	1-37249-161-0	01	1	0610-		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0610-	●			●			●
194	PLUG	1-41119-075-0	01	1	0005-0210		●	●	●	●	●	●
194	PLUG FVR(FVR***)	1-41119-075-0	01	1	0211-0302		●
194	PLUG	1-41119-075-0	01	1	0211-0302							●
194	PLUG FVR(FVR***)	1-41119-075-0	01	1	0303-		●
194	PLUG	1-41119-075-0	01	1	0303-				●			●
194	PLUG GVR(GV****)	1-41119-077-0	01	1	0211-0609		●
194	PLUG GVR(GV****)	1-41119-077-0	01	1	0610-		●
194	PLUG	1-41119-077-0	01	1	0610-	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0005-0210	●	●	●	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0211-0302		●					●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0303-0609		●		●			●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0610-	●	●		●			●
254	CUP; DIFF BRG	1-41229-132-0	01	1	0610-	●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0005-0210		●	●	●	●	●	●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0211-0302		●					●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0303-0609		●		●			●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0610-	●	●		●			●
254	CUP; DIFF BRG	1-41519-083-0	01	1	0005-0210		●	●	●	●	●	●
254	CUP; DIFF BRG FVR(FVR***)	1-41519-083-0	01	1	0211-0302		●
254	CUP; DIFF BRG	1-41519-083-0	01	1	0211-0302							●
254	CUP; DIFF BRG FVR(FVR***)	1-41519-083-0	01	1	0303-		●
254	CUP; DIFF BRG	1-41519-083-0	01	1	0303-				●			●
254	CUP; DIFF BRG	1-41229-131-0	02	1	0005-0210	●
254	CUP; DIFF BRG GVR(GV****)	1-41519-032-0	01	1	0211-		●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0005-0210		●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0211-0302		●					●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0303-0609		●		●			●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0610-	●	●		●			●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0005-0210		●	●	●	●	●	●
255	CONE; DIFF BRG FVR(FVR***)	1-41519-084-0	01	1	0211-0302		●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0211-0302							●
255	CONE; DIFF BRG FVR(FVR***)	1-41519-084-0	01	1	0303-0609		●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0303-0609				●			●
255	CONE; DIFF BRG FVR(FVR***)	1-41519-084-0	01	1	0610-		●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0610-	●			●			●
255	CONE; DIFF BRG	1-41519-032-0	02	1	0005-0210	●
255	CONE; DIFF BRG GVR(GV****)	1-41229-131-0	01	1	0211-		●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-033-0	01	1	0005-0210		●	●	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-033-0	01	1	0211-0302		●					●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-033-0	01	1	0303-0609		●		●			●
265	CONE; BRG,FINAL DRIVE PINION (A)	1-41219-033-0	01	1	0610-	●	●		●			●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-120-0	01	1	0005-0210		●	●	●	●	●	●
265	CONE; BRG,FINAL DRIVE PINION FVR(FVR***) (B)	1-41219-120-0	01	1	0211-0302		●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-120-0	01	1	0211-0302							●
265	CONE; BRG,FINAL DRIVE PINION FVR(FVR***) (B)	1-41219-120-0	01	1	0303-0609		●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-120-0	01	1	0303-0609				●			●
265	CONE; BRG,FINAL DRIVE PINION FVR(FVR***) (B)	1-41219-120-0	01	1	0610-		●
265	CONE; BRG,FINAL DRIVE PINION (B)	1-41219-120-0	01	1	0610-	●			●			●
265	CONE; BRG,FINAL DRIVE PINION GVR(GV****) (B)	1-41219-124-0	01	1	0211-		●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-122-0	01	1	0005-0210		●	●	●	●	●	●
266	CUP; BRG,FINAL DRIVE PINION,INNER FVR(FVR***)	1-41219-122-0	01	1	0211-0302		●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-122-0	01	1	0211-0302							●
266	CUP; BRG,FINAL DRIVE PINION,INNER FVR(FVR***)	1-41219-122-0	01	1	0303-0609		●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-122-0	01	1	0303-0609				●			●
266	CUP; BRG,FINAL DRIVE PINION,INNER FVR(FVR***)	1-41219-122-0	01	1	0610-		●
266	CUP; BRG,FINAL DRIVE PINION,INNER	1-41219-122-0	01	1	0610-	●			●			●
266	CUP; BRG,FINAL DRIVE PINION,INNER GVR(GV****)	1-41219-032-0	01	1	0211-		●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-121-0	01	1	0005-0210		●	●	●	●	●	●
267	CUP; BRG,FINAL DRIVE PINION,OUTER FVR(FVR***)	1-41219-121-0	01	1	0211-0302		●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-121-0	01	1	0211-0302							●
267	CUP; BRG,FINAL DRIVE PINION,OUTER FVR(FVR***)	1-41219-121-0	01	1	0303-0609		●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-121-0	01	1	0303-0609				●			●
267	CUP; BRG,FINAL DRIVE PINION,OUTER FVR(FVR***)	1-41219-121-0	01	1	0610-		●
267	CUP; BRG,FINAL DRIVE PINION,OUTER	1-41219-121-0	01	1	0610-	●			●			●
267	CUP; BRG,FINAL DRIVE PINION,OUTER GVR(GV****)	1-41349-050-0	01	1	0211-		●
379	PIN; SPLIT	1-41129-012-0	01	1	0005-0210		●	●	●	●	●	●
379	PIN; SPLIT	1-41129-012-0	01	1	0211-0302		●					●
379	PIN; SPLIT	1-41129-012-0	01	1	0303-		●		●			●
379	PIN; SPLIT	1-41129-013-0	01	1	0005-0210		●	●	●	●	●	●
379	PIN; SPLIT FVR(FVR***)	1-41129-013-0	01	1	0211-0302		●
379	PIN; SPLIT	1-41129-013-0	01	1	0211-0302							●
379	PIN; SPLIT FVR(FVR***)	1-41129-013-0	01	1	0303-		●
379	PIN; SPLIT	1-41129-013-0	01	1	0303-				●			●
379	PIN; SPLIT	1-41129-012-0	02	1	0005-0210	●
379	PIN; SPLIT	1-41129-012-0	02	1	0610-	●
388	BOLT; COUPLING	1-37249-160-0	04	1	0005-0111	●	●	●	●	●	●	●
388	BOLT; COUPLING	1-37249-160-0	04	1	0112-0210	●	●	●	●	●	●	●
388	BOLT; COUPLING	1-37249-160-0	04	1	0211-0302		●					●
388	BOLT; COUPLING	1-37249-160-0	04	1	0303-0609		●		●			●
388	BOLT; COUPLING	1-37249-160-0	04	1	0610-		●		●			●
389	WASHER; FINAL PINION CAGE	1-41329-084-0	08	1	0005-0210		●	●	●	●	●	●
389	WASHER; FINAL PINION CAGE FVR(FVR***)	1-41329-084-0	08	1	0211-0302		●
389	WASHER; FINAL PINION CAGE	1-41329-084-0	08	1	0211-0302							●
389	WASHER; FINAL PINION CAGE FVR(FVR***)	1-41329-084-0	08	1	0303-0609		●
389	WASHER; FINAL PINION CAGE	1-41329-084-0	08	1	0303-0609				●			●
389	WASHER; FINAL PINION CAGE FVR(FVR***)	1-41329-084-0	08	1	0610-		●
389	WASHER; FINAL PINION CAGE	1-41329-084-0	08	1	0610-	●			●			●
389	WASHER; FINAL PINION CAGE GVR(GV****)	1-41159-009-0	08	1	0211-		●
436	WASHER; PL,DIFF CARRIER	1-41229-121-0	01	1	0005-0210		●	●	●	●	●	●
436	WASHER; PL,DIFF CARRIER	1-41229-121-0	01	1	0211-0302		●					●
436	WASHER; PL,DIFF CARRIER	1-41229-121-0	01	1	0303-0609		●		●			●
436	WASHER; PL,DIFF CARRIER	1-41229-121-0	01	1	0610-	●	●		●			●

1 17 86 298 71 22 254 255 392 255 254 84 56 245 379 56 245 69 57 86 85 55 69 57 66 63 379 60 101 103 48 45 50 126 41 162 388 425 39 38 43 37 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G
1	DRIVE ASM; FINAL,RR 43/10	1-41002-742-0	01	1	0610-	●
1	DRIVE ASM; FINAL,RR 43/11	1-41002-741-0	01	1	0005-0210		●
1	DRIVE ASM; FINAL,RR FVR(FVR***) 43/11	1-41002-741-0	01	1	0211-		●
1	DRIVE ASM; FINAL,RR 43/10	1-41002-331-0	01	1	0005-0210	●
1	DRIVE ASM; FINAL,RR 43/8	1-41002-743-0	01	1	0005-0210			●
1	DRIVE ASM; FINAL,RR 45/8	1-41002-744-0	01	1	0005-0210				●
1	DRIVE ASM; FINAL,RR 45/8	1-41002-744-0	01	1	0303-				●
1	DRIVE ASM; FINAL,RR 43/7	1-41002-745-0	01	1	0005-0210					●
1	DRIVE ASM; FINAL,RR 41/6	1-41002-747-0	01	1	0005-0210						●
1	DRIVE ASM; FINAL,RR 43/12	1-41002-740-0	01	1	0005-							●
1	DRIVE ASM; FINAL,RR GVR(GV****) 43/11	1-41001-868-0	01	1	0211-		●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0005-0210	●	●	●	●	●	●	●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0211-0302		●					●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0303-0609		●		●			●
17	BOLT; DIFF CAGE SETTING	1-41519-037-0	12	1	0610-	●	●		●			●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0005-0210	●	●	●	●	●	●	●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0211-0302		●					●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0303-0609		●		●			●
22	SPIDER; DIFF PINION	1-41521-054-0	01	1	0610-	●	●		●			●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0005-0210	●	●	●	●	●	●	●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0211-0302		●					●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0303-0609		●		●			●
37	NUT; DRIVING PINION	1-41219-028-0	01	1	0610-	●	●		●			●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0005-0111	●	●	●	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0112-0210	●	●	●	●	●	●	●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0211-0302		●					●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0303-0609		●		●			●
38	WASHER; PL,DRIVING PINION (B)	1-41349-058-0	01	1	0610-	●	●		●			●
39	BEARING; FINAL PINION	1-41219-038-0	01	1	0005-0210	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0005-0210		●	●	●	●	●	●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0211-0302		●					●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0303-0609		●		●			●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-360-0	01	1	0610-	●	●		●			●
41	SPACER; FINAL DRIVE PINION BRG	1-41229-294-0	01	1	0005-0210	●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0005-0210		●	●	●	●	●	●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0211-0302		●					●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0303-0609		●		●			●
43	CAGE; FINAL PINION	1-41151-098-0	01	1	0610-	●	●		●			●
43	CAGE; FINAL PINION	1-41151-069-0	01	1	0005-0210	●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0005-0111	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0112-0210	●	●	●	●	●	●	●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0211-0302		●					●
45	BOLT; FINAL PINION CAGE (A)	1-41159-008-0	08	1	0303-		●		●			●
48	WASHER; LK,FINAL PINION	1-41159-009-0	08	1	0005-0210	●
50	BEARING; FINAL PINION	1-41219-039-0	01	1	0005-0210	●
55	CARRIER; DIFF	1-41110-126-0	01	1	0005-0210		●	●	●	●	●	●
55	CARRIER; DIFF FVR(FVR***)	1-41110-126-0	01	1	0211-0302		●
55	CARRIER; DIFF	1-41110-126-0	01	1	0211-0302							●
55	CARRIER; DIFF FVR(FVR***)	1-41110-126-0	01	1	0303-0609		●
55	CARRIER; DIFF	1-41110-126-0	01	1	0303-0609				●			●
55	CARRIER; DIFF FVR(FVR***)	1-41110-126-0	01	1	0610-		●
55	CARRIER; DIFF	1-41110-126-0	01	1	0610-	●			●			●
55	CARRIER; DIFF	1-41110-110-0	01	1	0005-0210	●
55	CARRIER; DIFF GVR(GV****)	1-41110-110-0	01	1	0211-		●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0005-0210	●	●	●	●	●	●	●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0211-0302		●					●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0303-0609		●		●			●
56	BOLT; BRG CAP	1-41119-066-0	04	1	0610-	●	●		●			●
57	DOWEL; BRG CAP	1-41229-295-0	04	1	0005-0210	●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-649-0	01	1	0610-	●
60	GEAR SET; FINAL DRIVE,RR 43/11	1-41210-648-0	01	1	0005-		●
60	GEAR SET; FINAL DRIVE,RR 43/10	1-41210-587-0	01	1	0005-0210	●
60	GEAR SET; FINAL DRIVE,RR 43/8	1-41210-650-0	01	1	0005-0210			●
60	GEAR SET; FINAL DRIVE,RR 45/8	1-41210-651-0	01	1	0005-0210				●
60	GEAR SET; FINAL DRIVE,RR 45/8	1-41210-651-0	01	1	0303-				●
60	GEAR SET; FINAL DRIVE,RR 43/7	1-41210-652-0	01	1	0005-0210					●
60	GEAR SET; FINAL DRIVE,RR 41/6	1-41210-654-0	01	1	0005-0210						●
60	GEAR SET; FINAL DRIVE,RR 43/12	1-41210-647-0	01	1	0005-							●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0005-0210	●	●	●	●	●	●	●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0211-0302		●					●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0303-0609		●		●			●
63	BEARING; PINION PILOT	1-41219-036-0	01	1	0610-	●	●		●			●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0005-0210	●	●	●	●	●	●	●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0211-0302		●					●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0303-0609		●		●			●
66	RING; SNAP,PILOT BRG	1-41219-037-0	01	1	0610-	●	●		●			●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0005-0210		●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0211-0302		●					●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0303-0609		●		●			●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	01	1	0610-	●	●		●			●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0005-0210		●	●	●	●	●	●
69	NUT; ADJ,DIFF CAGE FVR(FVR***)	1-41121-049-0	01	1	0211-0302		●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0211-0302							●
69	NUT; ADJ,DIFF CAGE FVR(FVR***)	1-41121-049-0	01	1	0303-0609		●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0303-0609				●			●
69	NUT; ADJ,DIFF CAGE FVR(FVR***)	1-41121-049-0	01	1	0610-		●
69	NUT; ADJ,DIFF CAGE	1-41121-049-0	01	1	0610-	●			●			●
69	NUT; ADJ,DIFF CAGE	1-41121-040-0	02	1	0005-0210	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	01	1	0005-0609		●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-285-0	01	1	0610-	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-246-0	01	1	0005-0210	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-286-0	01	1	0005-0210			●	●	●	●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-286-0	01	1	0303-				●
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-284-0	01	1	0005-							●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0005-0210	●	●	●	●	●	●	●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0211-0302		●					●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0303-0609		●		●			●
84	BOLT; FINAL DRIVE GEAR	1-41519-039-0	12	1	0610-	●	●		●			●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0005-0210	●	●	●	●	●	●	●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0211-0302		●					●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0303-0609		●		●			●
85	NUT; DIFF CAGE SETTING	1-41519-034-0	12	1	0610-	●	●		●			●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41229-121-0	24	1	0610-	●
86	WASHER; PL,DIFF CAGE SETTING GVR(GV****) (A)	1-41519-035-0	24	1	0211-		●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0005-0111		●	●	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0112-0210		●	●	●	●	●	●
86	WASHER; PL,DIFF CAGE SETTING FVR(FVR***) (A)	1-41229-168-0	24	1	0211-0302		●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0211-0302							●
86	WASHER; PL,DIFF CAGE SETTING FVR(FVR***) (A)	1-41229-168-0	24	1	0303-		●
86	WASHER; PL,DIFF CAGE SETTING (A)	1-41229-168-0	24	1	0303-				●			●
86	WASHER; PL,DIFF CAGE SETTING (B)	1-41519-035-0	24	1	0005-0210	●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0005-0210		●	●	●	●	●	●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0211-0302		●					●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0303-0609		●		●			●
100	SEAL; OIL,FINAL PINION	1-41349-180-0	01	1	0610-	●	●		●			●
100	SEAL; OIL,FINAL PINION	1-41219-029-0	01	1	0005-0210	●
101	BOLT; ADJ,DRIVEN GEAR THRUST	1-41259-001-0	01	1	0005-0210	●
101	BOLT; ADJ,DRIVEN GEAR THRUST GVR(GV****)	1-41259-001-0	01	1	0211-		●
103	NUT; ADJ BOLT	1-41259-002-0	01	1	0005-0210	●
103	NUT; ADJ BOLT GVR(GV****)	1-41259-002-0	01	1	0211-		●
126	COUPLING; DRIVING PINION GVR(GV****) (A)	1-37245-409-0	01	1	0211-		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0005-0111	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0112-0210	●	●	●	●	●	●	●
126	COUPLING; DRIVING PINION FVR(FVR***) (A)	1-37245-301-0	01	1	0211-0302		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0211-0302							●
126	COUPLING; DRIVING PINION FVR(FVR***) (A)	1-37245-301-0	01	1	0303-0609		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0303-0609				●			●
126	COUPLING; DRIVING PINION FVR(FVR***) (A)	1-37245-301-0	01	1	0610-		●
126	COUPLING; DRIVING PINION (A)	1-37245-301-0	01	1	0610-	●			●			●
162	COVER; DUST,INPUT FLANGE GVR(GV****) (A)	1-37249-190-0	01	1	0211-		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0005-0111	●	●	●	●	●	●	●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0112-0210	●	●	●	●	●	●	●
162	COVER; DUST,INPUT FLANGE FVR(FVR***) (A)	1-37249-161-0	01	1	0211-0302		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0211-0302							●
162	COVER; DUST,INPUT FLANGE FVR(FVR***) (A)	1-37249-161-0	01	1	0303-0609		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0303-0609				●			●
162	COVER; DUST,INPUT FLANGE FVR(FVR***) (A)	1-37249-161-0	01	1	0610-		●
162	COVER; DUST,INPUT FLANGE (A)	1-37249-161-0	01	1	0610-	●			●			●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0005-0210	●	●	●	●	●	●	●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0211-0302		●					●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0303-0609		●		●			●
245	WASHER; PL,BRG CAP	1-41119-065-0	04	1	0610-	●	●		●			●
254	CUP; DIFF BRG	1-41229-132-0	01	1	0610-	●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0005-0210		●	●	●	●	●	●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0211-0302		●					●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0303-0609		●		●			●
254	CUP; DIFF BRG	1-41229-131-0	01	1	0610-	●	●		●			●
254	CUP; DIFF BRG	1-41519-083-0	01	1	0005-0210		●	●	●	●	●	●
254	CUP; DIFF BRG FVR(FVR***)	1-41519-083-0	01	1	0211-0302		●
254	CUP; DIFF BRG	1-41519-083-0	01	1	0211-0302							●
254	CUP; DIFF BRG FVR(FVR***)	1-41519-083-0	01	1	0303-		●
254	CUP; DIFF BRG	1-41519-083-0	01	1	0303-				●			●
254	CUP; DIFF BRG	1-41229-131-0	02	1	0005-0210	●
254	CUP; DIFF BRG GVR(GV****)	1-41519-032-0	01	1	0211-		●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0005-0210		●	●	●	●	●	●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0211-0302		●					●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0303-0609		●		●			●
255	CONE; DIFF BRG	1-41519-032-0	01	1	0610-	●	●		●			●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0005-0210		●	●	●	●	●	●
255	CONE; DIFF BRG FVR(FVR***)	1-41519-084-0	01	1	0211-0302		●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0211-0302							●
255	CONE; DIFF BRG FVR(FVR***)	1-41519-084-0	01	1	0303-0609		●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0303-0609				●			●
255	CONE; DIFF BRG FVR(FVR***)	1-41519-084-0	01	1	0610-		●
255	CONE; DIFF BRG	1-41519-084-0	01	1	0610-	●			●			●
255	CONE; DIFF BRG	1-41519-032-0	02	1	0005-0210	●
255	CONE; DIFF BRG GVR(GV****)	1-41229-131-0	01	1	0211-		●
298	GEAR KIT; DIFF,RR AXLE	1-41550-029-0	01	1	0005-0210	●
379	PIN; SPLIT	1-41129-012-0	01	1	0005-0210		●	●	●	●	●	●
379	PIN; SPLIT	1-41129-012-0	01	1	0211-0302		●					●
379	PIN; SPLIT	1-41129-012-0	01	1	0303-		●		●			●
379	PIN; SPLIT	1-41129-013-0	01	1	0005-0210		●	●	●	●	●	●
379	PIN; SPLIT FVR(FVR***)	1-41129-013-0	01	1	0211-0302		●
379	PIN; SPLIT	1-41129-013-0	01	1	0211-0302							●
379	PIN; SPLIT FVR(FVR***)	1-41129-013-0	01	1	0303-		●
379	PIN; SPLIT	1-41129-013-0	01	1	0303-				●			●
379	PIN; SPLIT	1-41129-012-0	02	1	0005-0210	●
379	PIN; SPLIT	1-41129-012-0	02	1	0610-	●
388	BOLT; COUPLING	1-37249-160-0	04	1	0005-0111	●	●	●	●	●	●	●
388	BOLT; COUPLING	1-37249-160-0	04	1	0112-0210	●	●	●	●	●	●	●
388	BOLT; COUPLING	1-37249-160-0	04	1	0211-0302		●					●
388	BOLT; COUPLING	1-37249-160-0	04	1	0303-0609		●		●			●
388	BOLT; COUPLING	1-37249-160-0	04	1	0610-		●		●			●
392	WASHER KIT; THRUST,DIFF	1-41559-001-0	01	1	0005-0210	●
425	SHIM SET; FINAL PINION CAGE	1-41154-089-0	01	1	0005-0210	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
