4-20 — REAR AXLE CASE AND SHAFT (#8711) — 1098 parça

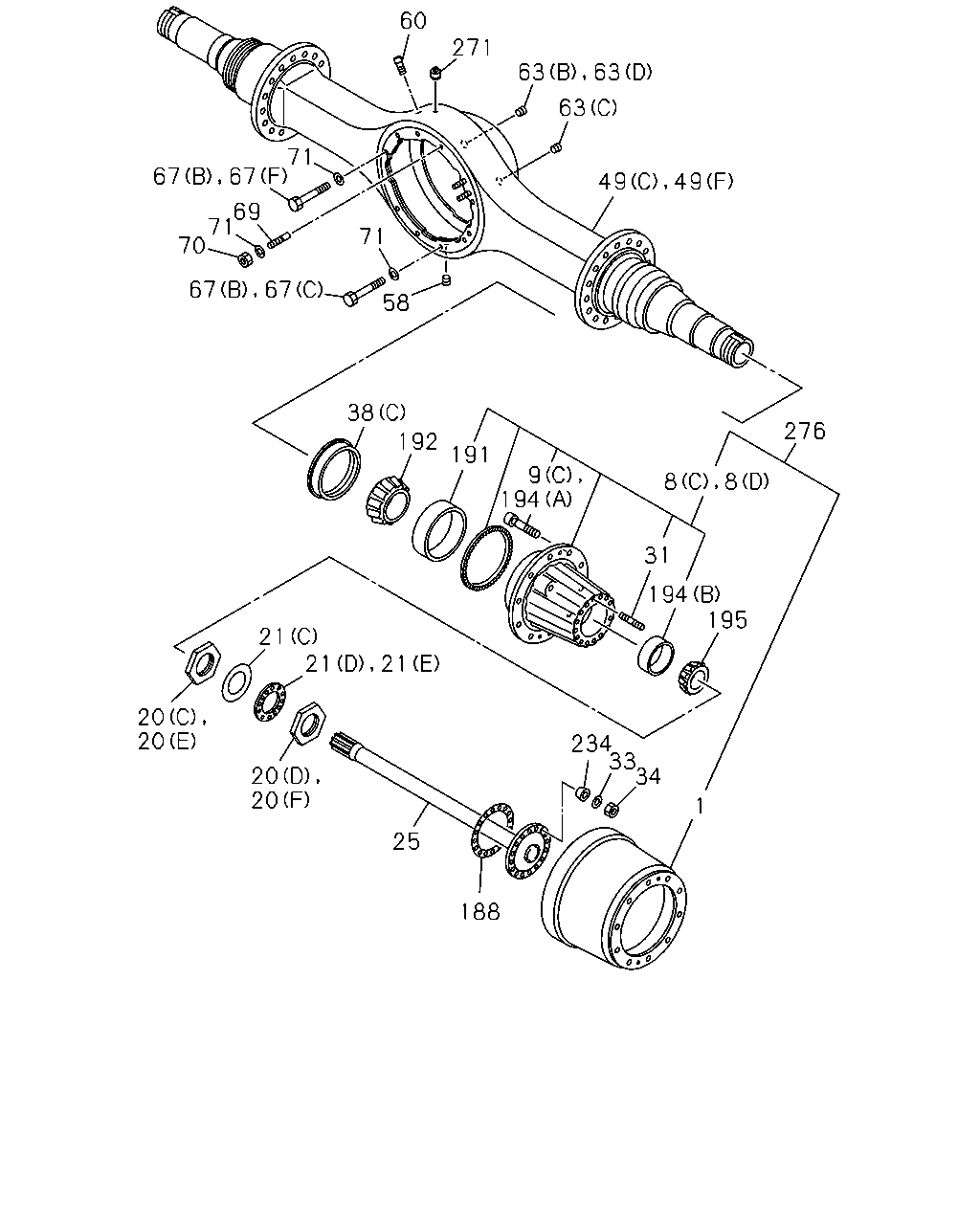

çizim 5694
60 271 63 71 69 71 70 71 58 38 276 192 191 9 194 31 194 195 21 20 20 234 33 34 20 20 1 25 188 8 8 49 49 63 63 67 67 67 67 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-349-0 02 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE
(A) 		1-42311-085-0 02 1 0005- ●
8 HUB; RR AXLE
(B) 		1-42311-098-0 02 1 0005- ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0005-0210 ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
(D) 		1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
(D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
(E) 		1-42311-113-0 02 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(B) M22X59.8,M22X51.5 RH THREAD 		1-42337-010-1 20 1 0005- ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0211- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0112-0210 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ● ● ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0610- ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 40 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(D) 		1-42337-053-0 20 1 0005-0210 ●
20 NUT; BRG,RR HUB
(A) M88 		9-09843-062-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(B) M74.6 		9-09843-064-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(E) 		1-42179-011-0 02 1 0005- ●
20 NUT; BRG,RR HUB
(F) 		1-42179-013-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(B) ID=74.6 		1-09533-008-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(A) ID=88 		9-09854-112-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ● ● ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(E) 		1-42179-012-0 02 1 0005- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
L=976 		1-42171-356-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=990 		8-98146-166-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=1106 		1-42171-357-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=1110 		8-98146-167-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0005- ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0005- ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-482-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-573-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-483-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-574-0 01 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0005-0210 ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 32 1 0005-0210 ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0005-0603 ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0005-0210 ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42179-005-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0610- ●
34 NUT; AXLE SHAFT 1-42179-005-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-126-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0610- ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0610- ●
38 SEAL; OIL,RR HUB,INNER
(A) NOK 		1-09625-265-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(A) TKK 		1-09625-350-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		9-09924-415-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		9-09924-416-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(B) KOYO 		9-09924-417-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ● ● ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 04 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(D) 		1-42319-148-0 02 1 0005-0210 ●
49 CASE; RR AXLE
(A) 		1-42160-180-0 01 1 0005-0305 ●
49 CASE; RR AXLE
(A) 		1-42190-446-0 01 1 0306- ●
49 CASE; RR AXLE
(B) 		1-42160-541-0 01 1 0005- ●
49 CASE; RR AXLE
(C) 		1-42190-181-0 01 1 0005- ●
49 CASE; RR AXLE
(D) FORWARD 		1-42160-695-0 01 1 0005- ●
49 CASE; RR AXLE
(D) REARWARD 		1-42160-697-0 01 1 0005- ●
49 CASE; RR AXLE
(E) 		1-42160-672-0 01 1 0005-0210 ●
49 CASE; RR AXLE
(F) 		1-42190-428-0 01 1 0211- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 02 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42119-075-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42119-215-0 01 1 0211- ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-003-0 01 1 0005- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0211-1312 ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 02 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-024-0 01 1 0010- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) M24X17 FLANGE 		1-09604-022-0 01 1 0005- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 04 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(D) 		1-42119-079-0 01 1 0005- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		9-91066-670-0 04 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		0-10956-670-0 04 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		9-92061-640-0 08 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		0-20951-640-0 08 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0211- ● ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 14 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 06 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(D) 		1-42119-076-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(C) M16X50 		1-42119-218-0 04 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(E) M16X50 		1-42119-077-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(F) M16X110 		1-42119-219-0 04 1 0211- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0005- ●
69 STUD; AXLE CASE
FORWARD AND REARWARD L=88.14 		1-42119-133-0 07 1 0005-0210 ●
69 STUD; AXLE CASE
FORWARD L=88.14 		1-42119-133-0 03 1 0211- ●
69 STUD; AXLE CASE
FORWARD L=69.85 		1-42119-134-0 03 1 0005- ●
69 STUD; AXLE CASE
REARWARD L=88.14 		1-42119-133-0 04 1 0211- ●
69 STUD; AXLE CASE
M16 L=68 		1-42119-078-0 04 1 0005- ●
70 NUT; CARRIER 1-42119-073-0 04 1 0211- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0005-0210 ●
70 NUT; CARRIER 1-42179-005-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42179-005-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 04 1 0610- ●
70 NUT; CARRIER 1-42179-005-0 10 1 0005-0210 ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 06 1 0211- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 06 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-126-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 06 1 0610- ●
70 NUT; CARRIER 1-42119-073-0 04 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0005-0603 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 24 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-42119-074-0 12 1 0005- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0005-0210 ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 04 1 0005-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0005-0210 ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ●
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0005-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0005-0210 ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ●
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0005-0210 ●
194 CUP; BRG,HUB OUTER
(A) 		1-42339-031-0 20 1 0005-0111 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0005-0210 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 04 1 0005-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0005-0210 ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0005-0210 ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0005-0210 ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 32 1 0005-0210 ●
271 PLUG; BREATHER 1-41229-370-0 01 1 0211- ●
276 HUB & DRUM ASM
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-151-0 02 1 0610- ● ● ●

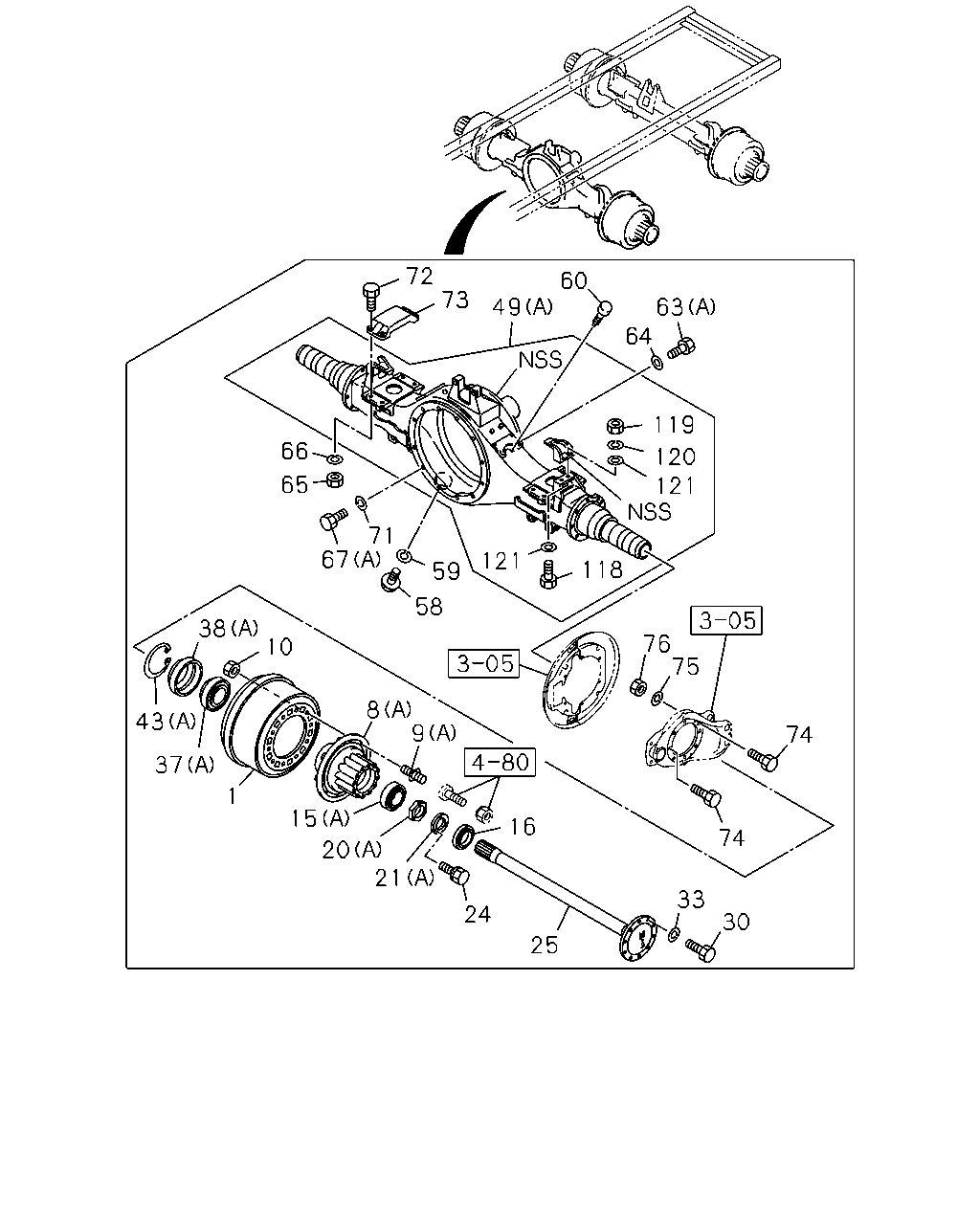

çizim 8040
72 73 60 49 63 64 119 66 120 121 65 71 67 121 118 59 58 38 10 76 75 8 9 43 74 37 1 15 16 74 20 21 33 24 30 25
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-349-0 02 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE
(A) 		1-42311-085-0 02 1 0005- ●
8 HUB; RR AXLE
(B) 		1-42311-098-0 02 1 0005- ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0005-0210 ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
(D) 		1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
(D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
(E) 		1-42311-113-0 02 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(B) M22X59.8,M22X51.5 RH THREAD 		1-42337-010-1 20 1 0005- ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0211- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0112-0210 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ● ● ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0610- ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 40 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(D) 		1-42337-053-0 20 1 0005-0210 ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0005- ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0005- ●
15 BEARING; HUB OUTER,RR AXLE
(A) SKF 		1-09812-256-0 02 1 1209- ●
15 BEARING; HUB OUTER,RR AXLE
(B) NSK 		1-09812-153-0 02 1 0005- ●
15 BEARING; HUB OUTER,RR AXLE
(B) KOYO 		1-09812-154-0 02 1 0005- ●
15 BEARING; HUB OUTER,RR AXLE
(A) KOYO 		1-09812-232-0 02 1 0005- ●
16 SEAL; OIL,RR HUB,OUTER
NOK 		1-09625-226-1 02 1 0005-0102 ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 0005- ●
20 NUT; BRG,RR HUB
(A) M88 		9-09843-062-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(B) M74.6 		9-09843-064-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(E) 		1-42179-011-0 02 1 0005- ●
20 NUT; BRG,RR HUB
(F) 		1-42179-013-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(B) ID=74.6 		1-09533-008-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(A) ID=88 		9-09854-112-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ● ● ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(E) 		1-42179-012-0 02 1 0005- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0005-0512 ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0005-0512 ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
L=976 		1-42171-356-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=990 		8-98146-166-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=1106 		1-42171-357-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=1110 		8-98146-167-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0005- ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0005- ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-482-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-573-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-483-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-574-0 01 1 0211- ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0005- ●
30 BOLT; HUB TO AXLE SHAFT 1-42179-008-0 32 1 0005-0210 ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0005-0603 ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0005-0210 ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 32 1 0005-0210 ●
37 BEARING; HUB INNER,RR AXLE
(A) SKF 		1-09812-257-0 02 1 1209- ●
37 BEARING; HUB INNER,RR AXLE
(B) NSK 		1-09812-150-0 02 1 0005- ●
37 BEARING; HUB INNER,RR AXLE
(B) NACHI 		1-09812-151-0 02 1 0005- ●
37 BEARING; HUB INNER,RR AXLE
(A) KOYO 		1-09812-233-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(A) NOK 		1-09625-265-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(A) TKK 		1-09625-350-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		9-09924-415-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		9-09924-416-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(B) KOYO 		9-09924-417-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ● ● ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 04 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(D) 		1-42319-148-0 02 1 0005-0210 ●
43 RING; SNAP,HUB SEAL,RR AXLE
(A) OD=179 		1-09587-057-0 02 1 0005- ●
43 RING; SNAP,HUB SEAL,RR AXLE
(B) OD=150 		9-09950-147-0 02 1 0005- ●
49 CASE; RR AXLE
(A) 		1-42160-180-0 01 1 0005-0305 ●
49 CASE; RR AXLE
(A) 		1-42190-446-0 01 1 0306- ●
49 CASE; RR AXLE
(B) 		1-42160-541-0 01 1 0005- ●
49 CASE; RR AXLE
(C) 		1-42190-181-0 01 1 0005- ●
49 CASE; RR AXLE
(D) FORWARD 		1-42160-695-0 01 1 0005- ●
49 CASE; RR AXLE
(D) REARWARD 		1-42160-697-0 01 1 0005- ●
49 CASE; RR AXLE
(E) 		1-42160-672-0 01 1 0005-0210 ●
49 CASE; RR AXLE
(F) 		1-42190-428-0 01 1 0211- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 02 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42119-075-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42119-215-0 01 1 0211- ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 0005- ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-003-0 01 1 0005- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0211-1312 ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 02 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-024-0 01 1 0010- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) M24X17 FLANGE 		1-09604-022-0 01 1 0005- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 04 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(D) 		1-42119-079-0 01 1 0005- ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 0005- ●
65 NUT
M14 		9-99110-514-0 08 1 0005-0512 ●
65 NUT
M14 		9-99110-514-0 08 1 0005-0512 ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ●
66 WASHER; LK
ID=14.2 		9-09150-814-0 08 1 0005-0603 ●
66 WASHER; LK
ID=14.2 		0-91510-814-0 08 1 0604- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		9-91066-670-0 04 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		0-10956-670-0 04 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		9-92061-640-0 08 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		0-20951-640-0 08 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0211- ● ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 14 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 06 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(D) 		1-42119-076-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(C) M16X50 		1-42119-218-0 04 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(E) M16X50 		1-42119-077-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(F) M16X110 		1-42119-219-0 04 1 0211- ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0005-0603 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 24 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-42119-074-0 12 1 0005- ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0005-0805 ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0005-0805 ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806- ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0005- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0005- ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0005-1209 ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0005-1209 ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1210- ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1210- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0005-0603 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 24 1 0005-0603 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 24 1 0604- ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0005-0512 ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0005-0512 ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ●
118 BOLT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16X50 		9-92061-650-0 04 1 0005-0305 ●
118 BOLT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16X50 		9-92061-650-0 04 1 0005-0305 ●
118 BOLT; LEAF SPRING STOPPER
REARWARD M16X50 		9-92061-650-0 04 1 0306-0512 ●
118 BOLT; LEAF SPRING STOPPER
REARWARD M16X50 		0-20951-650-0 04 1 0601- ●
119 NUT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16 		9-99110-516-0 04 1 0005-0305 ●
119 NUT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16 		9-99110-516-0 04 1 0005-0305 ●
119 NUT; LEAF SPRING STOPPER
REARWARD M16 		9-99110-516-0 04 1 0306-0512 ●
119 NUT; LEAF SPRING STOPPER
REARWARD M16 		0-91110-516-0 04 1 0601- ●
120 WASHER; LK,LEAF SPRING STOPPER
FORWARD AND REARWARD ID=16.2 		9-09150-816-0 04 1 0005-0305 ●
120 WASHER; LK,LEAF SPRING STOPPER
FORWARD AND REARWARD ID=16.2 		9-09150-816-0 04 1 0005-0305 ●
120 WASHER; LK,LEAF SPRING STOPPER
REARWARD ID=16.2 		9-09150-816-0 04 1 0306-0603 ●
120 WASHER; LK,LEAF SPRING STOPPER
REARWARD ID=16.2 		0-91510-816-0 04 1 0604- ●
121 WASHER; PL,BRKT SPR STOPPER
FORWARD AND REARWARD ID=16.2 		9-09851-672-2 08 1 0005-0305 ●
121 WASHER; PL,BRKT SPR STOPPER
FORWARD AND REARWARD ID=16.2 		9-09851-672-2 08 1 0005-0305 ●
121 WASHER; PL,BRKT SPR STOPPER
REARWARD ID=16.2 		9-09851-672-2 08 1 0306- ●

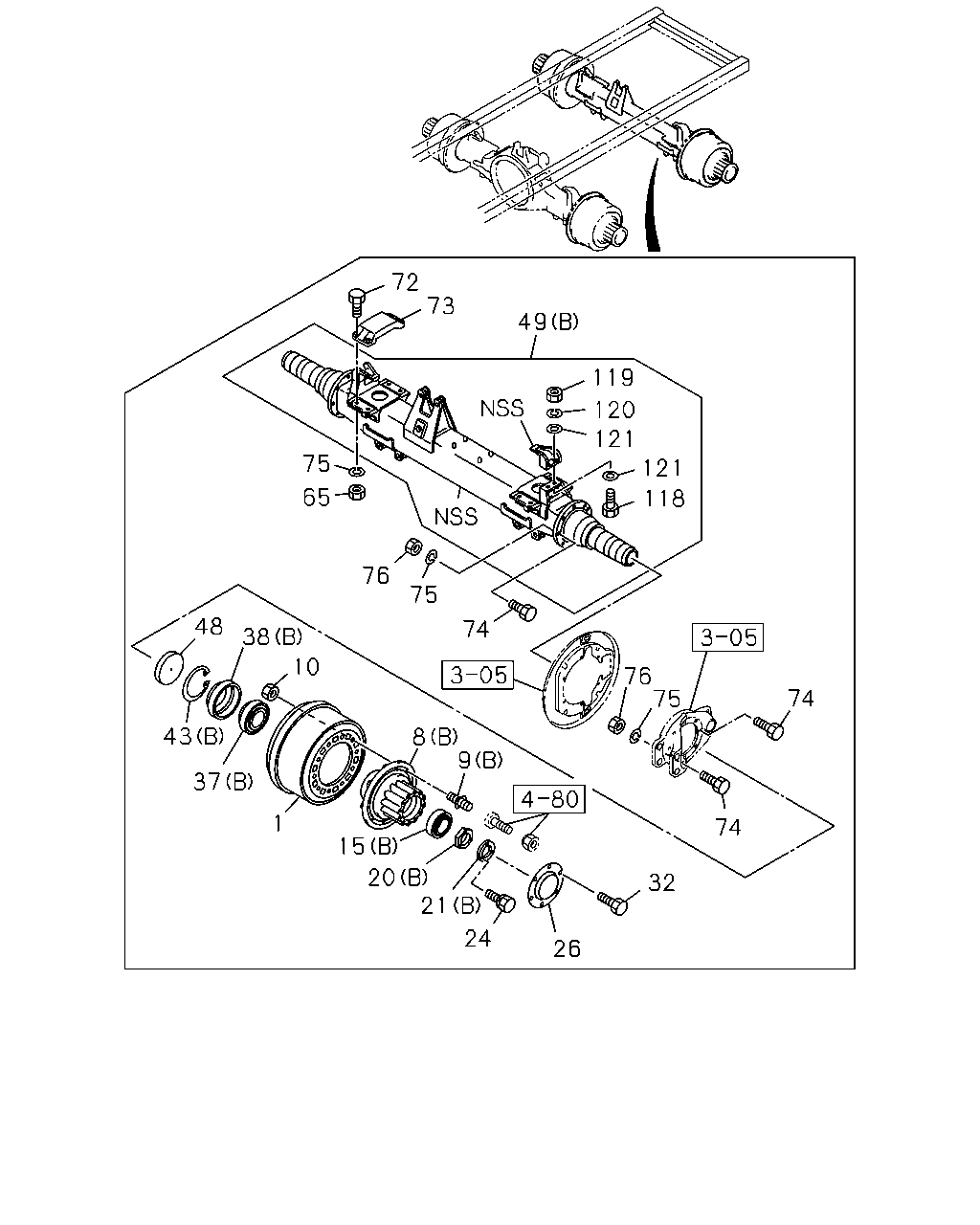

çizim 45206
72 73 49 119 120 121 75 121 65 118 76 75 48 74 38 10 76 75 74 43 8 9 37 1 74 15 20 21 32 24 26
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-349-0 02 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE
(A) 		1-42311-085-0 02 1 0005- ●
8 HUB; RR AXLE
(B) 		1-42311-098-0 02 1 0005- ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0005-0210 ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
(D) 		1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
(D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
(E) 		1-42311-113-0 02 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(B) M22X59.8,M22X51.5 RH THREAD 		1-42337-010-1 20 1 0005- ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0211- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0112-0210 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ● ● ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0610- ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 40 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(D) 		1-42337-053-0 20 1 0005-0210 ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0005- ●
10 NUT; WHEEL PIN,RR AXLE
M22 		1-09400-071-0 20 1 0005- ●
15 BEARING; HUB OUTER,RR AXLE
(A) SKF 		1-09812-256-0 02 1 1209- ●
15 BEARING; HUB OUTER,RR AXLE
(B) NSK 		1-09812-153-0 02 1 0005- ●
15 BEARING; HUB OUTER,RR AXLE
(B) KOYO 		1-09812-154-0 02 1 0005- ●
15 BEARING; HUB OUTER,RR AXLE
(A) KOYO 		1-09812-232-0 02 1 0005- ●
20 NUT; BRG,RR HUB
(A) M88 		9-09843-062-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(B) M74.6 		9-09843-064-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(E) 		1-42179-011-0 02 1 0005- ●
20 NUT; BRG,RR HUB
(F) 		1-42179-013-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(B) ID=74.6 		1-09533-008-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(A) ID=88 		9-09854-112-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ● ● ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(E) 		1-42179-012-0 02 1 0005- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0005-0512 ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28680-616-0 06 1 0005-0512 ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ●
24 BOLT; LK WASHER
M6X16 FLANGE 		0-28650-616-0 06 1 0601- ●
26 CAP; HUB,RR AXLE 9-42313-033-0 02 1 0005- ●
32 BOLT; HUB CAP
M14X35 FLANGE 		0-28681-435-0 12 1 0005-0512 ●
32 BOLT; HUB CAP
M14X35 FLANGE 		0-28651-435-0 12 1 0601- ●
37 BEARING; HUB INNER,RR AXLE
(A) SKF 		1-09812-257-0 02 1 1209- ●
37 BEARING; HUB INNER,RR AXLE
(B) NSK 		1-09812-150-0 02 1 0005- ●
37 BEARING; HUB INNER,RR AXLE
(B) NACHI 		1-09812-151-0 02 1 0005- ●
37 BEARING; HUB INNER,RR AXLE
(A) KOYO 		1-09812-233-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(A) NOK 		1-09625-265-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(A) TKK 		1-09625-350-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		9-09924-415-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		9-09924-416-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(B) KOYO 		9-09924-417-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ● ● ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 04 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(D) 		1-42319-148-0 02 1 0005-0210 ●
43 RING; SNAP,HUB SEAL,RR AXLE
(A) OD=179 		1-09587-057-0 02 1 0005- ●
43 RING; SNAP,HUB SEAL,RR AXLE
(B) OD=150 		9-09950-147-0 02 1 0005- ●
48 COVER; END 1-42119-037-0 02 1 0005- ●
49 CASE; RR AXLE
(A) 		1-42160-180-0 01 1 0005-0305 ●
49 CASE; RR AXLE
(A) 		1-42190-446-0 01 1 0306- ●
49 CASE; RR AXLE
(B) 		1-42160-541-0 01 1 0005- ●
49 CASE; RR AXLE
(C) 		1-42190-181-0 01 1 0005- ●
49 CASE; RR AXLE
(D) FORWARD 		1-42160-695-0 01 1 0005- ●
49 CASE; RR AXLE
(D) REARWARD 		1-42160-697-0 01 1 0005- ●
49 CASE; RR AXLE
(E) 		1-42160-672-0 01 1 0005-0210 ●
49 CASE; RR AXLE
(F) 		1-42190-428-0 01 1 0211- ●
65 NUT
M14 		9-99110-514-0 08 1 0005-0512 ●
65 NUT
M14 		9-99110-514-0 08 1 0005-0512 ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ●
65 NUT
M14 		0-91110-514-0 08 1 0601- ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0005-0805 ●
72 BOLT; PAD FIX
M14X45 		9-92061-445-0 08 1 0005-0805 ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806- ●
72 BOLT; PAD FIX
M14X40 		0-20951-440-0 08 1 0806- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0005- ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 0005- ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0005-1209 ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 14 1 0005-1209 ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1210- ●
74 BOLT; RR BRK ASM SETTING
M14X50 		1-09040-066-0 16 1 1210- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 16 1 0005-0603 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 16 1 0604- ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		9-09150-814-0 24 1 0005-0603 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 		0-91510-814-0 24 1 0604- ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0005-0512 ●
76 NUT; RR BRK ASM SETTING
M14 		9-99110-514-0 16 1 0005-0512 ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ●
76 NUT; RR BRK ASM SETTING
M14 		0-91110-514-0 16 1 0601- ●
118 BOLT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16X50 		9-92061-650-0 04 1 0005-0305 ●
118 BOLT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16X50 		9-92061-650-0 04 1 0005-0305 ●
118 BOLT; LEAF SPRING STOPPER
REARWARD M16X50 		9-92061-650-0 04 1 0306-0512 ●
118 BOLT; LEAF SPRING STOPPER
REARWARD M16X50 		0-20951-650-0 04 1 0601- ●
119 NUT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16 		9-99110-516-0 04 1 0005-0305 ●
119 NUT; LEAF SPRING STOPPER
FORWARD AND REARWARD M16 		9-99110-516-0 04 1 0005-0305 ●
119 NUT; LEAF SPRING STOPPER
REARWARD M16 		9-99110-516-0 04 1 0306-0512 ●
119 NUT; LEAF SPRING STOPPER
REARWARD M16 		0-91110-516-0 04 1 0601- ●
120 WASHER; LK,LEAF SPRING STOPPER
FORWARD AND REARWARD ID=16.2 		9-09150-816-0 04 1 0005-0305 ●
120 WASHER; LK,LEAF SPRING STOPPER
FORWARD AND REARWARD ID=16.2 		9-09150-816-0 04 1 0005-0305 ●
120 WASHER; LK,LEAF SPRING STOPPER
REARWARD ID=16.2 		9-09150-816-0 04 1 0306-0603 ●
120 WASHER; LK,LEAF SPRING STOPPER
REARWARD ID=16.2 		0-91510-816-0 04 1 0604- ●
121 WASHER; PL,BRKT SPR STOPPER
FORWARD AND REARWARD ID=16.2 		9-09851-672-2 08 1 0005-0305 ●
121 WASHER; PL,BRKT SPR STOPPER
FORWARD AND REARWARD ID=16.2 		9-09851-672-2 08 1 0005-0305 ●
121 WASHER; PL,BRKT SPR STOPPER
REARWARD ID=16.2 		9-09851-672-2 08 1 0306- ●

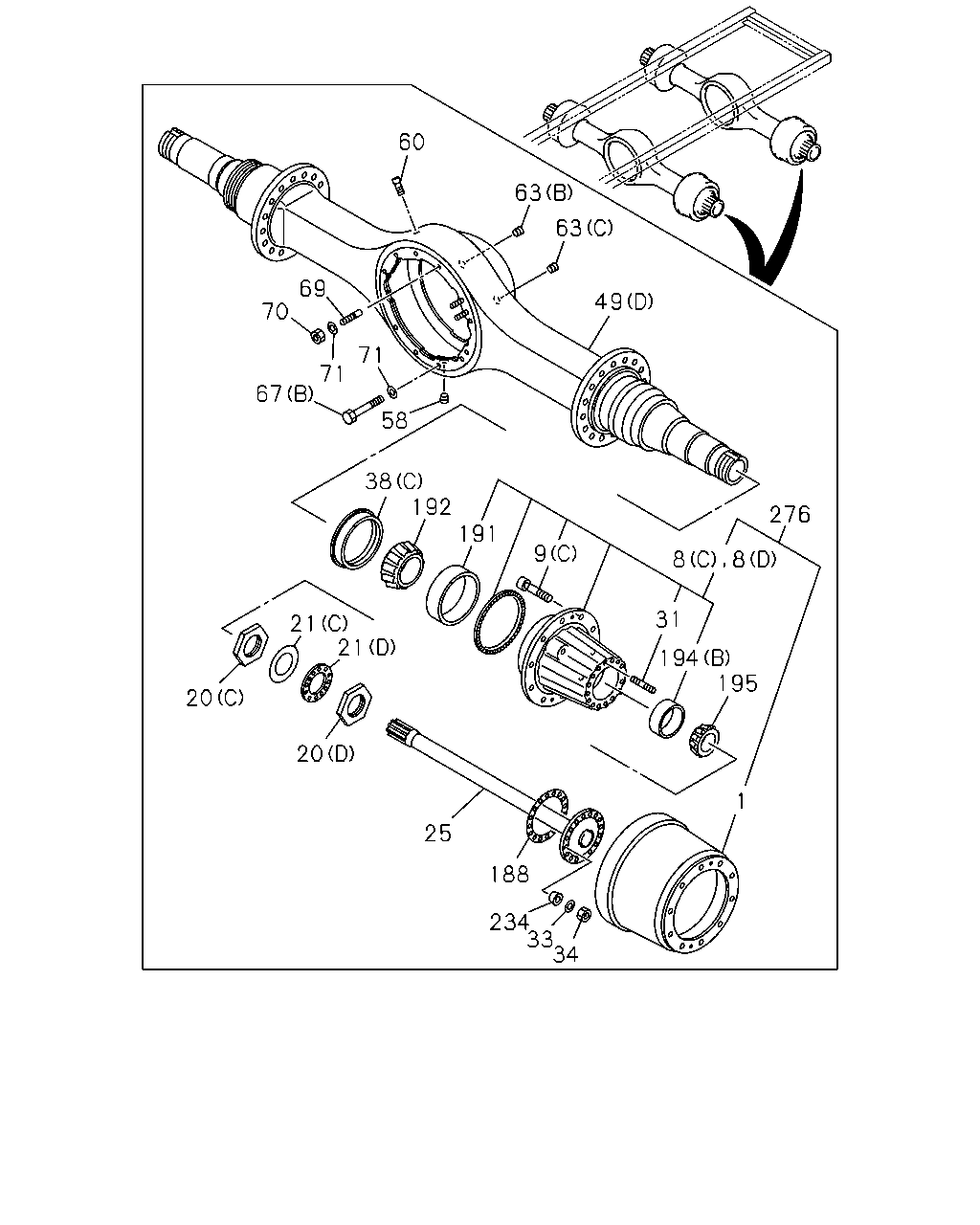

çizim 45418
60 63 63 69 49 70 71 71 67 58 38 192 191 276 9 31 21 21 194 195 20 20 1 25 188 234 33 34 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-349-0 02 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE
(A) 		1-42311-085-0 02 1 0005- ●
8 HUB; RR AXLE
(B) 		1-42311-098-0 02 1 0005- ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0005-0210 ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
(D) 		1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
(D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
(E) 		1-42311-113-0 02 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(B) M22X59.8,M22X51.5 RH THREAD 		1-42337-010-1 20 1 0005- ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0211- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0112-0210 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ● ● ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0610- ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 40 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(D) 		1-42337-053-0 20 1 0005-0210 ●
20 NUT; BRG,RR HUB
(A) M88 		9-09843-062-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(B) M74.6 		9-09843-064-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(E) 		1-42179-011-0 02 1 0005- ●
20 NUT; BRG,RR HUB
(F) 		1-42179-013-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(B) ID=74.6 		1-09533-008-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(A) ID=88 		9-09854-112-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ● ● ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(E) 		1-42179-012-0 02 1 0005- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
L=976 		1-42171-356-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=990 		8-98146-166-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=1106 		1-42171-357-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=1110 		8-98146-167-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0005- ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0005- ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-482-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-573-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-483-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-574-0 01 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0005-0210 ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ● ● ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 16 1 0211- ●
31 STUD; AXLE SHAFT TO HUB 1-42319-201-0 32 1 0005-0210 ●
33 WASHER; AXLE SHAFT
ID=14.2 		9-09150-814-0 20 1 0005-0603 ●
33 WASHER; AXLE SHAFT
ID=14.2 		0-91510-814-0 20 1 0604- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0005-0210 ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ● ● ●
33 WASHER; AXLE SHAFT 1-42179-003-0 16 1 0211- ●
33 WASHER; AXLE SHAFT 1-42179-003-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0005-0210 ●
34 NUT; AXLE SHAFT 1-42179-005-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42179-005-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 16 1 0610- ●
34 NUT; AXLE SHAFT 1-42179-005-0 32 1 0005-0210 ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0211-0609 ●
34 NUT; AXLE SHAFT
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-126-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0610- ●
34 NUT; AXLE SHAFT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 16 1 0610- ●
34 NUT; AXLE SHAFT 1-41229-126-0 16 1 0610- ●
38 SEAL; OIL,RR HUB,INNER
(A) NOK 		1-09625-265-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(A) TKK 		1-09625-350-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		9-09924-415-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		9-09924-416-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(B) KOYO 		9-09924-417-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ● ● ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 04 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(D) 		1-42319-148-0 02 1 0005-0210 ●
49 CASE; RR AXLE
(A) 		1-42160-180-0 01 1 0005-0305 ●
49 CASE; RR AXLE
(A) 		1-42190-446-0 01 1 0306- ●
49 CASE; RR AXLE
(B) 		1-42160-541-0 01 1 0005- ●
49 CASE; RR AXLE
(C) 		1-42190-181-0 01 1 0005- ●
49 CASE; RR AXLE
(D) FORWARD 		1-42160-695-0 01 1 0005- ●
49 CASE; RR AXLE
(D) REARWARD 		1-42160-697-0 01 1 0005- ●
49 CASE; RR AXLE
(E) 		1-42160-672-0 01 1 0005-0210 ●
49 CASE; RR AXLE
(F) 		1-42190-428-0 01 1 0211- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 02 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42119-075-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42119-215-0 01 1 0211- ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-003-0 01 1 0005- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0211-1312 ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 02 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-024-0 01 1 0010- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) M24X17 FLANGE 		1-09604-022-0 01 1 0005- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 04 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(D) 		1-42119-079-0 01 1 0005- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		9-91066-670-0 04 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		0-10956-670-0 04 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		9-92061-640-0 08 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		0-20951-640-0 08 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0211- ● ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 14 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 06 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(D) 		1-42119-076-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(C) M16X50 		1-42119-218-0 04 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(E) M16X50 		1-42119-077-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(F) M16X110 		1-42119-219-0 04 1 0211- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0005- ●
69 STUD; AXLE CASE
FORWARD AND REARWARD L=88.14 		1-42119-133-0 07 1 0005-0210 ●
69 STUD; AXLE CASE
FORWARD L=88.14 		1-42119-133-0 03 1 0211- ●
69 STUD; AXLE CASE
FORWARD L=69.85 		1-42119-134-0 03 1 0005- ●
69 STUD; AXLE CASE
REARWARD L=88.14 		1-42119-133-0 04 1 0211- ●
69 STUD; AXLE CASE
M16 L=68 		1-42119-078-0 04 1 0005- ●
70 NUT; CARRIER 1-42119-073-0 04 1 0211- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0005-0210 ●
70 NUT; CARRIER 1-42179-005-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42179-005-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 04 1 0610- ●
70 NUT; CARRIER 1-42179-005-0 10 1 0005-0210 ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 06 1 0211- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 06 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-126-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 06 1 0610- ●
70 NUT; CARRIER 1-42119-073-0 04 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0005-0603 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 24 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-42119-074-0 12 1 0005- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0005-0210 ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ● ● ●
188 GASKET; AXLE SHAFT 1-42175-013-0 02 1 0211- ●
188 GASKET; AXLE SHAFT 1-42175-013-0 04 1 0005-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0005-0210 ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ●
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0005-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0005-0210 ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ●
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0005-0210 ●
194 CUP; BRG,HUB OUTER
(A) 		1-42339-031-0 20 1 0005-0111 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0005-0210 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 04 1 0005-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0005-0210 ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0005-0210 ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0005-0210 ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ● ● ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 16 1 0211- ●
234 DOWEL; AXLE SHAFT 1-42319-162-0 32 1 0005-0210 ●
276 HUB & DRUM ASM
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42311-151-0 02 1 0610- ● ● ●
çizim 46391
60 71 67 63 49 97 174 96 69 71 70 67 71 58 38 192 191 9 193 194 195 20 30 21 20 1 25 2 8 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-220-4 02 1 0005- ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ● ● ●
1 DRUM; BRK,RR 1-42315-379-0 02 1 0211- ●
1 DRUM; BRK,RR 1-42315-379-0 04 1 0005-0210 ●
1 DRUM; BRK,RR 1-42315-349-0 02 1 0005-0210 ●
2 BOLT; BRK DRUM 1-42319-146-0 04 1 0005-0210 ●
8 HUB; RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-143-0 02 1 0610- ●
8 HUB; RR AXLE
(A) 		1-42311-085-0 02 1 0005- ●
8 HUB; RR AXLE
(B) 		1-42311-098-0 02 1 0005- ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0005-0210 ●
8 HUB; RR AXLE
(C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42311-128-0 02 1 0211-0609 ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 45/7 15" ROCKWELL(W8D) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42311-128-0 02 1 0610- ●
8 HUB; RR AXLE
(D) 		1-42311-128-0 04 1 0005-0210 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
(D) 		1-42311-131-0 02 1 0211-0609 ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (D) 		1-42311-131-0 02 1 0610- ●
8 HUB; RR AXLE
(E) 		1-42311-113-0 02 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-033-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(B) M22X59.8,M22X51.5 RH THREAD 		1-42337-010-1 20 1 0005- ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-012-0 20 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(A) M22X59.8,M22X53.5 RH THREAD 		1-42337-069-1 20 1 0211- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0112-0210 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ● ● ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0211-0609 ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 20 1 0610- ● ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> (C) 		1-42339-031-0 20 1 0610- ●
9 PIN; WHEEL,RR AXLE
(C) 		1-42339-031-0 40 1 0005-0210 ●
9 PIN; WHEEL,RR AXLE
(D) 		1-42337-053-0 20 1 0005-0210 ●
20 NUT; BRG,RR HUB
(A) M88 		9-09843-062-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(B) M74.6 		9-09843-064-2 02 1 0005- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ● ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 02 1 0211- ●
20 NUT; BRG,RR HUB
(C) 		1-42129-065-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(D) 		1-42129-067-0 04 1 0005-0210 ●
20 NUT; BRG,RR HUB
(E) 		1-42179-011-0 02 1 0005- ●
20 NUT; BRG,RR HUB
(F) 		1-42179-013-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(B) ID=74.6 		1-09533-008-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(A) ID=88 		9-09854-112-0 02 1 0005- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ● ● ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ● ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 02 1 0211- ●
21 WASHER; LK,BRG NUT
(C) 		1-42179-016-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(D) 		1-42179-018-0 04 1 0005-0210 ●
21 WASHER; LK,BRG NUT
(E) 		1-42179-012-0 02 1 0005- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> FORWARD LH,REARWARD RH 		1-42171-585-0 01 1 0610- ●
25 SHAFT; AXLE,RR
L=976 		1-42171-356-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=990 		8-98146-166-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=1106 		1-42171-357-0 01 1 0005-0910 ●
25 SHAFT; AXLE,RR
L=1110 		8-98146-167-0 01 1 0911- ●
25 SHAFT; AXLE,RR
L=951 		1-42171-557-0 01 1 0005- ●
25 SHAFT; AXLE,RR
L=1120 		1-42171-558-0 01 1 0005- ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH 		1-42171-547-0 01 1 0211-0609 ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
EXC. PROVISIONS ANTILOCK BRAKE SYSTEM<8MG> 		1-42171-547-0 01 1 0610- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 02 1 0005-0210 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH 		1-42171-548-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-482-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-573-0 01 1 0211- ●
25 SHAFT; AXLE,RR 1-42171-483-0 01 1 0005-0210 ●
25 SHAFT; AXLE,RR 1-42171-574-0 01 1 0211- ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 0005- ●
30 BOLT; HUB TO AXLE SHAFT 1-42179-008-0 32 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(A) NOK 		1-09625-265-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(A) TKK 		1-09625-350-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) TKK 		9-09924-415-0 02 1 0005- ●
38 SEAL; OIL,RR HUB,INNER
(B) NOK 		9-09924-416-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(B) KOYO 		9-09924-417-0 02 1 0005-0111 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ● ● ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 02 1 0211- ●
38 SEAL; OIL,RR HUB,INNER
(C) 		1-42319-172-0 04 1 0005-0210 ●
38 SEAL; OIL,RR HUB,INNER
(D) 		1-42319-148-0 02 1 0005-0210 ●
49 CASE; RR AXLE
(A) 		1-42160-180-0 01 1 0005-0305 ●
49 CASE; RR AXLE
(A) 		1-42190-446-0 01 1 0306- ●
49 CASE; RR AXLE
(B) 		1-42160-541-0 01 1 0005- ●
49 CASE; RR AXLE
(C) 		1-42190-181-0 01 1 0005- ●
49 CASE; RR AXLE
(D) FORWARD 		1-42160-695-0 01 1 0005- ●
49 CASE; RR AXLE
(D) REARWARD 		1-42160-697-0 01 1 0005- ●
49 CASE; RR AXLE
(E) 		1-42160-672-0 01 1 0005-0210 ●
49 CASE; RR AXLE
(F) 		1-42190-428-0 01 1 0211- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 0005- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42129-054-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42129-054-0 02 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0211-0609 ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-148-0 01 1 0610- ●
58 PLUG; DRAIN,AXLE CASE 1-42119-075-0 01 1 0005-0210 ●
58 PLUG; DRAIN,AXLE CASE 1-42119-215-0 01 1 0211- ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-003-0 01 1 0005- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0005-0009 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0010-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 0211-1312 ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ● ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 01 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0005-0210 ●
60 BREATHER; RR AXLE CASE 1-09893-028-0 02 1 0211-1312 ●
60 BREATHER; RR AXLE CASE 1-09893-032-0 02 1 1401- ●
60 BREATHER; RR AXLE CASE 1-09893-024-0 01 1 0010- ●
63 PLUG; OIL FILLER,AXLE CASE
(A) M24X17 FLANGE 		1-09604-022-0 01 1 0005- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ● ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 02 1 0211- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 45/7 15" ROCKWELL(W8D) (C) 		1-42129-054-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(B) 		1-42119-135-0 04 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0211-0609 ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 43/10 18" ROCKWELL(W6R) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) (C) 		1-41229-148-0 01 1 0610- ●
63 PLUG; OIL FILLER,AXLE CASE
(C) 		1-42129-054-0 02 1 0005-0210 ●
63 PLUG; OIL FILLER,AXLE CASE
(D) 		1-42119-079-0 01 1 0005- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		9-91066-670-0 04 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X70 		0-10956-670-0 04 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		9-92061-640-0 08 1 0005-0512 ●
67 BOLT; FINAL DRIVE SETTING
(A) M16X40 		0-20951-640-0 08 1 0601- ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 08 1 0211- ● ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 14 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(B) 		1-42119-136-0 06 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(D) 		1-42119-076-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(C) M16X50 		1-42119-218-0 04 1 0211- ●
67 BOLT; FINAL DRIVE SETTING
(E) M16X50 		1-42119-077-0 04 1 0005-0210 ●
67 BOLT; FINAL DRIVE SETTING
(F) M16X110 		1-42119-219-0 04 1 0211- ●
69 STUD; AXLE CASE
L=120.65 		1-42119-184-0 04 1 0005- ●
69 STUD; AXLE CASE
FORWARD AND REARWARD L=88.14 		1-42119-133-0 07 1 0005-0210 ●
69 STUD; AXLE CASE
FORWARD L=88.14 		1-42119-133-0 03 1 0211- ●
69 STUD; AXLE CASE
FORWARD L=69.85 		1-42119-134-0 03 1 0005- ●
69 STUD; AXLE CASE
REARWARD L=88.14 		1-42119-133-0 04 1 0211- ●
69 STUD; AXLE CASE
M16 L=68 		1-42119-078-0 04 1 0005- ●
70 NUT; CARRIER 1-42119-073-0 04 1 0211- ●
70 NUT; CARRIER 1-42179-005-0 04 1 0005-0210 ●
70 NUT; CARRIER 1-42179-005-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-42179-005-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 04 1 0610- ●
70 NUT; CARRIER 1-42179-005-0 10 1 0005-0210 ●
70 NUT; CARRIER
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-42179-005-0 06 1 0211- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 06 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-126-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 04 1 0610- ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 04 1 0211-0609 ●
70 NUT; CARRIER
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-126-0 06 1 0610- ●
70 NUT; CARRIER 1-42119-073-0 04 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		9-09150-816-0 12 1 0005-0603 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 		0-91510-816-0 12 1 0604- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-168-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-41229-168-0 24 1 0005-0210 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0211-0609 ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-121-0 12 1 0610- ●
71 WASHER; LK,FINAL DRIVE SETTING 1-42119-074-0 12 1 0005- ●
96 BRACKET; LSPV,AXLE CASE 1-42129-281-0 01 1 0005-0210 ●
97 BOLT; BRKT,LSPV 1-41349-159-0 04 1 0005-0210 ●
174 WASHER; LK,BRKT 1-42129-282-0 04 1 0005-0210 ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0005-0210 ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ● ● ●
191 CUP; BRG,HUB INNER 1-41229-131-0 02 1 0211- ●
191 CUP; BRG,HUB INNER 1-41229-131-0 04 1 0005-0210 ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0005-0210 ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ● ● ●
192 CONE; BRG,HUB INNER 1-41519-032-0 02 1 0211- ●
192 CONE; BRG,HUB INNER 1-41519-032-0 04 1 0005-0210 ●
193 PLUG; HUB,RR AXLE 1-42319-149-0 02 1 0005-0210 ●
194 CUP; BRG,HUB OUTER
(A) 		1-42339-031-0 20 1 0005-0111 ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0005-0210 ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ● ● ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 02 1 0211- ●
194 CUP; BRG,HUB OUTER
(B) 		1-42179-010-0 04 1 0005-0210 ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0005-0210 ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ● ● ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 02 1 0211- ●
195 CONE; BRG,HUB OUTER 1-42179-009-0 04 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
