0-40 — FUEL INJECTION SYSTEM (#871) — 134 parça

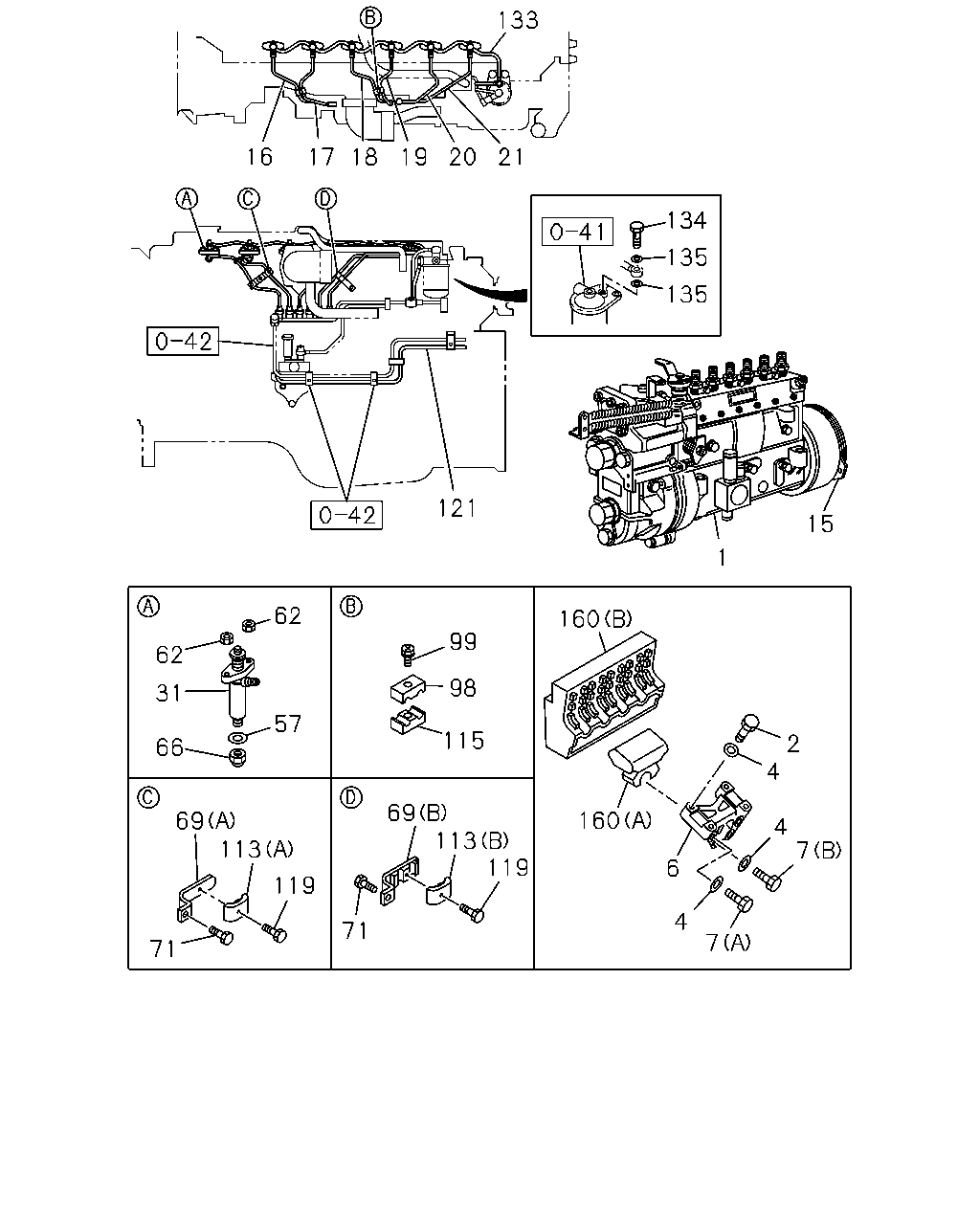

çizim 28193
133 18 19 20 21 16 17 134 135 135 121 15 1 62 160 99 62 98 31 57 115 2 4 66 69 113 119 160 69 113 4 7 6 119 4 71 7 71
BalonParca AdiParca NoAdetTipApplied Date A B
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>,RLD GOV ADR(Q2D),RLD GOVERNOR ADR VAR8(RC7),ANTI NOISE EQUIPMENT VAR2<TAK>,TAMPER PROOF INJ PUMP SET<W44> 		8-94393-462-3 01 1 9203- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. PARTIAL OIL FILTER CARTRIDGE<KC2> EXC. RLD GOV ADR(Q2D),RLD GOVERNOR ADR VAR8(RC7), TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94394-735-0 01 1 9208-9305 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. PARTIAL OIL FILTER CARTRIDGE<KC2> EXC. RLD GOV ADR(Q2D),RLD GOVERNOR ADR VAR8(RC7), TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94395-050-0 01 1 9306-9501 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT VAR2<TAK> PARTIAL OIL FILTER CARTRIDGE<KC2> EXC. RLD GOV ADR(Q2D),RLD GOVERNOR ADR VAR8(RC7), TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94395-050-0 01 1 9502- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>,RLD GOV ADR(Q2D),RLD GOVERNOR ADR VAR8(RC7),ANTI NOISE EQUIPMENT VAR2<TAK>,TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-459-2 01 1 9202- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOV ADR(Q2D) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>,RLD GOVERNOR ADR VAR8(RC7),TAMPER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94394-314-0 01 1 9202-9203 ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOV ADR(Q2D) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>,RLD GOVERNOR ADR VAR8(RC7),ANTI NOISE EQUIPMENT VAR2<TAK>,TAM PER PROOF INJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDEANEROID COMPENSATOR<YC4> 		8-94394-314-1 01 1 9204- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. RLD GOVERNOR ADR VAR8(RC7) EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>,RLD GOV ADR(Q2D),ANTI NOISE EQUIPMENT VAR2<TAK>,TAMPER PROOFINJ PUMP SET<W44>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-477-2 01 1 9202- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. TAMPER PROOF INJ PUMP SET<W44> INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> EXC. PARTIAL OIL FILTER CARTRIDGE<KC2>,RLD GOV ADR(Q2D),RLD GOVERNOR ADR VAR8(RC7),ANTI NOISE EQUIPMENT VAR2<TAK> 		8-94393-715-3 01 1 9401- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-474-1 01 1 9202- ●
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR<YC4> 		8-94393-465-0 01 1 9202- ●
2 BOLT; INJ PUMP
M8X75 		0-10810-875-0 04 1 9202- ● ●
4 WASHER; INJ PUMP
ID=8.5 MITSUBISHI 		9-09851-934-0 04 1 9202- ● ●
6 BRACKET; INJ PUMP TO C/BL 8-94394-086-0 01 1 9202- ● ●
7 BOLT; INJ PUMP BRKT
(A) M10X75 FLANGE 		8-94399-669-1 02 1 9202- ● ●
7 BOLT; INJ PUMP BRKT
(B) M10X55 FLANGE 		8-94399-863-1 02 1 9202- ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94396-365-3 01 1 9202-9210 ● ●
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. 		8-94393-155-0 01 1 9211- ● ●
16 PIPE; INJ NO.1 8-94396-001-5 01 1 9202- ●
16 PIPE; INJ NO.1 8-94396-007-2 01 1 9202- ●
17 PIPE; INJ NO.2 8-94396-002-6 01 1 9202- ●
17 PIPE; INJ NO.2 8-94396-008-3 01 1 9202- ●
18 PIPE; INJ NO.3 8-94396-003-4 01 1 9202- ●
18 PIPE; INJ NO.3 8-94396-009-3 01 1 9202- ●
19 PIPE; INJ NO.4 8-94396-004-5 01 1 9202- ●
19 PIPE; INJ NO.4 8-94396-010-4 01 1 9202- ●
20 PIPE; INJ NO.5 8-94396-005-2 01 1 9202- ●
20 PIPE; INJ NO.5 8-94396-011-2 01 1 9202- ●
21 PIPE; INJ NO.6 8-94396-364-3 01 1 9202- ●
21 PIPE; INJ NO.6 8-94396-494-3 01 1 9202- ●
31 NOZZLE ASM; INJ 8-94396-564-2 06 1 9202-9304 ● ●
31 NOZZLE ASM; INJ 8-94394-787-1 06 1 9305- ● ●
57 GASKET; DUST COVER
ALSO INCLUDED IN GASKET SET(ENGINE). 		9-09563-215-0 06 1 9504- ● ●
62 NUT; NOZZLE HOLDER
M8 FLANGE 		0-91150-108-0 12 1 9202- ● ●
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94377-623-0 06 1 9202- ● ●
69 BRACKET; INJ PIPE CLIP
(A) 		8-94396-086-0 01 1 9202- ● ●
69 BRACKET; INJ PIPE CLIP
(B) 		8-94396-087-0 01 1 9202- ● ●
71 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 9202- ● ●
98 CLIP; "A",INJ PIPE 8-94397-445-0 03 1 9202- ● ●
99 BOLT; CLIP,INJ,PIPE 8-94365-129-0 03 1 9202- ● ●
113 CLIP; INJ PIPE
(A) 		1-09701-091-0 02 1 9202- ● ●
113 CLIP; INJ PIPE
(B) 		8-94397-444-0 01 1 9202- ● ●
115 CLIP; "B",INJ PIPE 8-94397-444-0 03 1 9202- ● ●
119 BOLT; CLIP,INJ PIPE
M6X22 FLANGE 		0-28210-622-0 03 1 9202-9203 ● ●
119 BOLT; CLIP,INJ PIPE
M6X22 		0-28280-622-0 03 1 9204-9305 ● ●
119 BOLT; CLIP,INJ PIPE
M6X22 FLANGE 		0-28080-622-0 03 1 9306- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
FIRE TRUCK<RA9> 		8-94397-335-1 01 1 9202- ● ●
121 PIPE; FUEL,FEED PUMP,SUCTION
EXC. FIRE TRUCK<RA9> 		8-94393-021-0 01 1 9202- ● ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94396-587-0 01 1 9202-9404 ● ●
133 PIPE; INJ NOZZLE LEAK OFF 8-94395-144-0 01 1 9405- ● ●
134 BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE BOLT 		1-09675-037-1 01 1 9202- ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) OD=14.0 		9-09571-408-0 02 1 9202-9305 ● ●
135 GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 02 1 9306- ● ●
160 SPACER; INJ PUMP
ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		8-94394-508-1 01 1 9208-9307 ●
160 SPACER; INJ PUMP
ANTI NOISE EQUIPMENT VAR2<TAK> (A) 		8-94394-402-1 01 1 9308- ●
160 SPACER; INJ PUMP
ANTI NOISE EQUIPMENT VAR2<TAK> (B) 		8-94396-565-2 01 1 9208- ●
çizim 92496
31 32 34 36 58 145 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 8-94396-564-2 06 1 9202-9304 ● ●
31 NOZZLE ASM; INJ 8-94394-787-1 06 1 9305- ● ●
32 HOLDER ASM; NOZZLE 8-94396-576-0 06 1 9202-9304 ● ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9305- ● ●
33 NOZZLE; INJ 8-94396-575-1 06 1 9202- ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-09675-037-1 06 1 9202- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9202- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9202-9304 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9304- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9202- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9202- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9202- ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-94319-320-0 06 1 9202-9304 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97116-033-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97116-037-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.51 		8-97116-036-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.53 		8-97116-038-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97116-039-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97116-029-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97116-032-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97116-034-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97116-035-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.55 		8-97116-040-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97116-041-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.57 		8-97116-042-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97116-043-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.59 		8-97116-044-0 AR 1 9304- ● ●
145 GASKET; RET NUT 8-94128-915-0 06 1 9202- ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9305- ● ●
çizim 94620
31 32 34 36 58 145 140 44 43 146 46 33 35
BalonParca AdiParca NoAdetTipApplied Date A B
31 NOZZLE ASM; INJ 8-94396-564-2 06 1 9202-9304 ● ●
31 NOZZLE ASM; INJ 8-94394-787-1 06 1 9305- ● ●
32 HOLDER ASM; NOZZLE 8-94396-576-0 06 1 9202-9304 ● ●
32 HOLDER ASM; NOZZLE 8-94394-788-0 06 1 9305- ● ●
33 NOZZLE; INJ 8-94396-575-1 06 1 9202- ● ●
34 BOLT; EYE,NOZZLE HOLDER 1-09675-037-1 06 1 9202- ● ●
35 NUT; NOZZLE RET,NOZZLE HOLDER 8-94174-184-0 06 1 9202- ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=14.0 T=1.0 		9-09571-408-0 12 1 9202-9304 ● ●
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2 		1-09630-082-0 12 1 9304- ● ●
43 SEAT; NOZZLE SPRING,NOZZLE HOLDER 8-94329-555-0 06 1 9202- ● ●
44 SPRING; NOZZLE,NOZZLE HOLDER 8-94174-141-0 06 1 9202- ● ●
46 PIN; NOZZLE SET,NOZZLE HOLDER 8-94174-139-0 12 1 9202- ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-94319-320-0 06 1 9202-9304 ● ●
58 FLANGE; INJ,NOZZLE HOLDER 8-97065-713-0 06 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97027-432-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97027-433-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97027-434-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.30 		8-97116-033-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97027-435-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97027-436-0 AR 1 9202-9303 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97027-437-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.52 		8-97116-037-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97027-438-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.51 		8-97116-036-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97027-439-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.53 		8-97116-038-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97027-440-0 AR 1 9202-9304 ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.54 		8-97116-039-0 AR 1 9305- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.10 		8-97116-029-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.20 		8-97116-032-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.40 		8-97116-034-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.50 		8-97116-035-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.55 		8-97116-040-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.56 		8-97116-041-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.57 		8-97116-042-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.58 		8-97116-043-0 AR 1 9304- ● ●
140 SHIM; NOZZLE SPRING,NOZZLE HOLDER
T=0.59 		8-97116-044-0 AR 1 9304- ● ●
145 GASKET; RET NUT 8-94128-915-0 06 1 9202- ● ●
146 SPACER; NOZZLE 1-15339-095-0 06 1 9305- ● ●
