Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#8709) — 416 parça

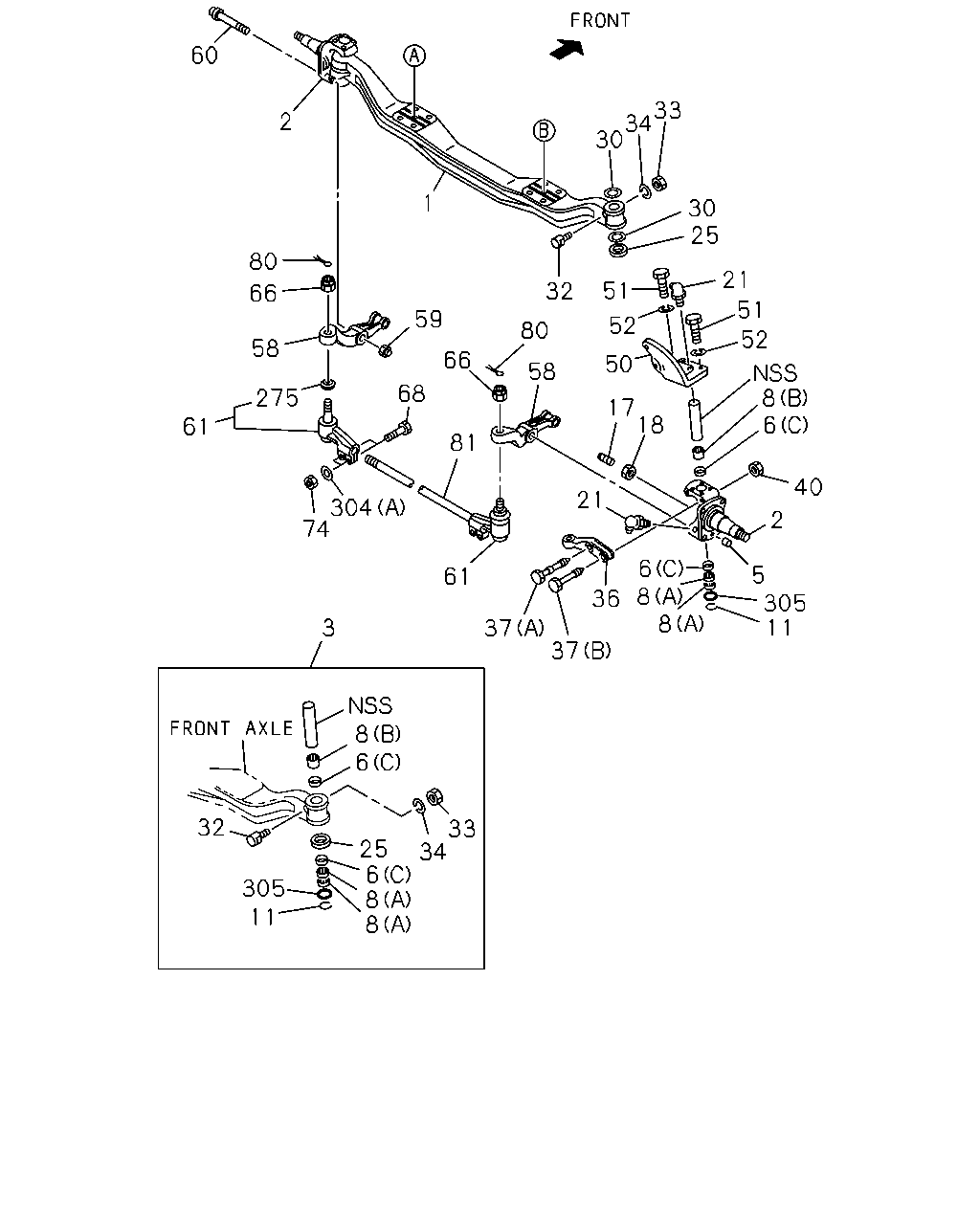

60 33 34 30 2 1 30 25 80 21 51 32 66 51 59 52 80 52 58 66 50 58 8 6 68 275 17 18 61 81 40 21 304 74 2 6 8 8 5 305 11 61 36 3 37 37 8 6 32 33 25 34 6 8 8 305 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT	1-43111-113-6	01	1	0005-	●
1	AXLE; FRT	1-43111-167-0	01	1	0005-		●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0005-	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0005-	●
2	KNUCKLE; FRT AXLE	1-43132-107-0	01	1	0005-		●	●	●
2	KNUCKLE; FRT AXLE	1-43131-108-0	01	1	0005-		●	●	●
3	KING PIN SET	1-87830-738-5	02	1	0005-	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0005-	●
6	SEAL; KING PIN (C)	9-09926-024-0	04	1	0005-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0005-		●	●	●
6	SEAL; KING PIN (B)	1-09625-635-0	02	1	0005-		●	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0005-	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0005-	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0005-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0005-0705	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●
17	BOLT; STOPPER KNUCKLE	1-43149-014-0	02	1	0005-		●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0005-0512	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●
18	NUT; STOPPER BOLT,KNUCKLE	1-43149-013-0	02	1	0005-		●	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0005-0512	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●
21	NIPPLE; GREASE,KING PIN	1-48259-253-0	04	1	0005-		●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0005-	●
25	BEARING; THRUST,KING PIN	1-43173-003-0	02	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=0.015"	1-43171-327-0	AR	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=0.010"	1-43171-328-0	AR	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=0.005"	1-43171-329-0	AR	1	0005-		●	●	●
32	BOLT; KEY,KING PIN L=98.4	1-43116-014-0	02	1	0211-		●	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0005-	●
32	BOLT; KEY,KING PIN L=3.25"	1-43116-006-0	02	1	0005-		●	●	●
32	BOLT; KEY,KING PIN L=3.34"	1-43116-007-0	02	1	0005-0210		●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0005-0512	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●
33	NUT; KEY BOLT	1-43119-002-0	04	1	0005-		●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0005-0603	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0005-	●
36	ARM; KNUCKLE	1-43133-081-0	01	1	0005-		●	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0005-0704	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0005-0704	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0005-0704	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●
40	NUT; KNUCKLE ARM	1-43139-047-0	01	1	0005-		●	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0005-	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0005-	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28081-260-0	02	1	0005-0512	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28051-260-0	02	1	0601-	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28681-225-0	06	1	0005-0512	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28651-225-0	06	1	0601-	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	0005-0005	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0005-	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0005-	●
58	ARM; TIE ROD	1-43135-055-0	01	1	0005-		●	●	●
58	ARM; TIE ROD	1-43134-055-0	01	1	0005-		●	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0005-0704	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●
59	NUT; TIE ROD ARM	1-43139-049-0	02	1	0005-		●	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0005-0704	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0005-1009	●
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0005-1009	●
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD	1-43156-056-0	01	1	0005-		●	●	●
61	ROD END; TIE ROD	1-43155-056-0	01	1	0005-		●	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0005-0805	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0211-0704	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0005-0210	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0005-0512	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0005-0606	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●
81	ROD; TIE	1-43151-119-0	01	1	0005-1009	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE	8-98193-965-0	01	1	1110-	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0005-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0211-0704	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0005-0210	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0005-0210	●		●	●
304	WASHER; PL 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) ID=21	9-09164-520-0	02	1	0005-0210		●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0211-0907	●	●	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●
304	WASHER; PL (C)	1-43149-011-0	02	1	0005-		●	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0005-0704	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●

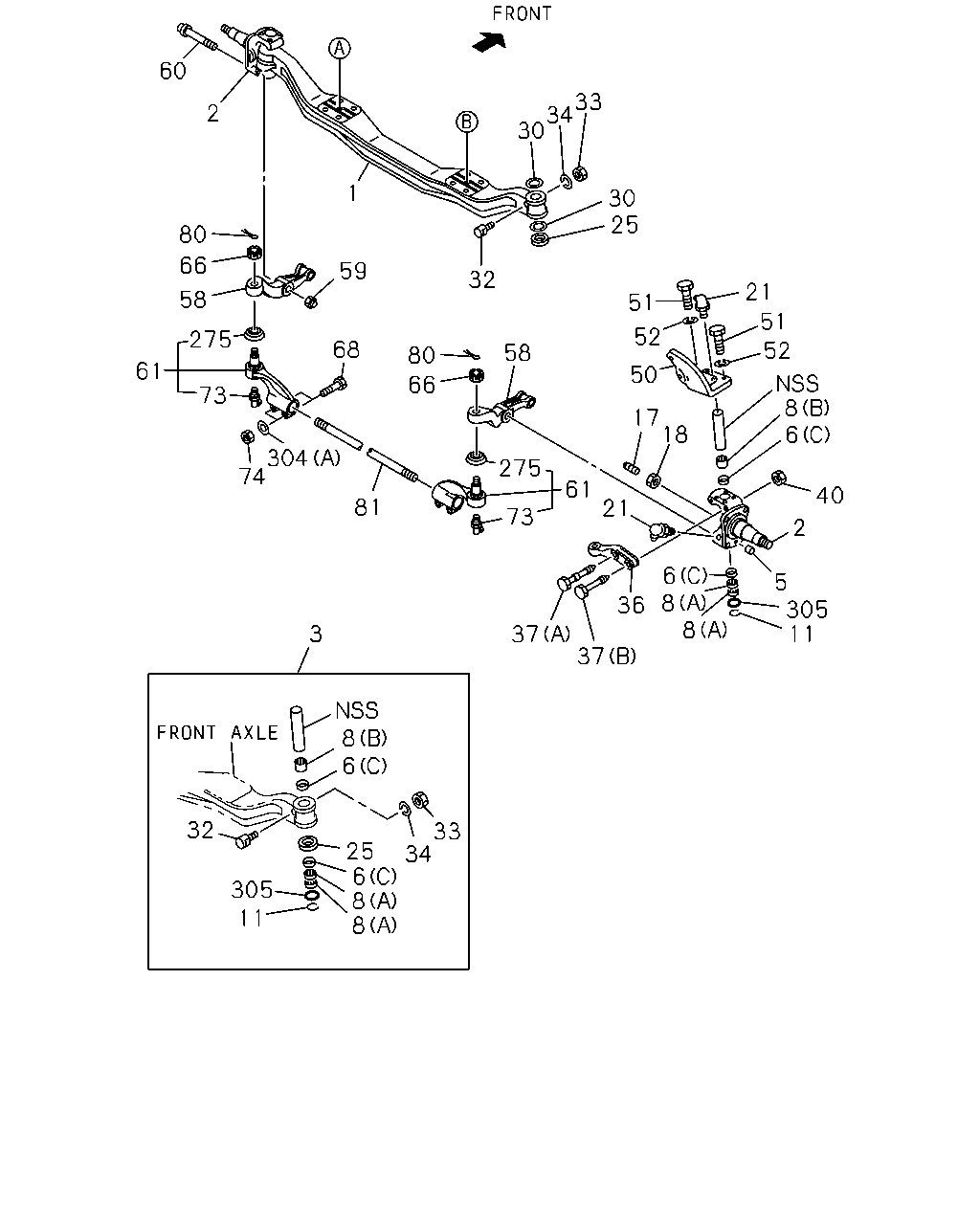

60 33 34 30 2 1 30 25 80 66 59 32 21 58 51 51 52 275 68 52 58 80 61 50 8 6 66 73 17 18 304 74 275 61 40 81 21 73 2 6 8 8 5 305 11 36 3 37 37 8 6 32 33 25 34 6 8 8 305 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT	1-43111-113-6	01	1	0005-	●
1	AXLE; FRT	1-43111-167-0	01	1	0005-		●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0005-	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0005-	●
2	KNUCKLE; FRT AXLE	1-43132-107-0	01	1	0005-		●	●	●
2	KNUCKLE; FRT AXLE	1-43131-108-0	01	1	0005-		●	●	●
3	KING PIN SET	1-87830-738-5	02	1	0005-	●
5	PIN; KNUCKLE TO DRUM COVER	1-09740-072-0	02	1	0005-	●
6	SEAL; KING PIN (C)	9-09926-024-0	04	1	0005-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0005-		●	●	●
6	SEAL; KING PIN (B)	1-09625-635-0	02	1	0005-		●	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	0005-	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	0005-	●
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0005-	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0005-0705	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●
17	BOLT; STOPPER KNUCKLE	1-43149-014-0	02	1	0005-		●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0005-0512	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●
18	NUT; STOPPER BOLT,KNUCKLE	1-43149-013-0	02	1	0005-		●	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0005-0512	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●
21	NIPPLE; GREASE,KING PIN	1-48259-253-0	04	1	0005-		●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0005-	●
25	BEARING; THRUST,KING PIN	1-43173-003-0	02	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=0.015"	1-43171-327-0	AR	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=0.010"	1-43171-328-0	AR	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=0.005"	1-43171-329-0	AR	1	0005-		●	●	●
32	BOLT; KEY,KING PIN L=98.4	1-43116-014-0	02	1	0211-		●	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0005-	●
32	BOLT; KEY,KING PIN L=3.25"	1-43116-006-0	02	1	0005-		●	●	●
32	BOLT; KEY,KING PIN L=3.34"	1-43116-007-0	02	1	0005-0210		●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0005-0512	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●
33	NUT; KEY BOLT	1-43119-002-0	04	1	0005-		●	●	●
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0005-0603	●
34	WASHER; LK,KEY BOLT ID=10.2	0-91510-510-0	02	1	0604-	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0005-	●
36	ARM; KNUCKLE	1-43133-081-0	01	1	0005-		●	●	●
37	BOLT; KNUCKLE ARM (A) M22X179	1-09000-578-1	01	1	0005-0704	●
37	BOLT; KNUCKLE ARM (A) M22X179	8-98052-380-1	01	1	0705-	●
37	BOLT; KNUCKLE ARM (B) M22X167	9-09806-847-3	01	1	0005-0704	●
37	BOLT; KNUCKLE ARM (B) M22X167	8-98052-381-1	01	1	0705-	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0005-0704	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●
40	NUT; KNUCKLE ARM	1-43139-047-0	01	1	0005-		●	●	●
50	BRACKET; POWER CHAMBER	1-43145-010-3	01	1	0005-	●
50	BRACKET; POWER CHAMBER	1-43145-009-3	01	1	0005-	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28081-260-0	02	1	0005-0512	●
51	BOLT; POWER CHAMBER BRKT M12X60 FLANGE	0-28051-260-0	02	1	0601-	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28681-225-0	06	1	0005-0512	●
51	BOLT; POWER CHAMBER BRKT M12X25 FLANGE	0-28651-225-0	06	1	0601-	●
52	WASHER; LK,POWER CHAMBER BRKT ID=12.2	9-09150-512-0	08	1	0005-0005	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0005-	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0005-	●
58	ARM; TIE ROD	1-43135-055-0	01	1	0005-		●	●	●
58	ARM; TIE ROD	1-43134-055-0	01	1	0005-		●	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0005-0704	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●
59	NUT; TIE ROD ARM	1-43139-049-0	02	1	0005-		●	●	●
60	BOLT; TIE ROD ARM M22X193	1-09000-154-2	04	1	0005-0704	●
60	BOLT; TIE ROD ARM M22X193	8-98052-379-1	04	1	0705-	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0005-1009	●
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0005-1009	●
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD	1-43156-056-0	01	1	0005-		●	●	●
61	ROD END; TIE ROD	1-43155-056-0	01	1	0005-		●	●	●
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0005-0805	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0211-0704	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	0705-	●
68	BOLT; TIE ROD END M12X65	9-91061-265-0	04	1	0005-0210	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-	●
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0005-0512	●
74	NUT; TIE ROD END M12	0-91110-512-0	04	1	0601-	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0005-0606	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-	●
81	ROD; TIE	1-43151-119-0	01	1	0005-1009	●
81	ROD; TIE	8-98172-133-0	01	1	1010-1109	●
81	ROD; TIE	8-98193-965-0	01	1	1110-	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	0005-1009	●
275	BOOT; ROD END,TIE	1-43159-131-0	02	1	1010-1306	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0211-0704	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0005-0210	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0005-0210	●		●	●
304	WASHER; PL 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) ID=21	9-09164-520-0	02	1	0005-0210		●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0211-0907	●	●	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●
304	WASHER; PL (C)	1-43149-011-0	02	1	0005-		●	●	●
305	COVER; KNUCKLE	1-43175-021-0	02	1	0005-0704	●
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-	●

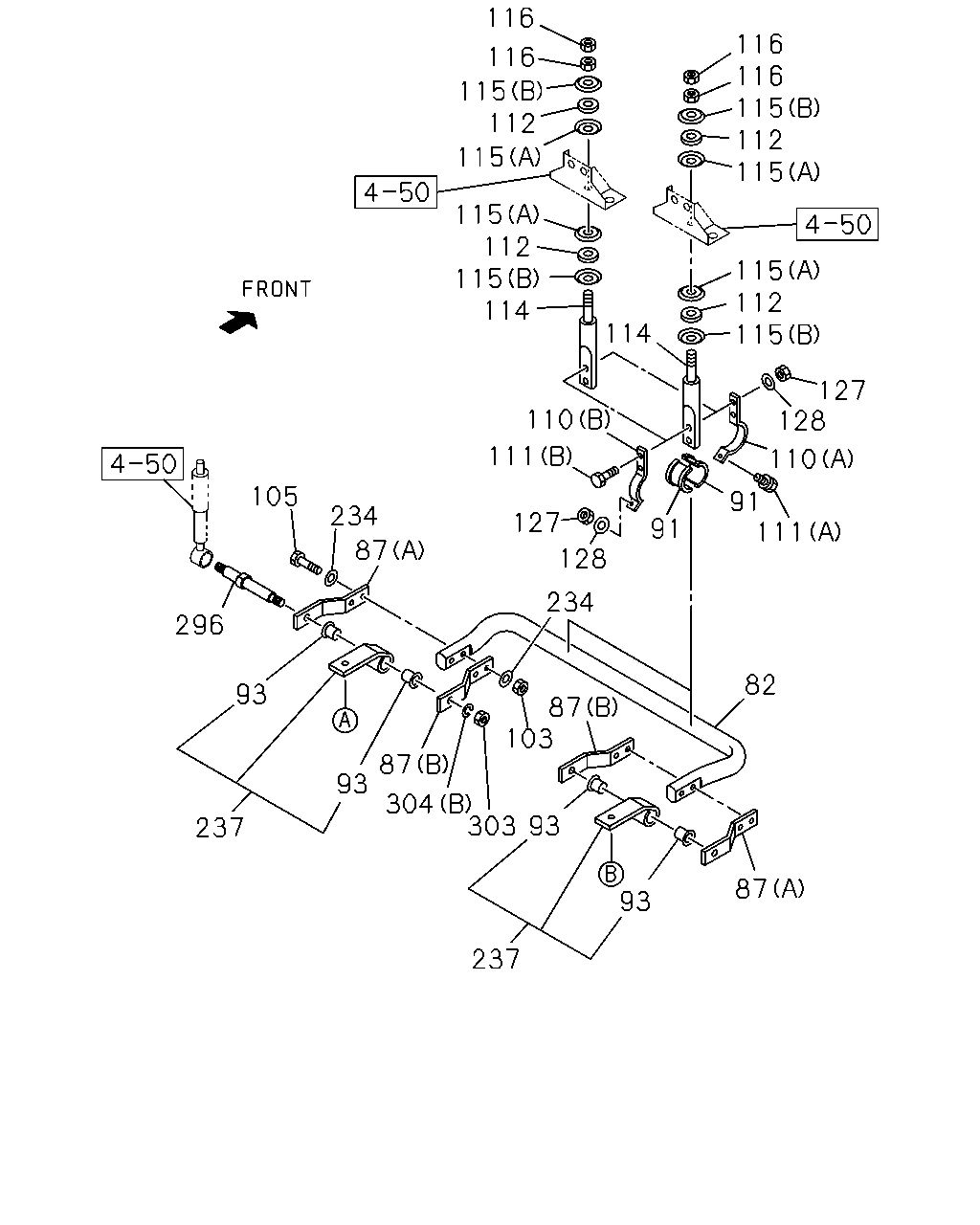

116 116 116 115 112 115 116 115 112 115 115 112 115 114 115 112 115 114 127 128 110 111 110 105 91 111 128 234 127 91 87 234 296 82 93 87 103 87 93 304 303 93 237 93 87 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
82	BAR; STAB,FRT SUSP	1-51771-200-0	01	1	0308-0405				●
82	BAR; STAB,FRT SUSP FRONT SPRING HEAVY DUTY VAR1(F60)	1-51771-200-0	01	1	0406-	●	●	●
82	BAR; STAB,FRT SUSP	1-51771-200-0	01	1	0406-				●
82	BAR; STAB,FRT SUSP	1-51771-200-0	01	1	0202-0210	●
82	BAR; STAB,FRT SUSP 6HE1 TC ENG(57L)	1-51771-200-0	01	1	0202-0210		●
82	BAR; STAB,FRT SUSP	1-51771-113-0	01	1	0005-0201	●		●	●
82	BAR; STAB,FRT SUSP 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-51771-113-0	01	1	0005-0201		●
82	BAR; STAB,FRT SUSP 6SD1 TCN ENG(31L)	1-51771-113-0	01	1	0202-0210		●
82	BAR; STAB,FRT SUSP	1-51771-113-0	01	1	0202-0210			●	●
82	BAR; STAB,FRT SUSP	1-51771-113-0	01	1	0211-0307	●	●	●	●
82	BAR; STAB,FRT SUSP	1-51771-113-0	01	1	0308-0405	●	●	●
82	BAR; STAB,FRT SUSP EXC. FRONT SPRING HEAVY DUTY VAR1(F60)	1-51771-113-0	01	1	0406-	●	●	●
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0005-0210	●		●	●
87	BRACKET; STABILIZER 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A)	1-51781-083-1	02	1	0005-0210		●
87	BRACKET; STABILIZER (A)	1-51781-083-1	02	1	0211-0912	●	●	●	●
87	BRACKET; STABILIZER (A)	8-98012-958-0	02	1	1001-	●	●	●	●
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0005-0210	●		●	●
87	BRACKET; STABILIZER 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B)	1-51781-084-1	02	1	0005-0210		●
87	BRACKET; STABILIZER (B)	1-51781-084-1	02	1	0211-0912	●	●	●	●
87	BRACKET; STABILIZER (B)	8-98012-959-0	02	1	1001-	●	●	●	●
91	BUSHING; RUBBER,STAB BAR	1-51779-121-0	04	1	0308-0405				●
91	BUSHING; RUBBER,STAB BAR FRONT SPRING HEAVY DUTY VAR1(F60)	1-51779-121-1	04	1	0406-	●	●	●
91	BUSHING; RUBBER,STAB BAR	1-51779-121-1	04	1	0406-				●
91	BUSHING; RUBBER,STAB BAR	1-51779-121-0	04	1	0202-0210	●
91	BUSHING; RUBBER,STAB BAR 6HE1 TC ENG(57L)	1-51779-121-0	04	1	0202-0210		●
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	0005-0201	●		●	●
91	BUSHING; RUBBER,STAB BAR 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-51779-084-0	04	1	0005-0201		●
91	BUSHING; RUBBER,STAB BAR 6SD1 TCN ENG(31L)	1-51779-084-0	04	1	0202-0210		●
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	0202-0210			●	●
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	0211-0307	●	●	●	●
91	BUSHING; RUBBER,STAB BAR	1-51779-084-0	04	1	0308-0405	●	●	●
91	BUSHING; RUBBER,STAB BAR EXC. FRONT SPRING HEAVY DUTY VAR1(F60)	1-51779-084-0	04	1	0406-	●	●	●
93	BUSHING; STABILIZER	1-51689-015-1	04	1	0005-0210	●		●	●
93	BUSHING; STABILIZER 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-51689-015-1	04	1	0005-0210		●
93	BUSHING; STABILIZER	1-51689-015-3	04	1	0211-	●	●	●	●
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0005-0210	●		●	●
103	NUT; BRKT FIX 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M14	9-99110-514-0	04	1	0005-0210		●
103	NUT; BRKT FIX M14	9-99110-514-0	04	1	0211-0512	●	●	●	●
103	NUT; BRKT FIX M14	0-91110-514-0	04	1	0601-	●	●	●	●
105	BOLT; BRKT FIX M14X70	9-91061-470-0	04	1	0005-0206	●		●	●
105	BOLT; BRKT FIX 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M14X70	9-91061-470-0	04	1	0005-0206		●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0207-0210	●		●	●
105	BOLT; BRKT FIX 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M14X70	9-91066-470-0	04	1	0207-0210		●
105	BOLT; BRKT FIX M14X70	9-91066-470-0	04	1	0211-0910	●	●	●	●
105	BOLT; BRKT FIX M14X70	0-10956-470-0	04	1	0911-	●	●	●	●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0005-0210	●		●	●
110	CLAMP; STAB TO ROD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A)	1-51789-027-2	02	1	0005-0210		●
110	CLAMP; STAB TO ROD (A)	1-51789-027-2	02	1	0211-	●	●	●	●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0005-0210	●		●	●
110	CLAMP; STAB TO ROD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B)	1-51789-028-1	02	1	0005-0210		●
110	CLAMP; STAB TO ROD (B)	1-51789-028-1	02	1	0211-	●	●	●	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0005-0210	●		●	●
111	BOLT; CLAMP TO ROD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) M12X30	0-20801-230-0	02	1	0005-0210		●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20801-230-0	02	1	0211-0910	●	●	●	●
111	BOLT; CLAMP TO ROD (A) M12X30	0-20851-230-0	02	1	0911-	●	●	●	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0005-0210	●		●	●
111	BOLT; CLAMP TO ROD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) M12X50	0-20801-250-0	04	1	0005-0210		●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20801-250-0	04	1	0211-0910	●	●	●	●
111	BOLT; CLAMP TO ROD (B) M12X50	0-20851-250-0	04	1	0911-	●	●	●	●
112	BUSHING; ROD	9-51631-050-0	04	1	0005-0210	●		●	●
112	BUSHING; ROD 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	9-51631-050-0	04	1	0005-0210		●
112	BUSHING; ROD	9-51631-050-0	04	1	0211-	●	●	●	●
114	ROD; STAB BAR	1-51773-084-0	02	1	0005-0210	●		●	●
114	ROD; STAB BAR 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-51773-084-0	02	1	0005-0210		●
114	ROD; STAB BAR	1-51773-084-0	02	1	0211-	●	●	●	●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.8	1-51631-022-0	04	1	0005-0210	●		●	●
115	WASHER; CENTER,STAB TO FRAME 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) ID=16.8	1-51631-022-0	04	1	0005-0210		●
115	WASHER; CENTER,STAB TO FRAME (A) ID=16.8	1-51631-022-0	04	1	0211-	●	●	●	●
115	WASHER; CENTER,STAB TO FRAME (B) ID=14.5	9-51631-051-0	04	1	0005-0210	●		●	●
115	WASHER; CENTER,STAB TO FRAME 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) ID=14.5	9-51631-051-0	04	1	0005-0210		●
115	WASHER; CENTER,STAB TO FRAME (B) ID=14.5	9-51631-051-0	04	1	0211-	●	●	●	●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0005-0210	●		●	●
116	NUT; LK,STAB TO FRAME 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M14	9-99111-414-0	04	1	0005-0210		●
116	NUT; LK,STAB TO FRAME M14	9-99111-414-0	04	1	0211-0512	●	●	●	●
116	NUT; LK,STAB TO FRAME M14	0-91111-514-0	04	1	0601-	●	●	●	●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0005-0210	●		●	●
127	NUT; CLAMP 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M12	9-99110-412-0	06	1	0005-0210		●
127	NUT; CLAMP M12	9-99110-412-0	06	1	0211-0512	●	●	●	●
127	NUT; CLAMP M12	0-91110-512-0	06	1	0601-	●	●	●	●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0005-0210	●		●	●
128	WASHER; LK,CLAMP 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=12.2	9-09150-512-0	06	1	0005-0210		●
128	WASHER; LK,CLAMP ID=12.2	9-09150-512-0	06	1	0211-0603	●	●	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-512-0	06	1	0604-0912	●	●	●	●
128	WASHER; LK,CLAMP ID=12.2	0-91510-812-0	06	1	1001-	●	●	●	●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0005-0210	●		●	●
234	WASHER; STAB 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) ID=15	9-09651-069-0	08	1	0005-0210		●
234	WASHER; STAB ID=15	9-09651-069-0	08	1	0211-0910	●	●	●	●
234	WASHER; STAB ID=15	8-98010-627-1	08	1	0911-	●	●	●	●
237	SUPPORT; STAB BAR	1-51681-724-0	02	1	0005-0209	●		●	●
237	SUPPORT; STAB BAR 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-51681-724-0	02	1	0005-0209		●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0210-0210	●		●	●
237	SUPPORT; STAB BAR 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-51681-662-0	02	1	0210-0210		●
237	SUPPORT; STAB BAR	1-51681-662-0	02	1	0211-	●	●	●	●
296	PIN; STAB	1-51682-145-2	02	1	0005-0210	●		●	●
296	PIN; STAB 6SD1 TCN ENG(31L),6HE1 TC ENG(57L)	1-51682-145-2	02	1	0005-0210		●
296	PIN; STAB	1-51682-145-2	02	1	0211-0907	●	●	●	●
296	PIN; STAB	8-98022-874-1	02	1	0908-	●	●	●	●
303	NUT; PIN M20	9-99110-520-0	02	1	0005-0210	●		●	●
303	NUT; PIN 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M20	9-99110-520-0	02	1	0005-0210		●
303	NUT; PIN M20	9-99110-520-0	02	1	0211-0512	●	●	●	●
303	NUT; PIN M20	0-91110-520-0	02	1	0601-	●	●	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0211-0704	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0005-0210	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0005-0210	●		●	●
304	WASHER; PL 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) ID=21	9-09164-520-0	02	1	0005-0210		●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0211-0907	●	●	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●
304	WASHER; PL (C)	1-43149-011-0	02	1	0005-		●	●	●

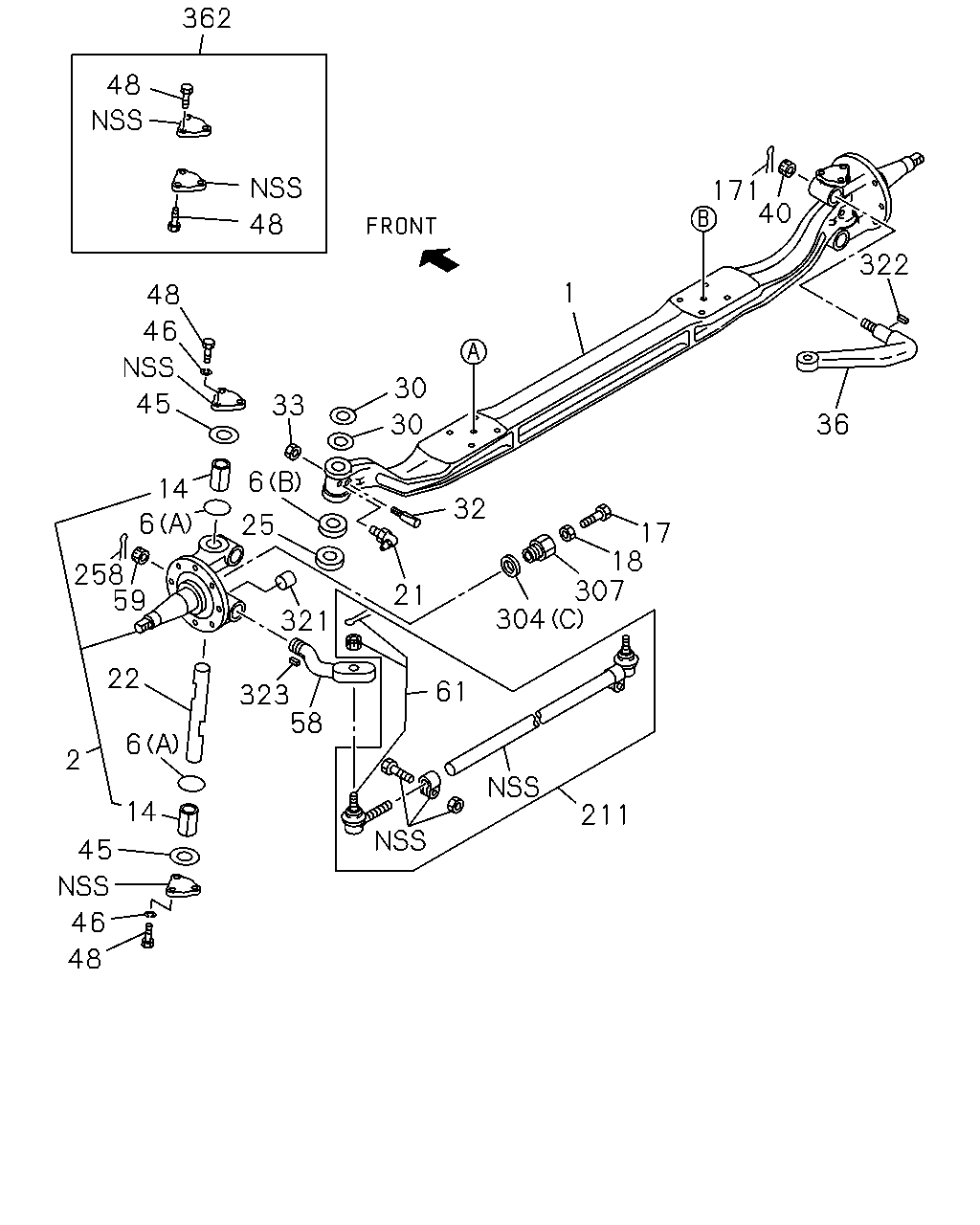

362 48 322 171 40 48 1 48 46 30 45 33 36 30 6 14 32 6 25 17 18 307 304 258 59 21 321 22 61 323 58 6 2 14 211 45 46 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	AXLE; FRT	1-43111-113-6	01	1	0005-	●
1	AXLE; FRT	1-43111-167-0	01	1	0005-		●	●	●
2	KNUCKLE; FRT AXLE	1-43132-079-1	01	1	0005-	●
2	KNUCKLE; FRT AXLE	1-43131-079-1	01	1	0005-	●
2	KNUCKLE; FRT AXLE	1-43132-107-0	01	1	0005-		●	●	●
2	KNUCKLE; FRT AXLE	1-43131-108-0	01	1	0005-		●	●	●
6	SEAL; KING PIN (C)	9-09926-024-0	04	1	0005-	●
6	SEAL; KING PIN (A)	1-09625-634-0	04	1	0005-		●	●	●
6	SEAL; KING PIN (B)	1-09625-635-0	02	1	0005-		●	●	●
14	BUSHING; KING PIN	1-43149-010-0	04	1	0005-		●	●	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-065-0	02	1	0005-0705	●
17	BOLT; STOPPER KNUCKLE M18X43	1-09009-190-0	02	1	0706-	●
17	BOLT; STOPPER KNUCKLE	1-43149-014-0	02	1	0005-		●	●	●
18	NUT; STOPPER BOLT,KNUCKLE M18	9-99110-518-0	02	1	0005-0512	●
18	NUT; STOPPER BOLT,KNUCKLE M18	0-91110-518-0	02	1	0601-	●
18	NUT; STOPPER BOLT,KNUCKLE	1-43149-013-0	02	1	0005-		●	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0005-0512	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-	●
21	NIPPLE; GREASE,KING PIN	1-48259-253-0	04	1	0005-		●	●	●
22	PIN; KING,FRT AXLE	1-43161-013-0	02	1	0005-		●	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	0005-	●
25	BEARING; THRUST,KING PIN	1-43173-003-0	02	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	0005-	●
30	WASHER; THRUST,KING PIN T=0.015"	1-43171-327-0	AR	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=0.010"	1-43171-328-0	AR	1	0005-		●	●	●
30	WASHER; THRUST,KING PIN T=0.005"	1-43171-329-0	AR	1	0005-		●	●	●
32	BOLT; KEY,KING PIN L=98.4	1-43116-014-0	02	1	0211-		●	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	0005-	●
32	BOLT; KEY,KING PIN L=3.25"	1-43116-006-0	02	1	0005-		●	●	●
32	BOLT; KEY,KING PIN L=3.34"	1-43116-007-0	02	1	0005-0210		●	●	●
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0005-0512	●
33	NUT; KEY BOLT M10	0-91110-510-0	02	1	0601-	●
33	NUT; KEY BOLT	1-43119-002-0	04	1	0005-		●	●	●
36	ARM; KNUCKLE	1-43133-063-3	01	1	0005-	●
36	ARM; KNUCKLE	1-43133-081-0	01	1	0005-		●	●	●
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0005-0704	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-	●
40	NUT; KNUCKLE ARM	1-43139-047-0	01	1	0005-		●	●	●
45	GASKET; KING PIN COVER	1-43139-044-0	04	1	0005-		●	●	●
46	WASHER; LK,COVER	1-41519-055-0	12	1	0005-		●	●	●
48	BOLT; COVER	1-43139-045-0	12	1	0005-		●	●	●
58	ARM; TIE ROD	1-43135-042-3	01	1	0005-	●
58	ARM; TIE ROD	1-43134-042-3	01	1	0005-	●
58	ARM; TIE ROD	1-43135-055-0	01	1	0005-		●	●	●
58	ARM; TIE ROD	1-43134-055-0	01	1	0005-		●	●	●
59	NUT; TIE ROD ARM M22	9-09844-670-1	04	1	0005-0704	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	0705-	●
59	NUT; TIE ROD ARM	1-43139-049-0	02	1	0005-		●	●	●
61	ROD END; TIE ROD	1-43150-802-0	01	1	0005-1009	●
61	ROD END; TIE ROD	8-98171-445-0	01	1	1010-1306	●
61	ROD END; TIE ROD	8-98236-801-0	01	1	1307-	●
61	ROD END; TIE ROD	1-43150-801-0	01	1	0005-1009	●
61	ROD END; TIE ROD	8-98171-444-0	01	1	1010-1306	●
61	ROD END; TIE ROD	8-98236-800-0	01	1	1307-	●
61	ROD END; TIE ROD	1-43156-056-0	01	1	0005-		●	●	●
61	ROD END; TIE ROD	1-43155-056-0	01	1	0005-		●	●	●
171	PIN; SPLIT,STRG ARM	1-43139-048-0	01	1	0005-		●	●	●
211	ROD ASM; STEERING TIE ROD	1-43150-841-0	01	1	0005-		●	●	●
258	PIN; SPLIT,TIE ROD ARM	1-43139-048-0	02	1	0005-		●	●	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0211-0704	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	0705-	●
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0005-0210	●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0005-0210	●		●	●
304	WASHER; PL 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (B) ID=21	9-09164-520-0	02	1	0005-0210		●
304	WASHER; PL (B) ID=21	9-09164-520-0	02	1	0211-0907	●	●	●	●
304	WASHER; PL (B) ID=21	0-91614-520-0	02	1	0908-	●	●	●	●
304	WASHER; PL (C)	1-43149-011-0	02	1	0005-		●	●	●
307	STOPPER; STEERING,RR	1-43149-012-0	02	1	0005-		●	●	●
321	BUSHING; KNUCKLE PROVISIONS ANTILOCK BRAKE SYSTEM<8MG>	8-98073-200-0	02	1	0610-		●	●	●
322	KEY; KNUCKLE ARM	1-43139-046-0	01	1	0005-		●	●	●
323	KEY; TIE ROD ARM	1-43139-046-0	02	1	0005-		●	●	●
362	COVER SET; KING PIN	1-43175-027-0	02	1	0211-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
