Isuzu WW
▶
TRUCKS
▶
FV
▶
10828 - FV/GV(AUSTRAL)L.SUS
▶
3 - Brakes, Brake System
▶
3-83 - FIXING PARTS; TRAILER PIPING
▶

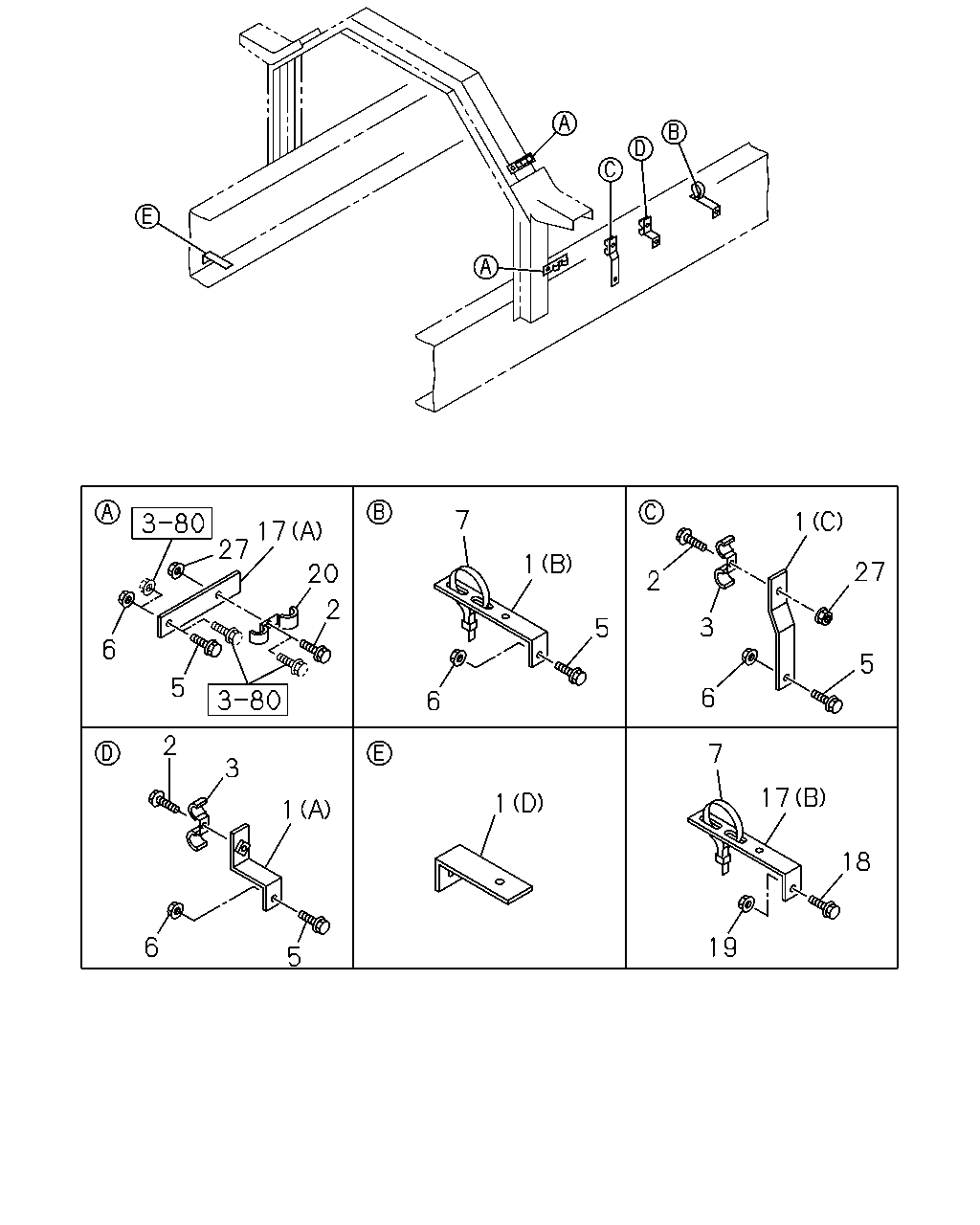

3-83 — FIXING PARTS; TRAILER PIPING
(#8707) — 39 parça
7
1
17
27
1
27
20
2
2
3
5
6
5
5
6
6
2
7
3
17
1
1
18
19
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CLIP
(A)
1-47475-881-0
01
1
0005-0210
1
BRACKET; CLIP
(B) L=100 H=30
1-47477-645-2
01
1
0005-0210
1
BRACKET; CLIP
(C)
1-47478-101-0
01
1
0005-0210
1
BRACKET; CLIP
(D)
1-47477-571-3
01
1
0109-0210
1
BRACKET; CLIP
(D)
1-47477-571-3
02
1
0211-0301
1
BRACKET; CLIP
(D)
1-47477-571-3
01
1
0302-
2
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
06
1
0005-0210
2
BOLT; CLIP
M8X20 FLANGE
0-28680-820-0
04
1
0211-0512
2
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
04
1
0601-
3
CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
0005-
5
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
01
1
0005-0104
5
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0005-0104
5
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
03
1
0105-0108
5
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
04
1
0109-0210
5
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
02
1
0211-0301
5
BOLT; BRKT
M8X30 FLANGE
0-28680-830-0
01
1
0302-0512
5
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0601-
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
03
1
0302-0602
6
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
03
1
0005-0108
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0109-0210
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
05
1
0211-0301
6
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0302-0602
6
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0603-
7
CLIP; NYLON TUBE
L=250
1-09707-126-0
08
1
0005-0104
7
CLIP; NYLON TUBE
L=250
1-09707-126-0
11
1
0105-0108
7
CLIP; NYLON TUBE
L=250
1-09707-126-0
18
1
0109-0210
7
CLIP; NYLON TUBE
L=250
1-09707-126-0
03
1
0211-
7
CLIP; NYLON TUBE
L=250
1-09707-126-0
15
1
0211-
17
BRACKET; CLIP
(B) L=150 H=30
1-47477-629-2
01
1
0005-
17
BRACKET; CLIP
(A)
1-47477-960-1
02
1
0005-
18
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
01
1
0005-0512
18
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0601-
19
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0005-0602
19
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0603-
20
CLIP; AIR PIPE
ID=11 & 11 L=17.5 & 17.5
1-09700-739-0
02
1
0005-0210
27
NUT; CLIP
M8 FLANGE
0-91150-108-0
06
1
0005-0210
27
NUT; CLIP
M8 FLANGE
0-91150-108-0
04
1
0211-0602
27
NUT; CLIP
M8 FLANGE
0-91180-108-0
04
1
0603-
