Isuzu WW
▶
TRUCKS
▶
FV
▶
10828 - FV/GV(AUSTRAL)L.SUS
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#8704) — 283 parça
Tümü
A - FVZ5MF
B - FVM5MF
C - FVR5MF
D - GVR5MC
◀

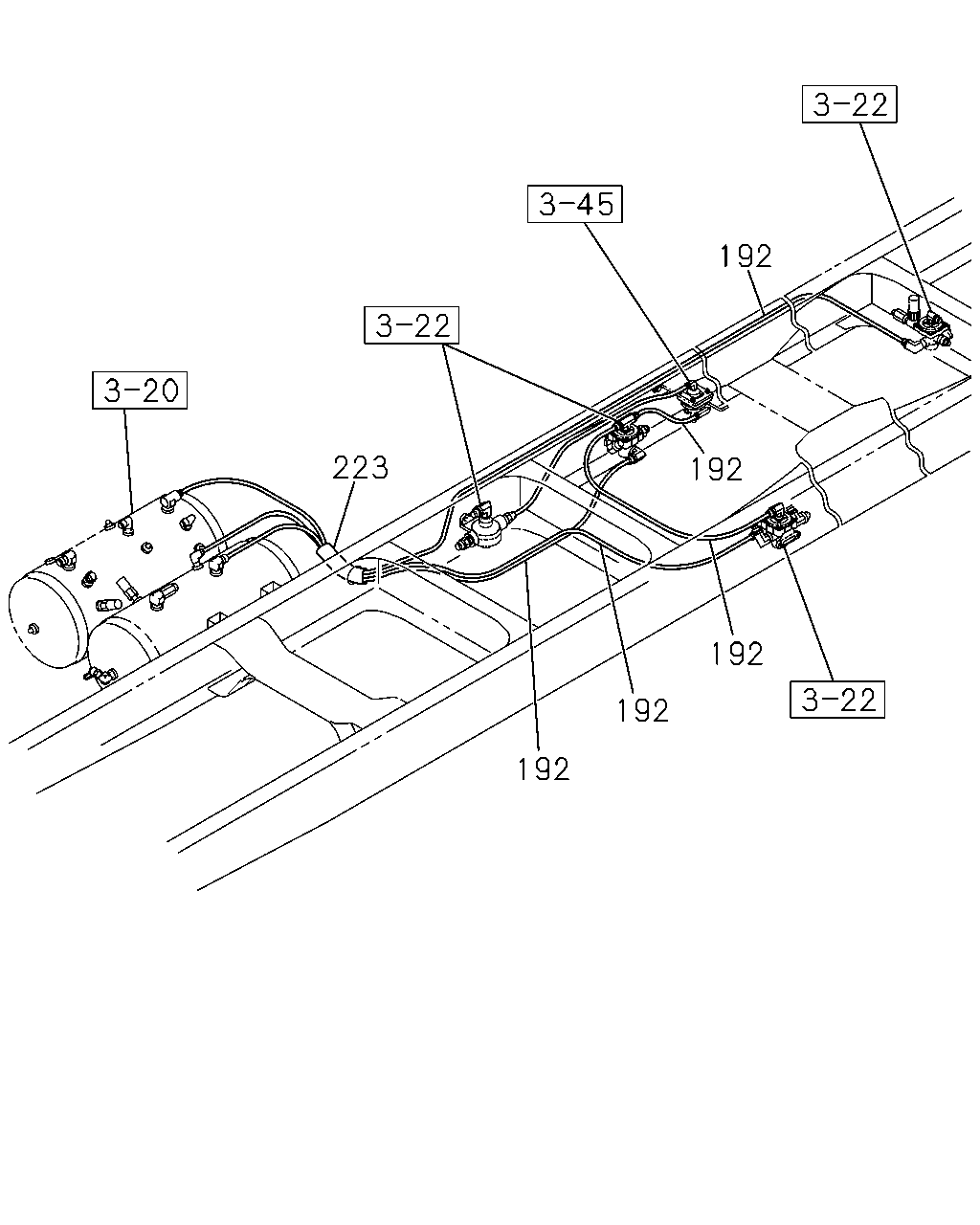

[377A] PIPING;AIR TANK-RELAY VALVE,GVR (22 parça)

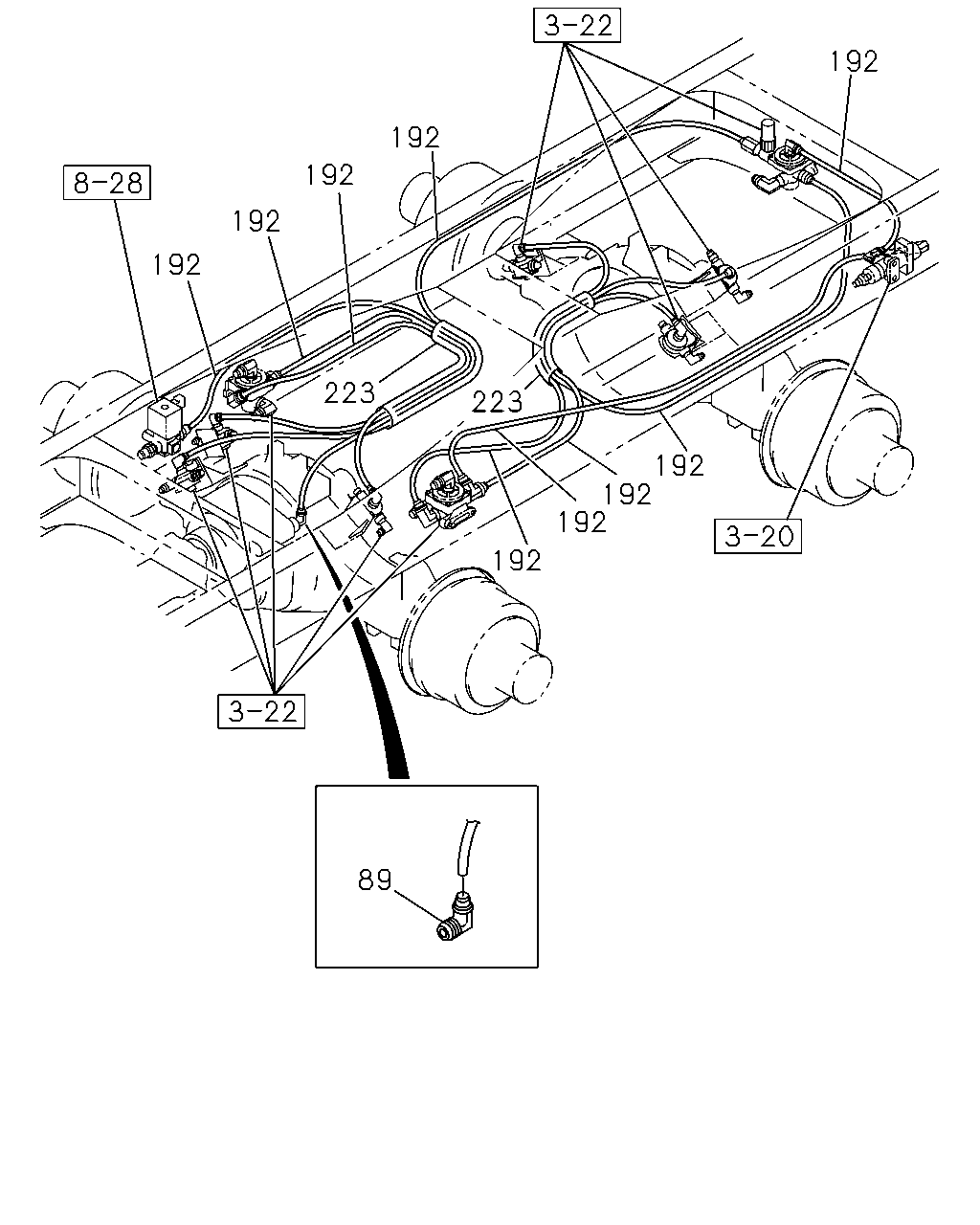

[377A] PIPING;REAR AXLE FVZ (23 parça)

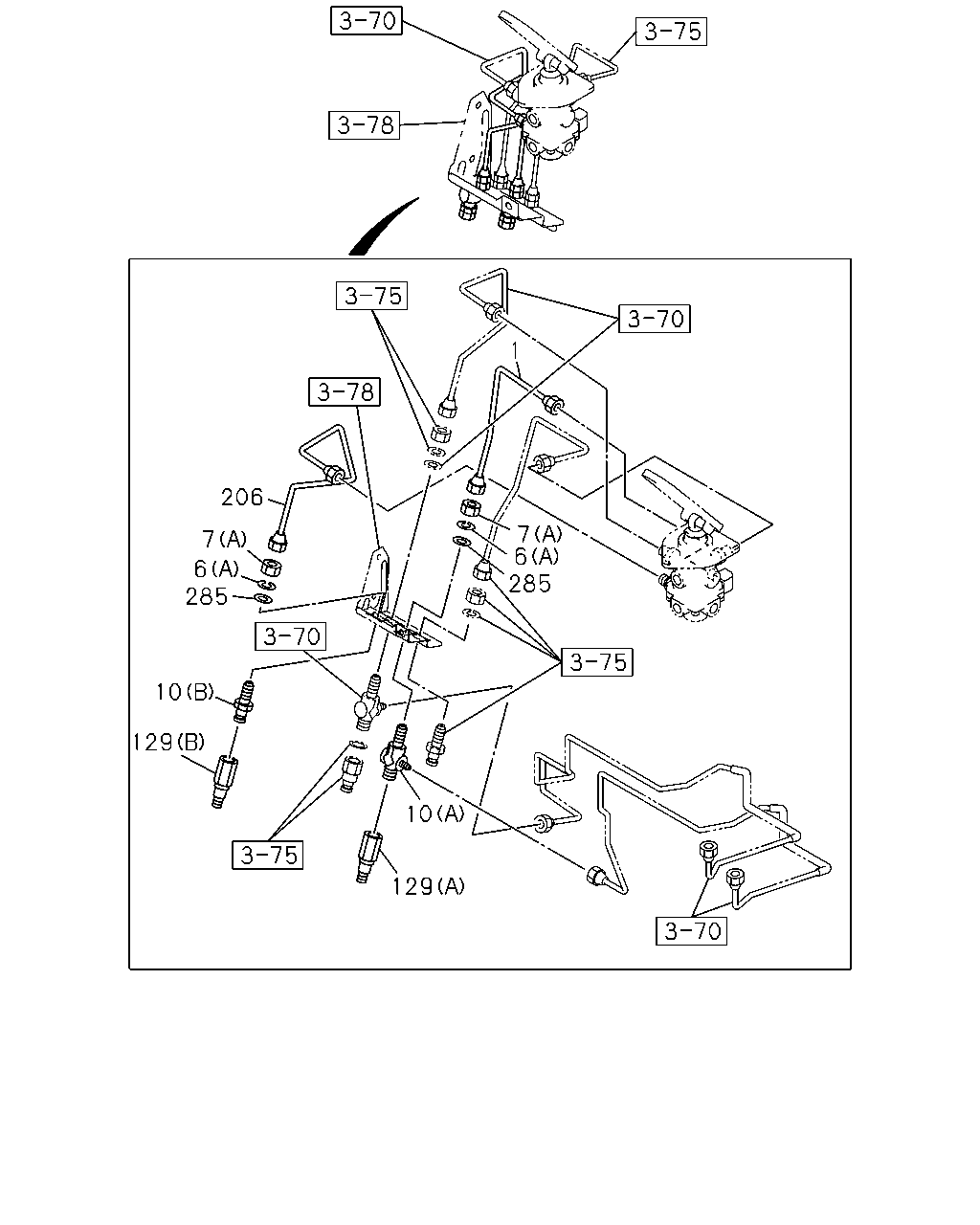

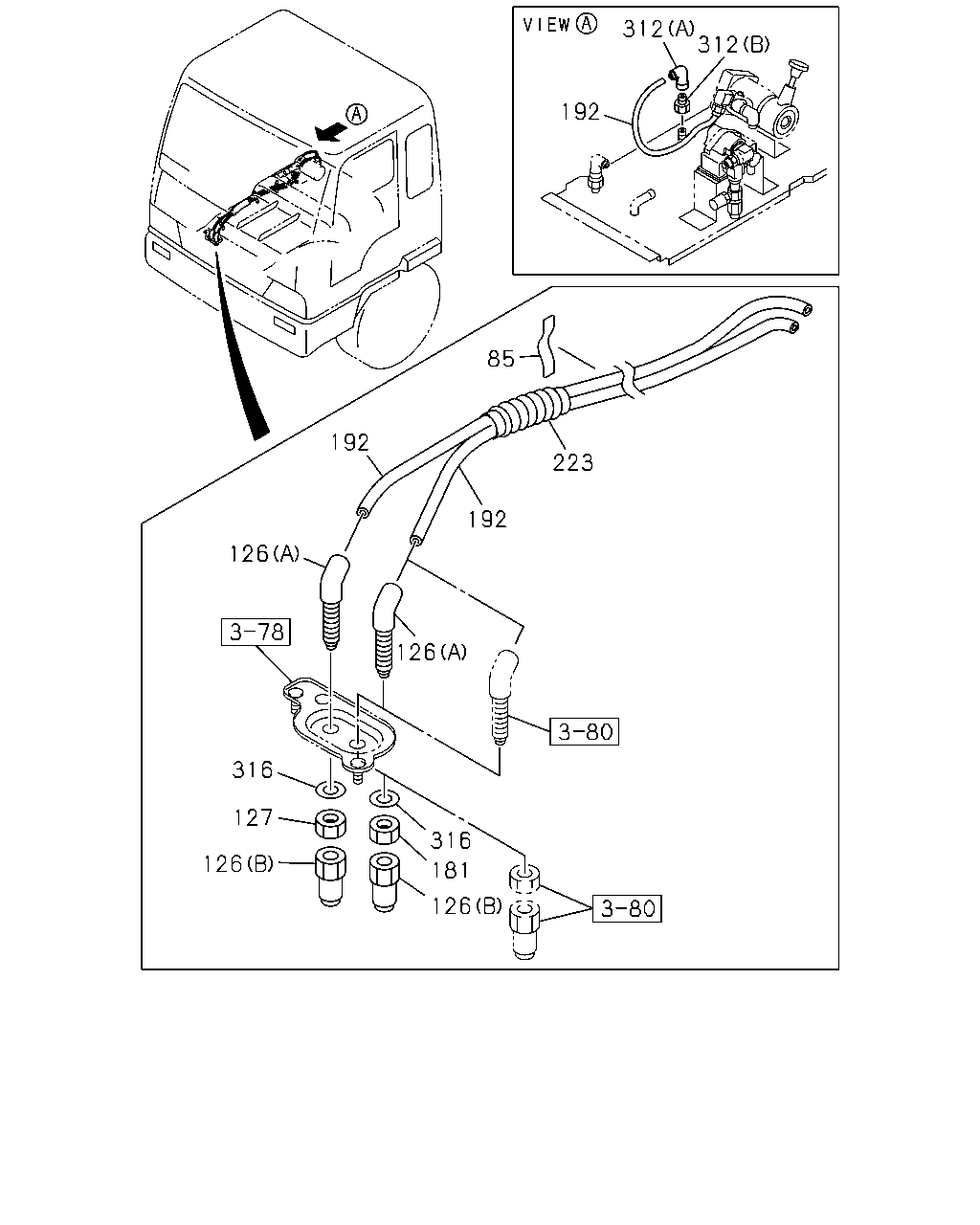

[377A] PIPING;FOOT BRAKE VALVE (18 parça)
[377A] PIPING;REAR AXLE FVM (22 parça)
[377A] OTHER PARTS;GVR (33 parça)
[377A] OTHER PARTS;FVM,FVZ (43 parça)
[377A] PIPING;AIR TANK-RELAY VALVE,FVM,FVR,FV (27 parça)
[377A] PIPING;REAR AXLE FVR,GVR (50 parça)
[377A] PIPING;HAND BRAKE VALVE (45 parça)
▶
192
223
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
07
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0108-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
07
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0610-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0610-
●
●
●
●
192
192
192
192
192
223
223
192
192
192
192
89
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
89
CONNECTOR; NYLON TUBE
DIN8 & R1/4 ELBOW
1-09661-209-0
01
1
0005-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
07
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0108-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
07
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0610-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0610-
●
●
●
●
1
206
7
6
285
7
6
285
10
129
10
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
1
PIPE; AIR,FLEX HOSE TO BRK VLV
L=277
1-49121-487-0
01
1
0005-
●
●
●
●
6
WASHER; LK,FLEX HOSE
(A) ID=16.2
9-09150-516-0
02
1
0005-0603
●
●
●
●
6
WASHER; LK,FLEX HOSE
(A) ID=16.2
0-91510-516-0
02
1
0604-
●
●
●
●
6
WASHER; LK,FLEX HOSE
(B) ID=20.2
9-09150-520-0
02
1
0005-0603
●
●
6
WASHER; LK,FLEX HOSE
(B) ID=20.2
0-91510-520-0
02
1
0604-
●
●
7
NUT; FLEX HOSE
(A) M16
9-99111-416-0
02
1
0005-0512
●
●
●
●
7
NUT; FLEX HOSE
(A) M16
0-91111-516-0
02
1
0601-
●
●
●
●
7
NUT; FLEX HOSE
(B) M20
9-99111-420-0
02
1
0005-0512
●
●
7
NUT; FLEX HOSE
(B) M20
0-91111-520-0
02
1
0601-
●
●
10
CONNECTOR; FLEX HOSE
(B) M16 STRAIGHT
1-09654-380-0
01
1
0005-
●
●
●
●
10
CONNECTOR; FLEX HOSE
(A)
1-09656-721-0
01
1
0005-0103
●
●
●
●
10
CONNECTOR; FLEX HOSE
(A)
1-09656-754-0
01
1
0104-
●
●
●
●
129
CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0005-
●
●
●
●
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0005-
●
●
●
●
129
CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0005-
●
●
206
PIPE; AIR,BRK VLV TO FLEX HOSE
L=406
1-47492-451-3
01
1
0005-
●
●
●
●
285
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
02
1
0005-0605
●
●
●
●
285
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
02
1
0606-
●
●
●
●
192
192
192
192
192
223
223
192
192
192
192
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
07
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0108-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
07
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0610-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0610-
●
●
●
●
192
192
192
226
190
192
134
19
20
210
210
97
299
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
19
NUT; PIPE UNION
M12
9-99111-412-0
01
1
0005-0512
●
19
NUT; PIPE UNION
M12
0-91111-512-0
01
1
0601-
●
20
WASHER; LK,PIPE UNION
ID=12.2
9-09150-512-0
01
1
0005-0603
●
20
WASHER; LK,PIPE UNION
ID=12.2
0-91510-512-0
01
1
0604-
●
97
UNION; AIR PIPE
M16 2WAY
1-09650-182-1
01
1
0005-
●
134
CONNECTOR
(A) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
0005-0011
●
134
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0012-
●
134
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0005-
●
190
UNION; 3 WAY
DIN8 RC1/4 & M8
1-09660-735-1
01
1
0005-0011
●
190
UNION; 3 WAY
DIN8 & RC3/8 3WAY
1-09661-129-0
01
1
0012-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
07
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0108-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
07
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0610-
●
●
●
●
210
PIPE; AIR,UNION TO UNION
1-49121-496-0
01
1
0005-
●
226
BOLT; UNION
M8X20 FLANGE
0-28080-820-0
01
1
0005-0512
●
226
BOLT; UNION
M8X20 FLANGE
0-28050-820-0
01
1
0601-
●
226
BOLT; UNION
M8X25 FLANGE
0-28680-825-0
01
1
0005-0512
●
226
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
299
CONNECTOR; ADAPTOR
DIN8 & M16 STRAIGHT
1-09661-095-0
01
1
0005-0007
●
299
CONNECTOR; ADAPTOR
DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0008-
●

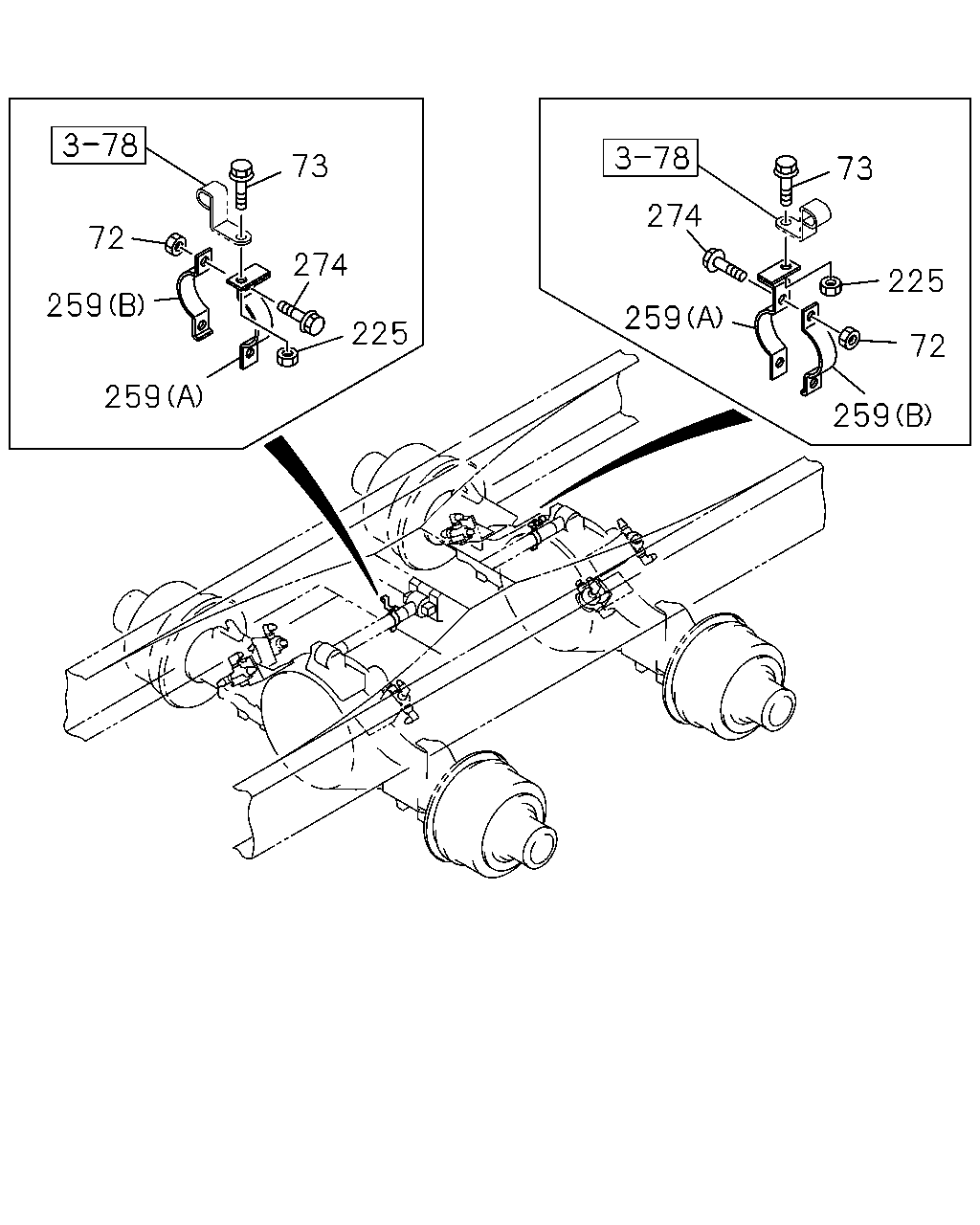

73
73
274
72
274
225
259
259
225
72
259
259
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0008-0111
●
72
NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91150-108-0
04
1
0008-0111
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0112-0210
●
72
NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91150-108-0
02
1
0112-0210
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0211-0602
●
●
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
0603-
●
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0005-0007
●
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0008-0108
●
72
NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91150-108-0
01
1
0008-0108
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
02
1
0109-0111
●
72
NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91150-108-0
02
1
0109-0111
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0112-0210
●
72
NUT; BRKT
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91150-108-0
04
1
0112-0210
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
04
1
0211-0602
●
●
72
NUT; BRKT
M8 FLANGE
0-91180-108-0
04
1
0603-
●
●
72
NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE
0-91150-108-0
05
1
0008-0108
●
72
NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE
0-91150-108-0
06
1
0109-0111
●
72
NUT; BRKT
WHEEL BASE 5900MM(59W) M8 FLANGE
0-91150-108-0
05
1
0112-0112
●
72
NUT; BRKT
M8 FLANGE
0-91150-108-0
06
1
0112-0210
●
72
NUT; BRKT
WHEEL BASE 6300MM(63W) M8 FLANGE
0-91150-108-0
06
1
0112-0112
●
73
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0005-0210
●
73
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
03
1
0211-0512
●
73
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
03
1
0601-
●
●
●
●
73
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
02
1
0005-0210
●
73
BOLT; CLIP
WHEEL BASE 5000MM(50W) M8X25 FLANGE
0-28680-825-0
02
1
0005-0210
●
73
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
04
1
0211-0512
●
73
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
04
1
0601-
●
73
BOLT; CLIP
WHEEL BASE 6300MM(63W) M8X25 FLANGE
0-28680-825-0
04
1
0005-0111
●
73
BOLT; CLIP
M8X25 FLANGE
0-28680-825-0
04
1
0112-0210
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
01
1
0005-0210
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
03
1
0211-0602
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
●
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
02
1
0005-0210
●
225
NUT; TUBE CLIP
WHEEL BASE 5000MM(50W) M8 FLANGE
0-91150-108-0
02
1
0005-0210
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
04
1
0211-0602
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91180-108-0
04
1
0603-
●
225
NUT; TUBE CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE
0-91150-108-0
04
1
0005-0111
●
225
NUT; TUBE CLIP
M8 FLANGE
0-91150-108-0
04
1
0112-0210
●
259
BRACKET; ROD,NYLON TUBE
(A)
1-47476-428-0
02
1
0005-0102
●
●
259
BRACKET; ROD,NYLON TUBE
(A)
1-47479-226-0
02
1
0103-
●
●
259
BRACKET; ROD,NYLON TUBE
(B)
1-47476-429-0
02
1
0005-
●
●
274
BOLT; BRKT
M8X25 FLANGE
0-28680-825-0
04
1
0005-0512
●
●
274
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
04
1
0601-
●
●

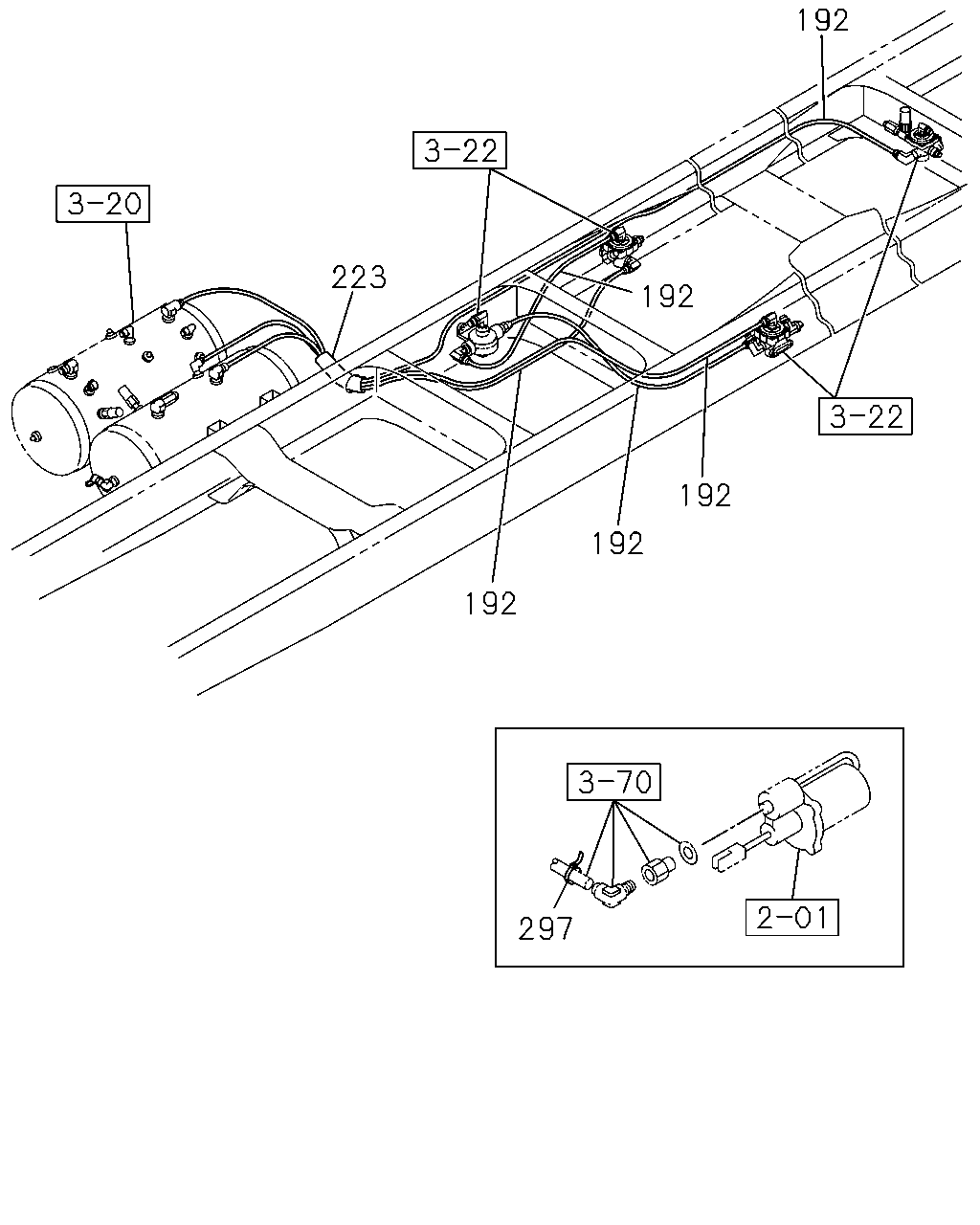

192
223
192
192
192
192
297
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
07
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0108-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
07
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0610-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0610-
●
●
●
●
297
CLIP; BAND
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=250
1-09707-126-0
01
1
0303-0305
●
297
CLIP; BAND
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=250
1-09707-126-0
01
1
0306-0405
●
297
CLIP; BAND
ENGINE REAR PTO(SV1) L=250
1-09707-126-0
01
1
0306-0405
●
297
CLIP; BAND
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=250
1-09707-126-0
01
1
0406-
●
297
CLIP; BAND
ENGINE REAR PTO(SV1) L=250
1-09707-126-0
01
1
0406-
●

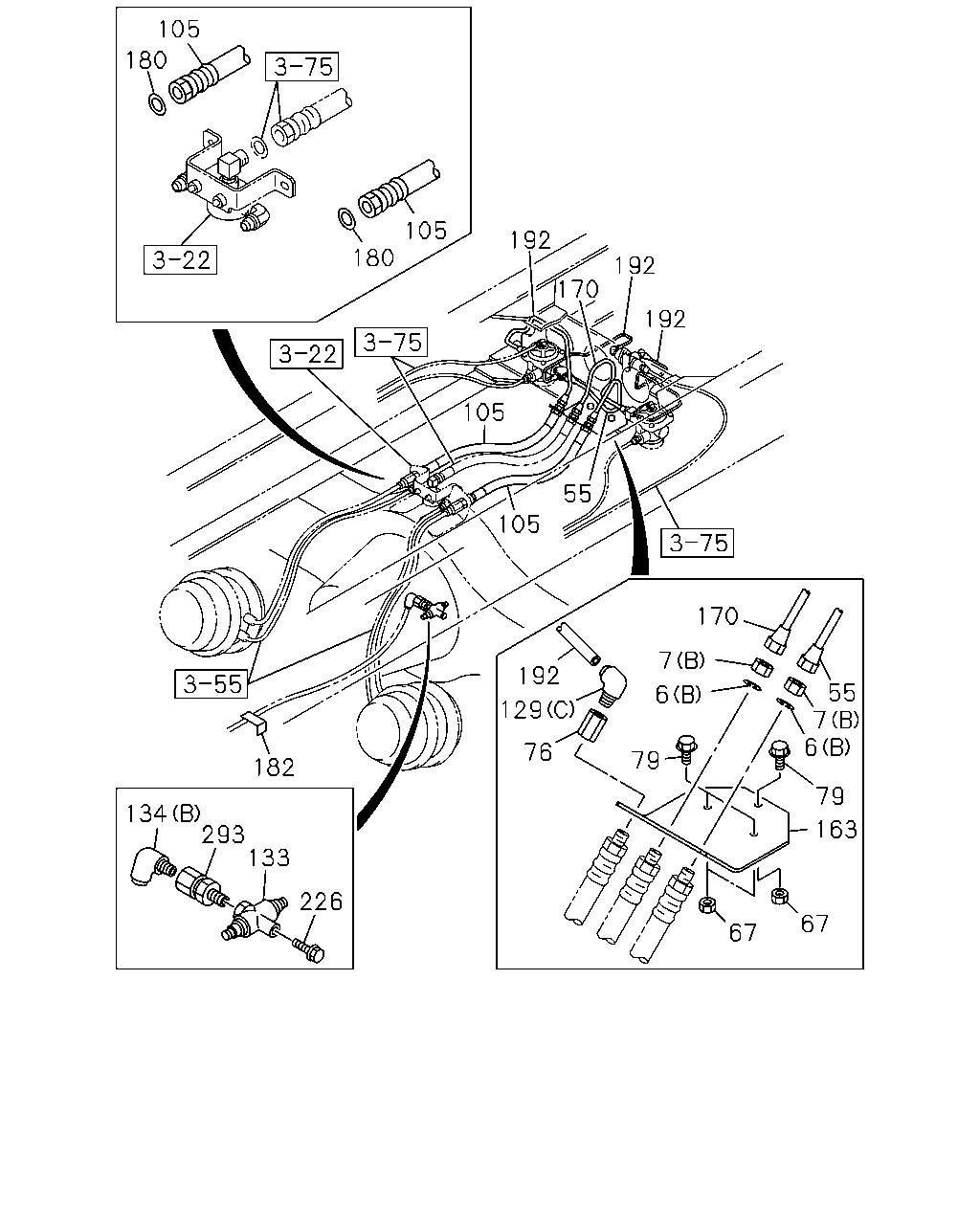

105
180
105
192
180
192
170
192
105
55
105
170
7
192
55
7
6
6
129
76
79
182
79
134
293
133
163
226
67
67
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
6
WASHER; LK,FLEX HOSE
(A) ID=16.2
9-09150-516-0
02
1
0005-0603
●
●
●
●
6
WASHER; LK,FLEX HOSE
(A) ID=16.2
0-91510-516-0
02
1
0604-
●
●
●
●
6
WASHER; LK,FLEX HOSE
(B) ID=20.2
9-09150-520-0
02
1
0005-0603
●
●
6
WASHER; LK,FLEX HOSE
(B) ID=20.2
0-91510-520-0
02
1
0604-
●
●
7
NUT; FLEX HOSE
(A) M16
9-99111-416-0
02
1
0005-0512
●
●
●
●
7
NUT; FLEX HOSE
(A) M16
0-91111-516-0
02
1
0601-
●
●
●
●
7
NUT; FLEX HOSE
(B) M20
9-99111-420-0
02
1
0005-0512
●
●
7
NUT; FLEX HOSE
(B) M20
0-91111-520-0
02
1
0601-
●
●
55
PIPE; AIR,RELAY VLV TO FLEX HOSE
L=426
1-49118-958-0
01
1
0005-
●
●
67
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
03
1
0005-0602
●
●
67
NUT; HOSE BRKT
M8 FLANGE
0-91180-108-0
03
1
0603-
●
●
76
ADAPTER; NYLON TUBE
M20 & RC3/8 STRAIGHT
1-09660-883-0
01
1
0005-
●
●
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28680-825-0
03
1
0005-0512
●
●
79
BOLT; HOSE BRKT
M8X25 FLANGE
0-28650-825-0
03
1
0601-
●
●
105
HOSE; FLEX
L=610
0-07807-610-1
02
1
0005-0605
●
●
105
HOSE; FLEX
L=610
0-57807-610-1
02
1
0606-
●
●
129
CONNECTOR; NYLON TUBE
(A) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0005-
●
●
●
●
129
CONNECTOR; NYLON TUBE
(B) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0005-
●
●
●
●
129
CONNECTOR; NYLON TUBE
(C) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0005-
●
●
133
UNION; NIPPLE
1-09660-757-0
01
1
0005-0106
●
133
UNION; NIPPLE
DIN8 & DIN12 & R3/8 3WAY
1-09661-130-0
01
1
0107-
●
134
CONNECTOR
(A) DIN8 & R1/4 ELBOW
1-09660-649-1
01
1
0005-0011
●
134
CONNECTOR
(A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
0012-
●
134
CONNECTOR
(B) DIN12 & R3/8 ELBOW
1-09660-959-0
01
1
0005-
●
163
BRACKET; FLEX HOSE
1-47477-997-1
01
1
0005-
●
163
BRACKET; FLEX HOSE
1-47477-861-1
01
1
0005-
●
170
PIPE; AIR,RELAY VLV TO FLEX HOSE
L=510
1-49118-957-0
01
1
0005-
●
●
180
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
0005-
●
●
182
BRACKET; TUBE CLIP
1-47477-571-3
01
1
0005-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
07
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0108-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
07
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0610-
●
●
●
●
226
BOLT; UNION
M8X20 FLANGE
0-28080-820-0
01
1
0005-0512
●
226
BOLT; UNION
M8X20 FLANGE
0-28050-820-0
01
1
0601-
●
226
BOLT; UNION
M8X25 FLANGE
0-28680-825-0
01
1
0005-0512
●
226
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
0601-
●
293
VALVE; CHECK
1-48320-013-2
01
1
0005-
●
312
312
192
85
192
223
192
126
126
316
127
316
126
181
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
85
GASKET; NYLON TUBE
100X40
1-72498-022-1
05
1
0005-
●
●
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
1-09661-015-0
02
1
0005-0210
●
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
1-09661-015-0
01
1
0211-0706
●
●
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
1-09661-015-0
01
1
0211-0706
●
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
8-98078-117-0
01
1
0707-
●
●
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
8-98078-117-0
01
1
0707-
●
●
●
126
UNION; NYLON TUBE
(B) DIN8 & M20 STRAIGHT
1-09661-056-0
02
1
0005-0007
●
●
●
126
UNION; NYLON TUBE
(B) DIN8 & M20 STRAIGHT
1-09661-381-0
02
1
0008-0706
●
●
●
126
UNION; NYLON TUBE
(A) DIN8 & M20 ELBOW
1-09661-015-0
01
1
0005-0210
●
126
UNION; NYLON TUBE
(B) DIN8 & M20 STRAIGHT
1-09661-056-0
01
1
0005-0007
●
126
UNION; NYLON TUBE
(B) DIN8 & M20 STRAIGHT
1-09661-381-0
01
1
0008-0706
●
127
NUT; UNION
M20
9-99111-420-0
01
1
0005-0512
●
●
●
●
127
NUT; UNION
M20
0-91111-520-0
01
1
0601-
●
●
●
●
181
NUT; TUBE UNION
M20
9-99111-420-0
01
1
0005-0512
●
●
●
181
NUT; TUBE UNION
M20
0-91111-520-0
01
1
0601-
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
04
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=12
1-87410-070-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87410-071-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87410-072-0
AR
1
0005-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
07
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87410-073-0
AR
1
0005-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87410-074-0
AR
1
0108-0212
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
WHEEL BASE 5000MM(50W) SERVICED BY L=2000 OD=12
1-87410-069-0
03
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87410-069-0
07
1
0301-
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
0301-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0610-
●
●
●
●
192
TUBE; NYLON
SERVICED BY L=8000 OD=12
1-87411-014-0
AR
1
0610-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87410-088-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87410-091-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=28
1-87410-098-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87410-100-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87410-102-0
AR
1
0005-
●
●
●
●
223
TUBE; CORRUGATE
SERVICED BY L=2000 ID=25
1-87411-031-0
AR
1
0610-
●
●
●
●
312
CONNECTOR; SUPPLY
(A)
1-09660-924-1
01
1
0005-1008
●
312
CONNECTOR; SUPPLY
(A)
8-97633-756-0
01
1
1009-
●
312
CONNECTOR; SUPPLY
(B)
1-09660-930-1
01
1
0005-1008
●
312
CONNECTOR; SUPPLY
(B)
8-97633-768-0
01
1
1009-
●
316
WASHER; PL
ID=21
9-09160-520-0
02
1
0005-0605
●
●
●
316
WASHER; PL
ID=21
0-91610-520-0
02
1
0606-
●
●
●
316
WASHER; PL
ID=21
9-09160-520-0
01
1
0005-0605
●
316
WASHER; PL
ID=21
0-91610-520-0
01
1
0606-
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
