Sayfa 3-75 - Isuzu EPC

3-75 — BRAKE PIPING; AIR,FRONT (#8703) — 350 parça

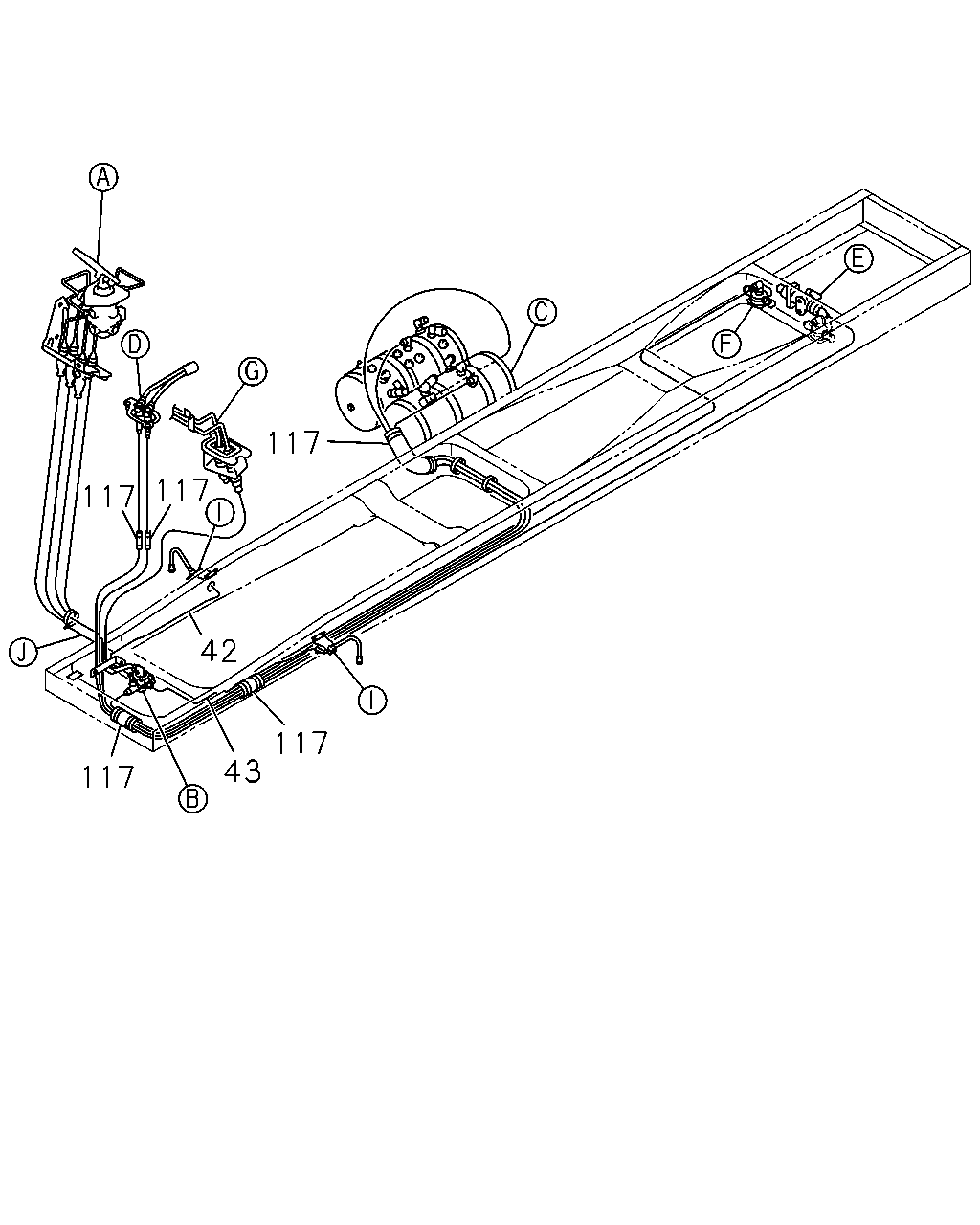

117 117 117 42 117 43 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0210	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HK1 TCS ENG(80L) L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0303-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0210	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0303-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0706-	●
117	TUBE; CORRUGATE 6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 4200MM(42W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-0006	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0007-0301	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0005-0301	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0006-0301	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0112-	●	●	●	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-	●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-			●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0610-	●	●	●	●

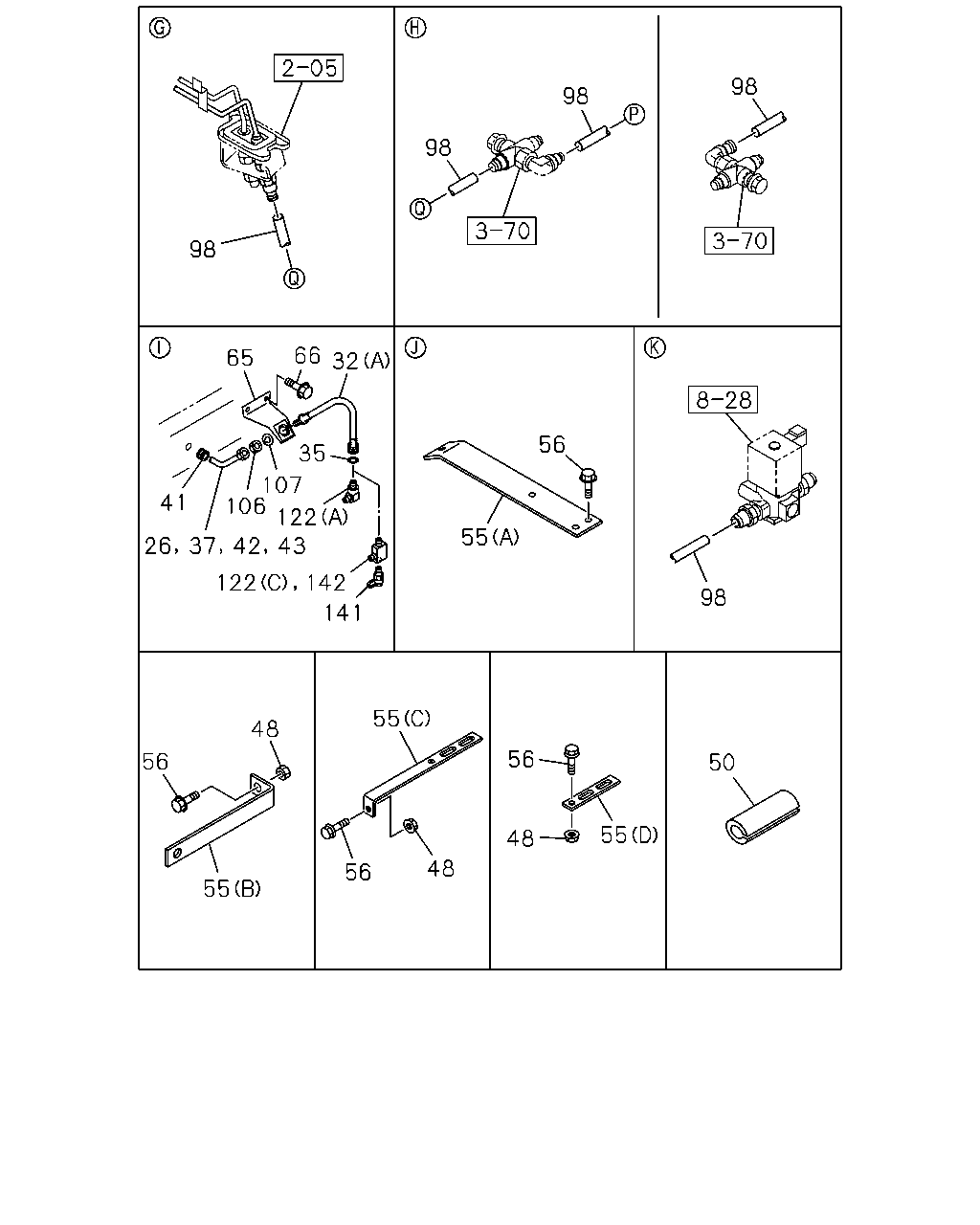

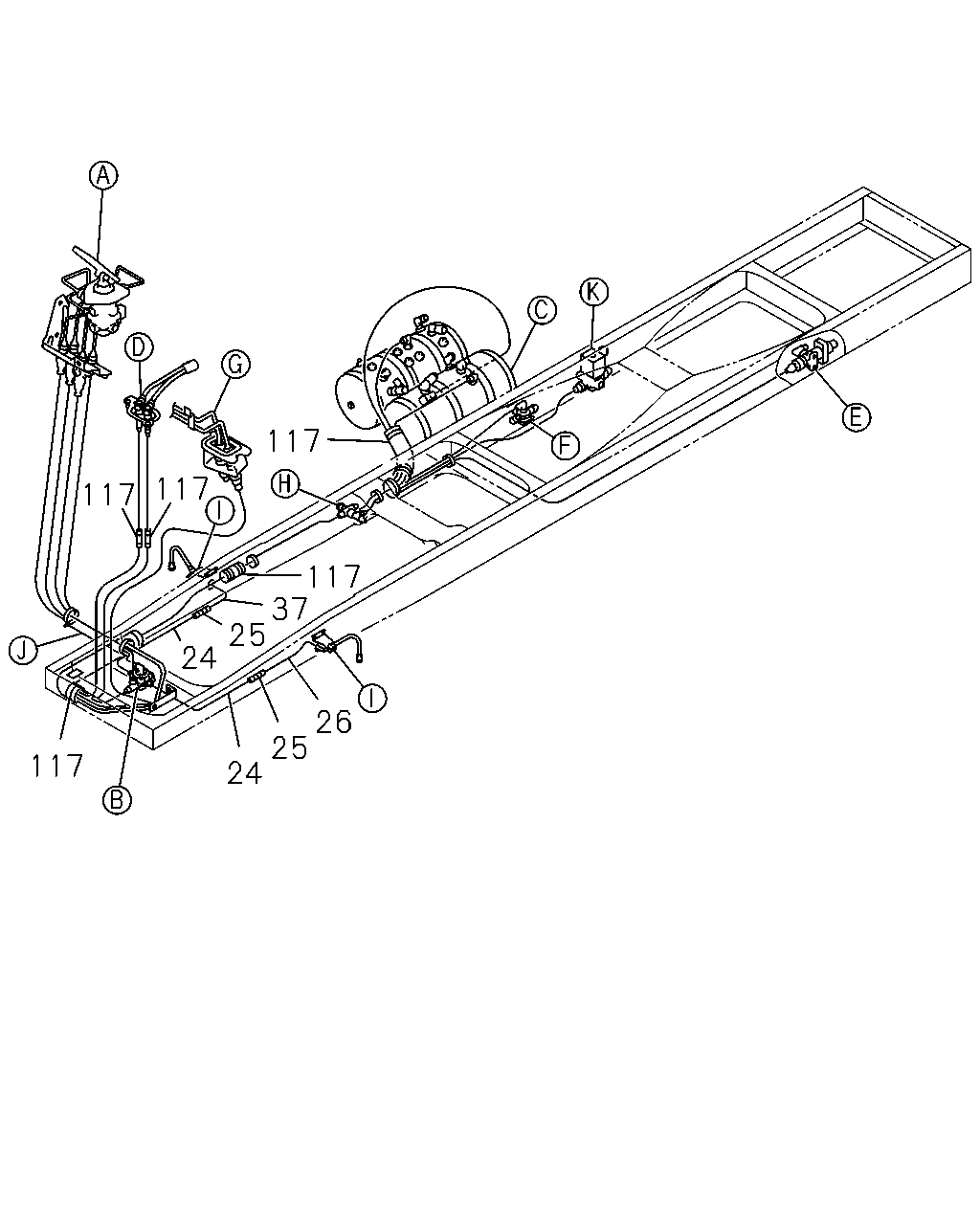

98 98 98 98 66 65 32 35 56 107 106 41 122 55 26 122 142 98 141 55 48 56 56 50 55 48 48 56 55 43 37 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0005-		●	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	0005-	●
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0005-0605	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0005-0605	●			●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●			●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0005-	●	●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0005-		●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	0005-	●
41	GROMMET; AIR PIPE ID=28 OD=35 T=25	1-09332-011-1	02	1	0005-	●	●	●	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0210	●
42	PIPE; AIR,QUICK RELAY VALVE TO UNION 6HK1 TCS ENG(80L) L=1189 SERVICED BY L=1250	1-47428-791-0	01	1	0303-	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0005-0210	●
43	PIPE; AIR,RELAY VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1193 SERVICED BY L=1250	1-47428-791-0	01	1	0303-	●
48	NUT; UNION BRKT A/T<X9D> M8 FLANGE	0-91180-108-0	06	1	0706-			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	08	1	0005-0105		●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	08	1	0005-0105			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	09	1	0106-0108	●	●	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0109-0111		●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	01	1	0109-0111			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	09	1	0112-0112		●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	09	1	0112-0112			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	08	1	0201-0210		●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	08	1	0201-0210			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	07	1	0211-0602		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	07	1	0603-0705		●	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	07	1	0706-		●
48	NUT; UNION BRKT EXC. A/T<X9D> M8 FLANGE	0-91180-108-0	07	1	0706-			●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	03	1	0005-0010	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	04	1	0011-0101	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	06	1	0102-0210	●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0211-0405			●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91150-108-0	13	1	0406-0409	●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	10	1	0005-0108	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	09	1	0109-0111		●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	09	1	0109-0111			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	01	1	0112-0210		●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0112-0210			●
48	NUT; UNION BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8 FLANGE	0-91150-108-0	01	1	0112-0210			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	12	1	0211-0409	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	08	1	0410-0602	●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	08	1	0603-	●
48	NUT; UNION BRKT WHEEL BASE 4200MM(42W) M8 FLANGE	0-91150-108-0	09	1	0303-0409	●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	09	1	0410-0602	●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	09	1	0603-	●
48	NUT; UNION BRKT 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	13	1	0303-0405	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8 FLANGE	0-91150-108-0	01	1	0406-0602	●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	01	1	0406-0602			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8 FLANGE	0-91180-108-0	01	1	0603-	●
48	NUT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91180-108-0	01	1	0603-			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	09	1	0005-0105	●
48	NUT; UNION BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	09	1	0005-0105			●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0011-0101	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	04	1	0102-0108	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	13	1	0109-0112	●
48	NUT; UNION BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	09	1	0201-0210	●
48	NUT; UNION BRKT WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	09	1	0201-0210			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0109-0112	●		●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0109-0112			●
48	NUT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	10	1	0201-0210	●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0201-0210			●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	10	1	0211-0602				●
48	NUT; UNION BRKT M8 FLANGE	0-91180-108-0	10	1	0603-				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	12	1	0005-0108				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	13	1	0109-0109				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	14	1	0109-0112				●
48	NUT; UNION BRKT M8 FLANGE	0-91150-108-0	13	1	0201-0210	●			●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3560P A/T(Y3B) AUXILIARY TRANSMISSION OIL COOLER<V14> ID=29 OD=39 L=40	1-09337-013-0	02	1	0612-			●
50	SLEEVE; RUBBER,NYLON TUBE ALLISON MD3560P A/T(Y3B) ID=29 OD=39 L=40	1-09337-013-0	02	1	0112-0210			●
55	BRACKET; TUBE UNION A/T<X9D> (C) L=160 B=25	1-53441-518-0	01	1	0706-			●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (C) L=95	1-82699-085-0	02	1	0610-	●
55	BRACKET; TUBE UNION (C) L=100 H=30	1-47477-645-2	01	1	0106-0108		●
55	BRACKET; TUBE UNION WHEEL BASE 5000MM(50W) (C) L=100 H=30	1-47477-645-2	01	1	0106-0108			●
55	BRACKET; TUBE UNION (C) L=100 H=30	1-47477-645-2	01	1	0109-0112		●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (C) L=100 H=30	1-47477-645-2	01	1	0201-0210			●
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B) (C) L=100 H=30	1-47477-645-2	01	1	0211-			●
55	BRACKET; TUBE UNION (A)	1-47477-256-1	01	1	0005-	●	●	●	●
55	BRACKET; TUBE UNION (D)	1-47477-514-3	01	1	0005-0111	●	●	●	●
55	BRACKET; TUBE UNION (D)	1-47477-514-3	01	1	0112-0112	●	●	●	●
55	BRACKET; TUBE UNION ALLISON MD3560P A/T(Y3B) (D)	1-47477-514-3	01	1	0112-0112			●
55	BRACKET; TUBE UNION (D)	1-47477-514-3	01	1	0201-	●	●	●	●
55	BRACKET; TUBE UNION (C) L=150 H=30	1-47477-629-2	01	1	0005-0011	●	●	●	●
55	BRACKET; TUBE UNION (C) L=160 B=25	1-53441-518-0	02	1	0012-0705	●	●	●	●
55	BRACKET; TUBE UNION (C) L=160 B=25	1-53441-518-0	02	1	0706-	●	●		●
55	BRACKET; TUBE UNION EXC. A/T<X9D> (C) L=160 B=25	1-53441-518-0	02	1	0706-			●
55	BRACKET; TUBE UNION (C) L=60 H=30	1-47477-716-1	01	1	0109-0109				●
55	BRACKET; TUBE UNION (C) L=60 H=30	1-47477-716-1	01	1	0109-0210		●	●	●
55	BRACKET; TUBE UNION (C) L=60 H=30	1-47477-716-1	01	1	0211-0302		●	●	●
55	BRACKET; TUBE UNION (C) L=60 H=30	1-47477-716-1	01	1	0303-		●	●	●
55	BRACKET; TUBE UNION WHEEL BASE 4200MM(42W) (C) L=60 H=30	1-47477-716-1	01	1	0303-	●
55	BRACKET; TUBE UNION (B) L=160 B=25	1-53441-518-0	02	1	0005-0011		●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=160 B=25	1-53441-518-0	02	1	0005-0011	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0012-0210		●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=150 H=30	1-47477-629-2	01	1	0012-0210	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0211-0302	●	●	●	●
55	BRACKET; TUBE UNION (B) L=150 H=30	1-47477-629-2	01	1	0303-0409		●	●	●
55	BRACKET; TUBE UNION WHEEL BASE 4200MM(42W) (B) L=150 H=30	1-47477-629-2	01	1	0303-0409	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=150 H=30	1-47477-629-2	01	1	0303-0409	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (B) L=150 H=30	1-47477-629-2	01	1	0410-		●	●	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (B) L=150 H=30	1-47477-629-2	01	1	0410-	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) L=150 H=30	1-47477-629-2	02	1	0005-0010	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) L=150 H=30	1-47477-629-2	03	1	0011-0101	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) L=150 H=30	1-47477-629-2	05	1	0102-0210	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) (C) L=150 H=30	1-47477-629-2	04	1	0211-0405	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) L=150 H=30	1-47477-629-2	04	1	0406-0409	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) L=225	1-47477-646-3	01	1	0005-0210	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (D)	1-47477-514-3	02	1	0005-0210	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=145 B=25	1-47477-697-0	01	1	0005-0011	●
55	BRACKET; TUBE UNION 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B) L=160 B=25	1-53441-518-0	01	1	0005-0011	●
55	BRACKET; TUBE UNION WHEEL BASE 4200MM(42W) (D)	1-47477-514-3	02	1	0303-	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (C) L=150 H=30	1-47477-629-2	05	1	0303-0405	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) L=150 H=30	1-47477-629-2	05	1	0406-0409	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (C) L=225	1-47477-646-3	01	1	0303-0405	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) L=225	1-47477-646-3	01	1	0406-	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) (C) L=225	1-47477-646-3	01	1	0406-	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (C) L=60 H=30	1-47477-716-1	02	1	0303-0405	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) L=60 H=30	1-47477-716-1	02	1	0406-	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (C) L=100 H=30	1-47477-645-2	02	1	0005-0108	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (C) L=100 H=30	1-47477-645-2	03	1	0109-0112	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (C) L=100 H=30	1-47477-645-2	02	1	0201-0210	●
55	BRACKET; TUBE UNION (C) L=100 H=30	1-47477-645-2	02	1	0211-0609	●
55	BRACKET; TUBE UNION 6HK1 TCS ENG(80L) (C) L=100 H=30	1-47477-645-2	02	1	0610-	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (C) L=150 H=30	1-47477-629-2	02	1	0011-0101	●
55	BRACKET; TUBE UNION 6SD1 TCN ENG(31L) (C) L=150 H=30	1-47477-629-2	04	1	0102-0210	●
55	BRACKET; TUBE UNION (C) L=100 H=30	1-47477-645-2	03	1	0005-0108				●
55	BRACKET; TUBE UNION (C) L=100 H=30	1-47477-645-2	04	1	0109-0112				●
55	BRACKET; TUBE UNION (C) L=100 H=30	1-47477-645-2	03	1	0201-				●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) A/T<X9D> M8X25 FLANGE	0-28650-825-0	05	1	0706-			●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X30 FLANGE	0-28680-830-0	06	1	0406-0409	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	0005-0111	●	●	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28680-830-0	02	1	0005-0111	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	02	1	0112-0210		●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	0112-0210	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28680-830-0	02	1	0112-0210	●
56	BOLT; UNION BRKT WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) M8X30 FLANGE	0-28680-830-0	02	1	0112-0210			●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	04	1	0211-0512		●	●	●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28650-830-0	04	1	0601-		●	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0005-0105		●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	06	1	0005-0105	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	07	1	0106-0108		●
56	BOLT; UNION BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28680-825-0	07	1	0106-0108			●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	01	1	0109-0111		●
56	BOLT; UNION BRKT WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	01	1	0109-0111			●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	01	1	0112-0210		●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0005-0010	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	02	1	0011-0101	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0011-0101	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	04	1	0102-0210	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	04	1	0102-0210	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	04	1	0211-0405	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X25 FLANGE	0-28680-825-0	04	1	0406-0409	●
56	BOLT; UNION BRKT 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	08	1	0005-0210	●
56	BOLT; UNION BRKT WHEEL BASE 4200MM(42W) M8X30 FLANGE	0-28680-830-0	05	1	0303-0409	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	05	1	0410-0512	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	05	1	0601-	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	09	1	0303-0405	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X25 FLANGE	0-28680-825-0	09	1	0406-0409	●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) M8X30 FLANGE	0-28680-830-0	06	1	0303-0405	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8X30 FLANGE	0-28680-830-0	01	1	0406-0512	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) M8X30 FLANGE	0-28650-830-0	01	1	0601-	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	03	1	0005-0108	●
56	BOLT; UNION BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	03	1	0005-0108			●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X30 FLANGE	0-28680-830-0	04	1	0109-0210	●
56	BOLT; UNION BRKT WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	04	1	0109-0210			●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0106-0108	●		●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	07	1	0109-0112		●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	07	1	0109-0112	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0201-0210		●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	06	1	0201-0210	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0211-0302	●	●	●	●
56	BOLT; UNION BRKT M8X25 FLANGE	0-28680-825-0	06	1	0303-0409		●	●	●
56	BOLT; UNION BRKT WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	06	1	0303-0409	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	06	1	0303-0409	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	06	1	0410-0512		●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	06	1	0410-0512	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	06	1	0601-0705		●	●	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	06	1	0601-0705	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	06	1	0706-	●	●		●
56	BOLT; UNION BRKT 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6200MM(62W) M8X25 FLANGE	0-28650-825-0	06	1	0706-	●
56	BOLT; UNION BRKT 6SD1 TCN ENG(31L) EXC. A/T<X9D> M8X25 FLANGE	0-28650-825-0	06	1	0706-			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28680-825-0	01	1	0112-0512			●
56	BOLT; UNION BRKT ALLISON MD3560P A/T(Y3B) M8X25 FLANGE	0-28650-825-0	01	1	0601-			●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	06	1	0005-0108				●
56	BOLT; UNION BRKT M8X30 FLANGE	0-28680-830-0	07	1	0109-0210				●
65	BRACKET; FLEX HOSE	1-47476-210-0	01	1	0005-	●	●	●	●
65	BRACKET; FLEX HOSE	1-47476-211-0	01	1	0005-	●	●	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28080-812-0	04	1	0005-0512	●	●	●	●
66	BOLT; HOSE BRKT M8X12 FLANGE	0-28050-812-0	04	1	0601-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0008	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0009-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0211-0512	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	04	1	0601-	●	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0005-0512	●			●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●			●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0211-0603	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	04	1	0604-	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●			●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●			●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●	●	●	●
122	CONNECTOR; FLEX HOSE (A)	1-09660-685-0	01	1	0005-	●		●	●
122	CONNECTOR; FLEX HOSE (C)	1-09660-838-0	01	1	0005-0305	●		●	●
122	CONNECTOR; FLEX HOSE (C)	1-09661-592-0	01	1	0306-	●		●	●
141	CONNECTOR; TEST	1-47459-013-1	01	1	0005-	●	●	●	●
142	UNION; 3-WAY	1-09660-838-0	01	1	0005-0305		●
142	UNION; 3-WAY	1-09661-592-0	01	1	0306-		●

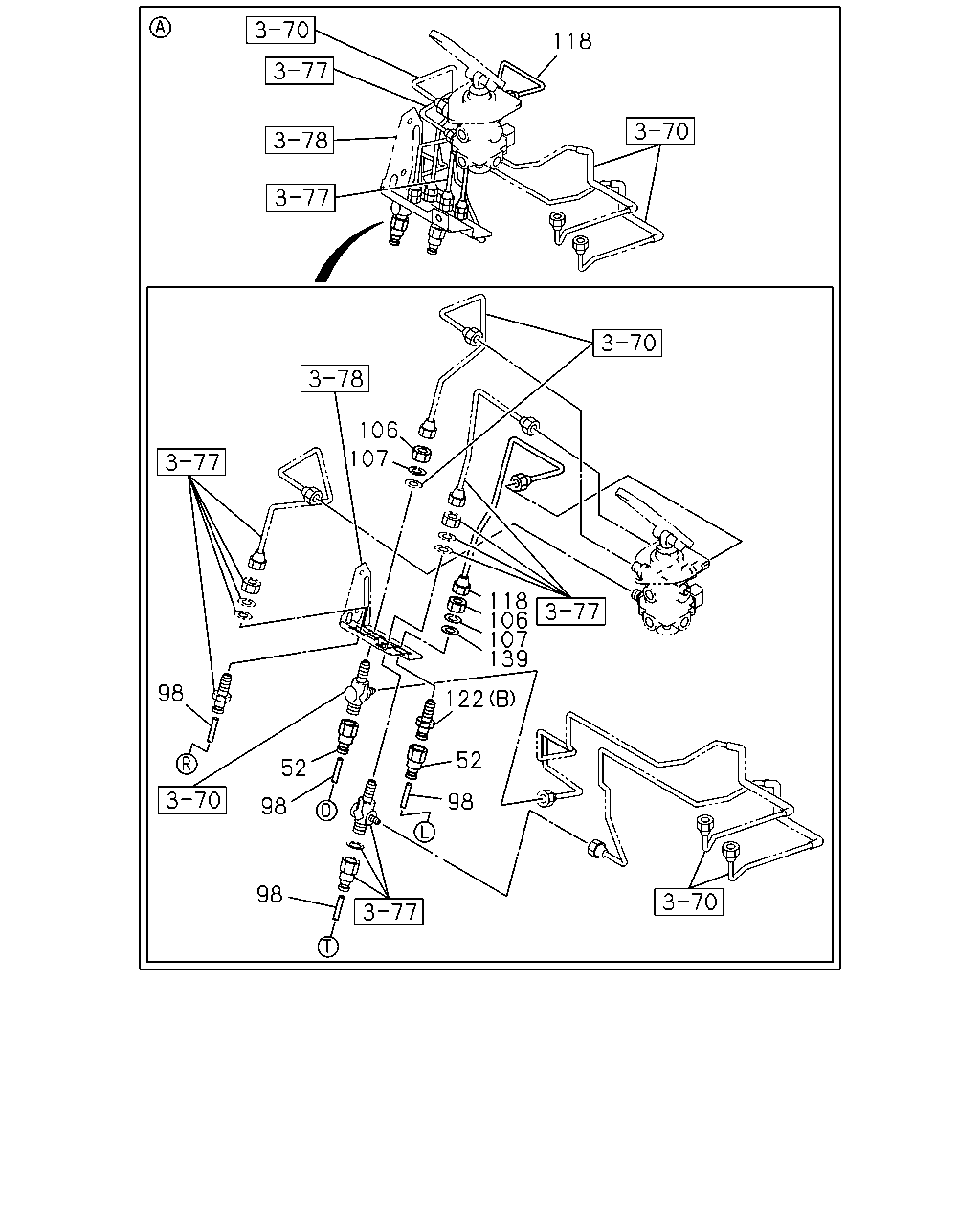

118 106 107 118 106 107 139 122 98 52 52 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
52	CONNECTOR; NYLON TUBE DIN12 & M16 STRAIGHT	1-09660-876-0	02	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0008	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0009-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0211-0512	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	04	1	0601-	●	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0005-0512	●			●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●			●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0211-0603	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	04	1	0604-	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●			●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●			●
118	PIPE; AIR,BRK VLV TO FLEX HOSE L=419	1-49115-942-3	01	1	0005-	●	●	●	●
122	CONNECTOR; FLEX HOSE (B) M16 STRAIGHT	1-09654-380-0	01	1	0005-	●	●	●	●
122	CONNECTOR; FLEX HOSE (A)	1-09660-685-0	01	1	0005-	●		●	●
122	CONNECTOR; FLEX HOSE (C)	1-09660-838-0	01	1	0005-0305	●		●	●
122	CONNECTOR; FLEX HOSE (C)	1-09661-592-0	01	1	0306-	●		●	●
139	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●	●	●	●
139	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●	●

117 117 117 117 37 25 24 26 25 24 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
24	PIPE; AIR,RELAY VLV TO UNION L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-		●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-	●
24	PIPE; AIR,RELAY VLV TO UNION L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-0301		●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L) L=883 SERVICED BY L=900	1-47428-788-0	01	1	0005-0301	●
24	PIPE; AIR,RELAY VLV TO UNION	1-49124-010-0	01	1	0302-		●	●	●
24	PIPE; AIR,RELAY VLV TO UNION 6SD1 TCN ENG(31L)	1-49124-010-0	01	1	0302-	●
25	UNION; AIR PIPE M16 L=42	9-09233-010-1	02	1	0005-0607		●	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	9-09233-010-1	02	1	0005-0607	●
25	UNION; AIR PIPE M16 L=42	0-92123-010-0	02	1	0608-		●	●	●
25	UNION; AIR PIPE 6SD1 TCN ENG(31L) M16 L=42	0-92123-010-0	02	1	0608-	●
26	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-325-0	01	1	0005-		●	●	●
26	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-325-0	01	1	0005-	●
37	PIPE; AIR,UNION TO FLEX HOSE L=332	1-49113-327-0	01	1	0005-		●	●	●
37	PIPE; AIR,UNION TO FLEX HOSE 6SD1 TCN ENG(31L) L=332	1-49113-327-0	01	1	0005-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=32	1-87411-035-0	03	1	0706-	●
117	TUBE; CORRUGATE 6HK1 TCS ENG(80L) WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 4200MM(42W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	0706-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0005-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87410-098-0	AR	1	0005-0006	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87410-100-0	AR	1	0007-0301	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87410-104-0	AR	1	0005-0301	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0006-0301	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0112-	●	●	●	●
117	TUBE; CORRUGATE 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-	●
117	TUBE; CORRUGATE WHEEL BASE 5900MM(59W) SERVICED BY L=2000 ID=32	1-87411-035-0	04	1	0706-			●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=32	1-87411-035-0	AR	1	0302-	●	●	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	0610-	●	●	●	●

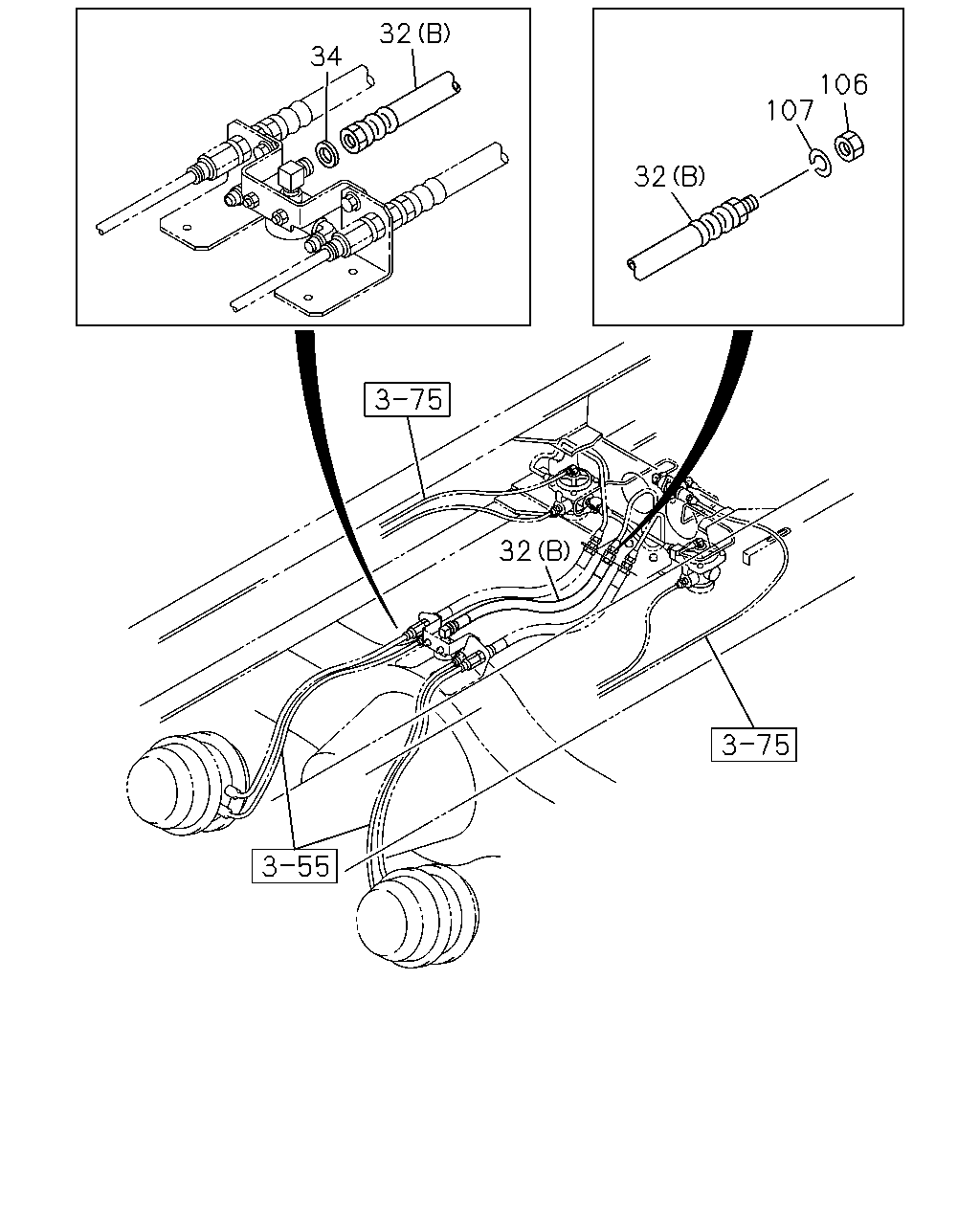

32 34 106 107 32 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	HOSE; FLEX,FRT (A) L=630	0-07475-630-1	02	1	0005-0605	●	●	●	●
32	HOSE; FLEX,FRT (A) L=630	0-57475-630-1	02	1	0606-	●	●	●	●
32	HOSE; FLEX,FRT (B) L=610	0-07807-610-1	01	1	0005-0605	●			●
32	HOSE; FLEX,FRT (B) L=610	0-57807-610-1	01	1	0606-	●			●
34	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	01	1	0005-	●			●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	02	1	0005-0210	●	●	●	●
106	NUT; FLEX HOSE M16	9-99111-416-0	04	1	0211-0512	●	●	●	●
106	NUT; FLEX HOSE M16	0-91111-516-0	04	1	0601-	●	●	●	●
106	NUT; FLEX HOSE M20	9-99111-420-0	01	1	0005-0512	●			●
106	NUT; FLEX HOSE M20	0-91111-520-0	01	1	0601-	●			●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0005-0210	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	04	1	0211-0603	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=16.2	0-91510-516-0	04	1	0604-	●	●	●	●
107	WASHER; LK,FLEX HOSE ID=20.2	9-09150-520-0	01	1	0005-0603	●			●
107	WASHER; LK,FLEX HOSE ID=20.2	0-91510-520-0	01	1	0604-	●			●

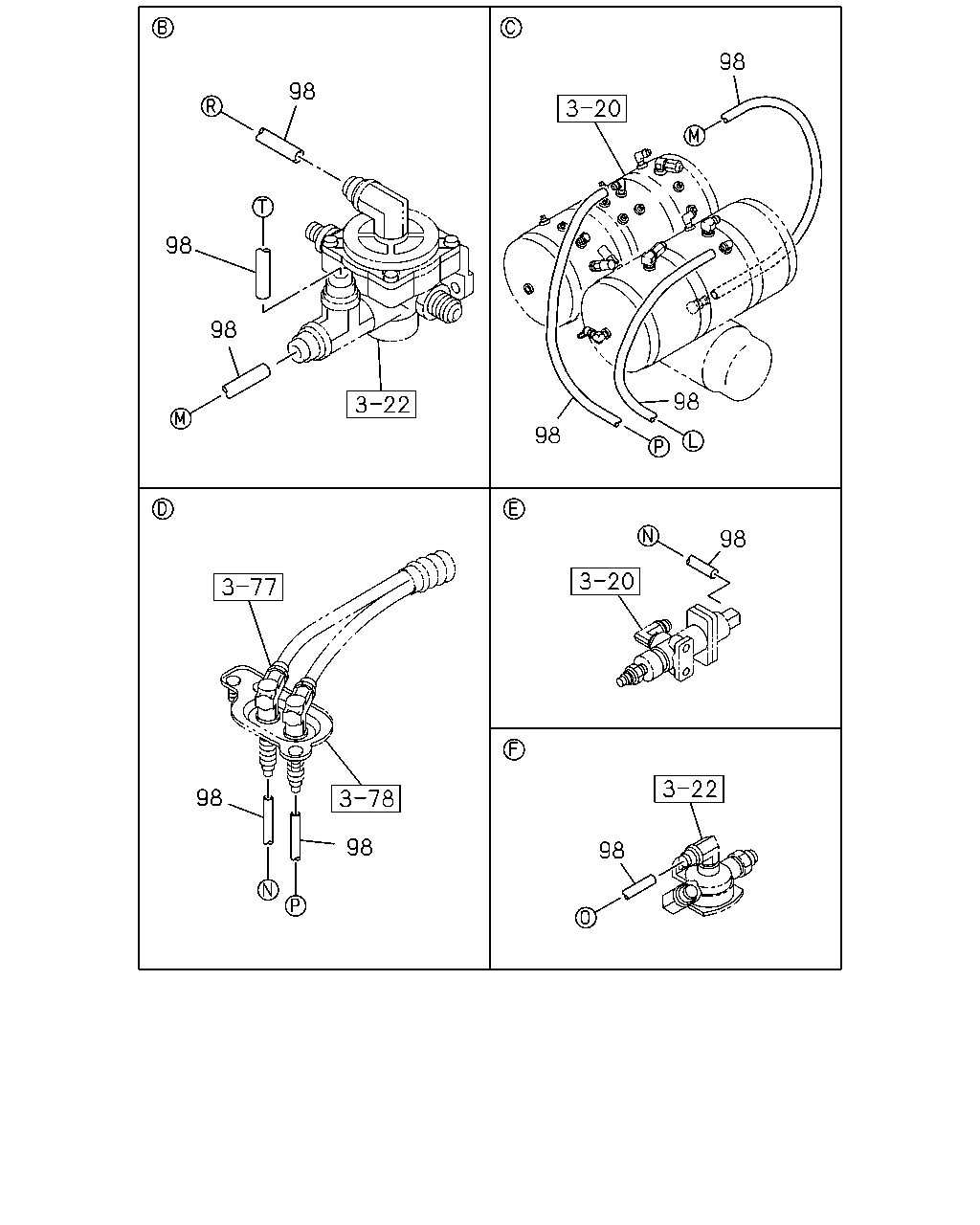

98 98 98 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
98	TUBE; NYLON SERVICED BY L=30000 OD=12	1-09369-544-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=30000 OD=8	1-09369-578-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87410-071-0	AR	1	0005-0008	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87410-076-0	AR	1	0009-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87410-072-0	AR	1	0005-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=8	1-87411-010-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=12	1-87411-014-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=12000 OD=12	1-87411-015-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	0302-	●	●	●	●
98	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
