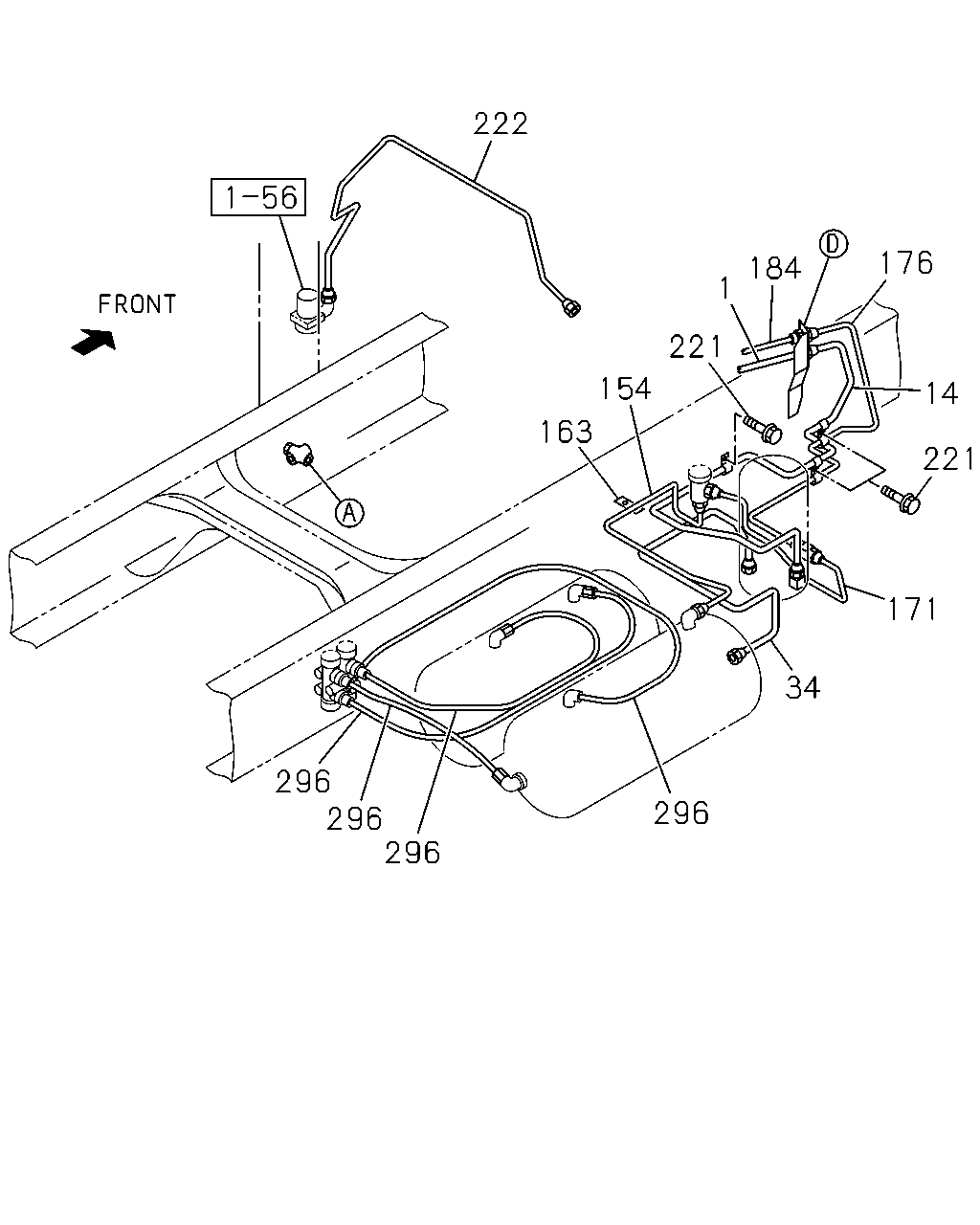

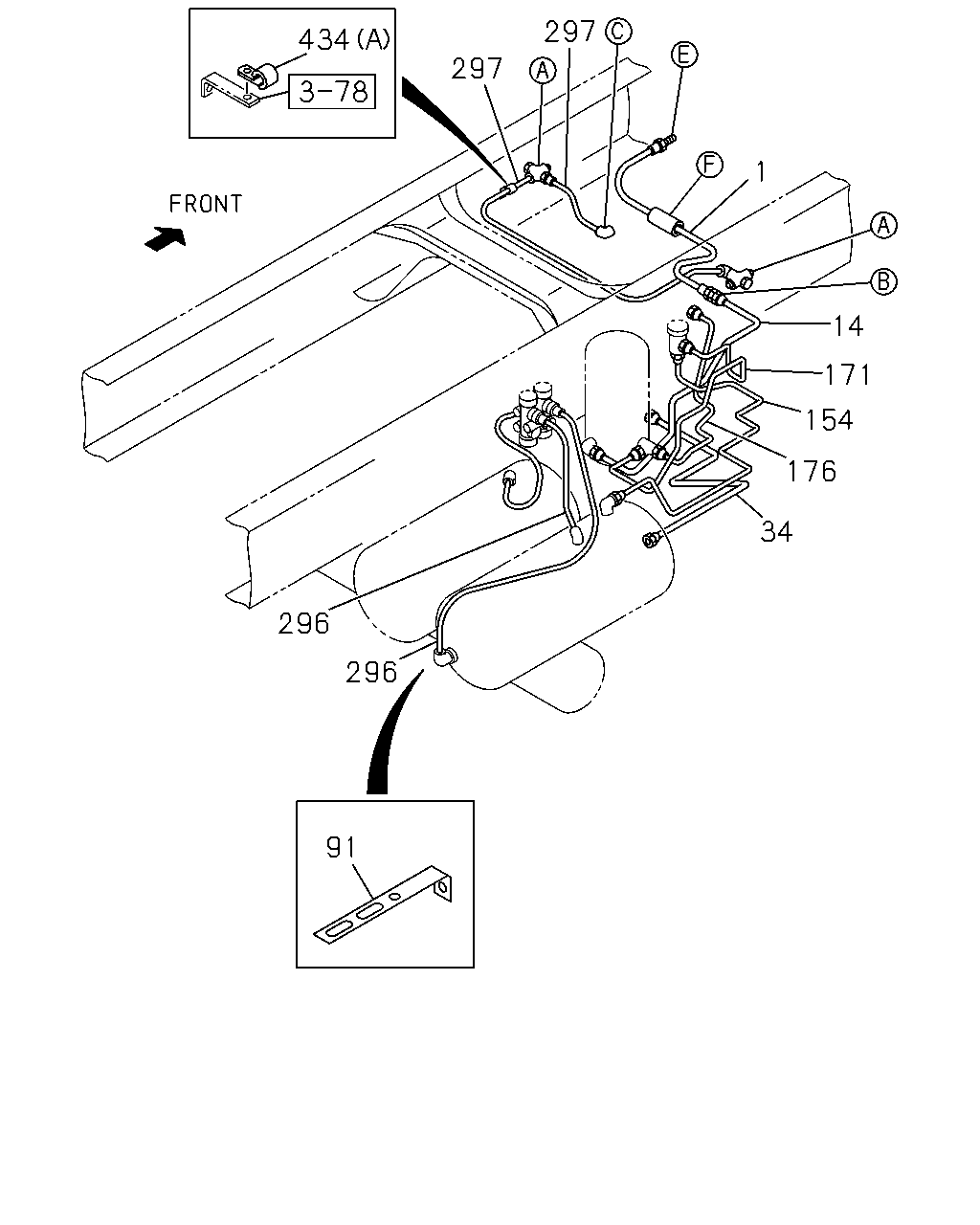

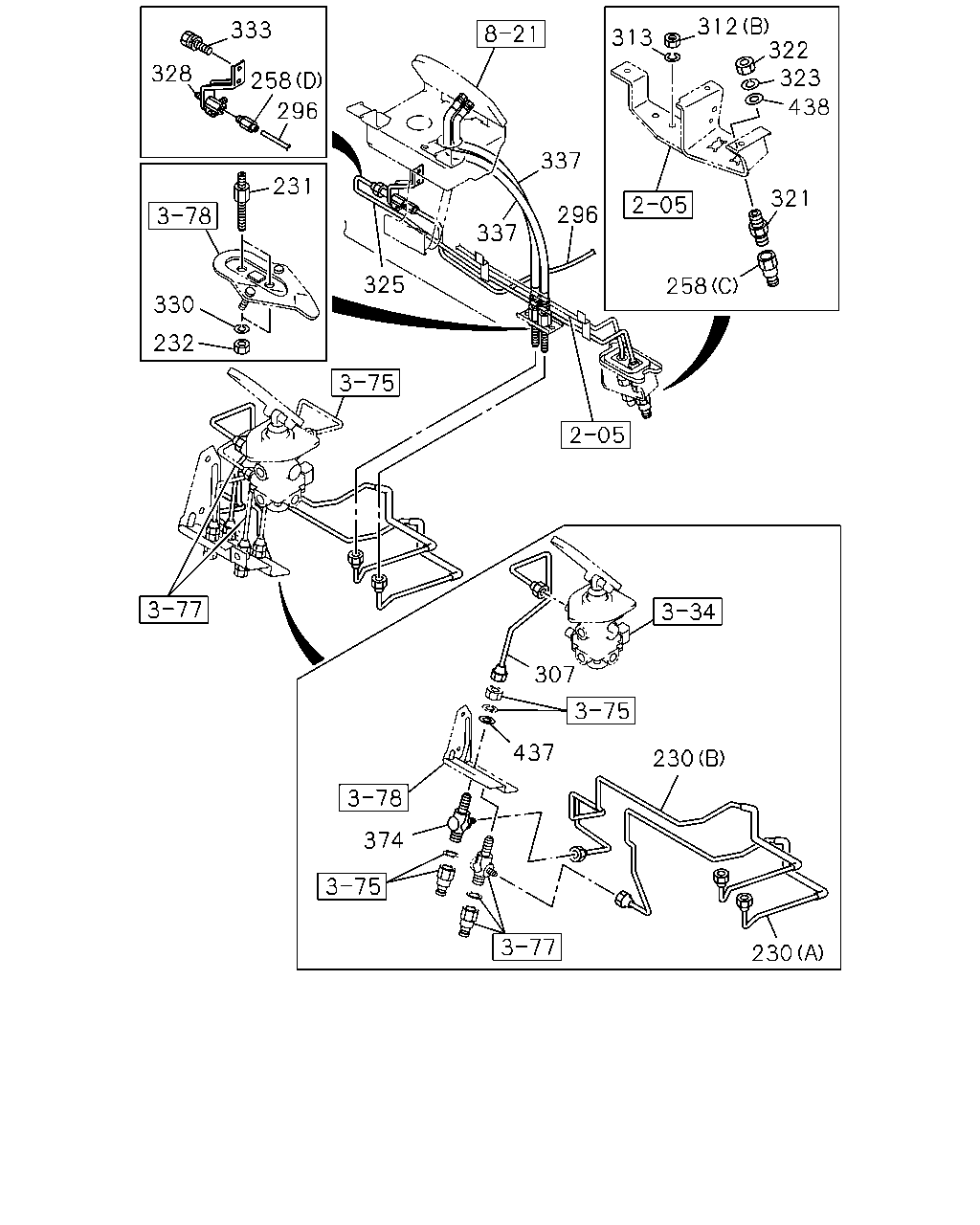

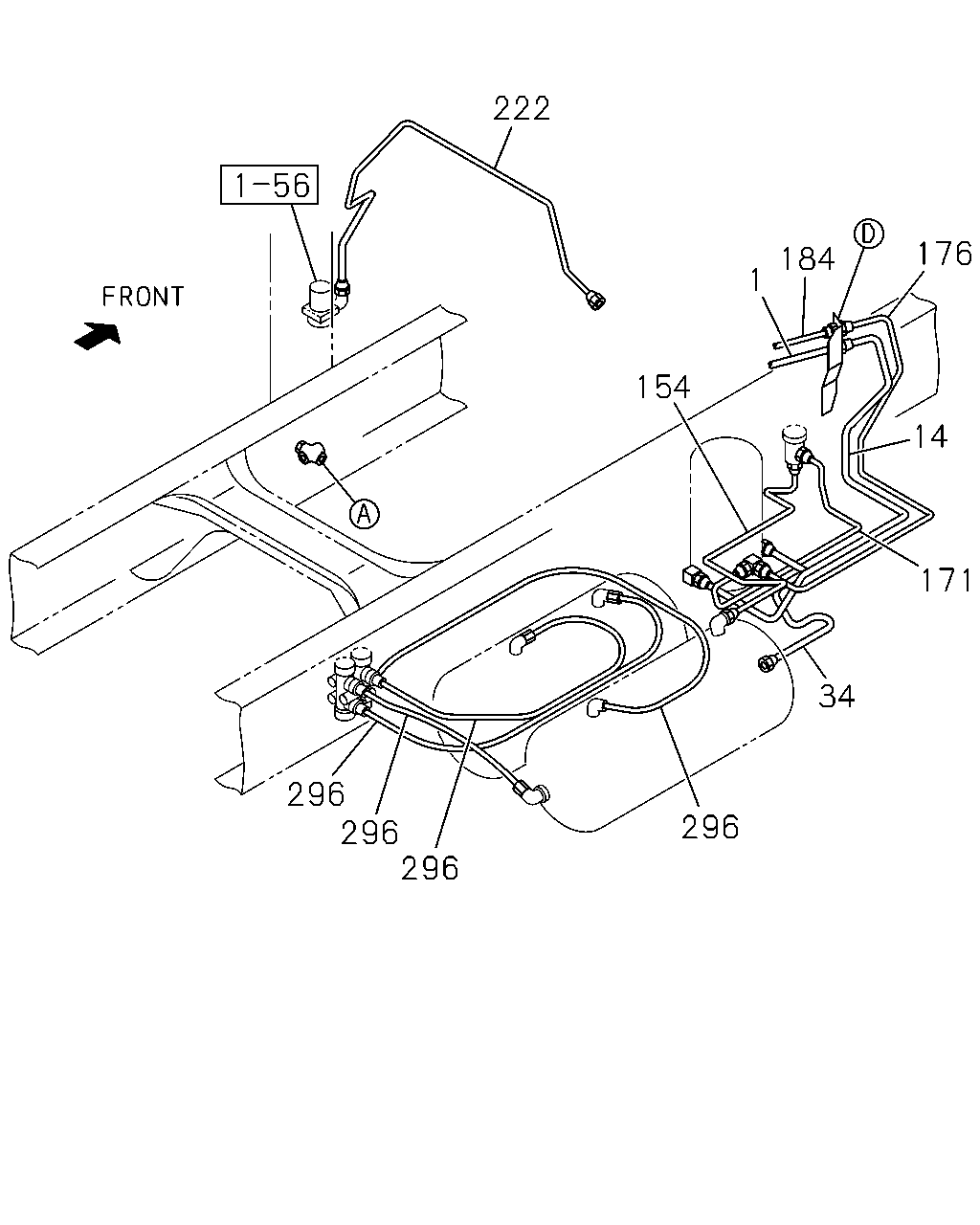

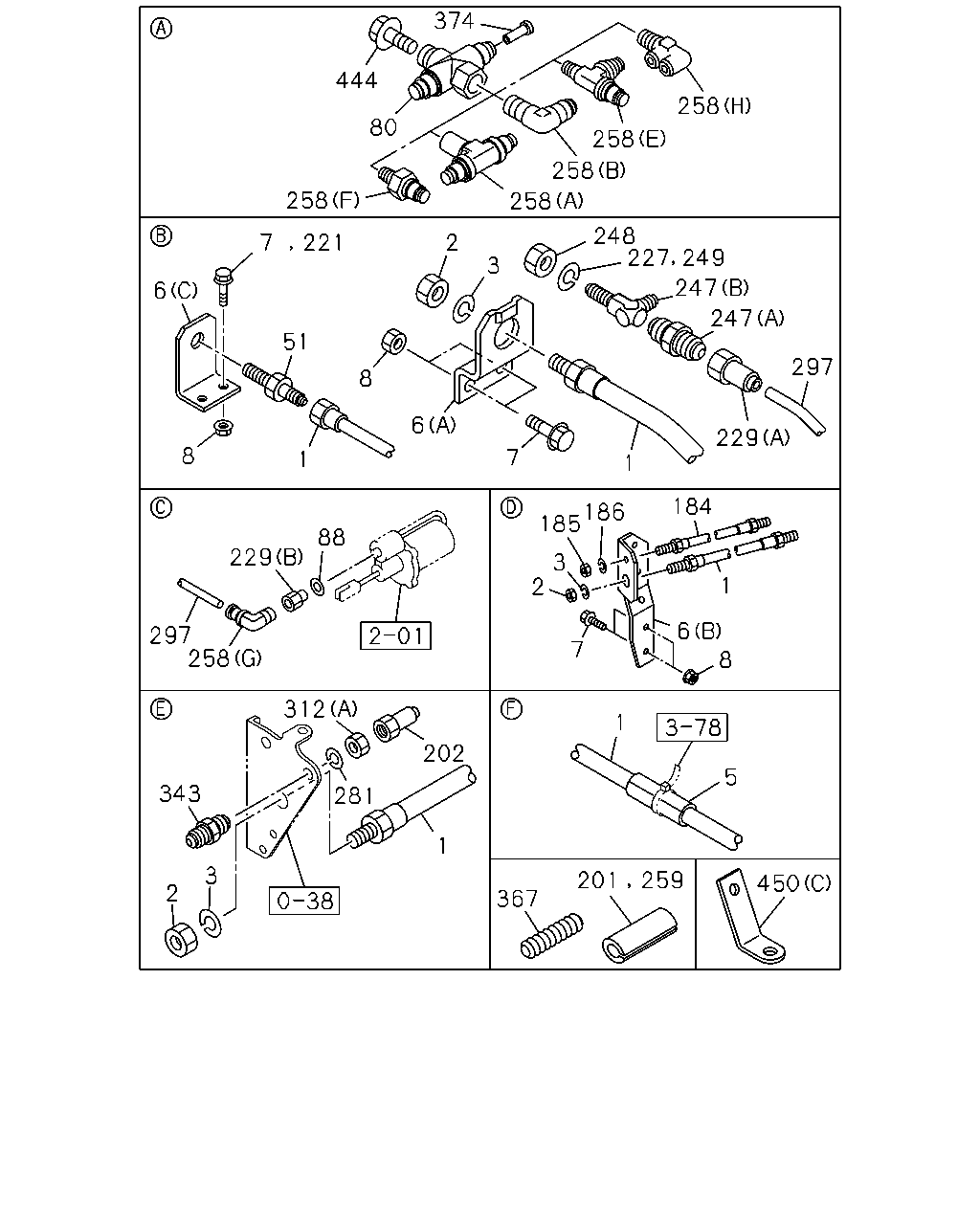

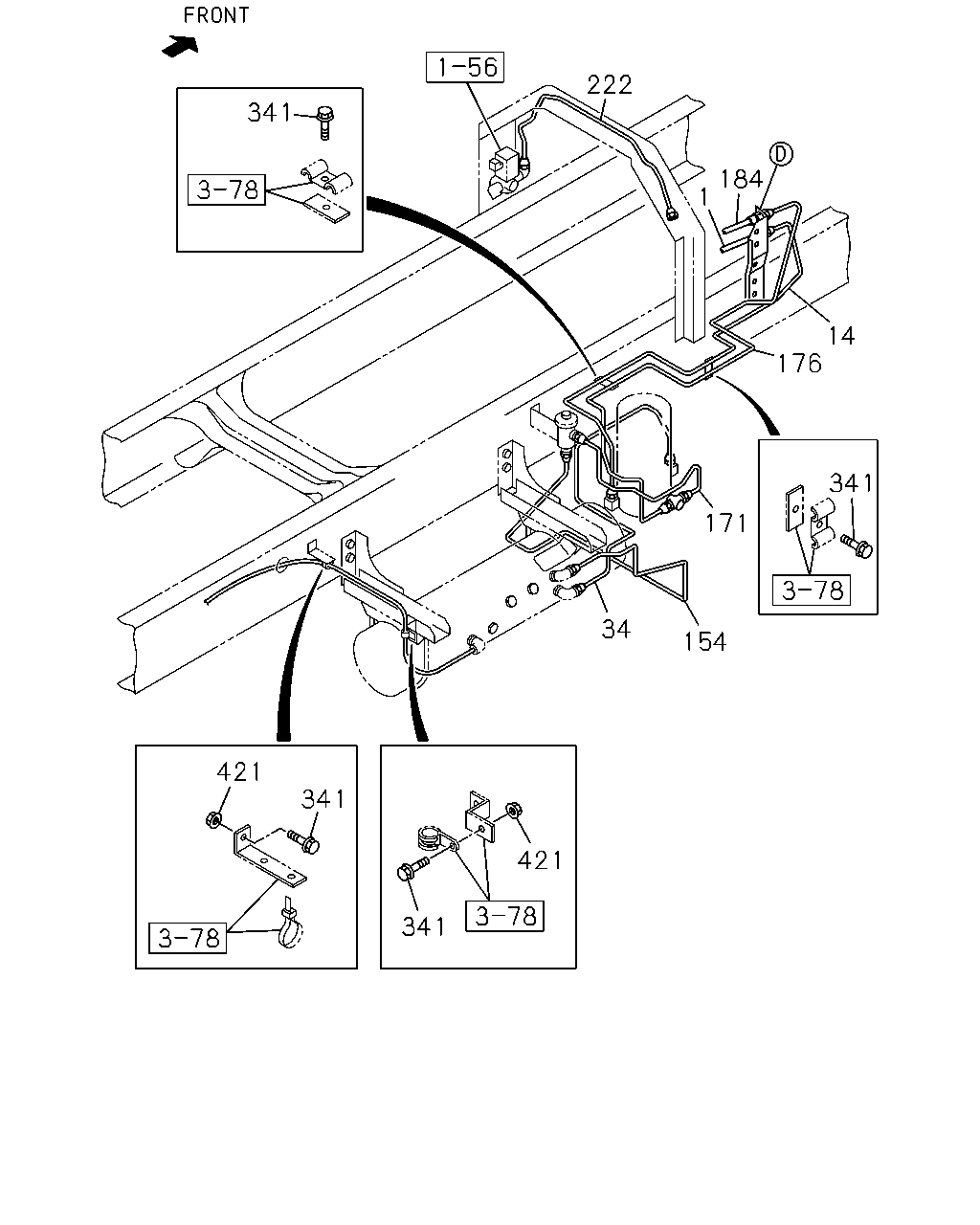

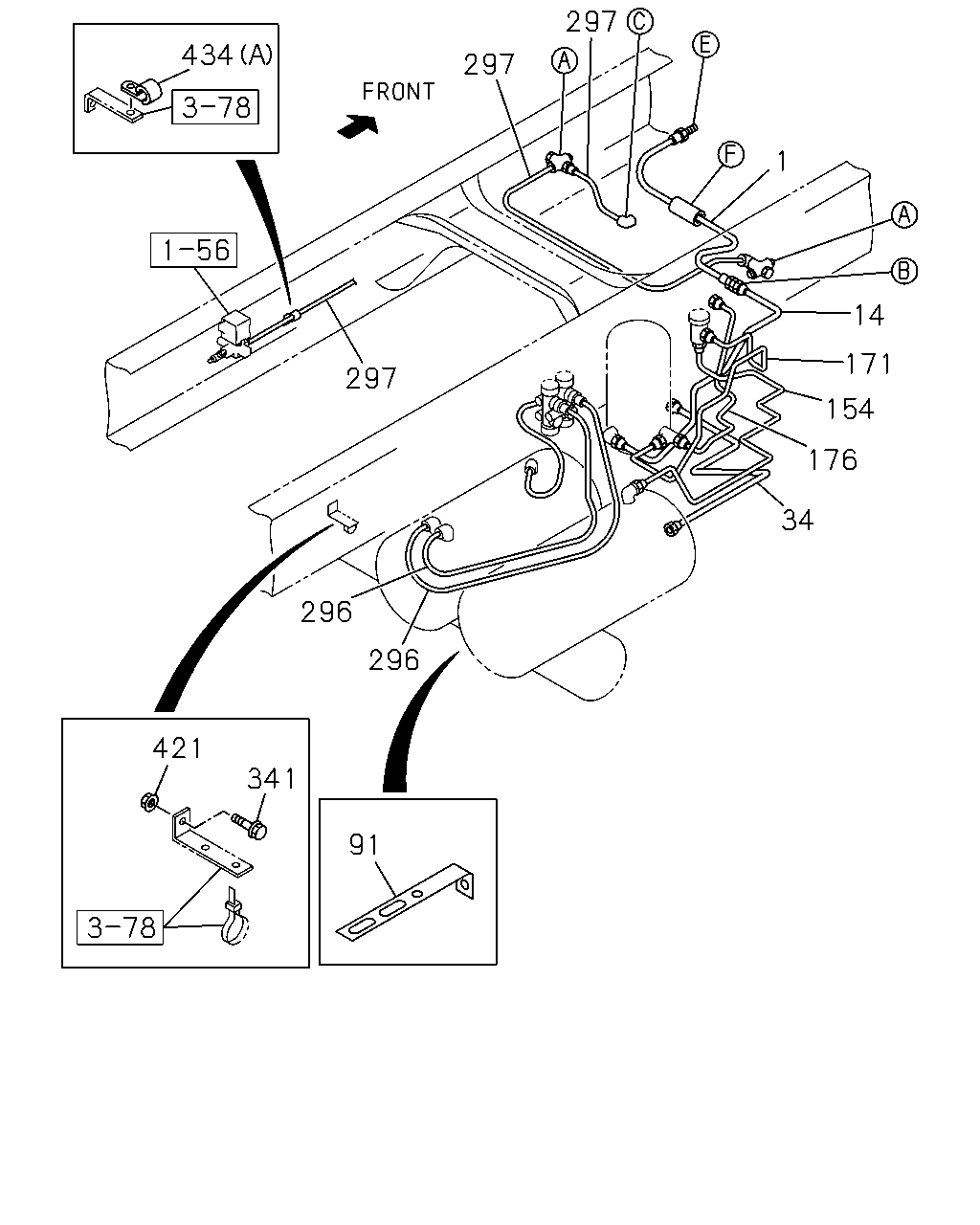

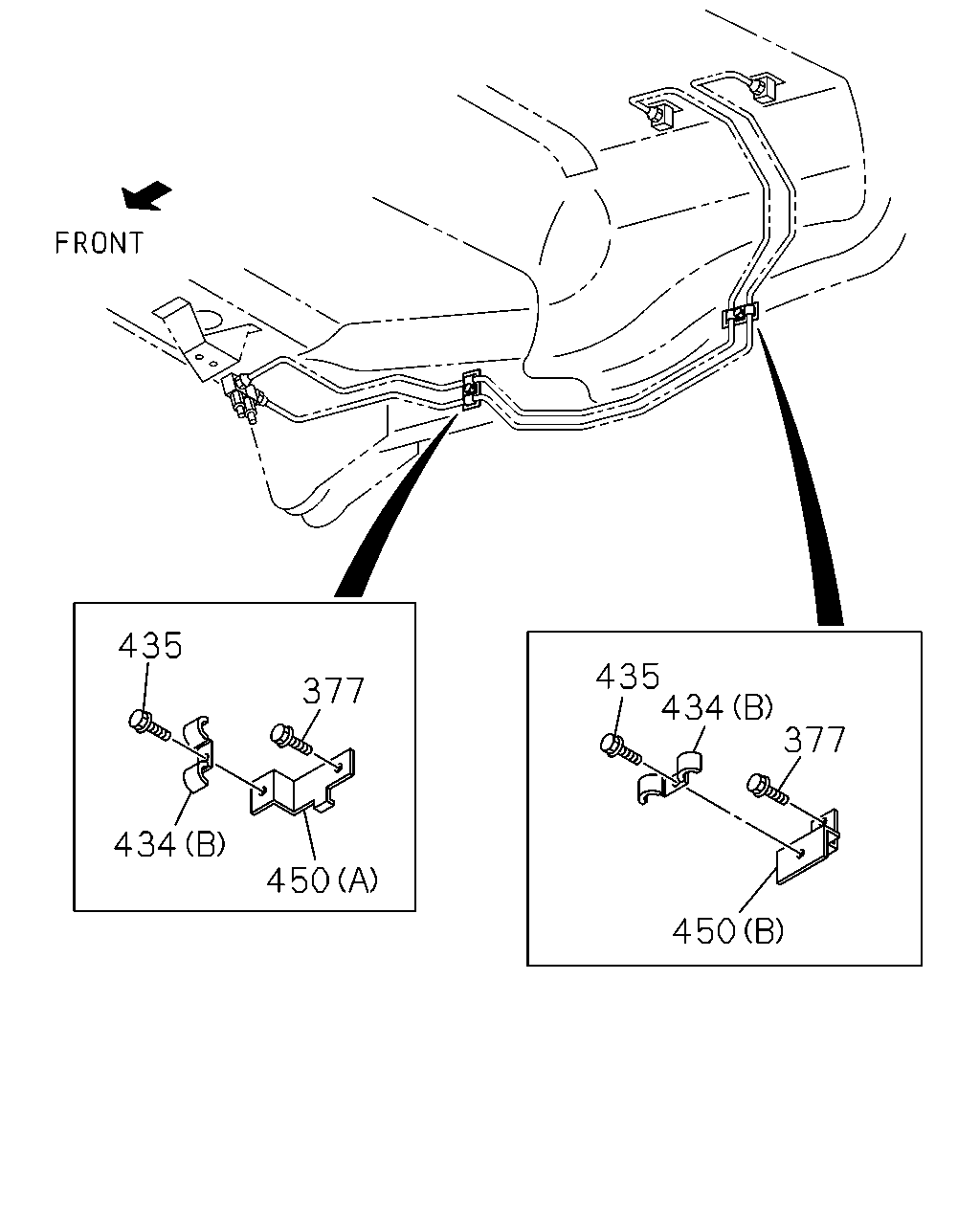

3-70 — BRAKE PIPING; AIR,AIR MASTER (#8702) — 900 parça

374 444 258 80 258 258 258 258 248 7 221 2 3 247 6 247 51 297 8 6 229 8 7 1 1 184 186 185 88 229 3 2 1 6 8 297 258 7 312 1 202 5 343 281 1 3 259 201 450 2 367 227 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK L=1500	0-17726-150-0	01	1	0005-0605	●	●
1	HOSE; FLEX,AIR TANK L=1500	0-77726-150-0	01	1	0606-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HK1 TCS ENG(80L) L=350	1-09363-558-0	01	1	0303-			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L)	0-17816-139-1	01	1	0005-0008			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) L=1350	0-17816-135-1	01	1	0009-0210			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W) L=1350	0-17816-135-1	01	1	0211-0405			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-17816-135-1	01	1	0406-0605			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0606-0609			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0610-			●
1	HOSE; FLEX,AIR TANK L=1400	0-17726-140-0	01	1	0005-0605				●
1	HOSE; FLEX,AIR TANK L=1400	0-77726-140-0	01	1	0606-				●
2	NUT; FLEX HOSE,AIR TANK M22	9-09111-422-0	02	1	0005-0512	●	●		●
2	NUT; FLEX HOSE,AIR TANK 6SD1 TCN ENG(31L) M22	9-09111-422-0	02	1	0005-0512			●
2	NUT; FLEX HOSE,AIR TANK M22	0-91111-522-0	02	1	0601-	●	●		●
2	NUT; FLEX HOSE,AIR TANK 6SD1 TCN ENG(31L) M22	0-91111-522-0	02	1	0601-			●
2	NUT; FLEX HOSE,AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M22	9-09111-422-0	01	1	0005-0210			●
2	NUT; FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) M22	9-09111-422-0	01	1	0303-0512			●
2	NUT; FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) M22	0-91111-522-0	01	1	0601-			●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	9-09150-522-0	02	1	0005-0603	●	●		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SD1 TCN ENG(31L) ID=22.5	9-09150-522-0	02	1	0005-0603			●
3	WASHER; LK,FLEX HOSE,AIR TANK ID=22.5	0-91510-522-0	02	1	0604-	●	●		●
3	WASHER; LK,FLEX HOSE,AIR TANK 6SD1 TCN ENG(31L) ID=22.5	0-91510-522-0	02	1	0604-			●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=22.5	9-09150-522-0	01	1	0005-0210			●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) ID=22.5	9-09150-522-0	01	1	0303-0603			●
3	WASHER; LK,FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) ID=22.5	0-91510-522-0	01	1	0604-			●
5	SLEEVE; FLEX HOSE L=150	1-09360-677-1	01	1	0005-0210	●	●		●
5	SLEEVE; FLEX HOSE FULLER FS8209HD DD M/T(Y3A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0211-0609	●		●	●
5	SLEEVE; FLEX HOSE 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0610-	●		●	●
6	BRACKET; FLEX HOSE,AIR TANK (A)	1-47476-693-2	01	1	0005-	●	●		●
6	BRACKET; FLEX HOSE,AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (B)	1-47477-264-2	01	1	0005-0210			●
6	BRACKET; FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) (B)	1-47477-264-2	01	1	0303-0304			●
6	BRACKET; FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) (B)	1-47478-864-0	01	1	0305-			●
6	BRACKET; FLEX HOSE,AIR TANK 6SD1 TCN ENG(31L) (C)	1-47478-389-0	01	1	0005-			●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●	●		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28680-835-0	02	1	0005-0512			●
7	BOLT; BRKT,FLEX HOSE,AIR TANK M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●		●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6SD1 TCN ENG(31L) M8X35 FLANGE	0-28650-835-0	02	1	0601-			●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X30 FLANGE	0-28680-830-0	02	1	0005-0210			●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28680-830-0	02	1	0303-0512			●
7	BOLT; BRKT,FLEX HOSE,AIR TANK 6HK1 TCS ENG(80L) M8X30 FLANGE	0-28650-830-0	02	1	0601-			●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
8	NUT; BRKT,FLEX HOSE,AIR TANK M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
51	UNION 6SD1 TCN ENG(31L) M20 & M22 STRAIGHT	1-09654-166-1	01	1	0005-			●
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0210	●	●	●	●
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0210	●
80	UNION; 3 WAY WHEEL BASE 5000MM(50W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0005-0210		●
80	UNION; 3 WAY FULLER FS8209HD DD M/T(Y3A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0211-0302	●		●	●
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0211-0302	●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0211-0302		●
80	UNION; 3 WAY WHEEL BASE 5000MM(50W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0211-0302		●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0211-0302		●
80	UNION; 3 WAY FULLER FS8209HD DD M/T(Y3A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0303-0405	●		●	●
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0303-0405	●
80	UNION; 3 WAY 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0303-0405			●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0303-0405		●
80	UNION; 3 WAY WHEEL BASE 5000MM(50W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0303-0405		●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0303-0405		●
80	UNION; 3 WAY FULLER FS8209HD DD M/T(Y3A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-0609	●		●	●
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-0609	●
80	UNION; 3 WAY 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W), WHEEL BASE 6200MM(62W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-0609			●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-0609		●
80	UNION; 3 WAY WHEEL BASE 5000MM(50W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-0609		●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0406-0609		●
80	UNION; 3 WAY FULLER FS8209HD DD M/T(Y3A) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0610-	●		●	●
80	UNION; 3 WAY DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0610-	●
80	UNION; 3 WAY 6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0610-			●
80	UNION; 3 WAY 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A),FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0610-			●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0610-		●
80	UNION; 3 WAY WHEEL BASE 5000MM(50W) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0610-		●
80	UNION; 3 WAY FULLER RT7608LL M/T(X8P) DIN8 & RC3/8 3WAY	1-09661-129-0	01	1	0610-		●
80	UNION; 3 WAY ALLISON MD3560P A/T(Y3B) DIN8 & RC3/8 3WAY	1-09661-129-0	02	1	0211-		●
80	UNION; 3 WAY WHEEL BASE 6300MM(63W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0005-0111		●
80	UNION; 3 WAY DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0005-0111				●
80	UNION; 3 WAY WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0112-0210		●
80	UNION; 3 WAY DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0112-0210				●
80	UNION; 3 WAY WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0211-		●
80	UNION; 3 WAY DIN8 & DIN12 & R3/8 3WAY	1-09661-130-0	01	1	0211-				●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	0005-0111	●	●		●
88	GASKET; NYLON TUBE 6SD1 TCN ENG(31L) ID=14.2 OD=23.0	9-09572-014-0	01	1	0005-0111			●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	0112-0210	●			●
88	GASKET; NYLON TUBE 6SD1 TCN ENG(31L) ID=14.2 OD=23.0	9-09572-014-0	01	1	0112-0210			●
88	GASKET; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) ID=14.2 OD=23.0	9-09572-014-0	01	1	0112-0210		●
88	GASKET; NYLON TUBE ID=14.2 OD=23.0	9-09572-014-0	01	1	0211-	●			●
88	GASKET; NYLON TUBE 6SD1 TCN ENG(31L) ID=14.2 OD=23.0	9-09572-014-0	01	1	0211-			●
88	GASKET; NYLON TUBE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) ID=14.2 OD=23.0	9-09572-014-0	01	1	0211-		●
184	HOSE; FLEX,AIR GOV 6HE1 TC ENG(57L) L=330	1-09363-584-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HK1 TCS ENG(80L) L=330	1-09363-584-0	01	1	0303-			●
185	NUT; FLEX HOSE,AIR GOV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M12	9-09840-280-0	01	1	0005-0210			●
185	NUT; FLEX HOSE,AIR GOV 6HK1 TCS ENG(80L) M12	9-09840-280-0	01	1	0303-			●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) ID=12.2	9-09150-512-0	01	1	0005-0210			●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HK1 TCS ENG(80L) ID=12.2	9-09150-512-0	01	1	0303-0603			●
186	WASHER; LK,FLEX HOSE,AIR GOV 6HK1 TCS ENG(80L) ID=12.2	0-91510-512-0	01	1	0604-			●
201	SLEEVE; RUBBER,NYLON TUBE 6SD1 TCN ENG(31L) ID=29 OD=39 L=40	1-09337-013-0	01	1	0007-0210			●
201	SLEEVE; RUBBER,NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) ID=29 OD=39 L=40	1-09337-013-0	01	1	0211-0405			●
201	SLEEVE; RUBBER,NYLON TUBE 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=29 OD=39 L=40	1-09337-013-0	01	1	0406-			●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005	●	●		●
202	ADAPTER 6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005			●
202	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-	●	●		●
202	ADAPTER 6SD1 TCN ENG(31L) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-			●
221	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210			●
221	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X50 FLANGE	0-28080-850-0	01	1	0005-0210			●
221	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X40 FLANGE	0-28680-840-0	01	1	0005-0210			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X45 FLANGE	0-28080-845-0	02	1	0303-0512			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●
221	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210			●
227	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0005-0210	●	●		●
227	WASHER; LK,UNION 6SD1 TCN ENG(31L) ID=12.2	9-09150-512-0	01	1	0005-0210			●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09661-093-0	02	1	0005-0005	●	●		●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT	1-09661-093-0	02	1	0005-0005			●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0006-0006	●	●		●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	02	1	0006-0006			●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0007-0007	●	●		●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0007-0007			●
229	ADAPTER; NYLON TUBE WHEEL BASE 6300MM(63W) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0007-0007		●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0007-0007				●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210	●	●		●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210	●	●		●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0008-0210			●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0211-0302	●	●		●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0211-0302	●	●		●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0211-0302			●
229	ADAPTER; NYLON TUBE (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0303-	●	●	●	●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0303-	●	●		●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4	9-48319-149-0	01	1	0005-0111	●	●		●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (B) M14 & PT1/4	9-48319-149-0	01	1	0005-0111			●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4	9-48319-149-0	01	1	0112-0210	●			●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (B) M14 & PT1/4	9-48319-149-0	01	1	0112-0210			●
229	ADAPTER; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (B) M14 & PT1/4	9-48319-149-0	01	1	0112-0210		●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4	9-48319-149-0	01	1	0211-0403	●			●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (B) M14 & PT1/4	9-48319-149-0	01	1	0211-0403			●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) M14 & PT1/4	9-48319-149-0	01	1	0211-0403		●
229	ADAPTER; NYLON TUBE (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0404-	●			●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0404-			●
229	ADAPTER; NYLON TUBE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (B) M14 & PT1/4 STRAIGHT	1-09669-130-0	01	1	0404-		●
229	ADAPTER; NYLON TUBE 6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005			●
229	ADAPTER; NYLON TUBE 6HE1 TC ENG(57L) (A) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-0006			●
247	UNION; AIR PIPE (B) M12 ELBOW	9-09225-206-1	01	1	0005-0210	●
247	UNION; AIR PIPE (B) M12 ELBOW	9-09225-206-1	01	1	0211-0607	●	●
247	UNION; AIR PIPE (B) M12 ELBOW	0-92125-206-0	01	1	0608-	●	●
247	UNION; AIR PIPE (A) M12 L=66.5	9-09223-306-1	01	1	0005-0210	●	●		●
247	UNION; AIR PIPE 6SD1 TCN ENG(31L) (A) M12 L=66.5	9-09223-306-1	01	1	0005-0210			●
247	UNION; AIR PIPE (A) M12 L=66.5	9-09223-306-1	01	1	0005-0210		●		●
247	UNION; AIR PIPE (A) M12 L=66.5	9-09223-306-1	01	1	0211-0607				●
247	UNION; AIR PIPE (A) M12 L=66.5	0-92113-306-0	01	1	0608-				●
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0005-0210	●	●		●
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0005-0210	●	●		●
248	NUT; PIPE UNION 6SD1 TCN ENG(31L) M12	9-09840-280-0	01	1	0005-0210			●
248	NUT; PIPE UNION M12	9-09840-280-0	01	1	0211-	●	●		●
249	WASHER; LK,PIPE UNION ID=12.2	9-09150-512-0	01	1	0005-0603	●	●		●
249	WASHER; LK,PIPE UNION ID=12.2	0-91510-512-0	01	1	0604-	●	●		●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 4200MM(42W) (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0610-			●
258	CONNECTOR; NYLON TUBE AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0408-	●	●	●	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0006	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5000MM(50W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0006		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0007-0210	●	●		●
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0007-0210			●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302	●	●		●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405	●	●		●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-0609	●	●		●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-0609			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-0609		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-	●			●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-		●
258	CONNECTOR; NYLON TUBE (D) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0005-0302	●	●	●	●
258	CONNECTOR; NYLON TUBE (D) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0303-	●	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0407	●	●	●	●
258	CONNECTOR; NYLON TUBE EXC. AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0408-	●	●	●	●
258	CONNECTOR; NYLON TUBE (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0111	●	●		●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0111			●
258	CONNECTOR; NYLON TUBE (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0112-0210	●			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0112-0210			●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0112-0210		●
258	CONNECTOR; NYLON TUBE (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-	●			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-		●
258	CONNECTOR; NYLON TUBE (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210	●			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210			●
258	CONNECTOR; NYLON TUBE ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0211-		●
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-0006			●
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0007-0210			●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0007-0210			●
258	CONNECTOR; NYLON TUBE WHEEL BASE 4200MM(42W) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0303-0609			●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0610-			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0210		●
258	CONNECTOR; NYLON TUBE FULLER FS8209HD DD M/T(Y3A) (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0211-	●		●	●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0211-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 6300MM(63W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0006		●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0006				●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	04	1	0005-	●	●
259	SLEEVE; RUBBER,NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=29 OD=39 L=40	1-09337-013-0	02	1	0005-0210			●
259	SLEEVE; RUBBER,NYLON TUBE 6HH1 STD ENG(65L) ID=29 OD=39 L=40	1-09337-013-0	02	1	0005-0210			●
259	SLEEVE; RUBBER,NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=29 OD=39 L=40	1-09337-013-0	03	1	0005-0210			●
259	SLEEVE; RUBBER,NYLON TUBE 6SD1 TCN ENG(31L) ID=29 OD=39 L=40	1-09337-013-0	03	1	0005-0210			●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	03	1	0005-0210				●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6000MM(60W) ID=29 OD=39 L=40	1-09337-013-0	03	1	0211-0405			●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	03	1	0211-0405				●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=29 OD=39 L=40	1-09337-013-0	03	1	0406-			●
259	SLEEVE; RUBBER,NYLON TUBE ID=29 OD=39 L=40	1-09337-013-0	03	1	0406-				●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 4200MM(42W) ID=29 OD=39 L=40	1-09337-013-0	02	1	0303-			●
259	SLEEVE; RUBBER,NYLON TUBE WHEEL BASE 4200MM(42W) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0303-			●
281	WASHER; LK UNION ID=12.2	9-09150-512-0	01	1	0005-0210	●	●		●
281	WASHER; LK UNION 6SD1 TCN ENG(31L) ID=12.2	9-09150-512-0	01	1	0005-0210			●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0406-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0406-	●	●	●	●
312	NUT; UNION (A) M12	9-09840-280-0	01	1	0005-0210	●	●		●
312	NUT; UNION 6SD1 TCN ENG(31L) (A) M12	9-09840-280-0	01	1	0005-0210			●
312	NUT; UNION (B) M12	9-99111-412-0	01	1	0005-0512				●
312	NUT; UNION (B) M12	0-91111-512-0	01	1	0601-				●
343	UNION; NYLON TUBE M12 L=66.5	9-09223-306-1	01	1	0005-0210	●	●		●
343	UNION; NYLON TUBE 6SD1 TCN ENG(31L) M12 L=66.5	9-09223-306-1	01	1	0005-0210			●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	AR	1	0005-	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87410-091-0	AR	1	0005-0405	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87410-094-0	AR	1	0005-0405	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	0406-	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	0406-	●	●	●	●
367	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	0610-	●	●	●	●
374	CONNECTOR 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 4200MM(42W) OD=8	1-09661-616-0	01	1	0610-			●
374	CONNECTOR	1-09656-721-0	01	1	0005-0103	●	●	●	●
374	CONNECTOR	1-09656-754-0	01	1	0104-	●	●	●	●
444	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	0005-0210	●	●	●
444	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	0211-0512	●	●	●	●
444	BOLT; UNION M8X25 FLANGE	0-28080-825-0	01	1	0211-0512		●
444	BOLT; UNION M8X25 FLANGE	0-28050-825-0	01	1	0601-0609	●	●	●	●
444	BOLT; UNION M8X25 FLANGE	0-28050-825-0	01	1	0601-0609		●
444	BOLT; UNION M8X25 FLANGE	0-28050-825-0	01	1	0610-	●	●	●	●
444	BOLT; UNION 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28050-825-0	01	1	0610-			●
444	BOLT; UNION M8X25 FLANGE	0-28050-825-0	01	1	0610-		●
444	BOLT; UNION M8X25 FLANGE	0-28680-825-0	01	1	0005-0512	●	●		●
444	BOLT; UNION M8X25 FLANGE	0-28650-825-0	01	1	0601-	●	●		●
444	BOLT; UNION 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	02	1	0005-0210			●
444	BOLT; UNION WHEEL BASE 6300MM(63W) M8X25 FLANGE	0-28080-825-0	02	1	0005-0210		●
444	BOLT; UNION M8X25 FLANGE	0-28080-825-0	02	1	0005-0210				●
450	BRACKET; CLIP 6SD1 TCN ENG(31L) (C)	1-47477-571-3	01	1	0005-0006			●
450	BRACKET; CLIP (B)	1-47475-461-0	01	1	0005-				●
450	BRACKET; CLIP (A)	1-79738-841-3	01	1	0005-				●

222 176 184 1 154 14 171 34 296 296 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK L=1500	0-17726-150-0	01	1	0005-0605	●	●
1	HOSE; FLEX,AIR TANK L=1500	0-77726-150-0	01	1	0606-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HK1 TCS ENG(80L) L=350	1-09363-558-0	01	1	0303-			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L)	0-17816-139-1	01	1	0005-0008			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) L=1350	0-17816-135-1	01	1	0009-0210			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W) L=1350	0-17816-135-1	01	1	0211-0405			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-17816-135-1	01	1	0406-0605			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0606-0609			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0610-			●
1	HOSE; FLEX,AIR TANK L=1400	0-17726-140-0	01	1	0005-0605				●
1	HOSE; FLEX,AIR TANK L=1400	0-77726-140-0	01	1	0606-				●
14	PIPE; AIR,FLEX HOSE TO AIR TANK WHEEL BASE 4200MM(42W)	1-49124-008-0	01	1	0303-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49124-009-0	01	1	0303-0405			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49124-009-0	01	1	0406-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49121-577-0	01	1	0005-0210	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49121-577-0	01	1	0211-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49121-075-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-074-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-287-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49123-075-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-849-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-059-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49122-653-0	01	1	0005-0609			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L) L=636	1-49124-966-0	01	1	0610-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49117-717-0	01	1	0005-				●
34	PIPE; AIR	1-49122-213-0	01	1	0005-0210	●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0211-		●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-197-0	01	1	0005-0102			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0103-0210			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0211-0212			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0301-0405			●
34	PIPE; AIR 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-684-0	01	1	0406-			●
34	PIPE; AIR 6HH1 STD ENG(65L)	1-49122-196-0	01	1	0005-0210			●
34	PIPE; AIR WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0303-			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49123-682-0	01	1	0303-0405			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49123-682-0	01	1	0406-			●
34	PIPE; AIR	1-49121-921-0	01	1	0005-0112		●
34	PIPE; AIR WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-921-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 5000MM(50W)	1-49121-921-0	01	1	0211-		●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 7100MM(71W)	1-49122-213-0	01	1	0211-0401	●	●
34	PIPE; AIR WHEEL BASE 7100MM(71W) L=864	1-49124-435-0	01	1	0402-	●	●
34	PIPE; AIR	1-49122-210-0	01	1	0005-				●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-194-0	01	1	0005-0210	●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 TCN ENG(31L)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0211-0405			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-656-0	01	1	0406-			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-179-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0303-			●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49121-922-0	01	1	0005-0112		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-922-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W)	1-49121-922-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 7100MM(71W)	1-49122-194-0	01	1	0211-	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-215-0	01	1	0005-				●
171	PIPE; AIR,GOV TO AIR DRYER	1-49121-294-0	01	1	0005-	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-193-0	01	1	0005-0102			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0103-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 TCN ENG(31L)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0211-0405			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49121-289-0	01	1	0406-			●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L)	1-49122-167-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0303-			●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-216-0	01	1	0005-				●
176	PIPE; AIR,AIR DRYER TO UNION	1-49121-578-0	01	1	0005-	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1062 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0102			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1054 SERVICED BY L=1100	1-47428-848-0	01	1	0103-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-290-0	01	1	0005-0007			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) L=1713 SERVICED BY L=1700	1-47428-821-0	01	1	0008-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0005-0210			●
176	PIPE; AIR,AIR DRYER TO UNION WHEEL BASE 4200MM(42W) L=1084 SERVICED BY L=1100	1-47428-815-0	01	1	0303-			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0303-0405			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0406-			●
176	PIPE; AIR,AIR DRYER TO UNION	1-49122-217-0	01	1	0005-				●
184	HOSE; FLEX,AIR GOV 6HE1 TC ENG(57L) L=330	1-09363-584-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HK1 TCS ENG(80L) L=330	1-09363-584-0	01	1	0303-			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0210			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	0005-0210			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1224 SERVICED BY L=1250	1-47428-817-0	01	1	0303-			●
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0005-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●	●	●

435 435 434 377 377 434 450 450

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
377	BOLT; BRKT FIX M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0005-				●
434	CLIP FULLER RT7608LL M/T(X8P) (A) ID=18 L=25 H=50	1-09701-096-0	01	1	0108-0210		●
434	CLIP (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-	●	●		●
434	CLIP 6SD1 TCN ENG(31L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-			●
434	CLIP (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0005-				●
435	BOLT; CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	02	1	0005-				●
450	BRACKET; CLIP 6SD1 TCN ENG(31L) (C)	1-47477-571-3	01	1	0005-0006			●
450	BRACKET; CLIP (B)	1-47475-461-0	01	1	0005-				●
450	BRACKET; CLIP (A)	1-79738-841-3	01	1	0005-				●

297 434 297 1 14 171 297 154 176 34 296 296 421 341 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK L=1500	0-17726-150-0	01	1	0005-0605	●	●
1	HOSE; FLEX,AIR TANK L=1500	0-77726-150-0	01	1	0606-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HK1 TCS ENG(80L) L=350	1-09363-558-0	01	1	0303-			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L)	0-17816-139-1	01	1	0005-0008			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) L=1350	0-17816-135-1	01	1	0009-0210			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W) L=1350	0-17816-135-1	01	1	0211-0405			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-17816-135-1	01	1	0406-0605			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0606-0609			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0610-			●
1	HOSE; FLEX,AIR TANK L=1400	0-17726-140-0	01	1	0005-0605				●
1	HOSE; FLEX,AIR TANK L=1400	0-77726-140-0	01	1	0606-				●
14	PIPE; AIR,FLEX HOSE TO AIR TANK WHEEL BASE 4200MM(42W)	1-49124-008-0	01	1	0303-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49124-009-0	01	1	0303-0405			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49124-009-0	01	1	0406-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49121-577-0	01	1	0005-0210	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49121-577-0	01	1	0211-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49121-075-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-074-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-287-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49123-075-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-849-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-059-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49122-653-0	01	1	0005-0609			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L) L=636	1-49124-966-0	01	1	0610-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49117-717-0	01	1	0005-				●
34	PIPE; AIR	1-49122-213-0	01	1	0005-0210	●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0211-		●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-197-0	01	1	0005-0102			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0103-0210			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0211-0212			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0301-0405			●
34	PIPE; AIR 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-684-0	01	1	0406-			●
34	PIPE; AIR 6HH1 STD ENG(65L)	1-49122-196-0	01	1	0005-0210			●
34	PIPE; AIR WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0303-			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49123-682-0	01	1	0303-0405			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49123-682-0	01	1	0406-			●
34	PIPE; AIR	1-49121-921-0	01	1	0005-0112		●
34	PIPE; AIR WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-921-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 5000MM(50W)	1-49121-921-0	01	1	0211-		●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 7100MM(71W)	1-49122-213-0	01	1	0211-0401	●	●
34	PIPE; AIR WHEEL BASE 7100MM(71W) L=864	1-49124-435-0	01	1	0402-	●	●
34	PIPE; AIR	1-49122-210-0	01	1	0005-				●
91	BRACKET; TUBE CLIP 6SD1 TCN ENG(31L) L=150 H=30	1-47477-629-2	01	1	0410-			●
91	BRACKET; TUBE CLIP WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=150 H=30	1-47477-629-2	03	1	0410-			●
91	BRACKET; TUBE CLIP L=225	1-47477-646-3	01	1	0010-0409	●	●
91	BRACKET; TUBE CLIP L=225	1-47477-646-3	01	1	0410-	●	●
91	BRACKET; TUBE CLIP 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=225	1-47477-646-3	01	1	0410-			●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-194-0	01	1	0005-0210	●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 TCN ENG(31L)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0211-0405			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-656-0	01	1	0406-			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-179-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0303-			●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49121-922-0	01	1	0005-0112		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-922-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W)	1-49121-922-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 7100MM(71W)	1-49122-194-0	01	1	0211-	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-215-0	01	1	0005-				●
171	PIPE; AIR,GOV TO AIR DRYER	1-49121-294-0	01	1	0005-	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-193-0	01	1	0005-0102			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0103-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 TCN ENG(31L)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0211-0405			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49121-289-0	01	1	0406-			●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L)	1-49122-167-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0303-			●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-216-0	01	1	0005-				●
176	PIPE; AIR,AIR DRYER TO UNION	1-49121-578-0	01	1	0005-	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1062 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0102			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1054 SERVICED BY L=1100	1-47428-848-0	01	1	0103-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-290-0	01	1	0005-0007			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) L=1713 SERVICED BY L=1700	1-47428-821-0	01	1	0008-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0005-0210			●
176	PIPE; AIR,AIR DRYER TO UNION WHEEL BASE 4200MM(42W) L=1084 SERVICED BY L=1100	1-47428-815-0	01	1	0303-			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0303-0405			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0406-			●
176	PIPE; AIR,AIR DRYER TO UNION	1-49122-217-0	01	1	0005-				●
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0005-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0406-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0406-	●	●	●	●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	01	1	0005-0006			●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	01	1	0007-0210			●
341	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	01	1	0007-0210			●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0005-0006			●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0007-0210			●
341	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0007-0210			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	02	1	0301-0405			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X25 FLANGE	0-28680-825-0	02	1	0406-0512			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
421	NUT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0005-0006			●
421	NUT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0007-0210			●
421	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0007-0210			●
421	NUT; BRKT WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0211-0405			●
421	NUT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91150-108-0	02	1	0406-0602			●
421	NUT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91180-108-0	02	1	0603-			●
434	CLIP FULLER RT7608LL M/T(X8P) (A) ID=18 L=25 H=50	1-09701-096-0	01	1	0108-0210		●
434	CLIP (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-	●	●		●
434	CLIP 6SD1 TCN ENG(31L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-			●
434	CLIP (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0005-				●

312 322 323 333 313 328 258 438 296 337 231 321 296 337 325 258 330 232 307 437 230 374 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
230	PIPE; AIR,UNION TO UNION (A)	1-49116-429-1	01	1	0005-0103	●	●	●	●
230	PIPE; AIR,UNION TO UNION (A)	1-49122-777-0	01	1	0104-	●	●	●	●
230	PIPE; AIR,UNION TO UNION (B)	1-49116-430-1	01	1	0005-0103	●	●	●	●
230	PIPE; AIR,UNION TO UNION (B)	1-49122-778-0	01	1	0104-	●	●	●	●
231	UNION; AIR PIPE M10 STRAIGHT	1-09654-361-0	02	1	0005-	●	●	●	●
232	NUT; UNION,AIR PIPE M10 H=8	1-09400-029-0	02	1	0005-	●	●	●	●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 4200MM(42W) (H) DIN8X2 & PT3/8 DOUBLE ELBOW	1-09661-025-0	01	1	0610-			●
258	CONNECTOR; NYLON TUBE AIR HORN<WB8> (C) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0408-	●	●	●	●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0006	●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5000MM(50W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0006		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0007-0210	●	●		●
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0007-0210			●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302	●	●		●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405	●	●		●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-0609	●	●		●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-0609			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-0609		●
258	CONNECTOR; NYLON TUBE (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-	●			●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W), WHEEL BASE 7100MM(71W) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0610-		●
258	CONNECTOR; NYLON TUBE (D) DIN6 & R1/8 STRAIGHT	1-09660-691-1	01	1	0005-0302	●	●	●	●
258	CONNECTOR; NYLON TUBE (D) DIN6 R1/8 STRAIGHT	1-09660-759-1	01	1	0303-	●	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0005-0007	●	●	●	●
258	CONNECTOR; NYLON TUBE (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-0407	●	●	●	●
258	CONNECTOR; NYLON TUBE EXC. AIR HORN<WB8> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0408-	●	●	●	●
258	CONNECTOR; NYLON TUBE (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0111	●	●		●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-0111			●
258	CONNECTOR; NYLON TUBE (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0112-0210	●			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0112-0210			●
258	CONNECTOR; NYLON TUBE WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W) (G) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0112-0210		●
258	CONNECTOR; NYLON TUBE (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-	●			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) FULLER RT7608LL M/T(X8P) (G) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0211-		●
258	CONNECTOR; NYLON TUBE (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210	●			●
258	CONNECTOR; NYLON TUBE 6SD1 TCN ENG(31L) (F) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210			●
258	CONNECTOR; NYLON TUBE ALLISON MD3560P A/T(Y3B) (B) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0211-		●
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-0006			●
258	CONNECTOR; NYLON TUBE 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0007-0210			●
258	CONNECTOR; NYLON TUBE 6HH1 STD ENG(65L) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0007-0210			●
258	CONNECTOR; NYLON TUBE WHEEL BASE 4200MM(42W) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0303-0609			●
258	CONNECTOR; NYLON TUBE 6HK1 TCS ENG(80L) FULLER FSO5206B OD M/T(Y4V) WHEEL BASE 4200MM(42W) (A) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0610-			●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0210		●
258	CONNECTOR; NYLON TUBE FULLER FS8209HD DD M/T(Y3A) (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0211-	●		●	●
258	CONNECTOR; NYLON TUBE FULLER RT7608LL M/T(X8P) (E) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0211-		●
258	CONNECTOR; NYLON TUBE WHEEL BASE 6300MM(63W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0006		●
258	CONNECTOR; NYLON TUBE (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0006				●
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0005-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●	●	●
307	PIPE; AIR,FLEX HOSE TO BRK VLV L=421	1-49121-486-0	01	1	0005-	●	●	●	●
312	NUT; UNION (A) M12	9-09840-280-0	01	1	0005-0210	●	●		●
312	NUT; UNION 6SD1 TCN ENG(31L) (A) M12	9-09840-280-0	01	1	0005-0210			●
312	NUT; UNION (B) M12	9-99111-412-0	01	1	0005-0512				●
312	NUT; UNION (B) M12	0-91111-512-0	01	1	0601-				●
313	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0005-0603				●
313	WASHER; LK,UNION ID=12.2	0-91510-512-0	01	1	0604-				●
321	JOINT; FLEX HOSE AIR HORN<WB8>	1-09656-728-1	01	1	0406-0407	●	●	●	●
321	JOINT; FLEX HOSE AIR HORN<WB8>	1-09656-712-0	01	1	0408-	●	●	●	●
321	JOINT; FLEX HOSE	1-09656-738-0	01	1	0005-0405	●	●	●	●
321	JOINT; FLEX HOSE EXC. AIR HORN<WB8>	1-09656-738-0	01	1	0406-	●	●	●	●
322	NUT; JOINT,FLEX HOSE M10 H=8	1-09400-029-0	01	1	0005-	●	●	●	●
323	WASHER; LK,JOINT ID=10.2	9-09150-510-0	01	1	0005-0603	●	●	●	●
323	WASHER; LK,JOINT ID=10.2	0-91510-510-0	01	1	0604-	●	●	●	●
325	PIPE; AIR,FLEX HOSE TO UNION	1-47492-452-2	01	1	0005-	●	●	●	●
328	UNION; AIR PIPE	1-47470-392-0	01	1	0005-	●	●	●	●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	9-09150-510-0	02	1	0005-0603	●	●	●	●
330	WASHER; LK,UNION,AIR PIPE ID=10.2	0-91510-510-0	02	1	0604-	●	●	●	●
333	BOLT; PIPE UNION M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-	●	●	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-07210-720-0	02	1	0005-0608	●	●	●	●
337	HOSE; FLEX,UNION TO AIR PRESS GAGE L=720	0-57210-720-0	02	1	0609-	●	●	●	●
374	CONNECTOR 6HK1 TCS ENG(80L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 4200MM(42W) OD=8	1-09661-616-0	01	1	0610-			●
374	CONNECTOR	1-09656-721-0	01	1	0005-0103	●	●	●	●
374	CONNECTOR	1-09656-754-0	01	1	0104-	●	●	●	●
437	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	01	1	0005-0605	●	●	●	●
437	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	01	1	0606-	●	●	●	●
438	WASHER; PL,JOINT ID=10.5 OD=26 T=2.6	1-09985-184-0	01	1	0005-	●	●	●	●

222 176 184 1 221 154 14 163 221 171 34 296 296 296 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK L=1500	0-17726-150-0	01	1	0005-0605	●	●
1	HOSE; FLEX,AIR TANK L=1500	0-77726-150-0	01	1	0606-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HK1 TCS ENG(80L) L=350	1-09363-558-0	01	1	0303-			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L)	0-17816-139-1	01	1	0005-0008			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) L=1350	0-17816-135-1	01	1	0009-0210			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W) L=1350	0-17816-135-1	01	1	0211-0405			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-17816-135-1	01	1	0406-0605			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0606-0609			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0610-			●
1	HOSE; FLEX,AIR TANK L=1400	0-17726-140-0	01	1	0005-0605				●
1	HOSE; FLEX,AIR TANK L=1400	0-77726-140-0	01	1	0606-				●
14	PIPE; AIR,FLEX HOSE TO AIR TANK WHEEL BASE 4200MM(42W)	1-49124-008-0	01	1	0303-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49124-009-0	01	1	0303-0405			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49124-009-0	01	1	0406-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49121-577-0	01	1	0005-0210	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49121-577-0	01	1	0211-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49121-075-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-074-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-287-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49123-075-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-849-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-059-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49122-653-0	01	1	0005-0609			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L) L=636	1-49124-966-0	01	1	0610-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49117-717-0	01	1	0005-				●
34	PIPE; AIR	1-49122-213-0	01	1	0005-0210	●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0211-		●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-197-0	01	1	0005-0102			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0103-0210			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0211-0212			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0301-0405			●
34	PIPE; AIR 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-684-0	01	1	0406-			●
34	PIPE; AIR 6HH1 STD ENG(65L)	1-49122-196-0	01	1	0005-0210			●
34	PIPE; AIR WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0303-			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49123-682-0	01	1	0303-0405			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49123-682-0	01	1	0406-			●
34	PIPE; AIR	1-49121-921-0	01	1	0005-0112		●
34	PIPE; AIR WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-921-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 5000MM(50W)	1-49121-921-0	01	1	0211-		●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 7100MM(71W)	1-49122-213-0	01	1	0211-0401	●	●
34	PIPE; AIR WHEEL BASE 7100MM(71W) L=864	1-49124-435-0	01	1	0402-	●	●
34	PIPE; AIR	1-49122-210-0	01	1	0005-				●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-194-0	01	1	0005-0210	●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 TCN ENG(31L)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0211-0405			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-656-0	01	1	0406-			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-179-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0303-			●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49121-922-0	01	1	0005-0112		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-922-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W)	1-49121-922-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 7100MM(71W)	1-49122-194-0	01	1	0211-	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-215-0	01	1	0005-				●
163	BRACKET; AIR PIPE 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8 W/NUT	1-47475-729-0	02	1	0005-0210			●
163	BRACKET; AIR PIPE WHEEL BASE 4200MM(42W) L=50	1-47475-299-2	02	1	0303-			●
171	PIPE; AIR,GOV TO AIR DRYER	1-49121-294-0	01	1	0005-	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-193-0	01	1	0005-0102			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0103-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 TCN ENG(31L)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0211-0405			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49121-289-0	01	1	0406-			●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L)	1-49122-167-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0303-			●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-216-0	01	1	0005-				●
176	PIPE; AIR,AIR DRYER TO UNION	1-49121-578-0	01	1	0005-	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1062 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0102			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1054 SERVICED BY L=1100	1-47428-848-0	01	1	0103-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-290-0	01	1	0005-0007			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) L=1713 SERVICED BY L=1700	1-47428-821-0	01	1	0008-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0005-0210			●
176	PIPE; AIR,AIR DRYER TO UNION WHEEL BASE 4200MM(42W) L=1084 SERVICED BY L=1100	1-47428-815-0	01	1	0303-			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0303-0405			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0406-			●
176	PIPE; AIR,AIR DRYER TO UNION	1-49122-217-0	01	1	0005-				●
184	HOSE; FLEX,AIR GOV 6HE1 TC ENG(57L) L=330	1-09363-584-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HK1 TCS ENG(80L) L=330	1-09363-584-0	01	1	0303-			●
221	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210			●
221	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X50 FLANGE	0-28080-850-0	01	1	0005-0210			●
221	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X40 FLANGE	0-28680-840-0	01	1	0005-0210			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X16 FLANGE	0-28050-816-0	01	1	0601-			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X45 FLANGE	0-28080-845-0	02	1	0303-0512			●
221	BOLT; BRKT WHEEL BASE 4200MM(42W) M8X45 FLANGE	0-28050-845-0	02	1	0601-			●
221	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	01	1	0005-0210			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0210			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	0005-0210			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1224 SERVICED BY L=1250	1-47428-817-0	01	1	0303-			●
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0005-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●	●	●

222 341 184 1 14 176 341 171 34 154 421 341 421 341

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK L=1500	0-17726-150-0	01	1	0005-0605	●	●
1	HOSE; FLEX,AIR TANK L=1500	0-77726-150-0	01	1	0606-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HK1 TCS ENG(80L) L=350	1-09363-558-0	01	1	0303-			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L)	0-17816-139-1	01	1	0005-0008			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) L=1350	0-17816-135-1	01	1	0009-0210			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W) L=1350	0-17816-135-1	01	1	0211-0405			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-17816-135-1	01	1	0406-0605			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0606-0609			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0610-			●
1	HOSE; FLEX,AIR TANK L=1400	0-17726-140-0	01	1	0005-0605				●
1	HOSE; FLEX,AIR TANK L=1400	0-77726-140-0	01	1	0606-				●
14	PIPE; AIR,FLEX HOSE TO AIR TANK WHEEL BASE 4200MM(42W)	1-49124-008-0	01	1	0303-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49124-009-0	01	1	0303-0405			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49124-009-0	01	1	0406-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49121-577-0	01	1	0005-0210	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49121-577-0	01	1	0211-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49121-075-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-074-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-287-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49123-075-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-849-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-059-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49122-653-0	01	1	0005-0609			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L) L=636	1-49124-966-0	01	1	0610-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49117-717-0	01	1	0005-				●
34	PIPE; AIR	1-49122-213-0	01	1	0005-0210	●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0211-		●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-197-0	01	1	0005-0102			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0103-0210			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0211-0212			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0301-0405			●
34	PIPE; AIR 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-684-0	01	1	0406-			●
34	PIPE; AIR 6HH1 STD ENG(65L)	1-49122-196-0	01	1	0005-0210			●
34	PIPE; AIR WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0303-			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49123-682-0	01	1	0303-0405			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49123-682-0	01	1	0406-			●
34	PIPE; AIR	1-49121-921-0	01	1	0005-0112		●
34	PIPE; AIR WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-921-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 5000MM(50W)	1-49121-921-0	01	1	0211-		●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 7100MM(71W)	1-49122-213-0	01	1	0211-0401	●	●
34	PIPE; AIR WHEEL BASE 7100MM(71W) L=864	1-49124-435-0	01	1	0402-	●	●
34	PIPE; AIR	1-49122-210-0	01	1	0005-				●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-194-0	01	1	0005-0210	●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 TCN ENG(31L)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0211-0405			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-656-0	01	1	0406-			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-179-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0303-			●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49121-922-0	01	1	0005-0112		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-922-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W)	1-49121-922-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 7100MM(71W)	1-49122-194-0	01	1	0211-	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-215-0	01	1	0005-				●
171	PIPE; AIR,GOV TO AIR DRYER	1-49121-294-0	01	1	0005-	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-193-0	01	1	0005-0102			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0103-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 TCN ENG(31L)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0211-0405			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49121-289-0	01	1	0406-			●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L)	1-49122-167-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0303-			●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-216-0	01	1	0005-				●
176	PIPE; AIR,AIR DRYER TO UNION	1-49121-578-0	01	1	0005-	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1062 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0102			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1054 SERVICED BY L=1100	1-47428-848-0	01	1	0103-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-290-0	01	1	0005-0007			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) L=1713 SERVICED BY L=1700	1-47428-821-0	01	1	0008-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0005-0210			●
176	PIPE; AIR,AIR DRYER TO UNION WHEEL BASE 4200MM(42W) L=1084 SERVICED BY L=1100	1-47428-815-0	01	1	0303-			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0303-0405			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0406-			●
176	PIPE; AIR,AIR DRYER TO UNION	1-49122-217-0	01	1	0005-				●
184	HOSE; FLEX,AIR GOV 6HE1 TC ENG(57L) L=330	1-09363-584-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HH1 STD ENG(65L) L=350	1-09363-651-0	01	1	0005-0210			●
184	HOSE; FLEX,AIR GOV 6HK1 TCS ENG(80L) L=330	1-09363-584-0	01	1	0303-			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=1052 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0210			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HH1 STD ENG(65L) L=1105 SERVICED BY L=1250	1-47434-389-0	01	1	0005-0210			●
222	PIPE; AIR,MAG VLV TO FLEX HOSE 6HK1 TCS ENG(80L) L=1224 SERVICED BY L=1250	1-47428-817-0	01	1	0303-			●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	01	1	0005-0006			●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	01	1	0007-0210			●
341	BOLT; BRKT 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	01	1	0007-0210			●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0005-0006			●
341	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0007-0210			●
341	BOLT; BRKT 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	01	1	0007-0210			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	01	1	0211-0212			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W) M8X25 FLANGE	0-28680-825-0	02	1	0301-0405			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X25 FLANGE	0-28680-825-0	02	1	0406-0512			●
341	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
421	NUT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0005-0006			●
421	NUT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0007-0210			●
421	NUT; BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0007-0210			●
421	NUT; BRKT WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0211-0405			●
421	NUT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91150-108-0	02	1	0406-0602			●
421	NUT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91180-108-0	02	1	0603-			●

297 434 297 1 14 171 154 176 34 296 296 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	HOSE; FLEX,AIR TANK L=1500	0-17726-150-0	01	1	0005-0605	●	●
1	HOSE; FLEX,AIR TANK L=1500	0-77726-150-0	01	1	0606-	●	●
1	HOSE; FLEX,AIR TANK 6HE1 TC ENG(57L) EURO2 SPECIFICATION<THN> L=320	1-09363-560-1	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HH1 STD ENG(65L) L=360	1-09363-530-0	01	1	0005-0210			●
1	HOSE; FLEX,AIR TANK 6HK1 TCS ENG(80L) L=350	1-09363-558-0	01	1	0303-			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L)	0-17816-139-1	01	1	0005-0008			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) L=1350	0-17816-135-1	01	1	0009-0210			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W) L=1350	0-17816-135-1	01	1	0211-0405			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-17816-135-1	01	1	0406-0605			●
1	HOSE; FLEX,AIR TANK FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0606-0609			●
1	HOSE; FLEX,AIR TANK 6SD1 TCN ENG(31L) FULLER FS8209HD DD M/T(Y3A) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1350	0-77816-135-1	01	1	0610-			●
1	HOSE; FLEX,AIR TANK L=1400	0-17726-140-0	01	1	0005-0605				●
1	HOSE; FLEX,AIR TANK L=1400	0-77726-140-0	01	1	0606-				●
14	PIPE; AIR,FLEX HOSE TO AIR TANK WHEEL BASE 4200MM(42W)	1-49124-008-0	01	1	0303-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49124-009-0	01	1	0303-0405			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49124-009-0	01	1	0406-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49121-577-0	01	1	0005-0210	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49121-577-0	01	1	0211-	●	●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49121-075-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-074-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-287-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49123-075-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49118-849-0	01	1	0005-0103			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6HH1 STD ENG(65L)	1-49123-059-0	01	1	0104-0210			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L)	1-49122-653-0	01	1	0005-0609			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK 6SD1 TCN ENG(31L) L=636	1-49124-966-0	01	1	0610-			●
14	PIPE; AIR,FLEX HOSE TO AIR TANK	1-49117-717-0	01	1	0005-				●
34	PIPE; AIR	1-49122-213-0	01	1	0005-0210	●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0211-		●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-197-0	01	1	0005-0102			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0103-0210			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-034-0	01	1	0005-0005			●
34	PIPE; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0006-0210			●
34	PIPE; AIR WHEEL BASE 6000MM(60W)	1-49122-684-0	01	1	0211-0212			●
34	PIPE; AIR 6SD1 TCN ENG(31L)	1-49122-684-0	01	1	0301-0405			●
34	PIPE; AIR 6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-684-0	01	1	0406-			●
34	PIPE; AIR 6HH1 STD ENG(65L)	1-49122-196-0	01	1	0005-0210			●
34	PIPE; AIR WHEEL BASE 4200MM(42W)	1-49123-048-0	01	1	0303-			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W)	1-49123-682-0	01	1	0303-0405			●
34	PIPE; AIR 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49123-682-0	01	1	0406-			●
34	PIPE; AIR	1-49121-921-0	01	1	0005-0112		●
34	PIPE; AIR WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-921-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 5000MM(50W)	1-49121-921-0	01	1	0211-		●
34	PIPE; AIR WHEEL BASE 5900MM(59W)	1-49123-416-0	01	1	0201-0210		●
34	PIPE; AIR WHEEL BASE 7100MM(71W)	1-49122-213-0	01	1	0211-0401	●	●
34	PIPE; AIR WHEEL BASE 7100MM(71W) L=864	1-49124-435-0	01	1	0402-	●	●
34	PIPE; AIR	1-49122-210-0	01	1	0005-				●
91	BRACKET; TUBE CLIP 6SD1 TCN ENG(31L) L=150 H=30	1-47477-629-2	01	1	0410-			●
91	BRACKET; TUBE CLIP WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=150 H=30	1-47477-629-2	03	1	0410-			●
91	BRACKET; TUBE CLIP L=225	1-47477-646-3	01	1	0010-0409	●	●
91	BRACKET; TUBE CLIP L=225	1-47477-646-3	01	1	0410-	●	●
91	BRACKET; TUBE CLIP 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=225	1-47477-646-3	01	1	0410-			●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-194-0	01	1	0005-0210	●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6SD1 TCN ENG(31L)	1-49122-656-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W)	1-49122-656-0	01	1	0211-0405			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49122-656-0	01	1	0406-			●
154	PIPE; AIR,AIR TANK TO AIR GOV 6HH1 STD ENG(65L)	1-49122-179-0	01	1	0005-0210			●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 4200MM(42W)	1-49122-184-0	01	1	0303-			●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49121-922-0	01	1	0005-0112		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W),WHEEL BASE 6300MM(63W)	1-49121-922-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5000MM(50W)	1-49121-922-0	01	1	0211-		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 5900MM(59W)	1-49123-417-0	01	1	0201-0210		●
154	PIPE; AIR,AIR TANK TO AIR GOV WHEEL BASE 7100MM(71W)	1-49122-194-0	01	1	0211-	●	●
154	PIPE; AIR,AIR TANK TO AIR GOV	1-49122-215-0	01	1	0005-				●
171	PIPE; AIR,GOV TO AIR DRYER	1-49121-294-0	01	1	0005-	●	●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-49122-193-0	01	1	0005-0102			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0103-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER 6SD1 TCN ENG(31L)	1-49121-289-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W)	1-49121-289-0	01	1	0211-0405			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-49121-289-0	01	1	0406-			●
171	PIPE; AIR,GOV TO AIR DRYER 6HH1 STD ENG(65L)	1-49122-167-0	01	1	0005-0210			●
171	PIPE; AIR,GOV TO AIR DRYER WHEEL BASE 4200MM(42W) L=451 SERVICED BY L=460	1-47428-806-0	01	1	0303-			●
171	PIPE; AIR,GOV TO AIR DRYER	1-49122-216-0	01	1	0005-				●
176	PIPE; AIR,AIR DRYER TO UNION	1-49121-578-0	01	1	0005-	●	●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1062 SERVICED BY L=1100	1-47426-351-0	01	1	0005-0102			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=1054 SERVICED BY L=1100	1-47428-848-0	01	1	0103-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-49121-290-0	01	1	0005-0007			●
176	PIPE; AIR,AIR DRYER TO UNION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) L=1713 SERVICED BY L=1700	1-47428-821-0	01	1	0008-0210			●
176	PIPE; AIR,AIR DRYER TO UNION 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) L=1174 SERVICED BY L=1200	1-47426-352-0	01	1	0005-0210			●
176	PIPE; AIR,AIR DRYER TO UNION WHEEL BASE 4200MM(42W) L=1084 SERVICED BY L=1100	1-47428-815-0	01	1	0303-			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0303-0405			●
176	PIPE; AIR,AIR DRYER TO UNION 6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) L=1749 SERVICED BY L=1820	1-47428-822-0	01	1	0406-			●
176	PIPE; AIR,AIR DRYER TO UNION	1-49122-217-0	01	1	0005-				●
296	TUBE; NYLON L=1200 OD=6	1-09366-256-0	AR	1	0005-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0212	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0301	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0302-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
296	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0301-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87410-069-0	AR	1	0005-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87410-070-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	AR	1	0005-0212	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87410-074-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87410-075-0	AR	1	0005-0405	●	●	●	●
297	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87411-006-0	AR	1	0301-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=8	1-87411-007-0	AR	1	0406-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	0406-	●	●	●	●
297	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	0406-	●	●	●	●
434	CLIP FULLER RT7608LL M/T(X8P) (A) ID=18 L=25 H=50	1-09701-096-0	01	1	0108-0210		●
434	CLIP (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-	●	●		●
434	CLIP 6SD1 TCN ENG(31L) (A) ID=21 L=30 H=40	1-09700-991-1	01	1	0211-			●
434	CLIP (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	0005-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
