3-46 — AIR DRYER (#8700) — 88 parça

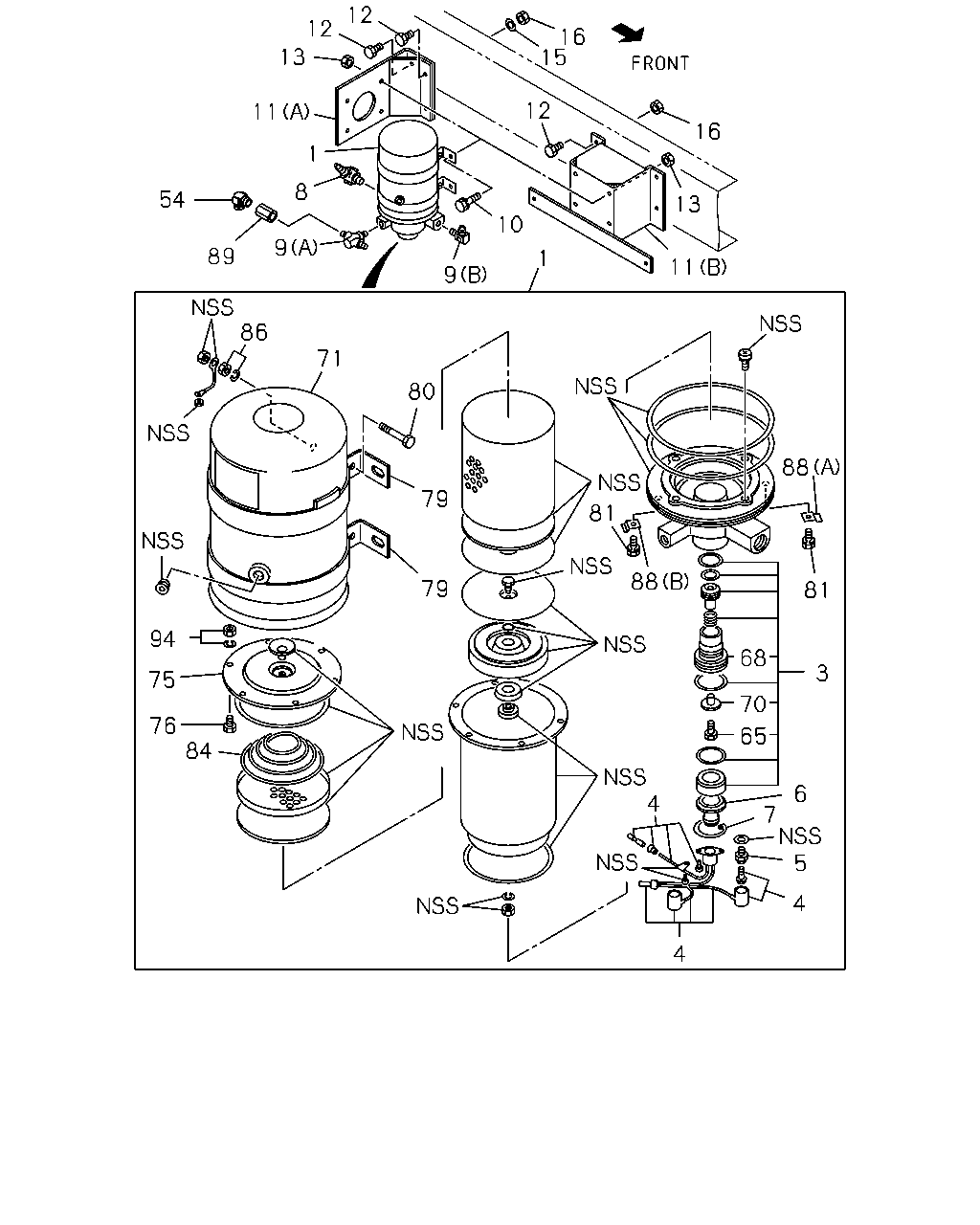

çizim 10604
12 12 16 15 13 12 11 16 1 8 54 13 10 9 89 1 11 9 86 71 80 88 79 81 88 79 81 94 68 3 75 70 76 84 65 4 6 7 5 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 DRYER; AIR 1-48190-105-3 01 1 0005-0210 ● ● ● ●
1 DRYER; AIR 1-48190-277-1 01 1 0211- ● ● ● ●
3 PISTON KIT; AIR DRYER 1-85576-057-1 01 1 0005- ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-129-0 01 1 0005-0210 ● ● ● ●
4 THERMOSTAT KIT; AIR DRYER 1-85576-254-0 01 1 0211- ● ● ● ●
5 HEATER ASM; AIR DRYER 1-48199-085-0 02 1 0005- ● ● ● ●
6 COVER; EXH,AIR DRYER 1-48199-101-0 01 1 0005- ● ● ● ●
7 RING; SNAP,AIR DRYER 1-48199-154-0 01 1 0005- ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW 		1-09650-444-0 01 1 0005-0607 ● ● ● ●
8 CONNECTOR; OUT,AIR DRYER
M22 & PT1/2 ELBOW 		0-92134-315-0 01 1 0608- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
(B) M22 & R1/2 W/VALVE 		1-48320-026-2 01 1 0005- ● ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0005-0210 ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
6HH1 STD ENG(65L) (A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0005-0210 ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-230-1 01 1 0211- ● ● ●
9 CONNECTOR; PIPE,AIR DRYER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) (A) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0005-0210 ●
9 CONNECTOR; PIPE,AIR DRYER
(A) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0211- ●
10 BOLT; AIR DRYER
M10X30 FLANGE 		0-28681-030-0 04 1 0005-0210 ● ● ●
10 BOLT; AIR DRYER
6SD1 TCN ENG(31L),6HE1 TC ENG(57L) M10X30 FLANGE 		0-28681-030-0 04 1 0005-0210 ●
10 BOLT; AIR DRYER
M10X30 FLANGE 		0-28681-030-0 04 1 0211-0512 ● ● ● ●
10 BOLT; AIR DRYER
M10X30 FLANGE 		0-28651-030-0 04 1 0601- ● ● ● ●
10 BOLT; AIR DRYER
6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M10X40 FLANGE 		0-28681-040-0 04 1 0005-0210 ●
11 BRACKET; AIR DRYER
(B) 		1-48195-093-2 01 1 0005-0103 ● ● ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L) (B) 		1-48195-093-2 01 1 0005-0103 ●
11 BRACKET; AIR DRYER
(B) 		1-48195-093-2 01 1 0104- ● ●
11 BRACKET; AIR DRYER
6SD1 TCN ENG(31L) (B) 		1-48195-093-2 01 1 0104- ●
11 BRACKET; AIR DRYER
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) 		1-48195-095-1 01 1 0005-0210 ●
11 BRACKET; AIR DRYER
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) 		1-48195-107-0 01 1 0005-0005 ●
11 BRACKET; AIR DRYER
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) 		1-48195-108-0 01 1 0006-0210 ●
11 BRACKET; AIR DRYER
WHEEL BASE 4200MM(42W) (A) 		1-48195-095-1 01 1 0303- ●
11 BRACKET; AIR DRYER
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) (B) 		1-48195-108-0 01 1 0303-0405 ●
11 BRACKET; AIR DRYER
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) 		1-48195-108-0 01 1 0406- ●
11 BRACKET; AIR DRYER
(B) 		1-48195-110-0 01 1 0104- ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 04 1 0005-0005 ● ● ●
12 BOLT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0005 ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) M10X35 FLANGE 		0-28681-035-0 04 1 0005-0005 ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28681-035-0 04 1 0006-0512 ● ● ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) M10X35 FLANGE 		0-28681-035-0 04 1 0006-0512 ●
12 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0601- ● ● ●
12 BOLT; BRKT
6SD1 TCN ENG(31L) M10X35 FLANGE 		0-28651-035-0 04 1 0601- ●
12 BOLT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M14X45 FLANGE 		0-28881-445-0 04 1 0005-0201 ●
12 BOLT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M14X40 		0-20801-440-0 04 1 0202-0210 ●
12 BOLT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X35 FLANGE 		0-28681-035-0 02 1 0006-0210 ●
12 BOLT; BRKT
WHEEL BASE 4200MM(42W) M14X40 		0-20801-440-0 04 1 0303-0512 ●
12 BOLT; BRKT
WHEEL BASE 4200MM(42W) M14X40 		0-20851-440-0 04 1 0601- ●
12 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W) M10X35 FLANGE 		0-28681-035-0 02 1 0303-0405 ●
12 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE 		0-28681-035-0 02 1 0406-0512 ●
12 BOLT; BRKT
6HK1 TCS ENG(80L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE 		0-28651-035-0 02 1 0601- ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91150-210-0 04 1 0005-0602 ● ● ● ●
13 NUT; AIR DRYER
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ● ●
15 WASHER; LK,BRKT
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=14.2 		9-09150-514-0 04 1 0202-0210 ●
15 WASHER; LK,BRKT
WHEEL BASE 4200MM(42W) ID=14.2 		9-09150-514-0 04 1 0303-0603 ●
15 WASHER; LK,BRKT
WHEEL BASE 4200MM(42W) ID=14.2 		0-91510-514-0 04 1 0604- ●
16 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ● ● ●
16 NUT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
16 NUT; BRKT
6SD1 TCN ENG(31L) M10 FLANGE 		0-91150-210-0 04 1 0005-0210 ●
16 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0211-0405 ● ● ●
16 NUT; BRKT
WHEEL BASE 6000MM(60W) M10 FLANGE 		0-91150-210-0 04 1 0211-0405 ●
16 NUT; BRKT
M10 FLANGE 		0-91150-210-0 04 1 0406-0602 ● ● ●
16 NUT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE 		0-91150-210-0 04 1 0406-0602 ●
16 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0603- ● ● ●
16 NUT; BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE 		0-91180-210-0 04 1 0603- ●
16 NUT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M14 FLANGE 		0-91160-114-0 02 1 0005-0201 ●
16 NUT; BRKT
6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M14 		9-99110-514-0 02 1 0202-0210 ●
16 NUT; BRKT
WHEEL BASE 4200MM(42W) M14 		9-99110-514-0 02 1 0303-0512 ●
16 NUT; BRKT
WHEEL BASE 4200MM(42W) M14 		0-91110-514-0 02 1 0601- ●
54 CONNECTOR
6SD1 TCN ENG(31L) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0007-0210 ●
54 CONNECTOR
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0211-0405 ●
54 CONNECTOR
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0406- ●
65 BOLT; PURGE VLV 1-48199-413-0 01 1 0005-0210 ● ● ● ●
65 BOLT; PURGE VLV 1-48199-393-0 01 1 0211- ● ● ● ●
68 BODY; VALVE 1-48199-216-0 01 1 0005- ● ● ● ●
70 VALVE; AIR DRYER 1-48199-105-0 01 1 0005- ● ● ● ●
71 CASE; INNER,AIR DRYER 1-48199-156-1 01 1 0005- ● ● ● ●
75 COVER; CASE,AIR DRYER 1-48199-167-0 01 1 0005- ● ● ● ●
76 BOLT; COVER,AIR DRYER 1-48199-478-0 06 1 0005-0210 ● ● ● ●
79 BRACKET; AIR DRYER 1-48199-189-0 02 1 0005- ● ● ● ●
80 BOLT; BRKT 1-48199-190-0 02 1 0005- ● ● ● ●
81 BOLT; CASE,AIR DRYER 1-48199-177-0 02 1 0005- ● ● ● ●
84 SPRING; AIR DRYER 1-48199-166-0 01 1 0005- ● ● ● ●
86 NUT; BRKT 1-48199-320-0 02 1 0005- ● ● ● ●
88 PLATE; STOPPER
(A) 		1-48199-178-0 01 1 0005- ● ● ● ●
88 PLATE; STOPPER
(B) 		1-48199-179-0 01 1 0005- ● ● ● ●
89 ADAPTER
6SD1 TCN ENG(31L) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0007-0210 ●
89 ADAPTER
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0211-0405 ●
89 ADAPTER
6SD1 TCN ENG(31L) WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12 & RC1/4 STRAIGHT 		1-09660-885-0 01 1 0406- ●
94 NUT; COVER,AIR DRYER 1-48199-479-0 07 1 0005-0210 ● ● ● ●

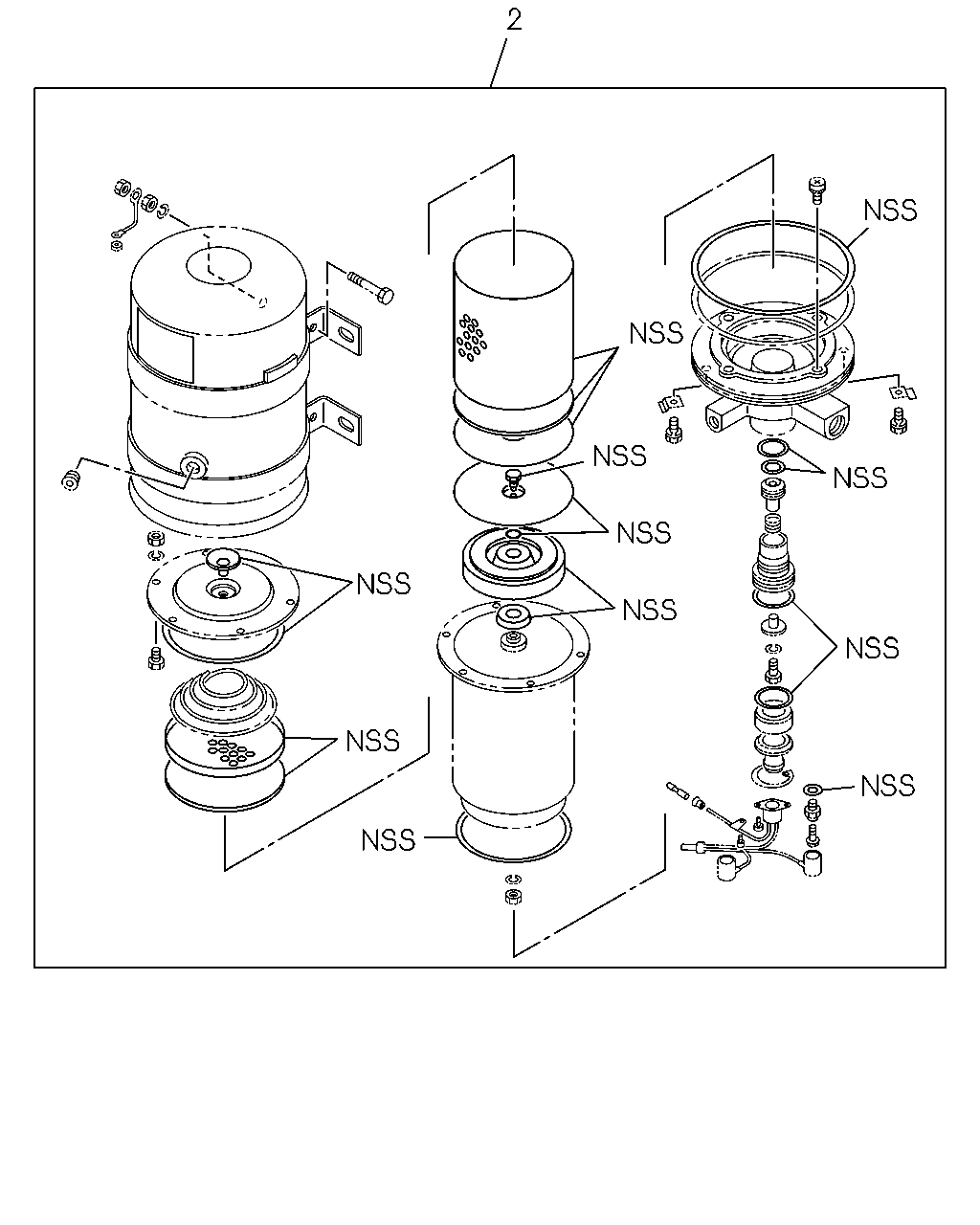

çizim 10607
2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 REPAIR KIT; AIR DRYER 1-85576-055-1 01 1 0005-0210 ● ● ● ●
2 REPAIR KIT; AIR DRYER 1-85576-226-0 01 1 0211- ● ● ● ●
