◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 10624 - FSR-RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#87) — 54 parça

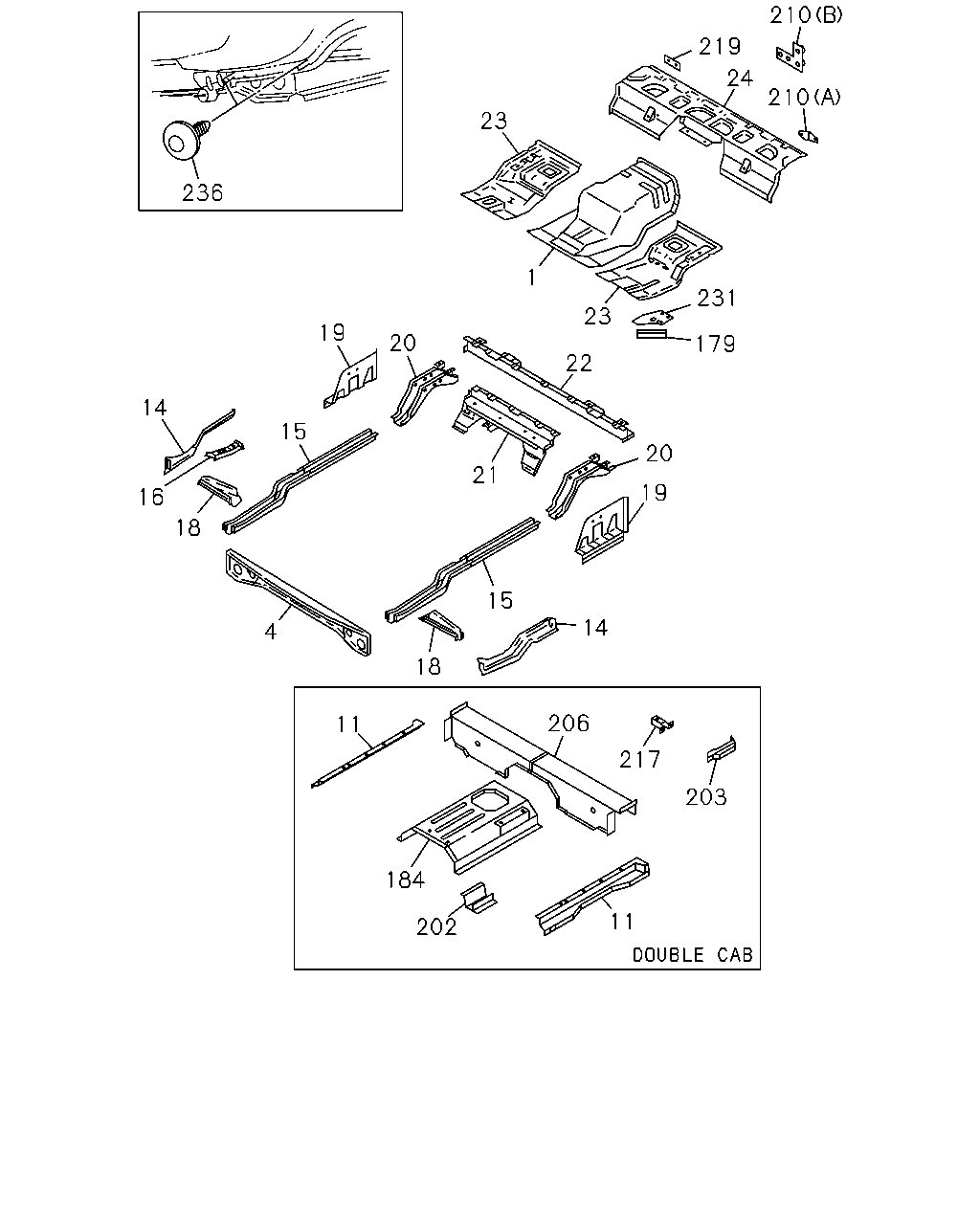

çizim 94687
210 219 24 210 23 236 1 231 23 19 20 179 22 14 15 20 21 19 16 18 15 14 4 18 206 11 217 203 184 11 202
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR
A/T<X9D> 		1-62182-734-2 01 1 9202- ●
1 PANEL; FLOOR
ISUZU M/T<X9A> 		1-62182-796-2 01 1 9202- ●
1 PANEL; FLOOR 1-62182-736-3 01 1 9202- ●
4 FRAME; FLOOR,FRT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-62483-066-0 01 1 9310- ●
4 FRAME; FLOOR,FRT 1-62482-792-9 01 1 9202-9309 ● ●
4 FRAME; FLOOR,FRT
EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-62482-792-9 01 1 9310- ●
4 FRAME; FLOOR,FRT 1-62482-792-9 01 1 9310- ●
11 PANEL; FLOOR SIDE RR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-62482-448-0 01 1 9202- ●
11 PANEL; FLOOR SIDE RR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-62482-447-0 01 1 9202- ●
11 PANEL; FLOOR SIDE RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-62482-293-1 01 1 9202- ●
11 PANEL; FLOOR SIDE RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) 		1-62482-292-1 01 1 9202- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-657-1 01 1 9202- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-656-1 01 1 9202- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-747-1 01 1 9202- ●
14 PANEL; FLOOR SIDE,FRT 1-62482-746-1 01 1 9202- ●
15 FRAME; UNDER 1-62482-802-1 01 1 9202- ●
15 FRAME; UNDER 1-62482-326-6 01 1 9202- ●
15 FRAME; UNDER 1-62482-153-3 01 1 9202- ●
15 FRAME; UNDER 1-62482-347-3 01 1 9202- ●
16 PANEL; SUPPORT CHANNEL,FLOOR PANEL FRT 1-62482-297-2 01 1 9202- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-078-4 01 1 9202- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-077-4 01 1 9202- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-168-3 01 1 9202- ●
18 FRAME; FLOOR,CENTER SIDE 1-62482-167-3 01 1 9202- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-661-0 01 1 9202- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-660-0 01 1 9202- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-191-3 01 1 9202- ●
19 PANEL; FLOOR SIDE,REAR 1-62482-192-2 01 1 9202- ●
20 FRAME; FLOOR SIDE,REAR 1-62482-208-3 01 1 9202- ●
20 FRAME; FLOOR SIDE,REAR 1-62482-207-3 01 1 9202- ●
20 FRAME; FLOOR SIDE,REAR 1-62482-568-2 02 1 9202- ●
21 FRAME; FLOOR CENTER 1-62482-648-1 01 1 9202- ●
22 FRAME; FLOOR REAR 1-62482-066-5 01 1 9202- ● ●
23 PANEL; FLOOR,SIDE 1-62182-061-8 01 1 9202- ●
23 PANEL; FLOOR,SIDE
DUMP CONTROL LEVER<RC4> 		1-62182-537-3 01 1 9202- ●
23 PANEL; FLOOR,SIDE
EXC. DUMP CONTROL LEVER<RC4> 		1-62182-536-5 01 1 9202- ●
23 PANEL; FLOOR,SIDE 1-62182-170-7 01 1 9202- ●
23 PANEL; FLOOR,SIDE 1-62182-169-9 01 1 9202- ●
24 PANEL; BED PAN 1-62182-685-4 01 1 9202- ●
179 GUSSET; POWER CYL,CAB TILT 1-62482-175-2 02 1 9202- ●
184 HOOD ASM; ENG RR 1-62182-742-1 01 1 9202- ●
202 PANEL; CENTER MTG REINF 1-62482-254-3 01 1 9202- ●
202 PANEL; CENTER MTG REINF 1-62482-253-2 01 1 9202- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-313-0 01 1 9202- ●
203 PANEL; CLOSING,BACK CORNER,BACK PANEL 1-62482-312-0 01 1 9202- ●
206 PANEL; FLOOR BOARD RR 1-62182-689-0 01 1 9202- ●
210 PANEL; HAND BRAKE LEVER BRKT
(A) 		1-62182-085-0 01 1 9202- ● ●
210 PANEL; HAND BRAKE LEVER BRKT
(B) 		1-62182-361-1 01 1 9202- ● ●
217 PANEL; SEAT STAND
WO/NUT 		1-62482-181-2 03 1 9202- ●
217 PANEL; SEAT STAND
W/NUT 		1-62482-425-0 01 1 9202- ●
219 PATCH; AIR DUCT LWR 1-62182-197-0 01 1 9202- ● ●
231 PLATE; POWER CYL,CAB TILT 1-62482-177-2 01 1 9202- ●
231 PLATE; POWER CYL,CAB TILT 1-62482-176-2 01 1 9202- ●
236 PLUG; MUD GUARD,CAB FLOOR
D4.7X11 		1-76378-154-0 09 1 9202-9203 ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
