3-40 — FRONT BRAKE POWER CHAMBER (#8697) — 46 parça

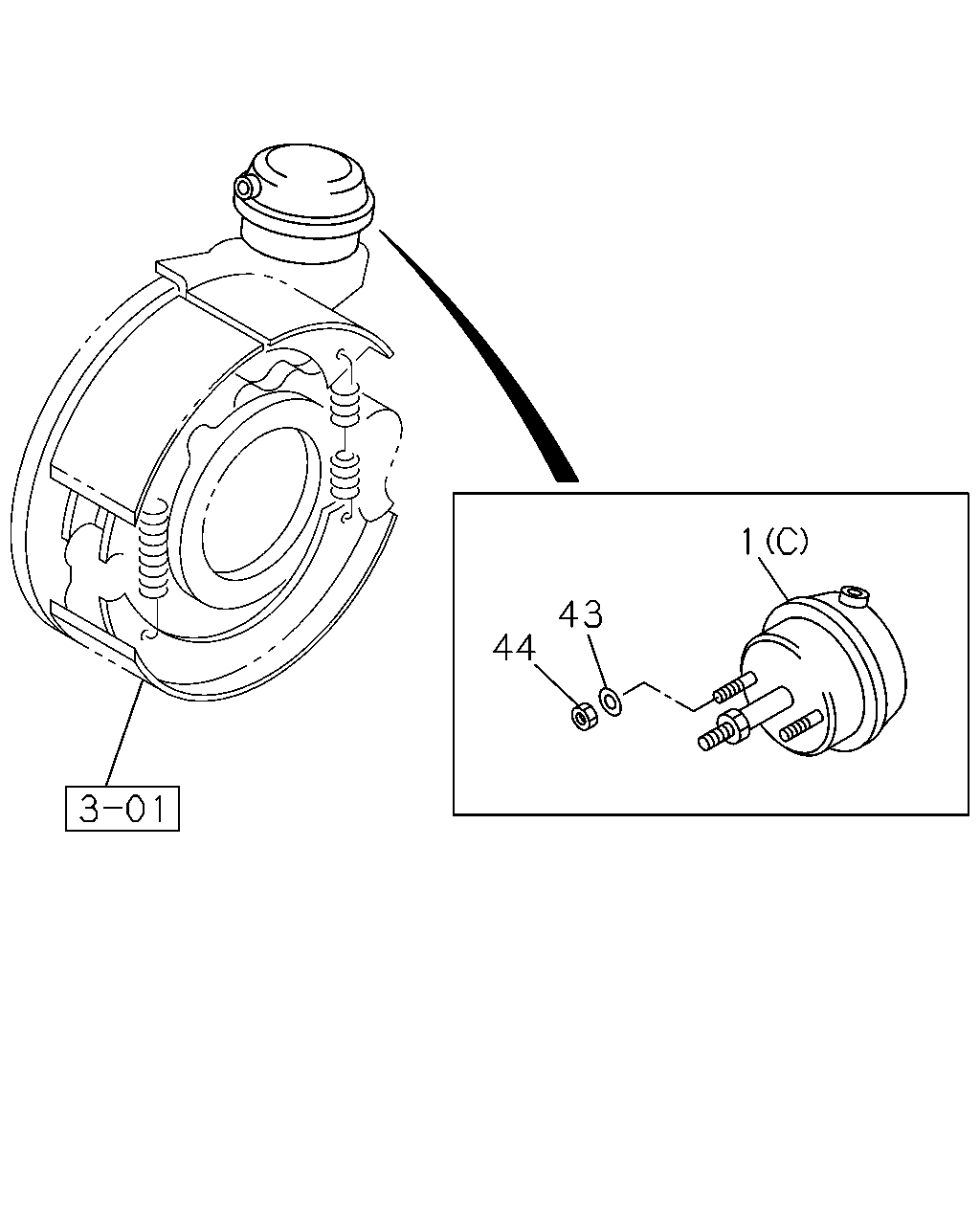

çizim 9314
1 43 44
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-338-0 01 1 0005-0203 ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-062-2 01 1 0204- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-524-0 01 1 0005- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-684-0 02 1 0005- ● ● ●
43 WASHER; LK,POWER CHAMBER 1-41519-038-0 04 1 0005- ● ● ●
44 NUT; POWER CHAMBER 1-87050-052-0 04 1 0005- ● ● ●

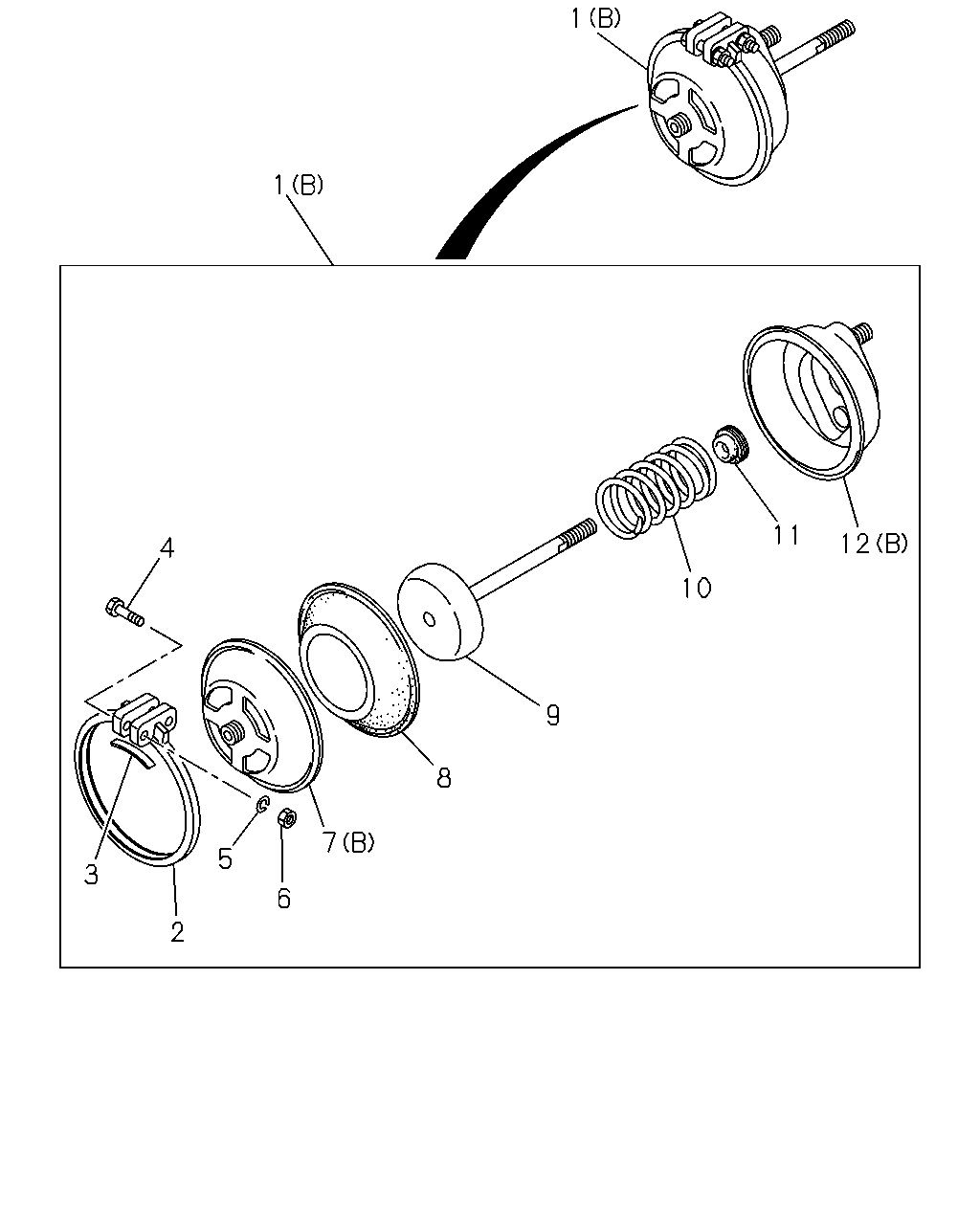

çizim 43205
1 1 11 12 4 10 9 8 7 5 3 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-338-0 01 1 0005-0203 ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-062-2 01 1 0204- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-524-0 01 1 0005- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-684-0 02 1 0005- ● ● ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 0005- ●
3 RETAINER; DIAPH 9-48259-016-0 03 1 0005-0203 ●
3 RETAINER; DIAPH 9-48259-016-0 02 1 0204- ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 0005- ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0005- ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 0005- ●
7 COVER ASM; UPR,SPR CHAMBER
(B) 		1-48251-007-0 01 1 0005- ●
7 COVER ASM; UPR,SPR CHAMBER
(A) 		1-48251-039-0 01 1 0005- ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 0005-0203 ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 01 1 0204- ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-054-0 01 1 0204- ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 0005- ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 0005- ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 0005- ●
12 COVER ASM; LWR,SPR CHAMBER
(B) 		1-48251-018-0 01 1 0005- ●
12 COVER ASM; LWR,SPR CHAMBER
(A) 		1-48251-019-0 01 1 0005- ●

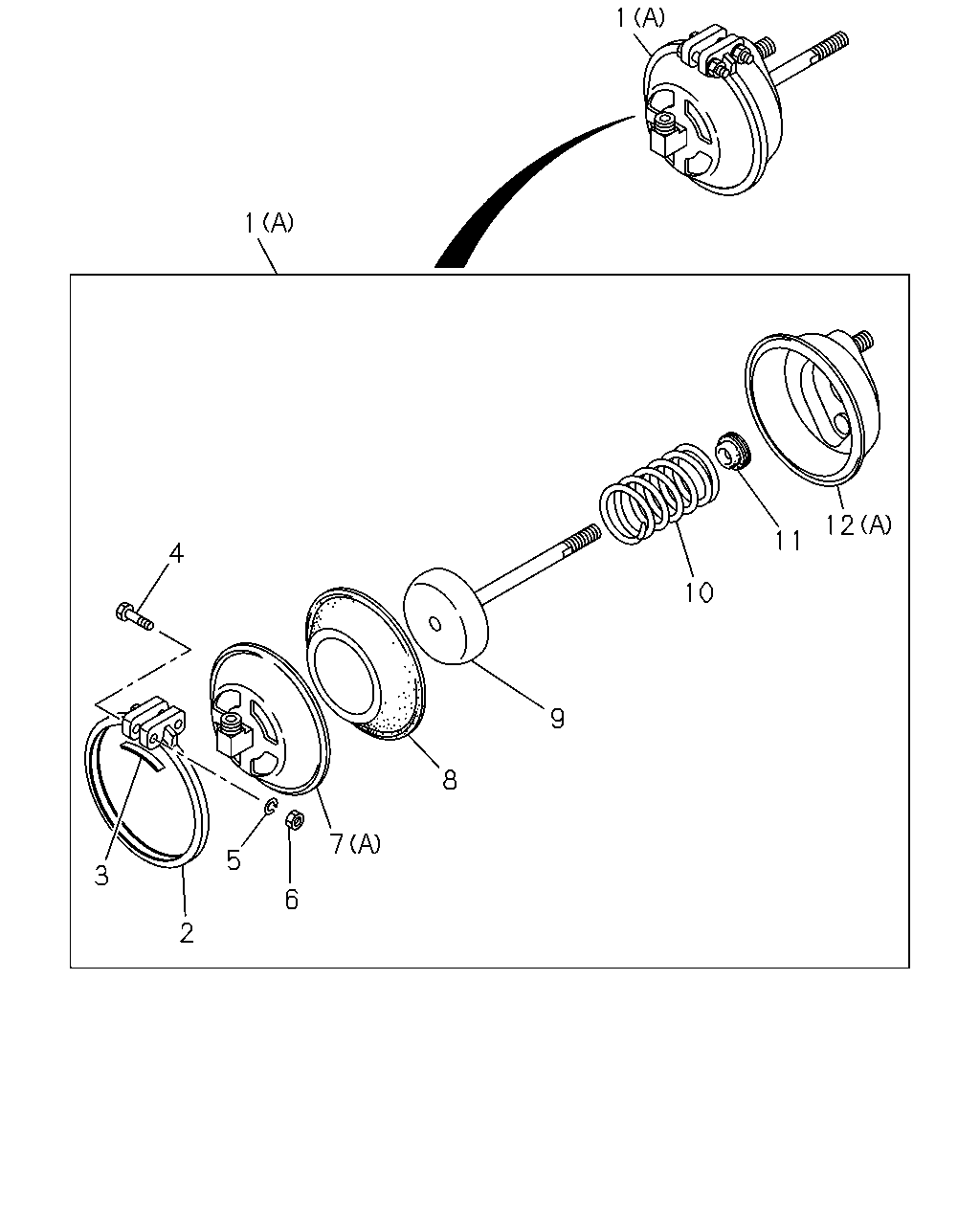

çizim 45243
1 1 12 11 4 10 9 8 7 5 3 6 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-338-0 01 1 0005-0203 ●
1 CHAMBER ASM; POWER,FRT BRK
(A) 		1-48250-062-2 01 1 0204- ●
1 CHAMBER ASM; POWER,FRT BRK
(B) 		1-48250-524-0 01 1 0005- ●
1 CHAMBER ASM; POWER,FRT BRK
(C) 		1-48250-684-0 02 1 0005- ● ● ●
2 RING; CLAMP,SPR CHAMBER 1-48259-001-0 02 1 0005- ●
3 RETAINER; DIAPH 9-48259-016-0 03 1 0005-0203 ●
3 RETAINER; DIAPH 9-48259-016-0 02 1 0204- ●
4 BOLT; CLAMP RING 1-48259-002-0 04 1 0005- ●
5 WASHER; LK,CLAMP RING
ID=10.2 		9-09150-510-0 04 1 0005- ●
6 NUT; CLAMP RING
M10 		9-09110-010-0 04 1 0005- ●
7 COVER ASM; UPR,SPR CHAMBER
(B) 		1-48251-007-0 01 1 0005- ●
7 COVER ASM; UPR,SPR CHAMBER
(A) 		1-48251-039-0 01 1 0005- ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 02 1 0005-0203 ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-006-0 01 1 0204- ●
8 DIAPHRAGM; SPR CHAMBER 1-48252-054-0 01 1 0204- ●
9 PISTON; SPR CHAMBER 1-48253-001-0 02 1 0005- ●
10 SPRING; PISTON,SPR CHAMBER 1-48255-001-0 02 1 0005- ●
11 SEAL; PISTON,SPR CHAMBER 1-48252-025-0 02 1 0005- ●
12 COVER ASM; LWR,SPR CHAMBER
(B) 		1-48251-018-0 01 1 0005- ●
12 COVER ASM; LWR,SPR CHAMBER
(A) 		1-48251-019-0 01 1 0005- ●
