Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#8694) — 951 parça

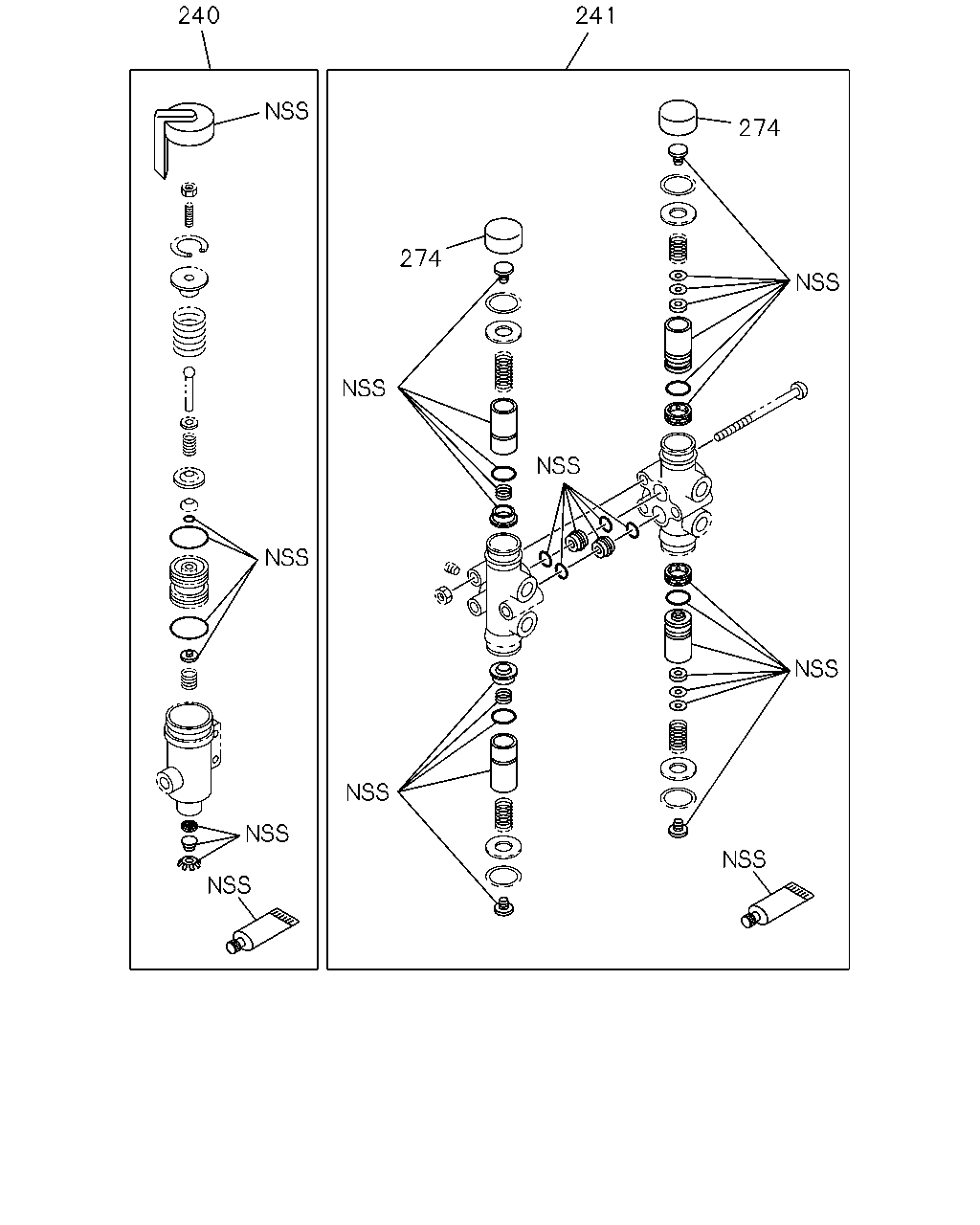

240 241 274 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
240	REPAIR KIT; AIR CONT GOV	1-85576-467-0	01	1	0211-	●	●	●	●
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	0005-0210	●	●	●	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0211-0302	●		●	●
241	REPAIR KIT; PROTECTION VALVE WHEEL BASE 6000MM(60W)	1-85576-224-0	01	1	0211-0302		●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0303-0405	●	●	●	●
241	REPAIR KIT; PROTECTION VALVE	1-85576-224-0	01	1	0406-	●		●	●
241	REPAIR KIT; PROTECTION VALVE 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-85576-224-0	01	1	0406-		●
241	REPAIR KIT; PROTECTION VALVE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-85576-224-0	01	1	0406-		●
241	REPAIR KIT; PROTECTION VALVE 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-85576-224-0	01	1	0112-0210		●
241	REPAIR KIT; PROTECTION VALVE 6HH1 STD ENG(65L)	1-85576-224-0	01	1	0112-0210		●
274	COVER; DUST	1-48119-450-0	02	1	0211-0302	●		●	●
274	COVER; DUST WHEEL BASE 6000MM(60W)	1-48119-450-0	02	1	0211-0302		●
274	COVER; DUST	1-48119-450-0	02	1	0303-0405	●	●	●	●
274	COVER; DUST	1-48119-450-0	02	1	0406-	●		●	●
274	COVER; DUST 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48119-450-0	02	1	0406-		●
274	COVER; DUST WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48119-450-0	02	1	0406-		●

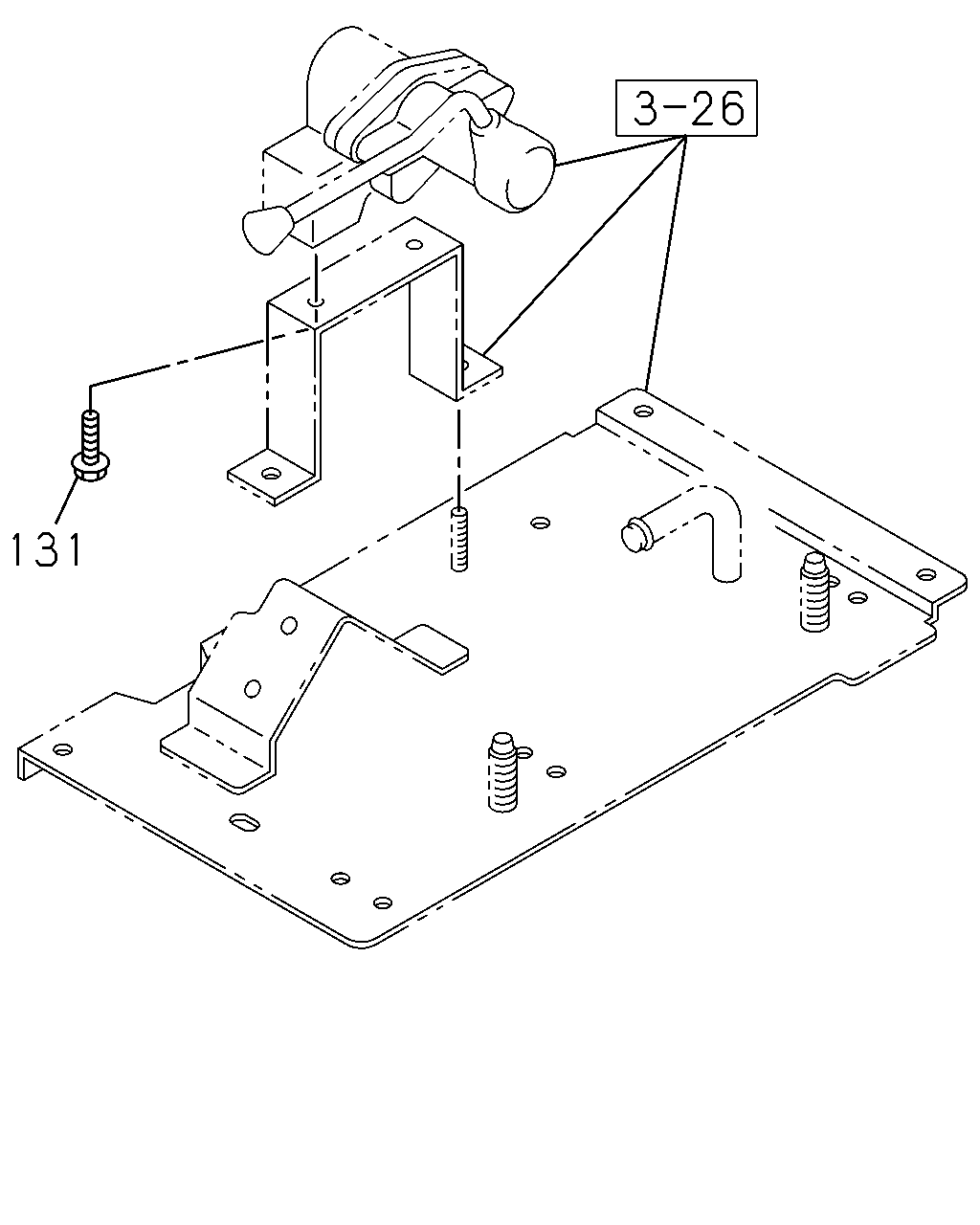

131

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	131	BOLT; HAND BRK VLV M10X20 FLANGE	0-28081-020-0	02	1	0005-0512				●
	131	BOLT; HAND BRK VLV M10X20 FLANGE	0-28051-020-0	02	1	0601-				●

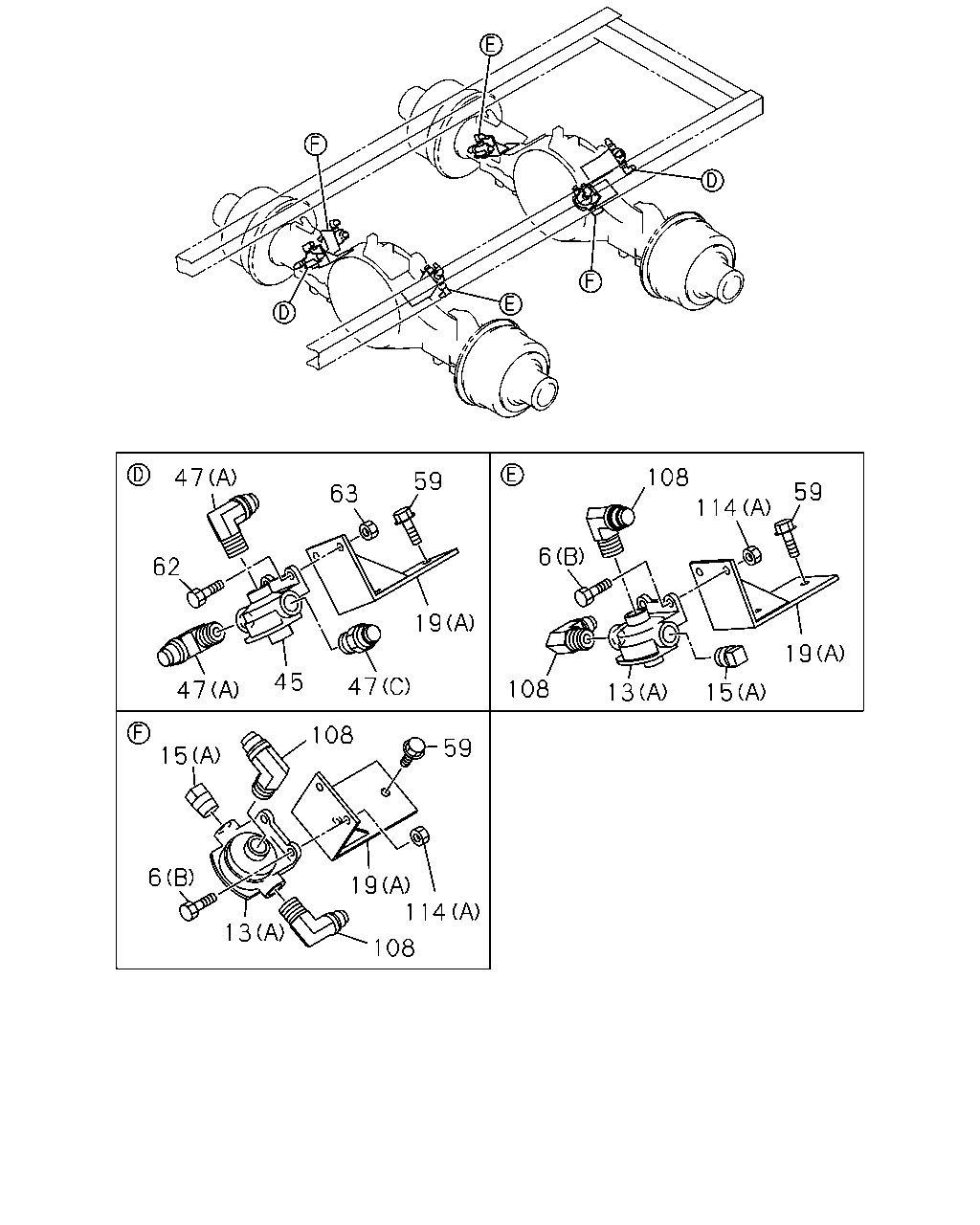

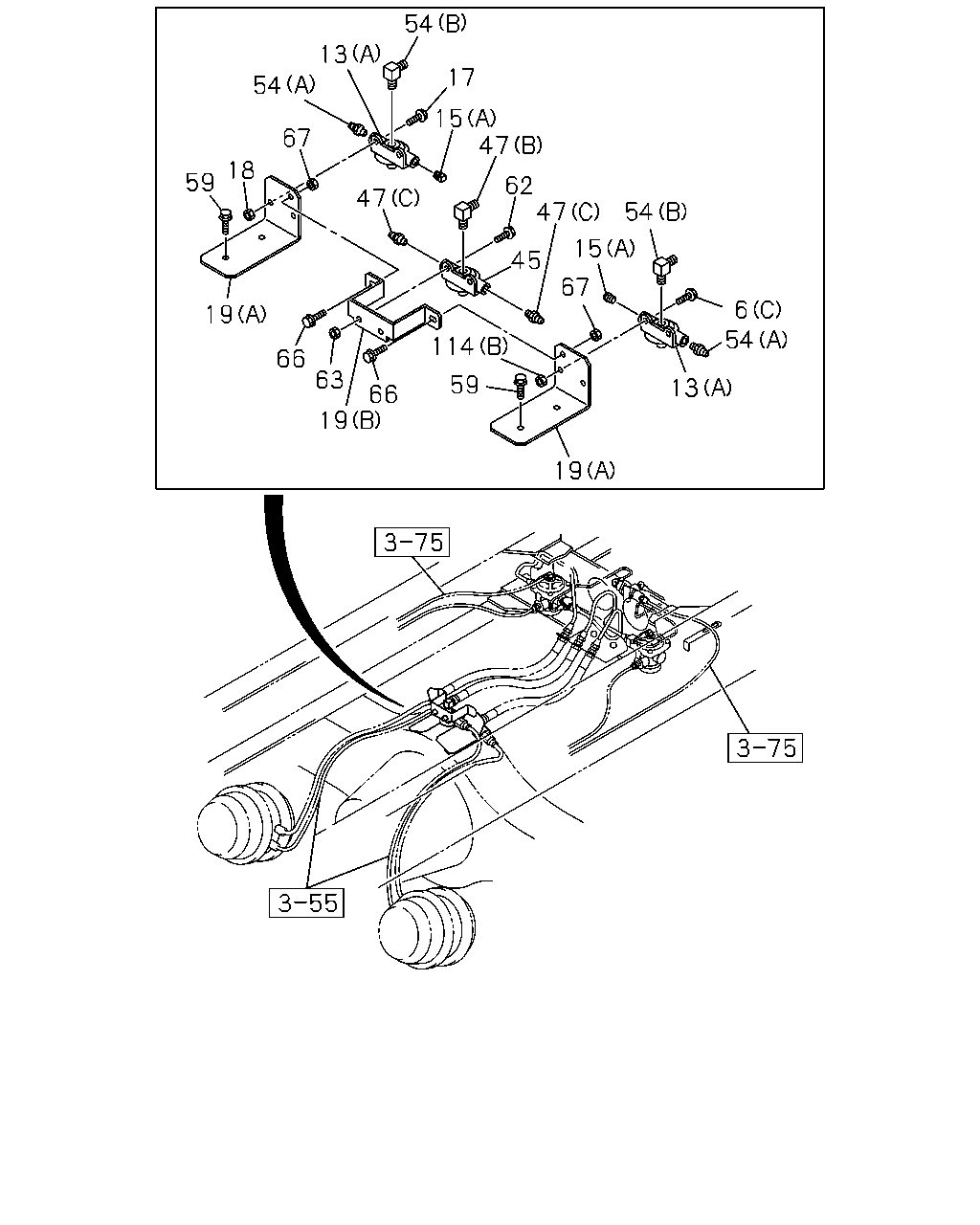

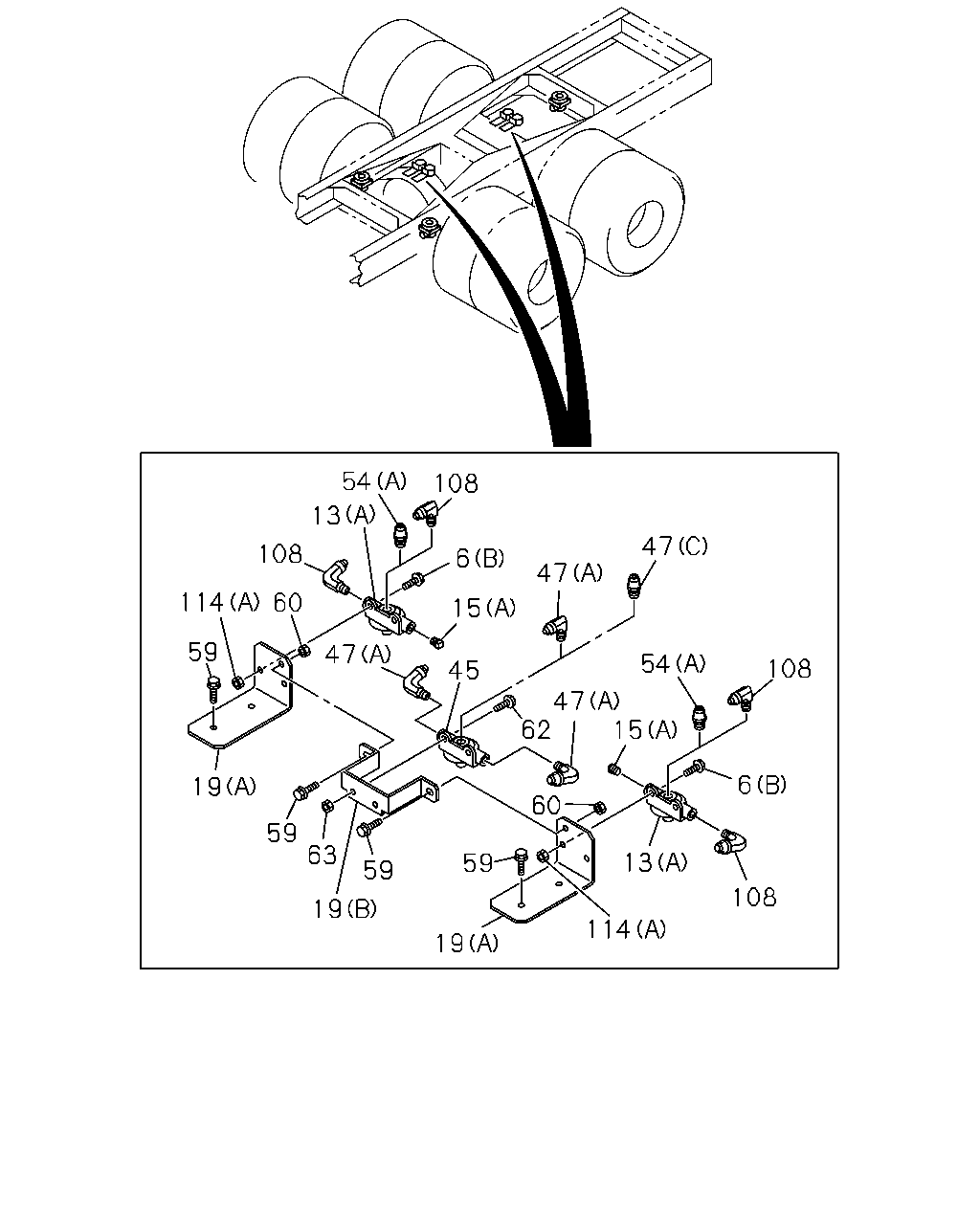

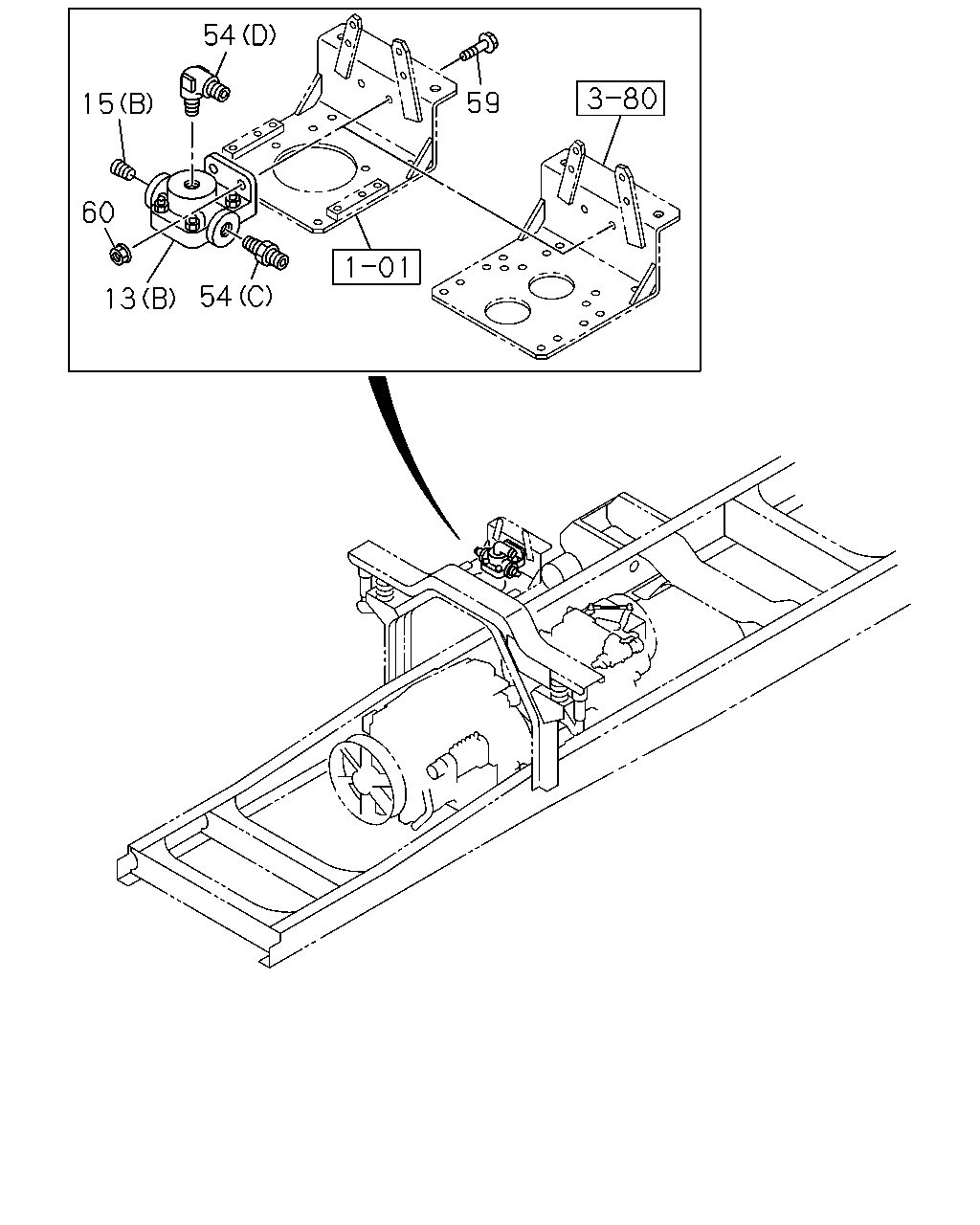

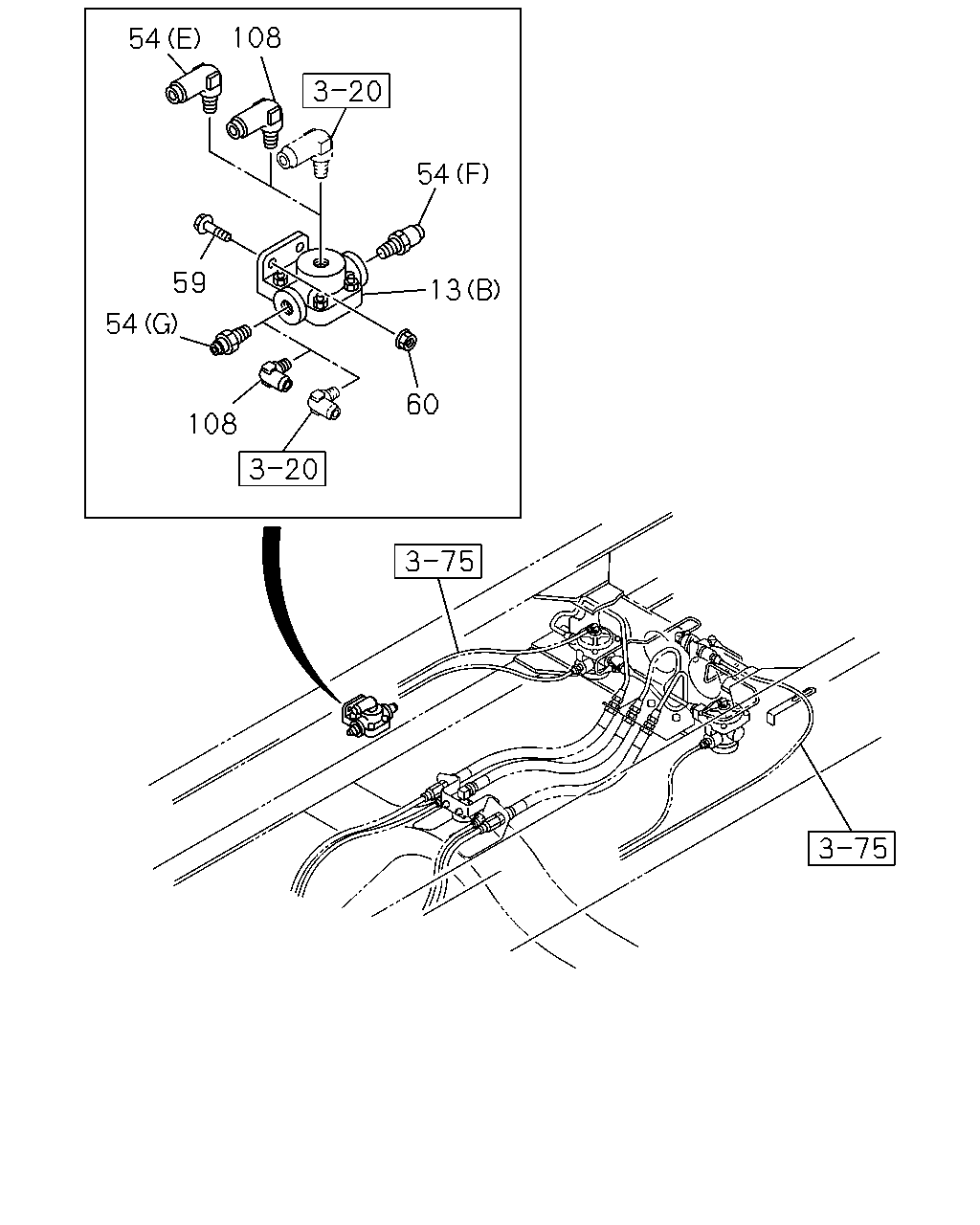

54 108 47 108 6 47 114 60 15 59 47 54 108 45 47 62 15 6 19 60 59 63 13 59 59 108 19 114 19 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0008-0201		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512		●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	0005-0512	●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	0008-0512	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0005-0701	●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0702-0703	●		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0704-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0109	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	02	1	0005-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0110-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0704-				●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0005-	●		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	02	1	0005-		●		●
15	PLUG; VALVE (B)	1-09605-111-0	01	1	0005-0411				●
15	PLUG; VALVE (B) NPTF3/8-18	8-94231-272-1	01	1	0412-0805				●
15	PLUG; VALVE (B) NPTF3/8-18	8-97329-623-0	01	1	0806-				●
19	BRACKET; QUICK RELEASE VLV (B)	1-47477-518-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-153-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-154-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47477-518-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-153-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-154-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	04	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	02	1	0112-0210			●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	06	1	0211-			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	02	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	04	1	0112-0210			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 6300MM(63W) (A)	1-47465-885-1	06	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A)	1-47465-885-1	06	1	0112-0210			●
45	VALVE; QUICK RELEASE	1-48410-320-0	02	1	0005-0109	●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	02	1	0110-	●		●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109		●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-		●		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-	●
47	CONNECTOR; RELAY VLV,CONT (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-	●
47	CONNECTOR; RELAY VLV,CONT (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-		●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-		●		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-	●	●		●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0005-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-		●		●
54	CONNECTOR; QUICK RELEASE VLV (C)	1-09650-327-1	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-991-0	01	1	0005-0006				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-961-0	01	1	0007-				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	08	1	0005-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0211-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	08	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0109-0512	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0211-0512	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-	●		●	●
59	BOLT; RELEASE VALVE FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0109-0111		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0112-0210		●		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	04	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●	●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0005-0111			●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	06	1	0005-0108	●
60	NUT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	06	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0109-0111	●	●	●	●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0112-0210	●		●	●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0112-0210		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
60	NUT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	02	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0109-0602	●			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0005-0108				●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	04	1	0005-0512	●		●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	04	1	0601-	●		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-		●		●
63	NUT; BRKT FIX M8	9-09110-408-0	04	1	0005-0512	●		●
63	NUT; BRKT FIX M8	0-91110-508-0	04	1	0601-	●		●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0005-0512		●		●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-		●		●
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0005-	●
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	0005-			●
114	NUT; VLV (A) M8 FLANGE	0-91150-108-0	08	1	0005-0602	●		●
114	NUT; VLV (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
114	NUT; VLV (B) M8	9-09110-408-0	02	1	0005-0512		●		●
114	NUT; VLV (B) M8	0-91110-508-0	02	1	0601-		●		●

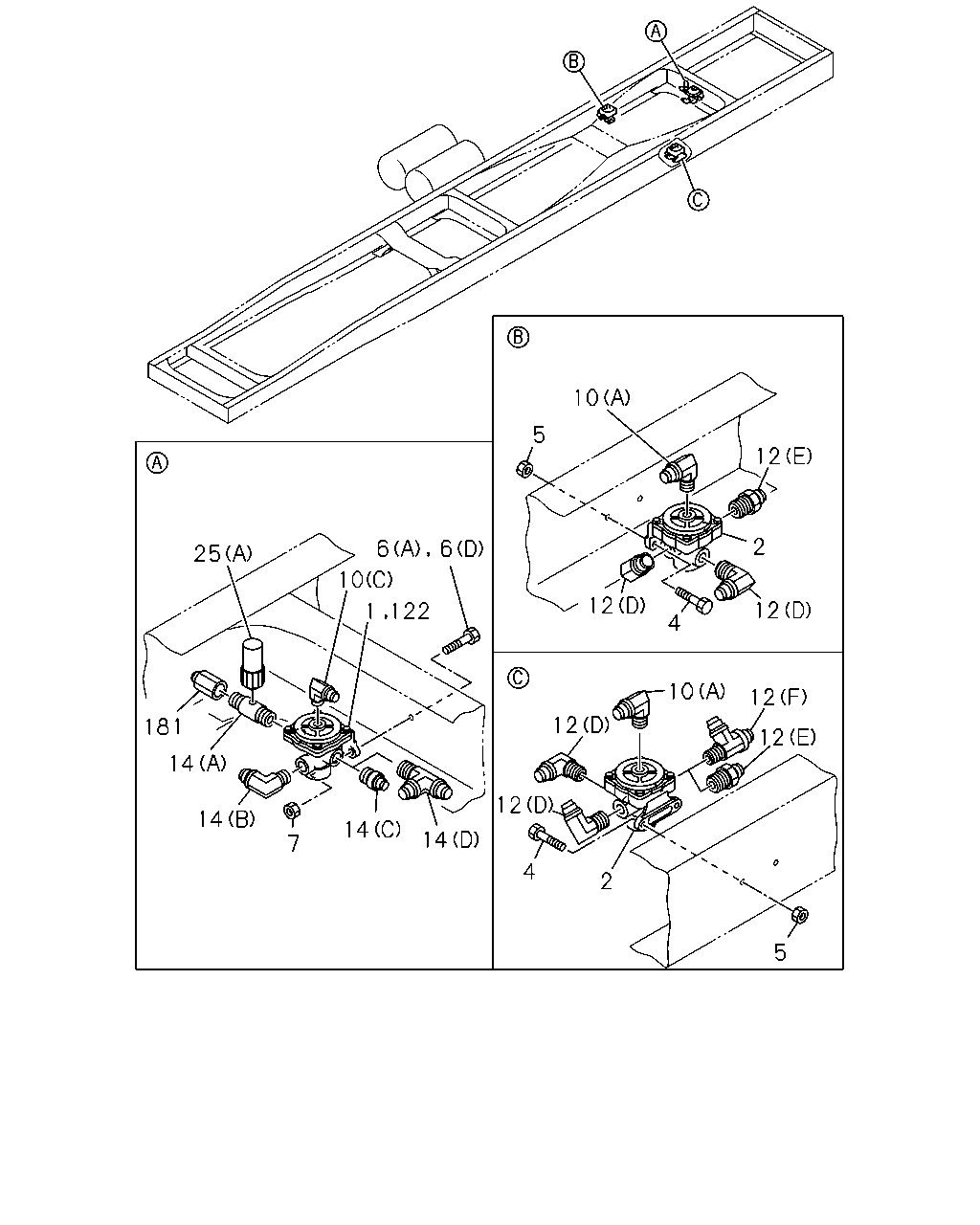

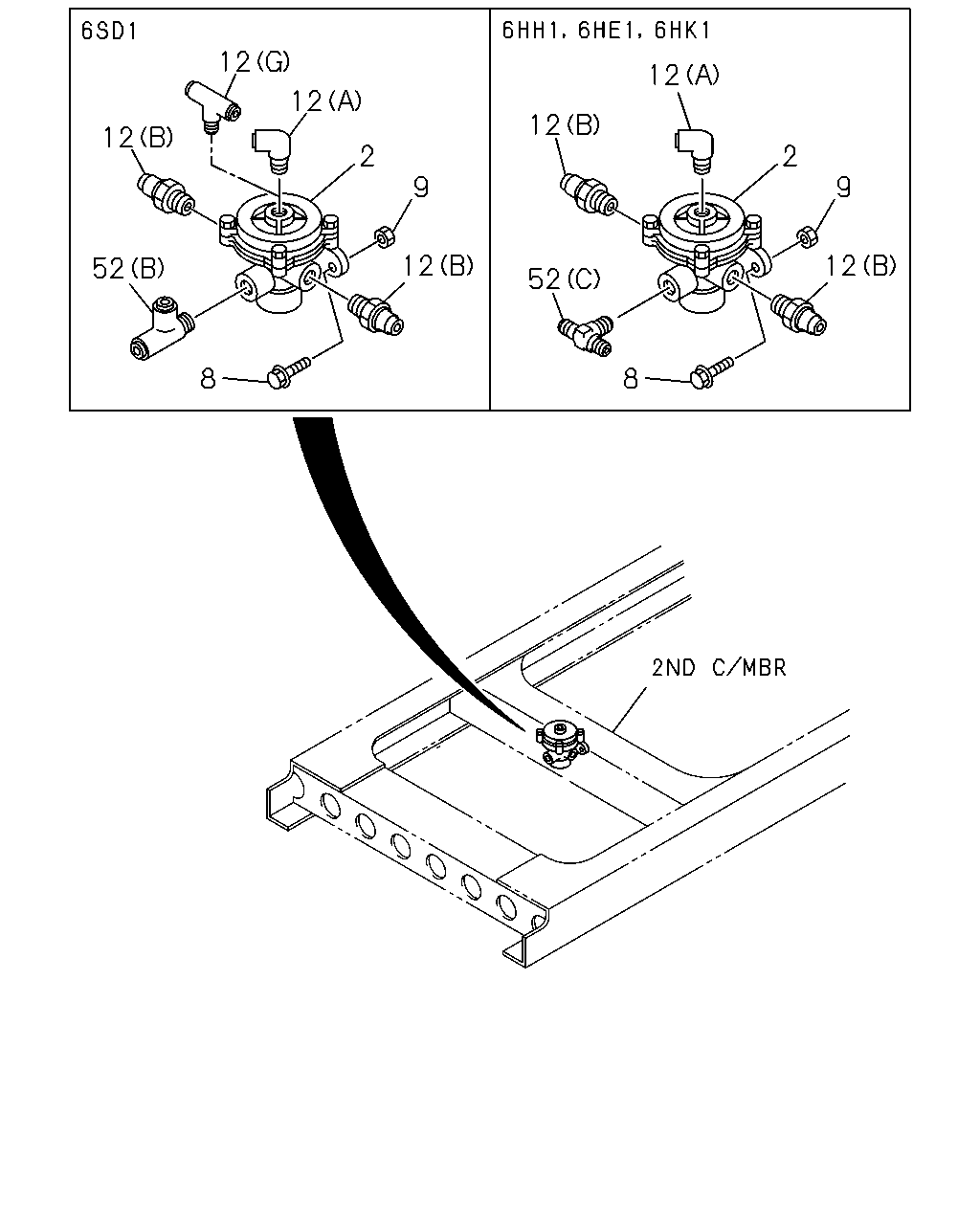

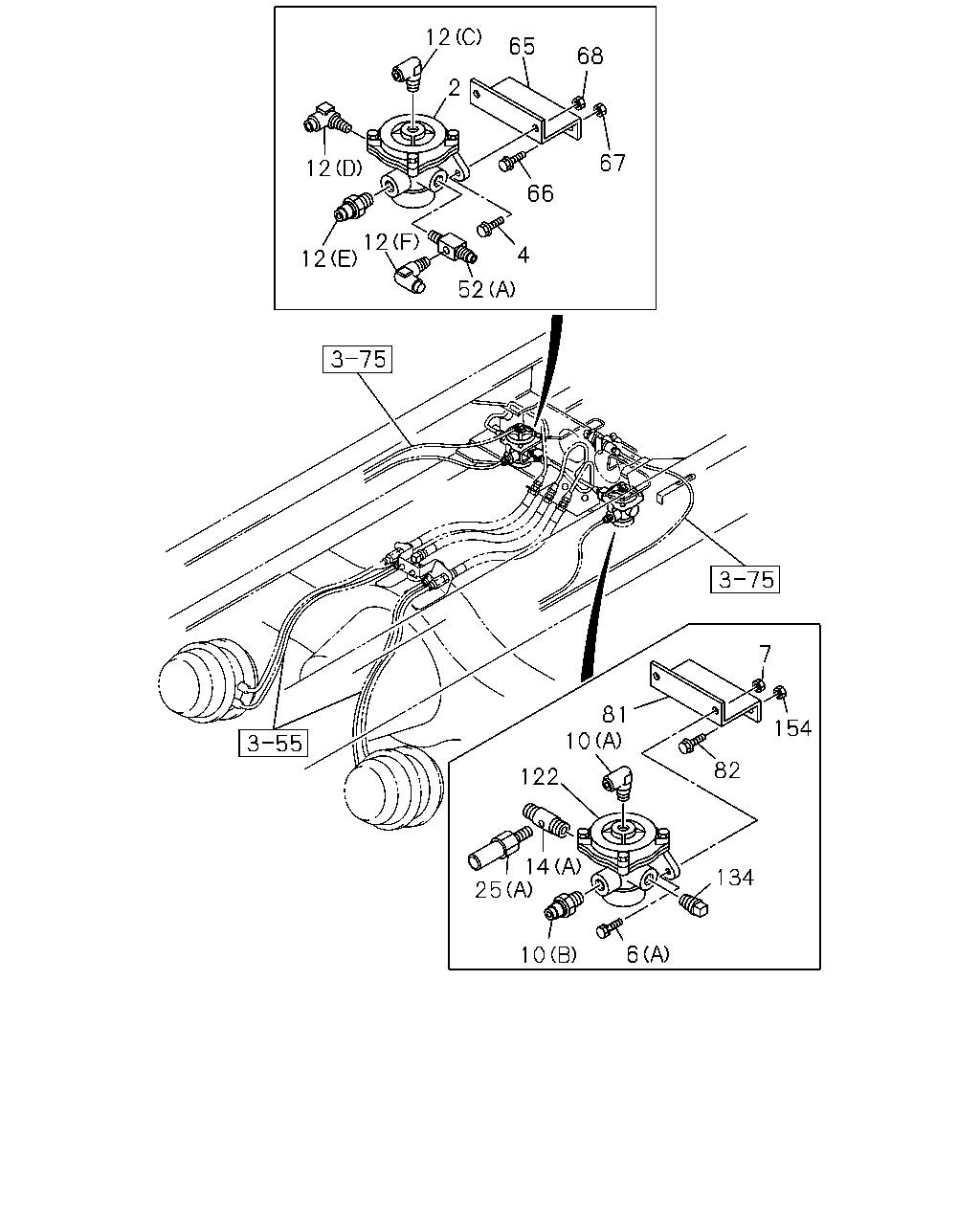

6 12 12 12 12 12 2 2 9 9 12 12 52 52 8 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5900MM(59W)	1-48210-755-0	03	1	0112-0210			●
2	VALVE; RELAY WHEEL BASE 6300MM(63W)	1-48210-755-0	02	1	0005-0210			●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0008-0201		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512		●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	0005-0512	●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	0008-0512	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0210	●	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	02	1	0211-0512	●	●	●	●
8	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-	●	●	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0005-0210	●	●	●
9	NUT M10 FLANGE	0-91150-210-0	02	1	0211-0602	●	●	●	●
9	NUT M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0005-	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210			●
12	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210			●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0211-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0211-	●		●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (F)	1-09660-742-1	01	1	0005-0111			●
12	CONNECTOR; RELAY VLV WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0112-0210			●
12	CONNECTOR; RELAY VLV WHEEL BASE 6300MM(63W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0005-0111			●
12	CONNECTOR; RELAY VLV (F)	1-09660-742-1	01	1	0112-			●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-				●
52	CONNECTOR; RELAY VLV (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-	●		●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0210		●
52	CONNECTOR; RELAY VLV 6HK1 TCS ENG(80L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0303-		●
52	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0005-		●		●

31 34 93 33 35 30 93 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
30	GOVERNOR; AIR CONT	1-48350-063-2	01	1	0005-	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28680-825-0	02	1	0005-0512	●	●	●	●
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0005-0210	●		●	●
33	BRACKET; GOV,AIR CONT 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48359-107-1	01	1	0005-0210		●
33	BRACKET; GOV,AIR CONT 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W)	1-48359-107-1	01	1	0005-0210		●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0211-0302	●		●	●
33	BRACKET; GOV,AIR CONT	1-48359-107-1	01	1	0303-	●		●	●
33	BRACKET; GOV,AIR CONT 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48359-107-1	01	1	0303-		●
33	BRACKET; GOV,AIR CONT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-48359-106-1	01	1	0005-0210		●
33	BRACKET; GOV,AIR CONT 6SD1 TCN ENG(31L)	1-48359-106-1	01	1	0005-0210		●
33	BRACKET; GOV,AIR CONT WHEEL BASE 6000MM(60W)	1-48359-106-1	01	1	0211-0405		●
33	BRACKET; GOV,AIR CONT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48359-106-1	01	1	0406-		●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●	●	●	●
34	BOLT; BRKT,GOV M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
35	NUT; GOV TO FRAME M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
38	NUT; BRKT,GOV M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
93	CONNECTOR; GOV M12 & PT1/4 STRAIGHT	1-09650-074-1	02	1	0005-	●	●	●	●

54 59 15 60 54 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0005-0701	●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0702-0703	●		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0704-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0109	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	02	1	0005-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0110-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0704-				●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0005-	●		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	02	1	0005-		●		●
15	PLUG; VALVE (B)	1-09605-111-0	01	1	0005-0411				●
15	PLUG; VALVE (B) NPTF3/8-18	8-94231-272-1	01	1	0412-0805				●
15	PLUG; VALVE (B) NPTF3/8-18	8-97329-623-0	01	1	0806-				●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-	●	●		●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0005-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-		●		●
54	CONNECTOR; QUICK RELEASE VLV (C)	1-09650-327-1	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-991-0	01	1	0005-0006				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-961-0	01	1	0007-				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	08	1	0005-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0211-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	08	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0109-0512	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0211-0512	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-	●		●	●
59	BOLT; RELEASE VALVE FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0109-0111		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0112-0210		●		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	04	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●	●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0005-0111			●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	06	1	0005-0108	●
60	NUT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	06	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0109-0111	●	●	●	●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0112-0210	●		●	●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0112-0210		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
60	NUT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	02	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0109-0602	●			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0005-0108				●

17 15 47 67 18 59 62 47 47 54 15 45 67 6 54 19 114 66 63 59 13 66 19 19 54 13 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0008-0201		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512		●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	0005-0512	●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	0008-0512	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●

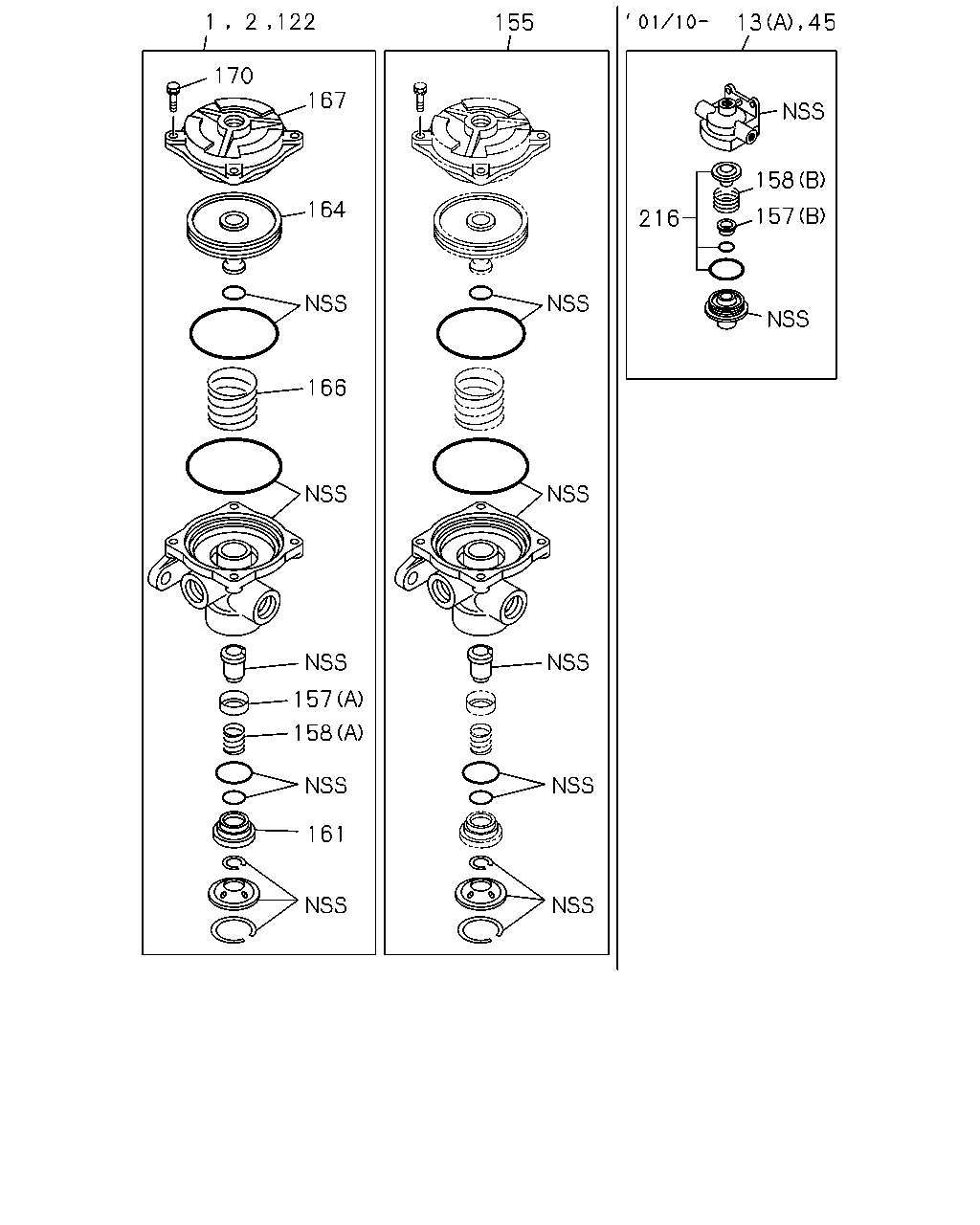

13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0005-0701	●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0702-0703	●		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0704-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0109	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	02	1	0005-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0110-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0704-				●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0005-	●		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	02	1	0005-		●		●
15	PLUG; VALVE (B)	1-09605-111-0	01	1	0005-0411				●
15	PLUG; VALVE (B) NPTF3/8-18	8-94231-272-1	01	1	0412-0805				●
15	PLUG; VALVE (B) NPTF3/8-18	8-97329-623-0	01	1	0806-				●
17	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●		●
17	BOLT; BRKT M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●
18	NUT; BRKT M8	9-09110-408-0	02	1	0005-0512		●		●
18	NUT; BRKT M8	0-91110-508-0	02	1	0601-		●		●
19	BRACKET; QUICK RELEASE VLV (B)	1-47477-518-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-153-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-154-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47477-518-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-153-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-154-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	04	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	02	1	0112-0210			●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	06	1	0211-			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	02	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	04	1	0112-0210			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 6300MM(63W) (A)	1-47465-885-1	06	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A)	1-47465-885-1	06	1	0112-0210			●
45	VALVE; QUICK RELEASE	1-48410-320-0	02	1	0005-0109	●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	02	1	0110-	●		●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109		●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-		●		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-	●
47	CONNECTOR; RELAY VLV,CONT (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-	●
47	CONNECTOR; RELAY VLV,CONT (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-		●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-		●		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-			●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-	●	●		●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0005-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-		●		●
54	CONNECTOR; QUICK RELEASE VLV (C)	1-09650-327-1	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-991-0	01	1	0005-0006				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-961-0	01	1	0007-				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	08	1	0005-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0211-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	08	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0109-0512	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0211-0512	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-	●		●	●
59	BOLT; RELEASE VALVE FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0109-0111		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0112-0210		●		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	04	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●	●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0005-0111			●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	04	1	0005-0512	●		●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	04	1	0601-	●		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-		●		●
63	NUT; BRKT FIX M8	9-09110-408-0	04	1	0005-0512	●		●
63	NUT; BRKT FIX M8	0-91110-508-0	04	1	0601-	●		●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0005-0512		●		●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-		●		●
66	BOLT; BRKT,RELAY VLV RR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●
66	BOLT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512		●
66	BOLT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0005-0207		●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512		●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
67	NUT; BRKT,RELAY VLV RR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
67	NUT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602		●
67	NUT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0005-0602		●		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-		●		●
114	NUT; VLV (A) M8 FLANGE	0-91150-108-0	08	1	0005-0602	●		●
114	NUT; VLV (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
114	NUT; VLV (B) M8	9-09110-408-0	02	1	0005-0512		●		●
114	NUT; VLV (B) M8	0-91110-508-0	02	1	0601-		●		●

105 103 104 99 99 29 29 104 224 29 274 274 274 274 103 224 29 29 105 29 25 29 29

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	SWITCH; PRESSURE (A)	1-82410-163-1	01	1	0005-	●	●	●	●
25	SWITCH; PRESSURE WHEEL BASE 6000MM(60W) (B) 530KPA	1-48340-054-1	01	1	0211-0405		●
25	SWITCH; PRESSURE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) 530KPA	1-48340-054-1	01	1	0406-		●
29	CONNECTOR; AIR VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210	●
29	CONNECTOR; AIR VLV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210		●
29	CONNECTOR; AIR VLV 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210		●
29	CONNECTOR; AIR VLV WHEEL BASE 5000MM(50W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-0210			●
29	CONNECTOR; AIR VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0211-0302	●
29	CONNECTOR; AIR VLV WHEEL BASE 5000MM(50W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0211-0302			●
29	CONNECTOR; AIR VLV (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0303-	●
29	CONNECTOR; AIR VLV WHEEL BASE 4200MM(42W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0303-		●
29	CONNECTOR; AIR VLV WHEEL BASE 5000MM(50W) (D) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0303-			●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-0210	●
29	CONNECTOR; AIR VLV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-0210		●
29	CONNECTOR; AIR VLV 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-0210		●
29	CONNECTOR; AIR VLV WHEEL BASE 5000MM(50W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0005-0210			●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0211-0302	●
29	CONNECTOR; AIR VLV WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0211-0302		●
29	CONNECTOR; AIR VLV WHEEL BASE 5000MM(50W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0211-0302			●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0303-0405	●	●
29	CONNECTOR; AIR VLV WHEEL BASE 5000MM(50W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0303-0405			●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0406-	●
29	CONNECTOR; AIR VLV 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0406-		●
29	CONNECTOR; AIR VLV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0406-		●
29	CONNECTOR; AIR VLV WHEEL BASE 5000MM(50W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	03	1	0406-			●
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●		●	●
29	CONNECTOR; AIR VLV 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210		●
29	CONNECTOR; AIR VLV 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210		●
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-0302	●		●	●
29	CONNECTOR; AIR VLV (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0303-	●		●	●
29	CONNECTOR; AIR VLV 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0303-		●
29	CONNECTOR; AIR VLV WHEEL BASE 6000MM(60W) (E)	1-09661-027-0	01	1	0211-0405		●
29	CONNECTOR; AIR VLV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (E)	1-09661-027-0	01	1	0406-		●
29	CONNECTOR; AIR VLV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-0111		●
29	CONNECTOR; AIR VLV WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-0111		●
29	CONNECTOR; AIR VLV WHEEL BASE 6300MM(63W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-0111			●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0005-0111				●
29	CONNECTOR; AIR VLV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0112-0210		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0112-0210		●
29	CONNECTOR; AIR VLV WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0112-0210			●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0112-0210				●
29	CONNECTOR; AIR VLV WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0211-			●
29	CONNECTOR; AIR VLV (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	04	1	0211-				●
29	CONNECTOR; AIR VLV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0005		●
29	CONNECTOR; AIR VLV 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0210		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0005-0210		●
29	CONNECTOR; AIR VLV WHEEL BASE 6000MM(60W) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0211-0405		●
29	CONNECTOR; AIR VLV WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0406-		●
29	CONNECTOR; AIR VLV 6SD1 TCN ENG(31L) (A)	1-09661-207-0	01	1	0005-0005		●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0005-0210	●		●	●
99	VALVE; PROTECTION 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-48110-135-5	01	1	0005-0210		●
99	VALVE; PROTECTION 6SD1 TCN ENG(31L)	1-48110-135-5	01	1	0005-0210		●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0211-0405	●		●	●
99	VALVE; PROTECTION WHEEL BASE 6000MM(60W)	1-48110-135-5	01	1	0211-0405		●
99	VALVE; PROTECTION	1-48110-135-5	01	1	0406-	●		●	●
99	VALVE; PROTECTION WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48110-135-5	01	1	0406-		●
99	VALVE; PROTECTION 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48110-113-5	01	1	0005-0210		●
99	VALVE; PROTECTION 6HH1 STD ENG(65L)	1-48110-113-5	01	1	0005-0210		●
99	VALVE; PROTECTION WHEEL BASE 4200MM(42W)	1-48110-113-5	01	1	0303-		●
103	BRACKET; PROTECTION VALVE (A)	1-47477-860-0	01	1	0005-0210	●		●	●
103	BRACKET; PROTECTION VALVE 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A)	1-47477-860-0	01	1	0005-0210		●
103	BRACKET; PROTECTION VALVE 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) (A)	1-47477-860-0	01	1	0005-0210		●
103	BRACKET; PROTECTION VALVE (A)	1-47477-860-0	01	1	0211-0302	●		●	●
103	BRACKET; PROTECTION VALVE (A)	1-47477-860-0	01	1	0303-	●		●	●
103	BRACKET; PROTECTION VALVE 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A)	1-47477-860-0	01	1	0303-		●
103	BRACKET; PROTECTION VALVE 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-47478-694-0	01	1	0005-0210		●
103	BRACKET; PROTECTION VALVE 6SD1 TCN ENG(31L) (B)	1-47478-694-0	01	1	0005-0210		●
103	BRACKET; PROTECTION VALVE WHEEL BASE 6000MM(60W) (B)	1-47478-694-0	01	1	0211-0405		●
103	BRACKET; PROTECTION VALVE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-47478-694-0	01	1	0406-		●
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28680-835-0	02	1	0005-0512	●	●	●	●
104	BOLT; BRKT,VALVE M8X35 FLANGE	0-28650-835-0	02	1	0601-	●	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91150-108-0	02	1	0005-0602	●	●	●	●
105	NUT; BRKT,VALVE M8 FLANGE	0-91180-108-0	02	1	0603-	●	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91150-108-0	03	1	0005-0602	●	●	●	●
224	NUT; PROTECTION VALVE M8 FLANGE	0-91180-108-0	03	1	0603-	●	●	●	●
274	COVER; DUST	1-48119-450-0	02	1	0211-0302	●		●	●
274	COVER; DUST WHEEL BASE 6000MM(60W)	1-48119-450-0	02	1	0211-0302		●
274	COVER; DUST	1-48119-450-0	02	1	0303-0405	●	●	●	●
274	COVER; DUST	1-48119-450-0	02	1	0406-	●		●	●
274	COVER; DUST 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48119-450-0	02	1	0406-		●
274	COVER; DUST WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48119-450-0	02	1	0406-		●

2 122 1 155 13 45 170 167 158 164 157 216 166 157 158 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; RELAY RWD RR	1-48210-755-0	01	1	0005-0005	●
1	VALVE; RELAY RWD RR WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0005			●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5900MM(59W)	1-48210-755-0	03	1	0112-0210			●
2	VALVE; RELAY WHEEL BASE 6300MM(63W)	1-48210-755-0	02	1	0005-0210			●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0005-0701	●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0702-0703	●		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0704-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0109	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	02	1	0005-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0110-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0704-				●
45	VALVE; QUICK RELEASE	1-48410-320-0	02	1	0005-0109	●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	02	1	0110-	●		●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109		●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-		●		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0005		●		●
122	VALVE ASM; CONT,WHEEL PARKING WHEEL BASE 6300MM(63W)	1-48210-755-0	01	1	0005-0005			●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0006-	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0005-0210	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0005-0210	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0005-0210	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0005-0210	●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 5000MM(50W)	1-85576-033-0	01	1	0005-0210			●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 5000MM(50W)	1-85576-033-0	01	1	0005-0210			●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 5000MM(50W)	1-85576-033-0	01	1	0005-0210			●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0005-0210		●		●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0211-	●	●	●	●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	01	1	0211-	●		●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 5900MM(59W)	1-85576-033-0	04	1	0112-0210			●
155	REPAIR KIT; RELAY VALVE WHEEL BASE 6300MM(63W)	1-85576-033-0	03	1	0005-0210			●
155	REPAIR KIT; RELAY VALVE	1-85576-033-0	02	1	0211-	●	●	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0211-	●		●
157	RETAINER; VALVE (B)	1-48419-020-0	01	1	0211-		●		●
157	RETAINER; VALVE (B)	1-48419-020-0	02	1	0211-		●		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0210	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0210	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0210	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0005-0210	●
157	RETAINER; VALVE WHEEL BASE 5000MM(50W) (A)	1-48213-002-0	01	1	0005-0210			●
157	RETAINER; VALVE WHEEL BASE 5000MM(50W) (A)	1-48213-002-0	01	1	0005-0210			●
157	RETAINER; VALVE WHEEL BASE 5000MM(50W) (A)	1-48213-002-0	01	1	0005-0210			●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0005-0210		●		●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●	●	●	●
157	RETAINER; VALVE (A)	1-48213-002-0	01	1	0211-	●		●
157	RETAINER; VALVE WHEEL BASE 5900MM(59W) (A)	1-48213-002-0	04	1	0112-0210			●
157	RETAINER; VALVE WHEEL BASE 6300MM(63W) (A)	1-48213-002-0	03	1	0005-0210			●
157	RETAINER; VALVE (A)	1-48213-002-0	02	1	0211-	●	●	●	●
157	RETAINER; VALVE (B)	1-48419-020-0	06	1	0110-0210	●		●
157	RETAINER; VALVE (B)	1-48419-020-0	03	1	0110-0210		●		●
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0211-	●		●
158	SPRING; VALVE (B)	9-48419-003-0	01	1	0211-		●		●
158	SPRING; VALVE (B)	9-48419-003-0	02	1	0211-		●		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0210	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0210	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0210	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0005-0210	●
158	SPRING; VALVE WHEEL BASE 5000MM(50W) (A)	1-47819-089-0	01	1	0005-0210			●
158	SPRING; VALVE WHEEL BASE 5000MM(50W) (A)	1-47819-089-0	01	1	0005-0210			●
158	SPRING; VALVE WHEEL BASE 5000MM(50W) (A)	1-47819-089-0	01	1	0005-0210			●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0005-0210		●		●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●	●	●	●
158	SPRING; VALVE (A)	1-47819-089-0	01	1	0211-	●		●
158	SPRING; VALVE WHEEL BASE 5900MM(59W) (A)	1-47819-089-0	04	1	0112-0210			●
158	SPRING; VALVE WHEEL BASE 6300MM(63W) (A)	1-47819-089-0	03	1	0005-0210			●
158	SPRING; VALVE (A)	1-47819-089-0	02	1	0211-	●	●	●	●
158	SPRING; VALVE (B)	9-48419-003-0	06	1	0110-0210	●		●
158	SPRING; VALVE (B)	9-48419-003-0	03	1	0110-0210		●		●
161	GUIDE; VALVE	1-48129-014-0	01	1	0005-0210	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0005-0210	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0005-0210	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0005-0210	●
161	GUIDE; VALVE WHEEL BASE 5000MM(50W)	1-48129-014-0	01	1	0005-0210			●
161	GUIDE; VALVE WHEEL BASE 5000MM(50W)	1-48129-014-0	01	1	0005-0210			●
161	GUIDE; VALVE WHEEL BASE 5000MM(50W)	1-48129-014-0	01	1	0005-0210			●
161	GUIDE; VALVE	1-48129-014-0	02	1	0005-0210		●		●
161	GUIDE; VALVE	1-48129-014-0	01	1	0211-	●	●	●	●
161	GUIDE; VALVE	1-48129-014-0	01	1	0211-	●		●
161	GUIDE; VALVE WHEEL BASE 5900MM(59W)	1-48129-014-0	04	1	0112-0210			●
161	GUIDE; VALVE WHEEL BASE 6300MM(63W)	1-48129-014-0	03	1	0005-0210			●
161	GUIDE; VALVE	1-48129-014-0	02	1	0211-	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0005-0210	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0005-0210	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0005-0210	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0005-0210	●
164	PISTON; RELAY VALVE WHEEL BASE 5000MM(50W)	1-48219-071-0	01	1	0005-0210			●
164	PISTON; RELAY VALVE WHEEL BASE 5000MM(50W)	1-48219-071-0	01	1	0005-0210			●
164	PISTON; RELAY VALVE WHEEL BASE 5000MM(50W)	1-48219-071-0	01	1	0005-0210			●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0005-0210		●		●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0211-	●	●	●	●
164	PISTON; RELAY VALVE	1-48219-071-0	01	1	0211-	●		●
164	PISTON; RELAY VALVE WHEEL BASE 5900MM(59W)	1-48219-071-0	04	1	0112-0210			●
164	PISTON; RELAY VALVE WHEEL BASE 6300MM(63W)	1-48219-071-0	03	1	0005-0210			●
164	PISTON; RELAY VALVE	1-48219-071-0	02	1	0211-	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0005-0210	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0005-0210	●
166	SPRING; PISTON	1-47819-090-0	01	1	0005-0210	●
166	SPRING; PISTON	1-47819-090-0	01	1	0005-0210	●
166	SPRING; PISTON WHEEL BASE 5000MM(50W)	1-47819-090-0	01	1	0005-0210			●
166	SPRING; PISTON WHEEL BASE 5000MM(50W)	1-47819-090-0	01	1	0005-0210			●
166	SPRING; PISTON WHEEL BASE 5000MM(50W)	1-47819-090-0	01	1	0005-0210			●
166	SPRING; PISTON	1-47819-090-0	02	1	0005-0210		●		●
166	SPRING; PISTON	1-47819-090-0	01	1	0211-	●	●	●	●
166	SPRING; PISTON	1-47819-090-0	01	1	0211-	●		●
166	SPRING; PISTON WHEEL BASE 5900MM(59W)	1-47819-090-0	04	1	0112-0210			●
166	SPRING; PISTON WHEEL BASE 6300MM(63W)	1-47819-090-0	03	1	0005-0210			●
166	SPRING; PISTON	1-47819-090-0	02	1	0211-	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0005-0210	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0005-0210	●
167	COVER; VALVE	1-48219-070-0	01	1	0005-0210	●
167	COVER; VALVE	1-48219-070-0	01	1	0005-0210	●
167	COVER; VALVE WHEEL BASE 5000MM(50W)	1-48219-070-0	01	1	0005-0210			●
167	COVER; VALVE WHEEL BASE 5000MM(50W)	1-48219-070-0	01	1	0005-0210			●
167	COVER; VALVE WHEEL BASE 5000MM(50W)	1-48219-070-0	01	1	0005-0210			●
167	COVER; VALVE	1-48219-070-0	02	1	0005-0210		●		●
167	COVER; VALVE	1-48219-070-0	01	1	0211-	●	●	●	●
167	COVER; VALVE	1-48219-070-0	01	1	0211-	●		●
167	COVER; VALVE WHEEL BASE 5900MM(59W)	1-48219-070-0	04	1	0112-0210			●
167	COVER; VALVE WHEEL BASE 6300MM(63W)	1-48219-070-0	03	1	0005-0210			●
167	COVER; VALVE	1-48219-070-0	02	1	0211-	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0005-0210	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0005-0210	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0005-0210	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0005-0210	●
170	SCREW; COVER TO BODY WHEEL BASE 5000MM(50W)	1-48219-039-0	04	1	0005-0210			●
170	SCREW; COVER TO BODY WHEEL BASE 5000MM(50W)	1-48219-039-0	04	1	0005-0210			●
170	SCREW; COVER TO BODY WHEEL BASE 5000MM(50W)	1-48219-039-0	04	1	0005-0210			●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0005-0210		●		●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0211-	●	●	●	●
170	SCREW; COVER TO BODY	1-48219-039-0	04	1	0211-	●		●
170	SCREW; COVER TO BODY WHEEL BASE 5900MM(59W)	1-48219-039-0	16	1	0112-0210			●
170	SCREW; COVER TO BODY WHEEL BASE 6300MM(63W)	1-48219-039-0	12	1	0005-0210			●
170	SCREW; COVER TO BODY	1-48219-039-0	08	1	0211-	●	●	●	●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	06	1	0211-	●		●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	01	1	0211-		●		●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	02	1	0211-		●		●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	06	1	0110-0210	●		●
216	REPAIR KIT; QUICK RELEASE VLV	1-85576-235-0	03	1	0110-0210		●		●

108 54 54 59 13 54 60 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0005-0701	●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0702-0703	●		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0704-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0109	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	02	1	0005-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0110-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0704-				●
54	CONNECTOR; QUICK RELEASE VLV (A) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-	●	●		●
54	CONNECTOR; QUICK RELEASE VLV (F)	1-09660-968-0	01	1	0005-	●		●	●
54	CONNECTOR; QUICK RELEASE VLV (B) M20 & PT3/8 ELBOW	1-09660-684-0	02	1	0005-		●		●
54	CONNECTOR; QUICK RELEASE VLV (C)	1-09650-327-1	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (D) M16 & NPTF3/8 ELBOW	1-09650-447-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (E) DIN12 & NPTF3/8 ELBOW	1-09660-962-0	01	1	0005-				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-991-0	01	1	0005-0006				●
54	CONNECTOR; QUICK RELEASE VLV (G)	1-09660-961-0	01	1	0007-				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	08	1	0005-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0211-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	08	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0109-0512	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0211-0512	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-	●		●	●
59	BOLT; RELEASE VALVE FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0109-0111		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0112-0210		●		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	04	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●	●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0005-0111			●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	06	1	0005-0108	●
60	NUT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	06	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0109-0111	●	●	●	●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0112-0210	●		●	●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0112-0210		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	02	1	0211-0602	●		●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0211-0602		●		●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	02	1	0603-	●		●
60	NUT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8 FLANGE	0-91180-108-0	02	1	0603-		●		●
60	NUT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	02	1	0005-0108			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0109-0602	●			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91180-108-0	04	1	0603-	●			●
60	NUT; RELEASE VALVE FIX M8 FLANGE	0-91150-108-0	04	1	0005-0108				●
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0005-	●
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	0005-			●

108 47 59 59 63 114 6 62 19 19 45 47 108 47 13 15 108 59 15 6 19 114 13 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0008-0201		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512		●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	0005-0512	●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	0008-0512	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0005-0701	●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0702-0703	●		●	●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	01	1	0704-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	04	1	0005-0109	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	04	1	0110-	●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-320-0	02	1	0005-0109		●		●
13	VALVE ASM; QUICK RELEASE (A)	1-48410-659-0	02	1	0110-		●		●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	02	1	0005-0701				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-234-0	01	1	0702-0703				●
13	VALVE ASM; QUICK RELEASE (B)	1-48410-782-0	02	1	0704-				●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	04	1	0005-	●		●
15	PLUG; VALVE (A) PT3/8	9-09204-517-0	02	1	0005-		●		●
15	PLUG; VALVE (B)	1-09605-111-0	01	1	0005-0411				●
15	PLUG; VALVE (B) NPTF3/8-18	8-94231-272-1	01	1	0412-0805				●
15	PLUG; VALVE (B) NPTF3/8-18	8-97329-623-0	01	1	0806-				●
19	BRACKET; QUICK RELEASE VLV (B)	1-47477-518-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-153-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-154-0	02	1	0005-	●
19	BRACKET; QUICK RELEASE VLV (B)	1-47477-518-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-153-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV (A)	1-48495-154-0	01	1	0005-		●		●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	04	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	02	1	0112-0210			●
19	BRACKET; QUICK RELEASE VLV (A)	1-47465-885-1	06	1	0211-			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	02	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5000MM(50W) (A)	1-47465-885-1	04	1	0112-0210			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 6300MM(63W) (A)	1-47465-885-1	06	1	0005-0111			●
19	BRACKET; QUICK RELEASE VLV WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A)	1-47465-885-1	06	1	0112-0210			●
45	VALVE; QUICK RELEASE	1-48410-320-0	02	1	0005-0109	●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	02	1	0110-	●		●
45	VALVE; QUICK RELEASE	1-48410-320-0	01	1	0005-0109		●		●
45	VALVE; QUICK RELEASE	1-48410-659-0	01	1	0110-		●		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-	●
47	CONNECTOR; RELAY VLV,CONT (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-	●
47	CONNECTOR; RELAY VLV,CONT (C) DIN12 & R3/8 STRAIGHT	1-09660-965-0	02	1	0005-		●	●	●
47	CONNECTOR; RELAY VLV,CONT (B) M20 & PT3/8 ELBOW	1-09660-684-0	01	1	0005-		●		●
47	CONNECTOR; RELAY VLV,CONT (A) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0005-0210	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	08	1	0005-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	08	1	0211-0512	●		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	08	1	0601-	●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0005-0108	●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0108			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	04	1	0109-0512	●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0005-0210	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28080-830-0	02	1	0211-0512	●		●	●
59	BOLT; RELEASE VALVE FIX M8X30 FLANGE	0-28050-830-0	02	1	0601-	●		●	●
59	BOLT; RELEASE VALVE FIX 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X20 FLANGE	0-28080-820-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X16 FLANGE	0-28080-816-0	02	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0109-0111		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0112-0210		●		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5000MM(50W) M8X16 FLANGE	0-28080-816-0	04	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512		●	●	●
59	BOLT; RELEASE VALVE FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-		●	●	●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28080-825-0	04	1	0005-0108		●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0005-0111			●
59	BOLT; RELEASE VALVE FIX WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M8X16 FLANGE	0-28080-816-0	12	1	0112-0210			●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	06	1	0005-0108				●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0109-0210				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28680-825-0	02	1	0211-0512				●
59	BOLT; RELEASE VALVE FIX 6SD1 TCN ENG(31L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●		●
59	BOLT; RELEASE VALVE FIX M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28080-820-0	04	1	0005-0512	●		●
62	BOLT; BRKT FIX M8X20 FLANGE	0-28050-820-0	04	1	0601-	●		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28080-825-0	02	1	0005-0512		●		●
62	BOLT; BRKT FIX M8X25 FLANGE	0-28050-825-0	02	1	0601-		●		●
63	NUT; BRKT FIX M8	9-09110-408-0	04	1	0005-0512	●		●
63	NUT; BRKT FIX M8	0-91110-508-0	04	1	0601-	●		●
63	NUT; BRKT FIX M8	9-09110-408-0	02	1	0005-0512		●		●
63	NUT; BRKT FIX M8	0-91110-508-0	02	1	0601-		●		●
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0005-	●
108	CONNECTOR; ELBOW DIN12 & R3/8 ELBOW	1-09660-959-0	08	1	0005-			●
114	NUT; VLV (A) M8 FLANGE	0-91150-108-0	08	1	0005-0602	●		●
114	NUT; VLV (A) M8 FLANGE	0-91180-108-0	08	1	0603-	●		●
114	NUT; VLV (B) M8	9-09110-408-0	02	1	0005-0512		●		●
114	NUT; VLV (B) M8	0-91110-508-0	02	1	0601-		●		●

10 5 12 2 6 6 25 10 12 12 122 1 4 10 12 12 181 12 14 12 14 14 14 7 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	VALVE; RELAY RWD RR	1-48210-755-0	01	1	0005-0005	●
1	VALVE; RELAY RWD RR WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0005			●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5900MM(59W)	1-48210-755-0	03	1	0112-0210			●
2	VALVE; RELAY WHEEL BASE 6300MM(63W)	1-48210-755-0	02	1	0005-0210			●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0009	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0010-0210	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0010-0210	●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 5000MM(50W) M10X35 FLANGE	0-28681-035-0	02	1	0010-0210			●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 5000MM(50W) M10X35 FLANGE	0-28681-035-0	02	1	0010-0210			●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0211-0512	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0211-0512	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512		●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 6300MM(63W) M10X35 FLANGE	0-28681-035-0	04	1	0010-0111			●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M10X35 FLANGE	0-28681-035-0	04	1	0112-0210			●
5	NUT M10 FLANGE	0-91150-210-0	02	1	0005-0009	●
5	NUT M10 FLANGE	0-91150-210-0	02	1	0005-0009	●
5	NUT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91150-210-0	02	1	0005-0009			●
5	NUT WHEEL BASE 5000MM(50W) M10 FLANGE	0-91150-210-0	02	1	0005-0009			●
5	NUT M10 FLANGE	0-91150-210-0	04	1	0010-0602	●		●
5	NUT M10 FLANGE	0-91180-210-0	04	1	0603-	●		●
5	NUT WHEEL BASE 6300MM(63W) M10 FLANGE	0-91150-210-0	04	1	0005-0009			●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0008-0201		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512		●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	0005-0512	●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	0008-0512	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
10	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
10	CONNECTOR WHEEL BASE 5000MM(50W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
10	CONNECTOR WHEEL BASE 5000MM(50W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-		●		●
10	CONNECTOR WHEEL BASE 6300MM(63W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0111			●
10	CONNECTOR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0112-0210			●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0005-	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210			●
12	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210			●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0211-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0211-	●		●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (F)	1-09660-742-1	01	1	0005-0111			●
12	CONNECTOR; RELAY VLV WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0112-0210			●
12	CONNECTOR; RELAY VLV WHEEL BASE 6300MM(63W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0005-0111			●
12	CONNECTOR; RELAY VLV (F)	1-09660-742-1	01	1	0112-			●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-				●
14	CONNECTOR; RELAY VLV (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0005	●
14	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0005			●
14	CONNECTOR; RELAY VLV (A) PT1/2	1-09664-041-1	01	1	0005-0005	●
14	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (A) PT1/2	1-09664-041-1	01	1	0005-0005			●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●		●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0005-0005		●		●
14	CONNECTOR; RELAY VLV WHEEL BASE 6300MM(63W) (A)	1-09656-476-0	01	1	0005-0005			●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0006-	●	●	●	●
14	CONNECTOR; RELAY VLV WHEEL BASE 6300MM(63W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-0005			●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0006-	●		●
25	SWITCH; PRESSURE (A)	1-82410-163-1	01	1	0005-	●	●	●	●
25	SWITCH; PRESSURE WHEEL BASE 6000MM(60W) (B) 530KPA	1-48340-054-1	01	1	0211-0405		●
25	SWITCH; PRESSURE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) 530KPA	1-48340-054-1	01	1	0406-		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0005		●		●
122	VALVE ASM; CONT,WHEEL PARKING WHEEL BASE 6300MM(63W)	1-48210-755-0	01	1	0005-0005			●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0006-	●	●	●	●
181	ADAPTER; PRESSURE SW WHEEL BASE 6300MM(63W) DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0005-0005			●
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09661-097-0	01	1	0006-0007	●		●
181	ADAPTER; PRESSURE SW DIN12 & M20 STRAIGHT	1-09660-877-0	01	1	0008-	●		●

12 65 68 2 67 12 66 12 12 4 52 7 81 10 154 82 122 14 134 25 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●	●		●
2	VALVE; RELAY	1-48210-755-0	01	1	0005-0210	●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5000MM(50W)	1-48210-755-0	01	1	0005-0210			●
2	VALVE; RELAY WHEEL BASE 5900MM(59W)	1-48210-755-0	03	1	0112-0210			●
2	VALVE; RELAY WHEEL BASE 6300MM(63W)	1-48210-755-0	02	1	0005-0210			●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●	●	●	●
2	VALVE; RELAY	1-48210-755-0	01	1	0211-	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0009	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0010-0210	●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0010-0210	●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 5000MM(50W) M10X35 FLANGE	0-28681-035-0	02	1	0010-0210			●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 5000MM(50W) M10X35 FLANGE	0-28681-035-0	02	1	0010-0210			●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0211-0512	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	0211-0512	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28681-030-0	02	1	0005-0512		●		●
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 6300MM(63W) M10X35 FLANGE	0-28681-035-0	04	1	0010-0111			●
4	BOLT; RELAY VLV TO BRKT WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) M10X35 FLANGE	0-28681-035-0	04	1	0112-0210			●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0005-0007	●	●	●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0008-0201		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28681-030-0	02	1	0202-0512		●		●
6	BOLT; VLV (A) M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28680-825-0	08	1	0005-0512	●		●
6	BOLT; VLV (B) M8X25 FLANGE	0-28650-825-0	08	1	0601-	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28681-035-0	02	1	0008-0512	●		●
6	BOLT; VLV (D) M10X35 FLANGE	0-28651-035-0	02	1	0601-	●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●		●
6	BOLT; VLV (C) M8X20 FLANGE	0-28050-820-0	02	1	0601-		●		●
7	NUT; RELAY VLV M10 FLANGE	0-91150-210-0	02	1	0005-0602	●	●	●	●
7	NUT; RELAY VLV M10 FLANGE	0-91180-210-0	02	1	0603-	●	●	●	●
10	CONNECTOR (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●	●	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210	●
10	CONNECTOR WHEEL BASE 5000MM(50W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
10	CONNECTOR WHEEL BASE 5000MM(50W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-0210			●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●
10	CONNECTOR (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0211-	●		●
10	CONNECTOR (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-		●		●
10	CONNECTOR WHEEL BASE 6300MM(63W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0005-0111			●
10	CONNECTOR WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	02	1	0112-0210			●
12	CONNECTOR; RELAY VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●	●
12	CONNECTOR; RELAY VLV (B) M16	1-09650-245-1	02	1	0005-	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●	●	●	●
12	CONNECTOR; RELAY VLV (E) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210	●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210	●
12	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210			●
12	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0005-0210			●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0211-	●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	0211-	●		●
12	CONNECTOR; RELAY VLV (F) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (C) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (D) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-		●		●
12	CONNECTOR; RELAY VLV (F)	1-09660-742-1	01	1	0005-0111			●
12	CONNECTOR; RELAY VLV WHEEL BASE 5900MM(59W),WHEEL BASE 6300MM(63W) (F) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0112-0210			●
12	CONNECTOR; RELAY VLV WHEEL BASE 6300MM(63W) (D) DIN12 & R1/2 ELBOW	1-09660-960-0	04	1	0005-0111			●
12	CONNECTOR; RELAY VLV (F)	1-09660-742-1	01	1	0112-			●
12	CONNECTOR; RELAY VLV (G) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0005-				●
14	CONNECTOR; RELAY VLV (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0005	●
14	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (D) DIN12X2 & R1/2 3WAY	1-09661-019-0	02	1	0005-0005			●
14	CONNECTOR; RELAY VLV (A) PT1/2	1-09664-041-1	01	1	0005-0005	●
14	CONNECTOR; RELAY VLV WHEEL BASE 5000MM(50W) (A) PT1/2	1-09664-041-1	01	1	0005-0005			●
14	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0005-	●		●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0005-0005		●		●
14	CONNECTOR; RELAY VLV WHEEL BASE 6300MM(63W) (A)	1-09656-476-0	01	1	0005-0005			●
14	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0006-	●	●	●	●
14	CONNECTOR; RELAY VLV WHEEL BASE 6300MM(63W) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0005-0005			●
14	CONNECTOR; RELAY VLV (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0006-	●		●
25	SWITCH; PRESSURE (A)	1-82410-163-1	01	1	0005-	●	●	●	●
25	SWITCH; PRESSURE WHEEL BASE 6000MM(60W) (B) 530KPA	1-48340-054-1	01	1	0211-0405		●
25	SWITCH; PRESSURE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) 530KPA	1-48340-054-1	01	1	0406-		●
52	CONNECTOR; RELAY VLV (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-	●		●	●
52	CONNECTOR; RELAY VLV 6SD1 TCN ENG(31L) (B) DIN12X2 & R1/2 3WAY	1-09661-019-0	01	1	0005-		●
52	CONNECTOR; RELAY VLV 6HE1 TC ENG(57L),6HH1 STD ENG(65L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0005-0210		●
52	CONNECTOR; RELAY VLV 6HK1 TCS ENG(80L) (C) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0303-		●
52	CONNECTOR; RELAY VLV (A)	1-09656-476-0	01	1	0005-		●		●
65	BRACKET; RELAY VLV RR	1-47477-964-0	01	1	0005-		●		●
66	BOLT; BRKT,RELAY VLV RR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●
66	BOLT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512		●
66	BOLT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
66	BOLT; BRKT,RELAY VLV RR M10X25 FLANGE	0-28681-025-0	02	1	0005-0207		●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28681-030-0	02	1	0208-0512		●		●
66	BOLT; BRKT,RELAY VLV RR M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
67	NUT; BRKT,RELAY VLV RR 6HE1 TC ENG(57L),6HH1 STD ENG(65L) M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
67	NUT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8 FLANGE	0-91150-108-0	02	1	0303-0602		●
67	NUT; BRKT,RELAY VLV RR 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-108-0	02	1	0603-		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91150-210-0	02	1	0005-0602		●		●
67	NUT; BRKT,RELAY VLV RR M10 FLANGE	0-91180-210-0	02	1	0603-		●		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602		●		●
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●		●
81	BRACKET; RELAY VLV,PARKING BRK	1-47477-964-0	01	1	0005-		●		●
82	BOLT; BRKT,RELAY VLV M10X25 FLANGE	0-28681-025-0	02	1	0005-0207		●		●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28681-030-0	02	1	0208-0512		●		●
82	BOLT; BRKT,RELAY VLV M10X30 FLANGE	0-28651-030-0	02	1	0601-		●		●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0005-0005		●		●
122	VALVE ASM; CONT,WHEEL PARKING WHEEL BASE 6300MM(63W)	1-48210-755-0	01	1	0005-0005			●
122	VALVE ASM; CONT,WHEEL PARKING	1-48210-755-0	01	1	0006-	●	●	●	●
134	PLUG; RELAY VALVE PT1/2	9-09204-521-0	01	1	0005-		●		●
154	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602		●		●
154	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-		●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
