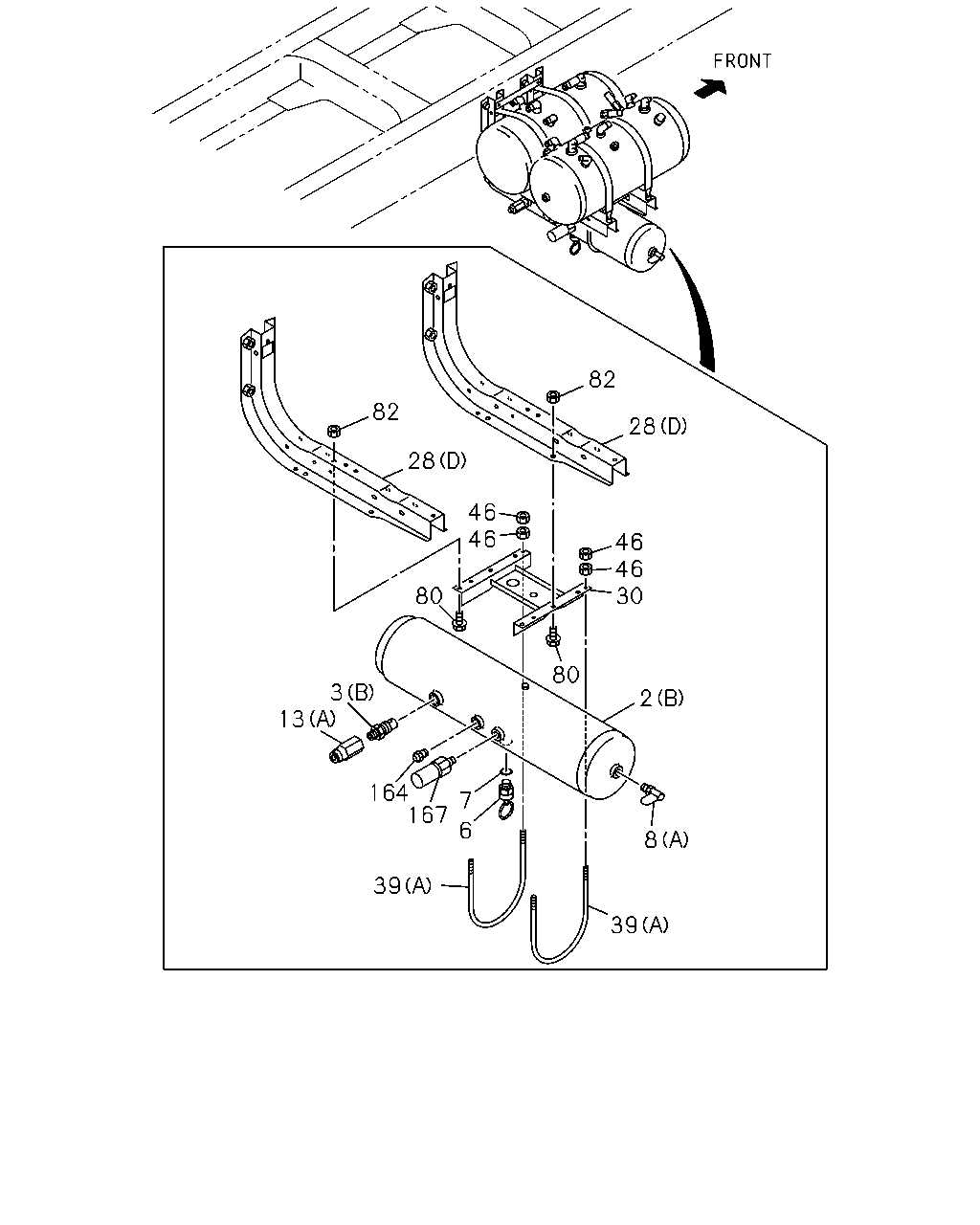

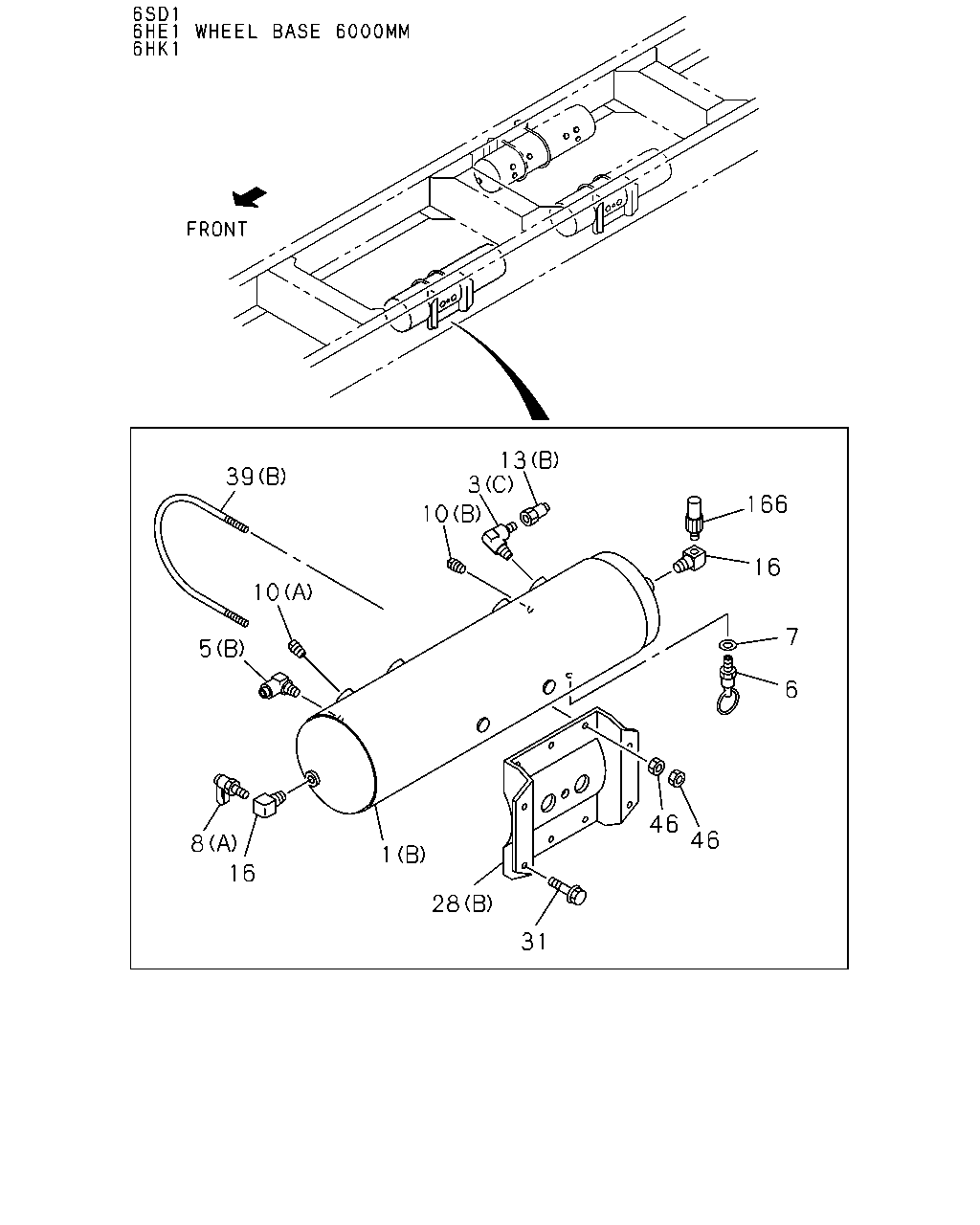

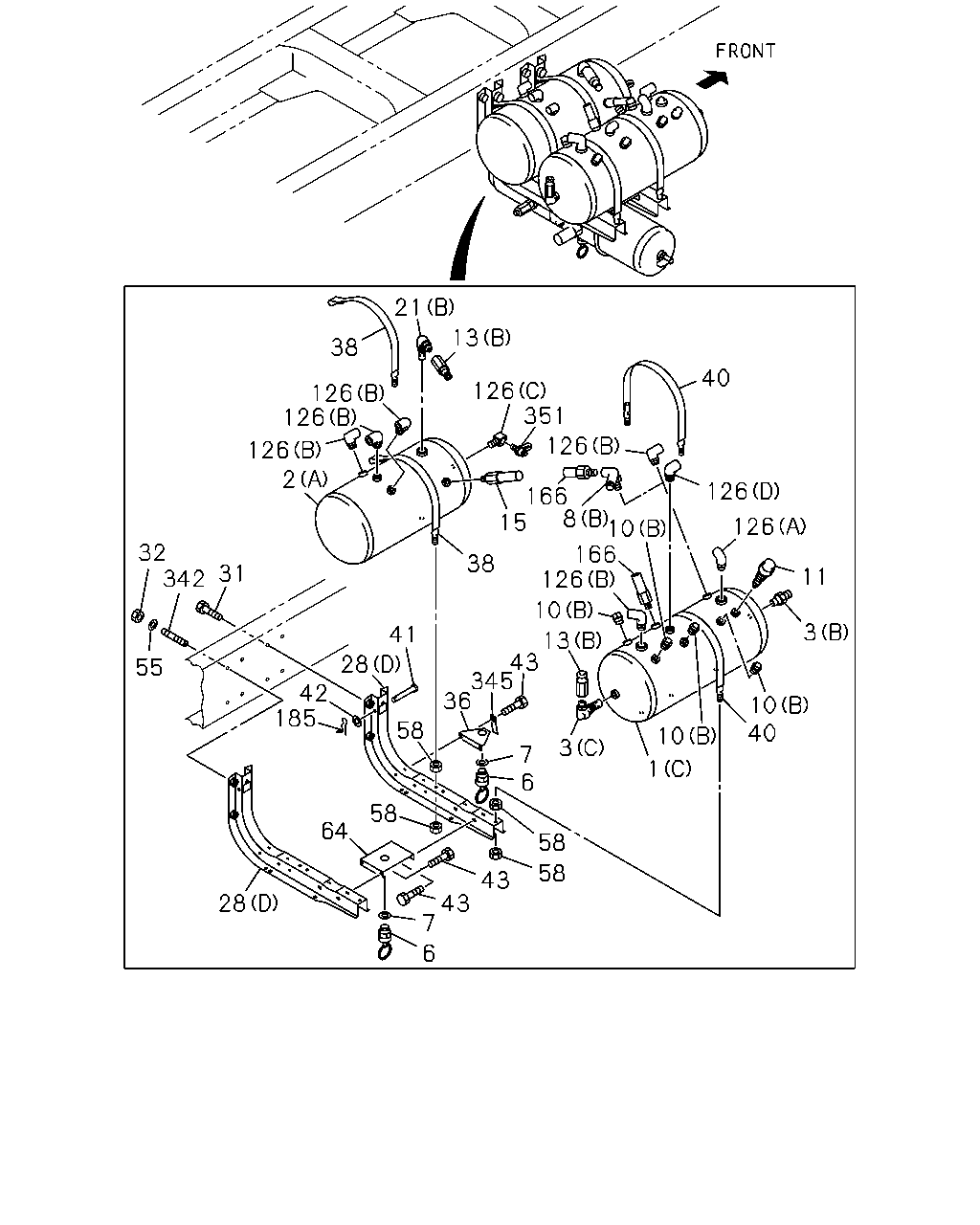

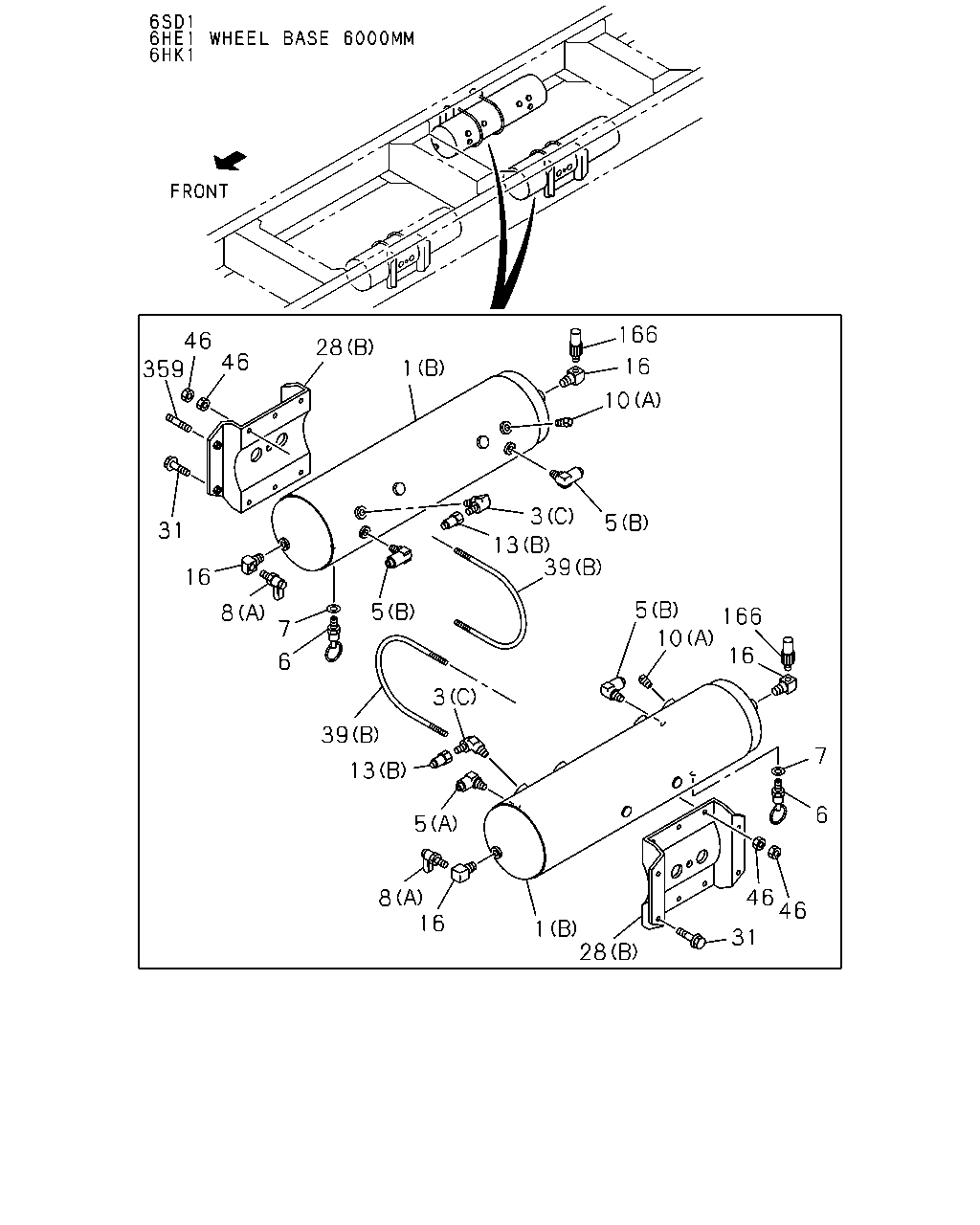

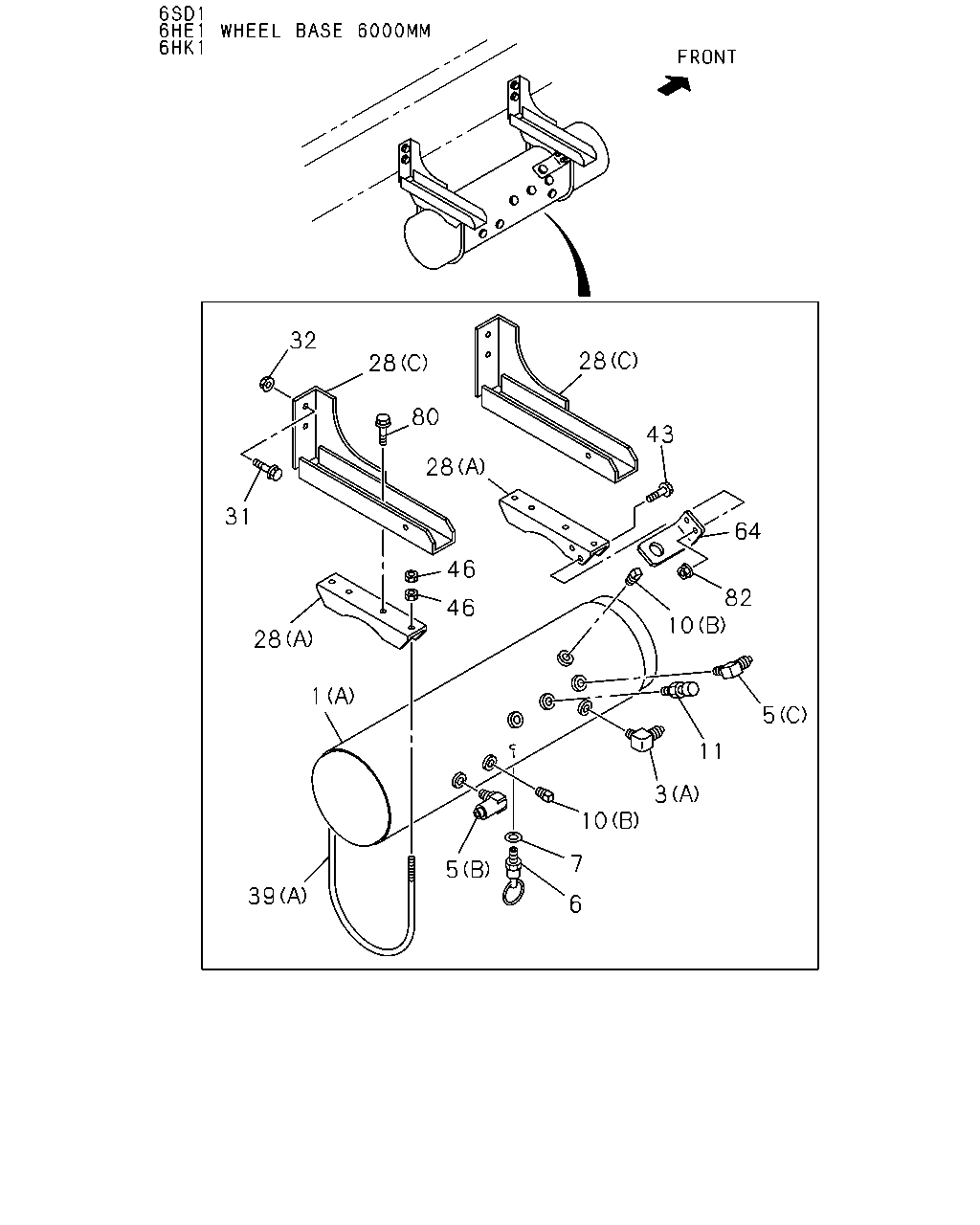

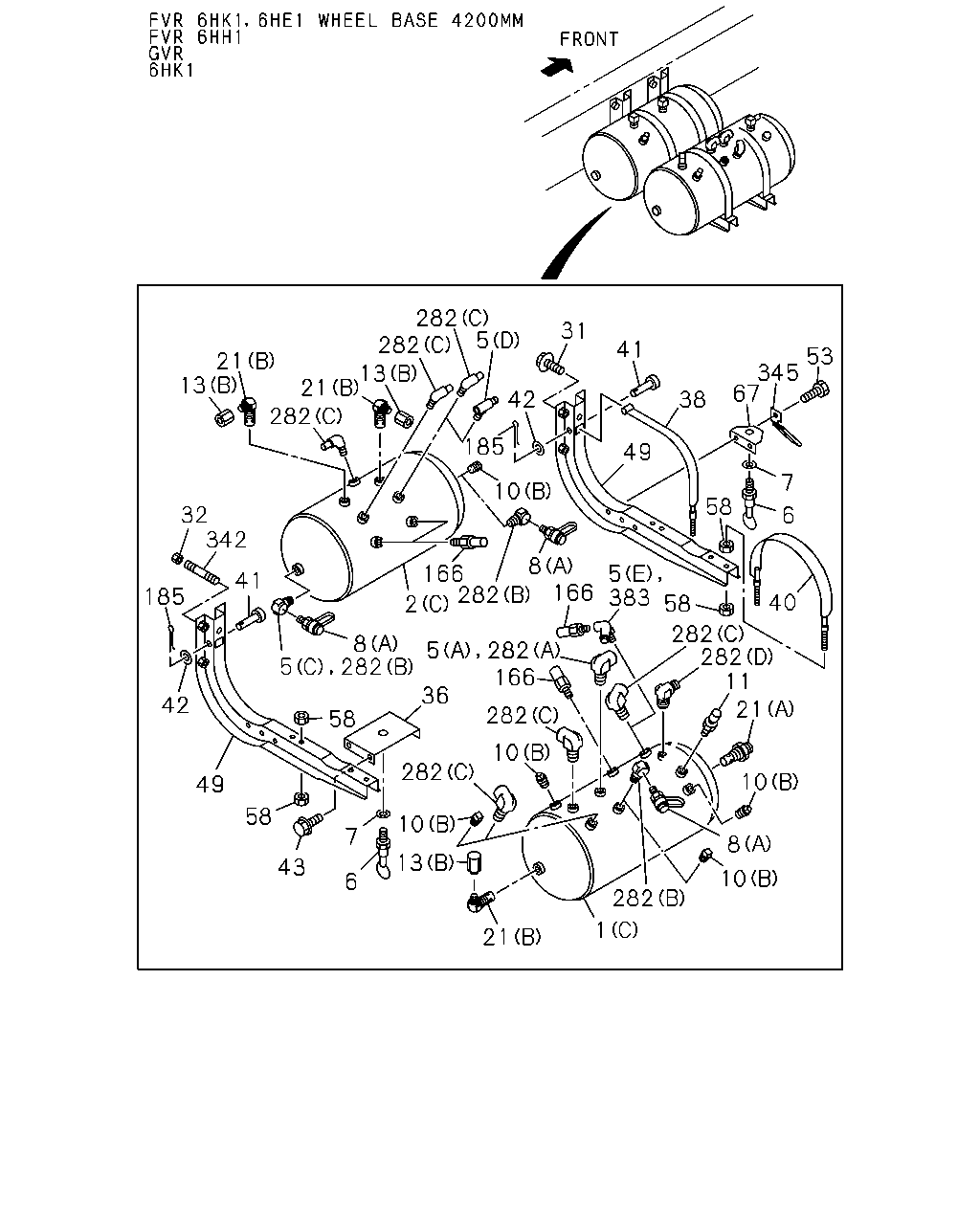

3-20 — AIR TANK (#8693) — 1147 parça

21 13 38 40 126 351 126 126 126 126 2 126 166 15 8 10 166 126 126 32 342 38 31 11 10 3 41 13 43 345 36 28 55 42 185 10 40 58 10 3 7 6 58 1 64 58 58 43 28 43 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0005-0210	●	●	●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR 6HH1 STD ENG(65L) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0211-0302	●	●	●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0303-	●	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0303-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48370-855-0	03	1	0406-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48370-856-0	01	1	0406-				●
2	TANK; AIR (A)	1-48370-857-0	01	1	0005-	●	●
2	TANK; AIR (B)	1-48370-858-0	01	1	0005-	●	●
2	TANK; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	01	1	0005-0210				●
2	TANK; AIR 6HH1 STD ENG(65L) (C)	1-48370-961-0	01	1	0005-0210				●
2	TANK; AIR (C)	1-48370-961-0	01	1	0005-0210			●
2	TANK; AIR (C)	1-48370-961-0	01	1	0211-0302			●
2	TANK; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	01	1	0303-				●
2	TANK; AIR (C)	1-48370-961-0	01	1	0303-			●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	02	1	0005-	●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-	●	●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0406-				●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0406-				●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-0405	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0406-	●	●	●
6	COCK; DRAIN,AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	0406-				●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48312-015-0	04	1	0406-				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-0210	●	●	●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK 6SD1 TCN ENG(31L) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0211-0405	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0211-0405				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0406-	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=14	1-09630-145-0	04	1	0406-				●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK 6HH1 STD ENG(65L) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0303-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK 6HH1 STD ENG(65L) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0211-0405				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0211-0405			●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-47459-013-1	03	1	0406-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	03	1	0406-			●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0005-0210			●
8	CONNECTOR; AIR TANK (B)	1-09661-233-0	01	1	0211-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 4200MM(42W) (A)	1-47459-013-1	02	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	04	1	0005-	●	●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK 6HH1 STD ENG(65L) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) PT3/8	9-09204-517-0	03	1	0406-				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) PT3/4	9-09204-526-0	03	1	0406-				●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0005-			●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●	●	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007			●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-0405			●	●
13	ADAPTER; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-			●
15	SWITCH; LOW PRESS,AIR TANK 530KPA	1-48340-054-1	01	1	0005-	●	●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-	●	●
21	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) M22 & PT3/4	1-48410-136-3	01	1	0005-0210				●
21	VALVE; CHECK,AIR TANK 6HH1 STD ENG(65L) (A) M22 & PT3/4	1-48410-136-3	01	1	0005-0210				●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0005-0210			●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0211-0302			●
21	VALVE; CHECK,AIR TANK WHEEL BASE 4200MM(42W) (A) M22 & PT3/4	1-48410-136-3	01	1	0303-				●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0303-			●
21	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
21	VALVE; CHECK,AIR TANK 6HH1 STD ENG(65L) (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210			●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0211-0302			●
21	VALVE; CHECK,AIR TANK WHEEL BASE 4200MM(42W) (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0303-				●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0303-			●
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	0005-	●	●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48317-324-2	02	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48317-441-0	03	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C)	1-48317-871-1	02	1	0406-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28681-240-0	04	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28651-240-0	04	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28681-035-0	06	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28651-035-0	06	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0303-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28651-240-0	07	1	0601-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	0202-0512			●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	08	1	0601-			●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	0005-0602	●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0005-0111				●
32	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0111				●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0112-0210				●
32	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12 FLANGE	0-91250-112-0	01	1	0112-0210				●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-110-0	06	1	0005-0210				●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10 FLANGE	0-91150-110-0	06	1	0005-0210				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-110-0	06	1	0211-0405				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE	0-91150-110-0	06	1	0406-0602				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE	0-91180-110-0	06	1	0603-				●
32	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0303-0602				●
32	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12 FLANGE	0-91280-112-0	01	1	0603-				●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12 FLANGE	0-91150-212-0	04	1	0005-0210				●
36	STAY; MAIN TANK	1-48317-691-0	01	1	0005-	●	●
36	STAY; MAIN TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-607-0	01	1	0005-0210				●
36	STAY; MAIN TANK 6HH1 STD ENG(65L)	1-48317-607-0	01	1	0005-0210				●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0005-0210			●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0211-0302			●
36	STAY; MAIN TANK WHEEL BASE 4200MM(42W)	1-48317-607-0	01	1	0303-				●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0303-			●
38	BAND; AIR TANK	1-48317-108-2	02	1	0005-0210	●	●	●
38	BAND; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-108-2	02	1	0005-0210				●
38	BAND; AIR TANK 6HH1 STD ENG(65L)	1-48317-108-2	02	1	0005-0210				●
38	BAND; AIR TANK	1-48317-108-2	02	1	0211-0302	●	●	●
38	BAND; AIR TANK	1-48317-108-2	02	1	0303-	●	●	●
38	BAND; AIR TANK WHEEL BASE 4200MM(42W)	1-48317-108-2	02	1	0303-				●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0005-0210	●	●	●
40	BAND ASM; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-109-2	02	1	0005-0210				●
40	BAND ASM; AIR TANK 6HH1 STD ENG(65L)	1-48317-109-2	02	1	0005-0210				●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0211-0302	●	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0303-	●	●	●
40	BAND ASM; AIR TANK WHEEL BASE 4200MM(42W)	1-48317-109-2	02	1	0303-				●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0210	●	●	●
41	PIN; BAND FIX 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) OD=10 L=60	9-08224-060-0	02	1	0005-0210				●
41	PIN; BAND FIX 6HH1 STD ENG(65L) OD=10 L=60	9-08224-060-0	02	1	0005-0210				●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0211-0302	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0303-0606	●	●	●
41	PIN; BAND FIX WHEEL BASE 4200MM(42W) OD=10 L=60	9-08224-060-0	02	1	0303-0606				●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●	●
41	PIN; BAND FIX WHEEL BASE 4200MM(42W) OD=10 L=60	0-82254-060-0	02	1	0607-				●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-0210	●	●	●
42	WASHER; PL 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=10.5	9-09164-510-0	02	1	0005-0210				●
42	WASHER; PL 6HH1 STD ENG(65L) ID=10.5	9-09164-510-0	02	1	0005-0210				●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0211-0302	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0303-	●	●	●
42	WASHER; PL WHEEL BASE 4200MM(42W) ID=10.5	9-09164-510-0	02	1	0303-				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0005-0210			●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0211-0302			●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	04	1	0303-0512				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0303-0512			●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	04	1	0601-				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
43	BOLT; STAY,AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	02	1	0211-0405				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
55	WASHER; PL,U-BOLT ID=12.5 T=5.8	8-94217-363-0	02	1	0609-	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0005-0210	●	●	●
58	NUT; BAND,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8	9-09110-408-0	12	1	0005-0210				●
58	NUT; BAND,AIR TANK 6HH1 STD ENG(65L) M8	9-09110-408-0	12	1	0005-0210				●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0211-0302	●	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0303-0512	●	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 4200MM(42W) M8	9-09110-408-0	12	1	0303-0512				●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-	●	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 4200MM(42W) M8	0-91110-508-0	12	1	0601-				●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	0005-	●	●
64	STAY; AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-48317-907-0	01	1	0005-0210				●
64	STAY; AIR TANK,MAIN 6SD1 TCN ENG(31L)	1-48317-907-0	01	1	0005-0210				●
64	STAY; AIR TANK,MAIN WHEEL BASE 6000MM(60W)	1-48317-907-0	01	1	0211-0405				●
64	STAY; AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48317-907-0	01	1	0406-				●
126	CONNECTOR; ELBOW (A) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-	●	●
126	CONNECTOR; ELBOW (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-	●	●
126	CONNECTOR; ELBOW (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210	●	●
126	CONNECTOR; ELBOW (B) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0211-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0005-0210	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	02	1	0211-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-0210			●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W) 530KPA	1-48340-054-1	03	1	0211-0405				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) 530KPA	1-48340-054-1	03	1	0406-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0211-0302			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4200MM(42W) 530KPA	1-48340-054-1	04	1	0303-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0303-			●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-0210	●	●	●
185	PIN; SNAP 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=32.6	1-09987-142-0	02	1	0005-0210				●
185	PIN; SNAP 6HH1 STD ENG(65L) L=32.6	1-09987-142-0	02	1	0005-0210				●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0211-0302	●	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0303-	●	●	●
185	PIN; SNAP WHEEL BASE 4200MM(42W) L=32.6	1-09987-142-0	02	1	0303-				●
342	STUD M12X40 L=64	9-94321-240-0	02	1	0005-0604	●	●
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-	●	●
342	STUD 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 L=64	9-94321-240-0	01	1	0005-0111				●
342	STUD 6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0111				●
342	STUD 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 L=64	9-94321-240-0	01	1	0112-0210				●
342	STUD 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12X40 L=64	9-94321-240-0	01	1	0112-0210				●
342	STUD WHEEL BASE 4200MM(42W) M12X40 L=64	9-94321-240-0	01	1	0303-0604				●
342	STUD WHEEL BASE 4200MM(42W) M12X40 L=64	0-43211-240-0	01	1	0605-				●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0210	●	●	●
345	CLIP; HARNESS 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=63	1-09700-418-1	01	1	0005-0210				●
345	CLIP; HARNESS 6HH1 STD ENG(65L) L=63	1-09700-418-1	01	1	0005-0210				●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0211-0302	●	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0303-0305	●	●	●
345	CLIP; HARNESS WHEEL BASE 4200MM(42W) L=63	1-09700-418-1	01	1	0303-0305				●
351	CONNECTOR; TEST	1-47459-013-1	01	1	0005-	●	●

282 5 282 31 41 53 345 67 21 13 13 21 42 38 282 185 49 7 10 58 32 342 6 8 166 166 282 2 5 383 41 185 40 58 282 282 11 21 8 5 282 166 36 42 282 58 10 282 10 49 58 10 7 8 13 43 10 6 282 1 21 5 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0005-0210	●	●	●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR 6HH1 STD ENG(65L) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0211-0302	●	●	●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0303-	●	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0303-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48370-855-0	03	1	0406-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48370-856-0	01	1	0406-				●
2	TANK; AIR (A)	1-48370-857-0	01	1	0005-	●	●
2	TANK; AIR (B)	1-48370-858-0	01	1	0005-	●	●
2	TANK; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	01	1	0005-0210				●
2	TANK; AIR 6HH1 STD ENG(65L) (C)	1-48370-961-0	01	1	0005-0210				●
2	TANK; AIR (C)	1-48370-961-0	01	1	0005-0210			●
2	TANK; AIR (C)	1-48370-961-0	01	1	0211-0302			●
2	TANK; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	01	1	0303-				●
2	TANK; AIR (C)	1-48370-961-0	01	1	0303-			●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302				●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405				●
5	UNION; AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (D)	1-09660-988-1	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (E)	1-09661-233-0	01	1	0303-				●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-0405	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0406-	●	●	●
6	COCK; DRAIN,AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	0406-				●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48312-015-0	04	1	0406-				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-0210	●	●	●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK 6SD1 TCN ENG(31L) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0211-0405	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0211-0405				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0406-	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=14	1-09630-145-0	04	1	0406-				●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK 6HH1 STD ENG(65L) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0303-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK 6HH1 STD ENG(65L) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0211-0405				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0211-0405			●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-47459-013-1	03	1	0406-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	03	1	0406-			●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0005-0210			●
8	CONNECTOR; AIR TANK (B)	1-09661-233-0	01	1	0211-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 4200MM(42W) (A)	1-47459-013-1	02	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	04	1	0005-	●	●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK 6HH1 STD ENG(65L) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) PT3/8	9-09204-517-0	03	1	0406-				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) PT3/4	9-09204-526-0	03	1	0406-				●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0005-			●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●	●	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007			●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-0405			●	●
13	ADAPTER; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-			●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-	●	●
21	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A) M22 & PT3/4	1-48410-136-3	01	1	0005-0210				●
21	VALVE; CHECK,AIR TANK 6HH1 STD ENG(65L) (A) M22 & PT3/4	1-48410-136-3	01	1	0005-0210				●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0005-0210			●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0211-0302			●
21	VALVE; CHECK,AIR TANK WHEEL BASE 4200MM(42W) (A) M22 & PT3/4	1-48410-136-3	01	1	0303-				●
21	VALVE; CHECK,AIR TANK (A) M22 & PT3/4	1-48410-136-3	01	1	0303-			●
21	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
21	VALVE; CHECK,AIR TANK 6HH1 STD ENG(65L) (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210			●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0211-0302			●
21	VALVE; CHECK,AIR TANK WHEEL BASE 4200MM(42W) (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0303-				●
21	VALVE; CHECK,AIR TANK (B) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0303-			●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28681-240-0	04	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28651-240-0	04	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28681-035-0	06	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28651-035-0	06	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0303-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28651-240-0	07	1	0601-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	0202-0512			●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	08	1	0601-			●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	0005-0602	●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0005-0111				●
32	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0111				●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0112-0210				●
32	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12 FLANGE	0-91250-112-0	01	1	0112-0210				●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-110-0	06	1	0005-0210				●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10 FLANGE	0-91150-110-0	06	1	0005-0210				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-110-0	06	1	0211-0405				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE	0-91150-110-0	06	1	0406-0602				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE	0-91180-110-0	06	1	0603-				●
32	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0303-0602				●
32	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12 FLANGE	0-91280-112-0	01	1	0603-				●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12 FLANGE	0-91150-212-0	04	1	0005-0210				●
36	STAY; MAIN TANK	1-48317-691-0	01	1	0005-	●	●
36	STAY; MAIN TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-607-0	01	1	0005-0210				●
36	STAY; MAIN TANK 6HH1 STD ENG(65L)	1-48317-607-0	01	1	0005-0210				●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0005-0210			●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0211-0302			●
36	STAY; MAIN TANK WHEEL BASE 4200MM(42W)	1-48317-607-0	01	1	0303-				●
36	STAY; MAIN TANK	1-48317-607-0	01	1	0303-			●
38	BAND; AIR TANK	1-48317-108-2	02	1	0005-0210	●	●	●
38	BAND; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-108-2	02	1	0005-0210				●
38	BAND; AIR TANK 6HH1 STD ENG(65L)	1-48317-108-2	02	1	0005-0210				●
38	BAND; AIR TANK	1-48317-108-2	02	1	0211-0302	●	●	●
38	BAND; AIR TANK	1-48317-108-2	02	1	0303-	●	●	●
38	BAND; AIR TANK WHEEL BASE 4200MM(42W)	1-48317-108-2	02	1	0303-				●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0005-0210	●	●	●
40	BAND ASM; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-109-2	02	1	0005-0210				●
40	BAND ASM; AIR TANK 6HH1 STD ENG(65L)	1-48317-109-2	02	1	0005-0210				●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0211-0302	●	●	●
40	BAND ASM; AIR TANK	1-48317-109-2	02	1	0303-	●	●	●
40	BAND ASM; AIR TANK WHEEL BASE 4200MM(42W)	1-48317-109-2	02	1	0303-				●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0005-0210	●	●	●
41	PIN; BAND FIX 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) OD=10 L=60	9-08224-060-0	02	1	0005-0210				●
41	PIN; BAND FIX 6HH1 STD ENG(65L) OD=10 L=60	9-08224-060-0	02	1	0005-0210				●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0211-0302	●	●	●
41	PIN; BAND FIX OD=10 L=60	9-08224-060-0	02	1	0303-0606	●	●	●
41	PIN; BAND FIX WHEEL BASE 4200MM(42W) OD=10 L=60	9-08224-060-0	02	1	0303-0606				●
41	PIN; BAND FIX OD=10 L=60	0-82254-060-0	02	1	0607-	●	●	●
41	PIN; BAND FIX WHEEL BASE 4200MM(42W) OD=10 L=60	0-82254-060-0	02	1	0607-				●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0005-0210	●	●	●
42	WASHER; PL 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=10.5	9-09164-510-0	02	1	0005-0210				●
42	WASHER; PL 6HH1 STD ENG(65L) ID=10.5	9-09164-510-0	02	1	0005-0210				●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0211-0302	●	●	●
42	WASHER; PL ID=10.5	9-09164-510-0	02	1	0303-	●	●	●
42	WASHER; PL WHEEL BASE 4200MM(42W) ID=10.5	9-09164-510-0	02	1	0303-				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0005-0210			●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0211-0302			●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	04	1	0303-0512				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0303-0512			●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	04	1	0601-				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
43	BOLT; STAY,AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	02	1	0211-0405				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
49	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-601-5	02	1	0005-0210				●
49	BRACKET; AIR TANK 6HH1 STD ENG(65L)	1-48317-601-5	02	1	0005-0210				●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0005-0210			●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0211-0302			●
49	BRACKET; AIR TANK WHEEL BASE 4200MM(42W)	1-48317-601-5	02	1	0303-				●
49	BRACKET; AIR TANK	1-48317-601-5	02	1	0303-			●
53	BOLT; STAY,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210				●
53	BOLT; STAY,AIR TANK 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210				●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0005-0210			●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0211-0302			●
53	BOLT; STAY,AIR TANK WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	02	1	0303-0512				●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28680-825-0	02	1	0303-0512			●
53	BOLT; STAY,AIR TANK WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	02	1	0601-				●
53	BOLT; STAY,AIR TANK M8X25 FLANGE	0-28650-825-0	02	1	0601-			●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0005-0210	●	●	●
58	NUT; BAND,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8	9-09110-408-0	12	1	0005-0210				●
58	NUT; BAND,AIR TANK 6HH1 STD ENG(65L) M8	9-09110-408-0	12	1	0005-0210				●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0211-0302	●	●	●
58	NUT; BAND,AIR TANK M8	9-09110-408-0	12	1	0303-0512	●	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 4200MM(42W) M8	9-09110-408-0	12	1	0303-0512				●
58	NUT; BAND,AIR TANK M8	0-91110-508-0	12	1	0601-	●	●	●
58	NUT; BAND,AIR TANK WHEEL BASE 4200MM(42W) M8	0-91110-508-0	12	1	0601-				●
67	STAY; SUB TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W)	1-48317-691-0	01	1	0005-0210				●
67	STAY; SUB TANK 6HH1 STD ENG(65L)	1-48317-691-0	01	1	0005-0210				●
67	STAY; SUB TANK	1-48317-691-0	01	1	0005-0210			●
67	STAY; SUB TANK	1-48317-691-0	01	1	0211-0302			●
67	STAY; SUB TANK WHEEL BASE 4200MM(42W)	1-48317-691-0	01	1	0303-				●
67	STAY; SUB TANK	1-48317-691-0	01	1	0303-			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0005-0210	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	02	1	0211-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-0210			●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W) 530KPA	1-48340-054-1	03	1	0211-0405				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) 530KPA	1-48340-054-1	03	1	0406-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0211-0302			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4200MM(42W) 530KPA	1-48340-054-1	04	1	0303-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0303-			●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0005-0210	●	●	●
185	PIN; SNAP 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=32.6	1-09987-142-0	02	1	0005-0210				●
185	PIN; SNAP 6HH1 STD ENG(65L) L=32.6	1-09987-142-0	02	1	0005-0210				●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0211-0302	●	●	●
185	PIN; SNAP L=32.6	1-09987-142-0	02	1	0303-	●	●	●
185	PIN; SNAP WHEEL BASE 4200MM(42W) L=32.6	1-09987-142-0	02	1	0303-				●
282	UNION; 2 WAY 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
282	UNION; 2 WAY 6HH1 STD ENG(65L) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210			●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-0302			●
282	UNION; 2 WAY WHEEL BASE 4200MM(42W) (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0303-				●
282	UNION; 2 WAY (D) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0303-			●
282	UNION; 2 WAY 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-0210				●
282	UNION; 2 WAY 6HH1 STD ENG(65L) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	04	1	0005-0210				●
282	UNION; 2 WAY WHEEL BASE 4200MM(42W) (C) DIN12 & R3/8 ELBOW	1-09660-959-0	03	1	0303-				●
282	UNION; 2 WAY (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	03	1	0005-			●
282	UNION; 2 WAY (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-			●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	06	1	0005-0210			●
282	UNION; 2 WAY (C) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0211-			●
342	STUD M12X40 L=64	9-94321-240-0	02	1	0005-0604	●	●
342	STUD M12X40 L=64	0-43211-240-0	02	1	0605-	●	●
342	STUD 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 L=64	9-94321-240-0	01	1	0005-0111				●
342	STUD 6HH1 STD ENG(65L) M12X40 L=64	9-94321-240-0	01	1	0005-0111				●
342	STUD 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 L=64	9-94321-240-0	01	1	0112-0210				●
342	STUD 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12X40 L=64	9-94321-240-0	01	1	0112-0210				●
342	STUD WHEEL BASE 4200MM(42W) M12X40 L=64	9-94321-240-0	01	1	0303-0604				●
342	STUD WHEEL BASE 4200MM(42W) M12X40 L=64	0-43211-240-0	01	1	0605-				●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0005-0210	●	●	●
345	CLIP; HARNESS 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) L=63	1-09700-418-1	01	1	0005-0210				●
345	CLIP; HARNESS 6HH1 STD ENG(65L) L=63	1-09700-418-1	01	1	0005-0210				●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0211-0302	●	●	●
345	CLIP; HARNESS L=63	1-09700-418-1	01	1	0303-0305	●	●	●
345	CLIP; HARNESS WHEEL BASE 4200MM(42W) L=63	1-09700-418-1	01	1	0303-0305				●
383	UNION; 3 WAY	1-09661-233-0	01	1	0211-			●

166 46 46 28 16 1 359 10 3 5 31 13 39 16 5 10 5 8 166 7 16 6 3 39 7 13 6 5 46 46 8 16 1 28 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0005-0210	●	●	●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR 6HH1 STD ENG(65L) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0211-0302	●	●	●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0303-	●	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0303-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48370-855-0	03	1	0406-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48370-856-0	01	1	0406-				●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	02	1	0005-	●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-	●	●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0406-				●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0406-				●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302				●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405				●
5	UNION; AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (D)	1-09660-988-1	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (E)	1-09661-233-0	01	1	0303-				●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-0405	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0406-	●	●	●
6	COCK; DRAIN,AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	0406-				●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48312-015-0	04	1	0406-				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-0210	●	●	●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK 6SD1 TCN ENG(31L) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0211-0405	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0211-0405				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0406-	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=14	1-09630-145-0	04	1	0406-				●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK 6HH1 STD ENG(65L) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0303-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK 6HH1 STD ENG(65L) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0211-0405				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0211-0405			●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-47459-013-1	03	1	0406-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	03	1	0406-			●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0005-0210			●
8	CONNECTOR; AIR TANK (B)	1-09661-233-0	01	1	0211-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 4200MM(42W) (A)	1-47459-013-1	02	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	04	1	0005-	●	●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK 6HH1 STD ENG(65L) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) PT3/8	9-09204-517-0	03	1	0406-				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) PT3/4	9-09204-526-0	03	1	0406-				●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0005-			●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007			●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-0405			●	●
13	ADAPTER; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-			●
16	CONNECTOR; SWITCH 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0005-0210				●
16	CONNECTOR; SWITCH 6SD1 TCN ENG(31L) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0005-0210				●
16	CONNECTOR; SWITCH WHEEL BASE 6000MM(60W) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0211-0405				●
16	CONNECTOR; SWITCH WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0406-				●
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	0005-	●	●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48317-324-2	02	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48317-441-0	03	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C)	1-48317-871-1	02	1	0406-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28681-240-0	04	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28651-240-0	04	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28681-035-0	06	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28651-035-0	06	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0303-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28651-240-0	07	1	0601-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	0202-0512			●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	08	1	0601-			●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0005-0210	●	●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0211-0405	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0211-0405				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0406-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) L=250	1-48317-308-0	02	1	0406-				●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0211-0405				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) L=210	1-48317-458-1	06	1	0406-				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0005-0210	●	●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0211-0405	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0211-0405				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0406-0512	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09110-408-0	08	1	0406-0512				●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91110-508-0	08	1	0601-				●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0211-0405				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09111-408-0	24	1	0406-0512				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91111-508-0	24	1	0601-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0005-0210	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	02	1	0211-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-0210			●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W) 530KPA	1-48340-054-1	03	1	0211-0405				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) 530KPA	1-48340-054-1	03	1	0406-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0211-0302			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4200MM(42W) 530KPA	1-48340-054-1	04	1	0303-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0303-			●
359	STUD; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X28,M10X15 L=50	5-09300-050-0	06	1	0005-0210				●
359	STUD; BRKT TO FRAME 6SD1 TCN ENG(31L) M10X28,M10X15 L=50	5-09300-050-0	06	1	0005-0210				●
359	STUD; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X28,M10X15 L=50	5-09300-050-0	06	1	0211-0405				●
359	STUD; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X28,M10X15 L=50	5-09300-050-0	06	1	0406-				●

244 245 241 246

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28080-870-0	02	1	0005-0512	●	●	●	●
241	BOLT; SET,CONT VLV M8X70 FLANGE	0-28050-870-0	02	1	0601-	●	●	●	●
244	PIPE; VINYL,EXH L=260 ID=9.5 SERVICED BY L=10000	9-09914-701-0	01	1	0005-	●	●		●
244	PIPE; VINYL,EXH L=220	1-09366-253-0	01	1	0005-0210			●
244	PIPE; VINYL,EXH L=220 SERVICED BY L=10000	9-09914-701-0	01	1	0211-			●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	01	1	0005-	●	●		●
245	CLIP; VINYL PIPE ID=14	8-94238-572-0	02	1	0005-			●
246	GROMMET; VINYL PIPE OD=24	9-61166-007-0	01	1	0005-	●	●		●

317 317

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
	317	CONNECTOR; MODULATOR DIN12 & NPTF3/8 ELBOW	1-09660-962-0	02	1	0005-	●	●

82 82 28 28 46 46 46 46 30 80 80 3 2 13 164 167 7 6 8 39 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	TANK; AIR (A)	1-48370-857-0	01	1	0005-	●	●
2	TANK; AIR (B)	1-48370-858-0	01	1	0005-	●	●
2	TANK; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	01	1	0005-0210				●
2	TANK; AIR 6HH1 STD ENG(65L) (C)	1-48370-961-0	01	1	0005-0210				●
2	TANK; AIR (C)	1-48370-961-0	01	1	0005-0210			●
2	TANK; AIR (C)	1-48370-961-0	01	1	0211-0302			●
2	TANK; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-961-0	01	1	0303-				●
2	TANK; AIR (C)	1-48370-961-0	01	1	0303-			●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	02	1	0005-	●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-	●	●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0406-				●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0406-				●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-0405	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0406-	●	●	●
6	COCK; DRAIN,AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	0406-				●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48312-015-0	04	1	0406-				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-0210	●	●	●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK 6SD1 TCN ENG(31L) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0211-0405	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0211-0405				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0406-	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=14	1-09630-145-0	04	1	0406-				●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK 6HH1 STD ENG(65L) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0303-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK 6HH1 STD ENG(65L) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0211-0405				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0211-0405			●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-47459-013-1	03	1	0406-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	03	1	0406-			●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0005-0210			●
8	CONNECTOR; AIR TANK (B)	1-09661-233-0	01	1	0211-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 4200MM(42W) (A)	1-47459-013-1	02	1	0303-				●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007			●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-0405			●	●
13	ADAPTER; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-			●
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	0005-	●	●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48317-324-2	02	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48317-441-0	03	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C)	1-48317-871-1	02	1	0406-				●
30	BRACKET; AIR TANK,SUB	1-48317-695-0	01	1	0005-	●	●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0005-0210	●	●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0211-0405	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0211-0405				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0406-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) L=250	1-48317-308-0	02	1	0406-				●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0211-0405				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) L=210	1-48317-458-1	06	1	0406-				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0005-0210	●	●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0211-0405	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0211-0405				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0406-0512	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09110-408-0	08	1	0406-0512				●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91110-508-0	08	1	0601-				●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0211-0405				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09111-408-0	24	1	0406-0512				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91111-508-0	24	1	0601-				●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0005-0210	●	●
80	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X25 FLANGE	0-28681-025-0	04	1	0005-0210				●
80	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	04	1	0005-0210				●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0211-0405	●	●
80	BOLT; BRKT WHEEL BASE 6000MM(60W) M10X25 FLANGE	0-28681-025-0	04	1	0211-0405				●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0406-0512	●	●
80	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X25 FLANGE	0-28681-025-0	04	1	0406-0512				●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
80	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X25 FLANGE	0-28651-025-0	04	1	0601-				●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0602	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
82	NUT; STAY,AIR MASTER BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
82	NUT; STAY,AIR MASTER BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0211-0405				●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91150-108-0	02	1	0406-0602				●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91180-108-0	02	1	0603-				●
164	CONNECTOR; SUB AIR TANK DIN12 & R3/8 STRAIGHT	1-09660-965-0	01	1	0005-	●	●
167	SWITCH; LOW PRESS GAUGE,AIR TANK,SUB 530KPA	1-48340-054-1	01	1	0005-	●	●

13 3 10 39 166 16 10 7 5 6 46 46 8 1 16 28 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0005-0210	●	●	●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR 6HH1 STD ENG(65L) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0211-0302	●	●	●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0303-	●	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0303-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48370-855-0	03	1	0406-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48370-856-0	01	1	0406-				●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	02	1	0005-	●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-	●	●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0406-				●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0406-				●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302				●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405				●
5	UNION; AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (D)	1-09660-988-1	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (E)	1-09661-233-0	01	1	0303-				●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-0405	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0406-	●	●	●
6	COCK; DRAIN,AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	0406-				●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48312-015-0	04	1	0406-				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-0210	●	●	●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK 6SD1 TCN ENG(31L) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0211-0405	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0211-0405				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0406-	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=14	1-09630-145-0	04	1	0406-				●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK 6HH1 STD ENG(65L) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0303-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	01	1	0005-	●	●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK 6HH1 STD ENG(65L) (A)	1-47459-013-0	02	1	0005-0210				●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0211-0405				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0211-0405			●
8	CONNECTOR; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-47459-013-1	03	1	0406-				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-1	03	1	0406-			●
8	CONNECTOR; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK 6SD1 TCN ENG(31L) (A)	1-47459-013-0	03	1	0005-0210				●
8	CONNECTOR; AIR TANK (A)	1-47459-013-0	03	1	0005-0210			●
8	CONNECTOR; AIR TANK (B)	1-09661-233-0	01	1	0211-	●	●
8	CONNECTOR; AIR TANK WHEEL BASE 4200MM(42W) (A)	1-47459-013-1	02	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	04	1	0005-	●	●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK 6HH1 STD ENG(65L) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) PT3/8	9-09204-517-0	03	1	0406-				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) PT3/4	9-09204-526-0	03	1	0406-				●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0005-			●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	02	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	02	1	0008-	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09661-098-0	01	1	0005-0007	●	●
13	ADAPTER; NYLON TUBE (A) DIN12 & M12 STRAIGHT	1-09660-878-0	01	1	0008-	●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09661-097-0	03	1	0005-0007			●	●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0008-0405			●	●
13	ADAPTER; NYLON TUBE 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-				●
13	ADAPTER; NYLON TUBE (B) DIN12 & M20 STRAIGHT	1-09660-877-0	03	1	0406-			●
16	CONNECTOR; SWITCH 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0005-0210				●
16	CONNECTOR; SWITCH 6SD1 TCN ENG(31L) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0005-0210				●
16	CONNECTOR; SWITCH WHEEL BASE 6000MM(60W) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0211-0405				●
16	CONNECTOR; SWITCH WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) PT1/4 & PT3/8 2WAY	1-09660-809-0	06	1	0406-				●
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	0005-	●	●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48317-324-2	02	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48317-441-0	03	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C)	1-48317-871-1	02	1	0406-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28681-240-0	04	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28651-240-0	04	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28681-035-0	06	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28651-035-0	06	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0303-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28651-240-0	07	1	0601-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	0202-0512			●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	08	1	0601-			●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0005-0210	●	●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0211-0405	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0211-0405				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0406-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) L=250	1-48317-308-0	02	1	0406-				●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0211-0405				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) L=210	1-48317-458-1	06	1	0406-				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0005-0210	●	●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0211-0405	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0211-0405				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0406-0512	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09110-408-0	08	1	0406-0512				●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91110-508-0	08	1	0601-				●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0211-0405				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09111-408-0	24	1	0406-0512				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91111-508-0	24	1	0601-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	01	1	0005-0210	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	02	1	0211-	●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	03	1	0005-0210			●	●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W) 530KPA	1-48340-054-1	03	1	0211-0405				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) 530KPA	1-48340-054-1	03	1	0406-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0211-0302			●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK WHEEL BASE 4200MM(42W) 530KPA	1-48340-054-1	04	1	0303-				●
166	SWITCH ASM; LOW PRESSURE,MAIN TANK 530KPA	1-48340-054-1	04	1	0303-			●

32 28 28 80 43 28 31 64 46 82 10 46 28 1 5 11 3 10 7 5 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0005-0210	●	●	●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR 6HH1 STD ENG(65L) (C)	1-48370-859-0	01	1	0005-0210				●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0211-0302	●	●	●
1	TANK ASM; AIR (C)	1-48370-859-0	01	1	0303-	●	●	●
1	TANK ASM; AIR WHEEL BASE 4200MM(42W) (C)	1-48370-859-0	01	1	0303-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (B)	1-48370-855-0	03	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (B)	1-48370-855-0	03	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48370-855-0	03	1	0406-				●
1	TANK ASM; AIR 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR 6SD1 TCN ENG(31L) (A)	1-48370-856-0	01	1	0005-0210				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W) (A)	1-48370-856-0	01	1	0211-0405				●
1	TANK ASM; AIR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48370-856-0	01	1	0406-				●
3	VALVE; CHECK,AIR TANK (B) M22 & PT3/4	1-48410-136-3	02	1	0005-	●	●
3	VALVE; CHECK,AIR TANK (C) M20 & PT3/4 ELBOW	1-48410-412-0	01	1	0005-	●	●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) M22 & PT3/4 ELBOW	1-48410-134-3	01	1	0406-				●
3	VALVE; CHECK,AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK 6SD1 TCN ENG(31L) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0005-0210				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0211-0405				●
3	VALVE; CHECK,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M20 & PT3/4 ELBOW	1-48410-412-0	03	1	0406-				●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0211-0302				●
5	UNION; AIR TANK (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0303-0405				●
5	UNION; AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HH1 STD ENG(65L) (D)	1-09660-988-0	01	1	0005-0210				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0406-				●
5	UNION; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK 6SD1 TCN ENG(31L) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0005-0210				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0211-0405				●
5	UNION; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) DIN12 & R3/8 ELBOW	1-09660-959-0	05	1	0406-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (C) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (D)	1-09660-988-1	01	1	0303-				●
5	UNION; AIR TANK WHEEL BASE 4200MM(42W) (E)	1-09661-233-0	01	1	0303-				●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0005-0405	●	●	●	●
6	COCK; DRAIN,AIR TANK	1-48312-015-0	04	1	0406-	●	●	●
6	COCK; DRAIN,AIR TANK 6HK1 TCS ENG(80L) WHEEL BASE 4200MM(42W)	1-48312-015-0	04	1	0406-				●
6	COCK; DRAIN,AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48312-015-0	04	1	0406-				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0005-0210	●	●	●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK 6SD1 TCN ENG(31L) ID=14	1-09630-145-0	04	1	0005-0210				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0211-0405	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W) ID=14	1-09630-145-0	04	1	0211-0405				●
7	GASKET; DRAIN COCK ID=14	1-09630-145-0	04	1	0406-	●	●	●
7	GASKET; DRAIN COCK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) ID=14	1-09630-145-0	04	1	0406-				●
7	GASKET; DRAIN COCK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK 6HH1 STD ENG(65L) ID=14	1-09630-145-0	05	1	0005-0210				●
7	GASKET; DRAIN COCK WHEEL BASE 4200MM(42W) ID=14	1-09630-145-0	05	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	04	1	0005-	●	●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK 6HH1 STD ENG(65L) (B) PT3/8	9-09204-517-0	05	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) PT3/8	9-09204-517-0	03	1	0406-				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (B) PT3/8	9-09204-517-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK 6SD1 TCN ENG(31L) (A) PT3/4	9-09204-526-0	03	1	0005-0210				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W) (A) PT3/4	9-09204-526-0	03	1	0211-0405				●
10	PLUG; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) PT3/4	9-09204-526-0	03	1	0406-				●
10	PLUG; AIR TANK WHEEL BASE 4200MM(42W) (B) PT3/8	9-09204-517-0	05	1	0303-				●
10	PLUG; AIR TANK (B) PT3/8	9-09204-517-0	02	1	0005-			●
11	VALVE; SAFETY,AIR TANK	1-48320-012-2	01	1	0005-	●	●	●	●
28	BRACKET; AIR TANK (D)	1-48317-601-5	02	1	0005-	●	●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (A)	1-48317-324-2	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (A)	1-48317-324-2	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A)	1-48317-324-2	02	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (B)	1-48317-441-0	03	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (B)	1-48317-441-0	03	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B)	1-48317-441-0	03	1	0406-				●
28	BRACKET; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK 6SD1 TCN ENG(31L) (C)	1-48317-871-1	02	1	0005-0210				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W) (C)	1-48317-871-1	02	1	0211-0405				●
28	BRACKET; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (C)	1-48317-871-1	02	1	0406-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	06	1	0005-0512	●	●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	06	1	0601-	●	●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) M12X40 FLANGE	0-28681-240-0	07	1	0005-0111				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	07	1	0112-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28681-240-0	04	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M12X40 FLANGE	0-28651-240-0	04	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10X35 FLANGE	0-28681-035-0	06	1	0005-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10X35 FLANGE	0-28681-035-0	06	1	0211-0405				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28681-035-0	06	1	0406-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X35 FLANGE	0-28651-035-0	06	1	0601-				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X35 FLANGE	0-28681-235-0	04	1	0005-0006				●
31	BOLT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12X40 FLANGE	0-28681-240-0	04	1	0007-0210				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28681-240-0	07	1	0303-0512				●
31	BOLT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12X40 FLANGE	0-28651-240-0	07	1	0601-				●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28681-240-0	08	1	0202-0512			●
31	BOLT; BRKT TO FRAME M12X40 FLANGE	0-28651-240-0	08	1	0601-			●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91250-112-0	02	1	0005-0602	●	●
32	NUT; BRKT TO FRAME M12 FLANGE	0-91280-112-0	02	1	0603-	●	●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0005-0111				●
32	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) M12 FLANGE	0-91250-112-0	01	1	0005-0111				●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0112-0210				●
32	NUT; BRKT TO FRAME 6HH1 STD ENG(65L) WHEEL BASE 6000MM(60W) M12 FLANGE	0-91250-112-0	01	1	0112-0210				●
32	NUT; BRKT TO FRAME 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-110-0	06	1	0005-0210				●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M10 FLANGE	0-91150-110-0	06	1	0005-0210				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W) M10 FLANGE	0-91150-110-0	06	1	0211-0405				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE	0-91150-110-0	06	1	0406-0602				●
32	NUT; BRKT TO FRAME WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10 FLANGE	0-91180-110-0	06	1	0603-				●
32	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12 FLANGE	0-91250-112-0	01	1	0303-0602				●
32	NUT; BRKT TO FRAME WHEEL BASE 4200MM(42W) M12 FLANGE	0-91280-112-0	01	1	0603-				●
32	NUT; BRKT TO FRAME 6SD1 TCN ENG(31L) M12 FLANGE	0-91150-212-0	04	1	0005-0210				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0005-0210	●	●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (A) L=250	1-48317-308-0	02	1	0005-0210				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0211-0405	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (A) L=250	1-48317-308-0	02	1	0211-0405				●
39	U-BOLT; AIR TANK (A) L=250	1-48317-308-0	02	1	0406-	●	●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (A) L=250	1-48317-308-0	02	1	0406-				●
39	U-BOLT; AIR TANK 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK 6SD1 TCN ENG(31L) (B) L=210	1-48317-458-1	06	1	0005-0210				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W) (B) L=210	1-48317-458-1	06	1	0211-0405				●
39	U-BOLT; AIR TANK WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) (B) L=210	1-48317-458-1	06	1	0406-				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	06	1	0005-0512	●	●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	06	1	0601-	●	●
43	BOLT; STAY,AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN 6HH1 STD ENG(65L) M8X25 FLANGE	0-28680-825-0	04	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0005-0210			●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0211-0302			●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28680-825-0	04	1	0303-0512				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28680-825-0	04	1	0303-0512			●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 4200MM(42W) M8X25 FLANGE	0-28650-825-0	04	1	0601-				●
43	BOLT; STAY,AIR TANK,MAIN M8X25 FLANGE	0-28650-825-0	04	1	0601-			●
43	BOLT; STAY,AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN 6SD1 TCN ENG(31L) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W) M8X20 FLANGE	0-28680-820-0	02	1	0211-0405				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X20 FLANGE	0-28680-820-0	02	1	0406-0512				●
43	BOLT; STAY,AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8X20 FLANGE	0-28650-820-0	02	1	0601-				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0005-0210	●	●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09110-408-0	08	1	0005-0210				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0211-0405	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09110-408-0	08	1	0211-0405				●
46	NUT; U-BOLT M8	9-09110-408-0	08	1	0406-0512	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09110-408-0	08	1	0406-0512				●
46	NUT; U-BOLT M8	0-91110-508-0	08	1	0601-	●	●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91110-508-0	08	1	0601-				●
46	NUT; U-BOLT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT 6SD1 TCN ENG(31L) M8	9-09111-408-0	24	1	0005-0210				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W) M8	9-09111-408-0	24	1	0211-0405				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	9-09111-408-0	24	1	0406-0512				●
46	NUT; U-BOLT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8	0-91111-508-0	24	1	0601-				●
64	STAY; AIR TANK,MAIN	1-48317-607-0	01	1	0005-	●	●
64	STAY; AIR TANK,MAIN 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W)	1-48317-907-0	01	1	0005-0210				●
64	STAY; AIR TANK,MAIN 6SD1 TCN ENG(31L)	1-48317-907-0	01	1	0005-0210				●
64	STAY; AIR TANK,MAIN WHEEL BASE 6000MM(60W)	1-48317-907-0	01	1	0211-0405				●
64	STAY; AIR TANK,MAIN WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-48317-907-0	01	1	0406-				●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0005-0210	●	●
80	BOLT; BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M10X25 FLANGE	0-28681-025-0	04	1	0005-0210				●
80	BOLT; BRKT 6SD1 TCN ENG(31L) M10X25 FLANGE	0-28681-025-0	04	1	0005-0210				●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0211-0405	●	●
80	BOLT; BRKT WHEEL BASE 6000MM(60W) M10X25 FLANGE	0-28681-025-0	04	1	0211-0405				●
80	BOLT; BRKT M10X25 FLANGE	0-28681-025-0	04	1	0406-0512	●	●
80	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X25 FLANGE	0-28681-025-0	04	1	0406-0512				●
80	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	0601-	●	●
80	BOLT; BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M10X25 FLANGE	0-28651-025-0	04	1	0601-				●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0602	●	●
82	NUT; STAY,AIR MASTER BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●	●
82	NUT; STAY,AIR MASTER BRKT 6HE1 TC ENG(57L) WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
82	NUT; STAY,AIR MASTER BRKT 6SD1 TCN ENG(31L) M8 FLANGE	0-91150-108-0	02	1	0005-0210				●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6000MM(60W) M8 FLANGE	0-91150-108-0	02	1	0211-0405				●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91150-108-0	02	1	0406-0602				●
82	NUT; STAY,AIR MASTER BRKT WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W) M8 FLANGE	0-91180-108-0	02	1	0603-				●

111 95 111 111 121 111 95 111 111 121 216 216 215

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
95	VALVE; DOUBLE CHECK	1-48410-531-1	01	1	0005-		●	●	●
111	CONNECTOR; CHECK VLV (A) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0005-		●	●	●
111	CONNECTOR; CHECK VLV (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	0005-		●	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28080-820-0	02	1	0005-0512		●	●	●
121	BOLT; DOUBLE CHECK VLV M8X20 FLANGE	0-28050-820-0	02	1	0601-		●	●	●
215	PIPE; VINYL L=290 SERVICED BY L=3000	0-03266-300-0	01	1	0005-0006	●
215	PIPE; VINYL WHEEL BASE 5000MM(50W) L=290 SERVICED BY L=3000	0-03266-300-0	01	1	0005-0006		●
215	PIPE; VINYL L=290 SERVICED BY L=3000	0-03266-300-0	01	1	0007-0103	●	●	●
215	PIPE; VINYL L=290 SERVICED BY L=3000	0-03266-300-0	01	1	0104-			●
215	PIPE; VINYL WHEEL BASE 6300MM(63W) L=500 SERVICED BY L=3000	0-03266-300-0	01	1	0005-0006		●
215	PIPE; VINYL L=500 SERVICED BY L=3000	0-03266-300-0	01	1	0005-0006			●
216	CLIP; PIPE,VINYL (A) ID=21	8-94242-034-0	01	1	0005-0103	●
216	CLIP; PIPE,VINYL WHEEL BASE 5000MM(50W) (A) ID=21	8-94242-034-0	01	1	0005-0103		●
216	CLIP; PIPE,VINYL (A) ID=21	8-94242-034-0	01	1	0104-			●
216	CLIP; PIPE,VINYL (B) ID=22 L=52	9-09917-431-0	01	1	0005-0103	●	●	●
216	CLIP; PIPE,VINYL (B) ID=22 L=52	9-09917-431-0	01	1	0104-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
