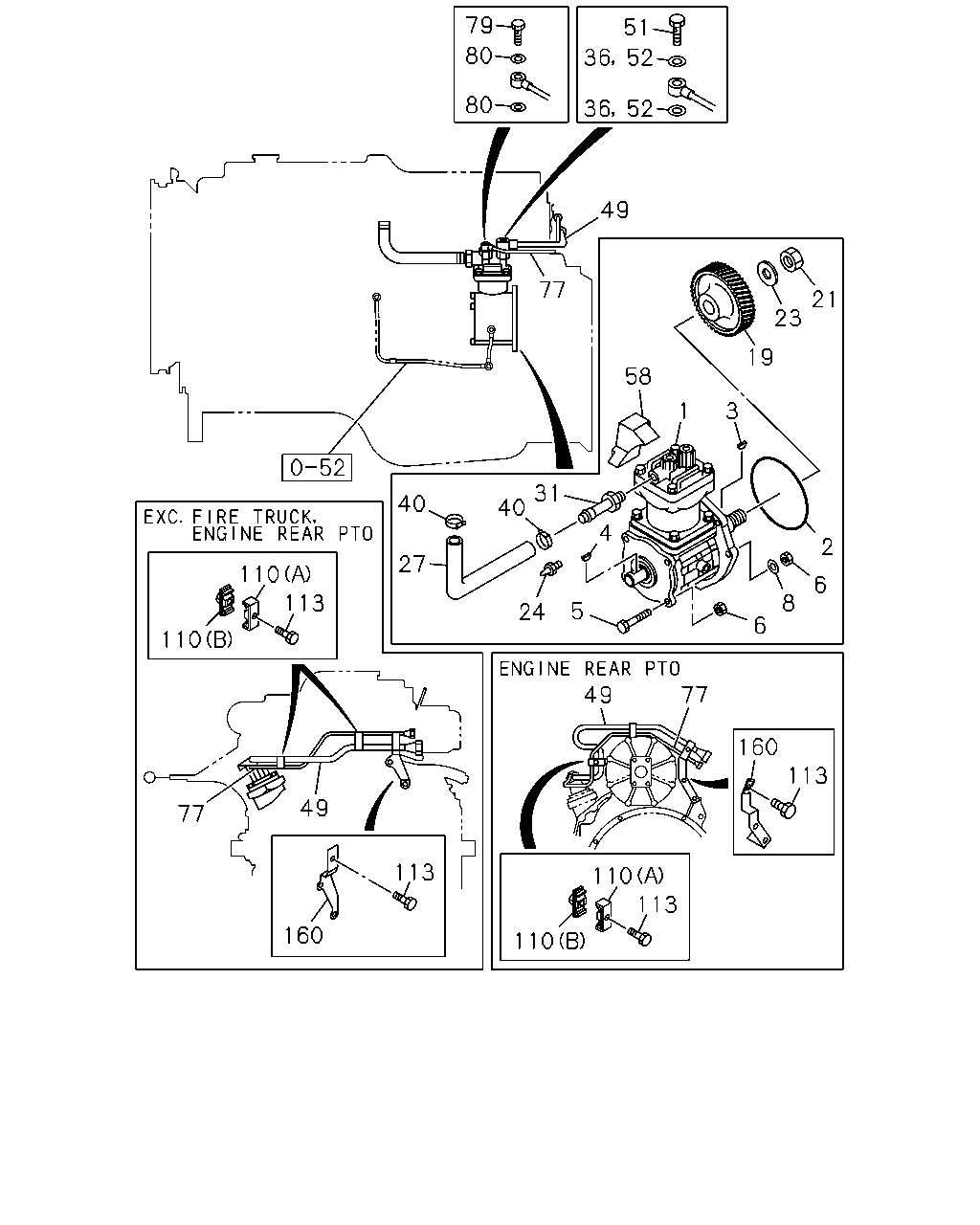

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#869) — 62 parça

79 51 80 36 52 80 36 52 49 77 21 23 19 58 3 1 31 40 40 4 2 27 110 6 8 113 5 24 6 110 49 77 160 113 49 77 113 110 113 160 110

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-892-6	01	1	9202-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT. EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94396-891-3	01	1	9202-	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-891-3	01	1	9202-		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	9202-	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-416-0	01	1	9202-	●	●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	9202-	●	●
5	BOLT; AIR CMPR FIX FIRE TRUCK<RA9>	8-94396-485-1	01	1	9202-9212	●	●
5	BOLT; AIR CMPR FIX	8-94396-485-1	01	1	9301-	●
5	BOLT; AIR CMPR FIX EXC. ENGINE REAR PTO(SV1)	8-94396-485-1	01	1	9301-		●
5	BOLT; AIR CMPR FIX EXC. FIRE TRUCK<RA9>,ENGINE REAR PTO(SV1)	0-16806-295-0	01	1	9202-9212	●	●
5	BOLT; AIR CMPR FIX ENGINE REAR PTO(SV1)	8-94399-252-0	01	1	9202-9205		●
5	BOLT; AIR CMPR FIX ENGINE REAR PTO(SV1)	1-09020-054-1	01	1	9301-		●
6	NUT; AIR CMPR M10 FLANGE	0-91150-110-0	02	1	9202-	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-212-0	01	1	9202-9312	●	●
6	NUT; AIR CMPR M12 FLANGE	0-91150-112-0	01	1	9401-	●	●
8	WASHER; PL,AIR CMPR ID=12.5 OD=22	8-94393-140-1	01	1	9202-9212	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	9202-	●	●
21	NUT; PUMP GEAR M20	9-99110-520-0	01	1	9202-	●	●
23	WASHER; PL,PUMP GEAR ID=21	9-09160-520-0	01	1	9202-	●	●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	9202-	●	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94397-173-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-083-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94397-156-0	01	1	9202-9307	●
27	HOSE; AIR CMPR,SUCTION	8-94397-156-0	01	1	9202-9307		●
27	HOSE; AIR CMPR,SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94395-082-0	01	1	9308-	●
27	HOSE; AIR CMPR,SUCTION	8-94395-082-0	01	1	9308-		●
31	PIPE; AIR,AIR CMPR SUCTION AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-954-0	01	1	9202-	●
31	PIPE; AIR,AIR CMPR SUCTION EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	8-94399-942-1	01	1	9202-	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-942-1	01	1	9202-		●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q). ID=24.5 OD=32	9-09571-424-0	01	1	9202-	●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	01	1	9202-		●
40	CLIP; AIR PIPE ID=28.5	1-09707-150-0	02	1	9202-9307	●	●
40	CLIP; AIR PIPE ID=26.0	1-09707-091-0	02	1	9308-	●	●
49	PIPE; AIR,CHARGE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	8-94393-200-0	01	1	9202-	●
49	PIPE; AIR,CHARGE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1)	8-94393-198-0	01	1	9202-	●	●
51	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M24X39	1-09675-132-0	01	1	9202-	●
51	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M20X38	1-09675-133-0	01	1	9202-	●
51	BOLT; EYE,AIR PIPE TO CMPR M20X38	1-09675-133-0	01	1	9202-		●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). AIR COMPRESSOR HEAVY DUTY(E1Q) ID=24.5 OD=32	9-09571-424-0	02	1	9202-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EXC. AIR COMPRESSOR HEAVY DUTY(E1Q).	9-09571-420-0	02	1	9202-	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	9-09571-420-0	02	1	9202-		●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94393-045-2	01	1	9208-9502	●
58	SPACER; AIR CMPR ANTI NOISE EQUIPMENT VAR2<TAK>	8-94395-675-1	01	1	9503-	●
77	PIPE; AIR,GOV AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	8-94393-795-0	01	1	9202-	●
77	PIPE; AIR,GOV EXC. AIR COMPRESSOR HEAVY DUTY(E1Q),ENGINE REAR PTO(SV1)	8-94393-199-0	01	1	9202-	●	●
79	BOLT; EYE,AIR PIPE TO CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) M14X27 FLANGE	1-09675-086-0	01	1	9202-	●
79	BOLT; EYE,AIR PIPE TO CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M18X33	1-09675-058-0	01	1	9202-	●
79	BOLT; EYE,AIR PIPE TO CMPR M18X33	1-09675-058-0	01	1	9202-		●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) AIR COMPRESSOR HEAVY DUTY(E1Q) ID=14.2	1-09630-085-0	02	1	9202-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2	1-09630-087-0	02	1	9202-	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=18.2	1-09630-087-0	02	1	9202-		●
110	CLIP; AIR PIPE (A)	8-94393-037-0	03	1	9202-	●	●
110	CLIP; AIR PIPE (B)	8-94393-090-0	02	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X16 FLANGE	0-28280-616-0	01	1	9205-	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO(SV1) M6X16 FLANGE	0-28280-616-0	01	1	9205-		●
113	BOLT; CLIP,AIR PIPE M6X40 W/LK&PL WASHER	0-50140-640-0	03	1	9202-	●	●
113	BOLT; CLIP,AIR PIPE M6X30 FLANGE	0-28280-630-0	03	1	9205-	●	●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) M6X40 W/LK&PL WASHER	0-50140-640-0	01	1	9202-		●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) M6X30 FLANGE	0-28280-630-0	01	1	9205-		●
160	BRACKET; AIR PIPE FIRE TRUCK<RA9>	8-94393-202-0	01	1	9202-	●	●
160	BRACKET; AIR PIPE EXC. FIRE TRUCK<RA9>,ENGINE REAR PTO(SV1)	8-94394-455-0	01	1	9202-	●	●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1)	8-94394-372-0	01	1	9202-		●
