◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#8688) — 559 parça

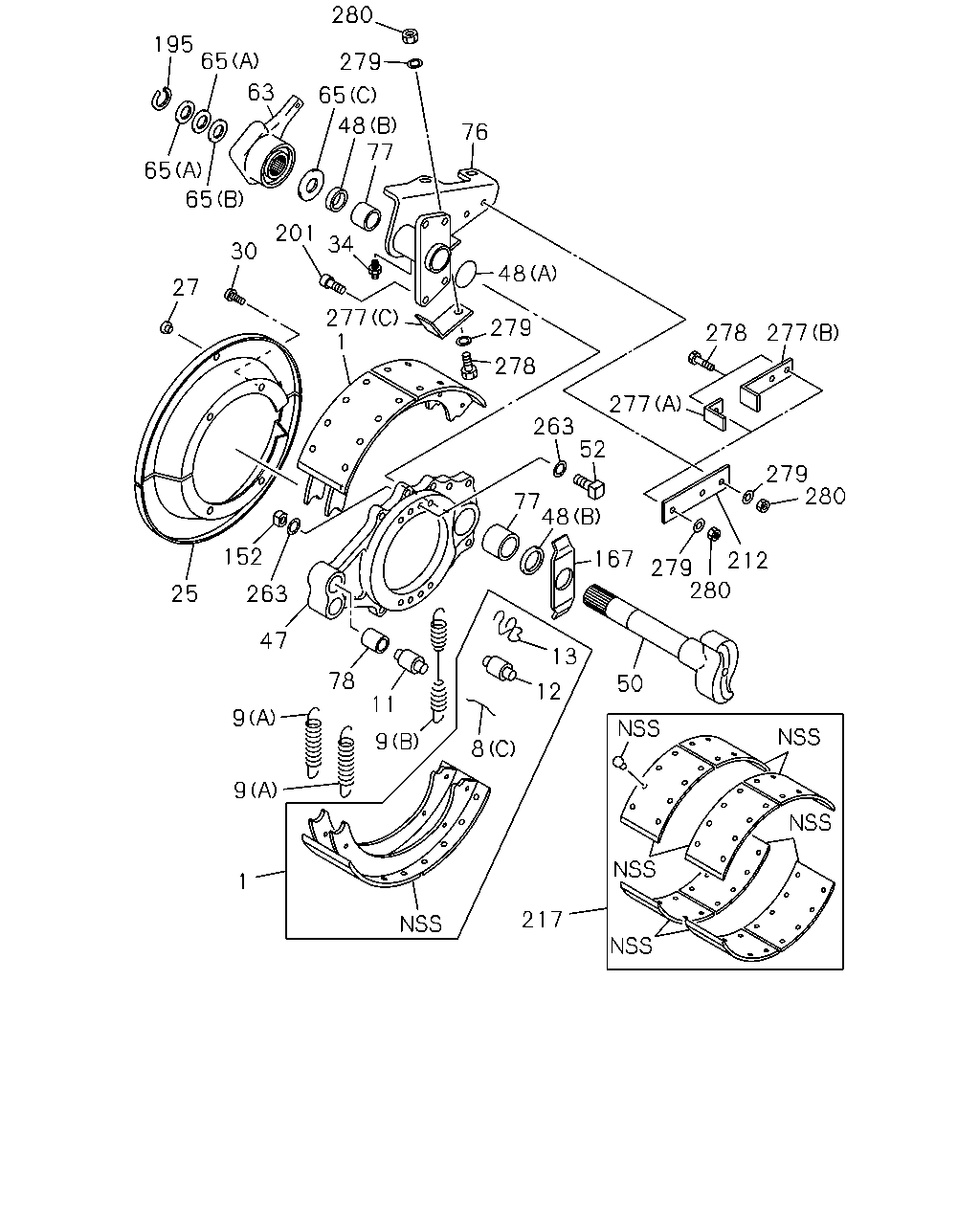

çizim 10608
280 195 65 279 63 65 48 77 76 65 65 201 34 30 48 27 277 1 279 278 277 278 277 263 52 279 280 77 48 152 167 212 279 280 25 263 47 13 78 50 12 11 9 9 8 9 1 217
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0005- ●
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0005- ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0005- ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0005- ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0005-0210 ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0211- ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0211- ●
1 SHOE; BRK,RR 1-47120-734-0 08 1 0005-0210 ●
1 SHOE; BRK,RR 1-47120-401-0 04 1 0112-0210 ●
1 SHOE; BRK,RR 1-47170-241-0 04 1 0211- ●
1 SHOE; BRK,RR 1-47120-401-0 04 1 0005-0111 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-021-0 04 1 0005-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-021-0 04 1 0005-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-029-0 04 1 0005- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-029-0 04 1 0005- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 0005-0210 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 0211- ● ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 0211- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 08 1 0005-0210 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(B) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
(B) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0005-0210 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0211- ● ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0211- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0005-0210 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0211- ● ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0211- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 08 1 0005-0210 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 04 1 0005-0210 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0005- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0005- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0005-0210 ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0211- ● ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0211- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 08 1 0005-0210 ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 0005-0210 ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0005- ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0005- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0005-0210 ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0211- ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0211- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 08 1 0005-0210 ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 0112-0210 ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0005- ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0005- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0005-0210 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0211- ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0211- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 08 1 0005-0210 ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0005- ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0005- ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 0005-0210 ● ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 0005-0210 ● ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 02 1 0005-0210 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-641-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-641-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 02 1 0610- ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 02 1 0005-0210 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-640-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-640-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 02 1 0610- ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 0211- ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-641-0 01 1 0211- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-641-0 01 1 0211- ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 0211- ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-640-0 01 1 0211- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-640-0 01 1 0211- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0005- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0005- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0005-0210 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0211- ● ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0211- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 08 1 0005-0210 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0005-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0005-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0005-0210 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0211- ● ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0211- ●
30 BOLT; DRUM COVER 1-47159-176-0 24 1 0005-0210 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0005-0210 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0211- ● ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0211- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 04 1 0005-0210 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0005-0210 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0211- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 02 1 0211- ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-374-0 04 1 0005-0210 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-332-0 02 1 0005-0210 ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-542-0 02 1 0211- ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0005- ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0005- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0005-0210 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0211- ● ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0211- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0005-0210 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0211- ● ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0211- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 04 1 0005-0210 ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 08 1 0005-0210 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-116-0 02 1 0005-0210 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-116-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-116-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-117-0 02 1 0005-0210 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-117-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-117-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 0005- ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0005-1209 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0005-1209 ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0005-0210 ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0211- ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0211- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 32 1 0005-0210 ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 0005-0210 ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 16 1 0211- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0005-0005 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0006-0210 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0211- ● ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0211- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 04 1 0005-0210 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 0005-0005 ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0211- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 02 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 02 1 0211- ● ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0211- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0005-0210 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0211- ● ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 04 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 04 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 04 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 04 1 0005-0210 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-029-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-030-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-018-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-019-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 0005- ●
77 BUSHING 1-47146-003-1 02 1 0005- ●
77 BUSHING 1-47146-003-1 02 1 0005- ●
77 BUSHING 1-47146-012-0 04 1 0005-0210 ●
77 BUSHING 1-47146-012-0 04 1 0211- ● ●
77 BUSHING 1-47146-012-0 04 1 0211- ●
77 BUSHING 1-47146-012-0 08 1 0005-0210 ●
77 BUSHING 1-47146-014-0 04 1 0005- ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0005-0210 ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0211- ● ● ●
78 BUSHING; BRKT 1-47139-117-0 04 1 0211- ●
78 BUSHING; BRKT 1-47139-117-0 08 1 0005-0210 ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0005-0210 ●
152 NUT; ANCHOR BRKT 1-41229-169-0 16 1 0211-0609 ●
152 NUT; ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-169-0 16 1 0211-0609 ●
152 NUT; ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-169-0 16 1 0211-0609 ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-41229-169-0 16 1 0610- ●
152 NUT; ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-169-0 16 1 0610- ●
152 NUT; ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41229-169-0 16 1 0610- ●
152 NUT; ANCHOR BRKT 1-41229-169-0 32 1 0005-0210 ●
152 NUT; ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-143-0 16 1 0211-0609 ●
152 NUT; ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-143-0 16 1 0211-0609 ●
152 NUT; ANCHOR BRKT
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41229-143-0 16 1 0610- ●
152 NUT; ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-143-0 16 1 0610- ●
152 NUT; ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41229-143-0 16 1 0610- ●
152 NUT; ANCHOR BRKT 1-47139-126-0 32 1 0005-0210 ●
152 NUT; ANCHOR BRKT 1-47139-126-0 16 1 0211- ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0005-0210 ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0211- ● ● ●
167 WASHER; ADJ CAM 1-47149-077-0 02 1 0211- ●
167 WASHER; ADJ CAM 1-47149-077-0 04 1 0005-0210 ●
167 WASHER; ADJ CAM 1-47149-064-0 02 1 0005-0210 ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0005- ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0005- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0005-0210 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0211- ● ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0211- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 04 1 0005-0210 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0202-1209 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 1210- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0005-0210 ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0211- ● ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0211- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 16 1 0005-0210 ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 0005-0210 ●
212 STAY 1-47149-081-0 02 1 0005-0210 ● ●
212 STAY 1-47149-081-0 02 1 0211- ● ●
212 STAY
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47149-081-0 02 1 0211- ●
212 STAY 1-48259-287-0 02 1 0211- ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0005-0210 ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0211- ● ● ●
217 LINING KIT; RR BRK 1-87050-157-0 01 1 0211- ●
217 LINING KIT; RR BRK 1-87050-157-0 02 1 0005-0210 ●
217 LINING KIT; RR BRK 1-87050-154-0 01 1 0005-0210 ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0005-0210 ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 16 1 0211-0609 ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41519-038-0 16 1 0211-0609 ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41519-038-0 16 1 0211-0609 ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/11 18" ROCKWELL(W5Y),FINAL GEAR 45/8 18" ROCKWELL(W6B),FINAL GEAR 43/12 18" ROCKWELL(W8A) 		1-41519-038-0 16 1 0610- ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41519-038-0 16 1 0610- ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-41519-038-0 16 1 0610- ●
263 WASHER; PL,ANCHOR BRKT 1-41519-038-0 32 1 0005-0210 ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41519-035-0 16 1 0211-0609 ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41519-035-0 16 1 0211-0609 ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 43/10 18" ROCKWELL(W6R) 		1-41519-035-0 16 1 0610- ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41519-035-0 16 1 0610- ●
263 WASHER; PL,ANCHOR BRKT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41519-035-0 16 1 0610- ●
263 WASHER; PL,ANCHOR BRKT 1-47139-125-0 64 1 0005-0210 ●
263 WASHER; PL,ANCHOR BRKT 1-47139-125-0 16 1 0211- ●
277 SUPPORT; BRKT
(A) 		1-47149-084-0 02 1 0005-0210 ● ●
277 SUPPORT; BRKT
(B) 		1-47149-085-1 02 1 0005-0210 ●
277 SUPPORT; BRKT
(C) 		1-48259-287-0 02 1 0005-0210 ●
278 BOLT; SUPPORT 1-41329-038-0 06 1 0005- ●
278 BOLT; SUPPORT 1-41329-038-0 05 1 0005-0210 ●
278 BOLT; SUPPORT
FINAL GEAR 45/7 15" ROCKWELL(W8D) REARWARD 		1-41329-038-0 02 1 0211- ●
278 BOLT; SUPPORT 1-41329-038-0 03 1 0211- ●
278 BOLT; SUPPORT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-41329-038-0 03 1 0211- ●
278 BOLT; SUPPORT
M16X50 		1-42119-077-0 02 1 0005-0210 ●
278 BOLT; SUPPORT
M16X50 		1-42119-077-0 04 1 0211- ●
279 WASHER; SUPPORT 1-47149-083-0 06 1 0005- ●
279 WASHER; SUPPORT 1-47149-083-0 05 1 0005-0210 ●
279 WASHER; SUPPORT
FINAL GEAR 45/7 15" ROCKWELL(W8D) REARWARD 		1-47149-083-0 02 1 0211- ●
279 WASHER; SUPPORT 1-47149-083-0 03 1 0211- ●
279 WASHER; SUPPORT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47149-083-0 03 1 0211- ●
279 WASHER; SUPPORT 1-47139-125-0 04 1 0005- ●
280 NUT; SUPPORT 1-47149-082-0 06 1 0005- ●
280 NUT; SUPPORT 1-47149-082-0 05 1 0005-0210 ●
280 NUT; SUPPORT
FINAL GEAR 45/7 15" ROCKWELL(W8D) REARWARD 		1-47149-082-0 02 1 0211- ●
280 NUT; SUPPORT 1-47149-082-0 03 1 0211- ●
280 NUT; SUPPORT
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47149-082-0 03 1 0211- ●
280 NUT; SUPPORT 1-47139-126-0 02 1 0005-0210 ●
280 NUT; SUPPORT 1-47139-126-0 04 1 0211- ●

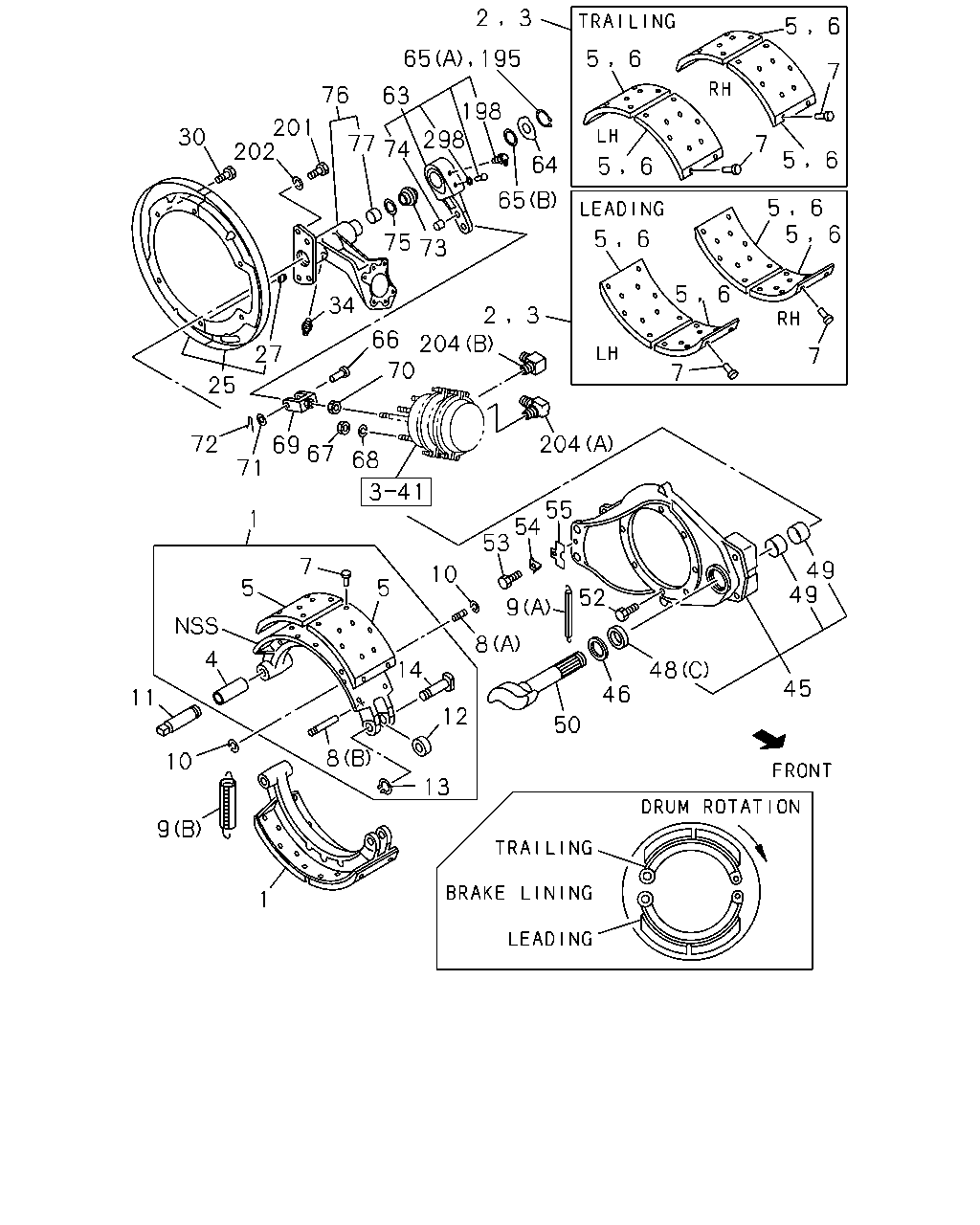

çizim 10633
2 3 5 6 65 195 5 6 7 76 63 198 298 201 202 30 77 74 7 6 5 64 5 6 65 5 5 6 6 5 6 75 73 5 6 34 2 204 70 3 66 27 7 7 25 72 204 69 67 68 71 55 54 53 1 7 49 49 10 5 5 52 9 8 14 4 48 45 46 11 12 50 8 10 13 9 1
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0005- ●
1 SHOE; BRK,RR
LEADING 		1-47120-715-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-716-0 01 1 0005- ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0005- ●
1 SHOE; BRK,RR
LEADING 		1-47120-713-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0005- ●
1 SHOE; BRK,RR
TRAILING 		1-47120-714-0 01 1 0005- ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0005-0210 ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0211- ● ●
1 SHOE; BRK,RR 1-47120-734-0 04 1 0211- ●
1 SHOE; BRK,RR 1-47120-734-0 08 1 0005-0210 ●
1 SHOE; BRK,RR 1-47120-401-0 04 1 0112-0210 ●
1 SHOE; BRK,RR 1-47170-241-0 04 1 0211- ●
1 SHOE; BRK,RR 1-47120-401-0 04 1 0005-0111 ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-521-0 01 1 0005- ●
2 LINING SET; RR BRK,STANDARD
LEADING 		1-88310-521-0 01 1 0005- ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-523-0 01 1 0005- ●
2 LINING SET; RR BRK,STANDARD
TRAILING 		1-88310-523-0 01 1 0005- ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-522-0 01 1 0005- ●
3 LINING SET; RR BRK,OVER SIZE
LEADING 		1-88310-522-0 01 1 0005- ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-524-0 01 1 0005- ●
3 LINING SET; RR BRK,OVER SIZE
TRAILING 		1-88310-524-0 01 1 0005- ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0005- ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0005- ●
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 0005- ●
5 LINING; RR BRK SHOE,STANDARD
LEADING 		1-47125-797-0 04 1 0005- ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 0005- ●
5 LINING; RR BRK SHOE,STANDARD
TRAILING 		1-47125-799-0 04 1 0005- ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 0005- ●
6 LINING; RR BRK SHOE,OVER SIZE
LEADING 		1-47125-798-0 04 1 0005- ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 0005- ●
6 LINING; RR BRK SHOE,OVER SIZE
TRAILING 		1-47125-800-0 04 1 0005- ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0005- ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0005- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-021-0 04 1 0005-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-47119-021-0 04 1 0005-1209 ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-029-0 04 1 0005- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-029-0 04 1 0005- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 0005-0210 ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 0211- ● ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 04 1 0211- ●
8 PIN; RETURN SPRING,RR BRK SHOE
(C) 		1-47119-116-0 08 1 0005-0210 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-175-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(B) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
(B) 		8-98219-175-0 02 1 1210- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-196-0 02 1 0005-1209 ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0005-0210 ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0211- ● ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 04 1 0211- ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0005-0210 ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0211- ● ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 02 1 0211- ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-47119-114-0 08 1 0005-0210 ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-47119-115-0 04 1 0005-0210 ●
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 08 1 0005-0604 ●
10 RING; SNAP,SPR PIN
ID=10 		9-09185-410-0 08 1 0005-0604 ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 0605-1209 ●
10 RING; SNAP,SPR PIN
ID=10 		0-91805-510-0 08 1 0605-1209 ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0005- ●
11 PIN; ANCHOR,RR WHEEL BRK
L=121.5 		1-47131-039-0 04 1 0005- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0005-0210 ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0211- ● ● ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 04 1 0211- ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-040-0 08 1 0005-0210 ●
11 PIN; ANCHOR,RR WHEEL BRK 1-47131-046-0 04 1 0005-0210 ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0005- ●
12 ROLLER; CAM,BRK SHOE 1-47113-005-0 04 1 0005- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0005-0210 ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0211- ● ● ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 04 1 0211- ●
12 ROLLER; CAM,BRK SHOE 1-47119-141-0 08 1 0005-0210 ●
12 ROLLER; CAM,BRK SHOE 1-47119-117-0 04 1 0112-0210 ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0005- ●
13 CLIP; ROLLER PIN,BRK SHOE 9-47119-022-0 04 1 0005- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0005-0210 ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0211- ● ● ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 04 1 0211- ●
13 CLIP; ROLLER PIN,BRK SHOE 1-47119-118-0 08 1 0005-0210 ●
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0005- ●
14 PIN; CAM ROLLER,BRK SHOE 1-09744-061-0 04 1 0005- ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0005- ●
25 COVER SET; RR BRK DRUM 1-47151-462-1 02 1 0005- ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 0005-0210 ● ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 0005-0210 ● ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 02 1 0005-0210 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-641-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-641-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 02 1 0610- ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 02 1 0005-0210 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-640-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 41/7 15" ROCKWELL(W7G),FINAL GEAR 43/11 15" ROCKWELL(W8E) 		1-47151-640-0 01 1 0211-0609 ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 02 1 0610- ●
25 COVER SET; RR BRK DRUM 1-47151-641-0 01 1 0211- ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-641-0 01 1 0211- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-641-0 01 1 0211- ●
25 COVER SET; RR BRK DRUM 1-47151-640-0 01 1 0211- ● ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-640-0 01 1 0211- ●
25 COVER SET; RR BRK DRUM
FINAL GEAR 45/7 15" ROCKWELL(W8D) 		1-47151-640-0 01 1 0211- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0005- ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0005- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0005-0210 ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0211- ● ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 04 1 0211- ●
27 COVER; CHECK HOLE,DRUM COVER 1-87050-011-0 08 1 0005-0210 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0005-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50041-016-0 12 1 0005-0906 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ●
30 BOLT; DRUM COVER
M10X16 W/LK WASHER 		0-50541-016-0 12 1 0907-1209 ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 1210- ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0005-0210 ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0211- ● ● ●
30 BOLT; DRUM COVER 1-47159-176-0 12 1 0211- ●
30 BOLT; DRUM COVER 1-47159-176-0 24 1 0005-0210 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		9-09031-010-0 02 1 0005-0512 ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
34 NIPPLE; GREASE,CHAMBER BRKT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0601- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0005-0210 ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0211- ● ● ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 02 1 0211- ●
34 NIPPLE; GREASE,CHAMBER BRKT 1-48259-253-0 04 1 0005-0210 ●
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 02 1 0005- ●
45 BRACKET; ANCHOR PIN,W/BUSHING 1-47137-120-2 02 1 0005- ●
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0005- ●
46 RING; SPACER,CM/SHF,RR BRK 1-47143-005-0 02 1 0005- ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0005- ●
48 SEAL; OIL,CM/SHF,RR BRK
(C) 		1-09625-228-0 02 1 0005- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0005-0210 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0211- ● ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 02 1 0211- ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0005-0210 ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0211- ● ● ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 04 1 0211- ●
48 SEAL; OIL,CM/SHF,RR BRK
(A) 		1-47149-056-0 04 1 0005-0210 ●
48 SEAL; OIL,CM/SHF,RR BRK
(B) 		1-47149-057-0 08 1 0005-0210 ●
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 0005- ●
49 BUSHING; CM/SHF,RR BRK 1-47146-003-1 02 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-053-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-054-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-124-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-125-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-116-0 02 1 0005-0210 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-116-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-116-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-117-0 02 1 0005-0210 ●
50 CAMSHAFT; BRK,RR BRK 1-47141-117-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-117-0 01 1 0211- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-098-0 01 1 0005- ●
50 CAMSHAFT; BRK,RR BRK 1-47141-099-0 01 1 0005- ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0005-1209 ●
52 BOLT; ANCHOR BRKT
M14X50 		1-09040-066-0 02 1 0005-1209 ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0005-0210 ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0211- ● ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 16 1 0211- ●
52 BOLT; ANCHOR BRKT 1-47139-122-0 32 1 0005-0210 ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 32 1 0005-0210 ●
52 BOLT; ANCHOR BRKT
M16X50 		1-42119-077-0 16 1 0211- ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0005-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0005-0512 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-1209 ●
53 BOLT; LOCK PLATE
M10X16 		0-20851-016-0 02 1 0601-1209 ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1210- ●
53 BOLT; LOCK PLATE
M10X16 		1-47139-173-0 02 1 1210- ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0005- ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0005- ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0005- ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-045-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-046-0 01 1 0005- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0005-0005 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0006-0210 ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0211- ● ● ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 02 1 0211- ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-101-0 04 1 0005-0210 ●
63 ADJUSTER ASM; SLACK,RR BRK 1-48270-079-0 02 1 0005-0005 ●
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 0005- ●
64 PLATE; STOPPER,CM/SHF 1-47149-022-0 02 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47143-004-0 02 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(A) 		9-09180-038-0 01 1 0005- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0211- ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 02 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 02 1 0211- ● ● ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0211- ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0005-0210 ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0211- ● ● ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 02 1 0211- ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.06" 		1-47139-121-0 04 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(B) 		1-47149-059-0 04 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-065-0 04 1 0005-0210 ●
65 SPACER; SLACK ADJ,BRK
(A) T=0.03" 		1-47149-060-0 04 1 0005-0210 ● ●
65 SPACER; SLACK ADJ,BRK
(C) 		1-47149-058-0 02 1 0005- ●
66 PIN; JAW JOINT 1-09744-088-0 02 1 0005- ●
66 PIN; JAW JOINT 1-09744-088-0 02 1 0005- ●
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 08 1 0005-0512 ●
67 NUT; POWER CHAMBER FIX
M16 		9-99110-416-0 08 1 0005-0512 ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 0601- ●
67 NUT; POWER CHAMBER FIX
M16 		0-91110-516-0 08 1 0601- ●
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 08 1 0005-0603 ●
68 WASHER; LK,CHAMBER
ID=16.2 		9-09150-516-0 08 1 0005-0603 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-516-0 08 1 0604-0802 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-516-0 08 1 0604-0802 ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 0803- ●
68 WASHER; LK,CHAMBER
ID=16.2 		0-91510-816-0 08 1 0803- ●
69 JOINT; JAW 1-09768-060-1 02 1 0005- ●
69 JOINT; JAW 1-09768-060-1 02 1 0005- ●
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 0005-0512 ●
70 NUT; LK,JAW JOINT
M16 		9-99111-416-0 02 1 0005-0512 ●
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0601- ●
70 NUT; LK,JAW JOINT
M16 		0-91111-516-0 02 1 0601- ●
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 0005- ●
71 WASHER; PL,JAW JOINT
ID=17 OD=32 		9-09160-616-0 02 1 0005- ●
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 02 1 0005-0606 ●
72 PIN; SPLIT
OD=3.7 L=28 		9-08114-028-0 02 1 0005-0606 ●
72 PIN; SPLIT
OD=3.7 L=28 		0-81124-028-0 02 1 0607- ●
72 PIN; SPLIT
OD=3.7 L=28 		0-81124-028-0 02 1 0607- ●
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0005- ●
73 COLLAR; FELT RING,CM/SHF 1-47143-016-0 02 1 0005- ●
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 0005- ●
74 BUSHING; SLACK ADJ 1-09330-041-0 02 1 0005- ●
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0005- ●
75 RING; FELT,CM/SHF 1-09620-009-0 02 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-083-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-248-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-084-0 01 1 0005-0906 ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-249-0 01 1 0907- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-029-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-47145-030-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-018-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-020-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
REARWARD 		1-47145-019-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING
FORWARD 		1-47145-021-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-158-0 01 1 0005- ●
76 BRACKET; POWER CHAMBER,RR,W/BUSHING 1-48258-159-0 01 1 0005- ●
77 BUSHING 1-47146-003-1 02 1 0005- ●
77 BUSHING 1-47146-003-1 02 1 0005- ●
77 BUSHING 1-47146-012-0 04 1 0005-0210 ●
77 BUSHING 1-47146-012-0 04 1 0211- ● ●
77 BUSHING 1-47146-012-0 04 1 0211- ●
77 BUSHING 1-47146-012-0 08 1 0005-0210 ●
77 BUSHING 1-47146-014-0 04 1 0005- ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0005- ●
195 RING; SNAP,CM/SHF 9-09180-038-0 01 1 0005- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0005-0210 ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0211- ● ● ●
195 RING; SNAP,CM/SHF 1-87050-005-0 02 1 0211- ●
195 RING; SNAP,CM/SHF 1-87050-005-0 04 1 0005-0210 ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0005-0512 ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		9-09031-110-0 02 1 0005-0512 ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
198 NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES 		0-90301-510-0 02 1 0601- ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-28081-435-0 08 1 0202-1209 ●
201 BOLT; BRKT,POWER CHAMBER
M14X35 		0-20851-435-0 08 1 1210- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0005-0210 ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0211- ● ● ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 08 1 0211- ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-119-0 16 1 0005-0210 ●
201 BOLT; BRKT,POWER CHAMBER 1-47139-116-0 08 1 0005-0210 ●
202 WASHER; LK,BRKT
ID=14.2 		9-09150-514-0 08 1 0202-0603 ●
202 WASHER; LK,BRKT
ID=14.2 		0-91510-514-0 08 1 0604- ●
204 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 0005- ●
204 CONNECTOR; SPR CHAMBER
(A) DIN12 & R3/8 ELBOW 		1-09660-653-1 02 1 0005- ●
204 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0005- ●
204 CONNECTOR; SPR CHAMBER
(B) DIN12 & R3/8 & RC1/4 3WAY 		1-09660-845-0 01 1 0005- ●
298 GASKET
ID=23.3 		9-09561-223-0 02 1 0211- ●
298 GASKET
ID=23.3 		9-09561-223-0 02 1 0211- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
