Isuzu WW
▶
TRUCKS
▶
FV
▶
10828 - FV/GV(AUSTRAL)L.SUS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-42 - AUTO TRANS OIL PAN AND OIL CONTROL
▶

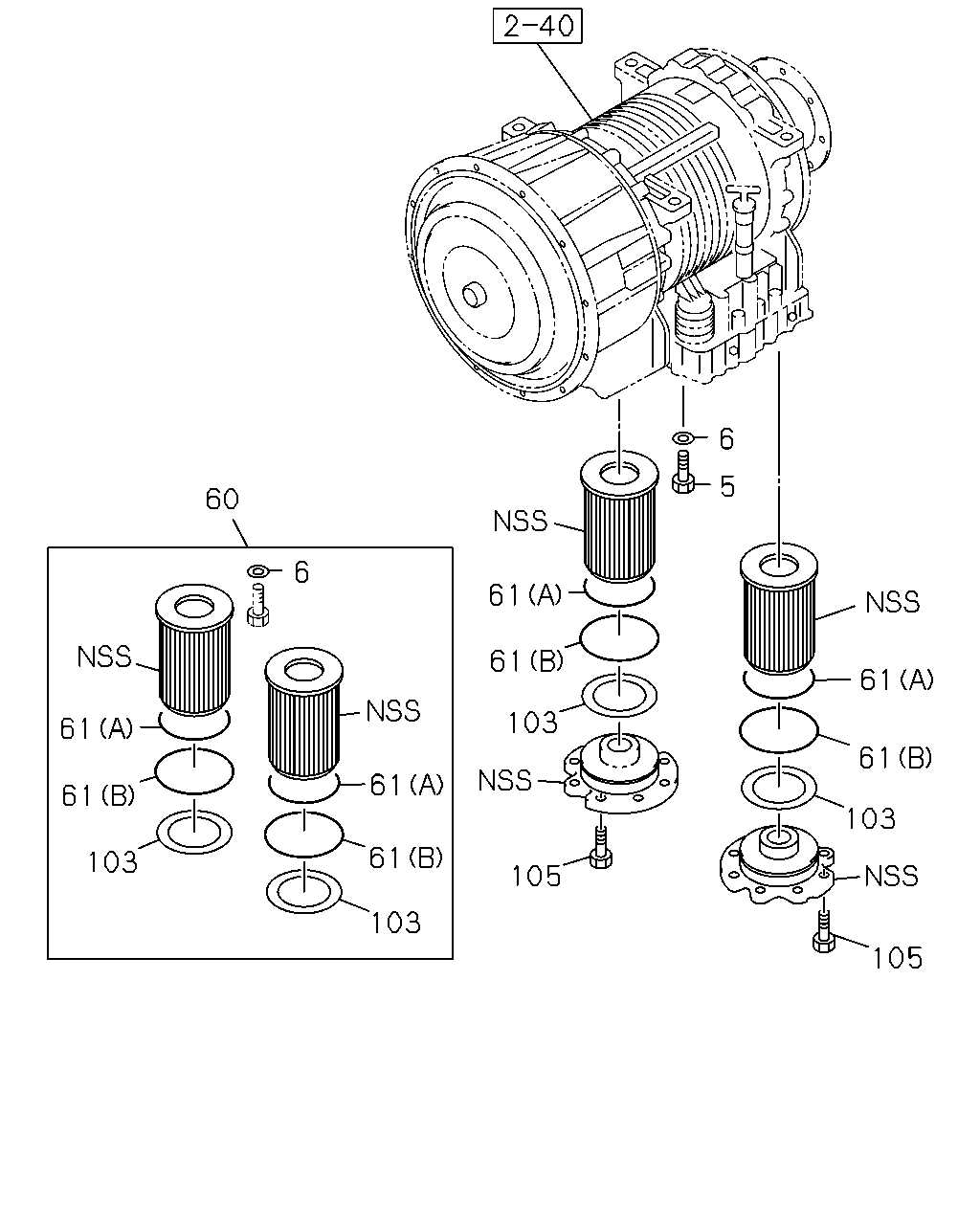

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL
(#8680) — 10 parça
6
5
60
6
61
61
61
103
61
61
61
61
103
61
103
105
103
105
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
PLUG; OIL PAN
1-34139-039-0
01
1
0112-
6
GASKET; OIL PAN TO PLUG
ID=16.4
1-34139-040-0
01
1
0112-
60
REPAIR KIT; OIL FILTER,A/T
1-34139-041-0
01
1
0112-0112
60
REPAIR KIT; OIL FILTER,A/T
1-34139-064-0
01
1
0201-0501
60
REPAIR KIT; OIL FILTER,A/T
1-34139-065-0
01
1
0502-
61
SEAL; OIL FILTER
(A) ID=75.9
1-34139-042-0
02
1
0112-
61
SEAL; OIL FILTER
(B)
1-34139-043-0
02
1
0112-0501
61
SEAL; OIL FILTER
(B)
1-34139-066-0
02
1
0502-
103
GASKET; COVER
1-34139-044-0
02
1
0112-
105
BOLT; COVER
1-34139-045-0
12
1
0112-
