2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#8674) — 19 parça

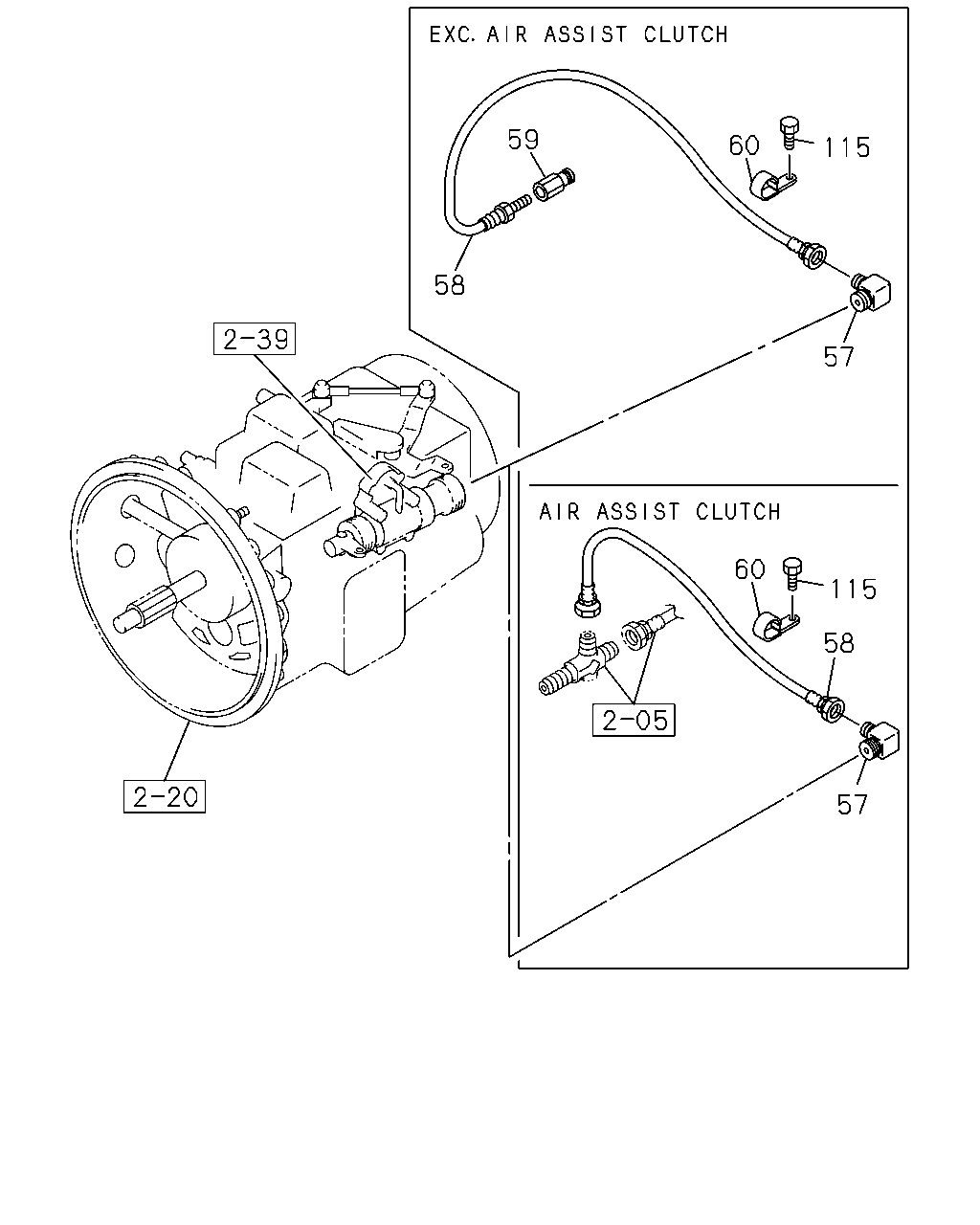

çizim 45173
59 60 115 58 57 60 115 58 57
BalonParca AdiParca NoAdetTipApplied Date
57 NIPPLE; POWER ASSISTOR 1-09661-002-1 01 1 0005-0210
58 HOSE; FLEX,POWER ASSISTOR
AIR ASSIST CLUTCH<PK1> L=780 		1-09363-620-0 01 1 0005-0210
58 HOSE; FLEX,POWER ASSISTOR
EXC. AIR ASSIST CLUTCH<PK1> L=800 		1-09363-695-0 01 1 0005-0006
58 HOSE; FLEX,POWER ASSISTOR
EXC. AIR ASSIST CLUTCH<PK1> L=740 		1-09363-675-0 01 1 0007-0008
58 HOSE; FLEX,POWER ASSISTOR
EXC. AIR ASSIST CLUTCH<PK1> L=740 		1-09363-674-0 01 1 0009-0210
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09661-093-0 01 1 0005-0005
59 CONNECTOR; AIR HOSE,SHIFT POWER ASSIST
EXC. AIR ASSIST CLUTCH<PK1> DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0006-0210
60 CLIP; FLEX HOSE
ID=13 L=20 		9-09525-235-0 02 1 0005-0210
115 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210

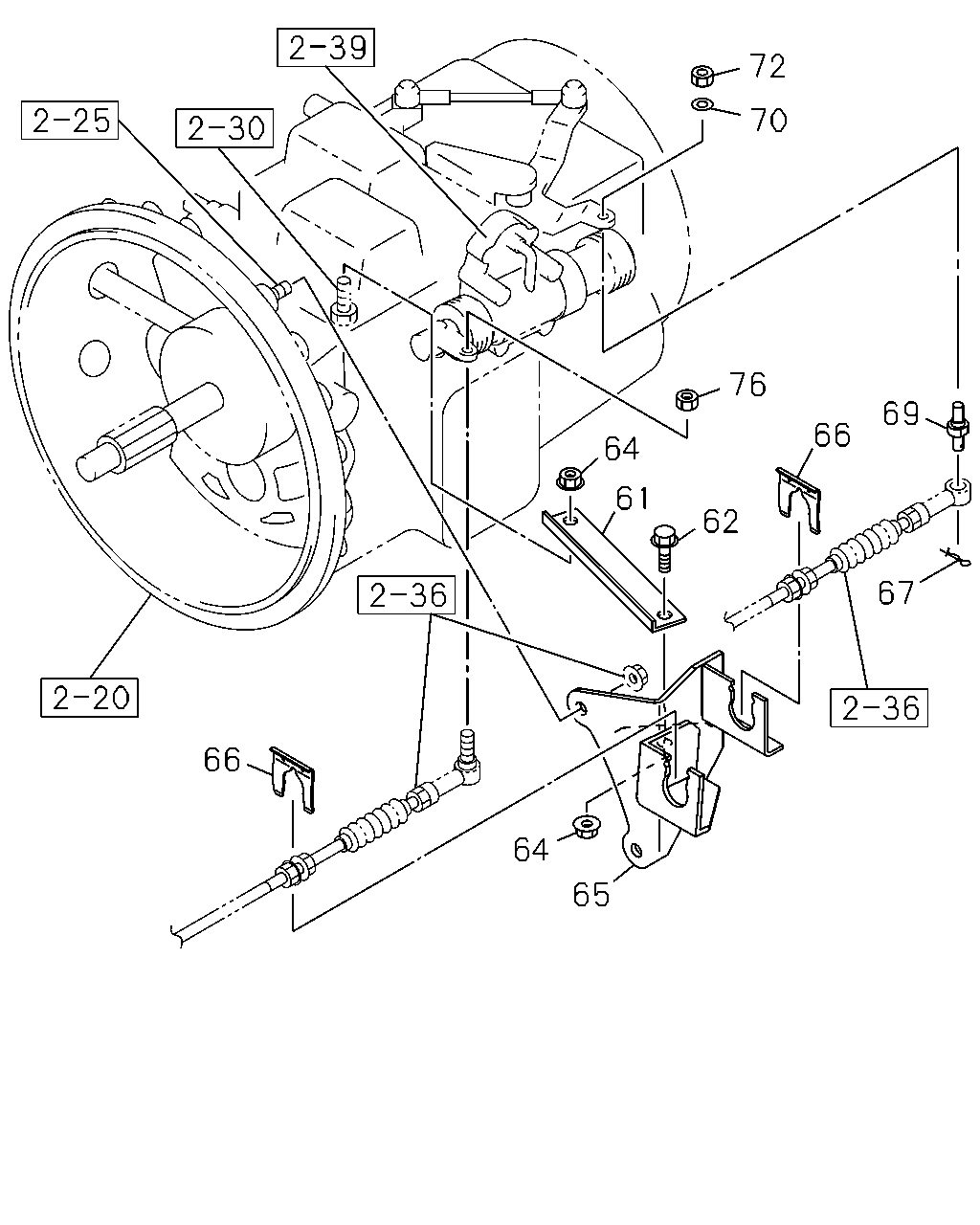

çizim 47038
72 70 76 69 66 64 61 62 67 66 64 65
BalonParca AdiParca NoAdetTipApplied Date
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0005-0210
62 BOLT; STAY
M10X30 FLANGE 		0-28681-030-0 01 1 0005-0210
64 NUT; STAY
M10 FLANGE 		0-91150-210-0 02 1 0005-0210
65 BRACKET; SHIFT TO SELECT,TRANS CONT 1-33657-554-2 01 1 0005-0210
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0005-0210
67 PIN; SNAP,SELECT WIRE
L=27.7 		8-94157-841-0 01 1 0005-0210
69 PIN; TRANS CONT,SELECT 1-33659-116-1 01 1 0005-0210
70 WASHER; PL,SELECT WIRE
ID=8.4 OD=18 		9-09164-608-0 01 1 0005-0210
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-062-1 01 1 0005-0210
76 NUT; BALL JOINT,SELECT WIRE
M10 FLANGE 		1-09440-061-0 01 1 0005-0210
