2-26B — MANUAL TRANSMISSION GEAR (#8666) — 2146 parça

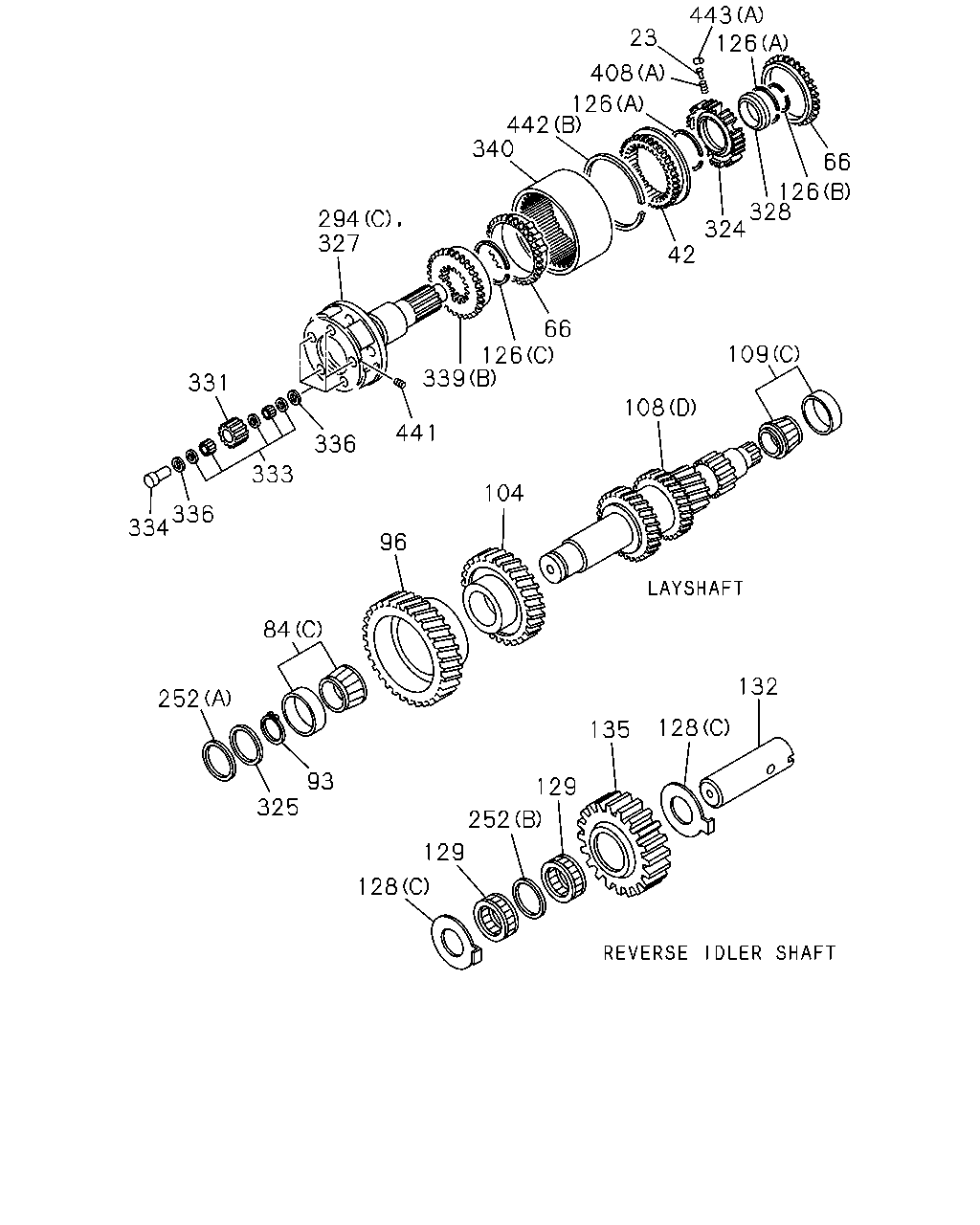

çizim 8582
443 126 23 408 126 442 340 66 126 328 324 42 294 327 66 126 339 109 331 108 441 336 333 104 336 334 96 84 132 252 128 135 93 325 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0005-0210 ●
23 PLUNGER; DETENT,SYN
6SD1 TCN ENG(31L) 		1-33265-458-0 18 1 0211-0609 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0610- ●
42 SLEEVE 1-33262-196-0 01 1 0005-0210 ●
42 SLEEVE
6SD1 TCN ENG(31L) 		1-33262-196-0 01 1 0211-0609 ●
42 SLEEVE 1-33262-196-0 01 1 0610- ●
66 RING; BLOCK,SYN
BRAKE SYSTEM RETARDER<RE2> 		1-33265-557-0 02 1 0005-0210 ●
66 RING; BLOCK,SYN
6SD1 TCN ENG(31L) 		1-33265-557-0 02 1 0211-0609 ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0610- ●
66 RING; BLOCK,SYN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-455-0 02 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
(D) 		1-33319-221-0 01 1 0303- ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0610- ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 0005- ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.12 		1-33239-238-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.07 		1-33239-239-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.02 		1-33239-240-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0303- ● ●
96 GEAR; COUNTER DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33331-242-0 01 1 0005-0210 ●
96 GEAR; COUNTER DRIVE
6SD1 TCN ENG(31L) 		1-33331-242-0 01 1 0211-0405 ●
96 GEAR; COUNTER DRIVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33331-242-0 01 1 0406- ●
96 GEAR; COUNTER DRIVE 1-87061-444-0 02 1 0005- ●
104 GEAR; 4TH,COUNTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33338-338-0 01 1 0005-0210 ●
104 GEAR; 4TH,COUNTER
6SD1 TCN ENG(31L) 		1-33338-338-0 01 1 0211-0405 ●
104 GEAR; 4TH,COUNTER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33338-338-0 01 1 0406- ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0406-0609 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
6HK1 TCS ENG(80L) (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
(E) 		1-33311-334-0 01 1 0303- ●
108 SHAFT; COUNTER
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33311-322-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) (D) 		1-33311-303-0 01 1 0211-0405 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33311-303-0 01 1 0406- ●
108 SHAFT; COUNTER
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33311-296-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 0005- ●
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(D) 		1-33319-221-0 01 1 0303- ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0005-0210 ●
109 BEARING; COUNTER SHAFT,RR
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0610- ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 0005- ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0406-0609 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
6HK1 TCS ENG(80L) (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (A) 		1-33269-058-0 02 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (B) 		1-33269-061-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (C) 		1-33269-062-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (F) 		1-33239-315-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (G) 		1-33269-065-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (G) 		1-33269-065-0 01 1 0211-0405 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33269-065-0 01 1 0406- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33269-065-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.10 		1-33269-066-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.10 		1-33269-066-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.05 		1-33269-067-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.05 		1-33269-067-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.00 		1-33269-068-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.00 		1-33269-068-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(D) 		1-33359-016-0 02 1 0303- ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0005-0210 ●
128 WASHER; THRUST,REV SHAFT
6SD1 TCN ENG(31L) (C) 		1-33359-004-0 02 1 0211-0609 ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 0005- ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 0005- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0005-0210 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0211-0302 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0303- ● ●
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 0005- ●
132 SHAFT; REV 1-33351-044-0 01 1 0303- ●
132 SHAFT; REV
BRAKE SYSTEM RETARDER<RE2> 		1-33351-037-0 01 1 0005-0210 ●
132 SHAFT; REV
6SD1 TCN ENG(31L) 		1-33351-037-0 01 1 0211-0609 ●
132 SHAFT; REV 1-33351-037-0 01 1 0610- ●
132 SHAFT; REV
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33351-028-0 01 1 0005-0210 ●
132 SHAFT; REV 1-87061-452-0 02 1 0005- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0303- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0005-0210 ●
135 GEAR; REV IDLER
6SD1 TCN ENG(31L) 		1-33361-078-0 01 1 0211-0609 ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0610- ●
135 GEAR; REV IDLER 1-87061-451-0 02 1 0005- ●
252 SPACER
(C) 		1-33319-223-0 01 1 0303- ●
252 SPACER
(D) 		1-33359-017-0 01 1 0303- ●
252 SPACER
(A) 		1-33319-151-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (A) 		1-33319-151-0 01 1 0211-0609 ●
252 SPACER
(A) 		1-33319-151-0 01 1 0610- ●
252 SPACER
(B) 		1-33359-006-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (B) 		1-33359-006-0 01 1 0211-0609 ●
252 SPACER
(B) 		1-33359-006-0 01 1 0610- ●
294 SHAFT; OUTPUT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (C) 		1-33239-357-0 01 1 0406-0609 ●
294 SHAFT; OUTPUT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (C) 		1-33239-357-0 01 1 0610- ●
294 SHAFT; OUTPUT
6HK1 TCS ENG(80L) (C) 		1-33239-357-0 01 1 0610- ●
294 SHAFT; OUTPUT
(A) 		1-87061-280-0 01 1 0005- ●
294 SHAFT; OUTPUT
(B) 		1-87061-506-0 01 1 0005- ●
324 HUB; CLU 1-33261-234-0 01 1 0005-0210 ●
324 HUB; CLU
6SD1 TCN ENG(31L) 		1-33261-234-0 01 1 0211-0609 ●
324 HUB; CLU 1-33261-234-0 01 1 0610- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0303- ● ●
327 CARRIER; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33231-324-0 01 1 0005-0210 ●
327 CARRIER; PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33231-293-0 01 1 0211-0405 ●
327 CARRIER; PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33231-293-0 01 1 0406- ●
327 CARRIER; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-288-0 01 1 0005-0210 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0005-0210 ●
328 BEARING; CARRIER
6SD1 TCN ENG(31L) 		1-33269-060-0 01 1 0211-0609 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0610- ●
331 GEAR SET; PLANETARY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-248-0 05 1 0005-0210 ●
331 GEAR SET; PLANETARY
6SD1 TCN ENG(31L) 		1-33239-277-0 05 1 0211-0405 ●
331 GEAR SET; PLANETARY
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-277-0 05 1 0406- ●
333 ROLLER; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-250-0 05 1 0005-0210 ●
333 ROLLER; PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33239-280-0 05 1 0211-0405 ●
333 ROLLER; PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-280-0 05 1 0406- ●
334 SHAFT; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-249-0 05 1 0005-0210 ●
334 SHAFT; PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33239-278-0 05 1 0211-0405 ●
334 SHAFT; PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-278-0 05 1 0406- ●
336 WASHER; THRUST,PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-252-0 10 1 0005-0210 ●
336 WASHER; THRUST,PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33239-276-0 10 1 0211-0405 ●
336 WASHER; THRUST,PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-276-0 10 1 0406- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-558-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (A) 		1-33265-558-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-559-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (B) 		1-33265-559-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-456-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-457-0 01 1 0005-0210 ●
340 GEAR; RING 1-33339-052-0 01 1 0005-0210 ●
340 GEAR; RING
6SD1 TCN ENG(31L) 		1-33339-052-0 01 1 0211-0609 ●
340 GEAR; RING 1-33339-052-0 01 1 0610- ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
441 SCREW; STOPPER,PIN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-251-0 05 1 0005-0210 ●
441 SCREW; STOPPER,PIN
6SD1 TCN ENG(31L) 		1-33239-251-0 05 1 0211-0405 ●
441 SCREW; STOPPER,PIN
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-251-0 05 1 0406- ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (A) 		1-33269-055-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0610- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (B) 		1-33339-053-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 06 1 0303- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (A) 		1-33269-059-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-059-0 09 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (B) 		1-33269-063-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-063-0 09 1 0610- ●

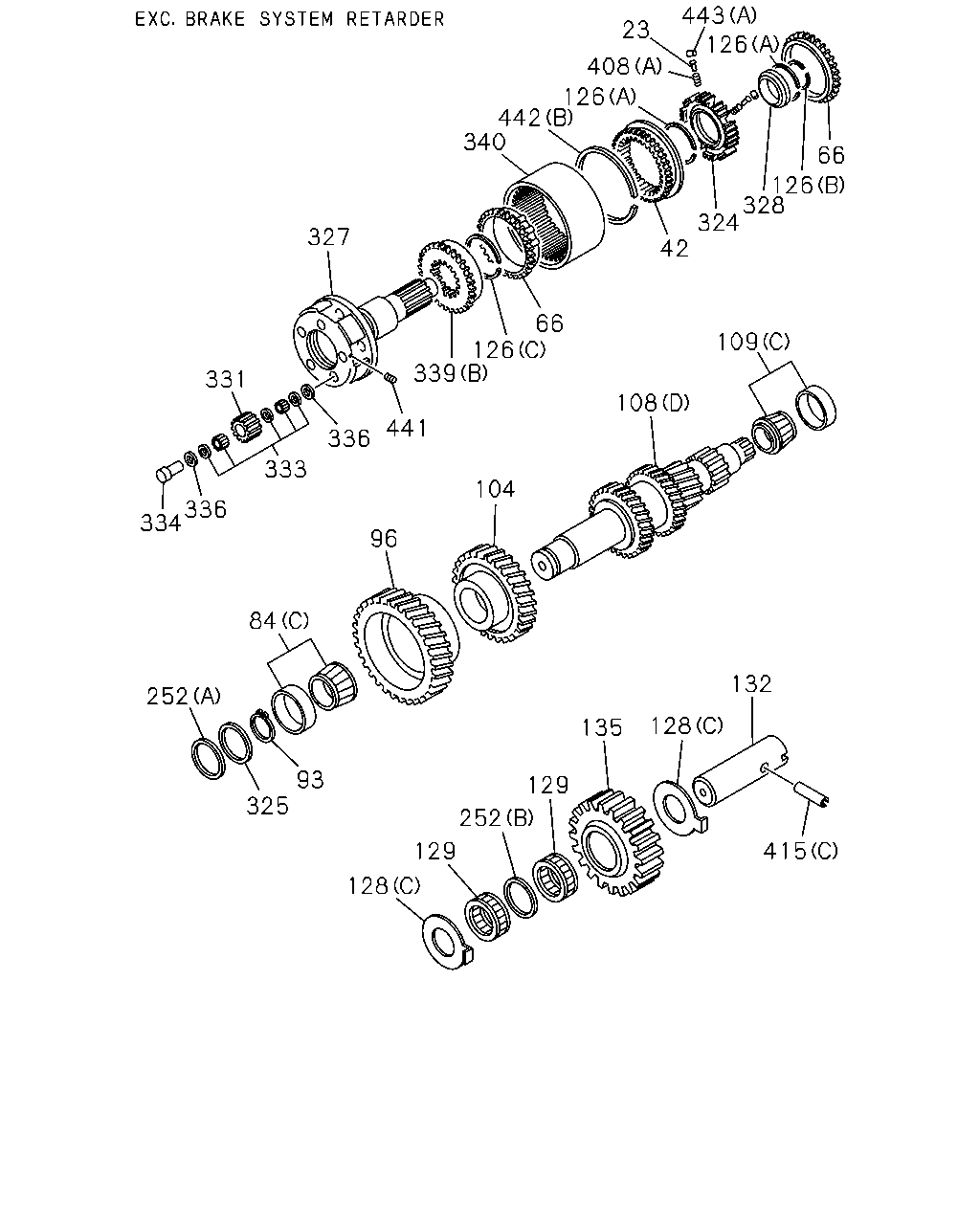

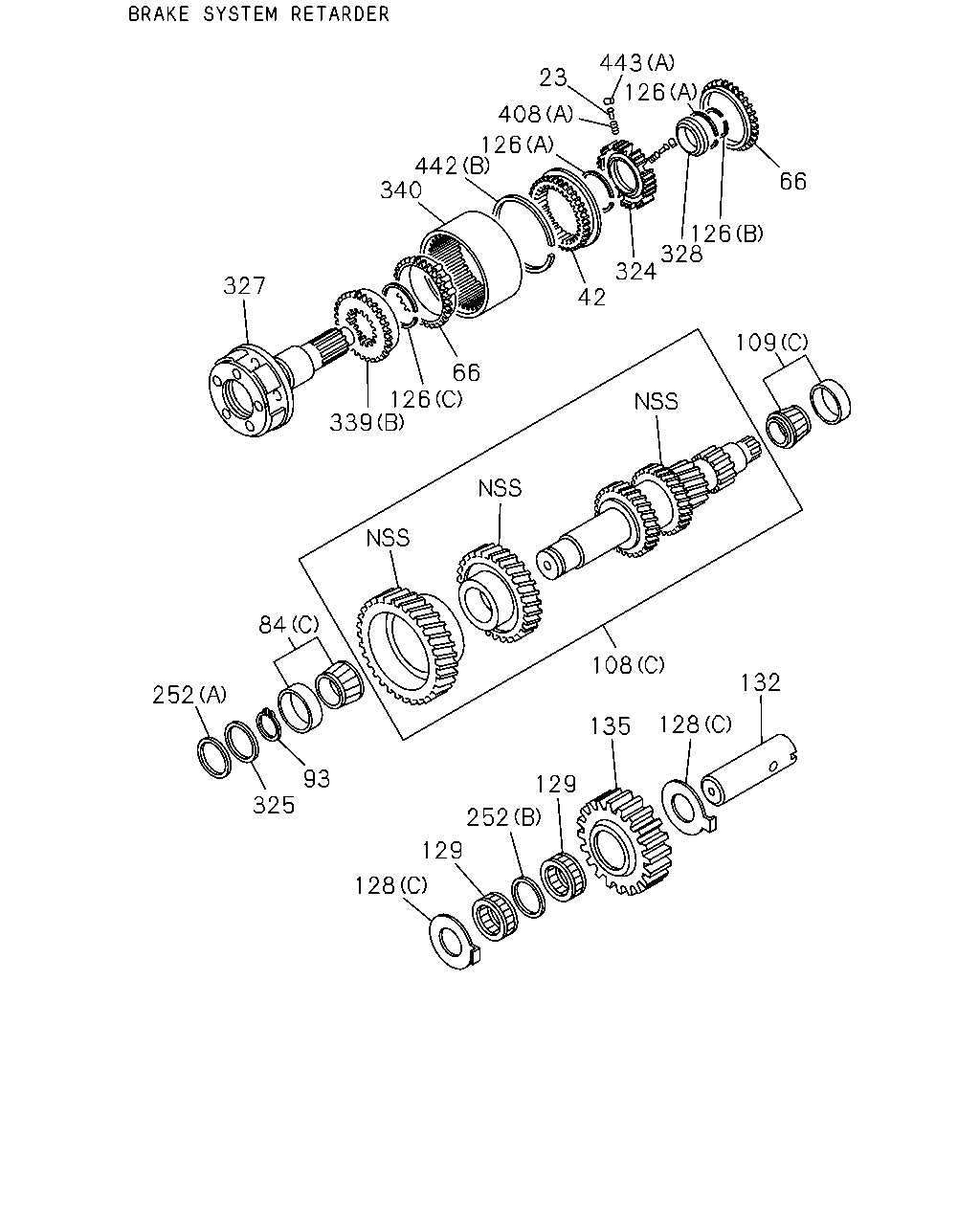

çizim 8810
443 126 23 408 126 442 340 66 126 328 324 42 327 66 126 339 109 331 108 441 336 333 104 336 334 96 84 132 252 128 135 93 325 129 252 129 415 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0005-0210 ●
23 PLUNGER; DETENT,SYN
6SD1 TCN ENG(31L) 		1-33265-458-0 18 1 0211-0609 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0610- ●
42 SLEEVE 1-33262-196-0 01 1 0005-0210 ●
42 SLEEVE
6SD1 TCN ENG(31L) 		1-33262-196-0 01 1 0211-0609 ●
42 SLEEVE 1-33262-196-0 01 1 0610- ●
66 RING; BLOCK,SYN
BRAKE SYSTEM RETARDER<RE2> 		1-33265-557-0 02 1 0005-0210 ●
66 RING; BLOCK,SYN
6SD1 TCN ENG(31L) 		1-33265-557-0 02 1 0211-0609 ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0610- ●
66 RING; BLOCK,SYN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-455-0 02 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
(D) 		1-33319-221-0 01 1 0303- ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0610- ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 0005- ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.12 		1-33239-238-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.07 		1-33239-239-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.02 		1-33239-240-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0303- ● ●
96 GEAR; COUNTER DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33331-242-0 01 1 0005-0210 ●
96 GEAR; COUNTER DRIVE
6SD1 TCN ENG(31L) 		1-33331-242-0 01 1 0211-0405 ●
96 GEAR; COUNTER DRIVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33331-242-0 01 1 0406- ●
96 GEAR; COUNTER DRIVE 1-87061-444-0 02 1 0005- ●
104 GEAR; 4TH,COUNTER
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33338-338-0 01 1 0005-0210 ●
104 GEAR; 4TH,COUNTER
6SD1 TCN ENG(31L) 		1-33338-338-0 01 1 0211-0405 ●
104 GEAR; 4TH,COUNTER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33338-338-0 01 1 0406- ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0406-0609 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
6HK1 TCS ENG(80L) (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
(E) 		1-33311-334-0 01 1 0303- ●
108 SHAFT; COUNTER
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33311-322-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) (D) 		1-33311-303-0 01 1 0211-0405 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33311-303-0 01 1 0406- ●
108 SHAFT; COUNTER
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33311-296-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 0005- ●
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(D) 		1-33319-221-0 01 1 0303- ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0005-0210 ●
109 BEARING; COUNTER SHAFT,RR
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0610- ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 0005- ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0406-0609 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
6HK1 TCS ENG(80L) (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (A) 		1-33269-058-0 02 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (B) 		1-33269-061-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (C) 		1-33269-062-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (F) 		1-33239-315-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (G) 		1-33269-065-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (G) 		1-33269-065-0 01 1 0211-0405 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33269-065-0 01 1 0406- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33269-065-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.10 		1-33269-066-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.10 		1-33269-066-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.05 		1-33269-067-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.05 		1-33269-067-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.00 		1-33269-068-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.00 		1-33269-068-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(D) 		1-33359-016-0 02 1 0303- ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0005-0210 ●
128 WASHER; THRUST,REV SHAFT
6SD1 TCN ENG(31L) (C) 		1-33359-004-0 02 1 0211-0609 ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 0005- ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 0005- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0005-0210 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0211-0302 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0303- ● ●
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 0005- ●
132 SHAFT; REV 1-33351-044-0 01 1 0303- ●
132 SHAFT; REV
BRAKE SYSTEM RETARDER<RE2> 		1-33351-037-0 01 1 0005-0210 ●
132 SHAFT; REV
6SD1 TCN ENG(31L) 		1-33351-037-0 01 1 0211-0609 ●
132 SHAFT; REV 1-33351-037-0 01 1 0610- ●
132 SHAFT; REV
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33351-028-0 01 1 0005-0210 ●
132 SHAFT; REV 1-87061-452-0 02 1 0005- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0303- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0005-0210 ●
135 GEAR; REV IDLER
6SD1 TCN ENG(31L) 		1-33361-078-0 01 1 0211-0609 ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0610- ●
135 GEAR; REV IDLER 1-87061-451-0 02 1 0005- ●
252 SPACER
(C) 		1-33319-223-0 01 1 0303- ●
252 SPACER
(D) 		1-33359-017-0 01 1 0303- ●
252 SPACER
(A) 		1-33319-151-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (A) 		1-33319-151-0 01 1 0211-0609 ●
252 SPACER
(A) 		1-33319-151-0 01 1 0610- ●
252 SPACER
(B) 		1-33359-006-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (B) 		1-33359-006-0 01 1 0211-0609 ●
252 SPACER
(B) 		1-33359-006-0 01 1 0610- ●
324 HUB; CLU 1-33261-234-0 01 1 0005-0210 ●
324 HUB; CLU
6SD1 TCN ENG(31L) 		1-33261-234-0 01 1 0211-0609 ●
324 HUB; CLU 1-33261-234-0 01 1 0610- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0303- ● ●
327 CARRIER; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33231-324-0 01 1 0005-0210 ●
327 CARRIER; PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33231-293-0 01 1 0211-0405 ●
327 CARRIER; PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33231-293-0 01 1 0406- ●
327 CARRIER; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-288-0 01 1 0005-0210 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0005-0210 ●
328 BEARING; CARRIER
6SD1 TCN ENG(31L) 		1-33269-060-0 01 1 0211-0609 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0610- ●
331 GEAR SET; PLANETARY
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-248-0 05 1 0005-0210 ●
331 GEAR SET; PLANETARY
6SD1 TCN ENG(31L) 		1-33239-277-0 05 1 0211-0405 ●
331 GEAR SET; PLANETARY
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-277-0 05 1 0406- ●
333 ROLLER; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-250-0 05 1 0005-0210 ●
333 ROLLER; PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33239-280-0 05 1 0211-0405 ●
333 ROLLER; PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-280-0 05 1 0406- ●
334 SHAFT; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-249-0 05 1 0005-0210 ●
334 SHAFT; PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33239-278-0 05 1 0211-0405 ●
334 SHAFT; PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-278-0 05 1 0406- ●
336 WASHER; THRUST,PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-252-0 10 1 0005-0210 ●
336 WASHER; THRUST,PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33239-276-0 10 1 0211-0405 ●
336 WASHER; THRUST,PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-276-0 10 1 0406- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-558-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (A) 		1-33265-558-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-559-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (B) 		1-33265-559-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-456-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-457-0 01 1 0005-0210 ●
340 GEAR; RING 1-33339-052-0 01 1 0005-0210 ●
340 GEAR; RING
6SD1 TCN ENG(31L) 		1-33339-052-0 01 1 0211-0609 ●
340 GEAR; RING 1-33339-052-0 01 1 0610- ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
415 PIN; OUTPUT SHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (C) 		1-33359-007-0 01 1 0005-0210 ●
415 PIN; OUTPUT SHAFT
(A) 		1-87061-271-0 01 1 0005- ●
415 PIN; OUTPUT SHAFT
(B) 		1-87061-284-0 01 1 0005- ●
441 SCREW; STOPPER,PIN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-251-0 05 1 0005-0210 ●
441 SCREW; STOPPER,PIN
6SD1 TCN ENG(31L) 		1-33239-251-0 05 1 0211-0405 ●
441 SCREW; STOPPER,PIN
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-251-0 05 1 0406- ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (A) 		1-33269-055-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0610- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (B) 		1-33339-053-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 06 1 0303- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (A) 		1-33269-059-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-059-0 09 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (B) 		1-33269-063-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-063-0 09 1 0610- ●

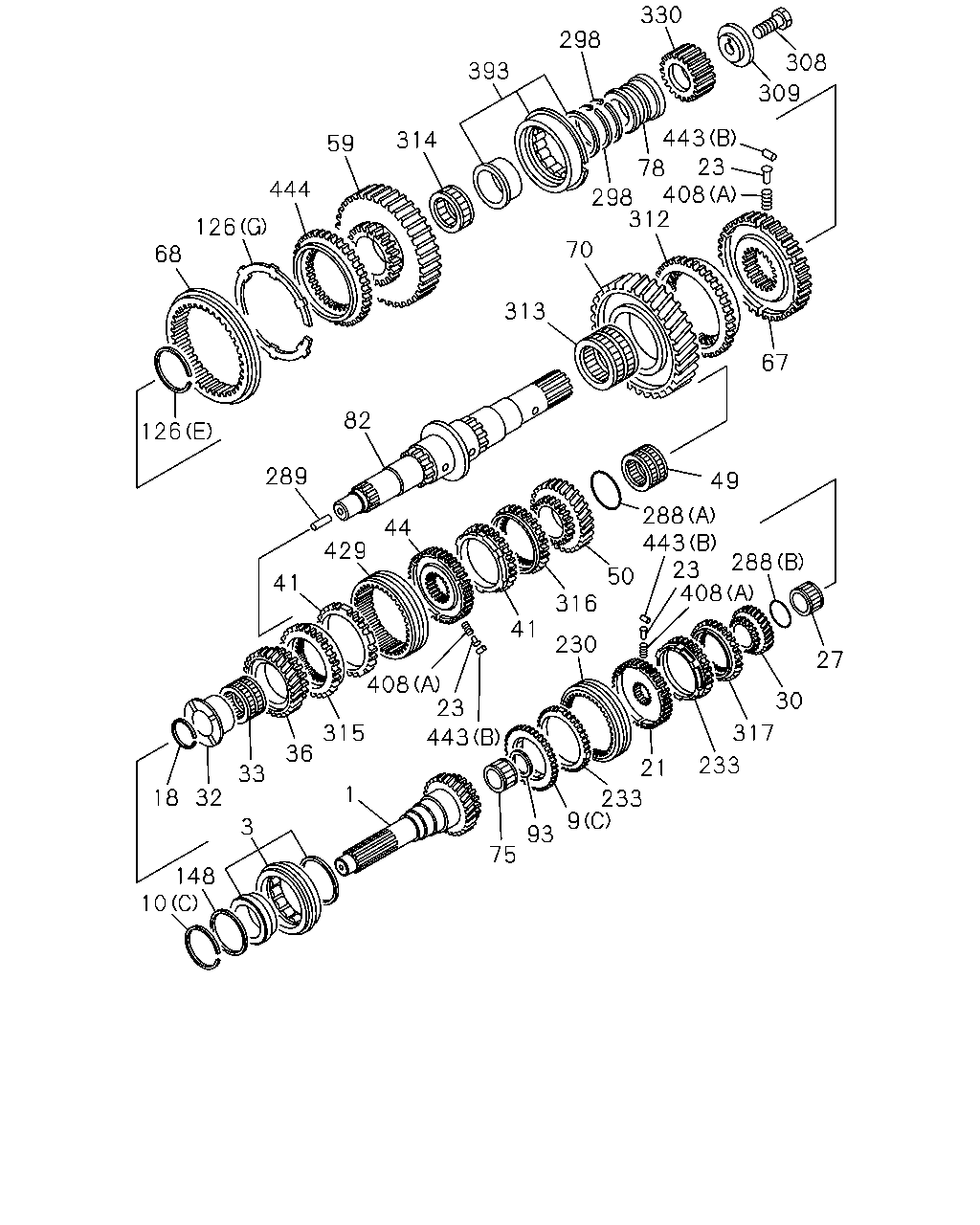

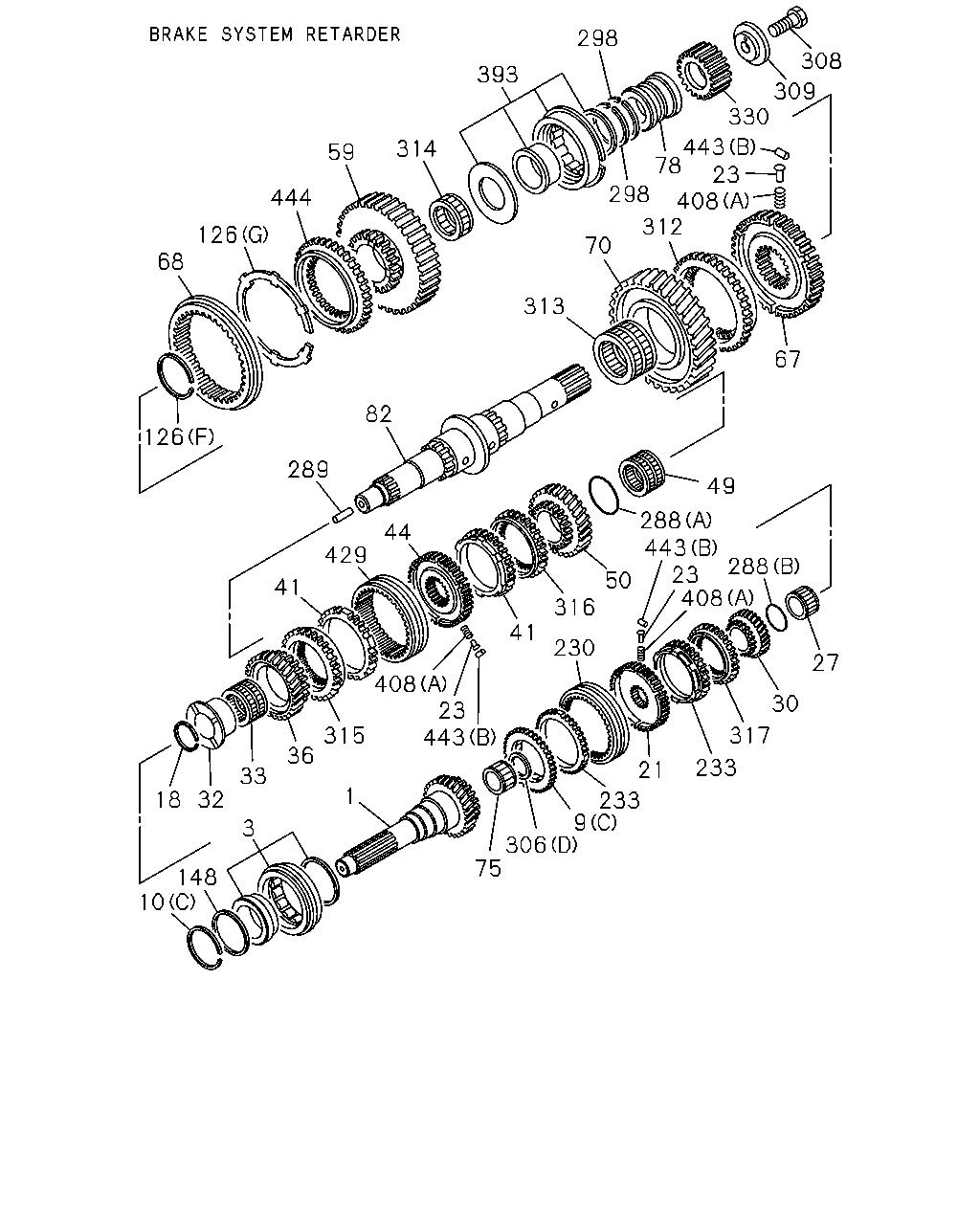

çizim 9033
330 298 308 393 309 443 314 59 298 408 312 444 126 70 68 313 67 82 126 289 49 288 443 23 408 44 429 288 50 41 316 41 230 27 408 23 30 315 317 443 36 233 21 33 1 32 18 233 9 3 93 75 148 10 78 23
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0303- ●
1 SHAFT; TOP GEAR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33211-983-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS
6SD1 TCN ENG(31L) 		1-33211-983-0 01 1 0211-0609 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0610- ●
1 SHAFT; TOP GEAR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33211-911-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 0005-0603 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-763-0 01 1 0604- ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0005-0210 ●
3 BEARING; TOP GEAR SHAFT
6SD1 TCN ENG(31L) 		1-33219-186-0 01 1 0211-0609 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0610- ●
3 BEARING; TOP GEAR SHAFT 1-87061-501-0 01 1 0005- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33265-601-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-604-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-561-0 01 1 0005-0210 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) (C) 		1-33265-561-0 01 1 0211-0405 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33265-561-0 01 1 0406- ●
9 CLUTCH; DOG,TOP GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-460-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33219-268-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
6SD1 TCN ENG(31L) (C) 		1-33219-268-0 01 1 0211-0609 ●
10 RING; SNAP,PILOT BRG
(C) 		1-33219-268-0 01 1 0610- ●
10 RING; SNAP,PILOT BRG
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33219-193-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
(A) 		1-87061-295-0 01 1 0005- ●
10 RING; SNAP,PILOT BRG
(B) 		1-87061-426-0 01 1 0005- ●
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 0005-0210 ●
18 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) T=2.00 		1-33269-064-0 01 1 0211-0609 ●
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 0610- ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0005-0210 ●
21 HUB; CLU,4TH & 5TH
6SD1 TCN ENG(31L) 		1-33261-236-0 01 1 0211-0609 ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0610- ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0005-0210 ●
23 PLUNGER; DETENT,SYN
6SD1 TCN ENG(31L) 		1-33265-458-0 18 1 0211-0609 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0610- ●
27 BEARING; 4TH GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-079-0 01 1 0005-0210 ●
27 BEARING; 4TH GEAR
6SD1 TCN ENG(31L) 		1-33259-079-0 01 1 0211-0609 ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0610- ●
27 BEARING; 4TH GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-071-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0303- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-455-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-472-0 01 1 0211-0609 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0610- ●
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 0005- ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0005-0210 ●
32 COLLAR; 3RD GEAR
6SD1 TCN ENG(31L) 		1-33259-070-0 01 1 0211-0609 ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0610- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0303- ●
33 BEARING; NEEDLE,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
33 BEARING; NEEDLE,3RD GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0610- ●
33 BEARING; NEEDLE,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0303- ●
36 GEAR; 3RD,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33252-458-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-458-0 01 1 0211-0609 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0610- ●
36 GEAR; 3RD,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33252-454-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 0005- ●
41 RING; BLOCK,2ND & 3RD
BRAKE SYSTEM RETARDER<RE2> 		1-33265-560-0 02 1 0005-0210 ●
41 RING; BLOCK,2ND & 3RD
6SD1 TCN ENG(31L) 		1-33265-560-0 02 1 0211-0609 ●
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0610- ●
41 RING; BLOCK,2ND & 3RD
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-459-0 02 1 0005-0210 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0303- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0005-0210 ●
44 HUB; CLU,2ND & 3RD,MAIN
6SD1 TCN ENG(31L) 		1-33261-235-0 01 1 0211-0609 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0303- ●
49 BEARING; NEEDLE,2ND GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
49 BEARING; NEEDLE,2ND GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0303- ●
50 GEAR; 2ND,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33251-382-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-382-0 01 1 0211-0609 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0610- ●
50 GEAR; 2ND,MAINSHAFT

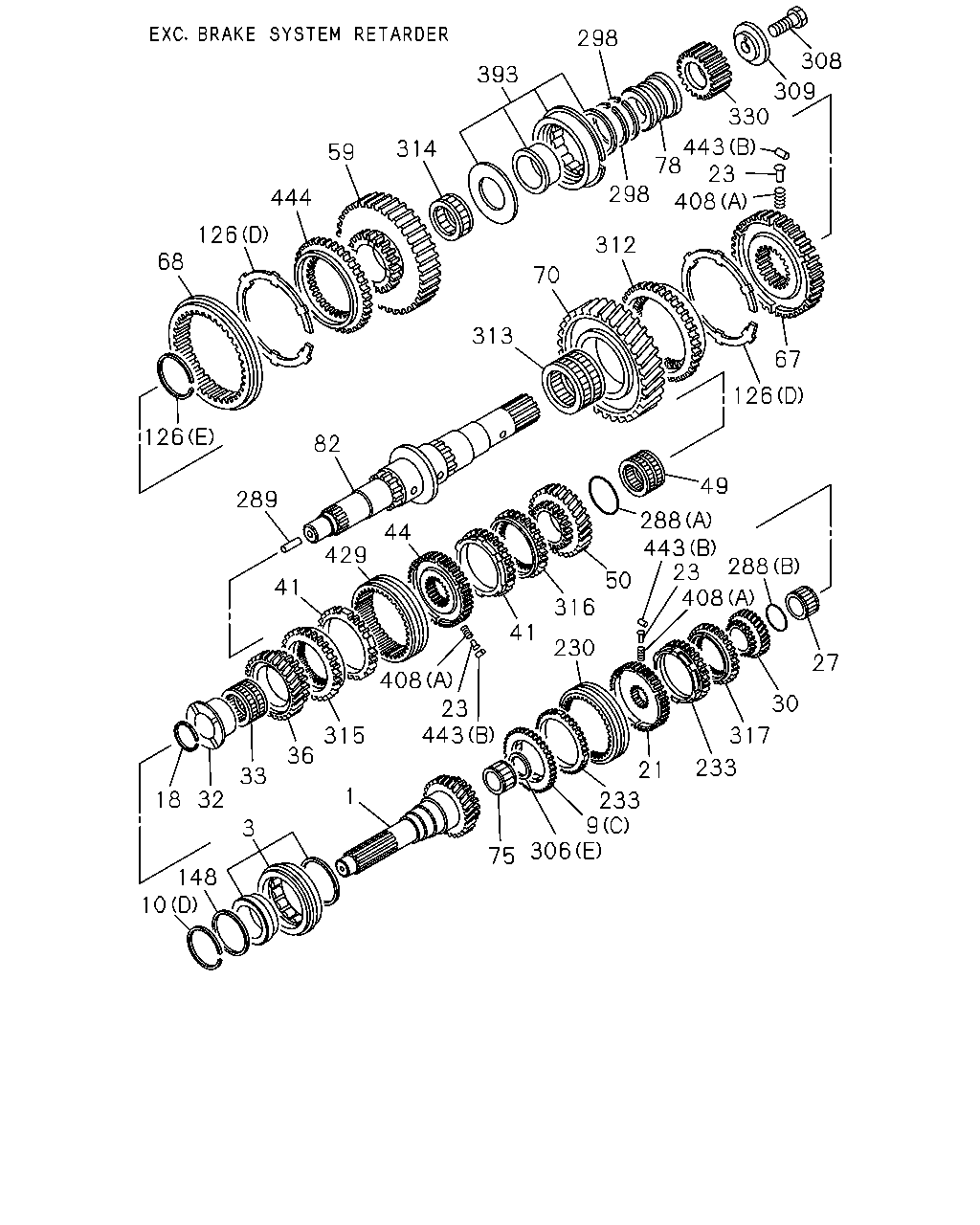

EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33251-375-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 0005- ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0303- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0005-0210 ●
59 GEAR; REV MAINSHAFT
6SD1 TCN ENG(31L) 		1-33257-078-0 01 1 0211-0609 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0610- ●
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 0005- ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0303- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0005-0210 ●
67 HUB; CLU,1ST TO REV
6SD1 TCN ENG(31L) 		1-33261-237-0 01 1 0211-0609 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0610- ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0005-0210 ●
68 SLEEVE; 1ST TO REV
6SD1 TCN ENG(31L) 		1-33262-198-0 01 1 0211-0609 ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0303- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0005-0210 ●
70 GEAR; 1ST,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-376-0 01 1 0211-0609 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 0005- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0005-0210 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0211-0302 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0303- ● ●
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 0005- ●
78 COLLAR; DIST,MAINSHAFT BRG
BRAKE SYSTEM RETARDER<RE2> 		1-33239-279-0 01 1 0005-0210 ●
78 COLLAR; DIST,MAINSHAFT BRG
6SD1 TCN ENG(31L) 		1-33239-279-0 01 1 0211-0609 ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0610- ●
78 COLLAR; DIST,MAINSHAFT BRG
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-244-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0303- ●
82 SHAFT; MAIN,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33231-323-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS
6SD1 TCN ENG(31L) 		1-33231-294-0 01 1 0211-0609 ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0610- ●
82 SHAFT; MAIN,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-287-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 0005- ●

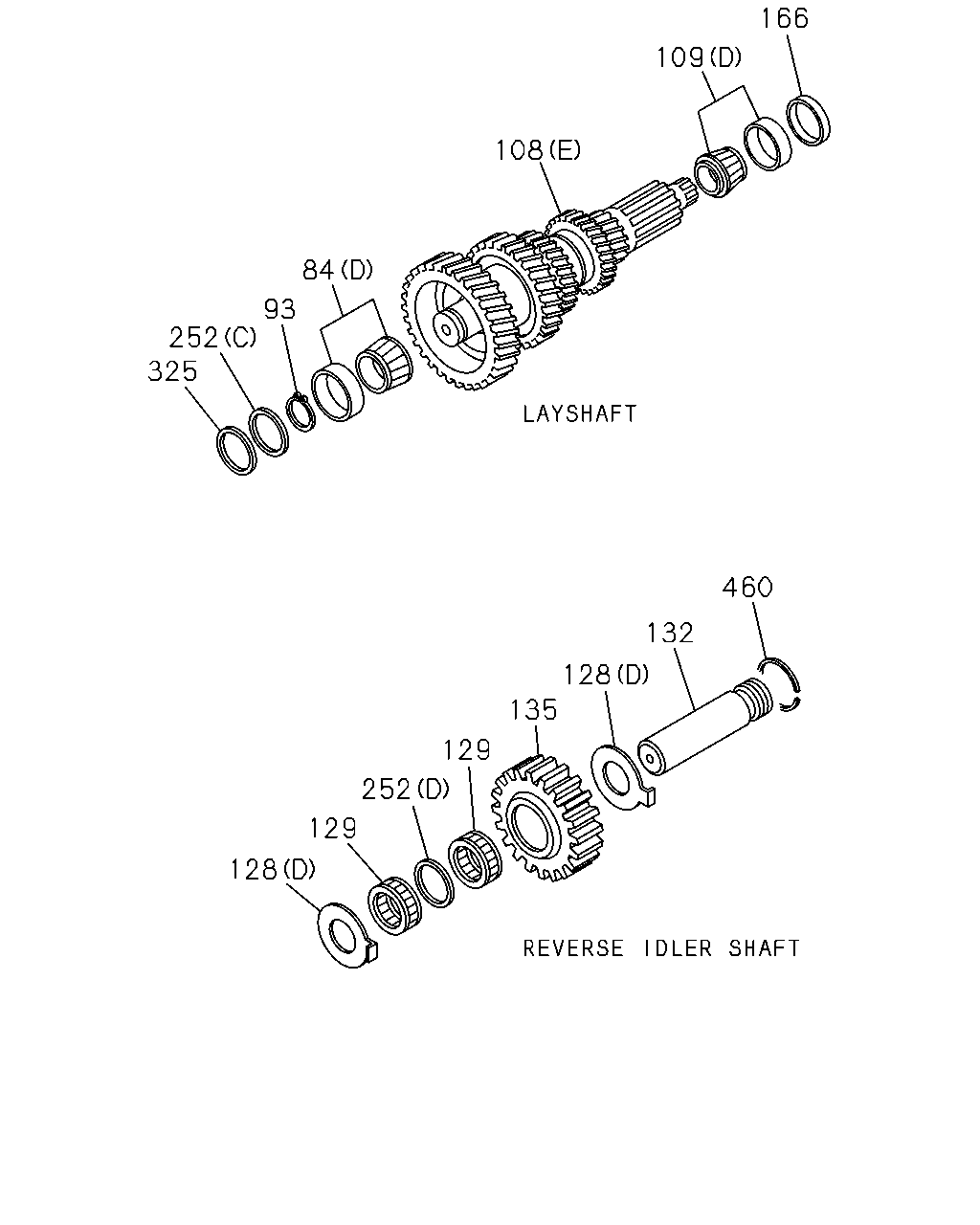

93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.12 		1-33239-238-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.07 		1-33239-239-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.02 		1-33239-240-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0303- ● ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0406-0609 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
6HK1 TCS ENG(80L) (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (A) 		1-33269-058-0 02 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (B) 		1-33269-061-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (C) 		1-33269-062-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (F) 		1-33239-315-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (G) 		1-33269-065-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (G) 		1-33269-065-0 01 1 0211-0405 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33269-065-0 01 1 0406- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33269-065-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.10 		1-33269-066-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.10 		1-33269-066-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.05 		1-33269-067-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.05 		1-33269-067-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.00 		1-33269-068-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.00 		1-33269-068-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.10 		1-33219-259-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.10 		1-33219-259-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.15 		1-33219-260-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.15 		1-33219-260-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.20 		1-33219-261-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.20 		1-33219-261-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.25 		1-33219-262-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.25 		1-33219-262-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.30 		1-33219-263-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.30 		1-33219-263-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.35 		1-33219-264-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.35 		1-33219-264-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.40 		1-33219-265-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.40 		1-33219-265-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.45 		1-33219-266-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.45 		1-33219-266-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.50 		1-33219-267-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.50 		1-33219-267-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.70 		1-33219-187-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.75 		1-33219-188-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.80 		1-33219-189-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.85 		1-33219-190-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.90 		1-33219-191-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.95 		1-33219-192-0 01 1 0005-0210 ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0005-0210 ●
230 SLEEVE; 4TH TO 5TH
6SD1 TCN ENG(31L) 		1-33262-197-0 01 1 0211-0609 ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0610- ●
233 RING; BLOCK 4TH TO 5TH
BRAKE SYSTEM RETARDER<RE2> 		1-33265-560-0 02 1 0005-0210 ●
233 RING; BLOCK 4TH TO 5TH
6SD1 TCN ENG(31L) 		1-33265-560-0 02 1 0211-0609 ●
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0610- ●
233 RING; BLOCK 4TH TO 5TH
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-459-0 02 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
6SD1 TCN ENG(31L) (A) 		1-33259-068-0 01 1 0211-0609 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0610- ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
6SD1 TCN ENG(31L) (B) 		1-33259-072-0 01 1 0211-0609 ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0610- ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0005-0210 ●
289 PIN; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-242-0 01 1 0211-0609 ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0610- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 0005-0210 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) 		1-33239-245-0 02 1 0211-0609 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 0610- ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-355-0 01 1 0406-0609 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-355-0 01 1 0610- ●
308 BOLT; MAINSHAFT
6HK1 TCS ENG(80L) 		1-33239-355-0 01 1 0610- ●
308 BOLT; MAINSHAFT 1-33239-247-0 01 1 0005-0210 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-247-0 01 1 0211-0405 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-247-0 01 1 0406- ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-317-0 01 1 0406-0609 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-317-0 01 1 0610- ●
309 PLATE; MAINSHAFT
6HK1 TCS ENG(80L) 		1-33239-317-0 01 1 0610- ●
309 PLATE; MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33239-317-0 01 1 0005-0210 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-316-0 01 1 0211-0405 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-316-0 01 1 0406- ●
309 PLATE; MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-301-0 01 1 0005-0210 ●
312 CLUTCH; DOG,1ST GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-562-0 01 1 0005-0210 ●
312 CLUTCH; DOG,1ST GEAR
6SD1 TCN ENG(31L) 		1-33265-562-0 01 1 0211-0609 ●
312 CLUTCH; DOG,1ST GEAR 1-33265-562-0 01 1 0610- ●
312 CLUTCH; DOG,1ST GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-461-0 01 1 0005-0210 ●
313 BEARING; NEEDLE,LOW GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0211-0302 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0303- ● ●
313 BEARING; NEEDLE,LOW GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0211-0302 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0303- ● ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
315 CLUTCH; DOG,2ND GEAR
GVR(GV****) 6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0406- ●
315 CLUTCH; DOG,2ND GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
315 CLUTCH; DOG,2ND GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0406-0609 ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0610- ●
315 CLUTCH; DOG,2ND GEAR
FVR(FVR***) 6HK1 TCS ENG(80L) 		1-33265-561-0 02 1 0610- ●
315 CLUTCH; DOG,2ND GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-598-0 02 1 0303- ●
316 CLUTCH; DOG,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
316 CLUTCH; DOG,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
317 CLUTCH; DOG,4TH GEAR
GVR(GV****) 6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0406- ●
317 CLUTCH; DOG,4TH GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
317 CLUTCH; DOG,4TH GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0406-0609 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0610- ●
317 CLUTCH; DOG,4TH GEAR
FVR(FVR***) 6HK1 TCS ENG(80L) 		1-33265-561-0 02 1 0610- ●
317 CLUTCH; DOG,4TH GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
330 GEAR; SUN
BRAKE SYSTEM RETARDER<RE2> 		1-34311-004-0 01 1 0005-0210 ●
330 GEAR; SUN
6SD1 TCN ENG(31L) 		1-34311-004-0 01 1 0211-0609 ●
330 GEAR; SUN 1-34311-004-0 01 1 0610- ●
330 GEAR; SUN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34311-003-0 01 1 0005-0210 ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0303- ●
393 BEARING; MAINSHAFT END
BRAKE SYSTEM RETARDER<RE2> 		1-33239-316-0 01 1 0005-0210 ●
393 BEARING; MAINSHAFT END
6SD1 TCN ENG(31L) 		1-33239-316-0 01 1 0211-0609 ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0610- ●
393 BEARING; MAINSHAFT END
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-243-0 01 1 0005-0210 ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0303- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0005-0210 ●
429 SLEEVE; 2ND & 3RD
6SD1 TCN ENG(31L) 		1-33262-197-0 01 1 0211-0609 ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 06 1 0303- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (A) 		1-33269-059-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-059-0 09 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (B) 		1-33269-063-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-063-0 09 1 0610- ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0005-0210 ●
444 CLUTCH; DOG,REV GEAR
6SD1 TCN ENG(31L) 		1-33265-462-0 01 1 0211-0609 ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0610- ●
çizim 9037
80 393 59 314 174 189 67 313 70 429 323 50 517 408 354 49 174 350 82 44 33 36 316 31 43 31 321 443 316 30 432 15 17 475 77 23 408 23 443 408 9 11 468 12 9 1 11 306 75 473 410 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0303- ●
1 SHAFT; TOP GEAR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33211-983-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS
6SD1 TCN ENG(31L) 		1-33211-983-0 01 1 0211-0609 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0610- ●
1 SHAFT; TOP GEAR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33211-911-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 0005-0603 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-763-0 01 1 0604- ●
2 RING; SNAP,TOP GEAR SHAFT 1-33219-268-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33265-601-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-604-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-561-0 01 1 0005-0210 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) (C) 		1-33265-561-0 01 1 0211-0405 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33265-561-0 01 1 0406- ●
9 CLUTCH; DOG,TOP GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-460-0 01 1 0005-0210 ●
11 RING; BLOCK,5TH & 6TH 1-33265-602-0 02 1 0303- ●
12 SLEEVE; 5TH & 6TH 1-33262-234-0 01 1 0303- ●
15 COLLAR; 4TH GEAR 1-33259-123-0 01 1 0303- ●
17 RING; SNAP,4TH GEAR
T=2.10 		1-33269-100-0 01 1 0303- ●
17 RING; SNAP,4TH GEAR
T=2.05 		1-33269-101-0 01 1 0303- ●
17 RING; SNAP,4TH GEAR
T=2.00 		1-33269-064-0 01 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0005-0210 ●
23 PLUNGER; DETENT,SYN
6SD1 TCN ENG(31L) 		1-33265-458-0 18 1 0211-0609 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0610- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0303- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-455-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-472-0 01 1 0211-0609 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0610- ●
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 0005- ●
31 RING; BLOCK,3RD & 4TH 1-33265-599-0 02 1 0303- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0303- ●
33 BEARING; NEEDLE,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
33 BEARING; NEEDLE,3RD GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0610- ●
33 BEARING; NEEDLE,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0303- ●
36 GEAR; 3RD,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33252-458-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-458-0 01 1 0211-0609 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0610- ●
36 GEAR; 3RD,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33252-454-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 0005- ●
43 HUB; CLU,3RD & 4TH,MAIN 1-33261-288-0 01 1 0303- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0303- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0005-0210 ●
44 HUB; CLU,2ND & 3RD,MAIN
6SD1 TCN ENG(31L) 		1-33261-235-0 01 1 0211-0609 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0303- ●
49 BEARING; NEEDLE,2ND GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
49 BEARING; NEEDLE,2ND GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0303- ●
50 GEAR; 2ND,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33251-382-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-382-0 01 1 0211-0609 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0610- ●
50 GEAR; 2ND,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33251-375-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 0005- ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0303- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0005-0210 ●
59 GEAR; REV MAINSHAFT
6SD1 TCN ENG(31L) 		1-33257-078-0 01 1 0211-0609 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0610- ●
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 0005- ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0303- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0005-0210 ●
67 HUB; CLU,1ST TO REV
6SD1 TCN ENG(31L) 		1-33261-237-0 01 1 0211-0609 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0303- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0005-0210 ●
70 GEAR; 1ST,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-376-0 01 1 0211-0609 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 0005- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0005-0210 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0211-0302 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0303- ● ●
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 0005- ●
77 GEAR; 6TH,MAINSHAFT 1-33253-719-0 01 1 0303- ●
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0303- ●
80 GEAR; SPD DRIVE
BRAKE SYSTEM RETARDER<RE2> 		1-33371-068-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE
6SD1 TCN ENG(31L) 		1-33371-068-0 01 1 0211-0609 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0610- ●
80 GEAR; SPD DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33371-062-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 0005- ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0303- ●
82 SHAFT; MAIN,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33231-323-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS
6SD1 TCN ENG(31L) 		1-33231-294-0 01 1 0211-0609 ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0610- ●
82 SHAFT; MAIN,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-287-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 0005- ●
174 SYNCHRONIZER ASM; 2ND-3RD 1-33265-639-0 02 1 0303- ●
189 RING; SNAP,REV,GEAR
T=2.10 		1-33269-066-0 01 1 0303- ●
189 RING; SNAP,REV,GEAR
T=2.05 		1-33269-067-0 01 1 0303- ●
189 RING; SNAP,REV,GEAR
T=2.00 		1-33269-068-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.12 		1-33239-238-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.07 		1-33239-239-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.02 		1-33239-240-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) SET 		1-33239-314-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> (D) 		1-33239-314-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.12 		1-33239-238-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.07 		1-33239-239-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.02 		1-33239-240-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
(A) 		1-87061-415-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) 		1-87061-428-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-87061-429-0 01 1 0005- ●
313 BEARING; NEEDLE,LOW GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0211-0302 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0303- ● ●
313 BEARING; NEEDLE,LOW GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0211-0302 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0303- ● ●
316 CLUTCH; DOG,3RD GEAR 1-33265-598-0 02 1 0303- ●
316 CLUTCH; DOG,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
316 CLUTCH; DOG,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
321 SLEEVE; SYN,4TH & 3RD 1-33262-233-0 01 1 0303- ●
323 INSERT 1-33269-103-0 03 1 0303- ●
350 RING; RET,2ND GEAR 1-33269-095-0 01 1 0303- ●
354 RETAINER; SYN 1-33269-102-0 03 1 0303- ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0303- ●
393 BEARING; MAINSHAFT END
BRAKE SYSTEM RETARDER<RE2> 		1-33239-316-0 01 1 0005-0210 ●
393 BEARING; MAINSHAFT END
6SD1 TCN ENG(31L) 		1-33239-316-0 01 1 0211-0609 ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0610- ●
393 BEARING; MAINSHAFT END
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-243-0 01 1 0005-0210 ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
410 SPACER; TOP GEAR SHAFT
T=3.10 		1-33219-298-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.15 		1-33219-299-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.20 		1-33219-300-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.25 		1-33219-301-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.30 		1-33219-302-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.35 		1-33219-303-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.40 		1-33219-304-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.45 		1-33219-305-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.50 		1-33219-306-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT 1-87061-467-0 01 1 0005- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0303- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0005-0210 ●
429 SLEEVE; 2ND & 3RD
6SD1 TCN ENG(31L) 		1-33262-197-0 01 1 0211-0609 ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0610- ●
432 BEARING; NEEDLE,4TH 1-33259-069-0 01 1 0303- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 06 1 0303- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (A) 		1-33269-059-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-059-0 09 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (B) 		1-33269-063-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-063-0 09 1 0610- ●
468 HUB; CLU,5TH & 6TH 1-33261-289-0 01 1 0303- ●
473 BEARING; INPUT SHAFT 1-33219-186-0 01 1 0303- ●
475 BEARING; 6TH 1-33259-071-0 01 1 0303- ●
517 BALL; SYNCHRO,INDEX 1-33269-104-0 03 1 0303- ●
çizim 9723
298 308 393 309 330 443 78 23 408 314 59 298 444 126 312 68 70 313 67 126 126 82 49 289 288 443 23 408 44 429 288 50 41 316 41 230 27 408 30 23 443 315 317 36 233 21 33 1 32 18 233 9 306 3 75 148 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0303- ●
1 SHAFT; TOP GEAR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33211-983-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS
6SD1 TCN ENG(31L) 		1-33211-983-0 01 1 0211-0609 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0610- ●
1 SHAFT; TOP GEAR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33211-911-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 0005-0603 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-763-0 01 1 0604- ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0005-0210 ●
3 BEARING; TOP GEAR SHAFT
6SD1 TCN ENG(31L) 		1-33219-186-0 01 1 0211-0609 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0610- ●
3 BEARING; TOP GEAR SHAFT 1-87061-501-0 01 1 0005- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33265-601-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-604-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-561-0 01 1 0005-0210 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) (C) 		1-33265-561-0 01 1 0211-0405 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33265-561-0 01 1 0406- ●
9 CLUTCH; DOG,TOP GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-460-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33219-268-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
6SD1 TCN ENG(31L) (C) 		1-33219-268-0 01 1 0211-0609 ●
10 RING; SNAP,PILOT BRG
(C) 		1-33219-268-0 01 1 0610- ●
10 RING; SNAP,PILOT BRG
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33219-193-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
(A) 		1-87061-295-0 01 1 0005- ●
10 RING; SNAP,PILOT BRG
(B) 		1-87061-426-0 01 1 0005- ●
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 0005-0210 ●
18 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) T=2.00 		1-33269-064-0 01 1 0211-0609 ●
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 0610- ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0005-0210 ●
21 HUB; CLU,4TH & 5TH
6SD1 TCN ENG(31L) 		1-33261-236-0 01 1 0211-0609 ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0610- ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0005-0210 ●
23 PLUNGER; DETENT,SYN
6SD1 TCN ENG(31L) 		1-33265-458-0 18 1 0211-0609 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0610- ●
27 BEARING; 4TH GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-079-0 01 1 0005-0210 ●
27 BEARING; 4TH GEAR
6SD1 TCN ENG(31L) 		1-33259-079-0 01 1 0211-0609 ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0610- ●
27 BEARING; 4TH GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-071-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0303- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-455-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-472-0 01 1 0211-0609 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0610- ●
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 0005- ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0005-0210 ●
32 COLLAR; 3RD GEAR
6SD1 TCN ENG(31L) 		1-33259-070-0 01 1 0211-0609 ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0610- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0303- ●
33 BEARING; NEEDLE,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
33 BEARING; NEEDLE,3RD GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0610- ●
33 BEARING; NEEDLE,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0303- ●
36 GEAR; 3RD,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33252-458-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-458-0 01 1 0211-0609 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0610- ●
36 GEAR; 3RD,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33252-454-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 0005- ●
41 RING; BLOCK,2ND & 3RD
BRAKE SYSTEM RETARDER<RE2> 		1-33265-560-0 02 1 0005-0210 ●
41 RING; BLOCK,2ND & 3RD
6SD1 TCN ENG(31L) 		1-33265-560-0 02 1 0211-0609 ●
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0610- ●
41 RING; BLOCK,2ND & 3RD
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-459-0 02 1 0005-0210 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0303- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0005-0210 ●
44 HUB; CLU,2ND & 3RD,MAIN
6SD1 TCN ENG(31L) 		1-33261-235-0 01 1 0211-0609 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0303- ●
49 BEARING; NEEDLE,2ND GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
49 BEARING; NEEDLE,2ND GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0303- ●
50 GEAR; 2ND,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33251-382-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-382-0 01 1 0211-0609 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0610- ●
50 GEAR; 2ND,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33251-375-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 0005- ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0303- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0005-0210 ●
59 GEAR; REV MAINSHAFT
6SD1 TCN ENG(31L) 		1-33257-078-0 01 1 0211-0609 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0610- ●
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 0005- ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0303- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0005-0210 ●
67 HUB; CLU,1ST TO REV
6SD1 TCN ENG(31L) 		1-33261-237-0 01 1 0211-0609 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0610- ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0005-0210 ●
68 SLEEVE; 1ST TO REV
6SD1 TCN ENG(31L) 		1-33262-198-0 01 1 0211-0609 ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0303- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0005-0210 ●
70 GEAR; 1ST,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-376-0 01 1 0211-0609 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 0005- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0005-0210 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0211-0302 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0303- ● ●
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 0005- ●
78 COLLAR; DIST,MAINSHAFT BRG
BRAKE SYSTEM RETARDER<RE2> 		1-33239-279-0 01 1 0005-0210 ●
78 COLLAR; DIST,MAINSHAFT BRG
6SD1 TCN ENG(31L) 		1-33239-279-0 01 1 0211-0609 ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0610- ●
78 COLLAR; DIST,MAINSHAFT BRG
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-244-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0303- ●
82 SHAFT; MAIN,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33231-323-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS
6SD1 TCN ENG(31L) 		1-33231-294-0 01 1 0211-0609 ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0610- ●
82 SHAFT; MAIN,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-287-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 0005- ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0406-0609 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
6HK1 TCS ENG(80L) (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (A) 		1-33269-058-0 02 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (B) 		1-33269-061-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (C) 		1-33269-062-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (F) 		1-33239-315-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (G) 		1-33269-065-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (G) 		1-33269-065-0 01 1 0211-0405 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33269-065-0 01 1 0406- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33269-065-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.10 		1-33269-066-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.10 		1-33269-066-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.05 		1-33269-067-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.05 		1-33269-067-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.00 		1-33269-068-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.00 		1-33269-068-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.10 		1-33219-259-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.10 		1-33219-259-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.15 		1-33219-260-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.15 		1-33219-260-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.20 		1-33219-261-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.20 		1-33219-261-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.25 		1-33219-262-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.25 		1-33219-262-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.30 		1-33219-263-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.30 		1-33219-263-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.35 		1-33219-264-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.35 		1-33219-264-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.40 		1-33219-265-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.40 		1-33219-265-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.45 		1-33219-266-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.45 		1-33219-266-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.50 		1-33219-267-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.50 		1-33219-267-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.70 		1-33219-187-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.75 		1-33219-188-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.80 		1-33219-189-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.85 		1-33219-190-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.90 		1-33219-191-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.95 		1-33219-192-0 01 1 0005-0210 ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0005-0210 ●
230 SLEEVE; 4TH TO 5TH
6SD1 TCN ENG(31L) 		1-33262-197-0 01 1 0211-0609 ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0610- ●
233 RING; BLOCK 4TH TO 5TH
BRAKE SYSTEM RETARDER<RE2> 		1-33265-560-0 02 1 0005-0210 ●
233 RING; BLOCK 4TH TO 5TH
6SD1 TCN ENG(31L) 		1-33265-560-0 02 1 0211-0609 ●
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0610- ●
233 RING; BLOCK 4TH TO 5TH
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-459-0 02 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
6SD1 TCN ENG(31L) (A) 		1-33259-068-0 01 1 0211-0609 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0610- ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
6SD1 TCN ENG(31L) (B) 		1-33259-072-0 01 1 0211-0609 ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0610- ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0005-0210 ●
289 PIN; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-242-0 01 1 0211-0609 ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0610- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 0005-0210 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) 		1-33239-245-0 02 1 0211-0609 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 0610- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.12 		1-33239-238-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.07 		1-33239-239-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.02 		1-33239-240-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) SET 		1-33239-314-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> (D) 		1-33239-314-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.12 		1-33239-238-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.07 		1-33239-239-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.02 		1-33239-240-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
(A) 		1-87061-415-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) 		1-87061-428-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-87061-429-0 01 1 0005- ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-355-0 01 1 0406-0609 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-355-0 01 1 0610- ●
308 BOLT; MAINSHAFT
6HK1 TCS ENG(80L) 		1-33239-355-0 01 1 0610- ●
308 BOLT; MAINSHAFT 1-33239-247-0 01 1 0005-0210 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-247-0 01 1 0211-0405 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-247-0 01 1 0406- ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-317-0 01 1 0406-0609 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-317-0 01 1 0610- ●
309 PLATE; MAINSHAFT
6HK1 TCS ENG(80L) 		1-33239-317-0 01 1 0610- ●
309 PLATE; MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33239-317-0 01 1 0005-0210 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-316-0 01 1 0211-0405 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-316-0 01 1 0406- ●
309 PLATE; MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-301-0 01 1 0005-0210 ●
312 CLUTCH; DOG,1ST GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-562-0 01 1 0005-0210 ●
312 CLUTCH; DOG,1ST GEAR
6SD1 TCN ENG(31L) 		1-33265-562-0 01 1 0211-0609 ●
312 CLUTCH; DOG,1ST GEAR 1-33265-562-0 01 1 0610- ●
312 CLUTCH; DOG,1ST GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-461-0 01 1 0005-0210 ●
313 BEARING; NEEDLE,LOW GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0211-0302 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0303- ● ●
313 BEARING; NEEDLE,LOW GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0211-0302 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0303- ● ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
315 CLUTCH; DOG,2ND GEAR
GVR(GV****) 6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0406- ●
315 CLUTCH; DOG,2ND GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
315 CLUTCH; DOG,2ND GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0406-0609 ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0610- ●
315 CLUTCH; DOG,2ND GEAR
FVR(FVR***) 6HK1 TCS ENG(80L) 		1-33265-561-0 02 1 0610- ●
315 CLUTCH; DOG,2ND GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-598-0 02 1 0303- ●
316 CLUTCH; DOG,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
316 CLUTCH; DOG,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
317 CLUTCH; DOG,4TH GEAR
GVR(GV****) 6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0406- ●
317 CLUTCH; DOG,4TH GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
317 CLUTCH; DOG,4TH GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0406-0609 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0610- ●
317 CLUTCH; DOG,4TH GEAR
FVR(FVR***) 6HK1 TCS ENG(80L) 		1-33265-561-0 02 1 0610- ●
317 CLUTCH; DOG,4TH GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
330 GEAR; SUN
BRAKE SYSTEM RETARDER<RE2> 		1-34311-004-0 01 1 0005-0210 ●
330 GEAR; SUN
6SD1 TCN ENG(31L) 		1-34311-004-0 01 1 0211-0609 ●
330 GEAR; SUN 1-34311-004-0 01 1 0610- ●
330 GEAR; SUN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34311-003-0 01 1 0005-0210 ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0303- ●
393 BEARING; MAINSHAFT END
BRAKE SYSTEM RETARDER<RE2> 		1-33239-316-0 01 1 0005-0210 ●
393 BEARING; MAINSHAFT END
6SD1 TCN ENG(31L) 		1-33239-316-0 01 1 0211-0609 ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0610- ●
393 BEARING; MAINSHAFT END
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-243-0 01 1 0005-0210 ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0303- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0005-0210 ●
429 SLEEVE; 2ND & 3RD
6SD1 TCN ENG(31L) 		1-33262-197-0 01 1 0211-0609 ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 06 1 0303- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (A) 		1-33269-059-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-059-0 09 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (B) 		1-33269-063-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-063-0 09 1 0610- ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0005-0210 ●
444 CLUTCH; DOG,REV GEAR
6SD1 TCN ENG(31L) 		1-33265-462-0 01 1 0211-0609 ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0610- ●
çizim 10631
298 308 393 309 330 443 78 23 408 312 314 59 298 444 126 70 68 313 67 82 126 289 49 288 443 23 408 44 429 288 50 41 316 41 230 27 408 23 443 30 315 317 36 233 21 33 1 32 18 233 9 306 75 3 148 10
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0303- ●
1 SHAFT; TOP GEAR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33211-983-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS
6SD1 TCN ENG(31L) 		1-33211-983-0 01 1 0211-0609 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0610- ●
1 SHAFT; TOP GEAR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33211-911-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 0005-0603 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-763-0 01 1 0604- ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0005-0210 ●
3 BEARING; TOP GEAR SHAFT
6SD1 TCN ENG(31L) 		1-33219-186-0 01 1 0211-0609 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0610- ●
3 BEARING; TOP GEAR SHAFT 1-87061-501-0 01 1 0005- ●
9 CLUTCH; DOG,TOP GEAR
(A) 		1-33265-601-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
(B) 		1-33265-604-0 01 1 0303- ●
9 CLUTCH; DOG,TOP GEAR
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-561-0 01 1 0005-0210 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) (C) 		1-33265-561-0 01 1 0211-0405 ●
9 CLUTCH; DOG,TOP GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (C) 		1-33265-561-0 01 1 0406- ●
9 CLUTCH; DOG,TOP GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (C) 		1-33265-460-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33219-268-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
6SD1 TCN ENG(31L) (C) 		1-33219-268-0 01 1 0211-0609 ●
10 RING; SNAP,PILOT BRG
(C) 		1-33219-268-0 01 1 0610- ●
10 RING; SNAP,PILOT BRG
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33219-193-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
(A) 		1-87061-295-0 01 1 0005- ●
10 RING; SNAP,PILOT BRG
(B) 		1-87061-426-0 01 1 0005- ●
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 0005-0210 ●
18 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) T=2.00 		1-33269-064-0 01 1 0211-0609 ●
18 RING; SNAP,CLU HUB
T=2.00 		1-33269-064-0 01 1 0610- ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0005-0210 ●
21 HUB; CLU,4TH & 5TH
6SD1 TCN ENG(31L) 		1-33261-236-0 01 1 0211-0609 ●
21 HUB; CLU,4TH & 5TH 1-33261-236-0 01 1 0610- ●
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0005-0210 ●
23 PLUNGER; DETENT,SYN
6SD1 TCN ENG(31L) 		1-33265-458-0 18 1 0211-0609 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0610- ●
27 BEARING; 4TH GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-079-0 01 1 0005-0210 ●
27 BEARING; 4TH GEAR
6SD1 TCN ENG(31L) 		1-33259-079-0 01 1 0211-0609 ●
27 BEARING; 4TH GEAR 1-33259-079-0 01 1 0610- ●
27 BEARING; 4TH GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-071-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0303- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-455-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-472-0 01 1 0211-0609 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0610- ●
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 0005- ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0005-0210 ●
32 COLLAR; 3RD GEAR
6SD1 TCN ENG(31L) 		1-33259-070-0 01 1 0211-0609 ●
32 COLLAR; 3RD GEAR 1-33259-070-0 01 1 0610- ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-089-0 01 1 0303- ●
33 BEARING; NEEDLE,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
33 BEARING; NEEDLE,3RD GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
33 BEARING; NEEDLE,3RD GEAR 1-33259-078-0 01 1 0610- ●
33 BEARING; NEEDLE,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0303- ●
36 GEAR; 3RD,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33252-458-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-458-0 01 1 0211-0609 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0610- ●
36 GEAR; 3RD,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33252-454-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 0005- ●
41 RING; BLOCK,2ND & 3RD
BRAKE SYSTEM RETARDER<RE2> 		1-33265-560-0 02 1 0005-0210 ●
41 RING; BLOCK,2ND & 3RD
6SD1 TCN ENG(31L) 		1-33265-560-0 02 1 0211-0609 ●
41 RING; BLOCK,2ND & 3RD 1-33265-560-0 02 1 0610- ●
41 RING; BLOCK,2ND & 3RD
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-459-0 02 1 0005-0210 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-301-0 01 1 0303- ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0005-0210 ●
44 HUB; CLU,2ND & 3RD,MAIN
6SD1 TCN ENG(31L) 		1-33261-235-0 01 1 0211-0609 ●
44 HUB; CLU,2ND & 3RD,MAIN 1-33261-235-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-089-0 01 1 0303- ●
49 BEARING; NEEDLE,2ND GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
49 BEARING; NEEDLE,2ND GEAR
6SD1 TCN ENG(31L) 		1-33259-078-0 01 1 0211-0609 ●
49 BEARING; NEEDLE,2ND GEAR 1-33259-078-0 01 1 0610- ●
49 BEARING; NEEDLE,2ND GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0303- ●
50 GEAR; 2ND,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33251-382-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-382-0 01 1 0211-0609 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0610- ●
50 GEAR; 2ND,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33251-375-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 0005- ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0303- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0005-0210 ●
59 GEAR; REV MAINSHAFT
6SD1 TCN ENG(31L) 		1-33257-078-0 01 1 0211-0609 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0610- ●
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 0005- ●
67 HUB; CLU,1ST TO REV 1-33261-290-0 01 1 0303- ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0005-0210 ●
67 HUB; CLU,1ST TO REV
6SD1 TCN ENG(31L) 		1-33261-237-0 01 1 0211-0609 ●
67 HUB; CLU,1ST TO REV 1-33261-237-0 01 1 0610- ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0005-0210 ●
68 SLEEVE; 1ST TO REV
6SD1 TCN ENG(31L) 		1-33262-198-0 01 1 0211-0609 ●
68 SLEEVE; 1ST TO REV 1-33262-198-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0303- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0005-0210 ●
70 GEAR; 1ST,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-376-0 01 1 0211-0609 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 0005- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0005-0210 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0211-0302 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0303- ● ●
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 0005- ●
78 COLLAR; DIST,MAINSHAFT BRG
BRAKE SYSTEM RETARDER<RE2> 		1-33239-279-0 01 1 0005-0210 ●
78 COLLAR; DIST,MAINSHAFT BRG
6SD1 TCN ENG(31L) 		1-33239-279-0 01 1 0211-0609 ●
78 COLLAR; DIST,MAINSHAFT BRG 1-33239-279-0 01 1 0610- ●
78 COLLAR; DIST,MAINSHAFT BRG
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-244-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0303- ●
82 SHAFT; MAIN,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33231-323-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS
6SD1 TCN ENG(31L) 		1-33231-294-0 01 1 0211-0609 ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0610- ●
82 SHAFT; MAIN,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-287-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 0005- ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0406-0609 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
6HK1 TCS ENG(80L) (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (A) 		1-33269-058-0 02 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (B) 		1-33269-061-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (C) 		1-33269-062-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (F) 		1-33239-315-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (G) 		1-33269-065-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (G) 		1-33269-065-0 01 1 0211-0405 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33269-065-0 01 1 0406- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33269-065-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.10 		1-33269-066-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.10 		1-33269-066-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.05 		1-33269-067-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.05 		1-33269-067-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.00 		1-33269-068-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.00 		1-33269-068-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.10 		1-33219-259-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.10 		1-33219-259-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.10 		1-33219-259-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.15 		1-33219-260-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.15 		1-33219-260-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.15 		1-33219-260-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.20 		1-33219-261-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.20 		1-33219-261-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.20 		1-33219-261-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.25 		1-33219-262-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.25 		1-33219-262-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.25 		1-33219-262-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.30 		1-33219-263-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.30 		1-33219-263-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.30 		1-33219-263-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.35 		1-33219-264-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.35 		1-33219-264-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.35 		1-33219-264-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.40 		1-33219-265-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.40 		1-33219-265-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.40 		1-33219-265-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.45 		1-33219-266-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.45 		1-33219-266-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.45 		1-33219-266-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
BRAKE SYSTEM RETARDER<RE2> T=3.50 		1-33219-267-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
6SD1 TCN ENG(31L) T=3.50 		1-33219-267-0 01 1 0211-0609 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
T=3.50 		1-33219-267-0 01 1 0610- ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.70 		1-33219-187-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.75 		1-33219-188-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.80 		1-33219-189-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.85 		1-33219-190-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.90 		1-33219-191-0 01 1 0005-0210 ●
148 SPACER; PILOT BRG,MAINSHAFT,RR
EXC. BRAKE SYSTEM RETARDER<RE2> T=3.95 		1-33219-192-0 01 1 0005-0210 ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0005-0210 ●
230 SLEEVE; 4TH TO 5TH
6SD1 TCN ENG(31L) 		1-33262-197-0 01 1 0211-0609 ●
230 SLEEVE; 4TH TO 5TH 1-33262-197-0 01 1 0610- ●
233 RING; BLOCK 4TH TO 5TH
BRAKE SYSTEM RETARDER<RE2> 		1-33265-560-0 02 1 0005-0210 ●
233 RING; BLOCK 4TH TO 5TH
6SD1 TCN ENG(31L) 		1-33265-560-0 02 1 0211-0609 ●
233 RING; BLOCK 4TH TO 5TH 1-33265-560-0 02 1 0610- ●
233 RING; BLOCK 4TH TO 5TH
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-459-0 02 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
6SD1 TCN ENG(31L) (A) 		1-33259-068-0 01 1 0211-0609 ●
288 SPACER; BRG,MAINSHAFT
(A) 		1-33259-068-0 01 1 0610- ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0005-0210 ●
288 SPACER; BRG,MAINSHAFT
6SD1 TCN ENG(31L) (B) 		1-33259-072-0 01 1 0211-0609 ●
288 SPACER; BRG,MAINSHAFT
(B) 		1-33259-072-0 01 1 0610- ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0005-0210 ●
289 PIN; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-242-0 01 1 0211-0609 ●
289 PIN; MAINSHAFT 1-33239-242-0 01 1 0610- ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 0005-0210 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 6SD1 TCN ENG(31L) 		1-33239-245-0 02 1 0211-0609 ●
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). 		1-33239-245-0 02 1 0610- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.12 		1-33239-238-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.07 		1-33239-239-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.02 		1-33239-240-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) SET 		1-33239-314-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> (D) 		1-33239-314-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.12 		1-33239-238-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.07 		1-33239-239-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.02 		1-33239-240-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
(A) 		1-87061-415-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) 		1-87061-428-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-87061-429-0 01 1 0005- ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-355-0 01 1 0406-0609 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-355-0 01 1 0610- ●
308 BOLT; MAINSHAFT
6HK1 TCS ENG(80L) 		1-33239-355-0 01 1 0610- ●
308 BOLT; MAINSHAFT 1-33239-247-0 01 1 0005-0210 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-247-0 01 1 0211-0405 ●
308 BOLT; MAINSHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-247-0 01 1 0406- ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-317-0 01 1 0406-0609 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-317-0 01 1 0610- ●
309 PLATE; MAINSHAFT
6HK1 TCS ENG(80L) 		1-33239-317-0 01 1 0610- ●
309 PLATE; MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33239-317-0 01 1 0005-0210 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) 		1-33239-316-0 01 1 0211-0405 ●
309 PLATE; MAINSHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-316-0 01 1 0406- ●
309 PLATE; MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-301-0 01 1 0005-0210 ●
312 CLUTCH; DOG,1ST GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-562-0 01 1 0005-0210 ●
312 CLUTCH; DOG,1ST GEAR
6SD1 TCN ENG(31L) 		1-33265-562-0 01 1 0211-0609 ●
312 CLUTCH; DOG,1ST GEAR 1-33265-562-0 01 1 0610- ●
312 CLUTCH; DOG,1ST GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-461-0 01 1 0005-0210 ●
313 BEARING; NEEDLE,LOW GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33259-078-0 01 1 0005-0210 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0211-0302 ●
313 BEARING; NEEDLE,LOW GEAR 1-33259-078-0 01 1 0303- ● ●
313 BEARING; NEEDLE,LOW GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33259-069-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0005-0210 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0211-0302 ●
314 BEARING; NEEDLE,REV GEAR 1-33259-073-0 01 1 0303- ● ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
315 CLUTCH; DOG,2ND GEAR
GVR(GV****) 6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0406- ●
315 CLUTCH; DOG,2ND GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
315 CLUTCH; DOG,2ND GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0406-0609 ●
315 CLUTCH; DOG,2ND GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0610- ●
315 CLUTCH; DOG,2ND GEAR
FVR(FVR***) 6HK1 TCS ENG(80L) 		1-33265-561-0 02 1 0610- ●
315 CLUTCH; DOG,2ND GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
316 CLUTCH; DOG,3RD GEAR 1-33265-598-0 02 1 0303- ●
316 CLUTCH; DOG,3RD GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
316 CLUTCH; DOG,3RD GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
316 CLUTCH; DOG,3RD GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 01 1 0406- ●
317 CLUTCH; DOG,4TH GEAR
GVR(GV****) 6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0406- ●
317 CLUTCH; DOG,4TH GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33265-561-0 01 1 0005-0210 ●
317 CLUTCH; DOG,4TH GEAR
6SD1 TCN ENG(31L) 		1-33265-561-0 01 1 0211-0405 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0406-0609 ●
317 CLUTCH; DOG,4TH GEAR
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33265-561-0 02 1 0610- ●
317 CLUTCH; DOG,4TH GEAR
FVR(FVR***) 6HK1 TCS ENG(80L) 		1-33265-561-0 02 1 0610- ●
317 CLUTCH; DOG,4TH GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-460-0 01 1 0005-0210 ●
330 GEAR; SUN
BRAKE SYSTEM RETARDER<RE2> 		1-34311-004-0 01 1 0005-0210 ●
330 GEAR; SUN
6SD1 TCN ENG(31L) 		1-34311-004-0 01 1 0211-0609 ●
330 GEAR; SUN 1-34311-004-0 01 1 0610- ●
330 GEAR; SUN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-34311-003-0 01 1 0005-0210 ●
393 BEARING; MAINSHAFT END 1-33239-347-0 01 1 0303- ●
393 BEARING; MAINSHAFT END
BRAKE SYSTEM RETARDER<RE2> 		1-33239-316-0 01 1 0005-0210 ●
393 BEARING; MAINSHAFT END
6SD1 TCN ENG(31L) 		1-33239-316-0 01 1 0211-0609 ●
393 BEARING; MAINSHAFT END 1-33239-316-0 01 1 0610- ●
393 BEARING; MAINSHAFT END
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-243-0 01 1 0005-0210 ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
429 SLEEVE; 2ND & 3RD 1-33262-243-0 01 1 0303- ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0005-0210 ●
429 SLEEVE; 2ND & 3RD
6SD1 TCN ENG(31L) 		1-33262-197-0 01 1 0211-0609 ●
429 SLEEVE; 2ND & 3RD 1-33262-197-0 01 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 06 1 0303- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (A) 		1-33269-059-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-059-0 09 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (B) 		1-33269-063-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-063-0 09 1 0610- ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0005-0210 ●
444 CLUTCH; DOG,REV GEAR
6SD1 TCN ENG(31L) 		1-33265-462-0 01 1 0211-0609 ●
444 CLUTCH; DOG,REV GEAR 1-33265-462-0 01 1 0610- ●
çizim 44732
443 126 23 408 126 442 340 66 126 328 324 42 327 109 66 126 339 84 108 132 252 128 135 93 325 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
23 PLUNGER; DETENT,SYN 1-33265-600-0 06 1 0303- ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0005-0210 ●
23 PLUNGER; DETENT,SYN
6SD1 TCN ENG(31L) 		1-33265-458-0 18 1 0211-0609 ●
23 PLUNGER; DETENT,SYN 1-33265-458-0 18 1 0610- ●
42 SLEEVE 1-33262-196-0 01 1 0005-0210 ●
42 SLEEVE
6SD1 TCN ENG(31L) 		1-33262-196-0 01 1 0211-0609 ●
42 SLEEVE 1-33262-196-0 01 1 0610- ●
66 RING; BLOCK,SYN
BRAKE SYSTEM RETARDER<RE2> 		1-33265-557-0 02 1 0005-0210 ●
66 RING; BLOCK,SYN
6SD1 TCN ENG(31L) 		1-33265-557-0 02 1 0211-0609 ●
66 RING; BLOCK,SYN 1-33265-557-0 02 1 0610- ●
66 RING; BLOCK,SYN
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33265-455-0 02 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
(D) 		1-33319-221-0 01 1 0303- ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0610- ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 0005- ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.12 		1-33239-238-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.07 		1-33239-239-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.02 		1-33239-240-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0303- ● ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0406-0609 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
6HK1 TCS ENG(80L) (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
(E) 		1-33311-334-0 01 1 0303- ●
108 SHAFT; COUNTER
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33311-322-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) (D) 		1-33311-303-0 01 1 0211-0405 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33311-303-0 01 1 0406- ●
108 SHAFT; COUNTER
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33311-296-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 0005- ●
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(D) 		1-33319-221-0 01 1 0303- ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0005-0210 ●
109 BEARING; COUNTER SHAFT,RR
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0610- ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 0005- ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0406-0609 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
6HK1 TCS ENG(80L) (A) 		1-33269-065-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (A) 		1-33269-058-0 02 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(A) 		1-33269-058-0 02 1 0610- ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (B) 		1-33269-061-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(B) 		1-33269-061-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (C) 		1-33269-062-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(C) 		1-33269-062-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (F) 		1-33239-315-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
BRAKE SYSTEM RETARDER<RE2> (G) 		1-33269-065-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (G) 		1-33269-065-0 01 1 0211-0405 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (G) 		1-33269-065-0 01 1 0406- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33269-065-0 02 1 0005-0210 ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.10 		1-33269-066-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.10 		1-33269-066-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.10 		1-33269-066-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.05 		1-33269-067-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.05 		1-33269-067-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.05 		1-33269-067-0 01 1 0610- ●
126 RING; SNAP,CLU HUB
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.00 		1-33269-068-0 01 1 0005-0210 ●
126 RING; SNAP,CLU HUB
6SD1 TCN ENG(31L) (E) T=2.00 		1-33269-068-0 01 1 0211-0609 ●
126 RING; SNAP,CLU HUB
(E) T=2.00 		1-33269-068-0 01 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(D) 		1-33359-016-0 02 1 0303- ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0005-0210 ●
128 WASHER; THRUST,REV SHAFT
6SD1 TCN ENG(31L) (C) 		1-33359-004-0 02 1 0211-0609 ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 0005- ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 0005- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0005-0210 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0211-0302 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0303- ● ●
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 0005- ●
132 SHAFT; REV 1-33351-044-0 01 1 0303- ●
132 SHAFT; REV
BRAKE SYSTEM RETARDER<RE2> 		1-33351-037-0 01 1 0005-0210 ●
132 SHAFT; REV
6SD1 TCN ENG(31L) 		1-33351-037-0 01 1 0211-0609 ●
132 SHAFT; REV 1-33351-037-0 01 1 0610- ●
132 SHAFT; REV
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33351-028-0 01 1 0005-0210 ●
132 SHAFT; REV 1-87061-452-0 02 1 0005- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0303- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0005-0210 ●
135 GEAR; REV IDLER
6SD1 TCN ENG(31L) 		1-33361-078-0 01 1 0211-0609 ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0610- ●
135 GEAR; REV IDLER 1-87061-451-0 02 1 0005- ●
252 SPACER
(C) 		1-33319-223-0 01 1 0303- ●
252 SPACER
(D) 		1-33359-017-0 01 1 0303- ●
252 SPACER
(A) 		1-33319-151-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (A) 		1-33319-151-0 01 1 0211-0609 ●
252 SPACER
(A) 		1-33319-151-0 01 1 0610- ●
252 SPACER
(B) 		1-33359-006-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (B) 		1-33359-006-0 01 1 0211-0609 ●
252 SPACER
(B) 		1-33359-006-0 01 1 0610- ●
324 HUB; CLU 1-33261-234-0 01 1 0005-0210 ●
324 HUB; CLU
6SD1 TCN ENG(31L) 		1-33261-234-0 01 1 0211-0609 ●
324 HUB; CLU 1-33261-234-0 01 1 0610- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0303- ● ●
327 CARRIER; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33231-324-0 01 1 0005-0210 ●
327 CARRIER; PLANETARY GEAR
6SD1 TCN ENG(31L) 		1-33231-293-0 01 1 0211-0405 ●
327 CARRIER; PLANETARY GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33231-293-0 01 1 0406- ●
327 CARRIER; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-288-0 01 1 0005-0210 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0005-0210 ●
328 BEARING; CARRIER
6SD1 TCN ENG(31L) 		1-33269-060-0 01 1 0211-0609 ●
328 BEARING; CARRIER 1-33269-060-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-558-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (A) 		1-33265-558-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-559-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (B) 		1-33265-559-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-456-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-457-0 01 1 0005-0210 ●
340 GEAR; RING 1-33339-052-0 01 1 0005-0210 ●
340 GEAR; RING
6SD1 TCN ENG(31L) 		1-33339-052-0 01 1 0211-0609 ●
340 GEAR; RING 1-33339-052-0 01 1 0610- ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (A) 		1-33269-055-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0610- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (B) 		1-33339-053-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 06 1 0303- ●
443 ROLLER; SYNCHRONIZER
(A) 		1-33269-059-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (A) 		1-33269-059-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-059-0 09 1 0610- ●
443 ROLLER; SYNCHRONIZER
(B) 		1-33269-063-0 09 1 0005-0210 ●
443 ROLLER; SYNCHRONIZER
6SD1 TCN ENG(31L) (B) 		1-33269-063-0 09 1 0211-0609 ●
443 ROLLER; SYNCHRONIZER 1-33269-063-0 09 1 0610- ●
çizim 44865
260 347 342 400 159 80 417 442 339 437 438 439 439 438 438 439 438 439
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0303- ●
80 GEAR; SPD DRIVE
BRAKE SYSTEM RETARDER<RE2> 		1-33371-068-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE
6SD1 TCN ENG(31L) 		1-33371-068-0 01 1 0211-0609 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0610- ●
80 GEAR; SPD DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33371-062-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 0005- ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33159-068-0 01 1 0406-0609 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33159-068-0 01 1 0610- ●
159 SPACER; SPD DRIVE GEAR
6HK1 TCS ENG(80L) 		1-33159-068-0 01 1 0610- ●
159 SPACER; SPD DRIVE GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33159-054-0 01 1 0005-0210 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) 		1-33159-054-0 01 1 0211-0405 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33159-054-0 01 1 0406- ●
159 SPACER; SPD DRIVE GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33159-045-0 01 1 0005-0210 ●
260 NUT; MAINSHAFT END
BRAKE SYSTEM RETARDER<RE2> 		1-33239-281-0 01 1 0005-0210 ●
260 NUT; MAINSHAFT END
6SD1 TCN ENG(31L) 		1-33239-281-0 01 1 0211-0405 ●
260 NUT; MAINSHAFT END
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-281-0 01 1 0406- ●
260 NUT; MAINSHAFT END
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-237-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-558-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (A) 		1-33265-558-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-559-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (B) 		1-33265-559-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-456-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-457-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-431-0 01 1 0406- ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0406-0609 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
FVR(FVR***) 6HK1 TCS ENG(80L) (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
(A) 		1-37243-406-1 01 1 0211- ●
342 FLANGE; OUTPUT
BRAKE SYSTEM RETARDER<RE2> (C) 		1-37243-389-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) (E) 		1-37243-394-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
EXC. P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-394-0 01 1 0406- ●
342 FLANGE; OUTPUT
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-37243-299-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
(A) 		1-37243-221-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
GVR(GV****) (E) 		1-37243-402-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-402-0 01 1 0406- ●
342 FLANGE; OUTPUT
(B) 		1-37243-222-1 01 1 0005-0210 ●
347 WASHER; FLANGE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-236-0 01 1 0005-0210 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0005-0210 ●
400 BEARING; OUTPUT SHAFT RR
6SD1 TCN ENG(31L) 		1-33139-075-0 01 1 0211-0609 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0610- ●
400 BEARING; OUTPUT SHAFT RR 1-87061-413-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0005-0210 ●
417 SPACER; OUTPUT SHAFT
6SD1 TCN ENG(31L) (C) 		1-33269-053-0 01 1 0211-0609 ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0610- ●
417 SPACER; OUTPUT SHAFT
(A) 		1-87061-414-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(B) 		1-87061-439-0 01 1 0005- ●
437 PLATE; LOCK 1-33269-054-0 01 1 0005-0210 ●
437 PLATE; LOCK
6SD1 TCN ENG(31L) 		1-33269-054-0 01 1 0211-0609 ●
437 PLATE; LOCK 1-33269-054-0 01 1 0610- ●
438 WASHER; LOCK PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33269-056-0 03 1 0005-0210 ●
438 WASHER; LOCK PLATE
6SD1 TCN ENG(31L) 		1-33269-056-0 03 1 0211-0609 ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0610- ●
438 WASHER; LOCK PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33269-056-0 04 1 0005-0210 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33269-098-0 03 1 0406-0609 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33269-098-0 03 1 0610- ●
439 SCREW; LOCK PLATE
6HK1 TCS ENG(80L) 		1-33269-098-0 03 1 0610- ●
439 SCREW; LOCK PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33269-057-0 03 1 0005-0210 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) 		1-33269-057-0 03 1 0211-0405 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33269-057-0 03 1 0406- ●
439 SCREW; LOCK PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33269-057-0 04 1 0005-0210 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (A) 		1-33269-055-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0610- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (B) 		1-33339-053-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0610- ●
çizim 44901
260 342 416 400 402 159 80 156 417 442 339 437 438 439 439 438 438 439
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0303- ●
80 GEAR; SPD DRIVE
BRAKE SYSTEM RETARDER<RE2> 		1-33371-068-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE
6SD1 TCN ENG(31L) 		1-33371-068-0 01 1 0211-0609 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0610- ●
80 GEAR; SPD DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33371-062-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 0005- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.70 		1-37429-193-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.70 		1-37249-169-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.70 		1-37249-169-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.77 		1-37429-194-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.77 		1-37249-170-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.77 		1-37249-170-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.83 		1-37429-195-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.83 		1-37249-171-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.83 		1-37249-171-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.89 		1-37429-196-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.89 		1-37249-172-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.89 		1-37249-172-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.95 		1-37429-197-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.95 		1-37249-173-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.95 		1-37249-173-0 01 1 0406- ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33159-068-0 01 1 0406-0609 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33159-068-0 01 1 0610- ●
159 SPACER; SPD DRIVE GEAR
6HK1 TCS ENG(80L) 		1-33159-068-0 01 1 0610- ●
159 SPACER; SPD DRIVE GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33159-054-0 01 1 0005-0210 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) 		1-33159-054-0 01 1 0211-0405 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33159-054-0 01 1 0406- ●
159 SPACER; SPD DRIVE GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33159-045-0 01 1 0005-0210 ●
260 NUT; MAINSHAFT END
BRAKE SYSTEM RETARDER<RE2> 		1-33239-281-0 01 1 0005-0210 ●
260 NUT; MAINSHAFT END
6SD1 TCN ENG(31L) 		1-33239-281-0 01 1 0211-0405 ●
260 NUT; MAINSHAFT END
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-281-0 01 1 0406- ●
260 NUT; MAINSHAFT END
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-237-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-558-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (A) 		1-33265-558-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-559-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (B) 		1-33265-559-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-456-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-457-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-431-0 01 1 0406- ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0406-0609 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
FVR(FVR***) 6HK1 TCS ENG(80L) (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
(A) 		1-37243-406-1 01 1 0211- ●
342 FLANGE; OUTPUT
BRAKE SYSTEM RETARDER<RE2> (C) 		1-37243-389-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) (E) 		1-37243-394-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
EXC. P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-394-0 01 1 0406- ●
342 FLANGE; OUTPUT
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-37243-299-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
(A) 		1-37243-221-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
GVR(GV****) (E) 		1-37243-402-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-402-0 01 1 0406- ●
342 FLANGE; OUTPUT
(B) 		1-37243-222-1 01 1 0005-0210 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0005-0210 ●
400 BEARING; OUTPUT SHAFT RR
6SD1 TCN ENG(31L) 		1-33139-075-0 01 1 0211-0609 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0610- ●
400 BEARING; OUTPUT SHAFT RR 1-87061-413-0 01 1 0005- ●
402 SHIM
BRAKE SYSTEM RETARDER<RE2> T=0.005" 		1-33159-050-0 01 1 0005-0210 ●
402 SHIM
6SD1 TCN ENG(31L) T=0.005" 		1-33159-050-0 01 1 0211-0405 ●
402 SHIM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=0.005" 		1-33159-050-0 01 1 0406- ●
402 SHIM
BRAKE SYSTEM RETARDER<RE2> T=0.10" 		1-33159-051-0 01 1 0005-0210 ●
402 SHIM
6SD1 TCN ENG(31L) T=0.10" 		1-33159-051-0 01 1 0211-0405 ●
402 SHIM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=0.10" 		1-33159-051-0 01 1 0406- ●
416 BUSHING; OUTPUT SHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-37249-168-0 01 1 0005-0210 ●
416 BUSHING; OUTPUT SHAFT
6SD1 TCN ENG(31L) 		1-37249-168-0 01 1 0211-0405 ●
416 BUSHING; OUTPUT SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-37249-168-0 01 1 0406- ●
416 BUSHING; OUTPUT SHAFT 1-87061-282-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0005-0210 ●
417 SPACER; OUTPUT SHAFT
6SD1 TCN ENG(31L) (C) 		1-33269-053-0 01 1 0211-0609 ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0610- ●
417 SPACER; OUTPUT SHAFT
(A) 		1-87061-414-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(B) 		1-87061-439-0 01 1 0005- ●
437 PLATE; LOCK 1-33269-054-0 01 1 0005-0210 ●
437 PLATE; LOCK
6SD1 TCN ENG(31L) 		1-33269-054-0 01 1 0211-0609 ●
437 PLATE; LOCK 1-33269-054-0 01 1 0610- ●
438 WASHER; LOCK PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33269-056-0 03 1 0005-0210 ●
438 WASHER; LOCK PLATE
6SD1 TCN ENG(31L) 		1-33269-056-0 03 1 0211-0609 ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0610- ●
438 WASHER; LOCK PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33269-056-0 04 1 0005-0210 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33269-098-0 03 1 0406-0609 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33269-098-0 03 1 0610- ●
439 SCREW; LOCK PLATE
6HK1 TCS ENG(80L) 		1-33269-098-0 03 1 0610- ●
439 SCREW; LOCK PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33269-057-0 03 1 0005-0210 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) 		1-33269-057-0 03 1 0211-0405 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33269-057-0 03 1 0406- ●
439 SCREW; LOCK PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33269-057-0 04 1 0005-0210 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (A) 		1-33269-055-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0610- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (B) 		1-33339-053-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0610- ●
çizim 45539
166 109 108 84 93 252 325 460 132 128 135 129 252 129 128
BalonParca AdiParca NoAdetTipApplied Date A B C D
84 BEARING; COUNTER SHAFT,FRT
(D) 		1-33319-221-0 01 1 0303- ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0610- ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 0005- ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 0005- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0303- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.12 		1-33239-238-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.12 		1-33239-238-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.07 		1-33239-239-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.07 		1-33239-239-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
6SD1 TCN ENG(31L) T=2.02 		1-33239-240-0 02 1 0211-0609 ●
93 RING; SNAP,COUNTER FRT BRG
T=2.02 		1-33239-240-0 02 1 0610- ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.97 		1-33319-146-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.92 		1-33319-147-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.87 		1-33319-148-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.82 		1-33319-149-0 01 1 0303- ● ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0005-0210 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0211-0302 ●
93 RING; SNAP,COUNTER FRT BRG
T=1.77 		1-33319-150-0 01 1 0303- ● ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0406-0609 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
6HK1 TCS ENG(80L) (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
(E) 		1-33311-334-0 01 1 0303- ●
108 SHAFT; COUNTER
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33311-322-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) (D) 		1-33311-303-0 01 1 0211-0405 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33311-303-0 01 1 0406- ●
108 SHAFT; COUNTER
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33311-296-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 0005- ●
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(D) 		1-33319-221-0 01 1 0303- ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0005-0210 ●
109 BEARING; COUNTER SHAFT,RR
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0610- ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 0005- ●
128 WASHER; THRUST,REV SHAFT
(D) 		1-33359-016-0 02 1 0303- ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0005-0210 ●
128 WASHER; THRUST,REV SHAFT
6SD1 TCN ENG(31L) (C) 		1-33359-004-0 02 1 0211-0609 ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 0005- ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 0005- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0005-0210 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0211-0302 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0303- ● ●
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 0005- ●
132 SHAFT; REV 1-33351-044-0 01 1 0303- ●
132 SHAFT; REV
BRAKE SYSTEM RETARDER<RE2> 		1-33351-037-0 01 1 0005-0210 ●
132 SHAFT; REV
6SD1 TCN ENG(31L) 		1-33351-037-0 01 1 0211-0609 ●
132 SHAFT; REV 1-33351-037-0 01 1 0610- ●
132 SHAFT; REV
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33351-028-0 01 1 0005-0210 ●
132 SHAFT; REV 1-87061-452-0 02 1 0005- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0303- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0005-0210 ●
135 GEAR; REV IDLER
6SD1 TCN ENG(31L) 		1-33361-078-0 01 1 0211-0609 ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0610- ●
135 GEAR; REV IDLER 1-87061-451-0 02 1 0005- ●
166 PIECE; DIST 1-33319-222-0 01 1 0303- ●
252 SPACER
(C) 		1-33319-223-0 01 1 0303- ●
252 SPACER
(D) 		1-33359-017-0 01 1 0303- ●
252 SPACER
(A) 		1-33319-151-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (A) 		1-33319-151-0 01 1 0211-0609 ●
252 SPACER
(A) 		1-33319-151-0 01 1 0610- ●
252 SPACER
(B) 		1-33359-006-0 01 1 0005-0210 ●
252 SPACER
6SD1 TCN ENG(31L) (B) 		1-33359-006-0 01 1 0211-0609 ●
252 SPACER
(B) 		1-33359-006-0 01 1 0610- ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.051 		1-33319-152-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.127 		1-33319-153-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.254 		1-33319-154-0 01 1 0303- ● ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0005-0210 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0211-0302 ●
325 SHIM; COUNTER SHAFT BRG
T=0.510 		1-33319-155-0 01 1 0303- ● ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0211-0302 ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0303- ● ●
çizim 45615
416 400 402 345 159 80 342 156 417 442 339 437 438 439 438 439 438 439 460 260 286
BalonParca AdiParca NoAdetTipApplied Date A B C D
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0303- ●
80 GEAR; SPD DRIVE
BRAKE SYSTEM RETARDER<RE2> 		1-33371-068-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE
6SD1 TCN ENG(31L) 		1-33371-068-0 01 1 0211-0609 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0610- ●
80 GEAR; SPD DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33371-062-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 0005- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.70 		1-37429-193-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.70 		1-37249-169-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.70 		1-37249-169-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.77 		1-37429-194-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.77 		1-37249-170-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.77 		1-37249-170-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.83 		1-37429-195-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.83 		1-37249-171-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.83 		1-37249-171-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.89 		1-37429-196-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.89 		1-37249-172-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.89 		1-37249-172-0 01 1 0406- ●
156 RING; SNAP,OUTPUT SHAFT BRG
BRAKE SYSTEM RETARDER<RE2> T=3.95 		1-37429-197-0 01 1 0005-0210 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) T=3.95 		1-37249-173-0 01 1 0211-0405 ●
156 RING; SNAP,OUTPUT SHAFT BRG
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=3.95 		1-37249-173-0 01 1 0406- ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33159-068-0 01 1 0406-0609 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33159-068-0 01 1 0610- ●
159 SPACER; SPD DRIVE GEAR
6HK1 TCS ENG(80L) 		1-33159-068-0 01 1 0610- ●
159 SPACER; SPD DRIVE GEAR
BRAKE SYSTEM RETARDER<RE2> 		1-33159-054-0 01 1 0005-0210 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) 		1-33159-054-0 01 1 0211-0405 ●
159 SPACER; SPD DRIVE GEAR
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33159-054-0 01 1 0406- ●
159 SPACER; SPD DRIVE GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33159-045-0 01 1 0005-0210 ●
260 NUT; MAINSHAFT END
BRAKE SYSTEM RETARDER<RE2> 		1-33239-281-0 01 1 0005-0210 ●
260 NUT; MAINSHAFT END
6SD1 TCN ENG(31L) 		1-33239-281-0 01 1 0211-0405 ●
260 NUT; MAINSHAFT END
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33239-281-0 01 1 0406- ●
260 NUT; MAINSHAFT END
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33239-237-0 01 1 0005-0210 ●
286 NUT; LK,MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-356-0 01 1 0406-0609 ●
286 NUT; LK,MAINSHAFT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33239-356-0 01 1 0610- ●
286 NUT; LK,MAINSHAFT
6HK1 TCS ENG(80L) 		1-33239-356-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-558-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (A) 		1-33265-558-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(A) 		1-33265-558-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-559-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
6SD1 TCN ENG(31L) (B) 		1-33265-559-0 01 1 0211-0609 ●
339 CLUTCH; PLANETARY GEAR
(B) 		1-33265-559-0 01 1 0610- ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (A) 		1-33265-456-0 01 1 0005-0210 ●
339 CLUTCH; PLANETARY GEAR
EXC. BRAKE SYSTEM RETARDER<RE2> (B) 		1-33265-457-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-431-0 01 1 0406- ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0406-0609 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
FVR(FVR***) 6HK1 TCS ENG(80L) (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
(A) 		1-37243-406-1 01 1 0211- ●
342 FLANGE; OUTPUT
BRAKE SYSTEM RETARDER<RE2> (C) 		1-37243-389-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) (E) 		1-37243-394-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
EXC. P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-394-0 01 1 0406- ●
342 FLANGE; OUTPUT
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-37243-299-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
(A) 		1-37243-221-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
GVR(GV****) (E) 		1-37243-402-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-402-0 01 1 0406- ●
342 FLANGE; OUTPUT
(B) 		1-37243-222-1 01 1 0005-0210 ●
345 BOLT; FLANGE TO YOKE
M16X51 W/MARK 		1-46219-086-0 04 1 0005-0210 ●
345 BOLT; FLANGE TO YOKE
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) M16X51 W/MARK 		1-46219-086-0 04 1 0211-0405 ●
345 BOLT; FLANGE TO YOKE
EXC. P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> M16X51 W/MARK 		1-46219-086-0 04 1 0406- ●
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 0211-0405 ●
345 BOLT; FLANGE TO YOKE
GVR(GV****) M14X48.5 		1-09046-013-0 04 1 0211-0405 ●
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 0406- ●
345 BOLT; FLANGE TO YOKE
P115 PROP SHAFT(C5X) EXC. PROVISIONAL PACKAGE<NLY> M14X48.5 		1-09046-013-0 04 1 0406- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0005-0210 ●
400 BEARING; OUTPUT SHAFT RR
6SD1 TCN ENG(31L) 		1-33139-075-0 01 1 0211-0609 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0610- ●
400 BEARING; OUTPUT SHAFT RR 1-87061-413-0 01 1 0005- ●
402 SHIM
BRAKE SYSTEM RETARDER<RE2> T=0.005" 		1-33159-050-0 01 1 0005-0210 ●
402 SHIM
6SD1 TCN ENG(31L) T=0.005" 		1-33159-050-0 01 1 0211-0405 ●
402 SHIM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=0.005" 		1-33159-050-0 01 1 0406- ●
402 SHIM
BRAKE SYSTEM RETARDER<RE2> T=0.10" 		1-33159-051-0 01 1 0005-0210 ●
402 SHIM
6SD1 TCN ENG(31L) T=0.10" 		1-33159-051-0 01 1 0211-0405 ●
402 SHIM
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> T=0.10" 		1-33159-051-0 01 1 0406- ●
416 BUSHING; OUTPUT SHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-37249-168-0 01 1 0005-0210 ●
416 BUSHING; OUTPUT SHAFT
6SD1 TCN ENG(31L) 		1-37249-168-0 01 1 0211-0405 ●
416 BUSHING; OUTPUT SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-37249-168-0 01 1 0406- ●
416 BUSHING; OUTPUT SHAFT 1-87061-282-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0005-0210 ●
417 SPACER; OUTPUT SHAFT
6SD1 TCN ENG(31L) (C) 		1-33269-053-0 01 1 0211-0609 ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0610- ●
417 SPACER; OUTPUT SHAFT
(A) 		1-87061-414-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(B) 		1-87061-439-0 01 1 0005- ●
437 PLATE; LOCK 1-33269-054-0 01 1 0005-0210 ●
437 PLATE; LOCK
6SD1 TCN ENG(31L) 		1-33269-054-0 01 1 0211-0609 ●
437 PLATE; LOCK 1-33269-054-0 01 1 0610- ●
438 WASHER; LOCK PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33269-056-0 03 1 0005-0210 ●
438 WASHER; LOCK PLATE
6SD1 TCN ENG(31L) 		1-33269-056-0 03 1 0211-0609 ●
438 WASHER; LOCK PLATE 1-33269-056-0 03 1 0610- ●
438 WASHER; LOCK PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33269-056-0 04 1 0005-0210 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33269-098-0 03 1 0406-0609 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> 		1-33269-098-0 03 1 0610- ●
439 SCREW; LOCK PLATE
6HK1 TCS ENG(80L) 		1-33269-098-0 03 1 0610- ●
439 SCREW; LOCK PLATE
BRAKE SYSTEM RETARDER<RE2> 		1-33269-057-0 03 1 0005-0210 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) 		1-33269-057-0 03 1 0211-0405 ●
439 SCREW; LOCK PLATE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33269-057-0 03 1 0406- ●
439 SCREW; LOCK PLATE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33269-057-0 04 1 0005-0210 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (A) 		1-33269-055-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(A) 		1-33269-055-0 01 1 0610- ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0005-0210 ●
442 RING; SNAP,CARRIER
6SD1 TCN ENG(31L) (B) 		1-33339-053-0 01 1 0211-0609 ●
442 RING; SNAP,CARRIER
(B) 		1-33339-053-0 01 1 0610- ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0211-0302 ●
460 RING; SNAP,REV SHAFT 1-33219-297-0 01 1 0303- ● ●
çizim 46351
342 345 342 414 132 135 129 128 128 137 109 108 94 105 102 96 110 84 300 109 108 84
BalonParca AdiParca NoAdetTipApplied Date A B C D
84 BEARING; COUNTER SHAFT,FRT
(D) 		1-33319-221-0 01 1 0303- ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0005-0210 ●
84 BEARING; COUNTER SHAFT,FRT
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
84 BEARING; COUNTER SHAFT,FRT
(C) 		1-33319-145-0 01 1 0610- ●
84 BEARING; COUNTER SHAFT,FRT
(A) 		1-87061-470-0 02 1 0005- ●
84 BEARING; COUNTER SHAFT,FRT
(B) 		1-87061-495-0 02 1 0005- ●
94 KEY; FEATHER,COUNTER SHAFT 1-87061-450-0 02 1 0005- ●
96 GEAR; COUNTER DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33331-242-0 01 1 0005-0210 ●
96 GEAR; COUNTER DRIVE
6SD1 TCN ENG(31L) 		1-33331-242-0 01 1 0211-0405 ●
96 GEAR; COUNTER DRIVE
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-33331-242-0 01 1 0406- ●
96 GEAR; COUNTER DRIVE 1-87061-444-0 02 1 0005- ●
102 GEAR; PTO DRIVE,COUNTER 1-87061-446-0 02 1 0005- ●
105 GEAR; 3RD,COUNTER 1-87061-447-0 02 1 0005- ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0406-0609 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
6HK1 TCS ENG(80L) (D) 		1-33311-348-0 01 1 0610- ●
108 SHAFT; COUNTER
(E) 		1-33311-334-0 01 1 0303- ●
108 SHAFT; COUNTER
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33311-322-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) (D) 		1-33311-303-0 01 1 0211-0405 ●
108 SHAFT; COUNTER
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (D) 		1-33311-303-0 01 1 0406- ●
108 SHAFT; COUNTER
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33311-296-0 01 1 0005-0210 ●
108 SHAFT; COUNTER
(A) 		1-87061-509-0 02 1 0005- ●
108 SHAFT; COUNTER
(B) 		1-87061-510-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(D) 		1-33319-221-0 01 1 0303- ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0005-0210 ●
109 BEARING; COUNTER SHAFT,RR
6SD1 TCN ENG(31L) (C) 		1-33319-145-0 01 1 0211-0609 ●
109 BEARING; COUNTER SHAFT,RR
(C) 		1-33319-145-0 01 1 0610- ●
109 BEARING; COUNTER SHAFT,RR
(A) 		1-87061-470-0 02 1 0005- ●
109 BEARING; COUNTER SHAFT,RR
(B) 		1-87061-499-0 01 1 0005- ●
110 RING; SNAP,COUNTER BRG 1-87061-410-0 02 1 0005- ●
128 WASHER; THRUST,REV SHAFT
(D) 		1-33359-016-0 02 1 0303- ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0005-0210 ●
128 WASHER; THRUST,REV SHAFT
6SD1 TCN ENG(31L) (C) 		1-33359-004-0 02 1 0211-0609 ●
128 WASHER; THRUST,REV SHAFT
(C) 		1-33359-004-0 02 1 0610- ●
128 WASHER; THRUST,REV SHAFT
(A) 		1-87061-453-0 02 1 0005- ●
128 WASHER; THRUST,REV SHAFT
(B) 		1-87061-454-0 02 1 0005- ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0005-0210 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0211-0302 ●
129 BEARING; NEEDLE,IDLER 1-33359-005-0 02 1 0303- ● ●
129 BEARING; NEEDLE,IDLER 1-87061-416-0 02 1 0005- ●
132 SHAFT; REV 1-33351-044-0 01 1 0303- ●
132 SHAFT; REV
BRAKE SYSTEM RETARDER<RE2> 		1-33351-037-0 01 1 0005-0210 ●
132 SHAFT; REV
6SD1 TCN ENG(31L) 		1-33351-037-0 01 1 0211-0609 ●
132 SHAFT; REV 1-33351-037-0 01 1 0610- ●
132 SHAFT; REV
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33351-028-0 01 1 0005-0210 ●
132 SHAFT; REV 1-87061-452-0 02 1 0005- ●
135 GEAR; REV IDLER 1-33361-090-0 01 1 0303- ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0005-0210 ●
135 GEAR; REV IDLER
6SD1 TCN ENG(31L) 		1-33361-078-0 01 1 0211-0609 ●
135 GEAR; REV IDLER 1-33361-078-0 01 1 0610- ●
135 GEAR; REV IDLER 1-87061-451-0 02 1 0005- ●
137 NUT; REV GEAR 1-87061-221-0 02 1 0005- ●
300 RING; SNAP,COUNTER SHAFT,RR END 1-87061-295-0 02 1 0005- ●
342 FLANGE; OUTPUT
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-431-0 01 1 0406- ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0406-0609 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
FVR(FVR***) 6HK1 TCS ENG(80L) (E) 		1-37243-430-0 01 1 0610- ●
342 FLANGE; OUTPUT
(A) 		1-37243-406-1 01 1 0211- ●
342 FLANGE; OUTPUT
BRAKE SYSTEM RETARDER<RE2> (C) 		1-37243-389-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) (E) 		1-37243-394-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
EXC. P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-394-0 01 1 0406- ●
342 FLANGE; OUTPUT
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-37243-299-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
(A) 		1-37243-221-0 01 1 0005-0210 ●
342 FLANGE; OUTPUT
GVR(GV****) (E) 		1-37243-402-0 01 1 0211-0405 ●
342 FLANGE; OUTPUT
P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> (E) 		1-37243-402-0 01 1 0406- ●
342 FLANGE; OUTPUT
(B) 		1-37243-222-1 01 1 0005-0210 ●
345 BOLT; FLANGE TO YOKE
M16X51 W/MARK 		1-46219-086-0 04 1 0005-0210 ●
345 BOLT; FLANGE TO YOKE
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) M16X51 W/MARK 		1-46219-086-0 04 1 0211-0405 ●
345 BOLT; FLANGE TO YOKE
EXC. P115 PROP SHAFT(C5X),PROVISIONAL PACKAGE<NLY> M16X51 W/MARK 		1-46219-086-0 04 1 0406- ●
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 0211-0405 ●
345 BOLT; FLANGE TO YOKE
GVR(GV****) M14X48.5 		1-09046-013-0 04 1 0211-0405 ●
345 BOLT; FLANGE TO YOKE
M14X48.5 		1-09046-013-0 04 1 0406- ●
345 BOLT; FLANGE TO YOKE
P115 PROP SHAFT(C5X) EXC. PROVISIONAL PACKAGE<NLY> M14X48.5 		1-09046-013-0 04 1 0406- ●
414 PLUG; REV SHAFT 1-87061-203-0 02 1 0005- ●
çizim 46620
281 36 30 281 306 319 411 1 412 319 281 383 291 290 306 383 10 410 3 413 59 10 319 82 420 290 75 120 281 70 50 407 281 416 294 299 420 418 281 297 80 408 415 408 296 420 408 417 293 306 407 400 295 417 296 294 415 319
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 SHAFT; TOP GEAR,TRANS 1-33215-012-0 01 1 0303- ●
1 SHAFT; TOP GEAR,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33211-983-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS
6SD1 TCN ENG(31L) 		1-33211-983-0 01 1 0211-0609 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-983-0 01 1 0610- ●
1 SHAFT; TOP GEAR,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33211-911-0 01 1 0005-0210 ●
1 SHAFT; TOP GEAR,TRANS 1-87061-763-0 01 1 0005-0603 ●
1 SHAFT; TOP GEAR,TRANS 1-33211-763-0 01 1 0604- ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0005-0210 ●
3 BEARING; TOP GEAR SHAFT
6SD1 TCN ENG(31L) 		1-33219-186-0 01 1 0211-0609 ●
3 BEARING; TOP GEAR SHAFT 1-33219-186-0 01 1 0610- ●
3 BEARING; TOP GEAR SHAFT 1-87061-501-0 01 1 0005- ●
10 RING; SNAP,PILOT BRG
BRAKE SYSTEM RETARDER<RE2> (C) 		1-33219-268-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
6SD1 TCN ENG(31L) (C) 		1-33219-268-0 01 1 0211-0609 ●
10 RING; SNAP,PILOT BRG
(C) 		1-33219-268-0 01 1 0610- ●
10 RING; SNAP,PILOT BRG
EXC. BRAKE SYSTEM RETARDER<RE2> (D) 		1-33219-193-0 01 1 0005-0210 ●
10 RING; SNAP,PILOT BRG
(A) 		1-87061-295-0 01 1 0005- ●
10 RING; SNAP,PILOT BRG
(B) 		1-87061-426-0 01 1 0005- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-474-0 01 1 0303- ●
30 GEAR; 4TH,MAINSHAFT 1-33252-455-0 01 1 0005-0210 ●
30 GEAR; 4TH,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-472-0 01 1 0211-0609 ●
30 GEAR; 4TH,MAINSHAFT 1-33252-472-0 01 1 0610- ●
30 GEAR; 4TH,MAINSHAFT 1-87061-484-0 01 1 0005- ●
36 GEAR; 3RD,MAINSHAFT 1-33252-473-0 01 1 0303- ●
36 GEAR; 3RD,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33252-458-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33252-458-0 01 1 0211-0609 ●
36 GEAR; 3RD,MAINSHAFT 1-33252-458-0 01 1 0610- ●
36 GEAR; 3RD,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33252-454-0 01 1 0005-0210 ●
36 GEAR; 3RD,MAINSHAFT 1-87061-471-0 01 1 0005- ●
50 GEAR; 2ND,MAINSHAFT 1-33251-446-0 01 1 0303- ●
50 GEAR; 2ND,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-33251-382-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-382-0 01 1 0211-0609 ●
50 GEAR; 2ND,MAINSHAFT 1-33251-382-0 01 1 0610- ●
50 GEAR; 2ND,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33251-375-0 01 1 0005-0210 ●
50 GEAR; 2ND,MAINSHAFT 1-87061-448-0 01 1 0005- ●
59 GEAR; REV MAINSHAFT 1-33257-092-0 01 1 0303- ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0005-0210 ●
59 GEAR; REV MAINSHAFT
6SD1 TCN ENG(31L) 		1-33257-078-0 01 1 0211-0609 ●
59 GEAR; REV MAINSHAFT 1-33257-078-0 01 1 0610- ●
59 GEAR; REV MAINSHAFT 1-87061-449-0 01 1 0005- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-447-0 01 1 0303- ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0005-0210 ●
70 GEAR; 1ST,MAINSHAFT
6SD1 TCN ENG(31L) 		1-33251-376-0 01 1 0211-0609 ●
70 GEAR; 1ST,MAINSHAFT 1-33251-376-0 01 1 0610- ●
70 GEAR; 1ST,MAINSHAFT 1-87061-469-0 01 1 0005- ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0005-0210 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0211-0302 ●
75 BEARING; MAINSHAFT 1-33239-241-0 01 1 0303- ● ●
75 BEARING; MAINSHAFT 1-87061-500-0 01 1 0005- ●
80 GEAR; SPD DRIVE 1-33371-072-0 01 1 0303- ●
80 GEAR; SPD DRIVE
BRAKE SYSTEM RETARDER<RE2> 		1-33371-068-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE
6SD1 TCN ENG(31L) 		1-33371-068-0 01 1 0211-0609 ●
80 GEAR; SPD DRIVE 1-33371-068-0 01 1 0610- ●
80 GEAR; SPD DRIVE
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33371-062-0 01 1 0005-0210 ●
80 GEAR; SPD DRIVE 1-33371-035-0 01 1 0005- ●
82 SHAFT; MAIN,TRANS 1-33231-333-0 01 1 0303- ●
82 SHAFT; MAIN,TRANS
BRAKE SYSTEM RETARDER<RE2> 		1-33231-323-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS
6SD1 TCN ENG(31L) 		1-33231-294-0 01 1 0211-0609 ●
82 SHAFT; MAIN,TRANS 1-33231-294-0 01 1 0610- ●
82 SHAFT; MAIN,TRANS
EXC. BRAKE SYSTEM RETARDER<RE2> 		1-33231-287-0 01 1 0005-0210 ●
82 SHAFT; MAIN,TRANS 1-87061-455-0 01 1 0005- ●
120 SLEEVE 1-87061-436-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(C) T=0.203 		1-87061-273-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(C) T=0.207 		1-87061-274-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(C) T=0.211 		1-87061-275-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.260 		1-87061-457-0 04 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.264 		1-87061-458-0 04 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.269 		1-87061-459-0 04 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.274 		1-87061-460-0 04 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(A) T=0.279 		1-87061-461-0 04 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.260 		1-87061-479-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.264 		1-87061-480-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.269 		1-87061-481-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.274 		1-87061-482-0 01 1 0005- ●
281 WASHER; THRUST,MAINSHAFT
(B) T=0.279 		1-87061-483-0 01 1 0005- ●
290 RETAINER; BRG 1-87061-492-0 02 1 0005- ●
291 BOLT; RET 1-87061-529-0 04 1 0005- ●
293 SYNCHRONIZER; LOW HIGH 1-87061-216-0 01 1 0005- ●
294 SHAFT; OUTPUT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (C) 		1-33239-357-0 01 1 0406-0609 ●
294 SHAFT; OUTPUT
6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (C) 		1-33239-357-0 01 1 0610- ●
294 SHAFT; OUTPUT
6HK1 TCS ENG(80L) (C) 		1-33239-357-0 01 1 0610- ●
294 SHAFT; OUTPUT
(A) 		1-87061-280-0 01 1 0005- ●
294 SHAFT; OUTPUT
(B) 		1-87061-506-0 01 1 0005- ●
295 GEAR; LOW,DRIVEN 1-87061-441-0 01 1 0005- ●
296 WASHER; THRUST
(A) 		1-87061-411-0 01 1 0005- ●
296 WASHER; THRUST
(B) 		1-87061-430-0 01 1 0005- ●
297 NUT; LOCK 1-87061-291-0 01 1 0005- ●
299 BEARING; OUTPUT SHAFT FRT 1-87061-279-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.12 		1-33239-238-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.07 		1-33239-239-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) T=2.02 		1-33239-240-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
(F) SET 		1-33239-314-0 01 1 0303- ●
306 RING; SNAP,MAINSHAFT
BRAKE SYSTEM RETARDER<RE2> (D) 		1-33239-314-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.12 		1-33239-238-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.07 		1-33239-239-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (E) T=2.02 		1-33239-240-0 01 1 0005-0210 ●
306 RING; SNAP,MAINSHAFT
(A) 		1-87061-415-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(B) 		1-87061-428-0 01 1 0005- ●
306 RING; SNAP,MAINSHAFT
(C) 		1-87061-429-0 01 1 0005- ●
319 CLUTCH; SLIDING
(C) 		1-87061-425-0 01 1 0005- ●
319 CLUTCH; SLIDING
(A) 		1-87061-456-0 02 1 0005- ●
319 CLUTCH; SLIDING
(B) 		1-87061-478-0 01 1 0005- ●
383 WASHER; LK 1-87061-493-0 02 1 0005- ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0005-0210 ●
400 BEARING; OUTPUT SHAFT RR
6SD1 TCN ENG(31L) 		1-33139-075-0 01 1 0211-0609 ●
400 BEARING; OUTPUT SHAFT RR 1-33139-075-0 01 1 0610- ●
400 BEARING; OUTPUT SHAFT RR 1-87061-413-0 01 1 0005- ●
407 GEAR; PRIMARY MAIN
(B) 		1-87061-486-0 01 1 0005- ●
407 GEAR; PRIMARY MAIN
(A) 		1-87061-487-0 01 1 0005- ●
408 SPRING
(B) 		1-33264-043-0 03 1 0303- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 24 1 0406- ●
408 SPRING
(A) 		1-33264-042-0 06 1 0303- ●
408 SPRING
(A) 		1-33264-039-0 18 1 0005-0210 ●
408 SPRING
6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0211-0405 ●
408 SPRING
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0406-0609 ●
408 SPRING
FVM(FVM***) 6SD1 TCN ENG(31L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
FVR(FVR***) 6SD1 TCN ENG(31L),6HK1 TCS ENG(80L) (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
GVR(GV****) 6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> (A) 		1-33264-039-0 18 1 0610- ●
408 SPRING
(A) 		1-87061-137-0 03 1 0005- ●
410 SPACER; TOP GEAR SHAFT
T=3.10 		1-33219-298-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.15 		1-33219-299-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.20 		1-33219-300-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.25 		1-33219-301-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.30 		1-33219-302-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.35 		1-33219-303-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.40 		1-33219-304-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.45 		1-33219-305-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT
T=3.50 		1-33219-306-0 01 1 0303- ●
410 SPACER; TOP GEAR SHAFT 1-87061-467-0 01 1 0005- ●
411 BUSHING; TOP GEAR SHAFT 1-87061-427-0 01 1 0005- ●
412 GEAR; DRIVE 1-87060-718-0 01 1 0005- ●
413 KEY; MAIN SHAFT 1-87061-507-0 01 1 0005- ●
415 PIN; OUTPUT SHAFT
EXC. BRAKE SYSTEM RETARDER<RE2> (C) 		1-33359-007-0 01 1 0005-0210 ●
415 PIN; OUTPUT SHAFT
(A) 		1-87061-271-0 01 1 0005- ●
415 PIN; OUTPUT SHAFT
(B) 		1-87061-284-0 01 1 0005- ●
416 BUSHING; OUTPUT SHAFT
BRAKE SYSTEM RETARDER<RE2> 		1-37249-168-0 01 1 0005-0210 ●
416 BUSHING; OUTPUT SHAFT
6SD1 TCN ENG(31L) 		1-37249-168-0 01 1 0211-0405 ●
416 BUSHING; OUTPUT SHAFT
6SD1 TCN ENG(31L) EXC. PROVISIONAL PACKAGE<NLY> 		1-37249-168-0 01 1 0406- ●
416 BUSHING; OUTPUT SHAFT 1-87061-282-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0005-0210 ●
417 SPACER; OUTPUT SHAFT
6SD1 TCN ENG(31L) (C) 		1-33269-053-0 01 1 0211-0609 ●
417 SPACER; OUTPUT SHAFT
(C) 		1-33269-053-0 01 1 0610- ●
417 SPACER; OUTPUT SHAFT
(A) 		1-87061-414-0 01 1 0005- ●
417 SPACER; OUTPUT SHAFT
(B) 		1-87061-439-0 01 1 0005- ●
418 KEY; OUTPUT SHAFT 1-87061-272-0 01 1 0005- ●
420 RING; SNAP,OUTPUT SHAFT
(A) 		1-87061-278-0 01 1 0005- ●
420 RING; SNAP,OUTPUT SHAFT
(B) 		1-87061-281-0 01 1 0005- ●
420 RING; SNAP,OUTPUT SHAFT
(C) 		1-87061-289-0 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
