2-08 — CLUTCH MASTER CYLINDER (#8656) — 36 parça

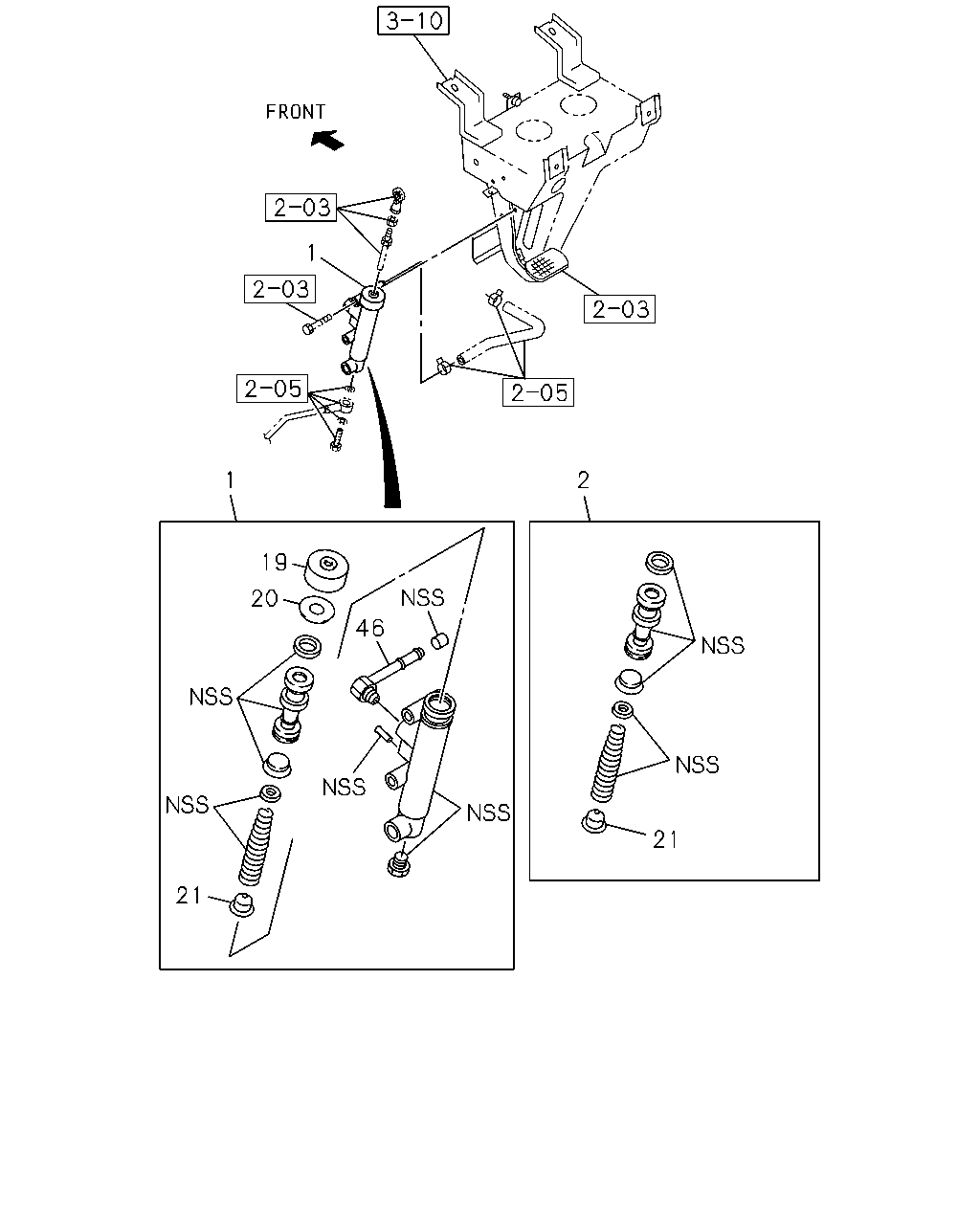

çizim 8362
1 2 1 19 20 46 21 21
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0005-0111 ● ● ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0112-0210 ● ●
1 CYLINDER ASM; CLUTCH MASTER
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-47500-232-2 01 1 0112-0210 ●
1 CYLINDER ASM; CLUTCH MASTER
FULLER M/T<X9B> 		1-47500-232-2 01 1 0211-0211 ●
1 CYLINDER ASM; CLUTCH MASTER
FULLER M/T<X9B> 		1-47500-232-2 01 1 0212- ●
1 CYLINDER ASM; CLUTCH MASTER 1-47500-232-2 01 1 0212- ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0005-0111 ● ● ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0112-0210 ● ●
2 REPAIR KIT; CLU M/CYL
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-85576-114-0 01 1 0112-0210 ●
2 REPAIR KIT; CLU M/CYL
FULLER M/T<X9B> 		1-85576-114-0 01 1 0211-0211 ●
2 REPAIR KIT; CLU M/CYL
FULLER M/T<X9B> 		1-85576-114-0 01 1 0212- ●
2 REPAIR KIT; CLU M/CYL 1-85576-114-0 01 1 0212- ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0005-0111 ● ● ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0112-0210 ● ●
19 BOOT; CLU M/CYL
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		9-47545-032-0 01 1 0112-0210 ●
19 BOOT; CLU M/CYL
FULLER M/T<X9B> 		9-47545-032-0 01 1 0211-0211 ●
19 BOOT; CLU M/CYL
FULLER M/T<X9B> 		9-47545-032-0 01 1 0212- ●
19 BOOT; CLU M/CYL 9-47545-032-0 01 1 0212- ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0005-0111 ● ● ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0112-0210 ● ●
20 RING; SNAP,BODY
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) OD=26.9 		9-09180-125-0 01 1 0112-0210 ●
20 RING; SNAP,BODY
FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0211-0211 ●
20 RING; SNAP,BODY
FULLER M/T<X9B> OD=26.9 		9-09180-125-0 01 1 0212- ●
20 RING; SNAP,BODY
OD=26.9 		9-09180-125-0 01 1 0212- ●
21 VALVE; CHECK 1-47565-004-0 01 1 0005-0111 ● ● ●
21 VALVE; CHECK 1-47565-004-0 01 1 0112-0210 ● ●
21 VALVE; CHECK
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-47565-004-0 01 1 0112-0210 ●
21 VALVE; CHECK
FULLER M/T<X9B> 		1-47565-004-0 01 1 0211-0211 ●
21 VALVE; CHECK
FULLER M/T<X9B> 		1-47565-004-0 01 1 0212- ●
21 VALVE; CHECK 1-47565-004-0 01 1 0212- ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0005-0111 ● ● ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0112-0210 ● ●
46 CONNECTOR; PIPE
FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) 		1-47517-004-0 01 1 0112-0210 ●
46 CONNECTOR; PIPE
FULLER M/T<X9B> 		1-47517-004-0 01 1 0211-0211 ●
46 CONNECTOR; PIPE
FULLER M/T<X9B> 		1-47517-004-0 01 1 0212- ●
46 CONNECTOR; PIPE 1-47517-004-0 01 1 0212- ●
