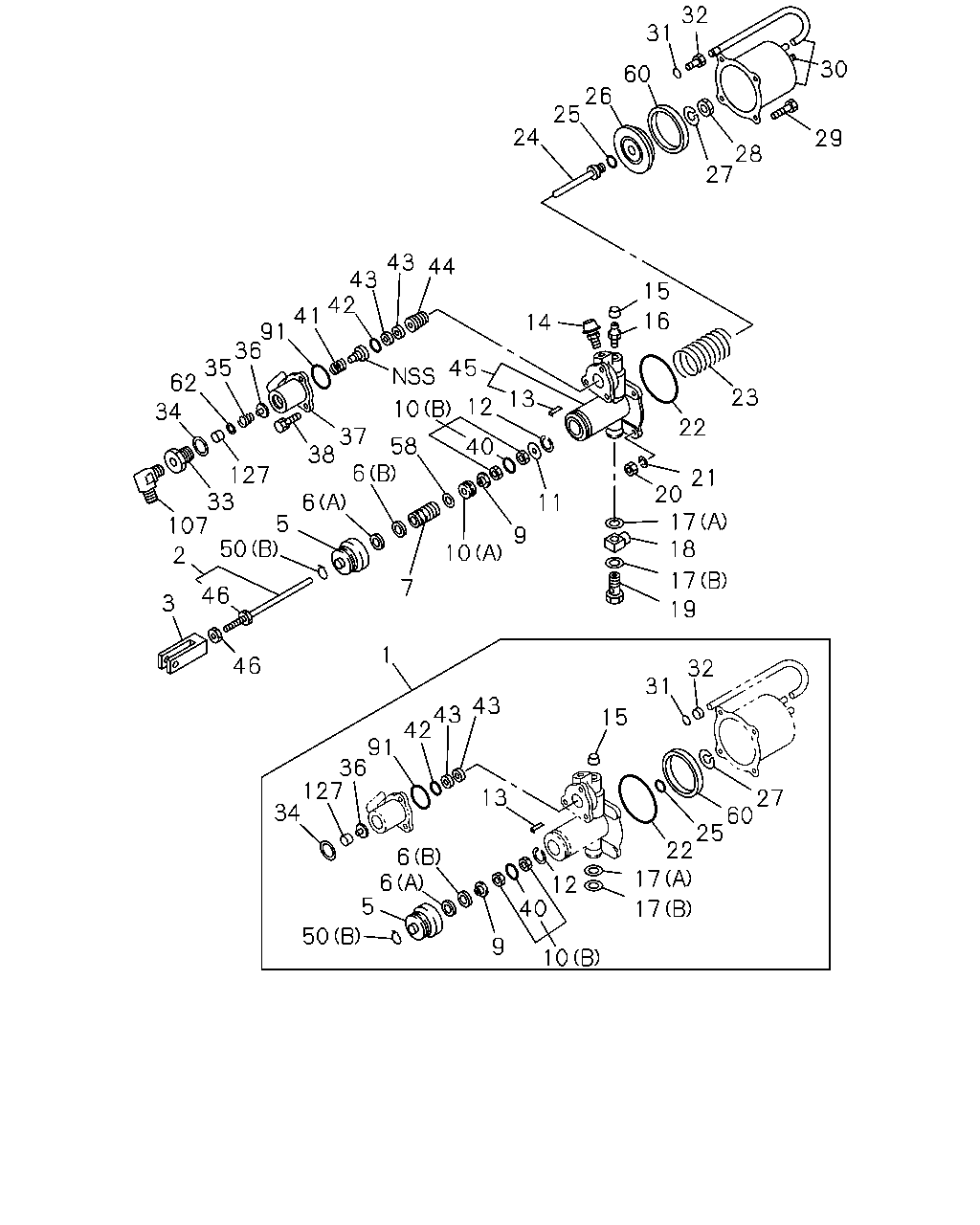

2-07A — CLUTCH BOOSTER; MINIPACK (#8654) — 70 parça

32 31 30 60 26 25 24 29 28 27 43 43 42 44 15 41 16 14 91 36 35 62 45 23 13 12 10 34 22 37 38 58 6 40 127 33 107 21 20 17 18 6 11 5 50 9 10 2 17 7 46 3 19 1 46 32 31 43 43 42 15 91 36 127 34 13 27 60 25 22 17 6 6 5 12 40 17 50 9 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-352-0	01	1	0005-0106
1	REPAIR KIT; CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-542-0	01	1	0107-0210
2	ROD; PUSH,CLU BOOSTER 6HE1 TC ENG(57L)	1-31824-156-0	01	1	0005-0106
2	ROD; PUSH,CLU BOOSTER 6HE1 TC ENG(57L)	1-31824-156-0	01	1	0107-0210
3	CLEVIS; PUSH ROD,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-186-0	01	1	0005-0106
3	CLEVIS; PUSH ROD,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-538-0	01	1	0107-0210
5	GUARD; PISTON,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-174-0	01	1	0005-0106
5	GUARD; PISTON,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-174-0	01	1	0107-0210
6	GASKET; PISTON CUP,CLU BOOSTER 6HE1 TC ENG(57L) (A)	1-31829-055-0	01	1	0005-0210
6	GASKET; PISTON CUP,CLU BOOSTER 6HE1 TC ENG(57L) (B)	1-31829-056-0	01	1	0005-0210
7	PISTON; CLU BOOSTER 6HE1 TC ENG(57L)	1-31821-013-0	01	1	0005-0106
7	PISTON; CLU BOOSTER 6HE1 TC ENG(57L)	1-31821-048-0	01	1	0107-0210
9	GASKET; PISTON CUP,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-251-0	01	1	0005-0210
10	RETAINER; PISTON,CLU BOOSTER 6HE1 TC ENG(57L) (B)	1-31829-285-0	01	1	0005-0210
10	RETAINER; PISTON,CLU BOOSTER 6HE1 TC ENG(57L) (A)	1-31829-293-0	01	1	0005-0106
10	RETAINER; PISTON,CLU BOOSTER 6HE1 TC ENG(57L) (A)	1-31829-428-0	01	1	0107-0210
11	WASHER; PISTON,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-105-0	01	1	0005-0210
12	RING; RET,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-142-0	01	1	0005-0106
12	RING; RET,CLU BOOSTER 6HE1 TC ENG(57L)	9-83315-315-0	01	1	0107-0210
13	PIN; SPR 6HE1 TC ENG(57L)	1-31829-109-0	01	1	0005-0210
14	COVER; EXH,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-102-0	01	1	0005-0106
14	COVER; EXH,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-365-0	01	1	0107-0210
15	PROTECTOR; END PLATE,CLU BOOSTER 6HE1 TC ENG(57L)	9-83335-044-0	01	1	0005-0210
16	PLUG; END PLATE,CLU BOOSTER 6HE1 TC ENG(57L)	9-83331-704-0	01	1	0005-0210
17	GASKET; CONN,CLU BOOSTER 6HE1 TC ENG(57L) (A)	9-09920-267-0	01	1	0005-0210
17	GASKET; CONN,CLU BOOSTER 6HE1 TC ENG(57L) (B)	9-09920-268-0	01	1	0005-0210
18	CONNECTOR; END PLATE,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-248-0	01	1	0005-0210
19	BOLT; EYE,END PLATE,CLU BOOSTER 6HE1 TC ENG(57L)	9-83315-047-0	01	1	0005-0210
20	NUT; END PLATE TO SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	9-83315-085-0	04	1	0005-0210
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 6HE1 TC ENG(57L) ID=8.2	9-09150-508-0	04	1	0005-0210
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-09623-327-0	01	1	0005-0210
23	SPRING; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-110-0	01	1	0005-0106
23	SPRING; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-358-0	01	1	0107-0210
24	ROD; PUSH,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-340-0	01	1	0005-0210
25	GASKET; PUSH ROD,CLU BOOSTER 6HE1 TC ENG(57L)	1-09623-321-0	01	1	0005-0210
26	PISTON; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31821-057-0	01	1	0005-0106
26	PISTON; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31821-083-0	01	1	0107-0210
27	SPRING; CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-111-0	01	1	0005-0210
28	NUT; PUSH ROD,CLU BOOSTER 6HE1 TC ENG(57L)	9-88510-365-0	01	1	0005-0210
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-015-0	04	1	0005-0210
30	SHELL; CYL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31811-026-0	01	1	0005-0106
30	SHELL; CYL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31811-123-0	01	1	0107-0210
31	GASKET; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-113-0	01	1	0005-0210
32	BUSHING; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-114-0	01	1	0005-0210
33	CONNECTOR; UPR,VLV,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-212-0	01	1	0005-0210
34	GASKET; CONN,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-053-0	01	1	0005-0210
35	SPRING; POPPET VLV,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-077-0	01	1	0005-0106
35	SPRING; POPPET VLV,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-537-0	01	1	0107-0210
36	VALVE; POPPET,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-016-0	01	1	0005-0106
36	VALVE; POPPET,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-536-0	01	1	0107-0210
37	BODY; UPR,VLV,CLU BOOSTER 6HE1 TC ENG(57L)	1-31811-018-0	01	1	0005-0106
37	BODY; UPR,VLV,CLU BOOSTER 6HE1 TC ENG(57L)	1-31811-089-0	01	1	0107-0210
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 6HE1 TC ENG(57L)	1-44519-022-0	03	1	0005-0106
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 6HE1 TC ENG(57L)	9-83315-113-0	03	1	0107-0210
40	GASKET; PISTON,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-037-0	01	1	0005-0210
41	SPRING; DIAPH,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-420-0	01	1	0005-0210
42	GASKET; FITTING,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-123-0	01	1	0005-0210
43	GASKET; UPR VLV,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-060-0	02	1	0005-0210
44	PISTON; UPR VLV,CLU BOOSTER 6HE1 TC ENG(57L)	1-31821-019-0	01	1	0005-0210
45	PLATE; END,CLU BOOSTER 6HE1 TC ENG(57L)	1-31811-062-0	01	1	0005-0210
46	NUT; PUSH ROD,CLU BOOSTER 6HE1 TC ENG(57L)	1-31824-126-0	01	1	0005-0106
46	NUT; PUSH ROD,CLU BOOSTER 6HE1 TC ENG(57L)	1-31824-126-0	02	1	0107-0210
50	CLAMP; PISTON GUARD,CLU BOOSTER 6HE1 TC ENG(57L) (B)	1-31829-168-0	01	1	0005-0210
58	WASHER; PISTON,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-294-0	01	1	0005-0106
60	GASKET; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-066-0	01	1	0005-0106
60	GASKET; SHELL,CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-535-0	01	1	0107-0210
62	RETAINER; POPPET 6HE1 TC ENG(57L)	1-31829-489-0	01	1	0107-0210
91	GASKET; CLU BOOSTER 6HE1 TC ENG(57L)	1-31829-103-0	01	1	0005-0210
107	CONNECTOR; ELBOW 6HE1 TC ENG(57L)	1-09650-358-1	01	1	0005-0210
127	FILTER; POPPET 6HE1 TC ENG(57L)	1-31829-495-0	01	1	0107-0210
