Isuzu WW
▶
TRUCKS
▶
FV
▶
10828 - FV/GV(AUSTRAL)L.SUS
▶
2 - Clutch, Transmission, Trans Axle
▶
2-05C - CLUTCH PIPING
▶

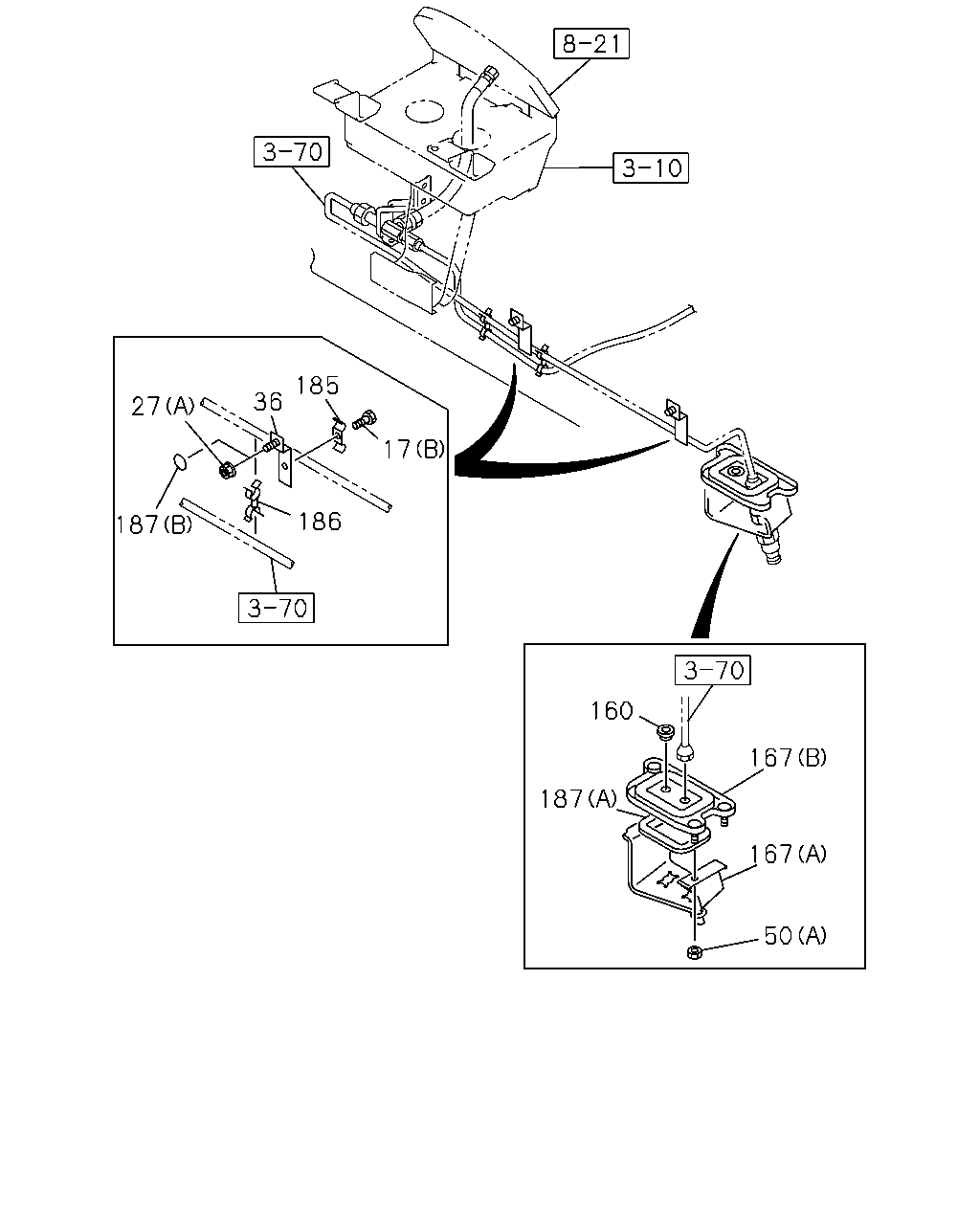

2-05C — CLUTCH PIPING
(#8652) — 21 parça
185
36
27
17
186
187
160
167
187
167
50
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0112-0210
17
BOLT; BRKT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0211-
27
NUT; BRKT
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0112-0210
27
NUT; BRKT
(A) M6 FLANGE W/RUBBER
1-09984-180-0
02
1
0211-
36
BRACKET; CLIP
1-79738-186-1
02
1
0112-0210
36
BRACKET; CLIP
1-79738-186-1
02
1
0211-
50
NUT; UNION
(A) M8 CUTTING NUT W/FLANGE
1-09985-340-0
03
1
0112-0210
50
NUT; UNION
(A) M8 CUTTING NUT W/FLANGE
1-09985-340-0
03
1
0211-
160
GROMMET; OIL PIPE
OD=31.6
8-94198-177-0
01
1
0112-
167
BRACKET; UNION
(A)
1-79738-193-6
01
1
0112-0210
167
BRACKET; UNION
(A)
1-79738-847-2
01
1
0211-
167
BRACKET; UNION
(B)
1-79738-845-0
01
1
0112-0210
167
BRACKET; UNION
(B)
1-79738-845-1
01
1
0211-
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
0112-0210
185
CLIP; BRKT
ID=5 & 8
5-09700-165-0
02
1
0211-
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
0112-0210
186
HOLDER; CLIP
ID=6 & 4.8
8-94313-325-0
02
1
0211-
187
SEAL; BRKT
(B) OD=25 BLACK
1-76798-019-0
02
1
0211-
187
SEAL; BRKT
(A)
1-79738-190-0
01
1
0112-0210
187
SEAL; BRKT
(A)
1-79738-190-0
01
1
0211-
187
SEAL; BRKT
(B) OD=25 BLACK
1-76798-019-0
02
1
0112-0210
