Sayfa 2-01B - Isuzu EPC

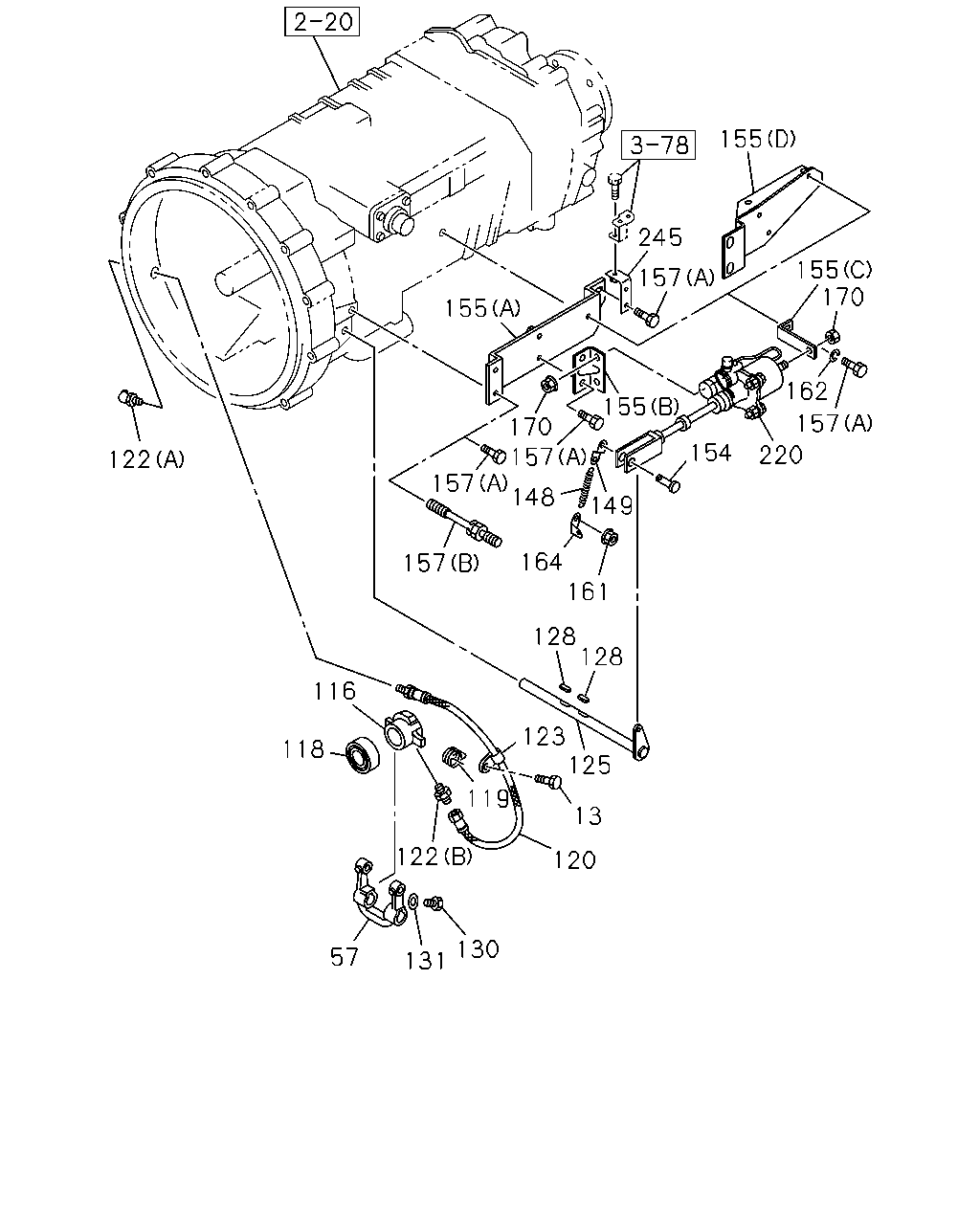

2-01B — CLUTCH (#8648) — 221 parça

155 245 155 170 157 155 155 162 157 170 157 148 149 154 220 122 157 164 157 161 128 128 116 123 125 118 119 13 122 120 130 57 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210	●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0211-0302		●
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0303-0512		●	●
13	BOLT; CLIP M8X16 FLANGE	0-28050-816-0	01	1	0601-		●	●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	0005-0210	●			●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	0211-0302		●		●
57	FORK; SHIFT,CLU	1-31341-036-0	01	1	0303-		●	●	●
116	BLOCK; SHIFT,CLU	1-31321-077-0	01	1	0005-0210	●
116	BLOCK; SHIFT,CLU	1-31321-077-0	01	1	0211-0302		●
116	BLOCK; SHIFT,CLU	1-31321-077-1	01	1	0303-		●	●
116	BLOCK; SHIFT,CLU	1-31321-063-1	01	1	0005-				●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0211-0302		●		●
118	BEARING; CLU RELEASE BEST VALUE PARTS	1-87610-108-0	01	1	0303-		●	●	●
118	BEARING; CLU RELEASE	1-09820-081-0	01	1	0005-0111	●			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0112-0210	●			●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0211-0302		●		●
118	BEARING; CLU RELEASE	1-09820-117-0	01	1	0303-		●	●	●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0005-0210	●			●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0211-0302		●		●
119	SPRING; SHIFT FORK	1-31329-015-0	01	1	0303-		●	●	●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0005-0210	●			●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0211-0302		●		●
119	SPRING; SHIFT FORK	1-31329-014-0	01	1	0303-		●	●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-0210	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0211-0302		●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0303-		●	●
120	HOSE; FLEX,SHIFT BLOCK,CLU L=204	1-09364-633-0	01	1	0005-				●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-0210	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0211-0302		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0303-		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0210	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0211-0302		●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0303-0512		●	●
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0005-0210	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0211-0302		●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0303-0606		●	●
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	0-95234-835-0	01	1	0607-		●	●
125	SHAFT; CLU	1-31342-291-0	01	1	0005-0210	●
125	SHAFT; CLU 6SD1 TCN ENG(31L)	1-31342-291-0	01	1	0211-		●
125	SHAFT; CLU	1-31342-287-0	01	1	0005-				●
125	SHAFT; CLU	1-31342-300-0	01	1	0303-0609			●
125	SHAFT; CLU 6HK1 TCS ENG(80L)	1-31342-300-0	01	1	0610-		●
125	SHAFT; CLU	1-31342-300-0	01	1	0610-			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0210	●			●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0211-0302		●		●
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0303-		●	●	●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	0005-0210	●			●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	0211-0302		●		●
130	SCREW; SHIFT FORK	9-06120-816-0	01	1	0303-		●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0210	●			●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0211-0302		●		●
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0303-0603		●	●	●
131	WASHER; LK,SHIFT FORK ID=8.2	0-91510-508-0	01	1	0604-		●	●	●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0005-0210	●			●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0211-0302		●		●
148	SPRING; CLU RETURN L=135	1-09583-305-0	01	1	0303-		●	●	●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	0005-0210	●			●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	0211-0302		●		●
149	EYE; SPRING,RETURN SPRING	1-31426-041-0	01	1	0303-		●	●	●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0005-0210	●			●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0211-0302		●		●
154	PIN; JAW JOINT	1-31424-009-0	01	1	0303-		●	●	●
155	BRACKET; MINIPACK (A)	1-31429-380-0	01	1	0005-0210	●
155	BRACKET; MINIPACK 6SD1 TCN ENG(31L) (A)	1-31429-380-0	01	1	0211-		●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	0005-0210	●			●
155	BRACKET; MINIPACK (C)	1-31429-289-1	01	1	0211-				●
155	BRACKET; MINIPACK 6SD1 TCN ENG(31L) (C)	1-31429-289-1	01	1	0211-		●
155	BRACKET; MINIPACK (B)	1-31429-355-0	01	1	0005-0210	●			●
155	BRACKET; MINIPACK (B)	1-31429-355-0	01	1	0211-				●
155	BRACKET; MINIPACK 6SD1 TCN ENG(31L) (B)	1-31429-355-0	01	1	0211-		●
155	BRACKET; MINIPACK (D)	1-31429-375-0	01	1	0005-				●
155	BRACKET; MINIPACK (B)	1-31429-066-0	01	1	0303-0609			●
155	BRACKET; MINIPACK 6HK1 TCS ENG(80L) (B)	1-31429-066-0	01	1	0610-		●
155	BRACKET; MINIPACK (B)	1-31429-066-0	01	1	0610-			●
155	BRACKET; MINIPACK (C)	1-31429-322-0	01	1	0303-0609			●
155	BRACKET; MINIPACK 6HK1 TCS ENG(80L) (C)	1-31429-322-0	01	1	0610-		●
155	BRACKET; MINIPACK (C)	1-31429-322-0	01	1	0610-			●
155	BRACKET; MINIPACK (A)	1-31429-390-0	01	1	0303-0609			●
155	BRACKET; MINIPACK 6HK1 TCS ENG(80L) (A)	1-31429-390-0	01	1	0610-		●
155	BRACKET; MINIPACK (A)	1-31429-390-0	01	1	0610-			●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	04	1	0005-0210	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	04	1	0211-0302		●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	04	1	0303-0512		●	●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28151-025-0	04	1	0601-		●	●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28181-220-0	02	1	0005-0210	●
157	BOLT; BRKT 6SD1 TCN ENG(31L) (A) M12X20 FLANGE	0-28181-220-0	02	1	0211-0512		●
157	BOLT; BRKT 6SD1 TCN ENG(31L) (A) M12X20 FLANGE	0-28151-220-0	02	1	0601-		●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	03	1	0005-0111				●
157	BOLT; BRKT (A) 3/4"-10UNC	1-09087-033-0	02	1	0005-0111				●
157	BOLT; BRKT (A) M10X25 FLANGE	0-28181-025-0	03	1	0112-0212				●
157	BOLT; BRKT (A) M10X22 FLANGE	0-28181-022-0	03	1	0301-				●
157	BOLT; BRKT (A) 3/4"-10UNC	1-09087-033-0	02	1	0112-				●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28181-220-0	01	1	0303-0512			●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28151-220-0	01	1	0601-0609			●
157	BOLT; BRKT 6HK1 TCS ENG(80L) (A) M12X20 FLANGE	0-28151-220-0	01	1	0610-		●
157	BOLT; BRKT (A) M12X20 FLANGE	0-28151-220-0	01	1	0610-			●
157	BOLT; BRKT (B) M10X18,M12X25 L=54.7	1-09029-087-0	01	1	0303-0609			●
157	BOLT; BRKT 6HK1 TCS ENG(80L) (B) M10X18,M12X25 L=54.7	1-09029-087-0	01	1	0610-		●
157	BOLT; BRKT (B) M10X18,M12X25 L=54.7	1-09029-087-0	01	1	0610-			●
161	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0602				●
161	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-				●
162	WASHER; LK,BRKT ID=20.2	9-09150-520-0	02	1	0005-0603				●
162	WASHER; LK,BRKT ID=20.2	0-91510-520-0	02	1	0604-				●
164	EYE; SPRING	1-31426-050-0	01	1	0005-0210	●			●
164	EYE; SPRING	1-31426-050-0	01	1	0211-				●
164	EYE; SPRING 6SD1 TCN ENG(31L)	1-31426-050-0	01	1	0211-		●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0005-0210	●			●
170	NUT; BOOSTER FIX M10 FLANGE	0-91150-210-0	03	1	0211-0602		●		●
170	NUT; BOOSTER FIX M10 FLANGE	0-91180-210-0	03	1	0603-				●
170	NUT; BOOSTER FIX 6SD1 TCN ENG(31L) M10 FLANGE	0-91180-210-0	03	1	0603-		●
170	NUT; BOOSTER FIX M8 FLANGE	0-91150-208-0	03	1	0303-0602			●
170	NUT; BOOSTER FIX M8 FLANGE	0-91180-208-0	03	1	0603-0609			●
170	NUT; BOOSTER FIX 6HK1 TCS ENG(80L) M8 FLANGE	0-91180-208-0	03	1	0610-		●
170	NUT; BOOSTER FIX M8 FLANGE	0-91180-208-0	03	1	0610-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-1	01	1	0005-0210	●			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-387-4	01	1	0211-				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6SD1 TCN ENG(31L)	1-31800-387-4	01	1	0211-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-388-2	01	1	0303-0609			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HK1 TCS ENG(80L)	1-31800-388-3	01	1	0610-		●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-31800-388-3	01	1	0610-			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. BEST VALUE PARTS	1-87610-088-0	01	1	0005-0210	●			●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT.	1-87610-088-0	01	1	0211-1412				●
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6SD1 TCN ENG(31L) BEST VALUE PARTS	1-87610-088-0	01	1	0211-1412		●
245	BRACKET; HOSE	1-47477-698-0	01	1	0005-0210	●
245	BRACKET; HOSE 6SD1 TCN ENG(31L)	1-47477-698-0	01	1	0211-		●

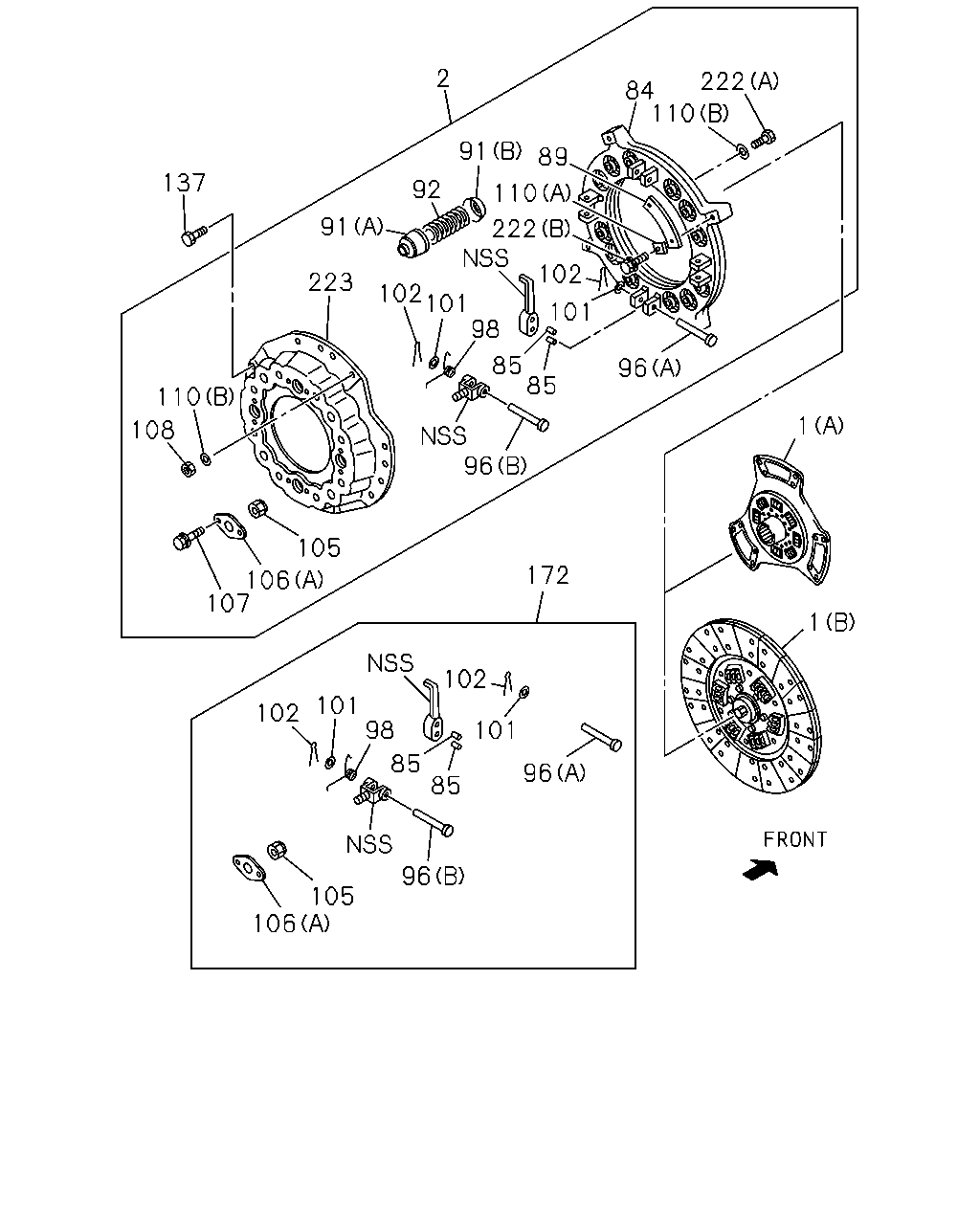

2 222 84 110 91 89 137 92 110 91 222 102 223 102 101 98 101 85 85 96 110 1 108 96 105 172 106 107 1 102 101 102 98 101 85 85 96 96 105 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	DISC; CLUTCH (A) 15"	1-31240-735-2	01	1	0005-0210	●			●
1	DISC; CLUTCH (A) 15"	1-31240-735-2	01	1	0211-				●
1	DISC; CLUTCH 6SD1 TCN ENG(31L) (A) 15"	1-31240-735-2	01	1	0211-		●
1	DISC; CLUTCH 6HK1 TCS ENG(80L) (B) 15"	1-31240-889-0	01	1	0303-		●
1	DISC; CLUTCH (B) 15"	1-31240-889-0	01	1	0303-			●
2	PLATE ASM; PRESSURE,CLU	1-31220-306-0	01	1	0005-0109	●			●
2	PLATE ASM; PRESSURE,CLU	1-31220-380-0	01	1	0110-0210	●			●
2	PLATE ASM; PRESSURE,CLU	1-31220-380-2	01	1	0211-				●
2	PLATE ASM; PRESSURE,CLU 6SD1 TCN ENG(31L)	1-31220-380-2	01	1	0211-		●
2	PLATE ASM; PRESSURE,CLU 6HK1 TCS ENG(80L)	1-31220-377-2	01	1	0303-		●
2	PLATE ASM; PRESSURE,CLU	1-31220-377-2	01	1	0303-			●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0005-0210	●			●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0211-0302		●		●
84	PLATE; PRESSURE 15"	1-31221-100-0	01	1	0303-		●	●	●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0210	●			●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0211-0302		●		●
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0303-		●	●	●
89	PLATE; STRAP	1-31229-050-0	16	1	0005-0210	●			●
89	PLATE; STRAP	1-31229-050-0	16	1	0211-0302		●		●
89	PLATE; STRAP	1-31229-050-0	16	1	0303-		●	●	●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0210	●			●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0211-0302		●		●
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0303-		●	●	●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0210	●			●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0211-0302		●		●
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0303-		●	●	●
92	SPRING; CLU	1-31214-053-0	12	1	0005-0210	●			●
92	SPRING; CLU	1-31214-053-0	12	1	0211-				●
92	SPRING; CLU 6SD1 TCN ENG(31L)	1-31214-053-0	12	1	0211-		●
92	SPRING; CLU 6HK1 TCS ENG(80L)	1-31214-056-0	12	1	0303-0308		●
92	SPRING; CLU	1-31214-056-0	12	1	0303-0308			●
92	SPRING; CLU 6HK1 TCS ENG(80L)	1-31214-066-0	12	1	0309-		●
92	SPRING; CLU	1-31214-066-0	12	1	0309-			●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	0005-0210	●			●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-008-0	04	1	0211-0308		●		●
96	PIN; RELEASE LEVER (B)	1-31232-016-0	04	1	0005-0210	●			●
96	PIN; RELEASE LEVER (B)	1-31232-016-0	04	1	0211-0308		●		●
96	PIN; RELEASE LEVER 6HK1 TCS ENG(80L) (B) L=49.0	1-31232-005-0	04	1	0303-0308		●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0303-0308			●
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0309-		●	●	●
96	PIN; RELEASE LEVER 6HK1 TCS ENG(80L) (A) L=57.0	1-31232-014-0	04	1	0303-0308		●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0303-0308			●
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0309-		●	●	●
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0210	●			●
98	SPRING; RETURN	1-31233-003-0	04	1	0211-0302		●		●
98	SPRING; RETURN	1-31233-003-0	04	1	0303-		●	●	●
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109	●			●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0110-0210	●			●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0211-0302		●		●
101	WASHER; RELEASE LEVER	1-31239-058-0	08	1	0303-		●	●	●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0005-0210	●			●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0211-0302		●		●
102	PIN; SPLIT,RELEASE LEVER OD=2.7 L=22	9-08103-022-0	08	1	0303-		●	●	●
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109	●			●
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0210	●			●
105	NUT; SUPPORT	1-31235-012-0	04	1	0211-0302		●		●
105	NUT; SUPPORT	1-31235-012-0	04	1	0303-0308		●	●	●
105	NUT; SUPPORT	1-31235-014-0	04	1	0309-		●	●	●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0210	●			●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0211-0302		●		●
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0303-		●	●	●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0210	●			●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0211-0302		●		●
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0303-0308		●	●	●
107	BOLT; LK PLATE	1-31239-061-0	08	1	0309-		●	●	●
108	NUT; STRAP	1-09449-036-0	04	1	0005-0210	●			●
108	NUT; STRAP	1-09449-036-0	04	1	0211-0302		●		●
108	NUT; STRAP	1-09449-036-0	04	1	0303-		●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0005-0210	●			●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0211-0302		●		●
110	WASHER; SPECIAL,STRAP (B) T=3.2	1-09503-095-0	08	1	0303-0403		●	●	●
110	WASHER; SPECIAL,STRAP (B) T=3.2	8-97374-512-0	08	1	0404-		●	●	●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0005-0210	●			●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0211-0302		●		●
110	WASHER; SPECIAL,STRAP (A) T=1.2	1-31229-009-0	04	1	0303-		●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0210	●			●
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0211-0512		●	●	●
137	BOLT; CLU COVER M10X20 FLANGE	0-28151-020-0	12	1	0601-		●	●	●
172	LEVER KIT; RELEASE,CLU 6HK1 TCS ENG(80L) 15"	1-87830-760-3	01	1	0303-0307		●
172	LEVER KIT; RELEASE,CLU 15"	1-87830-760-3	01	1	0303-0307			●
172	LEVER KIT; RELEASE,CLU 6HK1 TCS ENG(80L)	1-87831-170-1	01	1	0308-		●
172	LEVER KIT; RELEASE,CLU	1-87831-170-1	01	1	0308-			●
172	LEVER KIT; RELEASE,CLU	1-87830-813-1	01	1	0005-0210	●			●
172	LEVER KIT; RELEASE,CLU	1-87830-813-1	01	1	0211-0307		●		●
172	LEVER KIT; RELEASE,CLU	1-87831-172-1	01	1	0308-				●
172	LEVER KIT; RELEASE,CLU 6SD1 TCN ENG(31L)	1-87831-172-1	01	1	0308-		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0005-0210	●			●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0211-0302		●		●
222	BOLT; STRAP (B) M10X23.2	1-09040-042-0	04	1	0303-		●	●	●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-0210	●			●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0211-0302		●		●
222	BOLT; STRAP (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0303-		●	●	●
223	COVER; CLU	1-31211-019-1	01	1	0005-0210	●			●
223	COVER; CLU	1-31211-019-1	01	1	0211-0302		●		●
223	COVER; CLU	1-31211-019-1	01	1	0303-		●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
