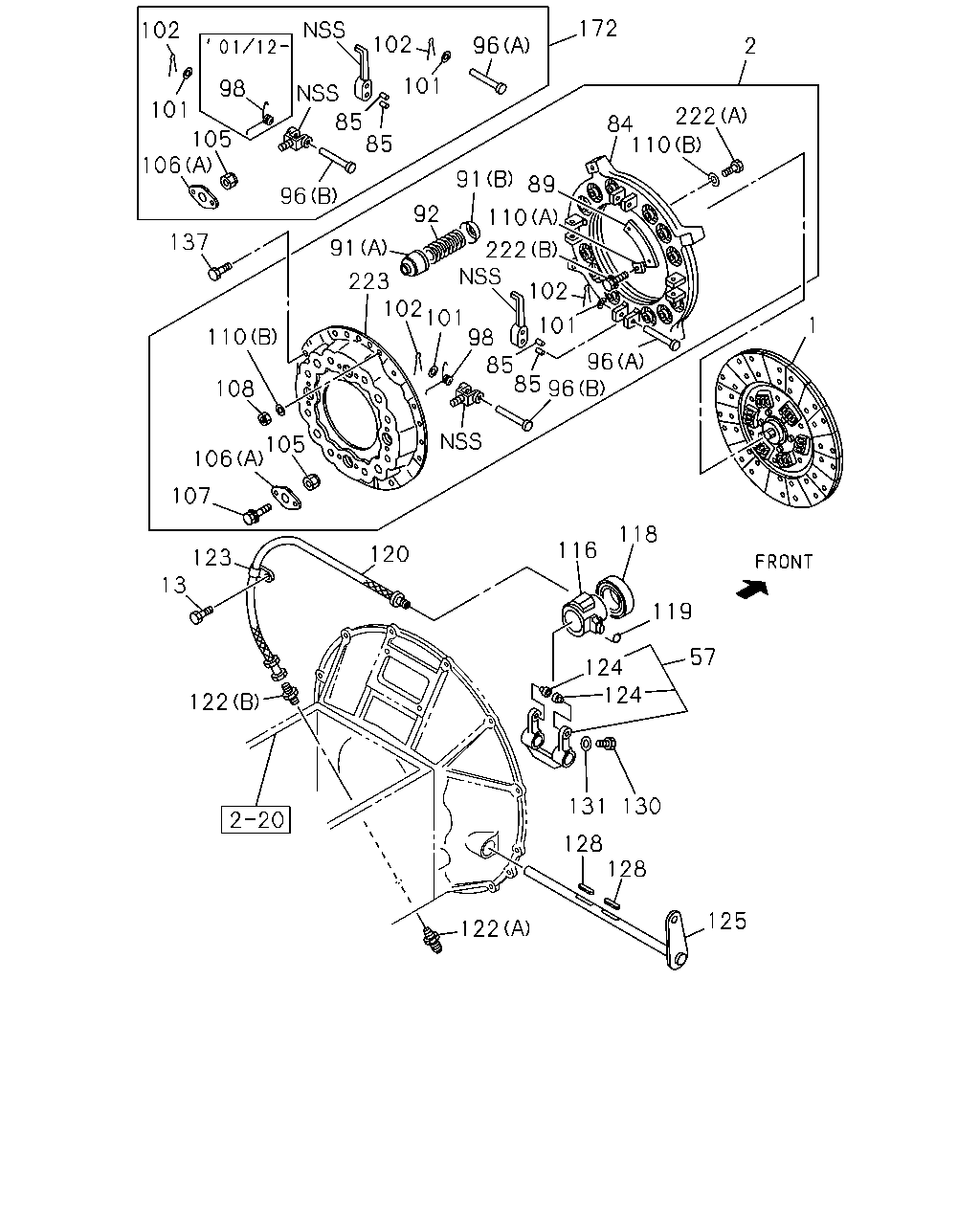

2-01A — CLUTCH (#8647) — 142 parça

172 102 102 96 2 101 98 101 222 85 85 84 110 105 106 91 89 96 92 110 137 91 222 223 102 101 101 98 85 96 85 96 102 1 110 108 105 106 107 118 116 120 123 13 119 57 124 124 122 131 130 128 128 125 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HE1 TC ENG(57L) 15"	1-31240-676-0	01	1	0005-0105
1	DISC; CLUTCH 6HE1 TC ENG(57L) 15"	1-31240-902-0	01	1	0106-0210
1	DISC; CLUTCH 6HH1 STD ENG(65L) 14"	1-31240-671-0	01	1	0005-0105
1	DISC; CLUTCH 6HH1 STD ENG(65L) 14"	1-31240-901-0	01	1	0106-0210
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L)	1-31220-305-1	01	1	0005-0109
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L)	1-31220-373-0	01	1	0110-0210
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L)	1-31220-291-0	01	1	0005-0109
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L)	1-31220-364-0	01	1	0110-0210
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	0005-0210
84	PLATE; PRESSURE 6HE1 TC ENG(57L) 15"	1-31221-100-0	01	1	0005-0210
84	PLATE; PRESSURE 6HH1 STD ENG(65L) 14"	1-31221-082-0	01	1	0005-0210
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0210
89	PLATE; STRAP 6HE1 TC ENG(57L)	1-31229-050-0	16	1	0005-0210
89	PLATE; STRAP 6HH1 STD ENG(65L)	1-31229-001-0	08	1	0005-0210
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0210
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0210
92	SPRING; CLU 6HE1 TC ENG(57L)	1-31214-039-0	12	1	0005-0109
92	SPRING; CLU 6HE1 TC ENG(57L)	1-31214-065-0	12	1	0110-0210
92	SPRING; CLU 6HH1 STD ENG(65L)	1-09580-234-0	12	1	0005-0210
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0005-0210
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0005-0210
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0210
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109
101	WASHER; RELEASE LEVER 6HH1 STD ENG(65L)	9-31239-039-0	08	1	0110-0210
101	WASHER; RELEASE LEVER 6HE1 TC ENG(57L)	1-31239-058-0	08	1	0110-0210
102	PIN; SPLIT,RELEASE LEVER 6HE1 TC ENG(57L) OD=2.7 L=22	9-08103-022-0	08	1	0005-0210
102	PIN; SPLIT,RELEASE LEVER 6HH1 STD ENG(65L) OD=2.7 L=22	9-08113-022-0	08	1	0005-0210
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0210
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0210
106	PLATE; LK,LEVER SUPPORT 6HH1 STD ENG(65L) (B)	1-31235-008-0	04	1	0005-0210
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0210
108	NUT; STRAP 6HE1 TC ENG(57L)	1-09449-036-0	04	1	0005-0210
110	WASHER; SPECIAL,STRAP 6HE1 TC ENG(57L) (B) T=3.2	1-09503-095-0	08	1	0005-0210
110	WASHER; SPECIAL,STRAP 6HE1 TC ENG(57L) (A) T=1.2	1-31229-009-0	04	1	0005-0210
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	0005-0210
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	0005-0111
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0210
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0005-0210
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0005-0210
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-0210
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-0210
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0210
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0005-0210
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0005-0210
125	SHAFT; CLU 6HE1 TC ENG(57L)	1-31342-169-1	01	1	0005-0210
125	SHAFT; CLU 6HH1 STD ENG(65L)	1-31342-298-1	01	1	0005-0210
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0210
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0005-0210
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0210
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0210
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0112-0210
172	LEVER KIT; RELEASE,CLU 6HE1 TC ENG(57L)	1-87830-808-0	01	1	0005-0109
172	LEVER KIT; RELEASE,CLU 6HH1 STD ENG(65L)	1-87830-620-0	01	1	0005-0109
172	LEVER KIT; RELEASE,CLU	1-87830-620-2	01	1	0110-0111
222	BOLT; STRAP 6HE1 TC ENG(57L) (B) M10X23.2	1-09040-042-0	04	1	0005-0210
222	BOLT; STRAP 6HE1 TC ENG(57L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-0210
222	BOLT; STRAP 6HH1 STD ENG(65L) (C) M10X26 HEX SOKET	1-09040-101-0	04	1	0005-0109
222	BOLT; STRAP 6HH1 STD ENG(65L) (C)	1-31239-059-0	04	1	0110-0210
223	COVER; CLU 6HE1 TC ENG(57L)	1-31211-019-1	01	1	0005-0210

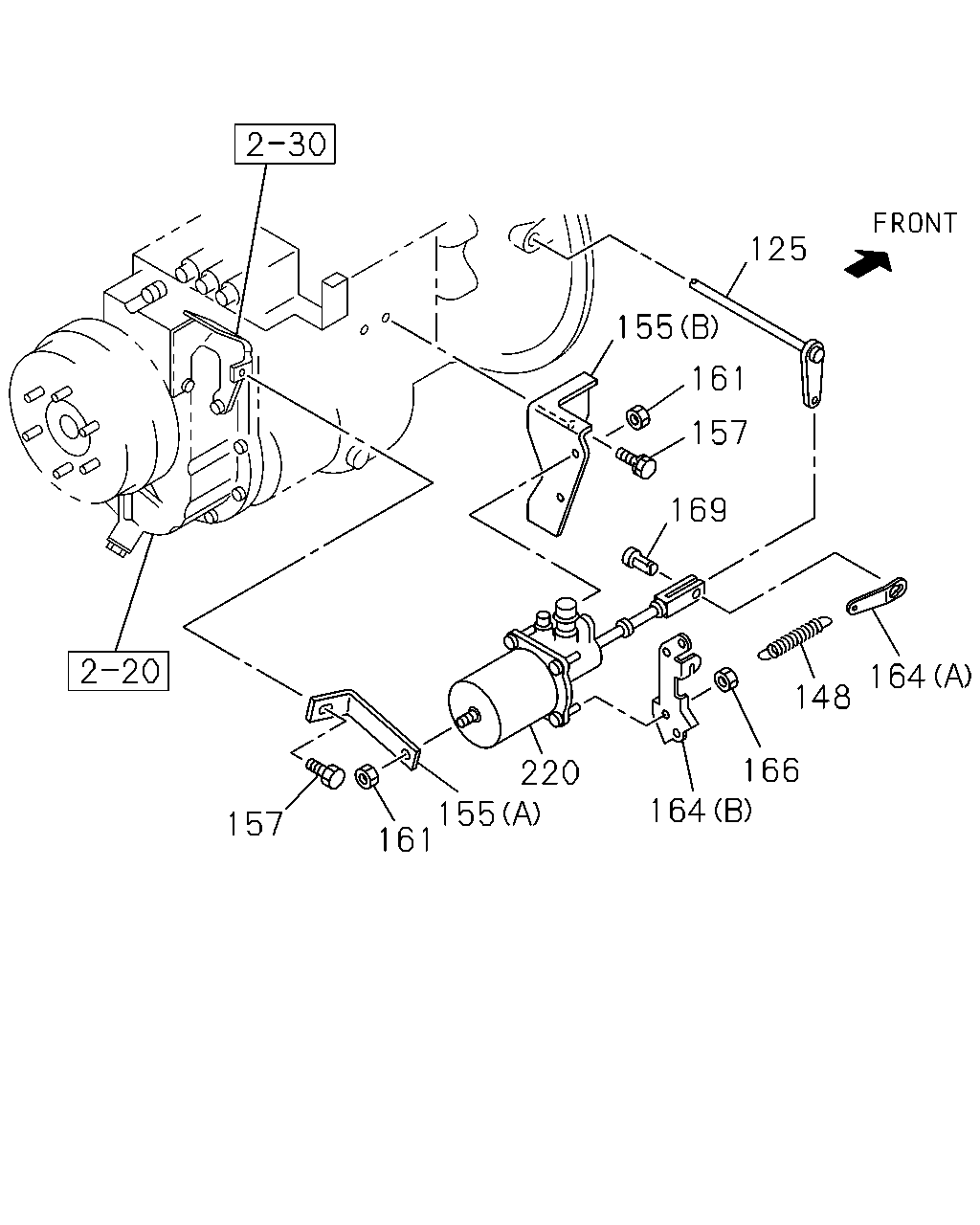

125 155 161 157 169 164 148 166 164 220 155 161 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
125	SHAFT; CLU 6HE1 TC ENG(57L)	1-31342-169-1	01	1	0005-0210
125	SHAFT; CLU 6HH1 STD ENG(65L)	1-31342-298-1	01	1	0005-0210
148	SPRING; CLU RETURN 6HE1 TC ENG(57L) L=135	1-09583-305-0	01	1	0005-0210
148	SPRING; CLU RETURN 6HH1 STD ENG(65L)	1-09583-249-0	01	1	0005-0210
155	BRACKET; MINIPACK 6HE1 TC ENG(57L) (B)	1-31429-175-2	01	1	0005-0210
155	BRACKET; MINIPACK 6HE1 TC ENG(57L) (A)	1-31429-176-0	01	1	0005-0210
157	BOLT; BRKT 6HE1 TC ENG(57L) M10X18 FLANGE	0-28181-018-0	03	1	0005-0210
161	NUT; BRKT 6HE1 TC ENG(57L) M8 FLANGE	0-91150-208-0	03	1	0005-0210
164	EYE; SPRING 6HE1 TC ENG(57L) (A)	1-31426-041-0	01	1	0005-0210
164	EYE; SPRING 6HE1 TC ENG(57L) (B)	1-47477-789-0	01	1	0005-0210
166	NUT; SPRING EYE 6HE1 TC ENG(57L) M8 FLANGE	0-91150-208-0	02	1	0005-0210
169	PIN; JOINT,MINIPACK 6HE1 TC ENG(57L)	1-31424-009-0	01	1	0005-0210
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 6HE1 TC ENG(57L)	1-31800-383-1	01	1	0005-0210

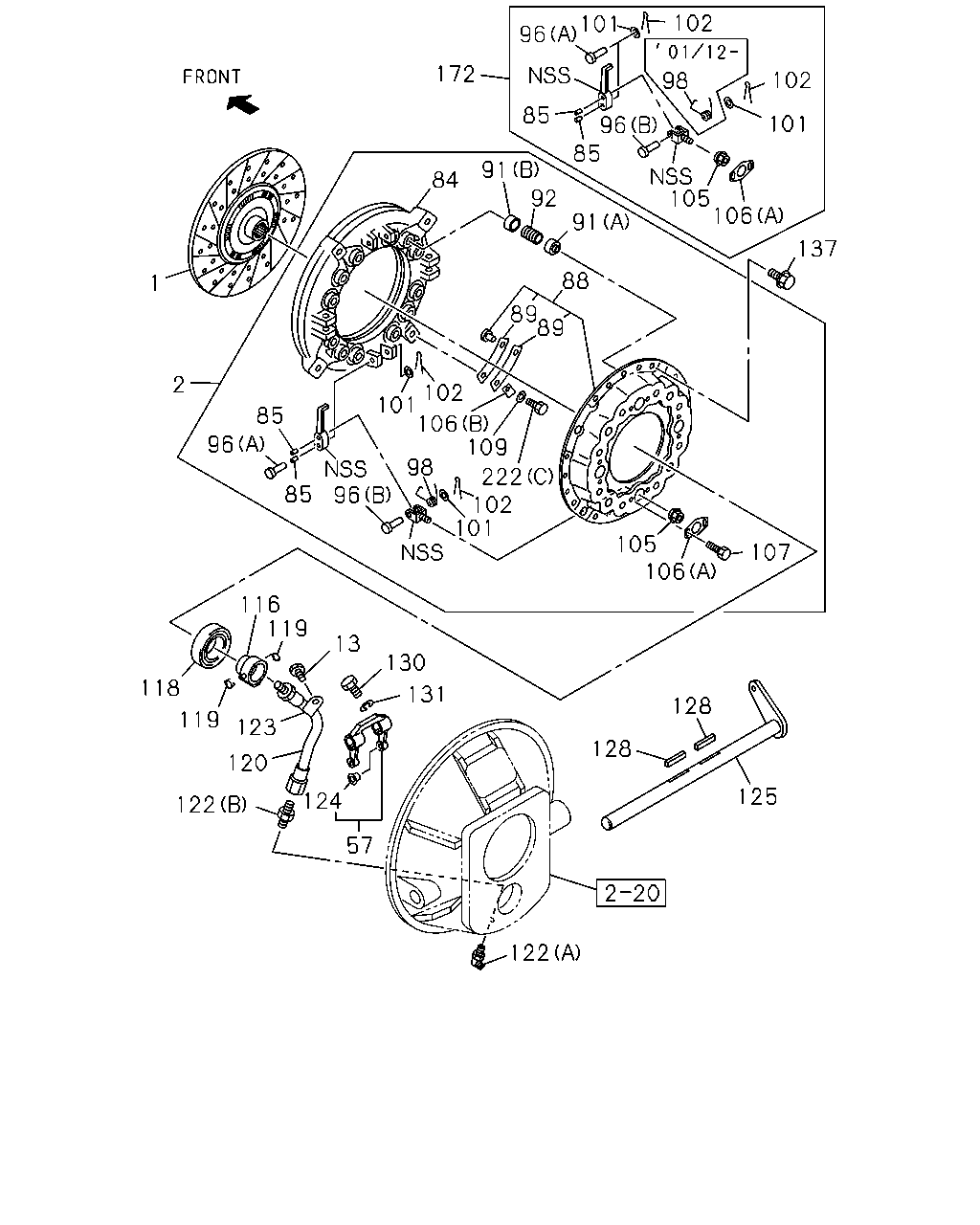

102 101 96 172 102 98 96 85 85 101 91 92 105 106 84 91 137 88 1 89 89 2 102 101 106 109 85 96 98 96 222 102 101 85 105 106 107 116 119 13 130 118 131 128 119 123 128 120 124 125 122 57 122

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 6HE1 TC ENG(57L) 15"	1-31240-676-0	01	1	0005-0105
1	DISC; CLUTCH 6HE1 TC ENG(57L) 15"	1-31240-902-0	01	1	0106-0210
1	DISC; CLUTCH 6HH1 STD ENG(65L) 14"	1-31240-671-0	01	1	0005-0105
1	DISC; CLUTCH 6HH1 STD ENG(65L) 14"	1-31240-901-0	01	1	0106-0210
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L)	1-31220-305-1	01	1	0005-0109
2	PLATE ASM; PRESSURE,CLU 6HE1 TC ENG(57L)	1-31220-373-0	01	1	0110-0210
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L)	1-31220-291-0	01	1	0005-0109
2	PLATE ASM; PRESSURE,CLU 6HH1 STD ENG(65L)	1-31220-364-0	01	1	0110-0210
13	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0005-0210
57	FORK; SHIFT,CLU	1-31340-056-0	01	1	0005-0210
84	PLATE; PRESSURE 6HE1 TC ENG(57L) 15"	1-31221-100-0	01	1	0005-0210
84	PLATE; PRESSURE 6HH1 STD ENG(65L) 14"	1-31221-082-0	01	1	0005-0210
85	BUSHING; RELEASE LEVER	9-31239-116-0	08	1	0005-0210
88	COVER SUB ASM; CLU 6HH1 STD ENG(65L)	1-31211-036-0	01	1	0005-0210
89	PLATE; STRAP 6HE1 TC ENG(57L)	1-31229-050-0	16	1	0005-0210
89	PLATE; STRAP 6HH1 STD ENG(65L)	1-31229-001-0	08	1	0005-0210
91	SEAT; SPR (A) ID=37 H=25	1-31219-012-0	12	1	0005-0210
91	SEAT; SPR (B) ID=37 H=15	1-31219-013-0	12	1	0005-0210
92	SPRING; CLU 6HE1 TC ENG(57L)	1-31214-039-0	12	1	0005-0109
92	SPRING; CLU 6HE1 TC ENG(57L)	1-31214-065-0	12	1	0110-0210
92	SPRING; CLU 6HH1 STD ENG(65L)	1-09580-234-0	12	1	0005-0210
96	PIN; RELEASE LEVER (B) L=49.0	1-31232-005-0	04	1	0005-0210
96	PIN; RELEASE LEVER (A) L=57.0	1-31232-014-0	04	1	0005-0210
98	SPRING; RETURN	1-31233-003-0	04	1	0005-0210
101	WASHER; RELEASE LEVER	9-31239-039-0	08	1	0005-0109
101	WASHER; RELEASE LEVER 6HH1 STD ENG(65L)	9-31239-039-0	08	1	0110-0210
101	WASHER; RELEASE LEVER 6HE1 TC ENG(57L)	1-31239-058-0	08	1	0110-0210
102	PIN; SPLIT,RELEASE LEVER 6HE1 TC ENG(57L) OD=2.7 L=22	9-08103-022-0	08	1	0005-0210
102	PIN; SPLIT,RELEASE LEVER 6HH1 STD ENG(65L) OD=2.7 L=22	9-08113-022-0	08	1	0005-0210
105	NUT; SUPPORT	9-31235-061-0	04	1	0005-0109
105	NUT; SUPPORT	1-31235-012-0	04	1	0110-0210
106	PLATE; LK,LEVER SUPPORT (A)	1-31239-019-0	04	1	0005-0210
106	PLATE; LK,LEVER SUPPORT 6HH1 STD ENG(65L) (B)	1-31235-008-0	04	1	0005-0210
107	BOLT; LK PLATE M8X12.7 W/LK&PL WASHER	1-31239-020-0	08	1	0005-0210
109	WASHER; LK,STRAP 6HH1 STD ENG(65L) ID=10.2	9-09150-510-0	04	1	0005-0210
116	BLOCK; SHIFT,CLU	1-31321-052-2	01	1	0005-0210
118	BEARING; CLU RELEASE	1-09820-008-0	01	1	0005-0111
118	BEARING; CLU RELEASE	1-09820-114-0	01	1	0112-0210
119	SPRING; SHIFT FORK	1-09585-054-0	01	1	0005-0210
119	SPRING; SHIFT FORK	1-09585-053-0	01	1	0005-0210
120	HOSE; FLEX,SHIFT BLOCK,CLU L=390	1-09365-143-0	01	1	0005-0210
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (B) PT1/8 & M10	1-09660-710-0	01	1	0005-0210
122	NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK (A) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0210
123	CLIP; FLEX HOSE,SHIFT BLOCK ID=9 L=20	9-09524-835-0	01	1	0005-0210
124	BEARING; CAM,SHIFT FORK	1-31349-004-1	02	1	0005-0210
125	SHAFT; CLU 6HE1 TC ENG(57L)	1-31342-169-1	01	1	0005-0210
125	SHAFT; CLU 6HH1 STD ENG(65L)	1-31342-298-1	01	1	0005-0210
128	KEY; FEATHER,CLU SHAFT	9-09867-008-0	02	1	0005-0210
130	SCREW; SHIFT FORK M8X14	9-06120-814-0	01	1	0005-0210
131	WASHER; LK,SHIFT FORK ID=8.2	9-09150-508-0	01	1	0005-0210
137	BOLT; CLU COVER M10X20 FLANGE	0-28181-020-0	12	1	0005-0210
172	LEVER KIT; RELEASE,CLU	1-87830-902-1	01	1	0112-0210
172	LEVER KIT; RELEASE,CLU 6HE1 TC ENG(57L)	1-87830-808-0	01	1	0005-0109
172	LEVER KIT; RELEASE,CLU 6HH1 STD ENG(65L)	1-87830-620-0	01	1	0005-0109
172	LEVER KIT; RELEASE,CLU	1-87830-620-2	01	1	0110-0111
222	BOLT; STRAP 6HE1 TC ENG(57L) (B) M10X23.2	1-09040-042-0	04	1	0005-0210
222	BOLT; STRAP 6HE1 TC ENG(57L) (A) M10X26 HEX SOCKET	1-09040-043-0	04	1	0005-0210
222	BOLT; STRAP 6HH1 STD ENG(65L) (C) M10X26 HEX SOKET	1-09040-101-0	04	1	0005-0109
222	BOLT; STRAP 6HH1 STD ENG(65L) (C)	1-31239-059-0	04	1	0110-0210

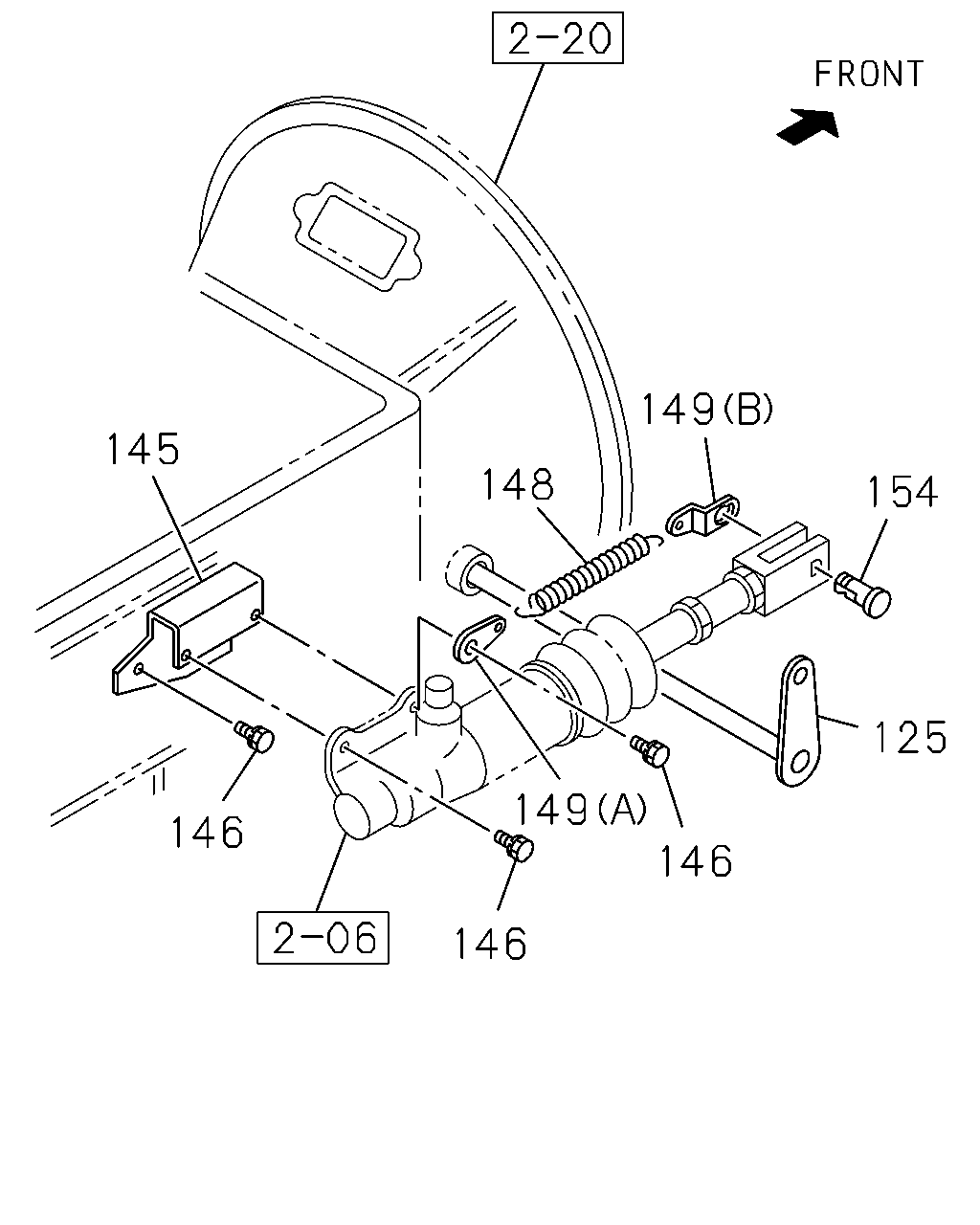

149 145 148 154 125 149 146 146 146

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
125	SHAFT; CLU 6HE1 TC ENG(57L)	1-31342-169-1	01	1	0005-0210
125	SHAFT; CLU 6HH1 STD ENG(65L)	1-31342-298-1	01	1	0005-0210
145	BRACKET; SLAVE CYL,OIL CLU 6HH1 STD ENG(65L)	1-47579-058-0	01	1	0005-0210
146	BOLT; SLAVE CYL TO TRANS CASE 6HH1 STD ENG(65L) M10X25 FLANGE	0-28181-025-0	04	1	0005-0210
148	SPRING; CLU RETURN 6HE1 TC ENG(57L) L=135	1-09583-305-0	01	1	0005-0210
148	SPRING; CLU RETURN 6HH1 STD ENG(65L)	1-09583-249-0	01	1	0005-0210
149	EYE; SPRING,RETURN SPRING 6HH1 STD ENG(65L) (B)	1-31426-019-1	01	1	0005-0210
149	EYE; SPRING,RETURN SPRING 6HH1 STD ENG(65L) (A) T=2.3	1-47324-005-1	01	1	0005-0210
154	PIN; JAW JOINT 6HH1 STD ENG(65L)	1-31424-009-0	01	1	0005-0210
