Sayfa 1-50 - Isuzu EPC

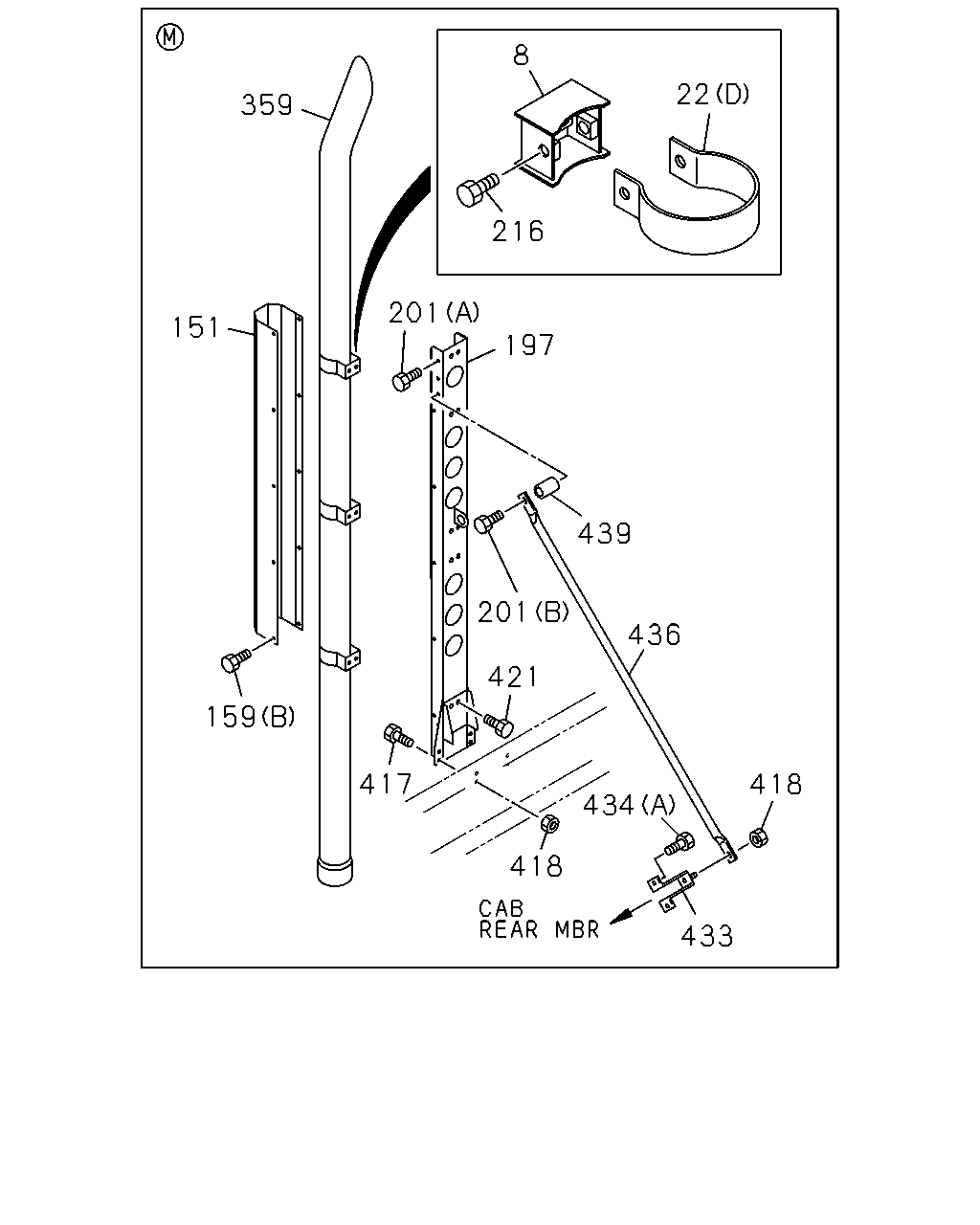

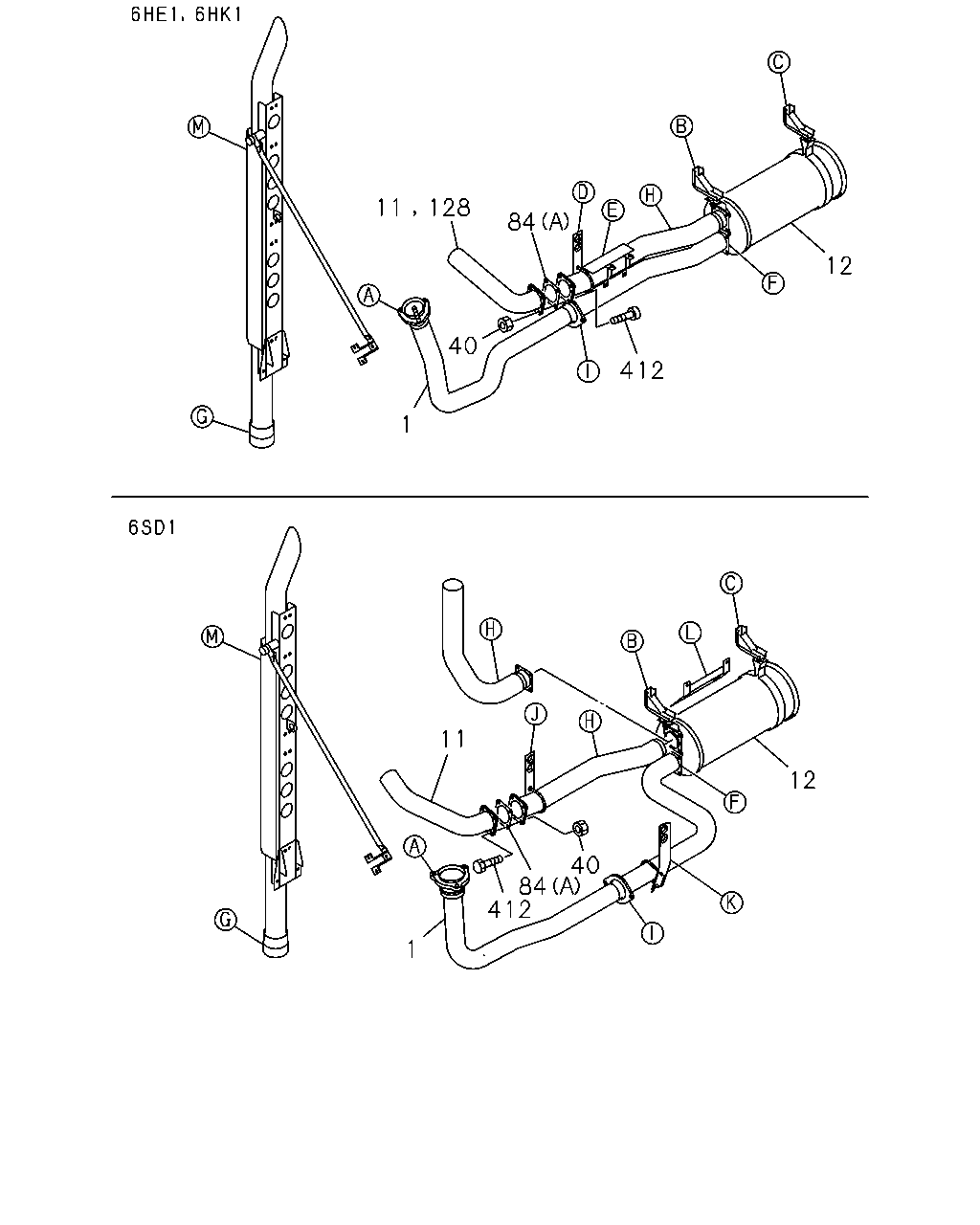

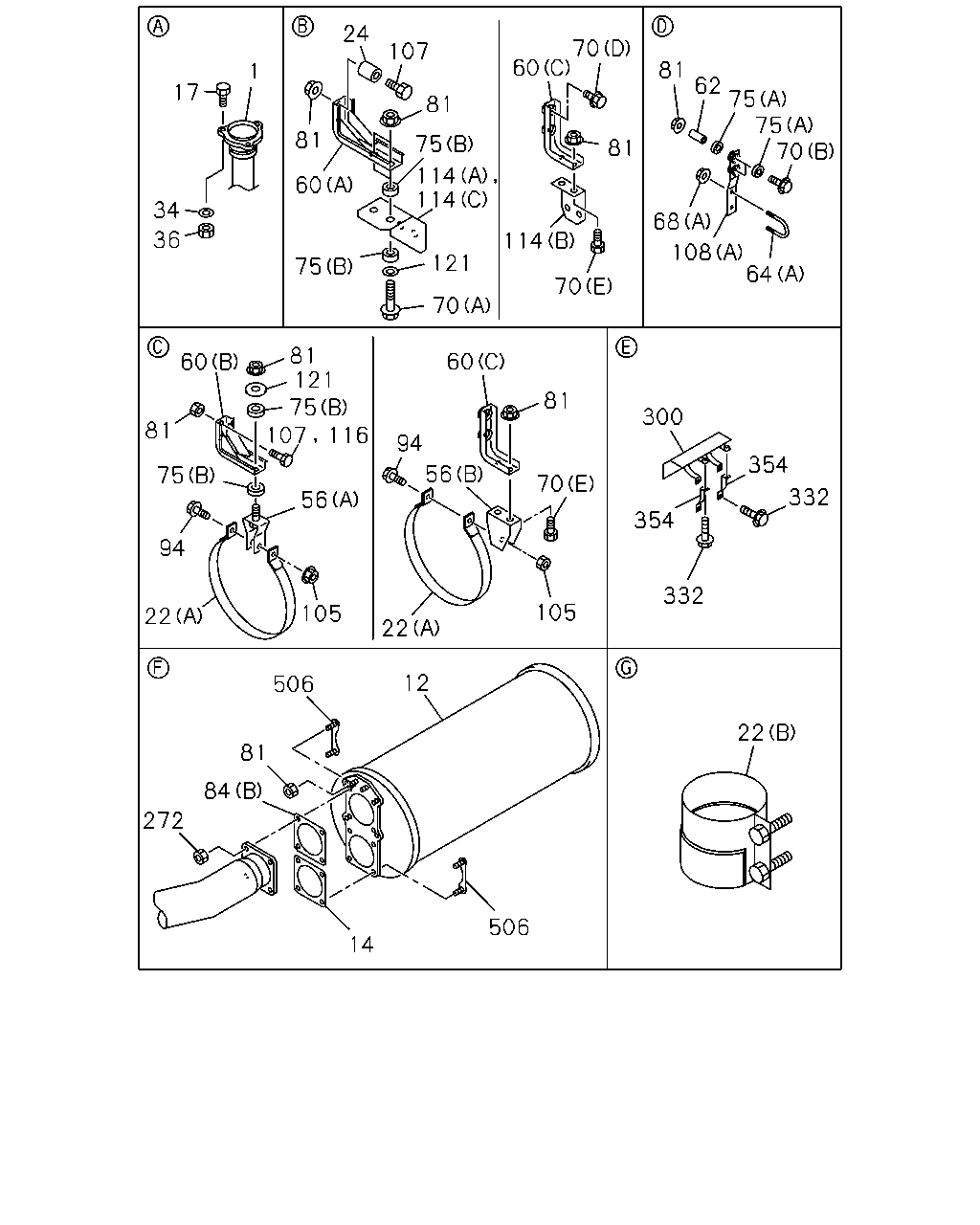

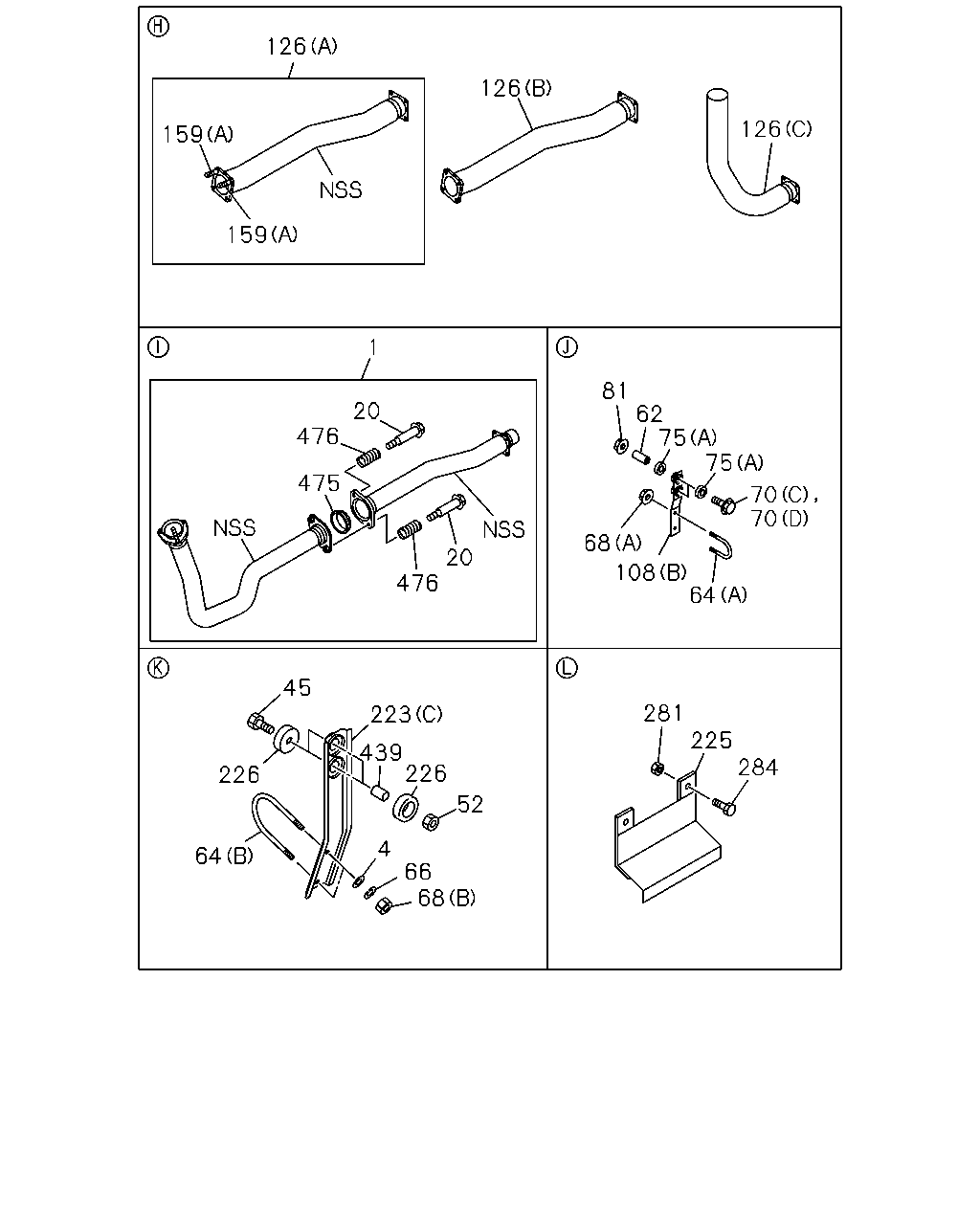

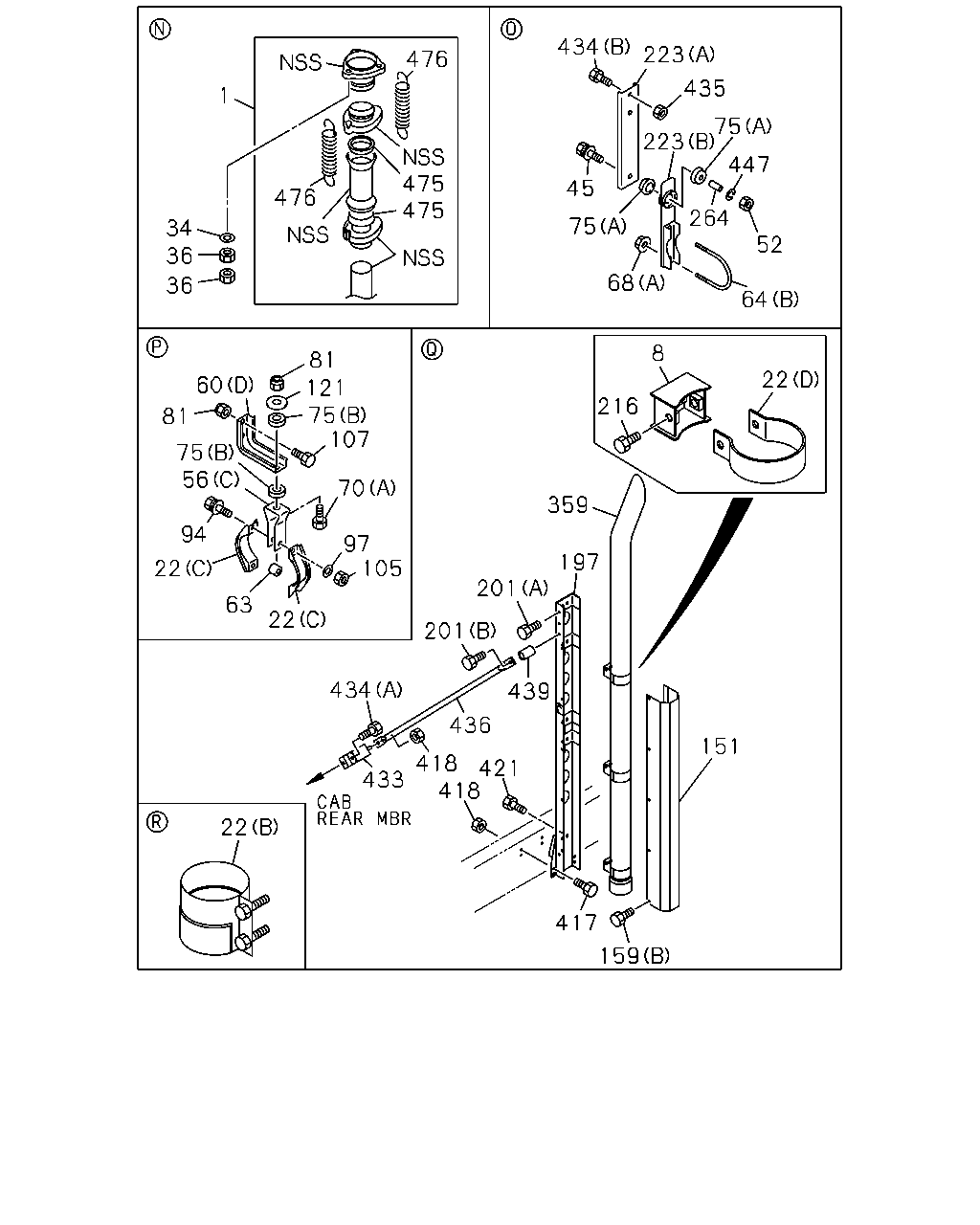

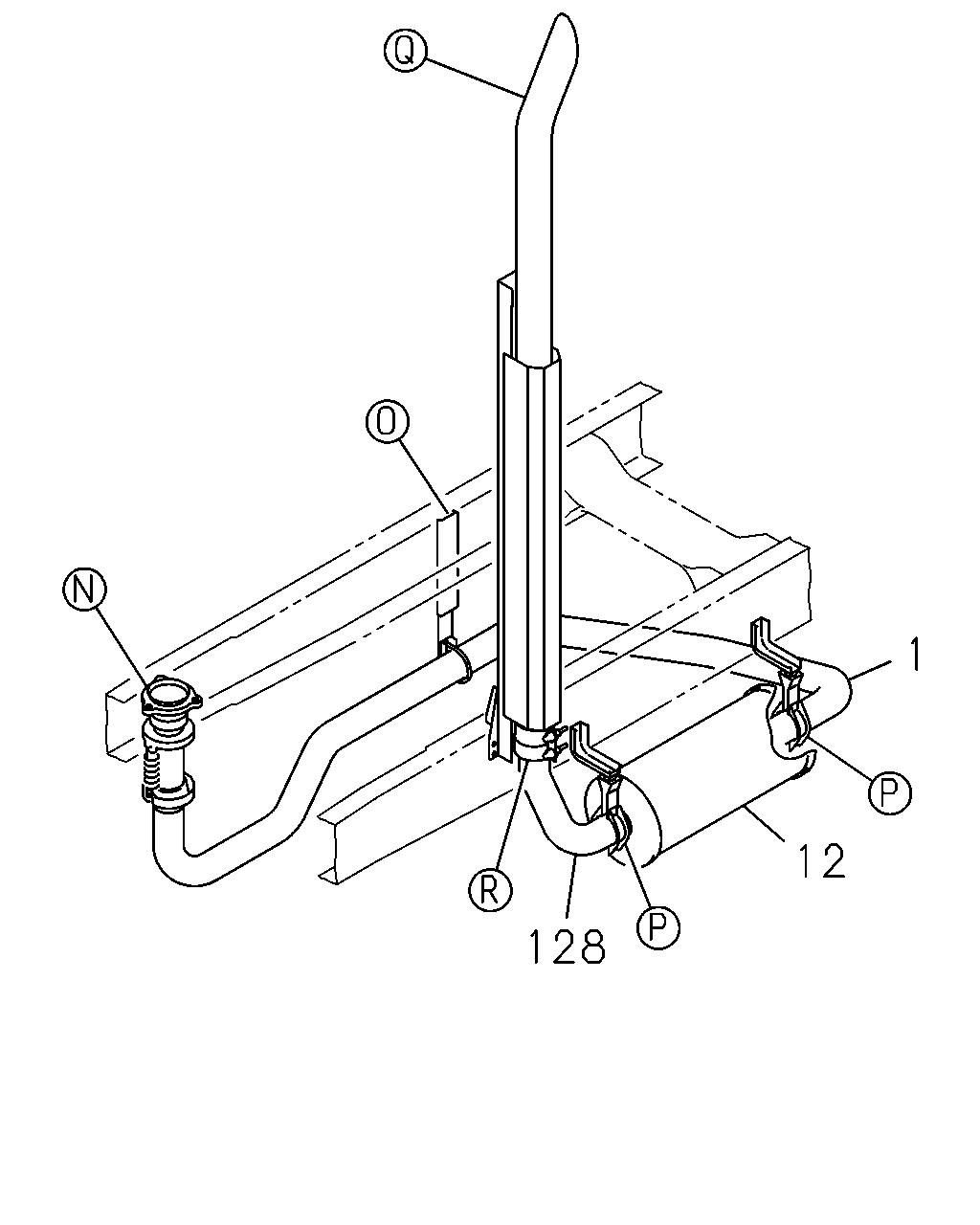

1-50 — EXHAUST PIPE AND SILENCER (#8644) — 718 parça

434 223 476 435 1 75 223 475 475 447 45 476 264 75 34 36 52 68 36 64 8 81 121 75 107 22 60 216 81 75 56 70 359 94 97 105 197 22 201 63 22 201 434 439 436 151 418 421 418 433 22 417 159

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH	1-22122-647-1	01	1	0005-0210			●
1	PIPE; EXH FVR(FVR***)	1-22123-609-2	01	1	0211-				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-355-0	01	1	0005-0210				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-610-2	01	1	0211-				●
1	PIPE; EXH FVR(FVR***)	1-22123-356-1	01	1	0005-0210				●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0112-0210		●	●	●
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0211-	●			●
22	CLAMP; EXH PIPE (A)	1-22133-277-1	01	1	0005-0210		●
22	CLAMP; EXH PIPE FVR(FVR***) (A)	1-22133-277-1	01	1	0005-0210				●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210		●	●	●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-	●			●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210		●	●	●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-	●			●
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	04	1	0005-0210			●
22	CLAMP; EXH PIPE FVR(FVR***) (A)	1-22133-277-1	01	1	0211-	●			●
22	CLAMP; EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A)	1-22133-285-0	01	1	0005-0210				●
22	CLAMP; EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A)	1-22133-285-0	01	1	0211-				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0005-0210		●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0211-0410	●			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-	●			●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	0005-0210			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0005-0212				●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0301-	●			●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	0005-0210			●
45	BOLT; BRKT FVR(FVR***) M10X60 FLANGE	0-28081-060-0	02	1	0005-0512				●
45	BOLT; BRKT FVR(FVR***) M10X60 FLANGE	0-28051-060-0	02	1	0601-				●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0005-0210			●
52	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	02	1	0211-0602				●
52	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91180-210-0	02	1	0603-				●
52	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	02	1	0005-0210				●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-143-0	01	1	0005-0210		●
56	BRACKET; CLAMP,EXH PIPE FVR(FVR***) (A)	1-22139-143-0	01	1	0005-0210				●
56	BRACKET; CLAMP,EXH PIPE (C) H=92	1-22139-076-0	02	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE FVR(FVR***) (A)	1-22139-143-0	01	1	0211-	●			●
56	BRACKET; CLAMP,EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B)	1-22139-141-1	01	1	0005-0210				●
56	BRACKET; CLAMP,EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B)	1-22139-141-1	01	1	0211-				●
60	BRACKET; FRAME TO BRKT (A)	1-22151-843-0	01	1	0005-0210		●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (A)	1-22151-843-0	01	1	0005-0210				●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (A)	1-22151-843-0	01	1	0211-0302				●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (A)	1-22151-843-0	01	1	0303-	●			●
60	BRACKET; FRAME TO BRKT (B)	1-22151-844-0	01	1	0005-0210		●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (B)	1-22151-844-0	01	1	0005-0210				●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-0	02	1	0005-0210			●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (B)	1-22151-844-0	01	1	0211-	●			●
60	BRACKET; FRAME TO BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (C)	1-22151-846-0	02	1	0005-0210				●
60	BRACKET; FRAME TO BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (C)	1-22151-846-0	02	1	0211-				●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	0005-0210			●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-009-0	01	1	0005-0210		●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0005-0210				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0211-0302				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0303-	●			●
64	U-BOLT; EXH PIPE,RR (B)	1-22139-033-1	01	1	0005-0210			●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22139-033-1	01	1	0005-0210				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22139-033-1	01	1	0211-1105				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22113-101-0	01	1	1106-				●
68	NUT; U BOLT (A) M8 FLANGE	0-91150-208-0	02	1	0005-0210		●	●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0005-0210				●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0211-0302				●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0303-0602	●			●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91180-208-0	02	1	0603-	●			●
68	NUT; U BOLT FVR(FVR***) (B) M8	9-09110-408-0	02	1	0005-0512				●
68	NUT; U BOLT FVR(FVR***) (B) M8	0-91110-508-0	02	1	0601-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0006		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0210		●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0210				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0302				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0303-0512	●			●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●			●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0005-0210		●	●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (D) M10X60 FLANGE	0-28081-060-0	02	1	0005-0006				●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28081-060-0	02	1	0007-0512				●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	02	1	0601-				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0005-0210				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0211-0512				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28651-025-0	03	1	0601-				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	04	1	0005-0006				●
70	BOLT; BRKT FVR(FVR***) (C) M10X35 FLANGE	0-28681-035-0	02	1	0005-0201				●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0303-0512	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	0601-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0211-0302				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0303-	●			●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	02	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	04	1	0211-0302				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	04	1	0303-	●			●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	04	1	0005-0210		●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	02	1	0005-0210			●
75	RUBBER; SUPPORT,BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) OD=40	1-22159-094-0	08	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) OD=40	1-22159-094-0	08	1	0211-				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	06	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	02	1	0211-	●			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0111		●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-210-0	04	1	0005-0111				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0112-0210		●
81	NUT; BRKT FVM(FVM*) GVR(GV**) M10 FLANGE	0-91150-210-0	04	1	0112-0210				●
81	NUT; BRKT FVZ(FVZ***) FULLER RT7608LL M/T(X8P) M10 FLANGE	0-91150-210-0	04	1	0112-0210				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	01	1	0005-0210		●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	02	1	0211-0302				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	02	1	0303-0603	●			●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	0-91370-010-0	02	1	0604-	●			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	0005-0210		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0111		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0111		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0210		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0210		●
81	NUT; BRKT FULLER RT7608LL M/T(X8P) M10 FLANGE	0-91150-210-0	02	1	0112-0210				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0302				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0303-0602	●			●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	02	1	0303-0602				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●			●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91180-210-0	02	1	0603-				●
81	NUT; BRKT M12	9-99110-512-0	04	1	0005-0210		●		●
81	NUT; BRKT M12	9-99110-512-0	04	1	0211-0512	●			●
81	NUT; BRKT M12	0-91110-512-0	04	1	0601-	●			●
81	NUT; BRKT ALLISON MD3560P A/T(Y3B) M10 FLANGE	0-91150-210-0	06	1	0112-0201				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	03	1	0005-0210				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	03	1	0211-0602				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91180-110-0	03	1	0603-				●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	08	1	0005-0201				●
81	NUT; BRKT ALLISON MD3560P A/T(Y3B) M10 FLANGE	0-91150-210-0	06	1	0202-0210				●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	06	1	0202-0210				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	03	1	0005-0210				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603	●			●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	0-91370-010-0	01	1	0604-	●			●
94	BOLT; CLAMP M10X50 FLANGE	0-28081-050-0	01	1	0005-0210		●
94	BOLT; CLAMP FVR(FVR***) M10X50 FLANGE	0-28081-050-0	01	1	0005-0210				●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0005-0210			●
94	BOLT; CLAMP FVR(FVR***) M10X50 FLANGE	0-28081-050-0	01	1	0211-0512	●			●
94	BOLT; CLAMP FVR(FVR***) M10X50 FLANGE	0-28051-050-0	01	1	0601-	●			●
94	BOLT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X40 FLANGE	0-28681-040-0	01	1	0005-0210				●
94	BOLT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X40 FLANGE	0-28681-040-0	01	1	0211-0512				●
94	BOLT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X40 FLANGE	0-28651-040-0	01	1	0601-				●
97	WASHER; PL,CLAMP ID=10.5	9-09164-510-0	04	1	0005-0210			●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	01	1	0005-0210		●
105	NUT; CLAMP FVR(FVR***) M10 FLANGE	0-91150-210-0	01	1	0005-0210				●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0005-0210			●
105	NUT; CLAMP FVR(FVR***) M10 FLANGE	0-91150-210-0	01	1	0211-0602	●			●
105	NUT; CLAMP FVR(FVR***) M10 FLANGE	0-91180-210-0	01	1	0603-	●			●
105	NUT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	01	1	0005-0210				●
105	NUT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	01	1	0211-0602				●
105	NUT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91180-110-0	01	1	0603-				●
107	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0210		●	●
107	BOLT; BRKT FVR(FVR***) M10X35 FLANGE	0-28681-035-0	04	1	0005-0210				●
107	BOLT; BRKT FVR(FVR***) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●			●
107	BOLT; BRKT FVR(FVR***) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0005-0210		●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	02	1	0211-0302				●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	02	1	0303-0605	●			●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	0-91614-810-0	02	1	0606-	●			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	0005-0210		●	●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	03	1	0005-0210				●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605	●			●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●			●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0005-0210		●	●	●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0211-	●			●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210		●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512	●			●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-	●			●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0303-0512	●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-	●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-0	01	1	0005-0210		●	●	●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-1	01	1	0211-	●			●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0005-0210		●	●	●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0211-0512	●			●
201	BOLT; STAY (A) M10X25 FLANGE	0-28051-025-0	01	1	0601-	●			●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0210		●	●	●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0512	●			●
201	BOLT; STAY (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●			●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0112-0210		●	●	●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0211-0512	●			●
216	BOLT; CLAMP M10X20 FLANGE	0-28051-020-0	06	1	0601-	●			●
223	BRACKET; EXH PIPE (A)	1-22131-749-1	01	1	0005-0210			●
223	BRACKET; EXH PIPE (B)	1-22131-750-0	01	1	0005-0210			●
223	BRACKET; EXH PIPE FVR(FVR***) (C)	1-22131-727-0	01	1	0005-				●
264	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	01	1	0005-0210			●
359	PIPE; EXH,VERTICAL	1-22123-350-0	01	1	0005-0210		●		●
359	PIPE; EXH,VERTICAL	1-22123-350-0	01	1	0211-	●			●
359	PIPE; EXH,VERTICAL	1-22123-349-0	01	1	0005-0210			●
417	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	06	1	0007-0210		●	●
417	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	06	1	0005-0006		●	●	●
417	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	06	1	0007-0512				●
417	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	06	1	0601-				●
417	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	06	1	0303-0512	●
417	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	06	1	0601-	●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0005-0111		●	●
418	NUT; BRKT FVM(FVM*) GVR(GV**) M10 FLANGE	0-91150-210-0	01	1	0005-0111				●
418	NUT; BRKT FVZ(FVZ***) WHEEL BASE 5000MM(50W) M10 FLANGE	0-91150-210-0	01	1	0005-0111				●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0112-0210				●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0211-0602	●			●
418	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0603-	●			●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0005-0210		●	●	●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0211-0512	●			●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28051-025-0	06	1	0601-	●			●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0005-0210		●	●	●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0211-	●			●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●	●	●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●			●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●			●
434	BOLT; BRKT (B) M10X40 FLANGE	0-28681-040-0	02	1	0005-0210			●
435	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0210			●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0005-0210		●	●	●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0211-	●			●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0210		●	●	●
439	TUBE; DIST,SUPPORT RUBBER FVR(FVR***) L=22	9-22159-024-0	02	1	0005-0210				●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-	●			●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-				●
447	WASHER; LK,BRKT ID=10.2	9-09150-510-0	02	1	0005-0210			●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0306-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0403-0609				●
475	BEARING; SEAL,VIBNON,EXH PIPE FVR(FVR***) OD=112	1-22119-294-0	01	1	0403-0609	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-1	01	1	0610-	●			●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0005-0210		●		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0211-0402				●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-0	02	1	0005-0210			●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0306-0402	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0403-0609				●
476	SPRING; VIBNON,EXH PIPE FVR(FVR***)	8-94141-851-0	02	1	0403-0609	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0610-	●			●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0005-0210		●		●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0211-0402				●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	0005-0210			●

24 70 60 107 81 1 62 75 75 70 17 81 81 75 81 114 114 60 34 68 36 114 108 64 121 75 70 70 81 121 75 107 116 60 60 81 300 81 94 354 56 75 70 332 56 354 94 332 105 105 22 22 12 506 22 81 84 272 506 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH	1-22122-647-1	01	1	0005-0210			●
1	PIPE; EXH FVR(FVR***)	1-22123-609-2	01	1	0211-				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-355-0	01	1	0005-0210				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-610-2	01	1	0211-				●
1	PIPE; EXH FVR(FVR***)	1-22123-356-1	01	1	0005-0210				●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210		●		●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0211-	●			●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	0005-0205			●
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-0210			●
14	GASKET; SILENCER TO EXH PIPE	8-94394-391-0	01	1	0005-0210		●		●
14	GASKET; SILENCER TO EXH PIPE	8-94394-391-0	01	1	0211-	●			●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	0005-0210		●
22	CLAMP; EXH PIPE (A)	1-22133-277-1	01	1	0005-0210		●
22	CLAMP; EXH PIPE FVR(FVR***) (A)	1-22133-277-1	01	1	0005-0210				●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210		●	●	●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-	●			●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210		●	●	●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-	●			●
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	04	1	0005-0210			●
22	CLAMP; EXH PIPE FVR(FVR***) (A)	1-22133-277-1	01	1	0211-	●			●
22	CLAMP; EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A)	1-22133-285-0	01	1	0005-0210				●
22	CLAMP; EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A)	1-22133-285-0	01	1	0211-				●
24	COLLAR; DIST,CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) L=22	9-22159-024-0	04	1	0005-0210				●
24	COLLAR; DIST,CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) L=22	9-22159-024-0	04	1	0211-				●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0005-0210		●	●	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0211-0410	●			●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-	●			●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	0005-0210			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0005-0212				●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0301-	●			●
56	BRACKET; CLAMP,EXH PIPE (A)	1-22139-143-0	01	1	0005-0210		●
56	BRACKET; CLAMP,EXH PIPE FVR(FVR***) (A)	1-22139-143-0	01	1	0005-0210				●
56	BRACKET; CLAMP,EXH PIPE (C) H=92	1-22139-076-0	02	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE FVR(FVR***) (A)	1-22139-143-0	01	1	0211-	●			●
56	BRACKET; CLAMP,EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B)	1-22139-141-1	01	1	0005-0210				●
56	BRACKET; CLAMP,EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B)	1-22139-141-1	01	1	0211-				●
60	BRACKET; FRAME TO BRKT (A)	1-22151-843-0	01	1	0005-0210		●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (A)	1-22151-843-0	01	1	0005-0210				●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (A)	1-22151-843-0	01	1	0211-0302				●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (A)	1-22151-843-0	01	1	0303-	●			●
60	BRACKET; FRAME TO BRKT (B)	1-22151-844-0	01	1	0005-0210		●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (B)	1-22151-844-0	01	1	0005-0210				●
60	BRACKET; FRAME TO BRKT (D)	1-22151-679-0	02	1	0005-0210			●
60	BRACKET; FRAME TO BRKT FVR(FVR***) (B)	1-22151-844-0	01	1	0211-	●			●
60	BRACKET; FRAME TO BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (C)	1-22151-846-0	02	1	0005-0210				●
60	BRACKET; FRAME TO BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (C)	1-22151-846-0	02	1	0211-				●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0005-0210		●
62	TUBE; DIST,BRKT FVR(FVR***) L=22	9-22159-024-0	02	1	0005-0210				●
62	TUBE; DIST,BRKT FVR(FVR***) L=22	9-22159-024-0	02	1	0211-0302				●
62	TUBE; DIST,BRKT FVR(FVR***) L=22	9-22159-024-0	02	1	0303-	●			●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-009-0	01	1	0005-0210		●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0005-0210				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0211-0302				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0303-	●			●
64	U-BOLT; EXH PIPE,RR (B)	1-22139-033-1	01	1	0005-0210			●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22139-033-1	01	1	0005-0210				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22139-033-1	01	1	0211-1105				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22113-101-0	01	1	1106-				●
68	NUT; U BOLT (A) M8 FLANGE	0-91150-208-0	02	1	0005-0210		●	●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0005-0210				●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0211-0302				●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0303-0602	●			●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91180-208-0	02	1	0603-	●			●
68	NUT; U BOLT FVR(FVR***) (B) M8	9-09110-408-0	02	1	0005-0512				●
68	NUT; U BOLT FVR(FVR***) (B) M8	0-91110-508-0	02	1	0601-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0006		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0210		●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0210				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0302				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0303-0512	●			●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●			●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0005-0210		●	●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (D) M10X60 FLANGE	0-28081-060-0	02	1	0005-0006				●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28081-060-0	02	1	0007-0512				●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	02	1	0601-				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0005-0210				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0211-0512				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28651-025-0	03	1	0601-				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	04	1	0005-0006				●
70	BOLT; BRKT FVR(FVR***) (C) M10X35 FLANGE	0-28681-035-0	02	1	0005-0201				●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0303-0512	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	0601-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0211-0302				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0303-	●			●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	02	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	04	1	0211-0302				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	04	1	0303-	●			●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	04	1	0005-0210		●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	02	1	0005-0210			●
75	RUBBER; SUPPORT,BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) OD=40	1-22159-094-0	08	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) OD=40	1-22159-094-0	08	1	0211-				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	06	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	02	1	0211-	●			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0111		●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-210-0	04	1	0005-0111				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0112-0210		●
81	NUT; BRKT FVM(FVM*) GVR(GV**) M10 FLANGE	0-91150-210-0	04	1	0112-0210				●
81	NUT; BRKT FVZ(FVZ***) FULLER RT7608LL M/T(X8P) M10 FLANGE	0-91150-210-0	04	1	0112-0210				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	01	1	0005-0210		●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	02	1	0211-0302				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	02	1	0303-0603	●			●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	0-91370-010-0	02	1	0604-	●			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	0005-0210		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0111		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0111		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0210		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0210		●
81	NUT; BRKT FULLER RT7608LL M/T(X8P) M10 FLANGE	0-91150-210-0	02	1	0112-0210				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0302				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0303-0602	●			●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	02	1	0303-0602				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●			●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91180-210-0	02	1	0603-				●
81	NUT; BRKT M12	9-99110-512-0	04	1	0005-0210		●		●
81	NUT; BRKT M12	9-99110-512-0	04	1	0211-0512	●			●
81	NUT; BRKT M12	0-91110-512-0	04	1	0601-	●			●
81	NUT; BRKT ALLISON MD3560P A/T(Y3B) M10 FLANGE	0-91150-210-0	06	1	0112-0201				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	03	1	0005-0210				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	03	1	0211-0602				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91180-110-0	03	1	0603-				●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	08	1	0005-0201				●
81	NUT; BRKT ALLISON MD3560P A/T(Y3B) M10 FLANGE	0-91150-210-0	06	1	0202-0210				●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	06	1	0202-0210				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	03	1	0005-0210				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603	●			●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	0-91370-010-0	01	1	0604-	●			●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0005-0210		●		●
84	GASKET; EXH PIPE FVR(FVR***) (A)	1-14145-157-0	01	1	0211-0302				●
84	GASKET; EXH PIPE FVR(FVR***) (A)	1-14145-157-0	01	1	0303-	●			●
84	GASKET; EXH PIPE FVR(FVR***) WHEEL BASE 4200MM(42W) (A)	1-14145-157-0	01	1	0303-	●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0005-0210		●		●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0211-	●			●
94	BOLT; CLAMP M10X50 FLANGE	0-28081-050-0	01	1	0005-0210		●
94	BOLT; CLAMP FVR(FVR***) M10X50 FLANGE	0-28081-050-0	01	1	0005-0210				●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	04	1	0005-0210			●
94	BOLT; CLAMP FVR(FVR***) M10X50 FLANGE	0-28081-050-0	01	1	0211-0512	●			●
94	BOLT; CLAMP FVR(FVR***) M10X50 FLANGE	0-28051-050-0	01	1	0601-	●			●
94	BOLT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X40 FLANGE	0-28681-040-0	01	1	0005-0210				●
94	BOLT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X40 FLANGE	0-28681-040-0	01	1	0211-0512				●
94	BOLT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X40 FLANGE	0-28651-040-0	01	1	0601-				●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	01	1	0005-0210		●
105	NUT; CLAMP FVR(FVR***) M10 FLANGE	0-91150-210-0	01	1	0005-0210				●
105	NUT; CLAMP M10	9-09110-510-0	04	1	0005-0210			●
105	NUT; CLAMP FVR(FVR***) M10 FLANGE	0-91150-210-0	01	1	0211-0602	●			●
105	NUT; CLAMP FVR(FVR***) M10 FLANGE	0-91180-210-0	01	1	0603-	●			●
105	NUT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	01	1	0005-0210				●
105	NUT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	01	1	0211-0602				●
105	NUT; CLAMP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91180-110-0	01	1	0603-				●
107	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0210		●	●
107	BOLT; BRKT FVR(FVR***) M10X35 FLANGE	0-28681-035-0	04	1	0005-0210				●
107	BOLT; BRKT FVR(FVR***) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512	●			●
107	BOLT; BRKT FVR(FVR***) M10X35 FLANGE	0-28651-035-0	04	1	0601-	●			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-842-1	01	1	0005-0210		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVR(FVR***) (B)	1-22131-845-0	01	1	0005-				●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-842-1	01	1	0303-	●
114	BRACKET; EXH SILENCER (A)	1-22139-136-2	01	1	0005-0210		●
114	BRACKET; EXH SILENCER FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B)	1-22139-140-0	01	1	0005-0210				●
114	BRACKET; EXH SILENCER FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (B)	1-22139-140-0	01	1	0211-				●
114	BRACKET; EXH SILENCER FVR(FVR***) (C)	1-22139-137-1	01	1	0005-				●
114	BRACKET; EXH SILENCER (A)	1-22139-136-2	01	1	0303-	●
116	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X60 FLANGE	0-28081-060-0	02	1	0005-0210				●
116	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X60 FLANGE	0-28081-060-0	02	1	0211-0512				●
116	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X60 FLANGE	0-28051-060-0	02	1	0601-				●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0005-0210		●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	02	1	0211-0302				●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	02	1	0303-0605	●			●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	0-91614-810-0	02	1	0606-	●			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	02	1	0005-0210		●	●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	03	1	0005-0210				●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605	●			●
121	WASHER; PL,BRKT FVR(FVR***) ID=10.5 OD=32	0-91614-810-0	01	1	0606-	●			●
272	NUT; FLANGE M12	9-99110-512-0	04	1	0005-0210		●		●
272	NUT; FLANGE M12	9-99110-512-0	04	1	0211-0512	●			●
272	NUT; FLANGE M12	0-91110-512-0	04	1	0601-	●			●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-460-1	01	1	0005-0210		●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-460-1	01	1	0303-	●
332	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	04	1	0005-0210		●
332	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	04	1	0303-0512	●
332	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28650-825-0	04	1	0601-	●
354	CLAMP; HEAT PROTECTOR	1-22119-300-0	02	1	0005-0210		●
354	CLAMP; HEAT PROTECTOR	1-22119-300-0	02	1	0303-	●
506	BRACKET; STUD	1-22131-788-0	02	1	0005-0111		●
506	BRACKET; STUD	1-22131-788-0	02	1	0005-0111		●
506	BRACKET; STUD FVM(FVM***)	1-22131-788-0	02	1	0005-0111				●
506	BRACKET; STUD FVZ(FVZ***) WHEEL BASE 5000MM(50W)	1-22131-788-0	02	1	0005-0111				●
506	BRACKET; STUD FVM(FVM***)	1-22131-788-0	02	1	0005-0111				●
506	BRACKET; STUD FVZ(FVZ***) WHEEL BASE 5000MM(50W)	1-22131-788-0	02	1	0005-0111				●
506	BRACKET; STUD	1-22131-788-0	02	1	0112-0206		●
506	BRACKET; STUD	1-22131-788-0	02	1	0112-0206		●
506	BRACKET; STUD FVM(FVM***)	1-22131-788-0	02	1	0112-0206				●
506	BRACKET; STUD FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W)	1-22131-788-0	02	1	0112-0206				●
506	BRACKET; STUD FVM(FVM***)	1-22131-788-0	02	1	0112-0206				●
506	BRACKET; STUD FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W)	1-22131-788-0	02	1	0112-0206				●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0207-0210		●
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0207-0210		●
506	BRACKET; STUD FVM(FVM***) M12X35	1-22131-963-0	02	1	0207-0210				●
506	BRACKET; STUD FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M12X35	1-22131-963-0	02	1	0207-0210				●
506	BRACKET; STUD FVM(FVM***) M12X35	1-22131-963-0	02	1	0207-0210				●
506	BRACKET; STUD FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M12X35	1-22131-963-0	02	1	0207-0210				●
506	BRACKET; STUD M12X35	1-22131-963-0	04	1	0211-	●			●
506	BRACKET; STUD	1-22131-788-0	04	1	0005-0111				●
506	BRACKET; STUD FVR(FVR*) GVR(GV**)	1-22131-788-0	04	1	0112-0206				●
506	BRACKET; STUD FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W)	1-22131-788-0	04	1	0112-0206				●
506	BRACKET; STUD FVZ(FVZ***) ALLISON MD3560P A/T(Y3B)	1-22131-788-0	04	1	0112-0206				●
506	BRACKET; STUD FVR(FVR*) GVR(GV**) M12X35	1-22131-963-0	04	1	0207-0210				●
506	BRACKET; STUD FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) M12X35	1-22131-963-0	04	1	0207-0210				●
506	BRACKET; STUD FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) M12X35	1-22131-963-0	04	1	0207-0210				●

1 12 128

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH	1-22122-647-1	01	1	0005-0210			●
1	PIPE; EXH FVR(FVR***)	1-22123-609-2	01	1	0211-				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-355-0	01	1	0005-0210				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-610-2	01	1	0211-				●
1	PIPE; EXH FVR(FVR***)	1-22123-356-1	01	1	0005-0210				●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210		●		●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0211-	●			●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	0005-0205			●
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-0210			●
128	PIPE; EXH,RR	1-22126-240-0	01	1	0005-0210			●
128	PIPE; EXH,RR FVR(FVR*) GVR(GV**) WHEEL BASE 4200MM(42W)	1-22123-325-1	01	1	0303-	●

128 11 84 12 40 412 1 11 12 40 84 412 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH	1-22122-647-1	01	1	0005-0210			●
1	PIPE; EXH FVR(FVR***)	1-22123-609-2	01	1	0211-				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-355-0	01	1	0005-0210				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-610-2	01	1	0211-				●
1	PIPE; EXH FVR(FVR***)	1-22123-356-1	01	1	0005-0210				●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
11	PIPE; EXH,RR	1-22126-324-0	01	1	0005-0210		●
11	PIPE; EXH,RR FVR(FVR***)	1-22126-311-1	01	1	0005-				●
11	PIPE; EXH,RR FVR(FVR*) GVR(GV**) WHEEL BASE 6000MM(60W)	1-22123-325-1	01	1	0303-0405	●
11	PIPE; EXH,RR WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)	1-22123-325-1	01	1	0406-	●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210		●		●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0211-	●			●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	0005-0205			●
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-0210			●
40	NUT; RR TO CENTER M12 FLANGE	0-91150-212-0	04	1	0005-0210		●
40	NUT; RR TO CENTER FVR(FVR***) M12 FLANGE	0-91150-212-0	04	1	0005-0210				●
40	NUT; RR TO CENTER FVR(FVR***) M12 FLANGE	0-91150-212-0	04	1	0211-0602	●			●
40	NUT; RR TO CENTER FVR(FVR***) M12 FLANGE	0-91180-212-0	04	1	0603-	●			●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0005-0210		●		●
84	GASKET; EXH PIPE FVR(FVR***) (A)	1-14145-157-0	01	1	0211-0302				●
84	GASKET; EXH PIPE FVR(FVR***) (A)	1-14145-157-0	01	1	0303-	●			●
84	GASKET; EXH PIPE FVR(FVR***) WHEEL BASE 4200MM(42W) (A)	1-14145-157-0	01	1	0303-	●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0005-0210		●		●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0211-	●			●
128	PIPE; EXH,RR	1-22126-240-0	01	1	0005-0210			●
128	PIPE; EXH,RR FVR(FVR*) GVR(GV**) WHEEL BASE 4200MM(42W)	1-22123-325-1	01	1	0303-	●
412	BOLT; EXH PIPE,RR M12X35 FLANGE	0-28681-235-0	02	1	0005-0210		●
412	BOLT; EXH PIPE,RR FVR(FVR***) M12X35 FLANGE	0-28681-235-0	04	1	0005-0210				●
412	BOLT; EXH PIPE,RR FVR(FVR***) M12X35 FLANGE	0-28681-235-0	04	1	0211-0512	●			●
412	BOLT; EXH PIPE,RR FVR(FVR***) M12X35 FLANGE	0-28651-235-0	04	1	0601-	●			●

8 22 359 216 201 151 197 439 201 436 421 159 417 418 434 418 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0112-0210		●	●	●
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0211-	●			●
22	CLAMP; EXH PIPE (A)	1-22133-277-1	01	1	0005-0210		●
22	CLAMP; EXH PIPE FVR(FVR***) (A)	1-22133-277-1	01	1	0005-0210				●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210		●	●	●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-	●			●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210		●	●	●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-	●			●
22	CLAMP; EXH PIPE (C) ID=80-84	1-22133-233-0	04	1	0005-0210			●
22	CLAMP; EXH PIPE FVR(FVR***) (A)	1-22133-277-1	01	1	0211-	●			●
22	CLAMP; EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A)	1-22133-285-0	01	1	0005-0210				●
22	CLAMP; EXH PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A)	1-22133-285-0	01	1	0211-				●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0005-0210		●	●	●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0211-	●			●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210		●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512	●			●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-	●			●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0303-0512	●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-	●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-0	01	1	0005-0210		●	●	●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-1	01	1	0211-	●			●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0005-0210		●	●	●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0211-0512	●			●
201	BOLT; STAY (A) M10X25 FLANGE	0-28051-025-0	01	1	0601-	●			●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0210		●	●	●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0512	●			●
201	BOLT; STAY (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●			●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0112-0210		●	●	●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0211-0512	●			●
216	BOLT; CLAMP M10X20 FLANGE	0-28051-020-0	06	1	0601-	●			●
359	PIPE; EXH,VERTICAL	1-22123-350-0	01	1	0005-0210		●		●
359	PIPE; EXH,VERTICAL	1-22123-350-0	01	1	0211-	●			●
359	PIPE; EXH,VERTICAL	1-22123-349-0	01	1	0005-0210			●
417	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	06	1	0007-0210		●	●
417	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	06	1	0005-0006		●	●	●
417	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	06	1	0007-0512				●
417	BOLT; BRKT M10X35 FLANGE	0-28651-035-0	06	1	0601-				●
417	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	06	1	0303-0512	●
417	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	06	1	0601-	●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0005-0111		●	●
418	NUT; BRKT FVM(FVM*) GVR(GV**) M10 FLANGE	0-91150-210-0	01	1	0005-0111				●
418	NUT; BRKT FVZ(FVZ***) WHEEL BASE 5000MM(50W) M10 FLANGE	0-91150-210-0	01	1	0005-0111				●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0112-0210				●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0211-0602	●			●
418	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0603-	●			●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0005-0210		●	●	●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0211-0512	●			●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28051-025-0	06	1	0601-	●			●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0005-0210		●	●	●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0211-	●			●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210		●	●	●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512	●			●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-	●			●
434	BOLT; BRKT (B) M10X40 FLANGE	0-28681-040-0	02	1	0005-0210			●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0005-0210		●	●	●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0211-	●			●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0210		●	●	●
439	TUBE; DIST,SUPPORT RUBBER FVR(FVR***) L=22	9-22159-024-0	02	1	0005-0210				●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-	●			●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-				●

126 126 126 159 159 1 81 20 62 75 75 476 475 70 70 68 20 476 108 64 45 281 223 225 284 439 226 226 52 4 64 66 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PIPE; EXH FULLER FS8209HD DD M/T(Y3A)	8-98057-255-0	01	1	0610-	●
1	PIPE; EXH	1-22123-319-1	01	1	0005-0005		●
1	PIPE; EXH	1-22123-419-0	01	1	0006-0210		●
1	PIPE; EXH	1-22122-647-1	01	1	0005-0210			●
1	PIPE; EXH FVR(FVR***)	1-22123-609-2	01	1	0211-				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-355-0	01	1	0005-0210				●
1	PIPE; EXH FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22123-610-2	01	1	0211-				●
1	PIPE; EXH FVR(FVR***)	1-22123-356-1	01	1	0005-0210				●
1	PIPE; EXH	1-22123-652-2	01	1	0303-0609	●
1	PIPE; EXH FULLER FSO5206B OD M/T(Y4V)	1-22123-652-2	01	1	0610-	●
4	WASHER; PL,U BOLT FVR(FVR***) ID=8.4	9-09160-508-0	02	1	0005-0605				●
4	WASHER; PL,U BOLT FVR(FVR***) ID=8.4 OD=16	0-91610-508-0	02	1	0606-				●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0306-0402	●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0403-0412	●			●
20	BOLT; FLANGE,EXH PIPE M10X49.8	8-97039-586-0	02	1	0501-	●			●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0005-0210		●		●
20	BOLT; FLANGE,EXH PIPE M10X51.4	8-94436-943-0	02	1	0211-0402				●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	01	1	0005-0210			●
45	BOLT; BRKT FVR(FVR***) M10X60 FLANGE	0-28081-060-0	02	1	0005-0512				●
45	BOLT; BRKT FVR(FVR***) M10X60 FLANGE	0-28051-060-0	02	1	0601-				●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0005-0210			●
52	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	02	1	0211-0602				●
52	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91180-210-0	02	1	0603-				●
52	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	02	1	0005-0210				●
62	TUBE; DIST,BRKT L=22	9-22159-024-0	02	1	0005-0210		●
62	TUBE; DIST,BRKT FVR(FVR***) L=22	9-22159-024-0	02	1	0005-0210				●
62	TUBE; DIST,BRKT FVR(FVR***) L=22	9-22159-024-0	02	1	0211-0302				●
62	TUBE; DIST,BRKT FVR(FVR***) L=22	9-22159-024-0	02	1	0303-	●			●
64	U-BOLT; EXH PIPE,RR (A)	1-22113-009-0	01	1	0005-0210		●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0005-0210				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0211-0302				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (A)	1-22113-009-0	01	1	0303-	●			●
64	U-BOLT; EXH PIPE,RR (B)	1-22139-033-1	01	1	0005-0210			●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22139-033-1	01	1	0005-0210				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22139-033-1	01	1	0211-1105				●
64	U-BOLT; EXH PIPE,RR FVR(FVR***) (B)	1-22113-101-0	01	1	1106-				●
66	WASHER; LK,U BOLT FVR(FVR***) ID=8.2	9-09150-508-0	02	1	0005-0603				●
66	WASHER; LK,U BOLT FVR(FVR***) ID=8.2	0-91510-508-0	02	1	0604-				●
68	NUT; U BOLT (A) M8 FLANGE	0-91150-208-0	02	1	0005-0210		●	●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0005-0210				●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0211-0302				●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91150-208-0	02	1	0303-0602	●			●
68	NUT; U BOLT FVR(FVR***) (A) M8 FLANGE	0-91180-208-0	02	1	0603-	●			●
68	NUT; U BOLT FVR(FVR***) (B) M8	9-09110-408-0	02	1	0005-0512				●
68	NUT; U BOLT FVR(FVR***) (B) M8	0-91110-508-0	02	1	0601-				●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0006		●
70	BOLT; BRKT (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0210		●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0007-0210				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0302				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	02	1	0303-0512	●			●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-	●			●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0005-0210		●	●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (D) M10X60 FLANGE	0-28081-060-0	02	1	0005-0006				●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28081-060-0	02	1	0007-0512				●
70	BOLT; BRKT (D) M10X60 FLANGE	0-28051-060-0	02	1	0601-				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0005-0210				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28681-025-0	03	1	0211-0512				●
70	BOLT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (E) M10X25 FLANGE	0-28651-025-0	03	1	0601-				●
70	BOLT; BRKT FVR(FVR***) (B) M10X50 FLANGE	0-28081-050-0	04	1	0005-0006				●
70	BOLT; BRKT FVR(FVR***) (C) M10X35 FLANGE	0-28681-035-0	02	1	0005-0201				●
70	BOLT; BRKT (A) M10X50	0-10806-050-0	02	1	0303-0512	●
70	BOLT; BRKT (A) M10X50	0-10856-050-0	02	1	0601-	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	04	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0211-0302				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (A) OD=40	1-22159-094-0	04	1	0303-	●			●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	02	1	0005-0210		●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	04	1	0211-0302				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	04	1	0303-	●			●
75	RUBBER; SUPPORT,BRKT (B) OD=30	1-22159-106-1	04	1	0005-0210		●	●
75	RUBBER; SUPPORT,BRKT (A) OD=40	1-22159-094-0	02	1	0005-0210			●
75	RUBBER; SUPPORT,BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) OD=40	1-22159-094-0	08	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) OD=40	1-22159-094-0	08	1	0211-				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	06	1	0005-0210				●
75	RUBBER; SUPPORT,BRKT FVR(FVR***) (B) OD=30	1-22159-106-1	02	1	0211-	●			●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0005-0111		●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-210-0	04	1	0005-0111				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0112-0210		●
81	NUT; BRKT FVM(FVM*) GVR(GV**) M10 FLANGE	0-91150-210-0	04	1	0112-0210				●
81	NUT; BRKT FVZ(FVZ***) FULLER RT7608LL M/T(X8P) M10 FLANGE	0-91150-210-0	04	1	0112-0210				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	0211-0602	●			●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-	●			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	01	1	0005-0210		●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	02	1	0211-0302				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	02	1	0303-0603	●			●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	0-91370-010-0	02	1	0604-	●			●
81	NUT; BRKT M10 LOCK NUT	9-09131-510-0	02	1	0005-0210		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0111		●	●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0111		●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0210		●	●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0112-0210		●
81	NUT; BRKT FULLER RT7608LL M/T(X8P) M10 FLANGE	0-91150-210-0	02	1	0112-0210				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0302				●
81	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0303-0602	●			●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	02	1	0303-0602				●
81	NUT; BRKT M10 FLANGE	0-91180-210-0	02	1	0603-	●			●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91180-210-0	02	1	0603-				●
81	NUT; BRKT M12	9-99110-512-0	04	1	0005-0210		●		●
81	NUT; BRKT M12	9-99110-512-0	04	1	0211-0512	●			●
81	NUT; BRKT M12	0-91110-512-0	04	1	0601-	●			●
81	NUT; BRKT ALLISON MD3560P A/T(Y3B) M10 FLANGE	0-91150-210-0	06	1	0112-0201				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	03	1	0005-0210				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-110-0	03	1	0211-0602				●
81	NUT; BRKT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91180-110-0	03	1	0603-				●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	08	1	0005-0201				●
81	NUT; BRKT ALLISON MD3560P A/T(Y3B) M10 FLANGE	0-91150-210-0	06	1	0202-0210				●
81	NUT; BRKT FVR(FVR***) M10 FLANGE	0-91150-210-0	06	1	0202-0210				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	03	1	0005-0210				●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603	●			●
81	NUT; BRKT FVR(FVR***) M10 LOCK NUT	0-91370-010-0	01	1	0604-	●			●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-842-1	01	1	0005-0210		●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR FVR(FVR***) (B)	1-22131-845-0	01	1	0005-				●
108	BRACKET; BRKT TO FRAME,EXH SILENCER,FR (A)	1-22131-842-1	01	1	0303-	●
126	PIPE; EXH,RR FULLER FS8209HD DD M/T(Y3A) (A)	8-98057-256-0	01	1	0610-	●
126	PIPE; EXH,RR (A)	1-22123-324-2	01	1	0005-0210		●
126	PIPE; EXH,RR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (C)	1-22126-309-0	01	1	0005-0210				●
126	PIPE; EXH,RR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (C)	1-22126-309-0	01	1	0211-				●
126	PIPE; EXH,RR FVR(FVR***) (B)	1-22126-310-0	01	1	0005-				●
126	PIPE; EXH,RR (A)	1-22123-324-2	01	1	0303-0609	●
126	PIPE; EXH,RR FULLER FSO5206B OD M/T(Y4V) (A)	1-22123-324-2	01	1	0610-	●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210		●	●	●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512	●			●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-	●			●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0303-0512	●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-	●
223	BRACKET; EXH PIPE (A)	1-22131-749-1	01	1	0005-0210			●
223	BRACKET; EXH PIPE (B)	1-22131-750-0	01	1	0005-0210			●
223	BRACKET; EXH PIPE FVR(FVR***) (C)	1-22131-727-0	01	1	0005-				●
225	PROTECTOR; HEAT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22159-320-1	01	1	0005-0008				●
225	PROTECTOR; HEAT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****)	1-22159-344-0	01	1	0009-0103				●
225	PROTECTOR; HEAT FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF)	1-22159-344-0	01	1	0104-				●
225	PROTECTOR; HEAT GVR(GV****)	1-22159-320-1	01	1	0104-				●
226	RUBBER; CUSHION FVR(FVR***) OD=40	1-22159-094-0	04	1	0005-				●
281	NUT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-210-0	02	1	0005-0210				●
281	NUT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-210-0	02	1	0211-0212				●
281	NUT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91150-210-0	02	1	0301-0602				●
281	NUT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10 FLANGE	0-91180-210-0	02	1	0603-				●
284	BOLT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X25 FLANGE	0-28681-025-0	02	1	0005-0210				●
284	BOLT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) M10X25 FLANGE	0-28681-025-0	02	1	0211-0212				●
284	BOLT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X25 FLANGE	0-28681-025-0	02	1	0301-0512				●
284	BOLT; HEAT PROTECTOR FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) M10X25 FLANGE	0-28651-025-0	02	1	0601-				●
284	BOLT; HEAT PROTECTOR GVR(GV****) M10X35 FLANGE	0-28681-035-0	02	1	0211-0212				●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0210		●	●	●
439	TUBE; DIST,SUPPORT RUBBER FVR(FVR***) L=22	9-22159-024-0	02	1	0005-0210				●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-	●			●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-				●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0306-0402	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0403-0609				●
475	BEARING; SEAL,VIBNON,EXH PIPE FVR(FVR***) OD=112	1-22119-294-0	01	1	0403-0609	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-1	01	1	0610-	●			●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0005-0210		●		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0211-0402				●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-0	02	1	0005-0210			●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0306-0402	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0403-0609				●
476	SPRING; VIBNON,EXH PIPE FVR(FVR***)	8-94141-851-0	02	1	0403-0609	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0610-	●			●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0005-0210		●		●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0211-0402				●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	0005-0210			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
