Sayfa 1-41 - Isuzu EPC

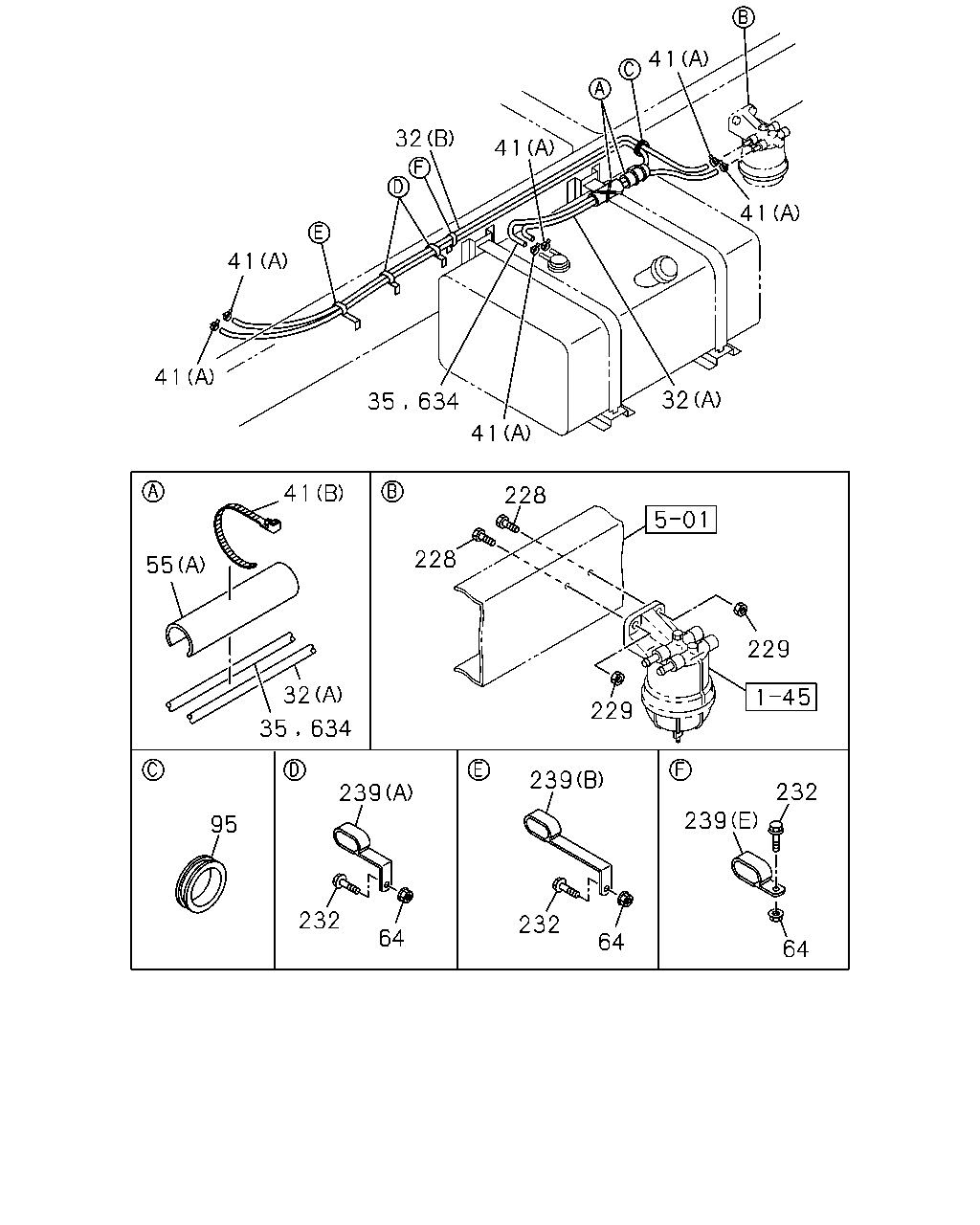

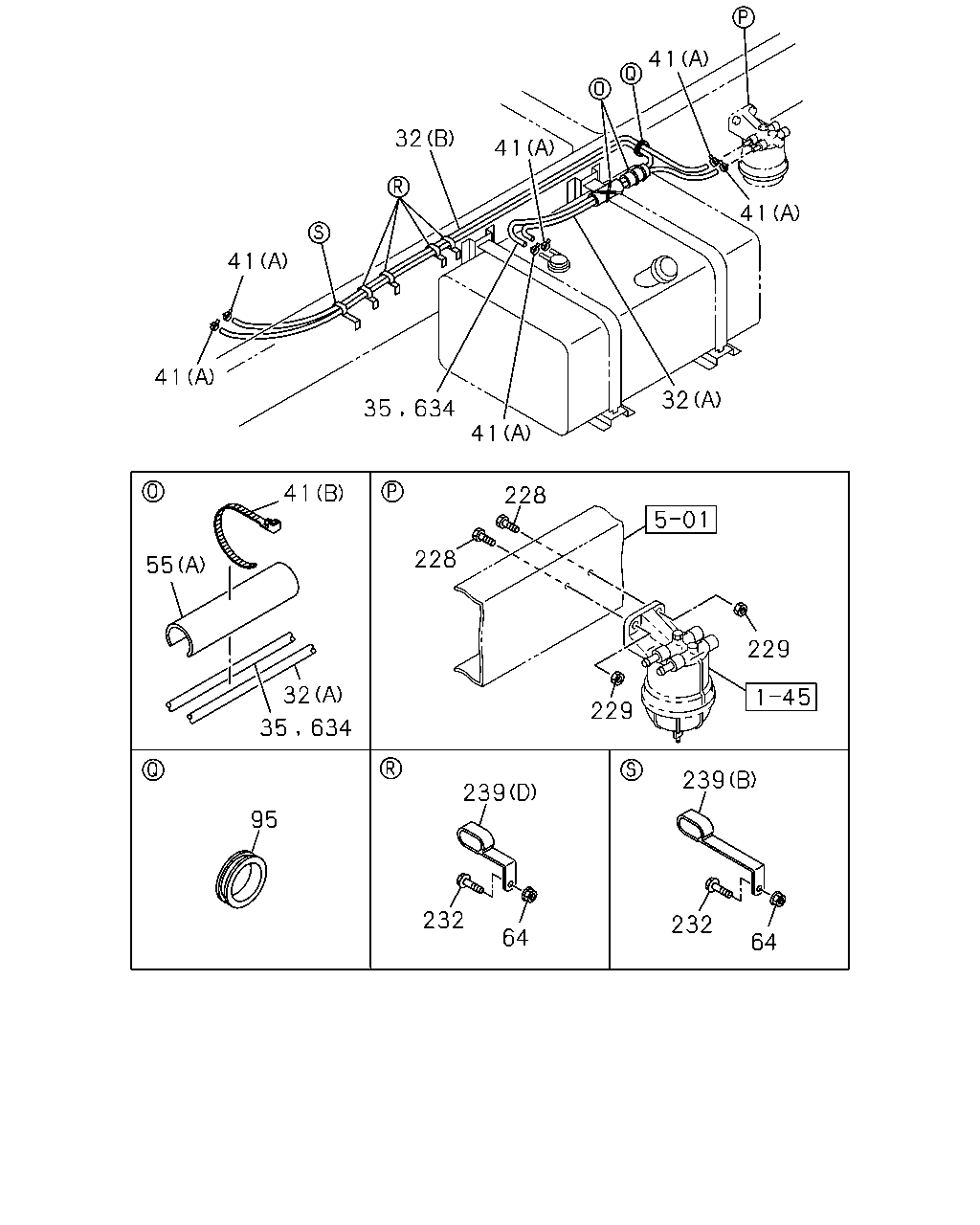

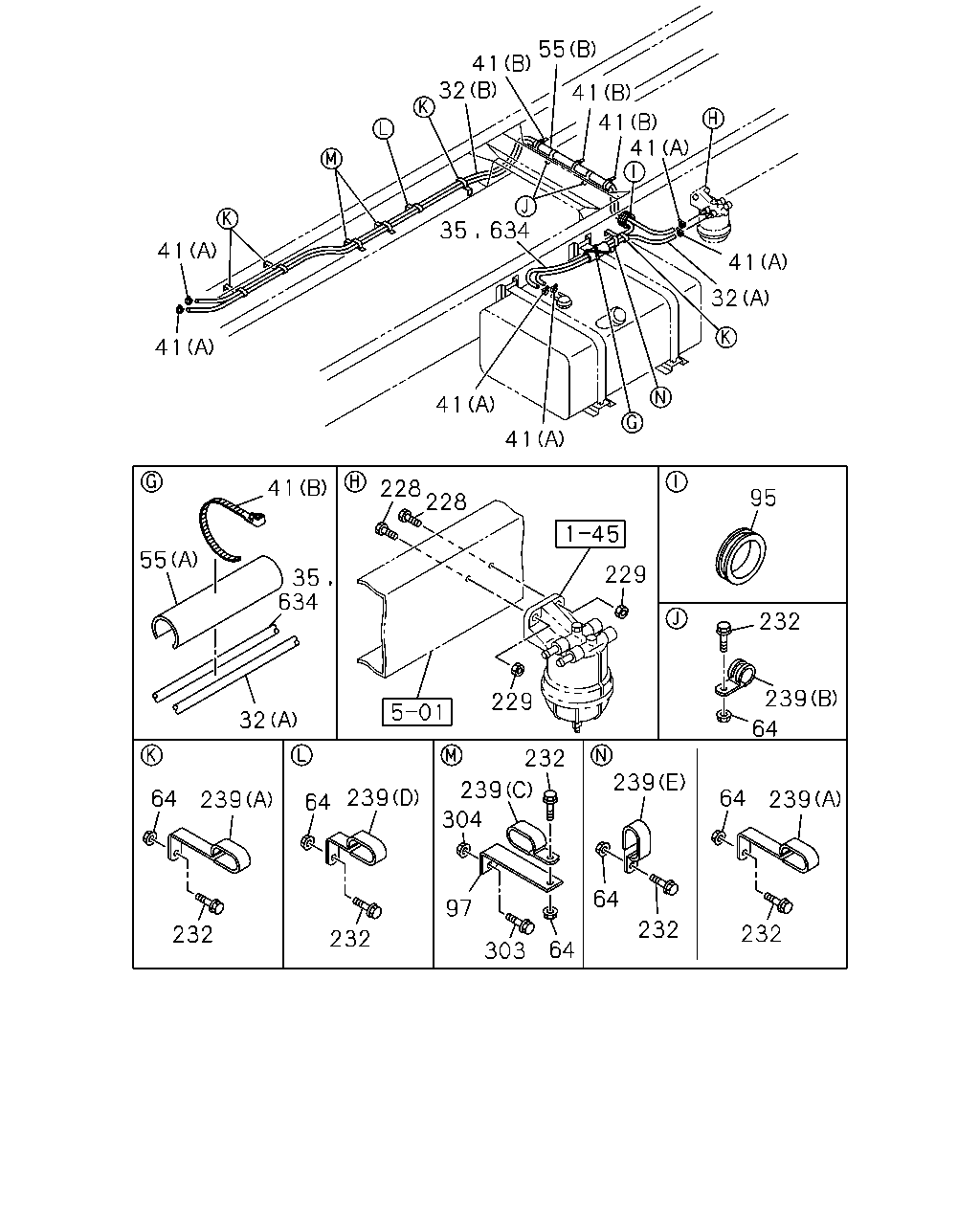

1-41 — FUEL PIPING; CHASSIS (#8642) — 467 parça

55 41 32 41 41 41 634 35 41 41 32 41 41 41 41 228 228 95 55 229 35 634 232 239 229 32 64 232 239 239 239 64 64 239 239 64 304 64 97 232 232 232 232 64 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111	●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 5000MM(50W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210	●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0210			●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FUEL TANK 400L(SDH) (B) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) L=3050 SERVICED BY L=8000	0-01260-800-0	01	1	0211-0302		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) FUEL TANK 400L(SDH) (B) L=3050 SERVICED BY L=8000	0-01260-800-0	01	1	0303-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 5000MM(50W) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L(SDH) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 6300MM(63W) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●
32	PIPE; DELIVERY,FUEL TANK (B) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●
35	PIPE; FUEL TANK,RETURN L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
35	PIPE; FUEL TANK,RETURN L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
35	PIPE; FUEL TANK,RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0006		●
35	PIPE; FUEL TANK,RETURN FVM(FVM*) GVR(GV**) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0007-0210		●
35	PIPE; FUEL TANK,RETURN FVR(FVR***) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0007-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) WHEEL BASE 5000MM(50W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) WHEEL BASE 6300MM(63W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0011	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	03	1	0012-0201	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0202-0210	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-0210	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0211-		●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0005-0006		●
41	CLIP; FUEL PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (B) L=250	5-09707-030-1	04	1	0007-0011		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	06	1	0012-0201		●
41	CLIP; FUEL PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) L=250	5-09707-030-1	07	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (B) L=250	5-09707-030-1	07	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=250	5-09707-030-1	07	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0007-0011		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (B) L=250	5-09707-030-1	05	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (B) L=250	5-09707-030-1	05	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (B) L=250	5-09707-030-1	05	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0303-				●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	01	1	0005-0011	●		●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	02	1	0012-0201	●	●	●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210	●		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0211-0302		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0303-		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0303-				●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	01	1	0005-0006		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) L=1300	1-09360-677-1	01	1	0007-0011		●
55	COVER; PIPE,FUEL TANK (B) L=800	1-09361-018-0	01	1	0005-		●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	02	1	0007-0011		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) L=350	1-09360-460-1	01	1	0008-		●
55	COVER; PIPE,FUEL TANK FVR(FVR***) (A) L=300	1-09361-073-0	01	1	0008-		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0211-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	08	1	0005-0210			●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8 FLANGE	0-91150-108-0	08	1	0005-0210		●
64	NUT; CLIP FVZ(FVZ***) WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	08	1	0005-0210		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) M8 FLANGE	0-91150-108-0	08	1	0211-0302		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8 FLANGE	0-91150-108-0	08	1	0303-0602		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8 FLANGE	0-91180-108-0	08	1	0603-		●
64	NUT; CLIP FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	0005-0111		●
64	NUT; CLIP FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	0112-0210		●
64	NUT; CLIP FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	11	1	0112-0210		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8 FLANGE	0-91150-108-0	11	1	0211-0602		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8 FLANGE	0-91180-108-0	11	1	0603-		●
64	NUT; CLIP FVM(FVM***) M8 FLANGE	0-91150-108-0	01	1	0008-0210		●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8 FLANGE	0-91150-108-0	09	1	0211-0602		●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8 FLANGE	0-91180-108-0	09	1	0603-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0303-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-0210	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0211-		●		●
97	BRACKET; CLIP L=95	1-82699-085-0	02	1	0005-0006		●
97	BRACKET; CLIP FVR(FVR*) GVR(GV**) L=95	1-82699-085-0	02	1	0007-		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0209	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0210	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0211-0512		●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-		●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0210	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0211-0602		●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-		●		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	08	1	0005-0210			●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8X30 FLANGE	0-28680-830-0	08	1	0005-0210		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	08	1	0005-0210		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) M8X30 FLANGE	0-28680-830-0	08	1	0211-0302		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28680-830-0	08	1	0303-0512		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28650-830-0	08	1	0601-		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	0005-0111		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	0112-0210		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) M8X30 FLANGE	0-28680-830-0	11	1	0112-0210		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8X30 FLANGE	0-28680-830-0	11	1	0211-0512		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8X30 FLANGE	0-28650-830-0	11	1	0601-		●
232	BOLT; CLIP,PIPE FVM(FVM***) M8X30 FLANGE	0-28680-830-0	01	1	0008-0210		●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28680-830-0	09	1	0211-0512		●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28650-830-0	09	1	0601-		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0303-0512				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-				●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0005-0006	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0007-0210	●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0211-0302		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0303-		●
239	CLIP; FUEL PIPE (B) M13X2 H=20 L=60	1-09701-280-0	01	1	0005-0210	●		●
239	CLIP; FUEL PIPE (E) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0005-0210			●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006			●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111			●
239	CLIP; FUEL PIPE FVM(FVM***) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210			●
239	CLIP; FUEL PIPE FVM(FVM***) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) (A) ID=14X29 H=30 L=25	1-09701-101-0	05	1	0211-		●
239	CLIP; FUEL PIPE (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0005-0006		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0007-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0112-0210		●
239	CLIP; FUEL PIPE FUEL TANK 200L FMCSR(PK6) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0211-		●
239	CLIP; FUEL PIPE (B) ID=32 L=50	1-09701-055-1	02	1	0005-		●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0005-0006		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0606		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (C) ID=16X2 L=20	0-95325-536-0	02	1	0607-		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0006		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FUEL TANK 400L(SDH) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0211-		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0112-0210		●
239	CLIP; FUEL PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0211-		●
239	CLIP; FUEL PIPE FVM(FVM***) (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0008-0210		●
239	CLIP; FUEL PIPE (D) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0303-				●
239	CLIP; FUEL PIPE (B) M13X2 H=20 L=60	1-09701-280-0	01	1	0303-				●
303	BOLT; BRKT M8X30 FLANGE	0-28680-830-0	02	1	0005-0006		●
303	BOLT; BRKT FVR(FVR*) GVR(GV**) M8X30 FLANGE	0-28680-830-0	02	1	0007-0512		●
303	BOLT; BRKT FVR(FVR*) GVR(GV**) M8X30 FLANGE	0-28650-830-0	02	1	0601-		●
304	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0006		●
304	NUT; BRKT FVR(FVR*) GVR(GV**) M8 FLANGE	0-91150-108-0	02	1	0007-0602		●
304	NUT; BRKT FVR(FVR*) GVR(GV**) M8 FLANGE	0-91180-108-0	02	1	0603-		●
634	HOSE; RUBBER RETURN FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
634	HOSE; RUBBER RETURN FVZ(FVZ***) FUEL TANK 400L(SDH) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
634	HOSE; RUBBER RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	0211-0302		●
634	HOSE; RUBBER RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) FUEL TANK 400L(SDH) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	0303-		●
634	HOSE; RUBBER RETURN L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●

41 32 41 41 41 41 32 35 634 41 41 228 228 55 229 32 229 35 634 239 239 95 232 232 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111	●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 5000MM(50W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210	●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0210			●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FUEL TANK 400L(SDH) (B) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) L=3050 SERVICED BY L=8000	0-01260-800-0	01	1	0211-0302		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) FUEL TANK 400L(SDH) (B) L=3050 SERVICED BY L=8000	0-01260-800-0	01	1	0303-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 5000MM(50W) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L(SDH) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 6300MM(63W) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●
32	PIPE; DELIVERY,FUEL TANK (B) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●
35	PIPE; FUEL TANK,RETURN L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
35	PIPE; FUEL TANK,RETURN L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
35	PIPE; FUEL TANK,RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0006		●
35	PIPE; FUEL TANK,RETURN FVM(FVM*) GVR(GV**) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0007-0210		●
35	PIPE; FUEL TANK,RETURN FVR(FVR***) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0007-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) WHEEL BASE 5000MM(50W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) WHEEL BASE 6300MM(63W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0011	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	03	1	0012-0201	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0202-0210	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-0210	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0211-		●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0005-0006		●
41	CLIP; FUEL PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (B) L=250	5-09707-030-1	04	1	0007-0011		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	06	1	0012-0201		●
41	CLIP; FUEL PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) L=250	5-09707-030-1	07	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (B) L=250	5-09707-030-1	07	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=250	5-09707-030-1	07	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0007-0011		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (B) L=250	5-09707-030-1	05	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (B) L=250	5-09707-030-1	05	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (B) L=250	5-09707-030-1	05	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0303-				●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	01	1	0005-0011	●		●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	02	1	0012-0201	●	●	●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210	●		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0211-0302		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0303-		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0303-				●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	01	1	0005-0006		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) L=1300	1-09360-677-1	01	1	0007-0011		●
55	COVER; PIPE,FUEL TANK (B) L=800	1-09361-018-0	01	1	0005-		●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	02	1	0007-0011		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) L=350	1-09360-460-1	01	1	0008-		●
55	COVER; PIPE,FUEL TANK FVR(FVR***) (A) L=300	1-09361-073-0	01	1	0008-		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0211-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	08	1	0005-0210			●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8 FLANGE	0-91150-108-0	08	1	0005-0210		●
64	NUT; CLIP FVZ(FVZ***) WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	08	1	0005-0210		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) M8 FLANGE	0-91150-108-0	08	1	0211-0302		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8 FLANGE	0-91150-108-0	08	1	0303-0602		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8 FLANGE	0-91180-108-0	08	1	0603-		●
64	NUT; CLIP FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	0005-0111		●
64	NUT; CLIP FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	0112-0210		●
64	NUT; CLIP FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	11	1	0112-0210		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8 FLANGE	0-91150-108-0	11	1	0211-0602		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8 FLANGE	0-91180-108-0	11	1	0603-		●
64	NUT; CLIP FVM(FVM***) M8 FLANGE	0-91150-108-0	01	1	0008-0210		●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8 FLANGE	0-91150-108-0	09	1	0211-0602		●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8 FLANGE	0-91180-108-0	09	1	0603-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0303-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-0210	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0211-		●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0209	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0210	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0211-0512		●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-		●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0210	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0211-0602		●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-		●		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	08	1	0005-0210			●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8X30 FLANGE	0-28680-830-0	08	1	0005-0210		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	08	1	0005-0210		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) M8X30 FLANGE	0-28680-830-0	08	1	0211-0302		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28680-830-0	08	1	0303-0512		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28650-830-0	08	1	0601-		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	0005-0111		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	0112-0210		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) M8X30 FLANGE	0-28680-830-0	11	1	0112-0210		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8X30 FLANGE	0-28680-830-0	11	1	0211-0512		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8X30 FLANGE	0-28650-830-0	11	1	0601-		●
232	BOLT; CLIP,PIPE FVM(FVM***) M8X30 FLANGE	0-28680-830-0	01	1	0008-0210		●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28680-830-0	09	1	0211-0512		●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28650-830-0	09	1	0601-		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0303-0512				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-				●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0005-0006	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0007-0210	●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0211-0302		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0303-		●
239	CLIP; FUEL PIPE (B) M13X2 H=20 L=60	1-09701-280-0	01	1	0005-0210	●		●
239	CLIP; FUEL PIPE (E) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0005-0210			●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006			●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111			●
239	CLIP; FUEL PIPE FVM(FVM***) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210			●
239	CLIP; FUEL PIPE FVM(FVM***) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) (A) ID=14X29 H=30 L=25	1-09701-101-0	05	1	0211-		●
239	CLIP; FUEL PIPE (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0005-0006		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0007-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0112-0210		●
239	CLIP; FUEL PIPE FUEL TANK 200L FMCSR(PK6) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0211-		●
239	CLIP; FUEL PIPE (B) ID=32 L=50	1-09701-055-1	02	1	0005-		●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0005-0006		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0606		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (C) ID=16X2 L=20	0-95325-536-0	02	1	0607-		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0006		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FUEL TANK 400L(SDH) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0211-		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0112-0210		●
239	CLIP; FUEL PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0211-		●
239	CLIP; FUEL PIPE FVM(FVM***) (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0008-0210		●
239	CLIP; FUEL PIPE (D) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0303-				●
239	CLIP; FUEL PIPE (B) M13X2 H=20 L=60	1-09701-280-0	01	1	0303-				●
634	HOSE; RUBBER RETURN FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
634	HOSE; RUBBER RETURN FVZ(FVZ***) FUEL TANK 400L(SDH) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
634	HOSE; RUBBER RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	0211-0302		●
634	HOSE; RUBBER RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) FUEL TANK 400L(SDH) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	0303-		●
634	HOSE; RUBBER RETURN L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●

41 32 41 41 41 41 32 35 634 41 41 228 228 55 229 32 229 634 35 239 232 239 239 95 232 232 64 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
32	PIPE; DELIVERY,FUEL TANK (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111	●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 5000MM(50W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210	●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=3150 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0210			●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) L=1050 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FUEL TANK 400L(SDH) (B) L=2850 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) L=3050 SERVICED BY L=8000	0-01260-800-0	01	1	0211-0302		●
32	PIPE; DELIVERY,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) FUEL TANK 400L(SDH) (B) L=3050 SERVICED BY L=8000	0-01260-800-0	01	1	0303-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 5000MM(50W) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (B) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK FUEL TANK 400L(SDH) (A) L=980 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) WHEEL BASE 6300MM(63W) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0111		●
32	PIPE; DELIVERY,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (B) L=2800 SERVICED BY L=3000	0-01260-300-0	01	1	0112-0210		●
32	PIPE; DELIVERY,FUEL TANK (A) L=760 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●
32	PIPE; DELIVERY,FUEL TANK (B) L=1600 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●
35	PIPE; FUEL TANK,RETURN L=1550 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
35	PIPE; FUEL TANK,RETURN L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
35	PIPE; FUEL TANK,RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0006		●
35	PIPE; FUEL TANK,RETURN FVM(FVM*) GVR(GV**) L=3650 SERVICED BY L=8000	0-01260-800-0	01	1	0007-0210		●
35	PIPE; FUEL TANK,RETURN FVR(FVR***) L=3800 SERVICED BY L=8000	0-01260-800-0	01	1	0007-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) WHEEL BASE 5000MM(50W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) WHEEL BASE 6300MM(63W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0005-0111		●
35	PIPE; FUEL TANK,RETURN FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) L=3450 SERVICED BY L=8000	0-01260-800-0	01	1	0112-0210		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0011	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	03	1	0012-0201	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0202-0210	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-0210	●	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0211-		●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0005-0006		●
41	CLIP; FUEL PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (B) L=250	5-09707-030-1	04	1	0007-0011		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	06	1	0012-0201		●
41	CLIP; FUEL PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (B) L=250	5-09707-030-1	07	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (B) L=250	5-09707-030-1	07	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FUEL TANK 400L(SDH) (B) L=250	5-09707-030-1	07	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	05	1	0007-0011		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (B) L=250	5-09707-030-1	05	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (B) L=250	5-09707-030-1	05	1	0202-0210		●
41	CLIP; FUEL PIPE,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (B) L=250	5-09707-030-1	05	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	04	1	0303-				●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	01	1	0005-0011	●		●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	02	1	0012-0201	●	●	●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210	●		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0211-0302		●
55	COVER; PIPE,FUEL TANK FUEL TANK 400L(SDH) (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0303-		●
55	COVER; PIPE,FUEL TANK (A) L=150 SERVICED BY L=1300	1-09360-677-1	02	1	0303-				●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	01	1	0005-0006		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) L=1300	1-09360-677-1	01	1	0007-0011		●
55	COVER; PIPE,FUEL TANK (B) L=800	1-09361-018-0	01	1	0005-		●
55	COVER; PIPE,FUEL TANK (A) L=1300	1-09360-677-1	02	1	0007-0011		●
55	COVER; PIPE,FUEL TANK FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) GVR(GV****) (A) L=350	1-09360-460-1	01	1	0008-		●
55	COVER; PIPE,FUEL TANK FVR(FVR***) (A) L=300	1-09361-073-0	01	1	0008-		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0202-0210		●
55	COVER; PIPE,FUEL TANK FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (A) L=150 SERVICED BY L=1300	1-09360-677-1	01	1	0211-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	08	1	0005-0210			●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8 FLANGE	0-91150-108-0	08	1	0005-0210		●
64	NUT; CLIP FVZ(FVZ***) WHEEL BASE 6300MM(63W) M8 FLANGE	0-91150-108-0	08	1	0005-0210		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) M8 FLANGE	0-91150-108-0	08	1	0211-0302		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8 FLANGE	0-91150-108-0	08	1	0303-0602		●
64	NUT; CLIP FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8 FLANGE	0-91180-108-0	08	1	0603-		●
64	NUT; CLIP FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	0005-0111		●
64	NUT; CLIP FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M8 FLANGE	0-91150-108-0	11	1	0112-0210		●
64	NUT; CLIP FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) M8 FLANGE	0-91150-108-0	11	1	0112-0210		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8 FLANGE	0-91150-108-0	11	1	0211-0602		●
64	NUT; CLIP FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8 FLANGE	0-91180-108-0	11	1	0603-		●
64	NUT; CLIP FVM(FVM***) M8 FLANGE	0-91150-108-0	01	1	0008-0210		●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8 FLANGE	0-91150-108-0	09	1	0211-0602		●
64	NUT; CLIP FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8 FLANGE	0-91180-108-0	09	1	0603-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0303-0602				●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-				●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-0210	●	●	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0211-		●		●
228	BOLT; BRKT,SEDIMENTER M10X45 FLANGE	0-28081-045-0	02	1	0005-0209	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0210-0210	●	●	●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0211-0512		●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-		●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0210	●	●	●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0211-0602		●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-		●		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	08	1	0005-0210			●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) M8X30 FLANGE	0-28680-830-0	08	1	0005-0210		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) M8X30 FLANGE	0-28680-830-0	08	1	0005-0210		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) M8X30 FLANGE	0-28680-830-0	08	1	0211-0302		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28680-830-0	08	1	0303-0512		●
232	BOLT; CLIP,PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28650-830-0	08	1	0601-		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	0005-0111		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28680-830-0	11	1	0112-0210		●
232	BOLT; CLIP,PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) M8X30 FLANGE	0-28680-830-0	11	1	0112-0210		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8X30 FLANGE	0-28680-830-0	11	1	0211-0512		●
232	BOLT; CLIP,PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) M8X30 FLANGE	0-28650-830-0	11	1	0601-		●
232	BOLT; CLIP,PIPE FVM(FVM***) M8X30 FLANGE	0-28680-830-0	01	1	0008-0210		●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28680-830-0	09	1	0211-0512		●
232	BOLT; CLIP,PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) M8X30 FLANGE	0-28650-830-0	09	1	0601-		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	05	1	0303-0512				●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-				●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0005-0006	●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0007-0210	●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0211-0302		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) FUEL TANK 400L(SDH) (A) ID=14X29 H=30 L=25	1-09701-101-0	02	1	0303-		●
239	CLIP; FUEL PIPE (B) M13X2 H=20 L=60	1-09701-280-0	01	1	0005-0210	●		●
239	CLIP; FUEL PIPE (E) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0005-0210			●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006			●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0006		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111			●
239	CLIP; FUEL PIPE FVM(FVM***) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0007-0111		●
239	CLIP; FUEL PIPE (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210			●
239	CLIP; FUEL PIPE FVM(FVM***) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 6300MM(63W) (A) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0112-0210		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 400L(SDH) (A) ID=14X29 H=30 L=25	1-09701-101-0	05	1	0211-		●
239	CLIP; FUEL PIPE (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0005-0006		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0007-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0112-0210		●
239	CLIP; FUEL PIPE FUEL TANK 200L FMCSR(PK6) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0211-		●
239	CLIP; FUEL PIPE (B) ID=32 L=50	1-09701-055-1	02	1	0005-		●
239	CLIP; FUEL PIPE (C) ID=16X2 L=20	9-09535-536-0	02	1	0005-0006		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (C) ID=16X2 L=20	9-09535-536-0	02	1	0007-0606		●
239	CLIP; FUEL PIPE FVR(FVR*) GVR(GV**) (C) ID=16X2 L=20	0-95325-536-0	02	1	0607-		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVZ MIDDLE CHASSIS(FVZ5MF) WHEEL BASE 5000MM(50W),WHEEL BASE 7100MM(71W) (A) ID=16X2 H=76 L=50	1-09700-902-0	03	1	0005-0006		●
239	CLIP; FUEL PIPE FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 6300MM(63W) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0007-0210		●
239	CLIP; FUEL PIPE FUEL TANK 400L(SDH) (A) ID=16X2 H=76 L=50	1-09700-902-0	02	1	0211-		●
239	CLIP; FUEL PIPE FVZ(FVZ***) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0005-0111		●
239	CLIP; FUEL PIPE FVZ(FVZ***) FULLER RT7608LL M/T(X8P) WHEEL BASE 5000MM(50W) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0112-0210		●
239	CLIP; FUEL PIPE FVZ(FVZ***) ALLISON MD3560P A/T(Y3B) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0112-0210		●
239	CLIP; FUEL PIPE FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) (D) ID=14X29 H=30 L=25	1-09701-101-0	06	1	0211-		●
239	CLIP; FUEL PIPE FVM(FVM***) (E) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0008-0210		●
239	CLIP; FUEL PIPE (D) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0303-				●
239	CLIP; FUEL PIPE (B) M13X2 H=20 L=60	1-09701-280-0	01	1	0303-				●
634	HOSE; RUBBER RETURN FVR MIDDLE CHASSIS(FVR5MF) FVZ MIDDLE CHASSIS(FVZ5MF) FUEL TANK 200L FMCSR(PK6) L=3700 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
634	HOSE; RUBBER RETURN FVZ(FVZ***) FUEL TANK 400L(SDH) L=3550 SERVICED BY L=8000	0-01260-800-0	01	1	0211-		●
634	HOSE; RUBBER RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	0211-0302		●
634	HOSE; RUBBER RETURN FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) FUEL TANK 400L(SDH) L=3750 SERVICED BY L=8000	0-01260-800-0	01	1	0303-		●
634	HOSE; RUBBER RETURN L=1350 SERVICED BY L=3000	0-01260-300-0	01	1	0303-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
