1 |

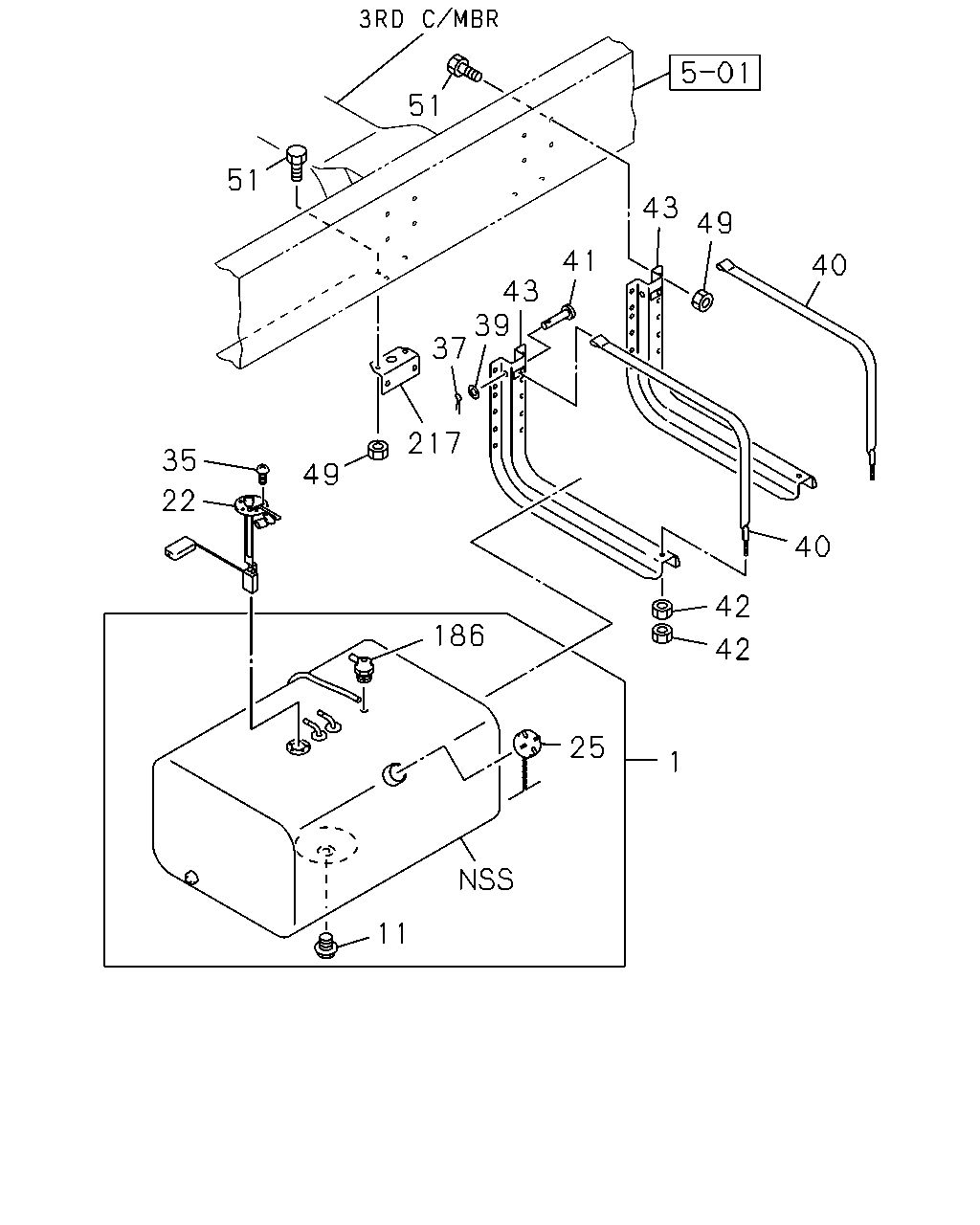

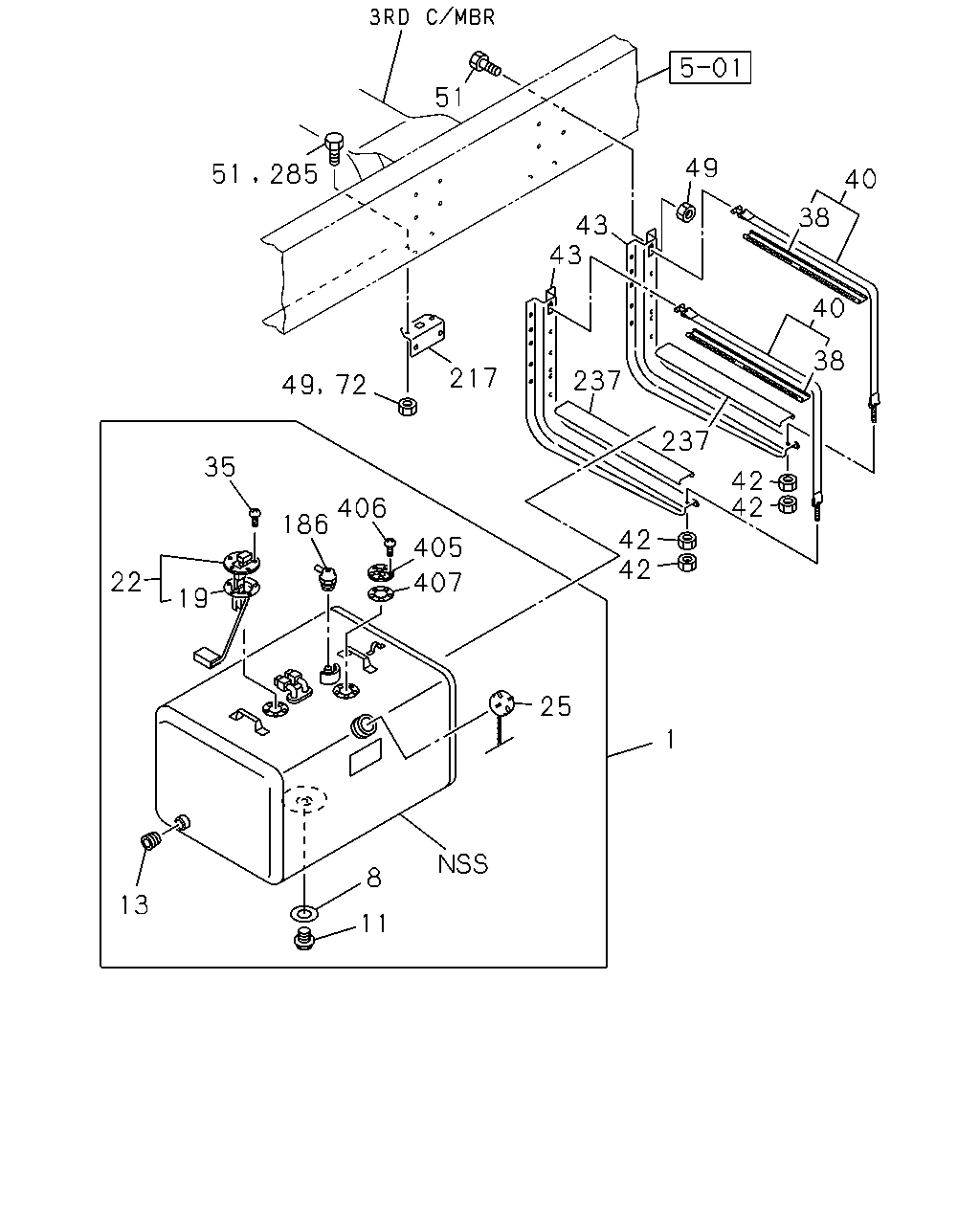

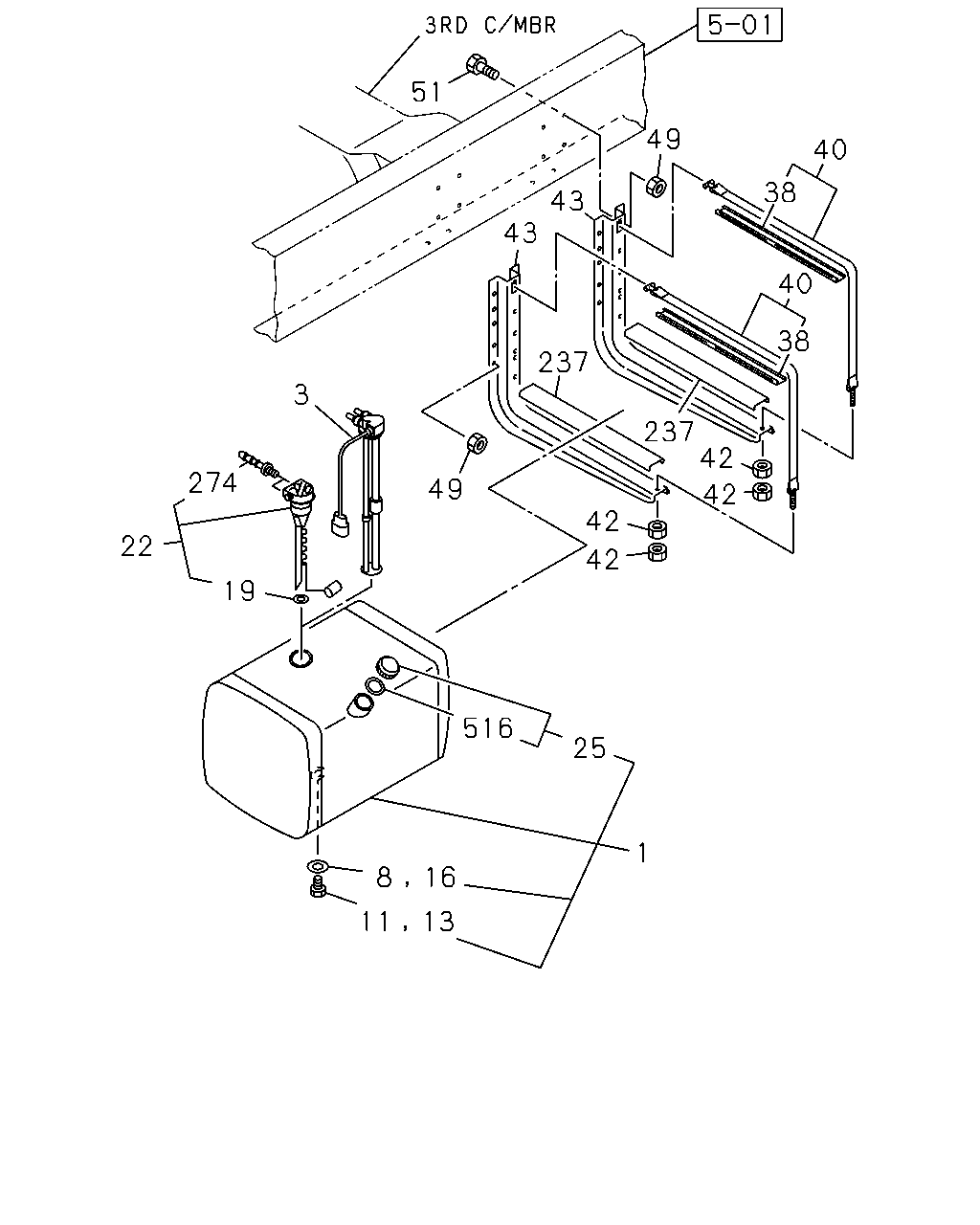

TANK; FUEL
FUEL TANK 400L(SDH)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0211-1202 |
● |
|
|
|
| |
1 |
TANK; FUEL
FUEL TANK 400L(SDH)
1020X685X625 400L
|
1-87412-052-0 |
01 |
1 |
1203- |
● |
|
|
|
| |
1 |
TANK; FUEL
869X597X413 200L
|
1-22400-819-0 |
01 |
1 |
0005-0109 |
|
● |
● |
|
| |
1 |
TANK; FUEL
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
869X597X413 200L
|
1-22400-819-0 |
01 |
1 |
0005-0109 |
● |
|
|
|
| |
1 |
TANK; FUEL
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0110-0111 |
|
● |
● |
|
| |
1 |
TANK; FUEL
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0110-0111 |
● |
|
|
|
| |
1 |
TANK; FUEL
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
1 |
TANK; FUEL
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
1 |
TANK; FUEL
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
1 |
TANK; FUEL
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
1 |
TANK; FUEL
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0303-0501 |
● |
|
|
● |
| |
1 |
TANK; FUEL
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
864X597X413 200L
|
8-98003-138-0 |
01 |
1 |
0502-0804 |
● |
|
|
● |
| |
1 |
TANK; FUEL
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
864X597X413 200L
|
8-98114-400-0 |
01 |
1 |
0805- |
● |
|
|
● |
| |
1 |
TANK; FUEL
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
1 |
TANK; FUEL
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
1 |
TANK; FUEL
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
1 |
TANK; FUEL
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
1020X680X625 400L
|
1-87411-168-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FUEL TANK 400L(SDH)
T=1.60
|
8-98030-453-0 |
01 |
1 |
1211- |
● |
|
|
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0110-0111 |
|
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0110-0111 |
● |
|
|
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0303- |
● |
|
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
FUEL TANK 400L(SDH)
M18X12
|
0-92002-418-0 |
01 |
1 |
1211- |
● |
|
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
|
1-09604-082-0 |
01 |
1 |
0005-0109 |
|
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-09604-082-0 |
01 |
1 |
0005-0109 |
● |
|
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M14X14
|
9-09862-156-0 |
01 |
1 |
0110-0111 |
|
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
M14X14
|
9-09862-156-0 |
01 |
1 |
0110-0111 |
● |
|
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M14X14
|
9-09862-156-0 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
M14X14
|
9-09862-156-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
M14X14
|
9-09862-156-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
M14X14
|
9-09862-156-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
11 |
PLUG; DRAIN,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M14X14
|
9-09862-156-0 |
01 |
1 |
0303- |
● |
|
|
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
|
8-94421-626-0 |
02 |
1 |
0110-0111 |
|
● |
● |
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
8-94421-626-0 |
02 |
1 |
0110-0111 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
|
8-94421-626-0 |
02 |
1 |
0112-0210 |
|
● |
● |
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
8-94421-626-0 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
8-94421-626-0 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
8-94421-626-0 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
8-94421-626-0 |
02 |
1 |
0303- |
● |
|
|
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M18X12
|
9-99202-318-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
M18X12
|
9-99202-318-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M18X12
|
9-99202-318-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
M18X12
|
9-99202-318-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L(SDH)
M18X12
|
9-99202-318-0 |
01 |
1 |
0211-0606 |
● |
|
|
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
FUEL TANK 400L(SDH)
M18X12
|
0-92002-418-0 |
01 |
1 |
0607-1210 |
● |
|
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-83149-003-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-83149-003-0 |
01 |
1 |
0303- |
● |
|
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
ID=58
|
1-83149-005-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
ID=58
|
1-83149-005-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
ID=58
|
1-83149-005-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
ID=58
|
1-83149-005-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L(SDH)
ID=58
|
1-83149-005-0 |
01 |
1 |
0211-1210 |
● |
|
|
|
| |
19 |
GASKET; FUEL TANK UNIT
FUEL TANK 400L(SDH)
|
8-98299-580-0 |
01 |
1 |
1211- |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
|
1-83141-121-0 |
01 |
1 |
0005-0111 |
|
● |
● |
|
| |
22 |
UNIT; FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-83141-121-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
|
1-83141-121-0 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
22 |
UNIT; FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
1-83141-121-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
1-83141-121-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-83141-121-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-83141-121-0 |
01 |
1 |
0303-0501 |
● |
|
|
● |
| |
22 |
UNIT; FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-83141-149-0 |
01 |
1 |
0502- |
● |
|
|
● |
| |
22 |
UNIT; FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-83141-132-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
|
1-83141-132-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-83141-132-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
|
1-83141-132-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
22 |
UNIT; FUEL TANK
FUEL TANK 400L(SDH)
|
1-83141-132-0 |
01 |
1 |
0211-1210 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-050-0 |
01 |
1 |
0005-0109 |
|
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-22440-050-0 |
01 |
1 |
0005-0109 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
|
8-97233-810-0 |
01 |
1 |
0110-0111 |
|
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
8-97233-810-0 |
01 |
1 |
0110-0111 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
|
8-97233-810-0 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
8-97233-810-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
8-97233-810-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
8-97233-810-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
8-97233-810-0 |
01 |
1 |
0303- |
● |
|
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-22440-056-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
|
1-22440-056-0 |
01 |
1 |
0005-0111 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-22440-056-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
|
1-22440-056-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
25 |
CAP; FILLER,FUEL TANK
FUEL TANK 400L(SDH)
|
1-22440-056-0 |
01 |
1 |
0211- |
● |
|
|
|
| |
35 |
SCREW; FUEL TANK UNIT
|
1-09187-007-0 |
05 |
1 |
0005-0109 |
|
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-09187-007-0 |
05 |
1 |
0005-0109 |
● |
|
|
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0110-0111 |
|
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0110-0111 |
● |
|
|
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0112-0210 |
|
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0112-0210 |
● |
|
|
|
| |
35 |
SCREW; FUEL TANK UNIT
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0112-0210 |
● |
|
|
|
| |
35 |
SCREW; FUEL TANK UNIT
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0211-0302 |
● |
|
|
|
| |
35 |
SCREW; FUEL TANK UNIT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0303-0604 |
● |
|
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0605- |
● |
|
|
● |
| |
38 |
INSULATION; SUPPORT BELT
|
1-22553-059-0 |
02 |
1 |
0110-0111 |
|
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-22553-059-0 |
02 |
1 |
0110-0111 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
|
1-22553-059-0 |
02 |
1 |
0112-0210 |
|
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
1-22553-059-0 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
1-22553-059-0 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-22553-059-0 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-22553-059-0 |
02 |
1 |
0303- |
● |
|
|
● |
| |
38 |
INSULATION; SUPPORT BELT
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
L=1156
|
1-22553-039-1 |
02 |
1 |
0005-0111 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
L=1156
|
1-22553-039-1 |
02 |
1 |
0005-0111 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
L=1156
|
1-22553-039-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
L=1156
|
1-22553-039-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
38 |
INSULATION; SUPPORT BELT
FUEL TANK 400L(SDH)
L=1156
|
1-22553-039-1 |
02 |
1 |
0211- |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1035
|
1-22550-221-0 |
02 |
1 |
0005-0109 |
|
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
L=1035
|
1-22550-221-0 |
02 |
1 |
0005-0109 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=925
|
1-22550-255-1 |
02 |
1 |
0110-0111 |
|
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
L=925
|
1-22550-255-1 |
02 |
1 |
0110-0111 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=925
|
1-22550-255-1 |
02 |
1 |
0112-0210 |
|
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
L=925
|
1-22550-255-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
L=925
|
1-22550-255-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
L=925
|
1-22550-255-1 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
L=925
|
1-22550-255-1 |
02 |
1 |
0303- |
● |
|
|
● |
| |
40 |
BELT; SUPPORT,FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
L=1205
|
1-22550-227-2 |
02 |
1 |
0005-0111 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
L=1205
|
1-22550-227-2 |
02 |
1 |
0005-0111 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
L=1205
|
1-22550-227-2 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
L=1205
|
1-22550-227-2 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
40 |
BELT; SUPPORT,FUEL TANK
FUEL TANK 400L(SDH)
L=1205
|
1-22550-227-2 |
02 |
1 |
0211- |
● |
|
|
|
| |
42 |
NUT; SUPPORT BELT
|
1-09487-027-1 |
04 |
1 |
0005-0109 |
|
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-09487-027-1 |
04 |
1 |
0005-0109 |
● |
|
|
|
| |
42 |
NUT; SUPPORT BELT
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M10
|
9-09110-510-0 |
04 |
1 |
0005-0109 |
● |
|
|
|
| |
42 |
NUT; SUPPORT BELT
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
M10
|
9-09110-510-0 |
04 |
1 |
0005-0109 |
● |
|
|
|
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
04 |
1 |
0110-0210 |
● |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FMCSR(PK6),FUEL TANK 400L(SDH)
M10
|
9-09110-510-0 |
04 |
1 |
0211-0302 |
● |
|
|
|
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FMCSR(PK6),FUEL TANK 400L(SDH)
M10
|
9-09110-510-0 |
04 |
1 |
0303-0512 |
● |
|
|
● |
| |
42 |
NUT; SUPPORT BELT
FUEL TANK 200L FMCSR(PK6),FUEL TANK 400L(SDH)
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
● |
|
|
● |
| |
43 |
BRACKET; FUEL TANK
|
1-53461-354-2 |
02 |
1 |
0005-0109 |
|
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-53461-354-2 |
02 |
1 |
0005-0109 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-527-1 |
02 |
1 |
0110-0111 |
|
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-53461-527-1 |
02 |
1 |
0110-0111 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-527-1 |
02 |
1 |
0112-0210 |
|
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
1-53461-527-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
1-53461-527-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-53461-527-1 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-53461-527-1 |
02 |
1 |
0303- |
● |
|
|
● |
| |
43 |
BRACKET; FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-53461-458-2 |
02 |
1 |
0005-0012 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
|
1-53461-458-2 |
02 |
1 |
0005-0012 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-53461-525-0 |
02 |
1 |
0101-0111 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
|
1-53461-525-0 |
02 |
1 |
0101-0111 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-53461-525-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
|
1-53461-525-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
43 |
BRACKET; FUEL TANK
FUEL TANK 400L(SDH)
|
1-53461-525-1 |
02 |
1 |
0211- |
● |
|
|
|
| |
49 |
NUT; BRKT
M12
|
9-99110-512-0 |
12 |
1 |
0005-0210 |
● |
● |
● |
|
| |
49 |
NUT; BRKT
FUEL TANK 400L(SDH)
M12
|
9-99110-512-0 |
10 |
1 |
0211-0512 |
● |
|
|
|
| |
49 |
NUT; BRKT
FUEL TANK 400L(SDH)
M12
|
0-91110-512-0 |
10 |
1 |
0601- |
● |
|
|
|
| |
49 |
NUT; BRKT
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
M12
|
9-99110-512-0 |
11 |
1 |
0211-0302 |
● |
|
|
|
| |
49 |
NUT; BRKT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12
|
9-99110-512-0 |
11 |
1 |
0303-0512 |
● |
|
|
● |
| |
49 |
NUT; BRKT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12
|
0-91110-512-0 |
11 |
1 |
0601- |
● |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0005-0005 |
|
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0005-0005 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0006-0111 |
|
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0006-0111 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
GVR(GV****)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0006-0111 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0112-0210 |
|
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0112-0210 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
GVR(GV****)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0112-0210 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0112-0210 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
GVR(GV****)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0211-0302 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0303-0512 |
● |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
GVR(GV****)
M12X40 FLANGE
|
0-28681-240-0 |
12 |
1 |
0303-0512 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12X40 FLANGE
|
0-28651-240-0 |
12 |
1 |
0601- |
● |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
GVR(GV****)
M12X40 FLANGE
|
0-28651-240-0 |
12 |
1 |
0601- |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
M12X45 FLANGE
|
0-28081-245-0 |
12 |
1 |
0005-0005 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
M12X45 FLANGE
|
0-28081-245-0 |
12 |
1 |
0005-0005 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
M12X45 FLANGE
|
0-28081-245-0 |
12 |
1 |
0006-0111 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
M12X45 FLANGE
|
0-28081-245-0 |
12 |
1 |
0006-0111 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
M12X45 FLANGE
|
0-28081-245-0 |
12 |
1 |
0112-0210 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 6300MM(63W)
M12X45 FLANGE
|
0-28081-245-0 |
12 |
1 |
0112-0210 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVM,FVR,FVZ(FV****)
FUEL TANK 400L(SDH)
M12X45 FLANGE
|
0-28081-245-0 |
12 |
1 |
0211-0512 |
● |
|
|
|
| |
51 |
BOLT; BRKT TO FRAME
FVM,FVR,FVZ(FV****)
FUEL TANK 400L(SDH)
M12X45 FLANGE
|
0-28051-245-0 |
12 |
1 |
0601- |
● |
|
|
|
| |
72 |
NUT; BRKT
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0301-0302 |
● |
|
|
|
| |
72 |
NUT; BRKT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0303-0602 |
● |
|
|
● |
| |
72 |
NUT; BRKT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0603- |
● |
|
|
● |
| |
186 |
VALVE; GT,FUEL TANK
|
1-22453-005-0 |
01 |
1 |
0005-0109 |
|
● |
● |
|
| |
186 |
VALVE; GT,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-22453-005-0 |
01 |
1 |
0005-0109 |
● |
|
|
|
| |
186 |
VALVE; GT,FUEL TANK
|
1-22453-003-0 |
01 |
1 |
0110-0111 |
|
● |
● |
|
| |
186 |
VALVE; GT,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-22453-003-0 |
01 |
1 |
0110-0111 |
● |
|
|
|
| |
186 |
VALVE; GT,FUEL TANK
|
1-22453-003-0 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
186 |
VALVE; GT,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
1-22453-003-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
186 |
VALVE; GT,FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
1-22453-003-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
186 |
VALVE; GT,FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-22453-003-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
186 |
VALVE; GT,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-22453-003-0 |
01 |
1 |
0303-0804 |
● |
|
|
● |
| |
186 |
VALVE; GT,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
8-98103-512-0 |
01 |
1 |
0805- |
● |
|
|
● |
| |
217 |
BRACKET; FUEL TANK,LOW
|
1-53461-432-1 |
02 |
1 |
0005-0111 |
|
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-53461-432-1 |
02 |
1 |
0005-0111 |
● |
|
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
|
1-53461-432-1 |
02 |
1 |
0112-0210 |
|
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
1-53461-432-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
1-53461-432-1 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-53461-432-1 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
217 |
BRACKET; FUEL TANK,LOW
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-53461-432-1 |
02 |
1 |
0303- |
● |
|
|
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
0110-0111 |
|
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
L=480
|
1-22553-002-0 |
02 |
1 |
0110-0111 |
● |
|
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
0112-0210 |
|
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
L=480
|
1-22553-002-0 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
L=480
|
1-22553-002-0 |
02 |
1 |
0112-0210 |
● |
|
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
L=480
|
1-22553-002-0 |
02 |
1 |
0211-0302 |
● |
|
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
L=480
|
1-22553-002-0 |
02 |
1 |
0303- |
● |
|
|
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
FVM MIDDLE CHASSIS(FVM5MF)
FVR MIDDLE CHASSIS(FVR5MF)
GVR(GV****)
|
1-22553-037-0 |
04 |
1 |
0006-0210 |
● |
|
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FVZ(FVZ***)
WHEEL BASE 6300MM(63W)
|
1-22553-037-0 |
04 |
1 |
0006-0210 |
● |
|
|
|
| |
237 |
GASKET; BRKT TO FUEL TANK
FUEL TANK 400L(SDH)
|
1-22553-037-1 |
04 |
1 |
0211- |
● |
|
|
|
| |
285 |
BOLT; BRKT
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
0301-0302 |
● |
|
|
|
| |
285 |
BOLT; BRKT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12X50 FLANGE
|
0-28081-250-0 |
04 |
1 |
0303-0512 |
● |
|
|
● |
| |
285 |
BOLT; BRKT
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M12X50 FLANGE
|
0-28051-250-0 |
04 |
1 |
0601- |
● |
|
|
● |
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
|
1-22451-012-0 |
01 |
1 |
0110-0111 |
|
● |
● |
|
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-22451-012-0 |
01 |
1 |
0110-0111 |
● |
|
|
|
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
|
1-22451-012-0 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
1-22451-012-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
1-22451-012-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-22451-012-0 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-22451-012-0 |
01 |
1 |
0303-0804 |
● |
|
|
● |
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
8-98106-041-0 |
01 |
1 |
0805- |
● |
|
|
● |
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0110-0111 |
|
● |
● |
|
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0110-0111 |
● |
|
|
|
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0112-0210 |
|
● |
● |
|
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0112-0210 |
● |
|
|
|
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0112-0210 |
● |
|
|
|
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0211-0302 |
● |
|
|
|
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0303-0604 |
● |
|
|
● |
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
M5X14 W/LK WASHER
|
0-36220-514-0 |
05 |
1 |
0605- |
● |
|
|
● |
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
|
1-22459-001-1 |
01 |
1 |
0110-0111 |
|
● |
● |
|
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
WHEEL BASE 5000MM(50W)
|
1-22459-001-1 |
01 |
1 |
0110-0111 |
● |
|
|
|
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
|
1-22459-001-1 |
01 |
1 |
0112-0210 |
|
● |
● |
|
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
WHEEL BASE 5000MM(50W)
|
1-22459-001-1 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
ALLISON MD3560P A/T(Y3B)
|
1-22459-001-1 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
FVZ(FVZ***)
FUEL TANK 200L FMCSR(PK6)
|
1-22459-001-1 |
01 |
1 |
0211-0302 |
● |
|
|
|
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
FVR MIDDLE CHASSIS(FVR5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
FUEL TANK 200L FMCSR(PK6)
|
1-22459-001-1 |
01 |
1 |
0303- |
● |
|
|
● |
