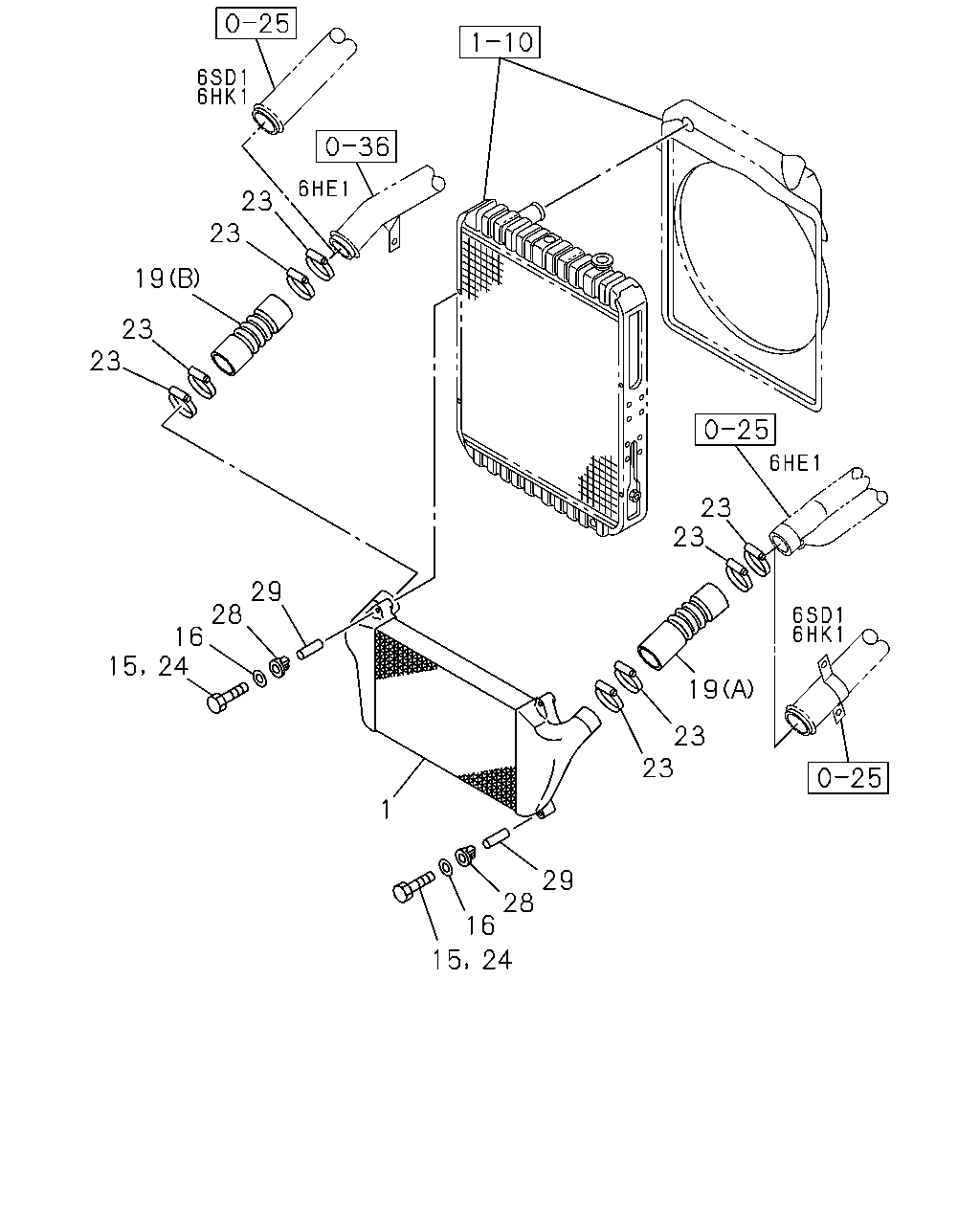

1-35 — CHARGE AIR COOLER (#8640) — 36 parça

23 23 19 23 23 23 23 29 28 16 24 15 19 23 23 1 29 28 16 15 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COOLER; CHARGE AIR	1-14431-041-1	01	1	0005-0210	●
1	COOLER; CHARGE AIR	8-94392-923-2	01	1	0211-0302		●
1	COOLER; CHARGE AIR	8-94392-923-2	01	1	0303-		●	●
1	COOLER; CHARGE AIR	1-14431-044-0	01	1	0005-0210		●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	0-28080-835-0	04	1	0005-0111	●	●
15	BOLT; CHARGE AIR COOLER M8X35 FLANGE	0-28080-835-0	04	1	0112-0210	●
15	BOLT; CHARGE AIR COOLER FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) M8X35 FLANGE	0-28080-835-0	04	1	0112-0210		●
16	WASHER; PL,CHARGE AIR COOLER AUXILIARY TRANSMISSION OIL COOLER<V14> ID=10.5 OD=32	0-91614-810-0	04	1	0612-		●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0005-0210	●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0211-0302		●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0303-0611		●	●
16	WASHER; PL,CHARGE AIR COOLER EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> ID=10.5 OD=32	9-09164-810-0	04	1	0612-		●
16	WASHER; PL,CHARGE AIR COOLER ID=10.5 OD=32	9-09164-810-0	04	1	0612-			●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-94390-035-0	01	1	0005-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94390-043-0	01	1	0005-0210	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	1-09360-911-0	01	1	0005-0210		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-94390-043-0	01	1	0211-		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94395-023-1	01	1	0005-0302		●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (A)	8-94395-023-1	01	1	0303-		●	●
19	HOSE; FLEX,CHARGE AIR COOLER,RAD (B)	8-94395-022-0	01	1	0303-			●
23	CLIP; HOSE ID=58-79	8-94126-771-0	08	1	0005-0210	●	●
23	CLIP; HOSE ID=58-79	8-94126-771-0	08	1	0211-0306		●	●
23	CLIP; HOSE ID=58-76	1-09707-203-0	08	1	0307-0811		●	●
23	CLIP; HOSE ID=55-75	8-98133-349-0	08	1	0812-		●	●
24	BOLT; COOLER TO RAD AUXILIARY TRANSMISSION OIL COOLER<V14> M8X35 FLANGE	0-28050-835-0	04	1	0612-		●
24	BOLT; COOLER TO RAD ALLISON MD3560P A/T(Y3B) M8X35 FLANGE	0-28080-835-0	04	1	0112-0210		●
24	BOLT; COOLER TO RAD M8X35 FLANGE	0-28080-835-0	04	1	0211-0302		●
24	BOLT; COOLER TO RAD M8X35 FLANGE	0-28080-835-0	04	1	0303-0611		●	●
24	BOLT; COOLER TO RAD EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X35 FLANGE	0-28080-835-0	04	1	0612-		●
24	BOLT; COOLER TO RAD M8X35 FLANGE	0-28080-835-0	04	1	0612-			●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-015-1	04	1	0005-0210	●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-015-1	04	1	0211-0302		●
28	RUBBER; MTG,CHARGE AIR COOLER	1-21467-015-1	04	1	0303-		●	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0005-0210	●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0211-0302		●
29	COLLAR; MTG RUBBER,CAC BRKT	1-21469-100-0	04	1	0303-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
