◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶
1-30 — AIR CLEANER (#8638) — 130 parça

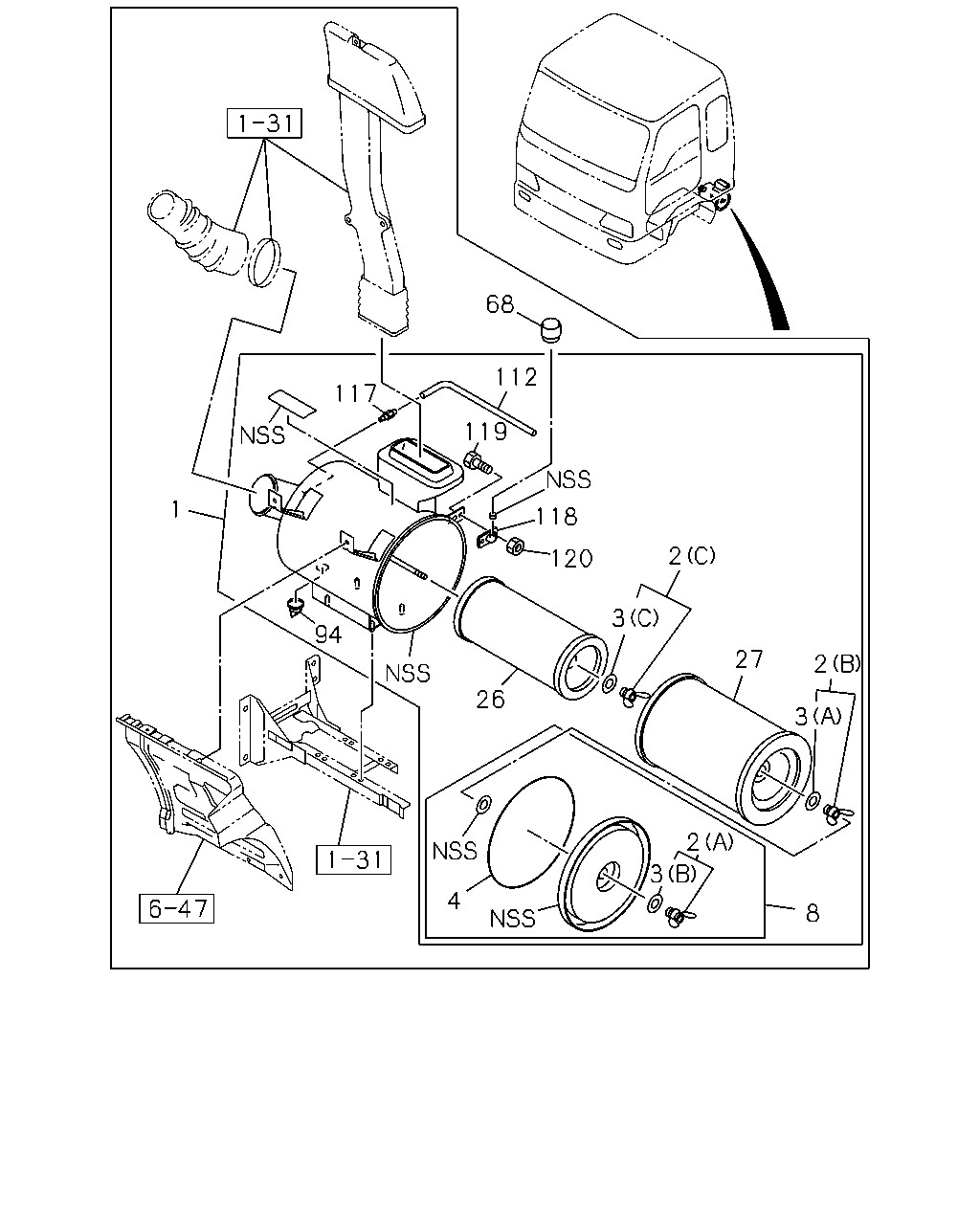

çizim 45839
68 112 117 119 1 118 2 120 3 94 27 2 26 3 2 3 4 8
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR 1-14210-778-4 01 1 0005-0210 ●
1 CLEANER ASM; AIR 1-14210-826-2 01 1 0211- ●
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0303- ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211-0302 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0303- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211-0302 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0303- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211-0302 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0303- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211-0302 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0303- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211-0302 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0303- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211-0302 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0303- ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0211- ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0303- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211-0302 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0303- ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211-0302 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0303- ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0211-0302 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0303- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211-0302 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0303- ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0005-0210 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0210 ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0211-0302 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0303- ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0005-0210 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005-0210 ●
112 HOSE; INDICATOR 1-14219-273-0 01 1 0211- ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0303- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ● ● ●
117 JOINT; INDICATOR HOSE 1-14219-272-0 01 1 0211- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0303- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211-0302 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0303- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211-0302 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0303- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211-0302 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0303- ● ●

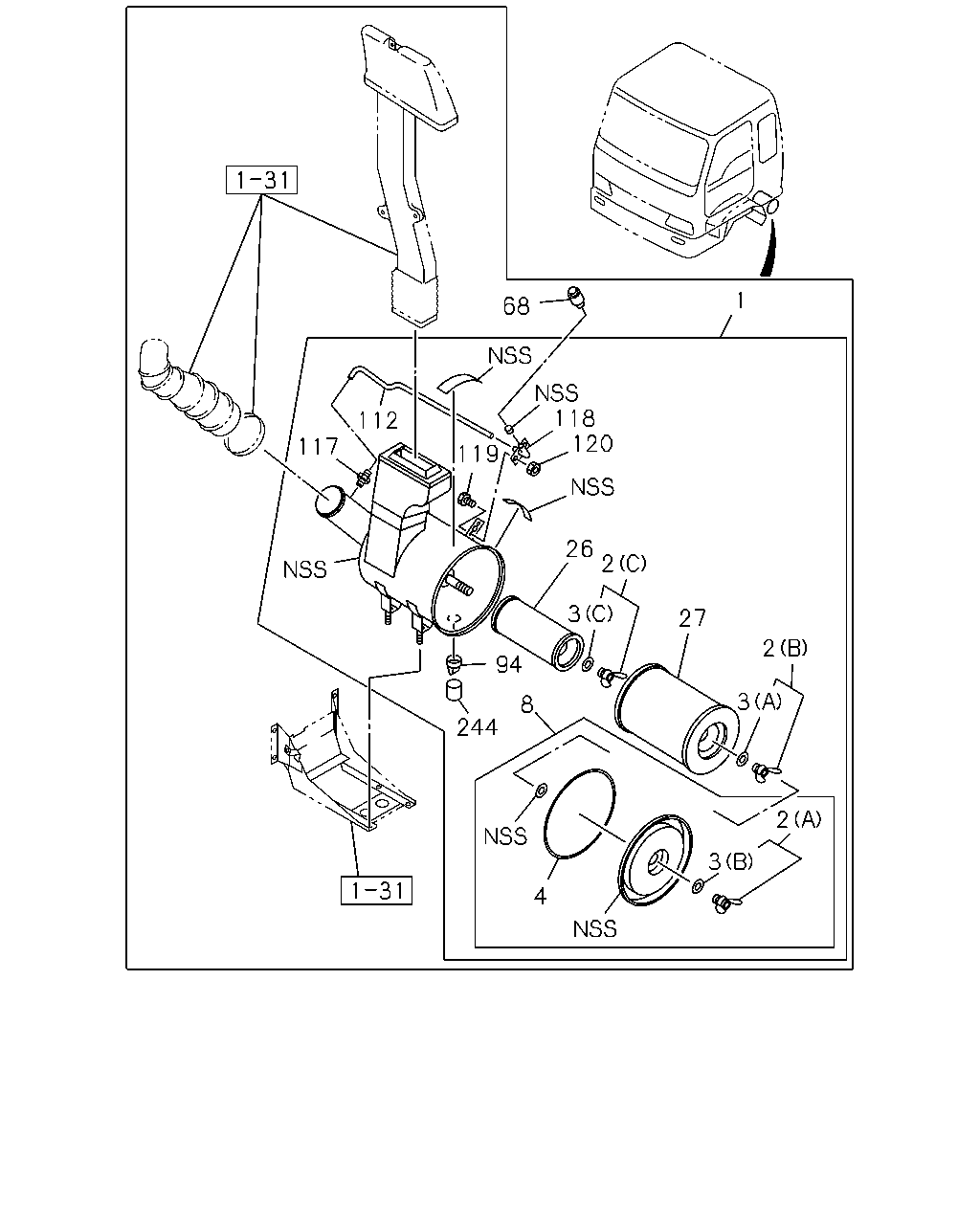

çizim 45877
1 68 118 120 112 117 119 26 2 3 27 2 94 3 8 244 2 3 4
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0005-0210 ● ●
1 CLEANER ASM; AIR 1-14210-778-4 01 1 0005-0210 ●
1 CLEANER ASM; AIR 1-14210-826-2 01 1 0211- ●
1 CLEANER ASM; AIR 1-14210-807-1 01 1 0303- ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0211-0302 ●
2 NUT; WING,ELEMENT
(A) 		1-14217-049-0 01 1 0303- ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0005-0210 ● ● ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0211-0302 ●
2 NUT; WING,ELEMENT
(B) 		1-14217-050-0 01 1 0303- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0005-0210 ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0211-0302 ●
2 NUT; WING,ELEMENT
(C) 		1-14217-003-0 01 1 0303- ● ●
2 NUT; WING,ELEMENT
(C) 		1-14217-036-0 01 1 0005-0210 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0211-0302 ●
3 WASHER; SEAL,WING NUT
(A) 		1-14219-118-0 01 1 0303- ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0005-0210 ● ● ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0211-0302 ●
3 WASHER; SEAL,WING NUT
(B) 		1-14219-156-0 01 1 0303- ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0005-0210 ● ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0211-0302 ●
3 WASHER; SEAL,WING NUT
(C) 		1-14219-032-0 01 1 0303- ● ●
3 WASHER; SEAL,WING NUT
(C) 		9-14219-177-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0005-0210 ● ●
4 GASKET; COVER TO BODY 1-14219-141-0 01 1 0005-0210 ●
4 GASKET; COVER TO BODY 1-14219-128-0 01 1 0211- ●
4 GASKET; COVER TO BODY 1-14219-266-0 01 1 0303- ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0005-0210 ● ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0211-0302 ●
8 COVER ASM; ACL 1-14212-053-0 01 1 0303- ● ●
8 COVER ASM; ACL 1-14212-084-0 01 1 0005-0210 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0005-0210 ● ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0211-0302 ●
26 FILTER; ACL,INNER 1-14215-151-0 01 1 0303- ● ●
26 FILTER; ACL,INNER 1-14215-111-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0211-0302 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0303- ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0005-0210 ● ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0211-0302 ●
27 FILTER; ACL,OUTER 1-14215-181-0 01 1 0303- ● ●
27 FILTER; ACL,OUTER 1-14215-172-0 01 1 0005-0210 ●
27 FILTER; ACL,OUTER
BEST VALUE PARTS 		1-87610-058-0 01 1 0005-0210 ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0005-0210 ● ● ●
68 INDICATOR; SERVICE 1-14219-212-0 01 1 0211- ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0005-0210 ● ● ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0211-0302 ●
94 VALVE; VACUATOR 1-14219-192-0 01 1 0303- ● ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0005-0210 ● ●
112 HOSE; INDICATOR 1-14219-260-0 01 1 0005-0210 ●
112 HOSE; INDICATOR 1-14219-273-0 01 1 0211- ●
112 HOSE; INDICATOR 1-14219-259-0 01 1 0303- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0005-0210 ● ● ●
117 JOINT; INDICATOR HOSE 1-14219-272-0 01 1 0211- ●
117 JOINT; INDICATOR HOSE 1-14210-040-0 01 1 0303- ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0005-0210 ● ● ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0211-0302 ●
118 BRACKET; INDICATOR 1-14219-187-0 01 1 0303- ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0005-0210 ● ● ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0211-0302 ●
119 BOLT; INDICATOR BRKT
M6X16 		9-02040-616-0 02 1 0303- ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0005-0210 ● ● ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0211-0302 ●
120 NUT; INDICATOR BRKT
M6 		9-09111-406-0 02 1 0303- ● ●
244 COVER ASM; VALVE 1-14219-281-0 01 1 0005-0210 ● ●
244 COVER ASM; VALVE 1-14219-281-0 01 1 0303- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
