Sayfa 1-10 - Isuzu EPC

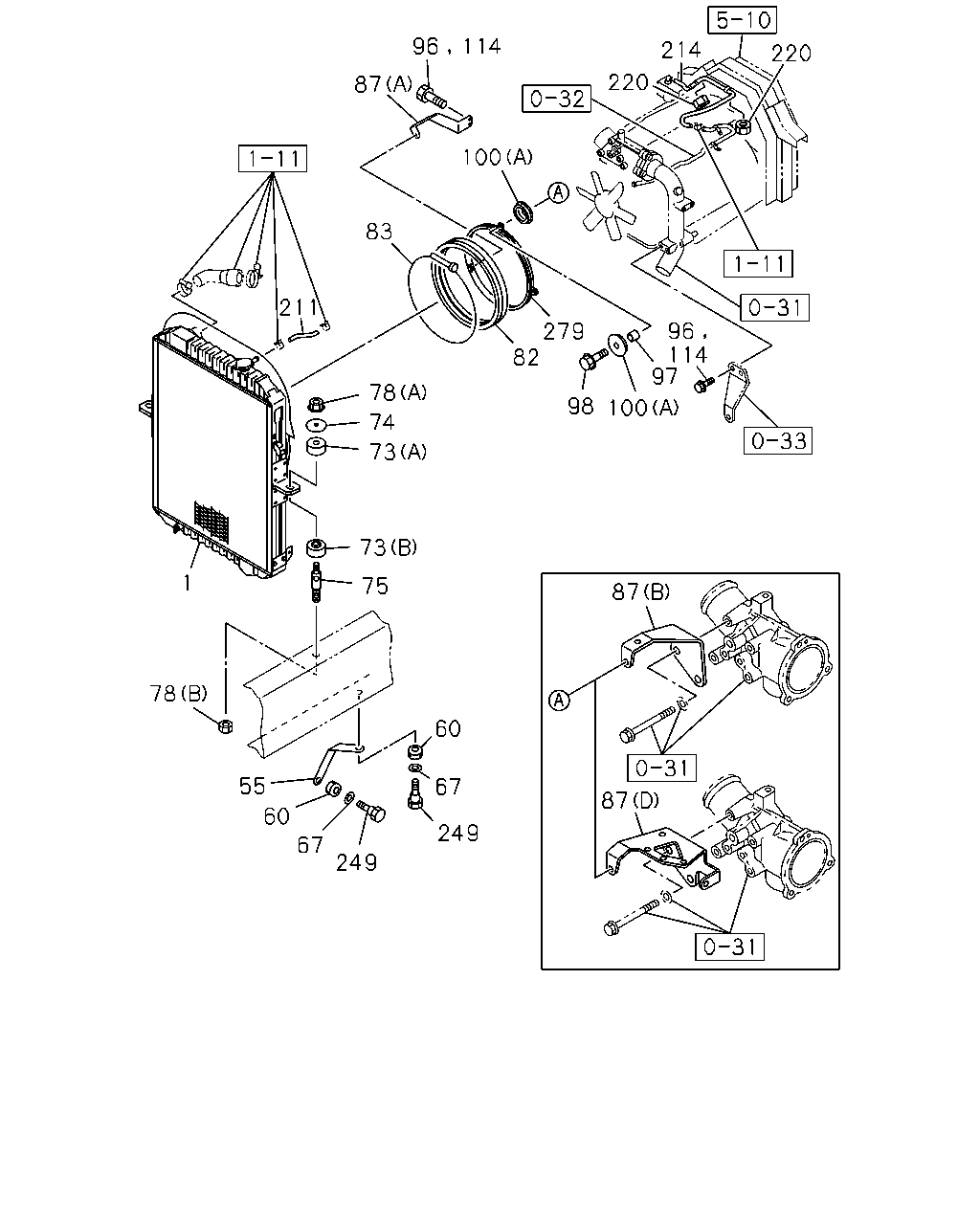

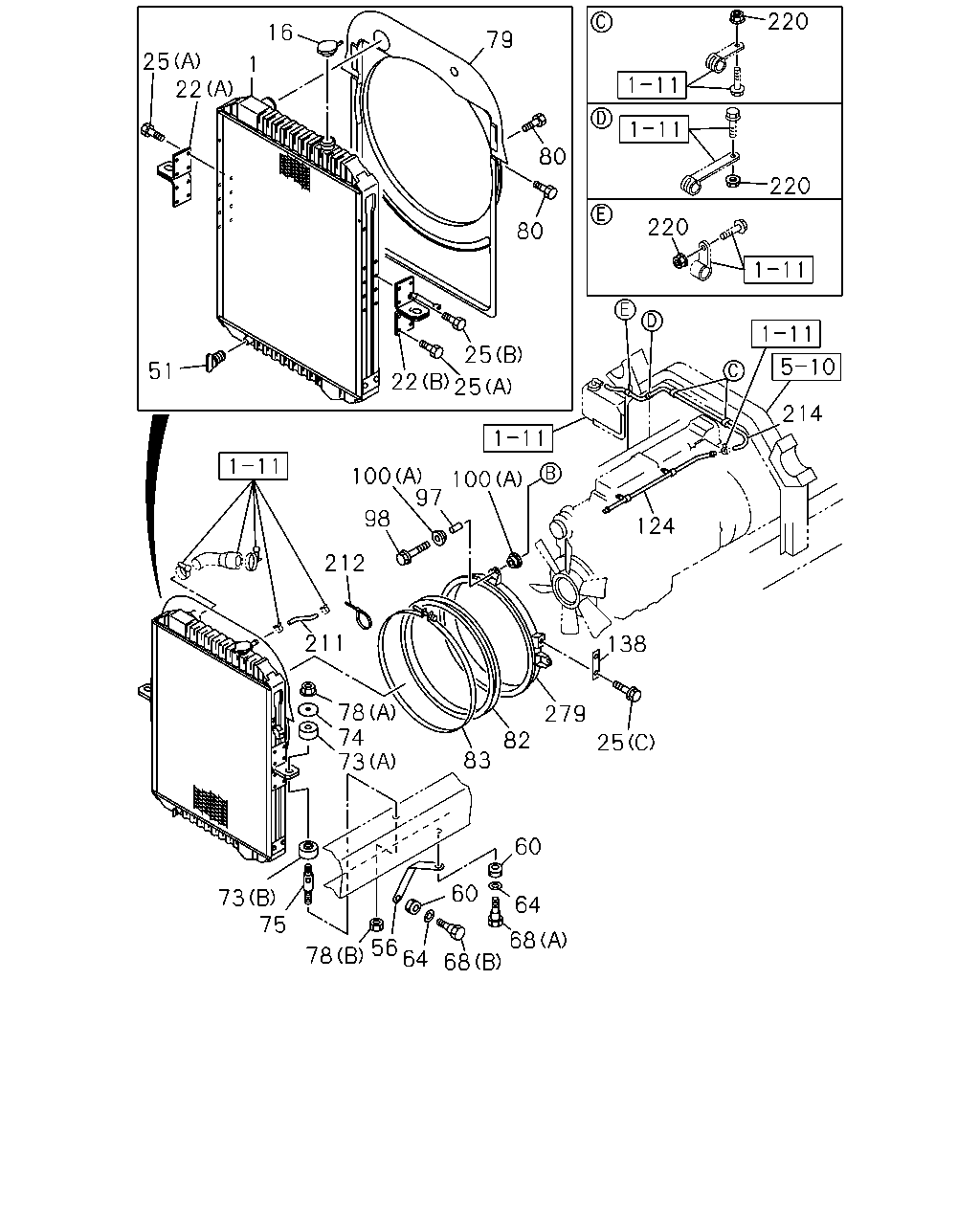

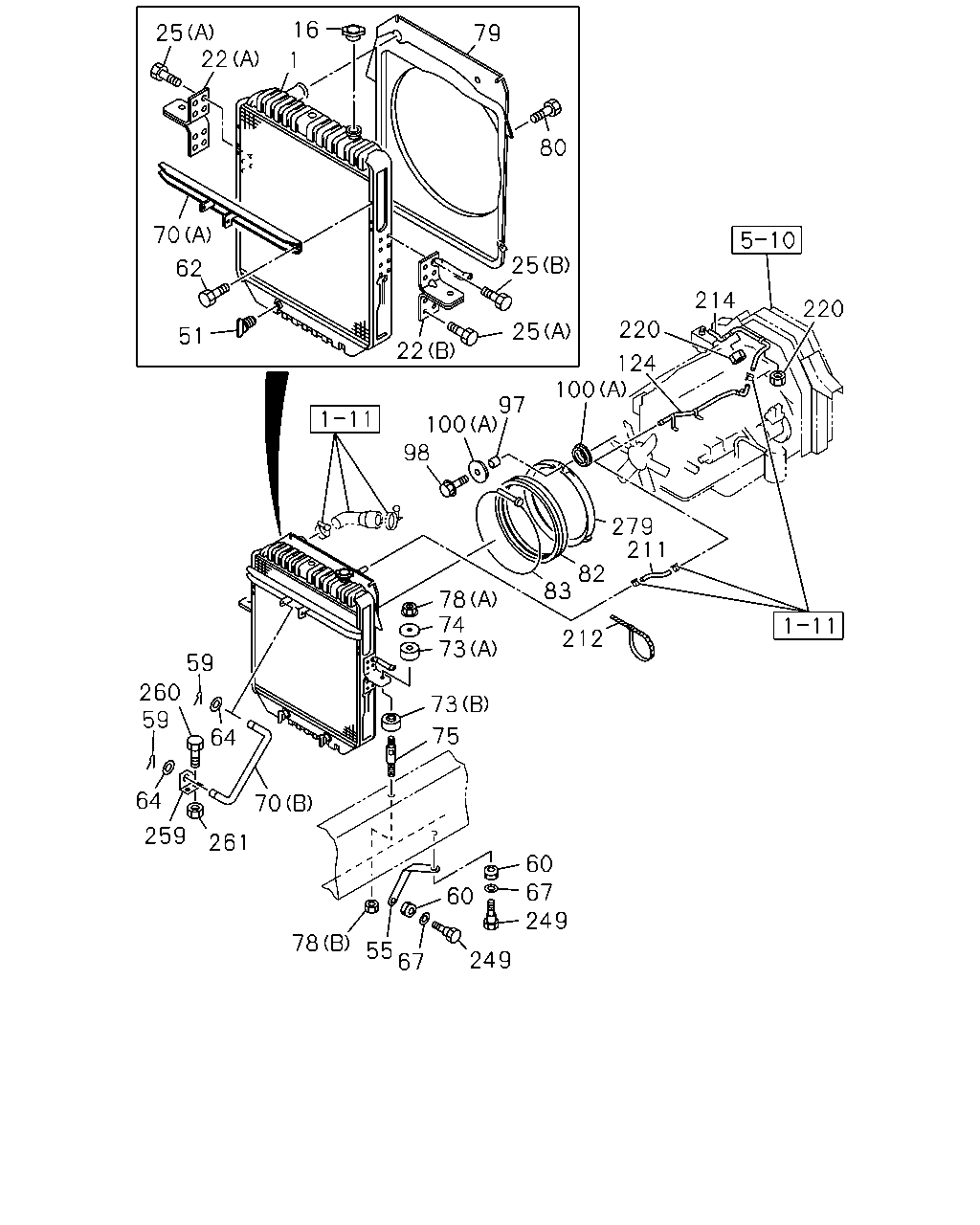

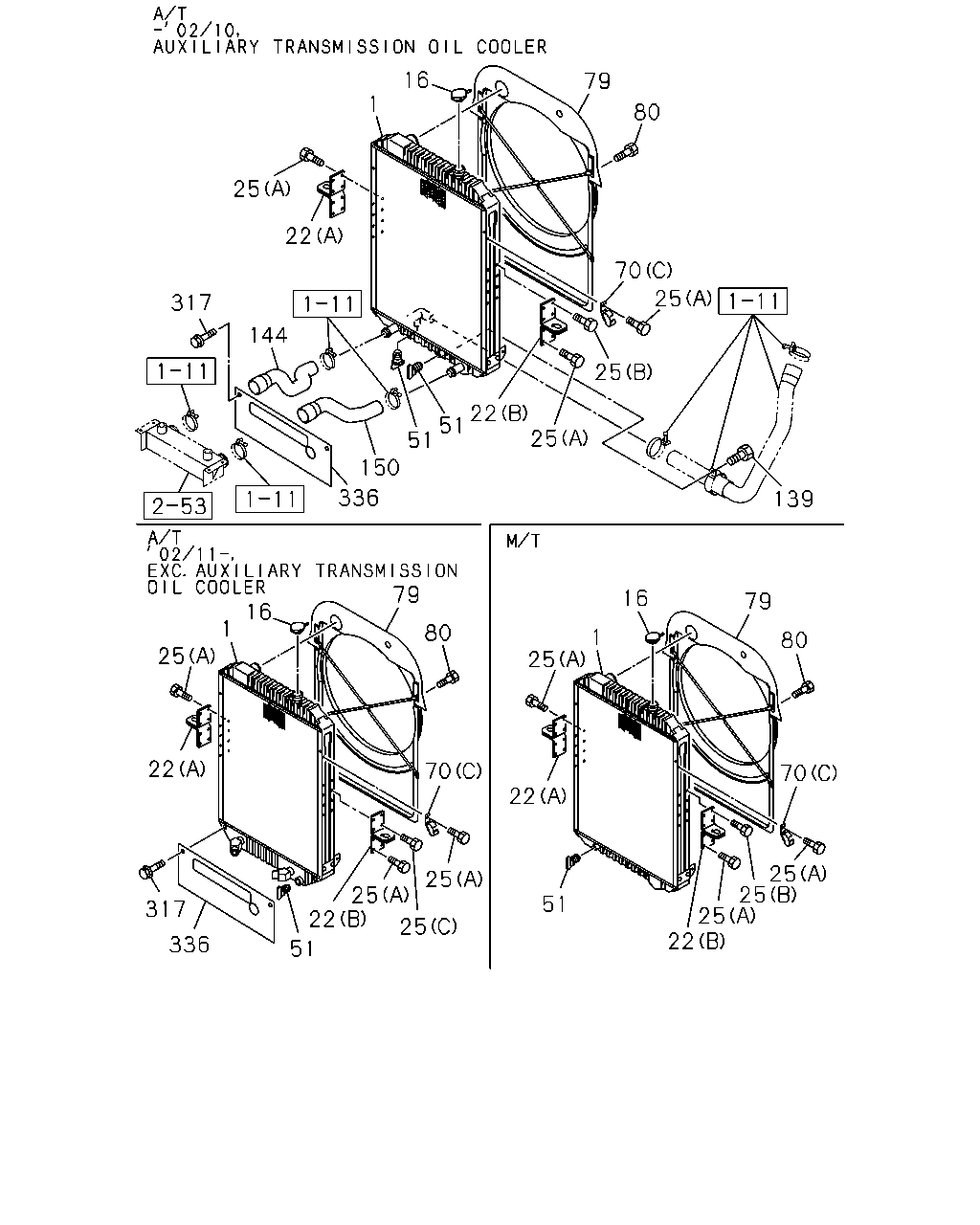

1-10 — RADIATOR (#8636) — 498 parça

16 25 22 79 1 80 70 25 62 214 220 220 25 51 22 124 100 97 100 98 279 211 82 83 78 74 73 212 59 260 59 73 75 64 64 70 259 261 60 67 249 60 78 55 67 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98073-838-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-741-2	01	1	0005-0210		●
1	RADIATOR ASM	1-21410-711-1	01	1	0005-0210			●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0111	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S)	1-21410-708-0	01	1	0112-0210	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-875-0	01	1	0211-0303	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-884-0	01	1	0304-	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-773-0	01	1	0112-0210	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-885-0	01	1	0211-0611	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21410-885-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-889-0	01	1	0303-				●
16	CAP; RAD AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21450-142-0	01	1	0612-	●
16	CAP; RAD	1-21450-053-2	01	1	0005-0210	●	●	●
16	CAP; RAD	1-21450-053-2	01	1	0211-0611	●
16	CAP; RAD EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21450-053-2	01	1	0612-	●
16	CAP; RAD	1-21450-097-2	01	1	0303-				●
22	BRACKET; RAD MTG (A)	1-21464-750-0	01	1	0303-				●
22	BRACKET; RAD MTG (B)	1-21464-549-0	01	1	0005-0210		●
22	BRACKET; RAD MTG (A)	1-21464-463-1	01	1	0005-0210		●	●
22	BRACKET; RAD MTG (B)	1-21464-546-0	01	1	0005-0210			●
22	BRACKET; RAD MTG (A)	1-21464-458-0	01	1	0005-	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0005-0111	●
22	BRACKET; RAD MTG FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (B)	1-21464-520-0	01	1	0112-0210	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0211-0303	●
22	BRACKET; RAD MTG (B)	1-21464-749-0	01	1	0304-	●
22	BRACKET; RAD MTG ALLISON MD3560P A/T(Y3B) (B)	1-21464-459-0	01	1	0112-0210	●
22	BRACKET; RAD MTG (B)	1-21464-737-0	01	1	0303-				●
25	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE	0-28050-812-0	14	1	0612-	●
25	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	14	1	0304-0611	●
25	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE	0-28080-812-0	14	1	0612-	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0005-0210		●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0302	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0303-0611	●			●
25	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE	0-28080-816-0	01	1	0612-	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0612-				●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	17	1	0005-0210	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0211-0302	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0303-0303	●			●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0304-				●
25	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512				●
25	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-				●
51	PLUG; DRAIN AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET	1-09609-009-0	02	1	0612-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-0111	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0112-0210		●	●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) W/GASKET	1-09609-009-0	01	1	0112-0210	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0211-0302	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0303-0611	●			●
51	PLUG; DRAIN EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET	1-09609-009-0	01	1	0612-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0612-				●
51	PLUG; DRAIN ALLISON MD3560P A/T(Y3B) W/GASKET	1-09609-009-0	02	1	0112-0210	●
55	STAY; RAD TO UPR MBR	1-21464-570-0	01	1	0005-0210		●
55	STAY; RAD TO UPR MBR	1-21464-569-0	01	1	0005-0210		●
55	STAY; RAD TO UPR MBR	1-21464-453-0	01	1	0005-	●
55	STAY; RAD TO UPR MBR	1-21464-452-0	01	1	0005-	●
59	PIN; SNAP,STAY	1-09987-158-1	02	1	0005-0210			●
60	GROMMET	1-09332-117-0	04	1	0005-0210	●	●
60	GROMMET	1-09332-117-0	04	1	0211-0302	●
60	GROMMET	1-09332-117-0	04	1	0303-	●			●
62	BOLT; STAY M8X12 FLANGE	0-28080-812-0	02	1	0005-0210			●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0005-0210			●
64	WASHER; STAY TO RAD ID=12.5 OD=26	9-09160-612-0	04	1	0303-0605				●
64	WASHER; STAY TO RAD ID=12.5 OD=26	0-91610-612-0	04	1	0606-				●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0005-0210	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0211-0605	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0005-0210			●
70	STAY; RAD (B)	1-21522-070-0	01	1	0005-0210			●
70	STAY; RAD (C)	1-83571-875-0	01	1	0005-	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0005-0210	●	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0211-	●			●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0005-0210	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0211-	●			●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0005-0210	●	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0211-	●			●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0005-0210	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0211-	●			●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0211-0602	●			●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●			●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0005-0210	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0211-	●			●
79	GUIDE; FAN,RAD AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98077-134-0	01	1	0702-	●
79	GUIDE; FAN,RAD	1-21551-452-0	01	1	0005-0210		●
79	GUIDE; FAN,RAD	1-21551-374-2	01	1	0005-0210			●
79	GUIDE; FAN,RAD	1-21551-397-2	01	1	0005-0111	●
79	GUIDE; FAN,RAD FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S)	1-21551-397-2	01	1	0112-0210	●
79	GUIDE; FAN,RAD	1-21551-531-0	01	1	0211-0701	●
79	GUIDE; FAN,RAD EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21551-531-0	01	1	0702-	●
79	GUIDE; FAN,RAD ALLISON MD3560P A/T(Y3B)	1-21551-444-0	01	1	0112-0210	●
79	GUIDE; FAN,RAD	1-21551-532-0	01	1	0303-				●
80	BOLT; FAN GUIDE AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE	0-28050-610-0	04	1	0612-	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0005-0210		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0211-0611	●
80	BOLT; FAN GUIDE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE	0-28080-610-0	04	1	0612-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-0210	●		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	08	1	0303-				●
82	COVER; FAN,RAD	1-21559-321-0	01	1	0005-0210		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	0005-0210			●
82	COVER; FAN,RAD	1-21559-397-0	01	1	0005-	●
82	COVER; FAN,RAD	1-21559-321-0	01	1	0303-				●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0005-0210	●	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0211-	●			●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0005-0210	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0211-	●			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0211-0512	●			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0005-0210		●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0005-0210	●	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0211-	●			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0303-0910				●
100	RUBBER; MTG (B)	8-98148-109-0	01	1	0911-				●
124	PIPE; WATER,TANK TO RAD	8-94395-451-1	01	1	0005-0210		●
124	PIPE; WATER,TANK TO RAD	8-94394-461-4	01	1	0005-0210			●
124	PIPE; WATER,TANK TO RAD	8-97601-482-0	01	1	0303-				●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109		●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210		●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210	●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03557-300-0	01	1	0211-	●
211	HOSE; RAD TO PIPE L=660 SERVICED BY L=3000	0-03557-300-0	01	1	0303-				●
212	CLIP; HOSE L=100	5-09707-036-1	01	1	0005-0102		●	●
212	CLIP; HOSE L=140	5-09707-031-1	01	1	0103-0210		●	●
212	CLIP; HOSE L=250	5-09707-030-1	01	1	0303-				●
214	HOSE; PIPE TO RESERVE TANK L=1400 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109		●
214	HOSE; PIPE TO RESERVE TANK L=1400 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210		●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109			●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210			●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210	●
214	HOSE; PIPE TO RESERVE TANK L=760 SERVICED BY L=3000	0-03557-300-0	01	1	0211-	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03557-300-0	01	1	0303-				●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602	●			●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●			●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0303-0602				●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-				●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0005-0205	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0206-0210	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0211-	●
249	BOLT; STAY,RAD MBR M8X22	1-09009-123-0	02	1	0206-0210	●	●
249	BOLT; STAY,RAD MBR M8X22	1-09009-123-0	02	1	0211-	●
259	BRACKET; RAD STAY	1-21523-025-0	01	1	0005-0210			●
260	BOLT; BRKT M8X20 FLANGE	0-28680-820-0	02	1	0005-0210			●
261	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0005-0210			●
279	BELL MOUTH	8-94393-779-0	01	1	0005-0210		●
279	BELL MOUTH	8-94394-808-2	01	1	0005-0210			●
279	BELL MOUTH	1-21551-395-0	01	1	0005-	●
279	BELL MOUTH	8-97601-172-1	01	1	0303-				●

16 79 1 80 25 22 70 25 317 144 25 22 51 25 51 150 336 139 16 79 16 79 1 80 1 80 25 25 22 70 70 22 25 25 25 22 25 25 22 51 317 25 336 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98073-838-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-741-2	01	1	0005-0210		●
1	RADIATOR ASM	1-21410-711-1	01	1	0005-0210			●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0111	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S)	1-21410-708-0	01	1	0112-0210	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-875-0	01	1	0211-0303	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-884-0	01	1	0304-	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-773-0	01	1	0112-0210	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-885-0	01	1	0211-0611	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21410-885-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-889-0	01	1	0303-				●
16	CAP; RAD AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21450-142-0	01	1	0612-	●
16	CAP; RAD	1-21450-053-2	01	1	0005-0210	●	●	●
16	CAP; RAD	1-21450-053-2	01	1	0211-0611	●
16	CAP; RAD EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21450-053-2	01	1	0612-	●
16	CAP; RAD	1-21450-097-2	01	1	0303-				●
22	BRACKET; RAD MTG (A)	1-21464-750-0	01	1	0303-				●
22	BRACKET; RAD MTG (B)	1-21464-549-0	01	1	0005-0210		●
22	BRACKET; RAD MTG (A)	1-21464-463-1	01	1	0005-0210		●	●
22	BRACKET; RAD MTG (B)	1-21464-546-0	01	1	0005-0210			●
22	BRACKET; RAD MTG (A)	1-21464-458-0	01	1	0005-	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0005-0111	●
22	BRACKET; RAD MTG FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (B)	1-21464-520-0	01	1	0112-0210	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0211-0303	●
22	BRACKET; RAD MTG (B)	1-21464-749-0	01	1	0304-	●
22	BRACKET; RAD MTG ALLISON MD3560P A/T(Y3B) (B)	1-21464-459-0	01	1	0112-0210	●
22	BRACKET; RAD MTG (B)	1-21464-737-0	01	1	0303-				●
25	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE	0-28050-812-0	14	1	0612-	●
25	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	14	1	0304-0611	●
25	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE	0-28080-812-0	14	1	0612-	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0005-0210		●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0302	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0303-0611	●			●
25	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE	0-28080-816-0	01	1	0612-	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0612-				●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	17	1	0005-0210	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0211-0302	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0303-0303	●			●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0304-				●
25	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512				●
25	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-				●
51	PLUG; DRAIN AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET	1-09609-009-0	02	1	0612-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-0111	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0112-0210		●	●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) W/GASKET	1-09609-009-0	01	1	0112-0210	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0211-0302	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0303-0611	●			●
51	PLUG; DRAIN EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET	1-09609-009-0	01	1	0612-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0612-				●
51	PLUG; DRAIN ALLISON MD3560P A/T(Y3B) W/GASKET	1-09609-009-0	02	1	0112-0210	●
70	STAY; RAD (A)	1-21522-064-0	01	1	0005-0210			●
70	STAY; RAD (B)	1-21522-070-0	01	1	0005-0210			●
70	STAY; RAD (C)	1-83571-875-0	01	1	0005-	●
79	GUIDE; FAN,RAD AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98077-134-0	01	1	0702-	●
79	GUIDE; FAN,RAD	1-21551-452-0	01	1	0005-0210		●
79	GUIDE; FAN,RAD	1-21551-374-2	01	1	0005-0210			●
79	GUIDE; FAN,RAD	1-21551-397-2	01	1	0005-0111	●
79	GUIDE; FAN,RAD FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S)	1-21551-397-2	01	1	0112-0210	●
79	GUIDE; FAN,RAD	1-21551-531-0	01	1	0211-0701	●
79	GUIDE; FAN,RAD EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21551-531-0	01	1	0702-	●
79	GUIDE; FAN,RAD ALLISON MD3560P A/T(Y3B)	1-21551-444-0	01	1	0112-0210	●
79	GUIDE; FAN,RAD	1-21551-532-0	01	1	0303-				●
80	BOLT; FAN GUIDE AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE	0-28050-610-0	04	1	0612-	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0005-0210		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0211-0611	●
80	BOLT; FAN GUIDE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE	0-28080-610-0	04	1	0612-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-0210	●		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	08	1	0303-				●
139	BOLT; CLIP BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> M8X20 FLANGE	0-28650-820-0	01	1	0702-	●
139	BOLT; CLIP BRKT ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28680-820-0	01	1	0112-0210	●
144	HOSE; RUBBER,PIPE AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21437-746-0	01	1	0612-	●
144	HOSE; RUBBER,PIPE ALLISON MD3560P A/T(Y3B)	1-21437-746-0	01	1	0112-0210	●
150	HOSE; OIL COOLER AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21437-747-0	01	1	0612-	●
150	HOSE; OIL COOLER ALLISON MD3560P A/T(Y3B)	1-21437-747-0	01	1	0112-0210	●
317	BOLT; SEAL AUXILIARY TRANSMISSION OIL COOLER<V14> M8X12 FLANGE	0-28050-812-0	02	1	0612-	●
317	BOLT; SEAL ALLISON MD3560P A/T(Y3B) M8X12 FLANGE	0-28080-812-0	02	1	0211-0611	●
317	BOLT; SEAL ALLISON MD3560P A/T(Y3B) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M8X12 FLANGE	0-28080-812-0	02	1	0612-	●
336	SEAL; LWR,RAD AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98073-837-0	01	1	0612-	●
336	SEAL; LWR,RAD ALLISON MD3560P A/T(Y3B)	1-21469-147-0	01	1	0211-0611	●
336	SEAL; LWR,RAD ALLISON MD3560P A/T(Y3B) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21469-147-0	01	1	0612-	●

220 16 79 25 22 1 80 220 220 80 25 51 22 25 214 100 97 100 98 124 212 211 138 78 74 73 279 82 25 83 60 60 73 75 64 68 68 56 78 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98073-838-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-741-2	01	1	0005-0210		●
1	RADIATOR ASM	1-21410-711-1	01	1	0005-0210			●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0111	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S)	1-21410-708-0	01	1	0112-0210	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-875-0	01	1	0211-0303	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-884-0	01	1	0304-	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-773-0	01	1	0112-0210	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-885-0	01	1	0211-0611	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21410-885-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-889-0	01	1	0303-				●
16	CAP; RAD AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21450-142-0	01	1	0612-	●
16	CAP; RAD	1-21450-053-2	01	1	0005-0210	●	●	●
16	CAP; RAD	1-21450-053-2	01	1	0211-0611	●
16	CAP; RAD EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21450-053-2	01	1	0612-	●
16	CAP; RAD	1-21450-097-2	01	1	0303-				●
22	BRACKET; RAD MTG (A)	1-21464-750-0	01	1	0303-				●
22	BRACKET; RAD MTG (B)	1-21464-549-0	01	1	0005-0210		●
22	BRACKET; RAD MTG (A)	1-21464-463-1	01	1	0005-0210		●	●
22	BRACKET; RAD MTG (B)	1-21464-546-0	01	1	0005-0210			●
22	BRACKET; RAD MTG (A)	1-21464-458-0	01	1	0005-	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0005-0111	●
22	BRACKET; RAD MTG FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) (B)	1-21464-520-0	01	1	0112-0210	●
22	BRACKET; RAD MTG (B)	1-21464-520-0	01	1	0211-0303	●
22	BRACKET; RAD MTG (B)	1-21464-749-0	01	1	0304-	●
22	BRACKET; RAD MTG ALLISON MD3560P A/T(Y3B) (B)	1-21464-459-0	01	1	0112-0210	●
22	BRACKET; RAD MTG (B)	1-21464-737-0	01	1	0303-				●
25	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE	0-28050-812-0	14	1	0612-	●
25	BOLT; BRKT AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE	0-28050-816-0	01	1	0612-	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	14	1	0304-0611	●
25	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (A) M8X12 FLANGE	0-28080-812-0	14	1	0612-	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0005-0210		●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0005-0210		●	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0211-0302	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0303-0611	●			●
25	BOLT; BRKT EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> (B) M8X16 FLANGE	0-28080-816-0	01	1	0612-	●
25	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	01	1	0612-				●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	17	1	0005-0210	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0211-0302	●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0303-0303	●			●
25	BOLT; BRKT (A) M8X12 FLANGE	0-28080-812-0	15	1	0304-				●
25	BOLT; BRKT (C) M8X20 FLANGE	0-28680-820-0	01	1	0303-0512				●
25	BOLT; BRKT (C) M8X20 FLANGE	0-28650-820-0	01	1	0601-				●
51	PLUG; DRAIN AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET	1-09609-009-0	02	1	0612-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0005-0111	●	●	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0112-0210		●	●
51	PLUG; DRAIN FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S) W/GASKET	1-09609-009-0	01	1	0112-0210	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0211-0302	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0303-0611	●			●
51	PLUG; DRAIN EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> W/GASKET	1-09609-009-0	01	1	0612-	●
51	PLUG; DRAIN W/GASKET	1-09609-009-0	01	1	0612-				●
51	PLUG; DRAIN ALLISON MD3560P A/T(Y3B) W/GASKET	1-09609-009-0	02	1	0112-0210	●
56	STAY; RAD	1-21464-708-0	01	1	0303-				●
56	STAY; RAD	1-21464-709-0	01	1	0303-				●
60	GROMMET	1-09332-117-0	04	1	0005-0210	●	●
60	GROMMET	1-09332-117-0	04	1	0211-0302	●
60	GROMMET	1-09332-117-0	04	1	0303-	●			●
64	WASHER; STAY TO RAD ID=12.5	9-09160-512-0	02	1	0005-0210			●
64	WASHER; STAY TO RAD ID=12.5 OD=26	9-09160-612-0	04	1	0303-0605				●
64	WASHER; STAY TO RAD ID=12.5 OD=26	0-91610-612-0	04	1	0606-				●
68	BOLT; STAY TO BRKT (A) M8X30	1-09009-020-1	02	1	0303-				●
68	BOLT; STAY TO BRKT (B) M8X22	1-09009-123-0	02	1	0303-				●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0005-0210	●	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0211-	●			●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0005-0210	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0211-	●			●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0005-0210	●	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0211-	●			●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0005-0210	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0211-	●			●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0211-0602	●			●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●			●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0005-0210	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0211-	●			●
79	GUIDE; FAN,RAD AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98077-134-0	01	1	0702-	●
79	GUIDE; FAN,RAD	1-21551-452-0	01	1	0005-0210		●
79	GUIDE; FAN,RAD	1-21551-374-2	01	1	0005-0210			●
79	GUIDE; FAN,RAD	1-21551-397-2	01	1	0005-0111	●
79	GUIDE; FAN,RAD FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S)	1-21551-397-2	01	1	0112-0210	●
79	GUIDE; FAN,RAD	1-21551-531-0	01	1	0211-0701	●
79	GUIDE; FAN,RAD EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21551-531-0	01	1	0702-	●
79	GUIDE; FAN,RAD ALLISON MD3560P A/T(Y3B)	1-21551-444-0	01	1	0112-0210	●
79	GUIDE; FAN,RAD	1-21551-532-0	01	1	0303-				●
80	BOLT; FAN GUIDE AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE	0-28050-610-0	04	1	0612-	●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0005-0210		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	04	1	0211-0611	●
80	BOLT; FAN GUIDE EXC. AUXILIARY TRANSMISSION OIL COOLER<V14> M6X10 FLANGE	0-28080-610-0	04	1	0612-	●
80	BOLT; FAN GUIDE M6X12 FLANGE	0-28080-612-0	04	1	0005-0210	●		●
80	BOLT; FAN GUIDE M6X10 FLANGE	0-28080-610-0	08	1	0303-				●
82	COVER; FAN,RAD	1-21559-321-0	01	1	0005-0210		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	0005-0210			●
82	COVER; FAN,RAD	1-21559-397-0	01	1	0005-	●
82	COVER; FAN,RAD	1-21559-321-0	01	1	0303-				●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0005-0210	●	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0211-	●			●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0005-0210	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0211-	●			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0211-0512	●			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0005-0210		●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0005-0210	●	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0211-	●			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0303-0910				●
100	RUBBER; MTG (B)	8-98148-109-0	01	1	0911-				●
124	PIPE; WATER,TANK TO RAD	8-94395-451-1	01	1	0005-0210		●
124	PIPE; WATER,TANK TO RAD	8-94394-461-4	01	1	0005-0210			●
124	PIPE; WATER,TANK TO RAD	8-97601-482-0	01	1	0303-				●
138	BRACKET; CLIP	1-47476-881-0	01	1	0303-				●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109		●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210		●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210	●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03557-300-0	01	1	0211-	●
211	HOSE; RAD TO PIPE L=660 SERVICED BY L=3000	0-03557-300-0	01	1	0303-				●
212	CLIP; HOSE L=100	5-09707-036-1	01	1	0005-0102		●	●
212	CLIP; HOSE L=140	5-09707-031-1	01	1	0103-0210		●	●
212	CLIP; HOSE L=250	5-09707-030-1	01	1	0303-				●
214	HOSE; PIPE TO RESERVE TANK L=1400 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109		●
214	HOSE; PIPE TO RESERVE TANK L=1400 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210		●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109			●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210			●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210	●
214	HOSE; PIPE TO RESERVE TANK L=760 SERVICED BY L=3000	0-03557-300-0	01	1	0211-	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03557-300-0	01	1	0303-				●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602	●			●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●			●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0303-0602				●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-				●
279	BELL MOUTH	8-94393-779-0	01	1	0005-0210		●
279	BELL MOUTH	8-94394-808-2	01	1	0005-0210			●
279	BELL MOUTH	1-21551-395-0	01	1	0005-	●
279	BELL MOUTH	8-97601-172-1	01	1	0303-				●

486 100 87 96 87 87 87 87 96 87

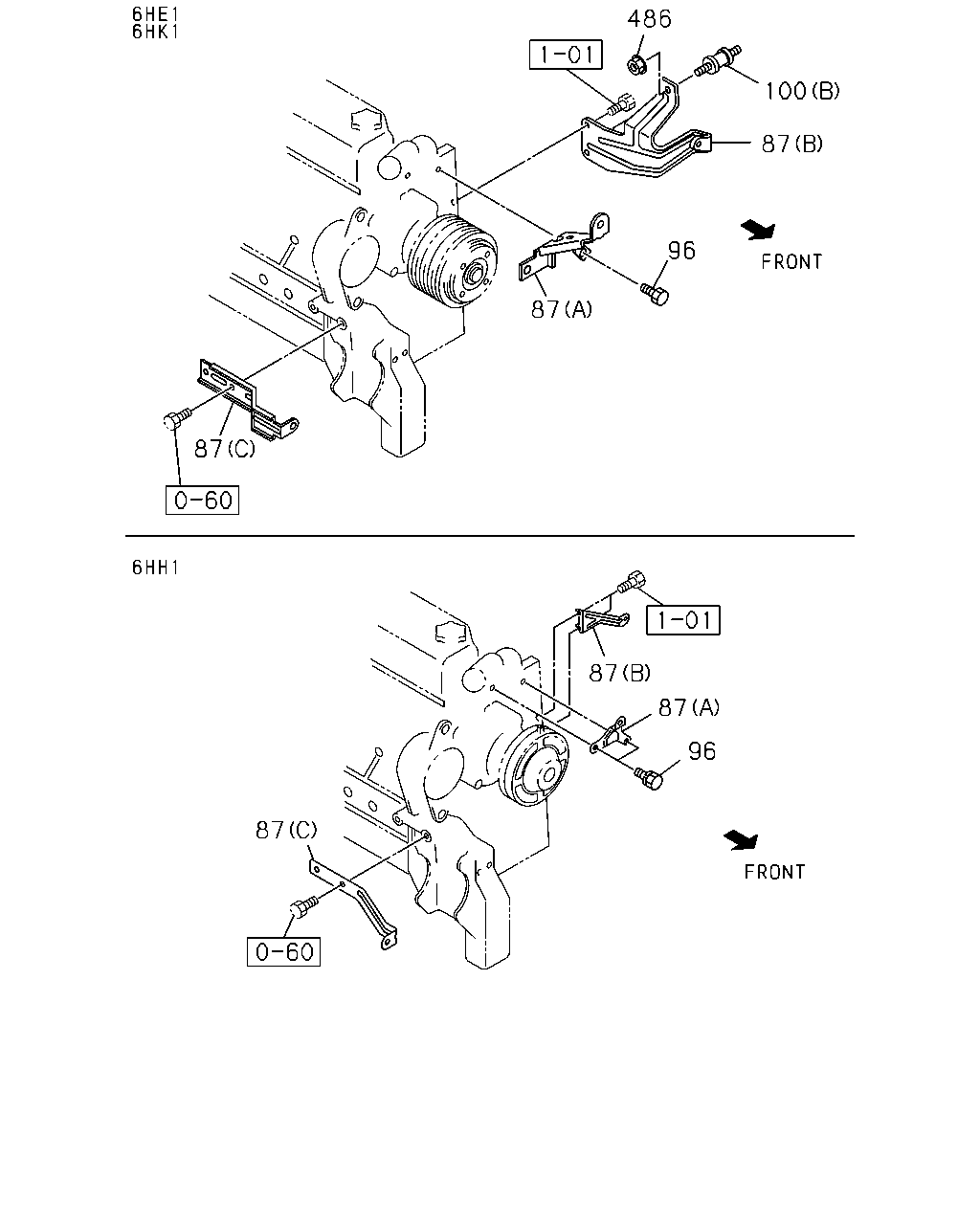

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
87	STAY; FAN GUIDE (A)	8-94393-776-0	01	1	0005-0210		●
87	STAY; FAN GUIDE (C)	8-94393-777-1	01	1	0005-0012		●
87	STAY; FAN GUIDE (C)	8-97601-850-0	01	1	0101-0210		●
87	STAY; FAN GUIDE (B)	8-94393-778-2	01	1	0005-0210		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	0005-0210			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	0005-0210			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	0005-0210			●
87	STAY; FAN GUIDE (A)	1-21559-373-0	01	1	0005-	●
87	STAY; FAN GUIDE (B)	1-21559-379-0	01	1	0005-0210	●
87	STAY; FAN GUIDE (D)	1-21559-457-0	01	1	0211-	●
87	STAY; FAN GUIDE (A)	8-94393-776-1	01	1	0303-				●
87	STAY; FAN GUIDE (B)	8-94393-778-2	01	1	0303-				●
87	STAY; FAN GUIDE (C)	8-97601-850-0	01	1	0303-				●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	0005-0210		●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	0303-0512				●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0005-0210		●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0005-0210	●	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0211-	●			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0303-0910				●
100	RUBBER; MTG (B)	8-98148-109-0	01	1	0911-				●
486	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
486	NUT; MTG RUBBER M8 FLANGE	0-91150-108-0	01	1	0303-0602				●
486	NUT; MTG RUBBER M8 FLANGE	0-91180-108-0	01	1	0603-				●

96 114 214 220 220 87 100 83 211 96 114 97 279 82 78 98 100 74 73 73 1 75 87 78 60 55 67 87 60 249 67 249

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	RADIATOR ASM AUXILIARY TRANSMISSION OIL COOLER<V14>	8-98073-838-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-741-2	01	1	0005-0210		●
1	RADIATOR ASM	1-21410-711-1	01	1	0005-0210			●
1	RADIATOR ASM	1-21410-708-0	01	1	0005-0111	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209 DD M/T(Y2S)	1-21410-708-0	01	1	0112-0210	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-875-0	01	1	0211-0303	●
1	RADIATOR ASM FULLER RT7608LL M/T(X8P),FULLER FS8209HD DD M/T(Y3A)	1-21410-884-0	01	1	0304-	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-773-0	01	1	0112-0210	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B)	1-21410-885-0	01	1	0211-0611	●
1	RADIATOR ASM ALLISON MD3560P A/T(Y3B) EXC. AUXILIARY TRANSMISSION OIL COOLER<V14>	1-21410-885-0	01	1	0612-	●
1	RADIATOR ASM	1-21410-889-0	01	1	0303-				●
55	STAY; RAD TO UPR MBR	1-21464-570-0	01	1	0005-0210		●
55	STAY; RAD TO UPR MBR	1-21464-569-0	01	1	0005-0210		●
55	STAY; RAD TO UPR MBR	1-21464-453-0	01	1	0005-	●
55	STAY; RAD TO UPR MBR	1-21464-452-0	01	1	0005-	●
60	GROMMET	1-09332-117-0	04	1	0005-0210	●	●
60	GROMMET	1-09332-117-0	04	1	0211-0302	●
60	GROMMET	1-09332-117-0	04	1	0303-	●			●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0005-0210	●	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	9-09160-612-0	04	1	0211-0605	●
67	WASHER; PL,STAY,RAD MBR ID=12.5 OD=26	0-91610-612-0	04	1	0606-	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0005-0210	●	●	●
73	RUBBER; CUSHION,RAD MTG (A) T=14	1-21467-004-0	02	1	0211-	●			●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0005-0210	●	●	●
73	RUBBER; CUSHION,RAD MTG (B) T=24	1-21467-011-1	02	1	0211-	●			●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0005-0210	●	●	●
74	WASHER; PL,CUSHION RUBBER OD=55	9-09852-169-0	02	1	0211-	●			●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0005-0210	●	●	●
75	BOLT; CUSHION RUBBER,RAD MTG M12X26.5,M10X19 L=86.5	1-21466-007-3	02	1	0211-	●			●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0005-0210	●	●	●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91150-212-0	02	1	0211-0602	●			●
78	NUT; CUSHION RUBBER (B) M12 FLANGE	0-91180-212-0	02	1	0603-	●			●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0005-0210	●	●	●
78	NUT; CUSHION RUBBER (A) M10 FLANGE	5-09440-006-0	02	1	0211-	●			●
82	COVER; FAN,RAD	1-21559-321-0	01	1	0005-0210		●
82	COVER; FAN,RAD	1-21559-340-0	01	1	0005-0210			●
82	COVER; FAN,RAD	1-21559-397-0	01	1	0005-	●
82	COVER; FAN,RAD	1-21559-321-0	01	1	0303-				●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0005-0210	●	●	●
83	CLIP; FAN COVER	1-09707-177-2	01	1	0211-	●			●
87	STAY; FAN GUIDE (A)	8-94393-776-0	01	1	0005-0210		●
87	STAY; FAN GUIDE (C)	8-94393-777-1	01	1	0005-0012		●
87	STAY; FAN GUIDE (C)	8-97601-850-0	01	1	0101-0210		●
87	STAY; FAN GUIDE (B)	8-94393-778-2	01	1	0005-0210		●
87	STAY; FAN GUIDE (C)	8-94394-775-0	01	1	0005-0210			●
87	STAY; FAN GUIDE (A)	8-94396-496-1	01	1	0005-0210			●
87	STAY; FAN GUIDE (B)	8-94397-395-1	01	1	0005-0210			●
87	STAY; FAN GUIDE (A)	1-21559-373-0	01	1	0005-	●
87	STAY; FAN GUIDE (B)	1-21559-379-0	01	1	0005-0210	●
87	STAY; FAN GUIDE (D)	1-21559-457-0	01	1	0211-	●
87	STAY; FAN GUIDE (A)	8-94393-776-1	01	1	0303-				●
87	STAY; FAN GUIDE (B)	8-94393-778-2	01	1	0303-				●
87	STAY; FAN GUIDE (C)	8-97601-850-0	01	1	0303-				●
96	BOLT; STAY FIX M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●
96	BOLT; STAY FIX M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	0005-0210		●	●
96	BOLT; STAY FIX M10X16 FLANGE	0-28181-016-0	02	1	0303-0512				●
96	BOLT; STAY FIX M10X16 FLANGE	0-28151-016-0	02	1	0601-				●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0005-0210	●	●	●
97	TUBE; DIST,FAN GUIDE	9-09651-072-0	03	1	0211-	●			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●	●	●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28680-830-0	03	1	0211-0512	●			●
98	BOLT; RAD FAN GUIDE M8X30 FLANGE	0-28650-830-0	03	1	0601-	●			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0005-0210		●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0005-0210	●	●	●
100	RUBBER; MTG (A)	8-94395-766-0	06	1	0211-	●			●
100	RUBBER; MTG (B)	8-94394-268-1	01	1	0303-0910				●
100	RUBBER; MTG (B)	8-98148-109-0	01	1	0911-				●
114	BOLT; STAY M8X16 FLANGE	0-28080-816-0	04	1	0005-0210	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109		●	●
211	HOSE; RAD TO PIPE L=430 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210		●	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
211	HOSE; RAD TO PIPE L=350 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210	●
211	HOSE; RAD TO PIPE L=260 SERVICED BY L=3000	0-03557-300-0	01	1	0211-	●
211	HOSE; RAD TO PIPE L=660 SERVICED BY L=3000	0-03557-300-0	01	1	0303-				●
214	HOSE; PIPE TO RESERVE TANK L=1400 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109		●
214	HOSE; PIPE TO RESERVE TANK L=1400 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210		●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109			●
214	HOSE; PIPE TO RESERVE TANK L=1300 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210			●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03257-300-0	01	1	0005-0109	●
214	HOSE; PIPE TO RESERVE TANK L=1200 SERVICED BY L=3000	0-03557-300-0	01	1	0110-0210	●
214	HOSE; PIPE TO RESERVE TANK L=760 SERVICED BY L=3000	0-03557-300-0	01	1	0211-	●
214	HOSE; PIPE TO RESERVE TANK L=1350 SERVICED BY L=3000	0-03557-300-0	01	1	0303-				●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	01	1	0005-0210		●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	04	1	0005-0210	●	●	●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0211-0602	●			●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0603-	●			●
220	NUT; CLIP M8 FLANGE	0-91150-108-0	05	1	0303-0602				●
220	NUT; CLIP M8 FLANGE	0-91180-108-0	05	1	0603-				●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	04	1	0005-0205	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0206-0210	●	●
249	BOLT; STAY,RAD MBR M8X30	1-09009-020-1	02	1	0211-	●
249	BOLT; STAY,RAD MBR M8X22	1-09009-123-0	02	1	0206-0210	●	●
249	BOLT; STAY,RAD MBR M8X22	1-09009-123-0	02	1	0211-	●
279	BELL MOUTH	8-94393-779-0	01	1	0005-0210		●
279	BELL MOUTH	8-94394-808-2	01	1	0005-0210			●
279	BELL MOUTH	1-21551-395-0	01	1	0005-	●
279	BELL MOUTH	8-97601-172-1	01	1	0303-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
