◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#8635) — 380 parça

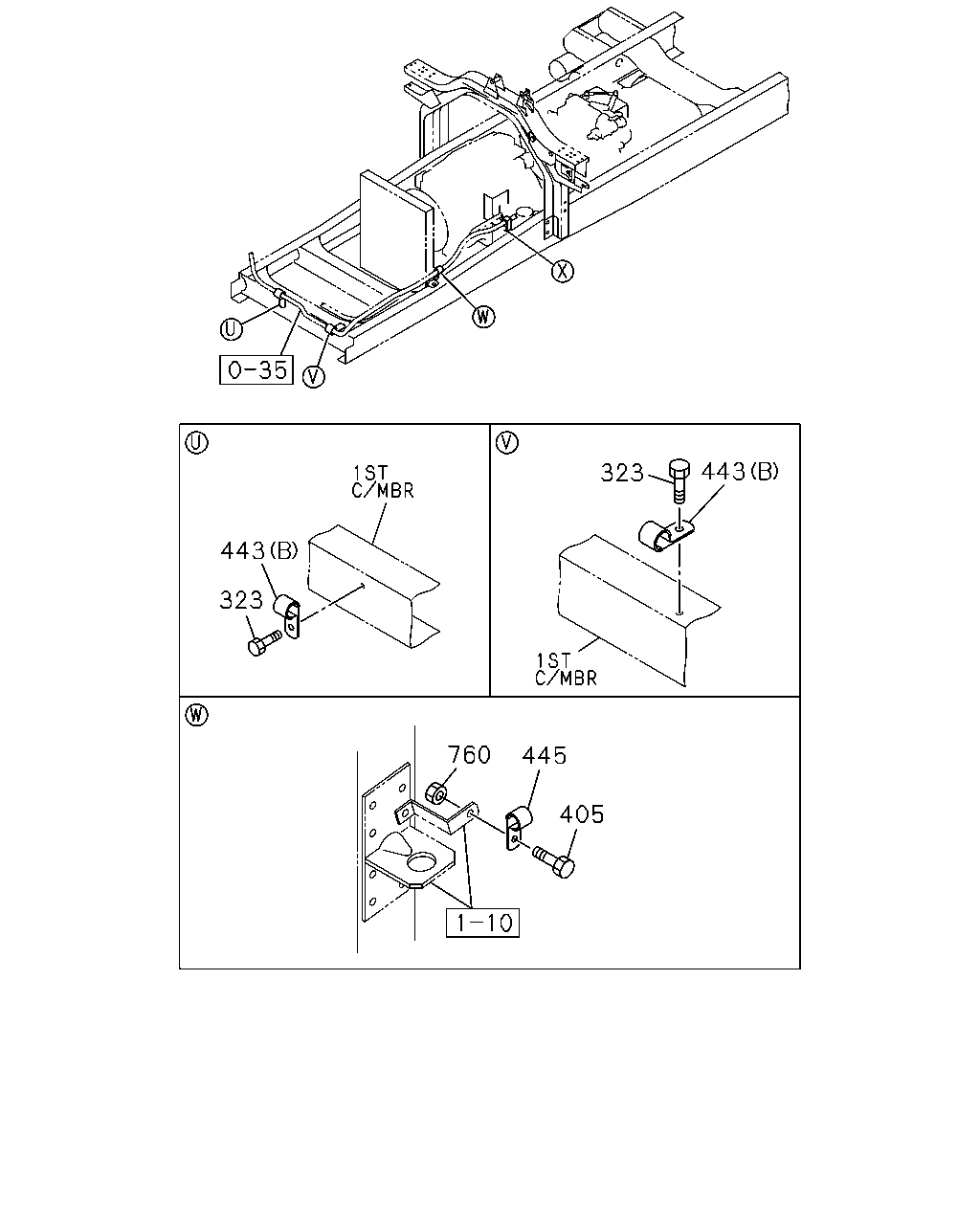

çizim 9509
443 323 443 323 760 445 405
BalonParca AdiParca NoAdetTipApplied Date A B C D
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0303-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ● ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ● ●
405 BOLT; CABLE CLIP
FVM,FVR,FVZ(FV****) M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
443 CLIP; CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0005-0210 ● ●
443 CLIP; CABLE
(D) ID=7 L=16 		9-09524-625-0 01 1 0005-0210 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0303-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0303-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
445 CLIP; RAD 1-09700-082-0 01 1 0005-0210 ●
445 CLIP; RAD
ID=7 L=20 		9-09524-635-0 01 1 0303-0606 ●
445 CLIP; RAD
ID=7 L=20 		0-95234-635-0 01 1 0607- ●
760 NUT; CLIP,BRKT
M8 FLANGE 		0-91150-108-0 01 1 0303-0602 ●
760 NUT; CLIP,BRKT
M8 FLANGE 		0-91180-108-0 01 1 0603- ●

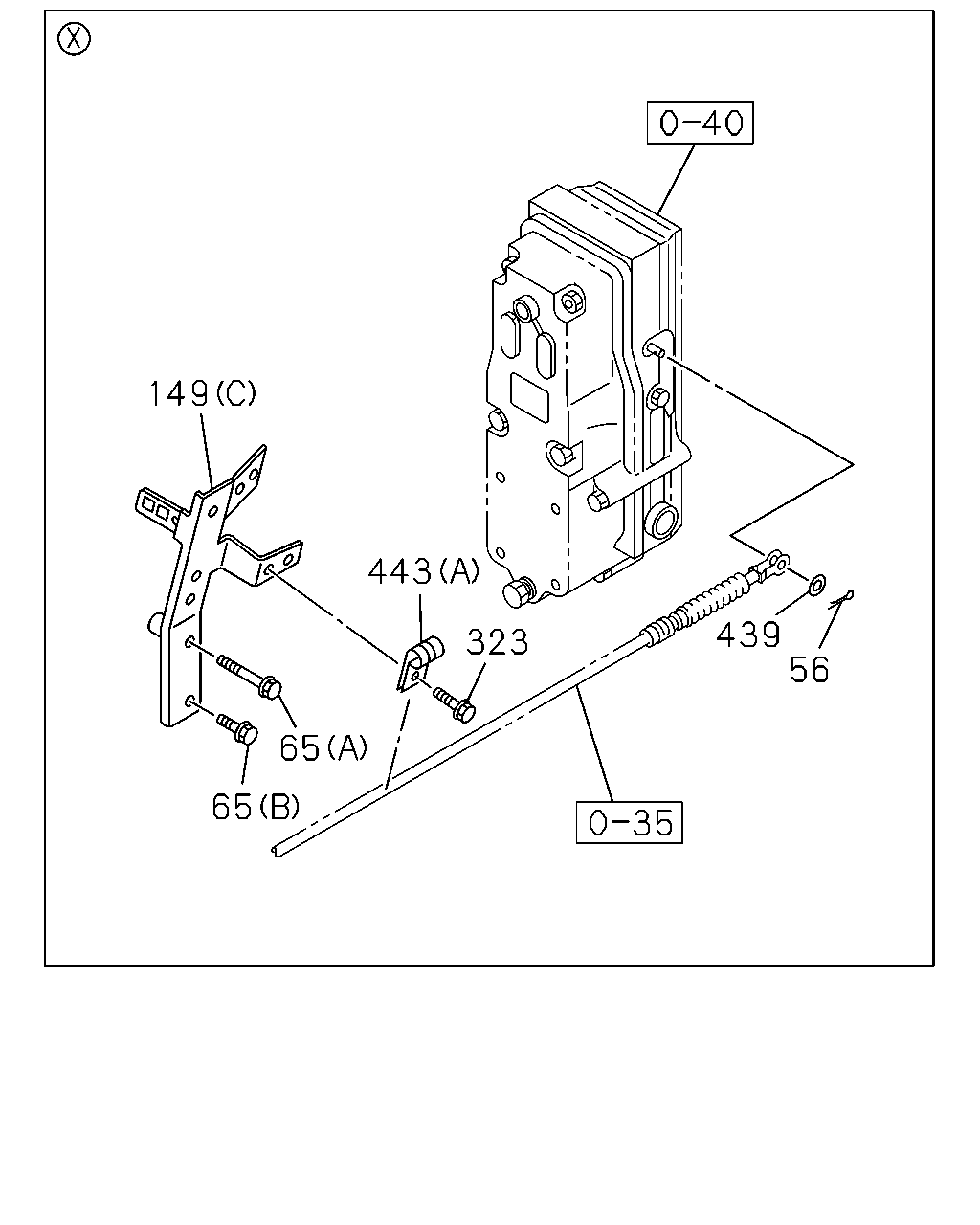

çizim 10495
149 443 439 56 323 65 65
BalonParca AdiParca NoAdetTipApplied Date A B C D
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0210 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 0005-0210 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0303- ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ● ●
65 BOLT
(E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0303-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0303-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0303-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
149 BRACKET; ENG CONT
(B) 		8-94392-784-0 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(A) 		8-94390-107-0 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(C) 		8-94394-532-1 01 1 0303- ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0303-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0210 ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0303-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●
443 CLIP; CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0005-0210 ● ●
443 CLIP; CABLE
(D) ID=7 L=16 		9-09524-625-0 01 1 0005-0210 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0303-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0303-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●

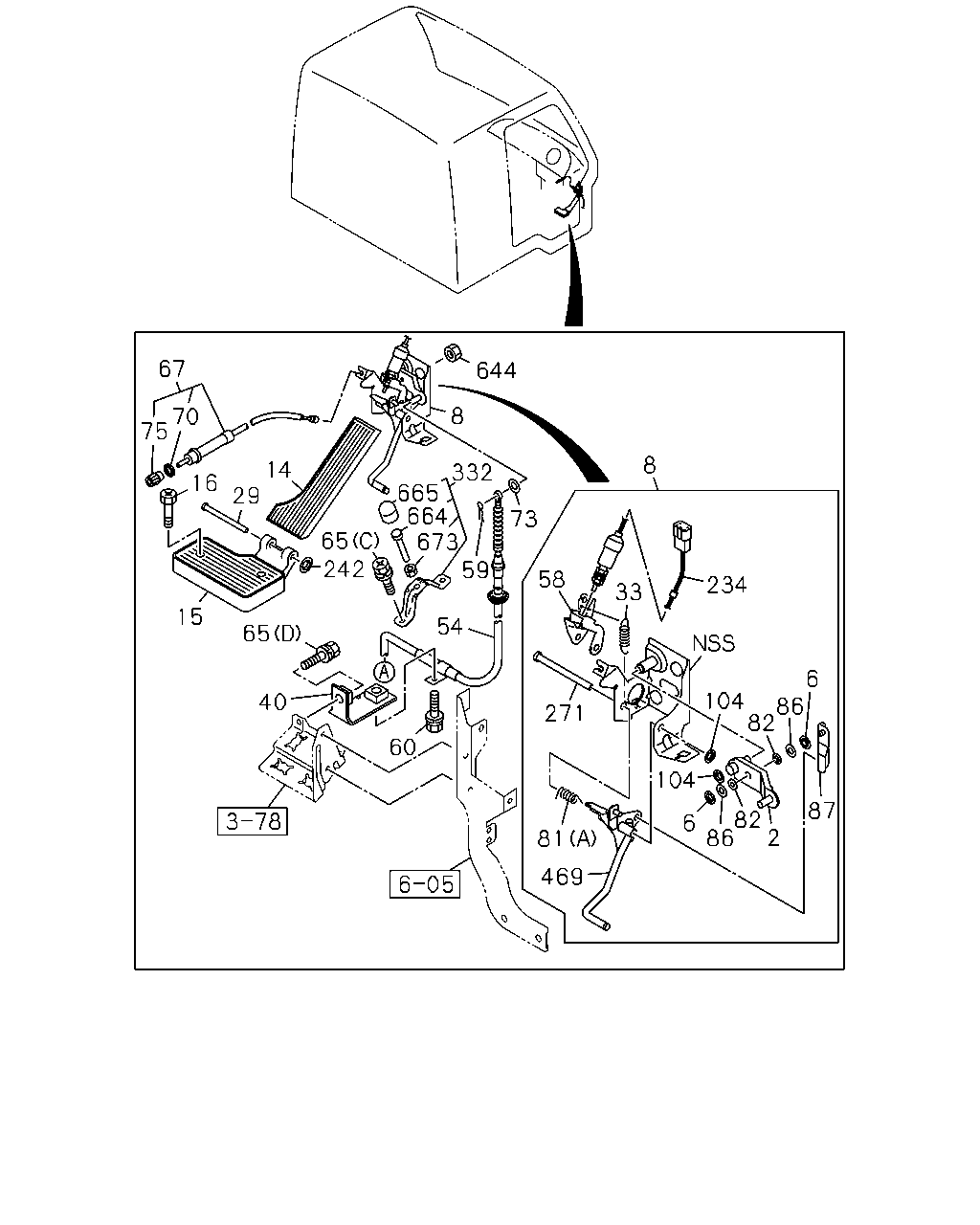

çizim 10962
67 644 8 70 75 332 8 14 29 16 665 664 673 59 73 65 242 58 234 33 15 54 65 6 104 86 82 40 271 60 104 87 82 6 81 469 86 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LEVER; ENG CONT 1-71907-210-2 01 1 0005-0210 ● ● ●
2 LEVER; ENG CONT 1-71907-500-2 01 1 0211- ● ●
6 RING; SNAP,LINK TO LINK
ID=4 		9-09185-404-0 02 1 0005-0210 ● ● ●
8 LINK ASM; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		1-73996-276-2 01 1 0006-0210 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0005-0005 ● ● ●
8 LINK ASM; ENG CONT
EURO2 SPECIFICATION<THN> 		1-73996-206-6 01 1 0006-0210 ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0006-0210 ●
8 LINK ASM; ENG CONT 1-73996-545-3 01 1 0211- ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0005-0210 ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0211- ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 0005-0210 ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0211- ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0005-0210 ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0211- ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0210 ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0211- ● ●
33 SPRING; IDLING CONT LEVER 8-94414-815-0 01 1 0005-0210 ● ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 0005-0210 ● ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 0303- ●
54 CABLE; ENG CONT
L=3006.5 		1-73996-436-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2536.5 		1-73996-239-4 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0211- ● ●
58 LEVER; IDLING CONT 1-71907-242-1 01 1 0005-0210 ● ● ●
59 PIN; SNAP,ENG CONT CABLE
L=27.7 		1-09747-005-0 01 1 0005-0210 ● ● ●
60 BOLT; CABLE
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ● ●
65 BOLT
(E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0303-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0303-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0303-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
67 CABLE ASM; IDLE CONT
L=399 		1-73998-912-3 01 1 0005-0204 ● ● ●
67 CABLE ASM; IDLE CONT
L=315 		1-73908-423-0 01 1 0205-0210 ● ● ●
70 NUT; CONT CABLE 1-73908-045-1 01 1 0005-0210 ● ● ●
73 WASHER; PL,ACCEL CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ● ● ●
75 KNOB ASM; IDLING CONT 8-97066-797-1 01 1 0005-0109 ● ● ●
75 KNOB ASM; IDLING CONT 8-97137-504-0 01 1 0110-0204 ● ● ●
75 KNOB ASM; IDLING CONT 1-73908-409-0 01 1 0205-0210 ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0005-0210 ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0211- ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0211- ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 0005-0210 ● ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0211- ● ●
86 WASHER; PL,ENG CONT LEVER
ID=6.4 		9-09160-506-0 02 1 0005-0210 ● ● ●
87 LINK; ENG CONT 1-71907-211-1 01 1 0005-0210 ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0005-0210 ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0211- ● ●
234 SWITCH; ACCEL
EXC. EURO2 SPECIFICATION<THN> 		1-82440-098-0 01 1 0006-0210 ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 0005-0005 ● ● ●
234 SWITCH; ACCEL
EURO2 SPECIFICATION<THN> 		1-82380-114-2 01 1 0006-0210 ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 0006-0210 ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0211- ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0005-0210 ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0211- ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0210 ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0211- ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0005-0210 ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0211-0212 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301- ● ●
469 LEVER ASM 1-71907-209-5 01 1 0005-0210 ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0210 ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0211- ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0005-0210 ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0211- ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0005-0210 ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0211-0212 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0005-0210 ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0211-0512 ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ● ●

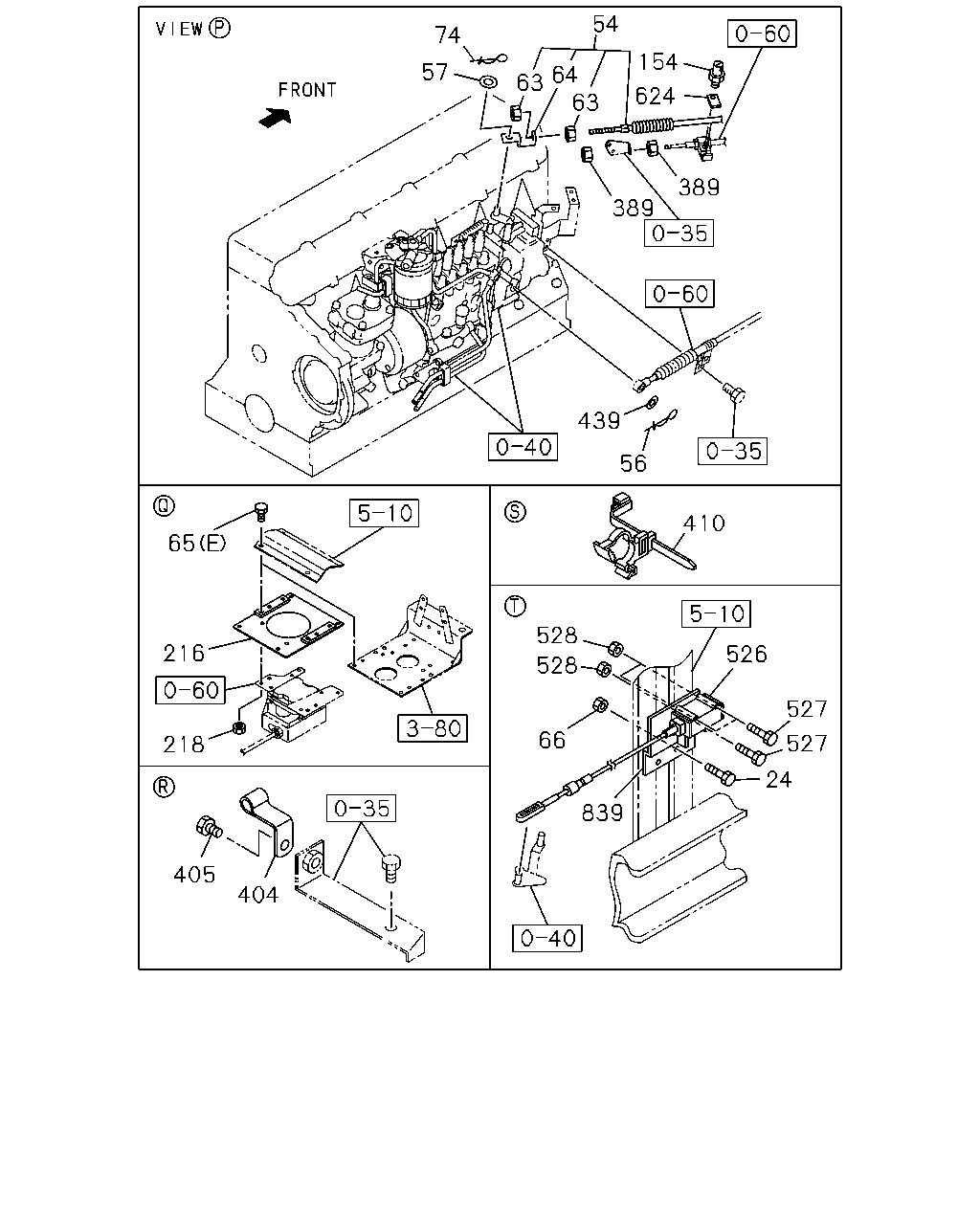

çizim 43755
54 74 154 57 64 63 63 624 389 389 439 56 410 65 528 216 526 528 527 66 527 218 24 839 405 404
BalonParca AdiParca NoAdetTipApplied Date A B C D
24 BOLT; BRKT
ALLISON MD3560P A/T(Y3B) M8X20 FLANGE 		0-28680-820-0 02 1 0112-0210 ●
54 CABLE; ENG CONT
L=3006.5 		1-73996-436-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2536.5 		1-73996-239-4 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0211- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0210 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 0005-0210 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0303- ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0111 ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0112-0210 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0112-0210 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0111 ● ● ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0112-0210 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0112-0210 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ● ●
65 BOLT
(E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0303-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0303-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0303-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
66 NUT; BRKT
ALLISON MD3560P A/T(Y3B) M8 FLANGE 		0-91150-108-0 02 1 0112-0210 ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-0210 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 0005-0210 ●
154 BOLT; CABLE BRKT 9-23321-272-0 01 1 0005-0210 ● ● ●
216 BRACKET
FVM,FVR,FVZ(FV****) 		1-47477-687-0 01 1 0005-0210 ●
216 BRACKET
GVR(GV****) 		1-47477-958-1 01 1 0005-0210 ●
218 NUT; BRKT
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ●
389 NUT; ACCEL CONT CABLE FIX
M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ● ● ●
404 CLIP; CABLE
ID=18 L=25 H=50 		1-09701-096-0 01 1 0005-0210 ● ● ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ● ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ● ●
405 BOLT; CABLE CLIP
FVM,FVR,FVZ(FV****) M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
410 CLIP; BAND 1-09707-187-0 02 1 0005-0210 ●
410 CLIP; BAND 1-09707-187-0 01 1 0005-0210 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0210 ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0303-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●
526 SENSOR; ACCEL
A/T<X9D> 		1-80250-015-0 01 1 0112-0210 ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0211- ● ●
527 BOLT; ACCEL SENSOR
ALLISON MD3560P A/T(Y3B) M6X50 FLANGE 		0-28080-650-0 03 1 0112-0210 ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0211- ● ●
528 NUT; ACCEL SENSOR
ALLISON MD3560P A/T(Y3B) M6 FLANGE 		0-91150-106-0 03 1 0112-0210 ●
624 PLATE; CONT LINK 1-47477-576-0 01 1 0005-0210 ● ● ●
839 BRACKET; THROTTLE SENSOR
ALLISON MD3560P A/T(Y3B) 		1-47478-703-0 01 1 0112-0210 ●

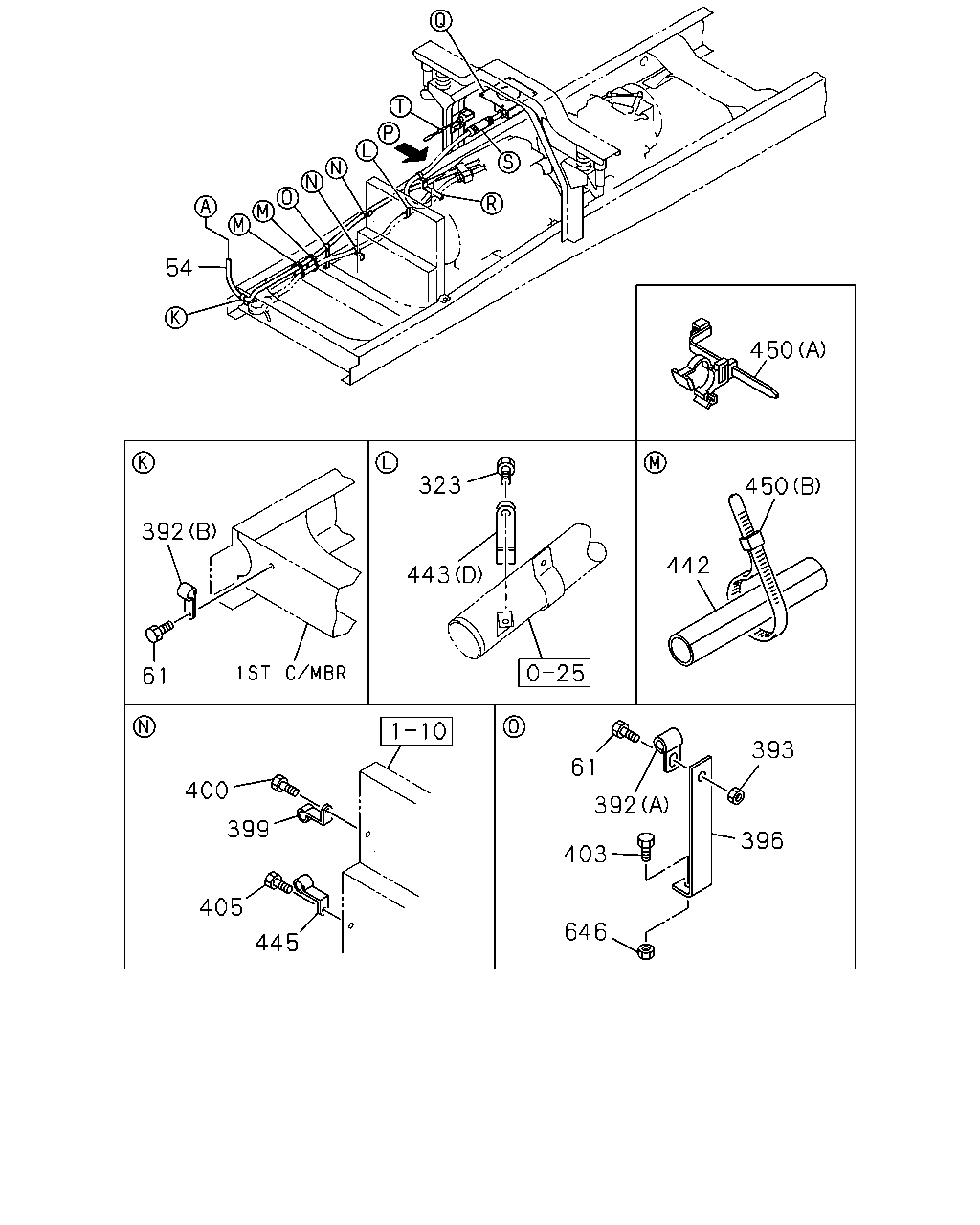

çizim 45108
54 450 323 450 392 442 443 61 393 61 400 392 399 396 403 405 646 445
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
L=3006.5 		1-73996-436-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2536.5 		1-73996-239-4 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0211- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0303-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
392 CLIP; ACCEL CONT CABLE
(C) ID=13 L=32 		9-09525-265-0 02 1 0005-0210 ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=11 L=20 		9-09525-035-0 01 1 0005-0210 ●
392 CLIP; ACCEL CONT CABLE
(B) ID=13 L=32 		9-09525-265-0 01 1 0005-0210 ●
393 NUT; CLIP TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●
396 BRACKET; CLIP
L=145 B=25 		1-47477-697-0 01 1 0005-0210 ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005-0210 ● ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 0005-0210 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
403 BOLT; BRKT,ACCEL PEDAL
M8X20 FLANGE 		0-28680-820-0 01 1 0005-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ● ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ● ●
405 BOLT; CABLE CLIP
FVM,FVR,FVZ(FV****) M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
442 SLEEVE; RUBBER,OIL PIPE
L=150 		1-09360-677-1 01 1 0005-0210 ●
442 SLEEVE; RUBBER,OIL PIPE
ALLISON MD3560P A/T(Y3B) ID=9.5 OD=14.5 L=120 		9-09913-202-1 01 1 0112-0210 ●
443 CLIP; CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0005-0210 ● ●
443 CLIP; CABLE
(D) ID=7 L=16 		9-09524-625-0 01 1 0005-0210 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0303-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0303-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
445 CLIP; RAD 1-09700-082-0 01 1 0005-0210 ●
445 CLIP; RAD
ID=7 L=20 		9-09524-635-0 01 1 0303-0606 ●
445 CLIP; RAD
ID=7 L=20 		0-95234-635-0 01 1 0607- ●
450 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0005-0111 ● ● ●
450 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0112-0210 ● ● ●
450 CLIP; BAND
ALLISON MD3560P A/T(Y3B) (B) L=140 		5-09707-031-1 02 1 0112-0210 ●
450 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 0005-0210 ●
450 CLIP; BAND
ALLISON MD3560P A/T(Y3B) (A) 		1-09707-187-0 01 1 0112-0210 ●
646 NUT; BRKT,LEVER
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ●

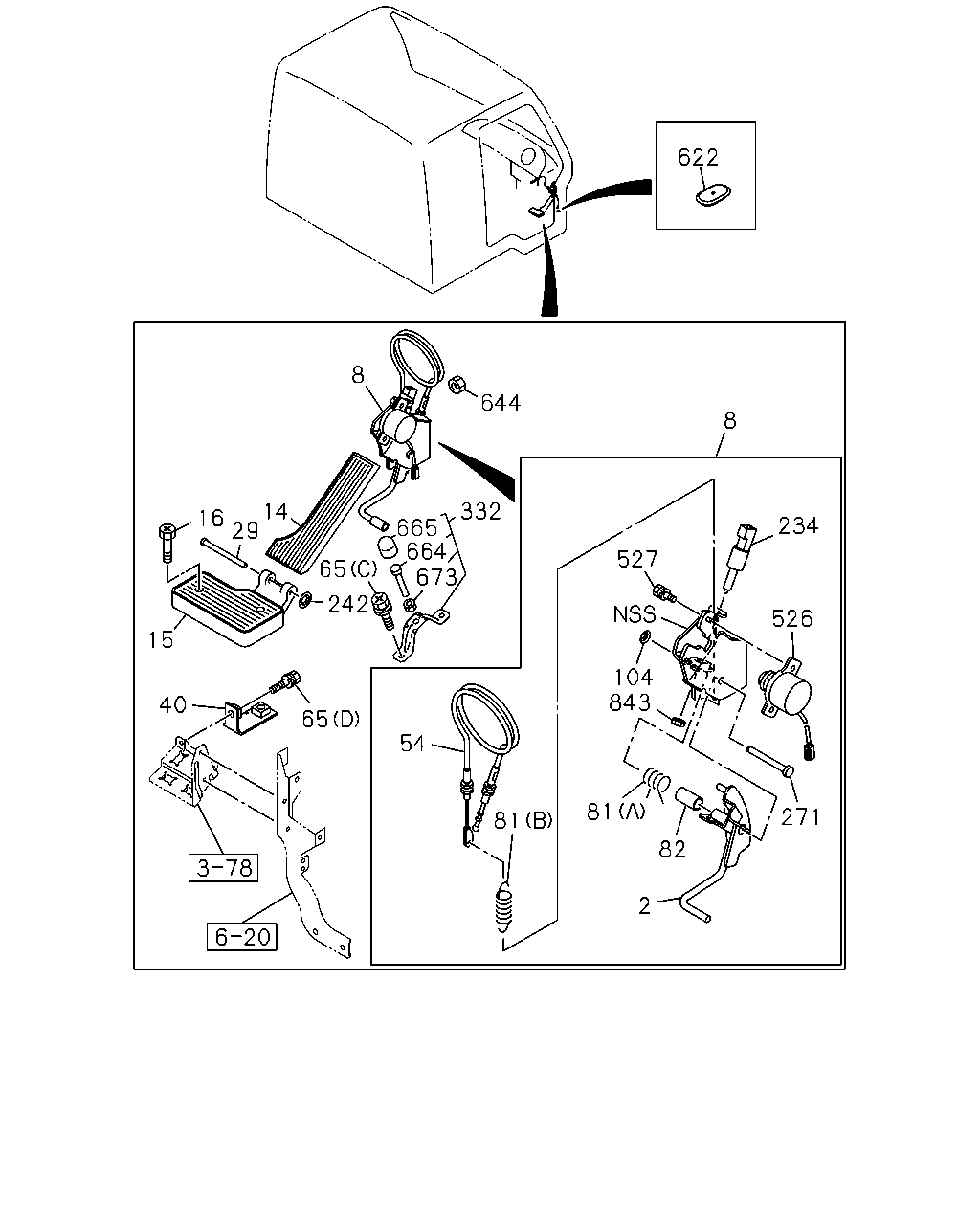

çizim 45165
622 8 644 8 332 14 16 29 234 665 664 673 527 65 242 526 15 104 843 40 65 54 81 271 81 82 2
BalonParca AdiParca NoAdetTipApplied Date A B C D
2 LEVER; ENG CONT 1-71907-210-2 01 1 0005-0210 ● ● ●
2 LEVER; ENG CONT 1-71907-500-2 01 1 0211- ● ●
8 LINK ASM; ENG CONT
EXC. EURO2 SPECIFICATION<THN> 		1-73996-276-2 01 1 0006-0210 ● ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0005-0005 ● ● ●
8 LINK ASM; ENG CONT
EURO2 SPECIFICATION<THN> 		1-73996-206-6 01 1 0006-0210 ●
8 LINK ASM; ENG CONT 1-73996-206-6 01 1 0006-0210 ●
8 LINK ASM; ENG CONT 1-73996-545-3 01 1 0211- ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0005-0210 ● ● ●
14 PAD; PEDAL,ACCEL 1-73907-563-0 01 1 0211- ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-2 01 1 0005-0210 ● ● ●
15 STAND; HEEL,ACCEL PEDAL 1-73907-266-3 01 1 0211- ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0005-0210 ● ● ●
16 SCREW; HEEL STAND,ACCEL PEDAL
M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 0211- ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0210 ● ● ●
29 SHAFT; ACCEL PEDAL
OD=8.0 L=74 		1-71907-212-1 01 1 0211- ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 0005-0210 ● ● ●
40 BRACKET; ENG CONT CABLE 1-47478-612-0 01 1 0303- ●
54 CABLE; ENG CONT
L=3006.5 		1-73996-436-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2536.5 		1-73996-239-4 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0211- ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ● ●
65 BOLT
(E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0303-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0303-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0303-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0005-0210 ● ● ●
81 SPRING; RETURN,ENG CONT LEVER
(A) 		8-97853-205-1 01 1 0211- ● ●
81 SPRING; RETURN,ENG CONT LEVER
(B) 		8-97997-917-0 01 1 0211- ● ●
82 BUSHING; ENG CONT LVR 1-71907-244-1 02 1 0005-0210 ● ● ●
82 BUSHING; ENG CONT LVR
L=31.5 		1-53459-627-0 01 1 0211- ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 02 1 0005-0210 ● ● ●
104 NUT; ENG CONT
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0211- ● ●
234 SWITCH; ACCEL
EXC. EURO2 SPECIFICATION<THN> 		1-82440-098-0 01 1 0006-0210 ● ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 0005-0005 ● ● ●
234 SWITCH; ACCEL
EURO2 SPECIFICATION<THN> 		1-82380-114-2 01 1 0006-0210 ●
234 SWITCH; ACCEL 1-82380-114-2 01 1 0006-0210 ●
234 SWITCH; ACCEL 1-82380-131-2 01 1 0211- ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0005-0210 ● ● ●
242 NUT; ACCEL PEDAL
ID=7.9 PUSH NUT 		8-97022-565-0 01 1 0211- ● ●
271 SHAFT; ENG CONT
OD=8.0 L=74 		1-71907-212-1 01 1 0005-0210 ● ● ●
271 SHAFT; ENG CONT
OD=8.0 L=69 		1-71907-298-0 01 1 0211- ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0005-0210 ● ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73998-937-1 01 1 0211-0212 ● ●
332 BRACKET; ACCEL PEDAL STOPPER 1-73908-428-0 01 1 0301- ● ●
526 SENSOR; ACCEL
A/T<X9D> 		1-80250-015-0 01 1 0112-0210 ●
526 SENSOR; ACCEL 1-80250-030-0 01 1 0211- ● ●
527 BOLT; ACCEL SENSOR
ALLISON MD3560P A/T(Y3B) M6X50 FLANGE 		0-28080-650-0 03 1 0112-0210 ●
527 BOLT; ACCEL SENSOR
M6X16 W/LK&PL WASHER 		8-94139-963-0 02 1 0211- ● ●
622 GROMMET; ACCEL CONT CABLE
OD=30 		8-94107-655-0 01 1 0211- ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0005-0210 ● ● ●
644 NUT; LINK,ENG CONT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0211- ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0005-0210 ● ● ●
664 BOLT; STOPPER
M8X45 		0-20800-845-0 01 1 0211- ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0005-0210 ● ● ●
665 COVER; STOPPER
RUBBER 		1-23249-009-0 01 1 0211-0212 ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0005-0210 ● ● ●
673 NUT; STOPPER
M8 		9-09111-408-0 01 1 0211-0512 ● ●
673 NUT; STOPPER
M8 		0-91111-508-0 01 1 0601- ● ●
843 NUT
M12 		9-99111-412-0 01 1 0211-0512 ● ●
843 NUT
M12 		0-91111-512-0 01 1 0601- ● ●

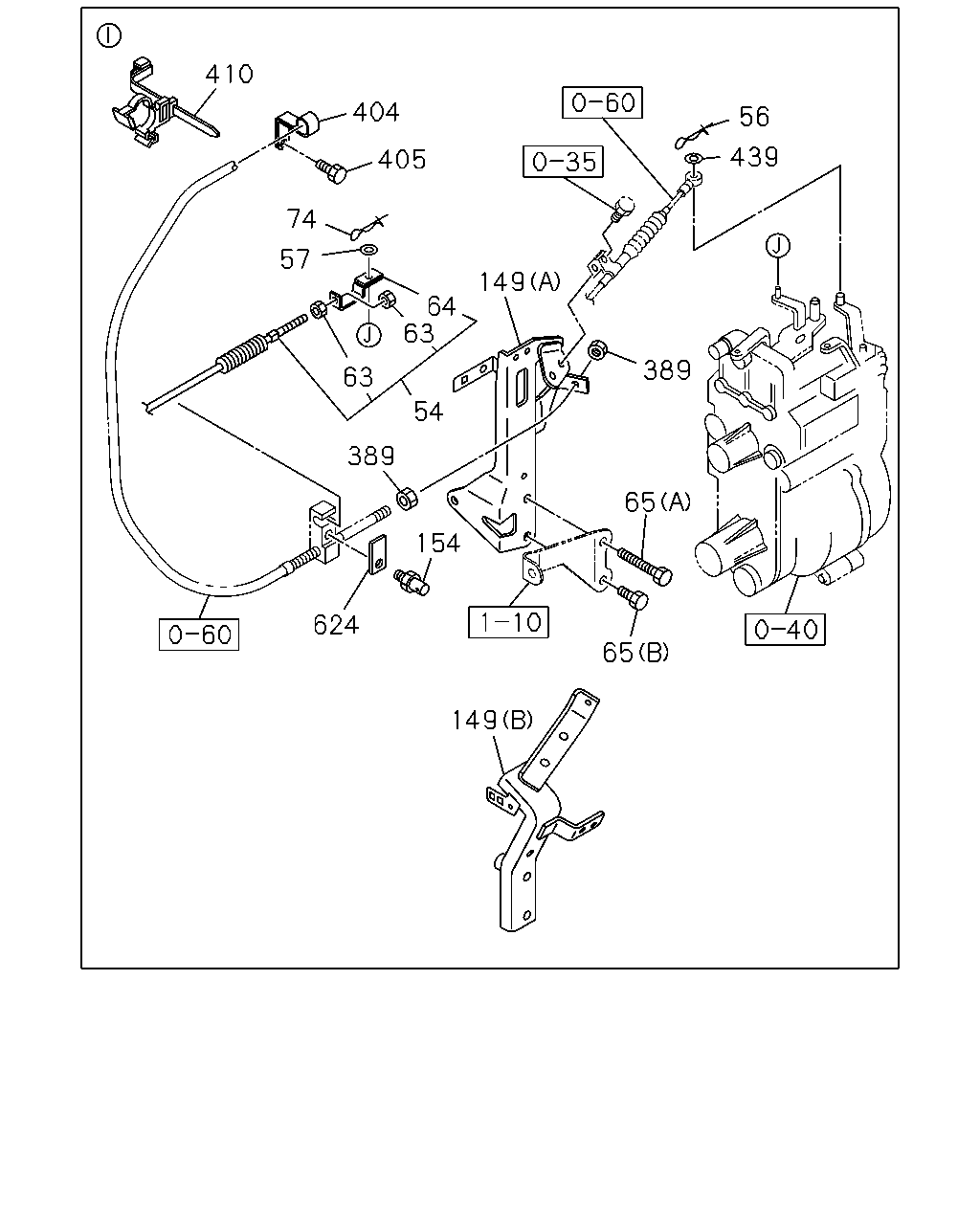

çizim 45378
410 404 56 439 405 74 57 149 64 63 389 63 54 389 65 154 624 65 149
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
L=3006.5 		1-73996-436-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2536.5 		1-73996-239-4 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0211- ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0005-0210 ● ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-002-0 01 1 0005-0210 ●
56 PIN; SNAP,JAW JOINT
L=17.9 		1-09747-015-0 01 1 0303- ●
57 WASHER; ENG CONT CABLE
ID=8.4 		9-09160-508-0 01 1 0005-0210 ● ● ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0005-0111 ● ● ●
63 NUT; LOCK,BRKT
EURO2 SPECIFICATION<THN> M8 		9-09111-408-0 02 1 0112-0210 ●
63 NUT; LOCK,BRKT
M8 		9-09111-408-0 02 1 0112-0210 ● ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0005-0111 ● ● ●
64 BRACKET; ENG CONT CABLE
EURO2 SPECIFICATION<THN> 		1-23219-105-1 01 1 0112-0210 ●
64 BRACKET; ENG CONT CABLE 1-23219-105-1 01 1 0112-0210 ● ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0005-0210 ● ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0005-0210 ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0005-0210 ● ● ●
65 BOLT
(C) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0211- ● ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0005-0210 ● ● ●
65 BOLT
(E) M8X35 FLANGE 		0-28680-835-0 04 1 0005-0210 ●
65 BOLT
(A) M10X60 		0-16811-060-0 01 1 0303-0512 ●
65 BOLT
(A) M10X60 		0-16861-060-0 01 1 0601- ●
65 BOLT
(B) M10X20 FLANGE 		0-28181-020-0 01 1 0303-0512 ●
65 BOLT
(B) M10X20 FLANGE 		0-28151-020-0 01 1 0601- ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 0303-0904 ●
65 BOLT
(D) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905- ●
74 PIN; SNAP,CABLE END
L=27.7 		8-94157-841-0 01 1 0005-0210 ● ●
74 PIN; SNAP,CABLE END
L=27.7 		1-09747-005-0 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(B) 		8-94392-784-0 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(A) 		8-94390-107-0 01 1 0005-0210 ●
149 BRACKET; ENG CONT
(C) 		8-94394-532-1 01 1 0303- ●
154 BOLT; CABLE BRKT 9-23321-272-0 01 1 0005-0210 ● ● ●
389 NUT; ACCEL CONT CABLE FIX
M6 FLANGE 		0-91150-106-0 02 1 0005-0210 ● ● ●
404 CLIP; CABLE
ID=18 L=25 H=50 		1-09701-096-0 01 1 0005-0210 ● ● ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ● ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVM(FVM***) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
FVZ(FVZ***) WHEEL BASE 5000MM(50W) M8X16 FLANGE 		0-28080-816-0 01 1 0005-0111 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ● ●
405 BOLT; CABLE CLIP
FVM,FVR,FVZ(FV****) M8X16 FLANGE 		0-28080-816-0 01 1 0112-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0303-0512 ●
405 BOLT; CABLE CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
410 CLIP; BAND 1-09707-187-0 02 1 0005-0210 ●
410 CLIP; BAND 1-09707-187-0 01 1 0005-0210 ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0005-0210 ● ● ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		9-09160-505-0 01 1 0303-0605 ●
439 WASHER; PL,PIN,JAW JOINT
ID=5.3 		0-91610-505-0 01 1 0606- ●
624 PLATE; CONT LINK 1-47477-576-0 01 1 0005-0210 ● ● ●

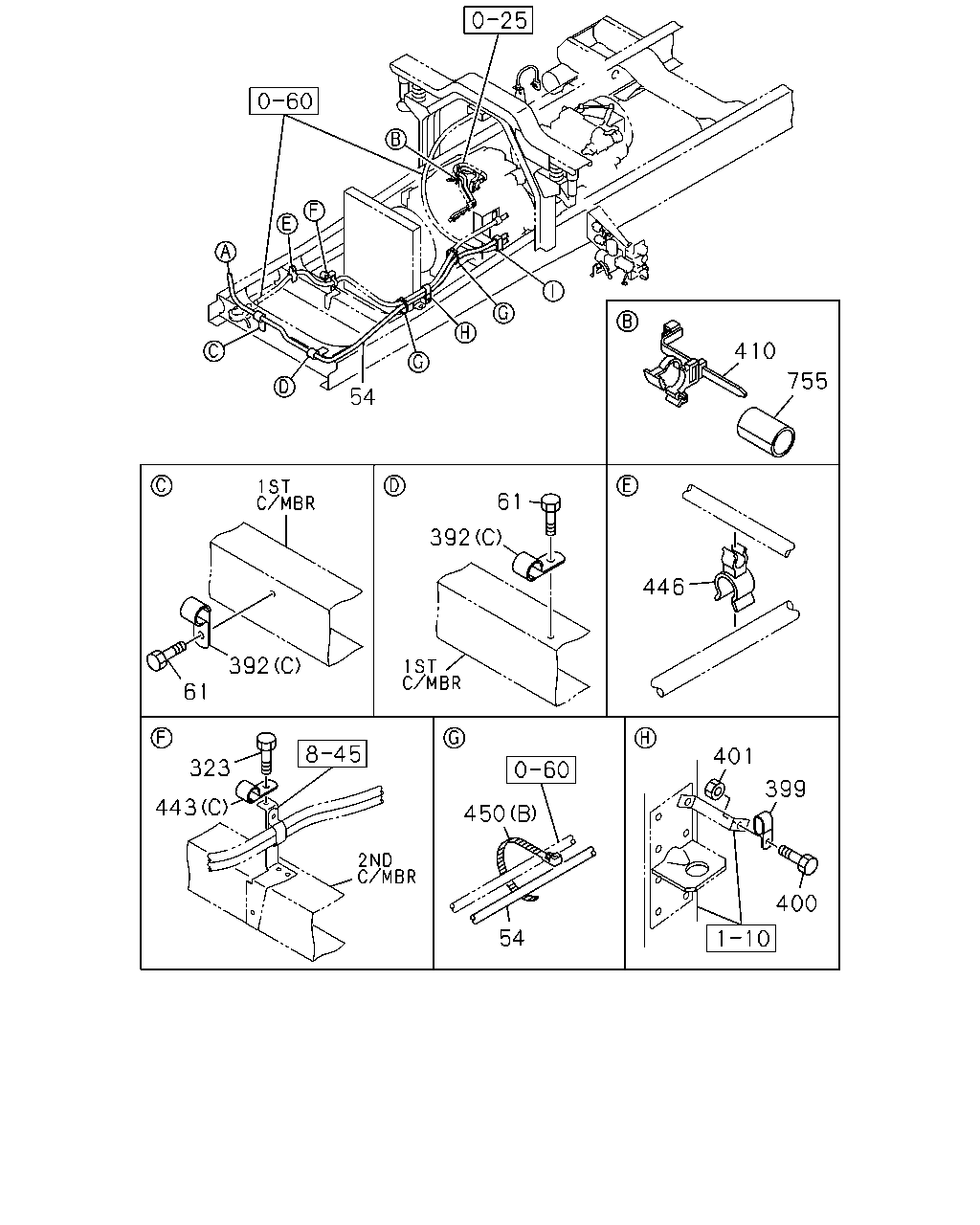

çizim 45878
410 755 54 61 392 446 392 61 401 323 399 443 450 400 54
BalonParca AdiParca NoAdetTipApplied Date A B C D
54 CABLE; ENG CONT
L=3006.5 		1-73996-436-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2964 		1-73996-283-2 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=2536.5 		1-73996-239-4 01 1 0005-0210 ●
54 CABLE; ENG CONT
L=850 		1-71907-257-0 01 1 0211- ● ●
61 BOLT; BRKT TO FRAME ENG CONT CABLE
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 03 1 0303-0512 ●
323 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 03 1 0601- ●
392 CLIP; ACCEL CONT CABLE
(C) ID=13 L=32 		9-09525-265-0 02 1 0005-0210 ● ●
392 CLIP; ACCEL CONT CABLE
(A) ID=11 L=20 		9-09525-035-0 01 1 0005-0210 ●
392 CLIP; ACCEL CONT CABLE
(B) ID=13 L=32 		9-09525-265-0 01 1 0005-0210 ●
399 CLIP; CABLE,RAD SIDE 1-09701-260-0 01 1 0005-0210 ● ●
399 CLIP; CABLE,RAD SIDE
ID=9 L=25 H=45 		1-09700-867-0 01 1 0005-0210 ●
400 BOLT; CLIP,RAD SIDE
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ● ●
401 NUT; CLIP,RAD SIDE
M8 FLANGE 		0-91150-108-0 01 1 0005-0210 ● ●
410 CLIP; BAND 1-09707-187-0 02 1 0005-0210 ●
410 CLIP; BAND 1-09707-187-0 01 1 0005-0210 ● ●
443 CLIP; CABLE
(C) ID=7 L=20 		9-09524-635-0 01 1 0005-0210 ● ●
443 CLIP; CABLE
(D) ID=7 L=16 		9-09524-625-0 01 1 0005-0210 ●
443 CLIP; CABLE
(A) ID=7 L=20 		9-09524-635-0 01 1 0303-0606 ●
443 CLIP; CABLE
(A) ID=7 L=20 		0-95234-635-0 01 1 0607- ●
443 CLIP; CABLE
(B) ID=13 L=32 		9-09525-265-0 02 1 0303-0606 ●
443 CLIP; CABLE
(B) ID=13 L=32 		0-95235-265-0 02 1 0607- ●
446 CLIP; ENG CONT
ID=6.8X11.8 		1-09709-127-0 01 1 0005-0210 ● ●
450 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0005-0111 ● ● ●
450 CLIP; BAND
(B) L=140 		5-09707-031-1 02 1 0112-0210 ● ● ●
450 CLIP; BAND
ALLISON MD3560P A/T(Y3B) (B) L=140 		5-09707-031-1 02 1 0112-0210 ●
450 CLIP; BAND
(B) L=250 		5-09707-030-1 01 1 0005-0210 ●
450 CLIP; BAND
ALLISON MD3560P A/T(Y3B) (A) 		1-09707-187-0 01 1 0112-0210 ●
755 SLEEVE; RUBBER,CABLE
ID=29 OD=39 L=40 		1-09337-013-0 02 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
