0-85 — AUTO TIMER; INJECTION PUMP (#8632) — 96 parça

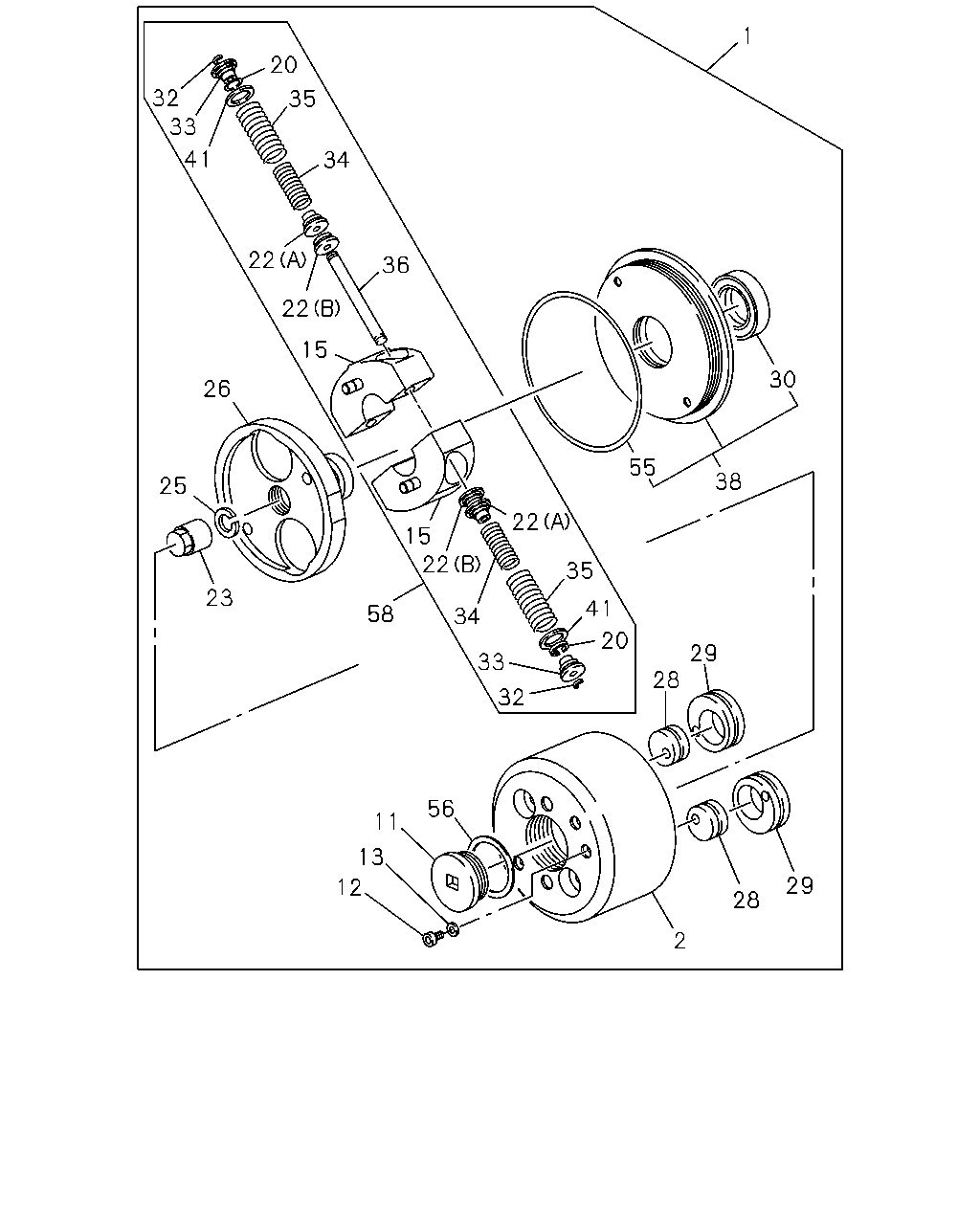

1 20 32 35 33 41 34 22 36 22 15 30 26 55 38 25 22 15 22 35 23 41 58 34 20 29 33 28 32 56 11 13 29 12 28 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: C = 8-94391-333-0	1-15740-471-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15740-521-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15741-045-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15741-074-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-594-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15743-139-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15743-164-0	02	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 8-94391-333-0	1-15749-394-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 8-94391-333-0	1-15749-395-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 8-94391-333-0	1-15749-396-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 8-94391-333-0	1-15749-397-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 8-94391-333-0	1-15749-495-0	AR	1	-
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 8-94391-333-0	1-15749-496-0	AR	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: C = 8-94391-333-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: C = 8-94391-333-0	1-15749-587-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-318-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-116-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15742-100-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15742-146-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-592-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-354-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-871-0	04	1	-
34	SPRING; TIMER,INNER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-844-0	04	1	-
35	SPRING; TIMER,OUTER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-843-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-849-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-869-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-591-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-798-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.10 ASM PART: C = 8-94391-333-0	1-15749-390-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.30 ASM PART: C = 8-94391-333-0	1-15749-391-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.50 ASM PART: C = 8-94391-333-0	1-15749-392-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: C = 8-94391-333-0	1-15749-393-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.40 ASM PART: C = 8-94391-333-0	1-15749-493-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: C = 8-94391-333-0	1-15749-494-0	AR	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: C = 8-94391-333-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: C = 8-94391-333-0	1-15749-453-0	01	1	-
56	GASKET; CAP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15743-136-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15743-163-0	01	1	-

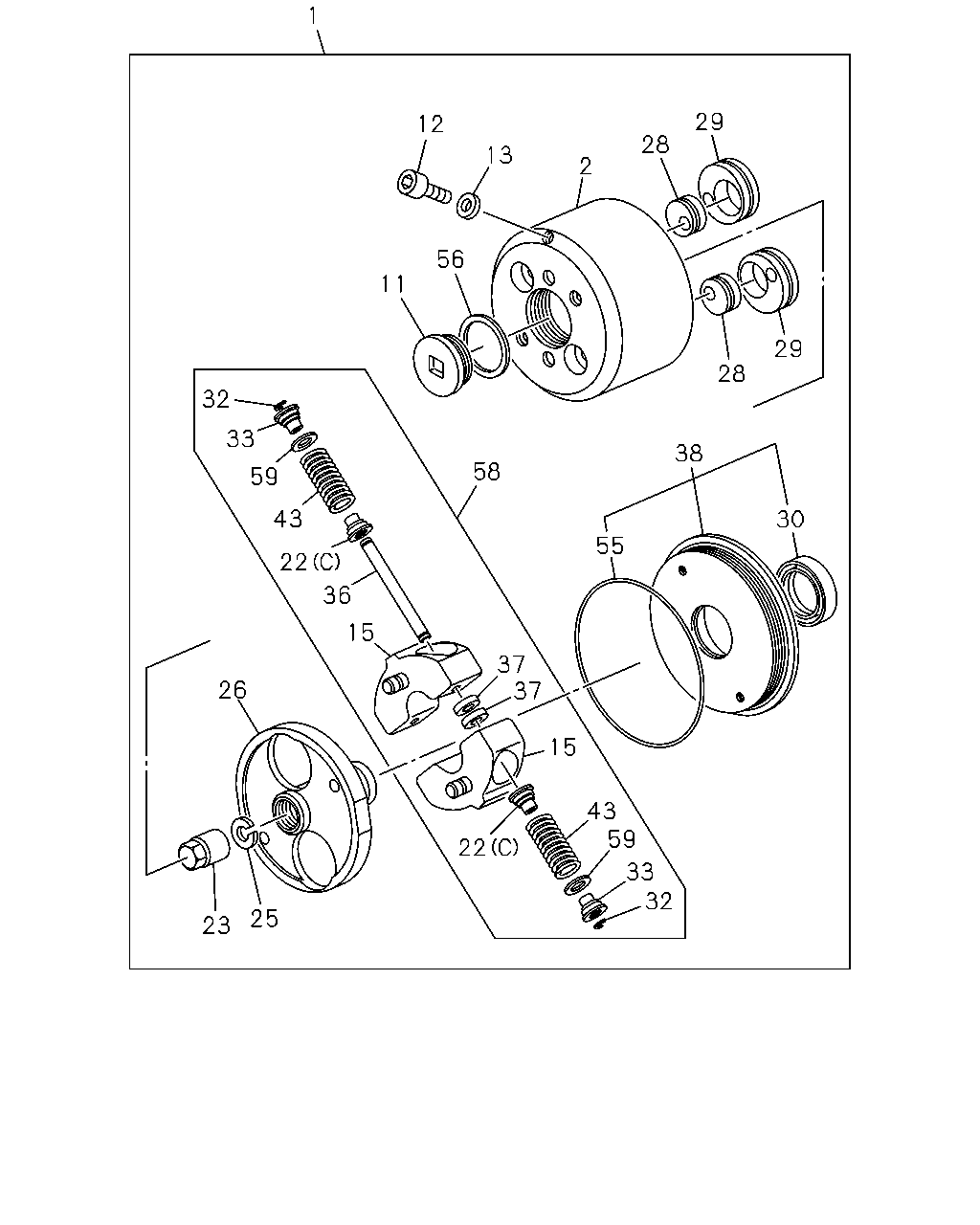

1 29 12 28 13 2 56 11 29 28 32 33 38 58 59 43 30 55 22 36 15 37 37 26 15 43 59 22 33 32 25 23

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TIMER ASM; INJ PUMP ASM PART: C = 8-94391-333-0	1-15740-471-0	01	1	-
1	TIMER ASM; INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15740-521-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15741-045-0	01	1	-
2	HOUSING; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15741-074-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-594-0	01	1	-
11	CAP; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-735-0	01	1	-
12	PLUG; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-031-0	01	1	-
13	GASKET; HSG PLUG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-030-0	01	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15743-139-0	02	1	-
15	FLYWEIGHT; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15743-164-0	02	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (B) ASM PART: C = 8-94391-333-0	1-15749-353-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (A) ASM PART: C = 8-94391-333-0	1-15749-587-0	04	1	-
22	SEAT; INNER SPRING,TIMER,INJ PUMP (C) ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-870-0	04	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-117-0	01	1	-
23	NUT; TIMER FLANGE,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-318-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-116-0	01	1	-
25	WASHER; LK,TIMER FLANGE,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-593-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15742-100-0	01	1	-
26	FLANGE; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15742-146-0	01	1	-
28	CAM; INNER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-152-0	02	1	-
29	CAM; OUTER,ECCENTRIC,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1, C = 8-94391-333-0	1-15749-151-0	02	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-592-0	01	1	-
30	SEAL; OIL,TIMER COVER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-789-0	01	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-159-0	04	1	-
32	RING; SNAP,SPRING SEAT,TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-358-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-354-0	04	1	-
33	SEAT; OUTER SPRING,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-871-0	04	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-849-0	02	1	-
36	PIN; PILOT,TIMER SPRING,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-869-0	02	1	-
37	SPACER; FLYWEIGHT,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-402-0	04	1	-
38	COVER; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15749-591-0	01	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-798-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-918-0	04	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-111-0	01	1	-
55	GASKET; TIMER HSG,INJ PUMP ASM PART: C = 8-94391-333-0	9-81345-138-0	01	1	-
56	GASKET; CAP ASM PART: C = 8-94391-333-0	1-15749-453-0	01	1	-
56	GASKET; CAP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-736-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: C = 8-94391-333-0	1-15743-136-0	01	1	-
58	FLYWEIGHT ASM; TIMER,INJ PUMP ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15743-163-0	01	1	-
59	SHIM; SPR,TIMER T=0.10 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-390-0	AR	1	-
59	SHIM; SPR,TIMER T=0.30 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-391-0	AR	1	-
59	SHIM; SPR,TIMER T=0.50 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-392-0	AR	1	-
59	SHIM; SPR,TIMER T=1.00 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-393-0	AR	1	-
59	SHIM; SPR,TIMER T=0.40 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-493-0	AR	1	-
59	SHIM; SPR,TIMER T=0.70 ASM PART: A = 1-15603-258-3, B = 1-15603-287-1	1-15749-494-0	AR	1	-
