1 |
CABLE; BATTERY
<+> TO <->
L=180
|
1-82650-265-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
1 |
CABLE; BATTERY
<+> TO <->
L=180
|
1-82650-265-0 |
01 |
1 |
0211-0712 |
● |
|
|
● |
| |
1 |
CABLE; BATTERY
L=280
|
8-97230-719-2 |
01 |
1 |
0801- |
● |
|
|
● |
| |
2 |
CABLE; BATTERY
<-> TO FRAME
L=185
|
1-82650-067-3 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
2 |
CABLE; BATTERY
<-> TO FRAME
L=185
|
1-82650-067-3 |
01 |
1 |
0211-0711 |
● |
|
|
● |
| |
2 |
CABLE; BATTERY
L=185
|
8-97623-075-0 |
01 |
1 |
0712- |
● |
|
|
● |
| |
8 |
CABLE; BATTERY,STARTER
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
ENGINE REAR PTO(SV1)
L=1700
|
1-82650-209-1 |
01 |
1 |
0306- |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 4200MM(42W)
<+> TO STARTER
L=2300
|
1-82650-212-1 |
01 |
1 |
0005-0210 |
|
● |
|
|
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6000MM(60W)
<+> TO STARTER
L=1450
|
1-82650-217-1 |
01 |
1 |
0005-0006 |
|
● |
|
|
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6000MM(60W)
<+> TO STARTER
L=1350
|
1-82650-367-0 |
01 |
1 |
0007-0210 |
|
● |
|
|
| |
8 |
CABLE; BATTERY,STARTER
<+> TO STARTER
L=2250
|
1-82650-261-1 |
01 |
1 |
0005-0210 |
|
|
● |
|
| |
8 |
CABLE; BATTERY,STARTER
A/T<X9D>
<+> TO STARTER
L=1750
|
1-82650-218-1 |
01 |
1 |
0112-0212 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
ENGINE REAR PTO(SV1)
<+> TO STARTER
L=1750
|
1-82650-218-1 |
01 |
1 |
0301-0305 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVZ(FVZ***)
A/T<X9D>
<+> TO STARTER
L=1750
|
1-82650-218-1 |
01 |
1 |
0301-0305 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
A/T<X9D>
L=1750
|
1-82650-218-1 |
01 |
1 |
0306- |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVM MIDDLE CHASSIS(FVM5MF)
FVZ MIDDLE CHASSIS(FVZ5MF)
GVR(GV****)
<+> TO STARTER
L=1600
|
1-82650-298-0 |
01 |
1 |
0005-0210 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVM(FVM***)
GVR(GV****)
FULLER FS8209HD DD M/T(Y3A)
<+> TO STARTER
L=1600
|
1-82650-298-0 |
01 |
1 |
0211-0212 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
<+> TO STARTER
L=1600
|
1-82650-298-0 |
01 |
1 |
0211-0212 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVM(FVM***)
GVR(GV****)
FULLER FS8209HD DD M/T(Y3A)
<+> TO STARTER
L=1600
|
1-82650-298-0 |
01 |
1 |
0301- |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVZ(FVZ***)
FULLER RT7608LL M/T(X8P)
EXC. ENGINE REAR PTO(SV1)
<+> TO STARTER
L=1600
|
1-82650-298-0 |
01 |
1 |
0301- |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVR(FVR***)
<+> TO STARTER
L=1850
|
1-82650-318-0 |
01 |
1 |
0005-0005 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVR(FVR***)
<+> TO STARTER
L=1650
|
1-82650-369-0 |
01 |
1 |
0006-0111 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVR(FVR***)
FULLER FS8209 DD M/T(Y2S)
<+> TO STARTER
L=1650
|
1-82650-369-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVR(FVR***)
FULLER FS8209HD DD M/T(Y3A)
<+> TO STARTER
L=1650
|
1-82650-369-0 |
01 |
1 |
0211- |
● |
|
|
|
| |
8 |
CABLE; BATTERY,STARTER
FVR(FVR***)
WHEEL BASE 6000MM(60W)
<+> TO STARTER
L=1350
|
1-82650-367-0 |
01 |
1 |
0303-0405 |
|
|
|
● |
| |
8 |
CABLE; BATTERY,STARTER
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
L=1350
|
1-82650-367-0 |
01 |
1 |
0406- |
|
|
|
● |
| |
8 |
CABLE; BATTERY,STARTER
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
<+> TO STARTER
L=2300
|
1-82650-212-1 |
01 |
1 |
0303- |
|
|
|
● |
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0005-0210 |
|
● |
● |
|
| |
9 |
CLIP; BATTERY CABLE
ID=14 L=44
|
9-09917-427-0 |
01 |
1 |
0303- |
|
|
|
● |
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
10 |
BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER
|
8-97087-205-0 |
01 |
1 |
0211- |
● |
|
|
● |
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
11 |
WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0
|
1-09503-265-0 |
01 |
1 |
0211- |
● |
|
|
● |
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
13 |
GROMMET; BATTERY CABLE
ID=28 OD=35 T=25
|
1-09332-011-1 |
01 |
1 |
0211- |
● |
|
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM(42W)
(B)
L=55
|
1-47475-304-0 |
01 |
1 |
0005-0210 |
|
● |
|
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=145
|
1-47475-655-0 |
01 |
1 |
0005-0111 |
|
● |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6000MM(60W)
(C)
L=145
|
1-47475-655-0 |
01 |
1 |
0005-0111 |
|
● |
|
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=145
|
1-47475-655-0 |
01 |
1 |
0005-0111 |
|
|
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM(42W)
(C)
L=145
|
1-47475-655-0 |
01 |
1 |
0112-0210 |
|
● |
|
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 6000MM(60W)
(C)
L=145
|
1-47475-655-0 |
01 |
1 |
0112-0210 |
|
|
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(C)
L=145
|
1-47475-655-0 |
01 |
1 |
0112-0210 |
|
|
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=95
|
1-82699-085-0 |
03 |
1 |
0005-0210 |
|
● |
● |
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
(A)
L=95
|
1-82699-085-0 |
01 |
1 |
0005- |
● |
|
|
|
| |
23 |
BRACKET; CABLE CLIP TO FRAME
FVR(FVR***)
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W)
(A)
L=95
|
1-82699-085-0 |
03 |
1 |
0303-0405 |
|
|
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
WHEEL BASE 4200MM(42W),WHEEL BASE 6000MM(60W),
WHEEL BASE 6200MM(62W)
(A)
L=95
|
1-82699-085-0 |
03 |
1 |
0406- |
|
|
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
(B)
L=55
|
1-47475-304-0 |
01 |
1 |
0303- |
|
|
|
● |
| |
23 |
BRACKET; CABLE CLIP TO FRAME
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
(C)
L=145
|
1-47475-655-0 |
01 |
1 |
0303- |
|
|
|
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 6000MM(60W)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
0112-0210 |
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
M8X35 FLANGE
|
0-28680-835-0 |
05 |
1 |
0005-0111 |
|
● |
● |
|
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 4200MM(42W)
M8X35 FLANGE
|
0-28680-835-0 |
05 |
1 |
0112-0210 |
|
● |
|
|
| |
24 |
BOLT; BRKT TO FRAME
M8X35 FLANGE
|
0-28680-835-0 |
05 |
1 |
0112-0210 |
|
|
● |
|
| |
24 |
BOLT; BRKT TO FRAME
M8X35 FLANGE
|
0-28680-835-0 |
01 |
1 |
0005-0512 |
● |
|
|
|
| |
24 |
BOLT; BRKT TO FRAME
M8X35 FLANGE
|
0-28650-835-0 |
01 |
1 |
0601- |
● |
|
|
|
| |
24 |
BOLT; BRKT TO FRAME
FVR(FVR***)
WHEEL BASE 6000MM(60W)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
0303-0405 |
|
|
|
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8X35 FLANGE
|
0-28680-835-0 |
03 |
1 |
0406-0512 |
|
|
|
● |
| |
24 |
BOLT; BRKT TO FRAME
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8X35 FLANGE
|
0-28650-835-0 |
03 |
1 |
0601- |
|
|
|
● |
| |
24 |
BOLT; BRKT TO FRAME
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8X35 FLANGE
|
0-28680-835-0 |
05 |
1 |
0303-0512 |
|
|
|
● |
| |
24 |
BOLT; BRKT TO FRAME
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8X35 FLANGE
|
0-28650-835-0 |
05 |
1 |
0601- |
|
|
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 4200MM(42W)
(A)
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
0005-0210 |
|
● |
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6000MM(60W)
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0005-0111 |
|
● |
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0005-0111 |
● |
|
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6000MM(60W)
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0112-0112 |
|
● |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0112-0112 |
● |
|
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6000MM(60W)
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0112-0210 |
|
|
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0112-0210 |
● |
|
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
(B)
ID=15 L=28
|
1-09701-216-0 |
01 |
1 |
0211- |
● |
|
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6000MM(60W)
(B)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0112-0210 |
|
● |
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
(B)
ID=15 L=28
|
1-09701-216-0 |
04 |
1 |
0005-0111 |
|
● |
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 4200MM(42W)
(B)
ID=15 L=28
|
1-09701-216-0 |
04 |
1 |
0112-0210 |
|
● |
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
(B)
ID=15 L=28
|
1-09701-216-0 |
04 |
1 |
0112-0210 |
|
|
● |
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
A/T<X9D>
(C)
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0201-0202 |
● |
|
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
A/T<X9D>
(C)
ID=6.35 & 10.0
|
1-09709-274-1 |
01 |
1 |
0203-0210 |
● |
|
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
A/T<X9D>
(C)
ID=6.35 & 15
|
1-09709-276-1 |
01 |
1 |
0211- |
● |
|
|
|
| |
25 |
CLIP; BATTERY CABLE TO BRKT
FVR(FVR***)
WHEEL BASE 6000MM(60W)
(A)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0303-0405 |
|
|
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
(A)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0406- |
|
|
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
(A)
ID=15 L=22 H=30
|
1-09701-215-1 |
01 |
1 |
0303- |
|
|
|
● |
| |
25 |
CLIP; BATTERY CABLE TO BRKT
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
(B)
ID=15 L=28
|
1-09701-216-0 |
04 |
1 |
0303- |
|
|
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 6000MM(60W)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
0112-0210 |
|
● |
|
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0005-0111 |
|
● |
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 4200MM(42W)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0112-0210 |
|
● |
|
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0112-0210 |
|
|
● |
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28680-825-0 |
01 |
1 |
0005-0512 |
● |
|
|
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
M8X25 FLANGE
|
0-28650-825-0 |
01 |
1 |
0601- |
● |
|
|
|
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
FVR(FVR***)
WHEEL BASE 6000MM(60W)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
0303-0405 |
|
|
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8X25 FLANGE
|
0-28680-825-0 |
03 |
1 |
0406-0512 |
|
|
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8X25 FLANGE
|
0-28650-825-0 |
03 |
1 |
0601- |
|
|
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8X25 FLANGE
|
0-28680-825-0 |
05 |
1 |
0303-0512 |
|
|
|
● |
| |
26 |
BOLT; BATTERY CABLE CLIP TO BRKT
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8X25 FLANGE
|
0-28650-825-0 |
05 |
1 |
0601- |
|
|
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 6000MM(60W)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0112-0210 |
|
● |
|
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0005-0111 |
|
● |
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0112-0210 |
|
● |
|
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0112-0210 |
|
|
● |
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005-0602 |
● |
|
|
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
|
|
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
FVR(FVR***)
WHEEL BASE 6000MM(60W)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0303-0405 |
|
|
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0406-0602 |
|
|
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
|
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0303-0602 |
|
|
|
● |
| |
27 |
NUT; BATTERY CABLE CLIP TO BRKT
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
|
|
|
● |
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 6000MM(60W)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0112-0210 |
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0005-0111 |
|
● |
● |
|
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0112-0210 |
|
● |
|
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0112-0210 |
|
|
● |
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91150-108-0 |
01 |
1 |
0005-0602 |
● |
|
|
|
| |
28 |
NUT; BRKT TO FRAME
M8 FLANGE
|
0-91180-108-0 |
01 |
1 |
0603- |
● |
|
|
|
| |
28 |
NUT; BRKT TO FRAME
FVR(FVR***)
WHEEL BASE 6000MM(60W)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0303-0405 |
|
|
|
● |
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8 FLANGE
|
0-91150-108-0 |
03 |
1 |
0406-0602 |
|
|
|
● |
| |
28 |
NUT; BRKT TO FRAME
WHEEL BASE 6000MM(60W),WHEEL BASE 6200MM(62W)
M8 FLANGE
|
0-91180-108-0 |
03 |
1 |
0603- |
|
|
|
● |
| |
28 |
NUT; BRKT TO FRAME
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91150-108-0 |
05 |
1 |
0303-0602 |
|
|
|
● |
| |
28 |
NUT; BRKT TO FRAME
FVR(FVR***)
GVR(GV****)
WHEEL BASE 4200MM(42W)
M8 FLANGE
|
0-91180-108-0 |
05 |
1 |
0603- |
|
|
|
● |
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
33 |
CAP; INSULATOR
|
1-82699-431-0 |
01 |
1 |
0211- |
● |
|
|
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
0005-0210 |
|
● |
● |
|
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28081-020-0 |
01 |
1 |
0303-0512 |
|
|
|
● |
| |
71 |
BOLT; BATTERY CABLE
M10X20 FLANGE
|
0-28051-020-0 |
01 |
1 |
0601- |
|
|
|
● |
| |
79 |
CLIP; BATTERY CABLE
A/T<X9D>
(B)
ID=15 L=22 H=30
|
1-09701-215-1 |
03 |
1 |
0506- |
● |
|
|
|
| |
79 |
CLIP; BATTERY CABLE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
79 |
CLIP; BATTERY CABLE
(A)
ID=16 L=28
|
1-09700-872-0 |
01 |
1 |
0211- |
● |
|
|
● |
| |
79 |
CLIP; BATTERY CABLE
(B)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0005-0111 |
● |
|
|
|
| |
79 |
CLIP; BATTERY CABLE
EXC. A/T<X9D>
(B)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0112-0112 |
● |
|
|
|
| |
79 |
CLIP; BATTERY CABLE
(B)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0201-0505 |
● |
|
|
|
| |
79 |
CLIP; BATTERY CABLE
FULLER M/T<X9B>
(B)
ID=15 L=28
|
1-09701-216-0 |
03 |
1 |
0506- |
● |
|
|
|
| |
79 |
CLIP; BATTERY CABLE
A/T<X9D>
(B)
ID=15 L=22 H=30
|
1-09701-215-1 |
03 |
1 |
0112-0112 |
● |
|
|
|
| |
80 |
BOLT; BATTERY CABLE CLIP
(A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
80 |
BOLT; BATTERY CABLE CLIP
(A)
M8X16 FLANGE
|
0-28080-816-0 |
01 |
1 |
0211-0512 |
● |
|
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(A)
M8X16 FLANGE
|
0-28050-816-0 |
01 |
1 |
0601- |
● |
|
|
● |
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X20 FLANGE
|
0-28680-820-0 |
03 |
1 |
0005-0512 |
● |
|
|
|
| |
80 |
BOLT; BATTERY CABLE CLIP
(B)
M8X20 FLANGE
|
0-28650-820-0 |
03 |
1 |
0601- |
● |
|
|
|
| |

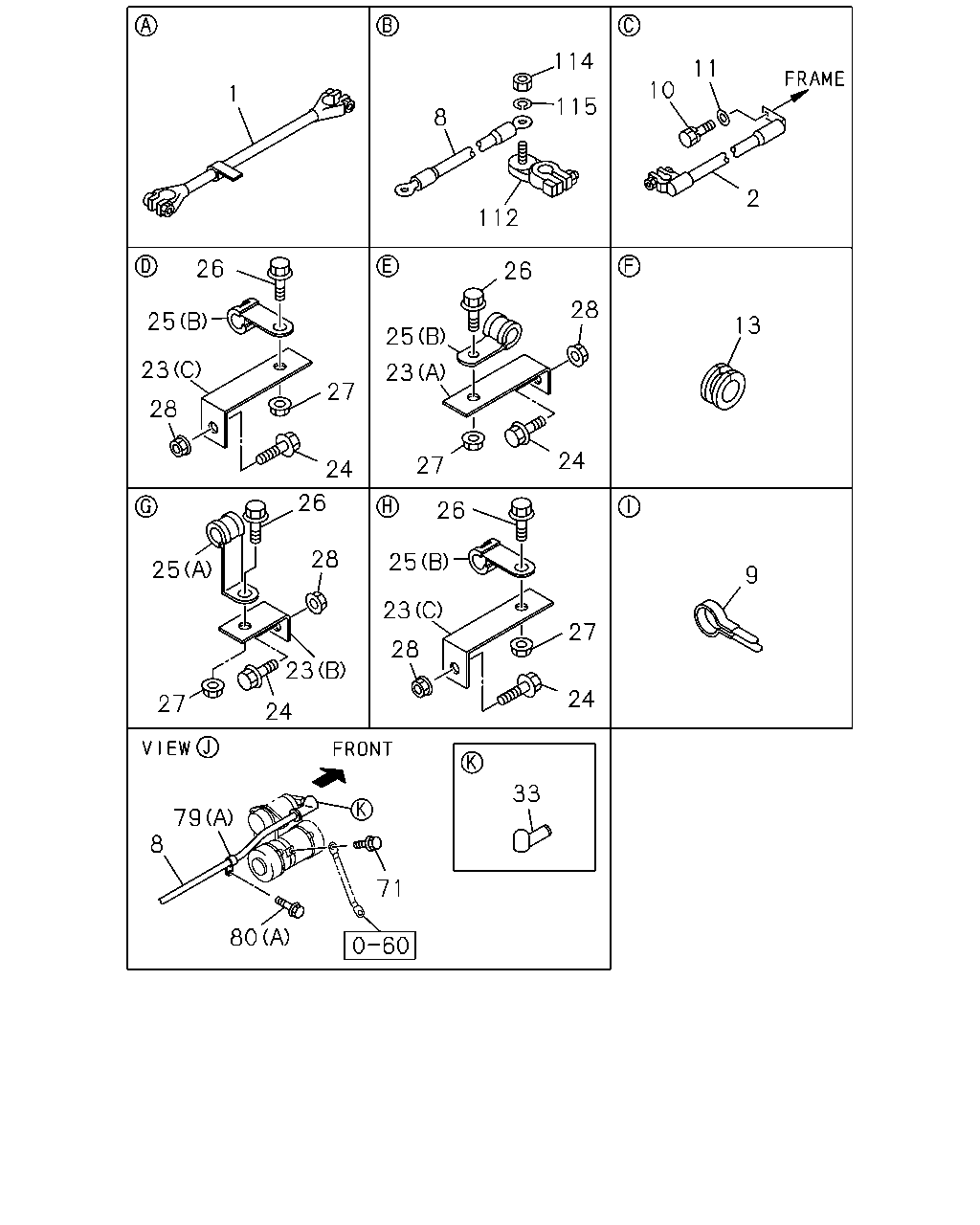

112 |
TERMINAL; BATTERY
<+>
|
1-82695-003-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-003-0 |
01 |
1 |
0211-0403 |
● |
|
|
● |
| |
112 |
TERMINAL; BATTERY
<+>
|
1-82695-175-0 |
01 |
1 |
0404- |
● |
|
|
● |
| |

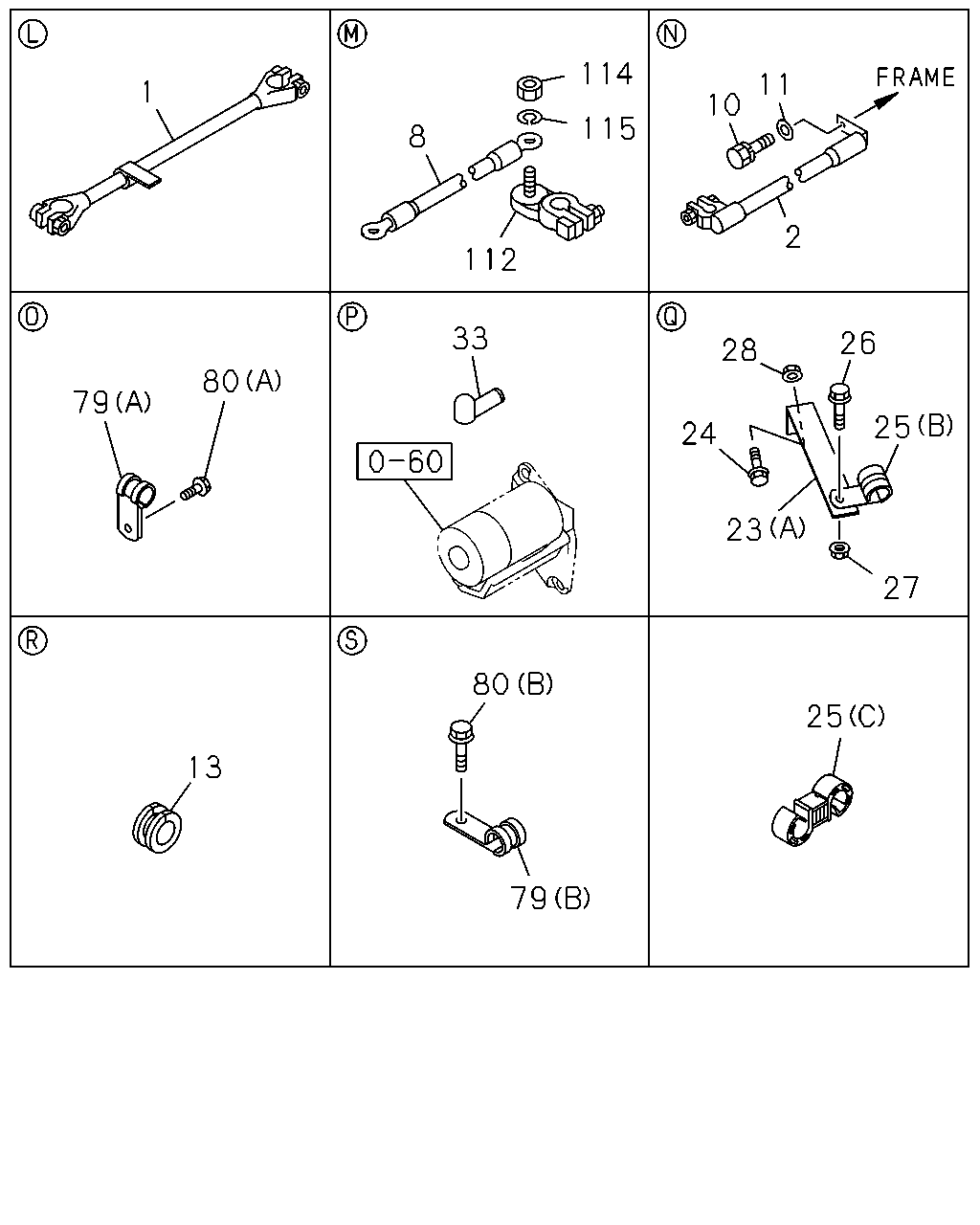

114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
9-09110-510-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
9-09110-510-0 |
01 |
1 |
0211-0512 |
● |
|
|
● |
| |
114 |
NUT; CABLE,BATTERY TERMINAL
M10
|
0-91110-510-0 |
01 |
1 |
0601- |
● |
|
|
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0005-0210 |
● |
● |
● |
|
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
9-09150-510-0 |
01 |
1 |
0211-0603 |
● |
|
|
● |
| |
115 |
WASHER; LK,CABLE,BATTERY
ID=10.2
|
0-91510-510-0 |
01 |
1 |
0604- |
● |
|
|
● |
