◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FV ▶ 10828 - FV/GV(AUSTRAL)L.SUS ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-60 - ENGINE ELECTRICAL CONTROL PARTS ▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS (#8624) — 220 parça

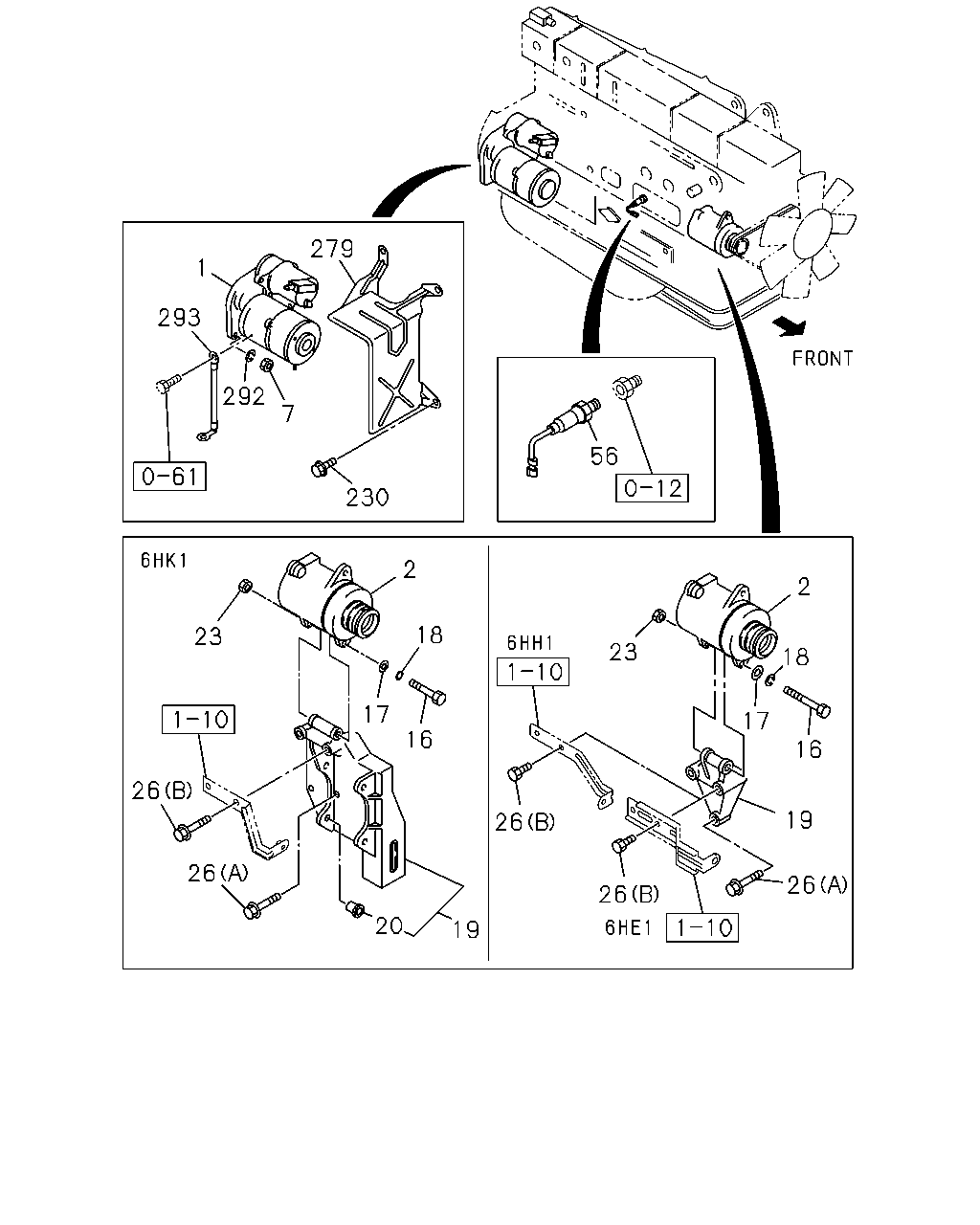

çizim 44737
279 1 293 292 7 56 230 2 2 18 23 23 18 17 17 16 16 26 19 26 26 26 26 20 19
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0210 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 0005-0210 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-2 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-422-0 01 1 0109- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0303- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		1-81200-417-3 01 1 0005-0008 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-608-3 01 1 0009-0210 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-576-2 01 1 0005-0008 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		1-81200-465-1 01 1 0005- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-576-5 01 1 0303-0303 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-608-5 01 1 0303- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0210 ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 0005- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0303-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0210 ● ●
16 BOLT; GEN
M14X123 		9-09801-204-1 01 1 0005- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0303- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0005-0210 ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0211-0302 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0303-0605 ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0005-0210 ● ●
18 WASHER; LK,GEN
ID=14.2 		9-09150-514-0 01 1 0303-0603 ●
18 WASHER; LK,GEN
ID=14.2 		0-91510-514-0 01 1 0604- ●
19 BRACKET; GEN 8-94396-297-0 01 1 0005-0112 ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0201-0210 ● ●
19 BRACKET; GEN 1-19711-038-0 01 1 0005- ●
19 BRACKET; GEN 8-94395-470-4 01 1 0303- ●
20 COLLAR; BRKT,GEN 8-94201-057-1 02 1 0303-1302 ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0210 ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0005- ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0303-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0005-0210 ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 0005-0210 ● ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 0211-0512 ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28181-070-0 02 1 0005-0512 ●
26 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0601- ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 02 1 0303-0401 ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0303-0401 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0210 ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0211-0302 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0303- ● ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
279 PROTECTOR; STARTER 1-14181-292-0 01 1 0005- ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0005-0210 ● ●
292 WASHER; LK,STARTER
ID=14.2 		9-09150-514-0 02 1 0303-0603 ●
292 WASHER; LK,STARTER
ID=14.2 		0-91510-514-0 02 1 0604- ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0006-0210 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=550 		1-82650-239-0 01 1 0005-0210 ●
293 CABLE; STARTER EARTH 1-82650-396-0 01 1 0211- ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0303- ●

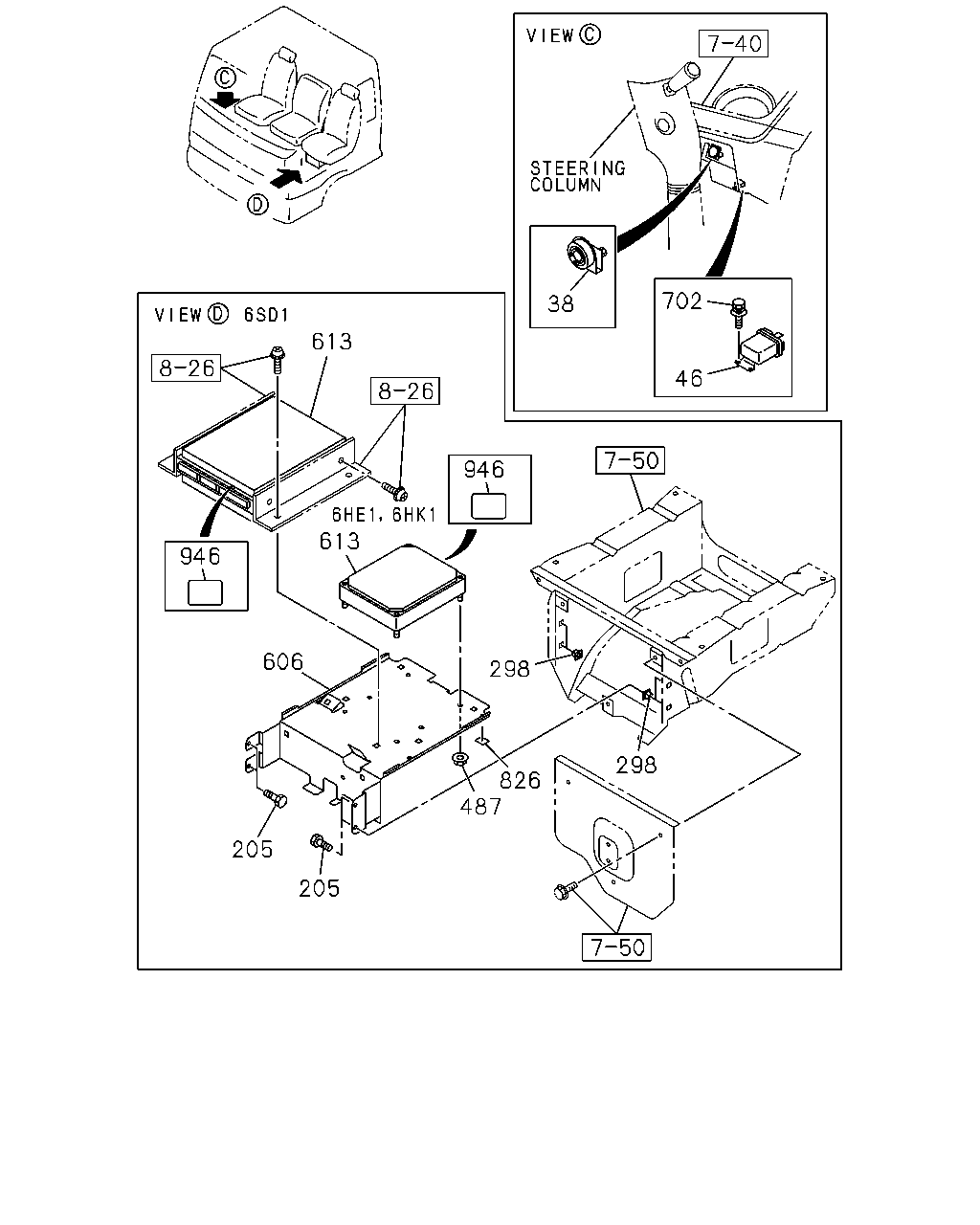

çizim 44803
702 38 613 46 946 613 946 606 298 298 826 487 205 205
BalonParca AdiParca NoAdetTipApplied Date A B C D
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0005-0210 ● ● ●
38 RESISTOR; CONT,GLOW PLUG 1-81402-008-0 01 1 0211- ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0005-0210 ● ● ●
46 RELAY; GLOW PLUG 8-94258-014-0 01 1 0211- ● ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0005-0111 ●
205 SCREW; BRKT
M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0112-0210 ●
205 SCREW; BRKT
A/T<X9D> M6X12 TAPPING W/PL WASHER 		0-74100-612-0 04 1 0112-0210 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0005-0111 ●
298 GROMMET; SCREW
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0112-0210 ●
298 GROMMET; SCREW
A/T<X9D> D=9.7X9.7 L=8 		8-94222-314-0 04 1 0112-0210 ●
487 NUT
M6 FLANGE 		0-91150-106-0 04 1 0005-0210 ● ●
606 BRACKET; CONT UNIT 1-75558-534-7 01 1 0005-0210 ● ●
613 CONTROL UNIT; ENG
A/T<X9D> 		1-80110-963-1 01 1 0211- ●
613 CONTROL UNIT; ENG 1-80110-178-0 01 1 0005-0210 ●
613 CONTROL UNIT; ENG
FULLER M/T<X9B> 		1-80110-962-1 01 1 0211-0504 ●
613 CONTROL UNIT; ENG
FULLER M/T<X9B> 		1-80111-269-0 01 1 0505- ●
613 CONTROL UNIT; ENG 8-97602-574-0 01 1 0303-0504 ●
613 CONTROL UNIT; ENG 8-98012-978-0 01 1 0505- ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0005-0210 ● ● ●
702 BOLT; RELAY
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0211- ● ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 0005-0111 ●
826 SEAL; NOISE INSULATION
30X30 		8-97866-626-0 03 1 0112-0210 ●
826 SEAL; NOISE INSULATION
A/T<X9D> 30X30 		8-97866-626-0 03 1 0112-0210 ●
946 SEAL; TAPE
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		1-80199-006-0 01 1 0211-1212 ● ●
946 SEAL; TAPE
FVZ(FVZ***) SPEED LIMITER 100KM<NMU> 		1-80199-006-0 01 1 0211-1212 ● ●
946 SEAL; TAPE
FVM MIDDLE CHASSIS(FVM5MF) FVR MIDDLE CHASSIS(FVR5MF) GVR(GV****) 		8-98166-639-0 01 1 1301- ● ●
946 SEAL; TAPE
FVZ(FVZ***) SPEED LIMITER 100KM<NMU> 		8-98166-639-0 01 1 1301- ● ●

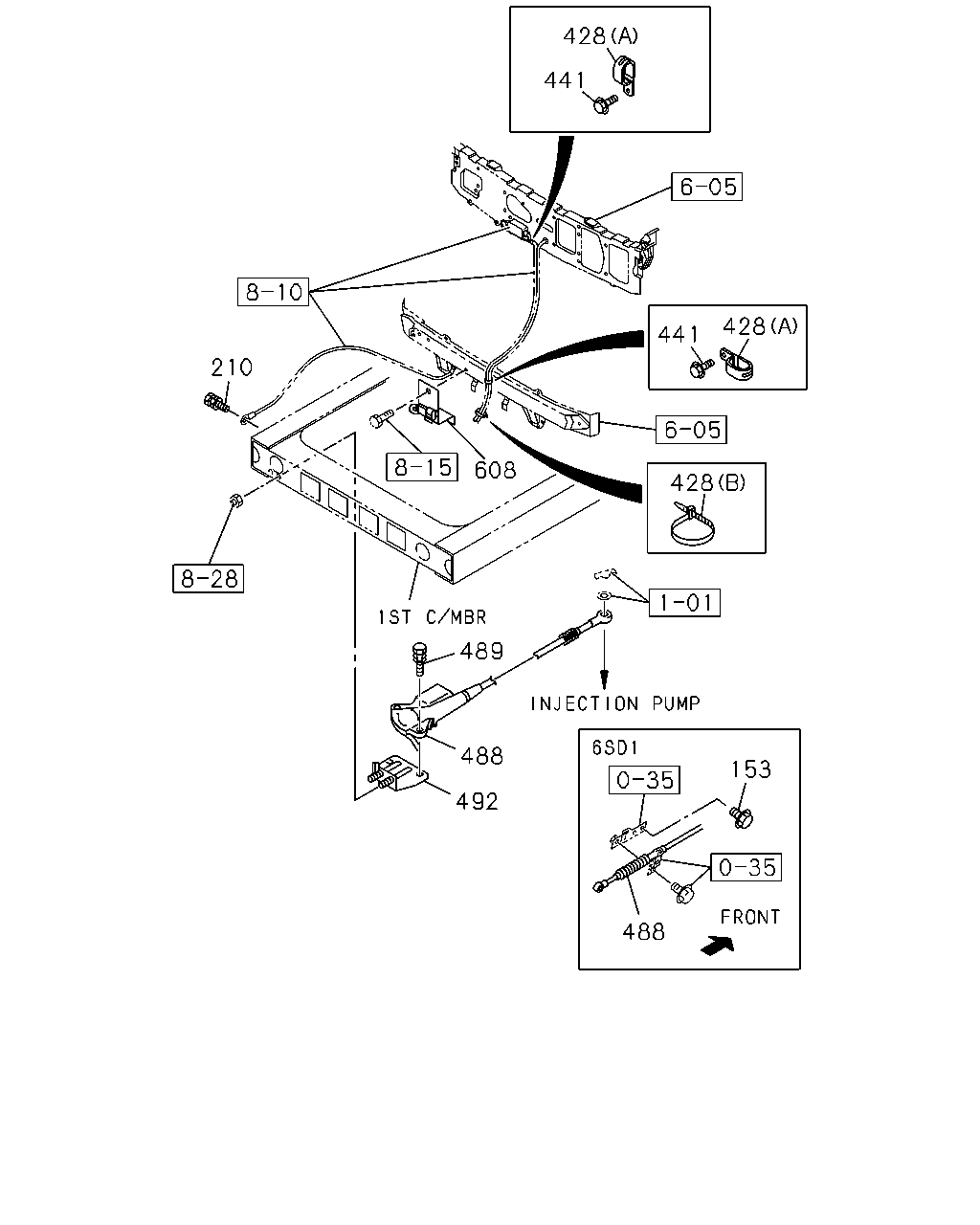

çizim 44841
428 441 428 441 210 608 428 489 488 153 492 488
BalonParca AdiParca NoAdetTipApplied Date A B C D
153 BOLT; BRKT FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0005-0111 ● ● ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0112-0210 ● ● ●
210 BOLT; CABLE FIX
A/T<X9D> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0112-0210 ●
210 BOLT; CABLE FIX
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0211-1201 ● ●
210 BOLT; CABLE FIX
A/T<X9D> M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0211-1201 ●
210 BOLT; CABLE FIX
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ● ●
210 BOLT; CABLE FIX
A/T<X9D> M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202- ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0005-0210 ● ● ●
428 CLIP; HARNESS
(A) ID=35 L=50 		1-09701-214-0 02 1 0211- ● ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 03 1 0005-0210 ● ●
428 CLIP; HARNESS
(B) L=300 		1-09707-001-1 03 1 0211- ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28680-825-0 02 1 0211-0512 ● ●
441 BOLT; HARNESS TO FRAME
M8X25 FLANGE 		0-28650-825-0 02 1 0601- ● ●
488 STOPPER; ENG 1-82840-153-1 01 1 0005-0210 ●
488 STOPPER; ENG 1-82840-128-2 01 1 0005-0210 ●
488 STOPPER; ENG 1-82840-148-2 01 1 0005-0210 ●
489 BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER 		0-50140-825-0 02 1 0005-0210 ● ● ●
492 BRACKET; ENG STOPPER 1-82849-089-1 01 1 0005-0210 ● ● ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0211-0302 ●
608 SENSOR; AIR TEMP 1-83544-031-0 01 1 0303- ● ●

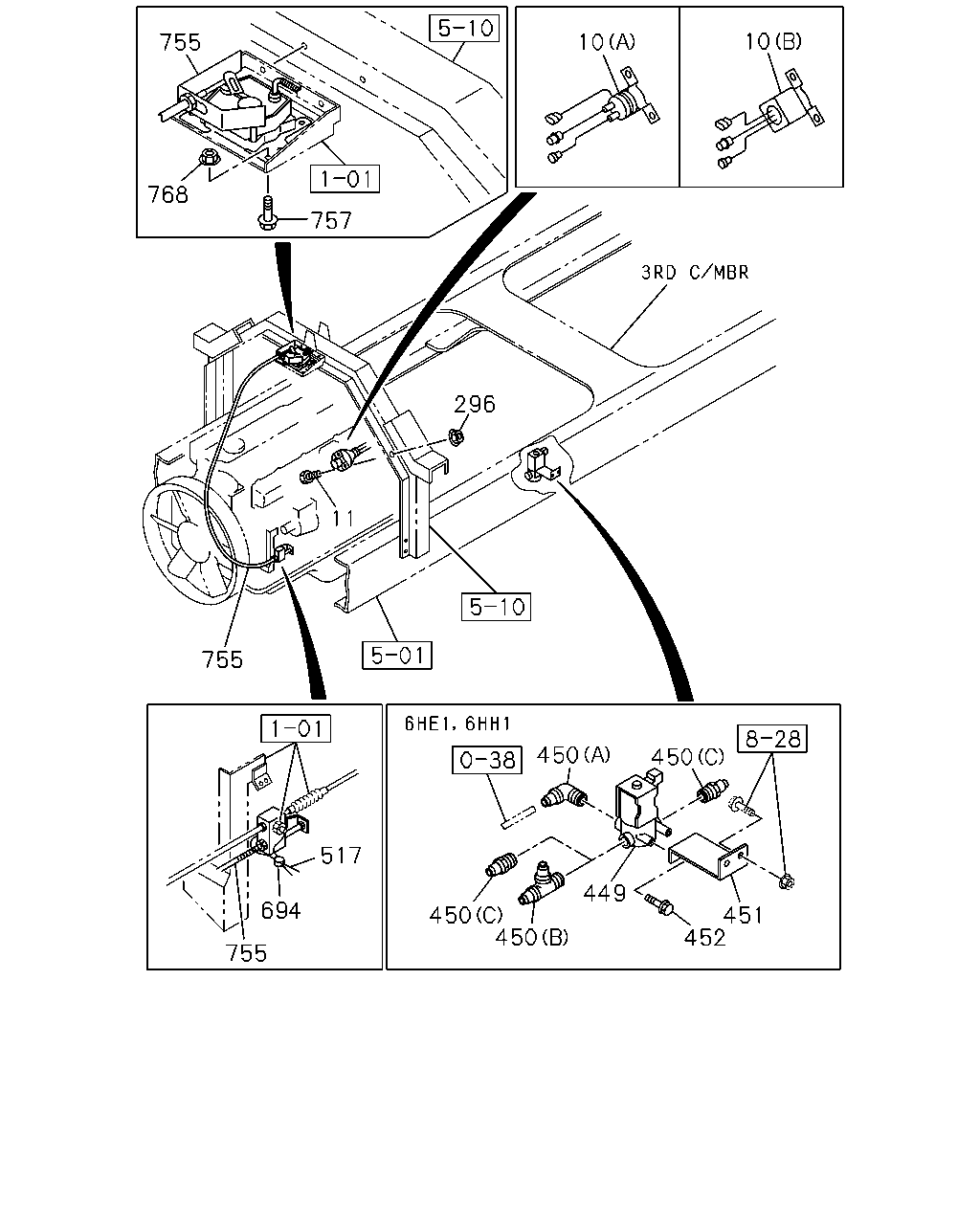

çizim 44876
10 755 10 768 757 296 11 755 450 450 517 449 694 451 452 450 450 755
BalonParca AdiParca NoAdetTipApplied Date A B C D
10 RELAY; STARTER
(A) DENSO 		1-81171-070-0 01 1 0005-0111 ● ● ●
10 RELAY; STARTER
STARTER DENSO(RC6) (A) DENSO 		1-81171-070-0 01 1 0112-0210 ● ● ● ●
10 RELAY; STARTER
(A) DENSO 		1-81171-070-0 01 1 0211- ● ●
10 RELAY; STARTER
EXC. STARTER DENSO(RC6) (B) HITACHI 		1-81171-087-0 01 1 0005-0210 ● ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28680-820-0 02 1 0211-0512 ● ●
11 BOLT; RELAY STARTER
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0005-0210 ● ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91150-108-0 02 1 0211-0602 ● ●
296 NUT; RELAY,STARTER
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
WHEEL BASE 4200MM(42W) 		1-82563-599-4 01 1 0005-0210 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM 1-82563-599-4 01 1 0005-0210 ●
449 VALVE; MAG,VARIABLE SWIRL SYSTEM
WHEEL BASE 6000MM(60W) 		1-82563-778-2 01 1 0005-0210 ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 4200MM(42W) (B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0210 ●
450 CONNECTOR; MAG VLV,INL PORT
(B) DIN8X2 & R1/4 3WAY 		1-09661-006-0 01 1 0005-0210 ●
450 CONNECTOR; MAG VLV,INL PORT
WHEEL BASE 6000MM(60W) (C) DIN8 R1/4 STRAIGHT 		1-09660-963-0 02 1 0005-0210 ●
450 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0005-0210 ● ●
451 BRACKET; MAG VLV,VSS
WHEEL BASE 4200MM(42W) 		1-82569-208-0 01 1 0005-0210 ●
451 BRACKET; MAG VLV,VSS 1-82569-208-0 01 1 0005-0210 ●
452 BOLT; VSS MAG VLV
WHEEL BASE 4200MM(42W) M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ●
452 BOLT; VSS MAG VLV
M8X20 FLANGE 		0-28080-820-0 02 1 0005-0210 ●
517 WIRE 9-81325-446-0 02 1 0005-0210 ● ● ●
694 SEAL; COVER 1-15739-002-0 02 1 0005-0210 ● ● ●
755 MOTOR; SERVO 1-82840-159-1 01 1 0005-0210 ●
755 MOTOR; SERVO 1-82840-147-0 01 1 0005-0210 ●
755 MOTOR; SERVO 1-82840-149-1 01 1 0005-0210 ●
757 BOLT; SERVO MOTOR
M8X16 FLANGE 		0-28080-816-0 04 1 0005-0210 ● ●
757 BOLT; SERVO MOTOR
M8X16 FLANGE 		0-28080-816-0 02 1 0005-0210 ●
757 BOLT; SERVO MOTOR
M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ●
768 NUT; SERVO MOTOR
M8 FLANGE 		0-91150-108-0 04 1 0005-0210 ● ● ●

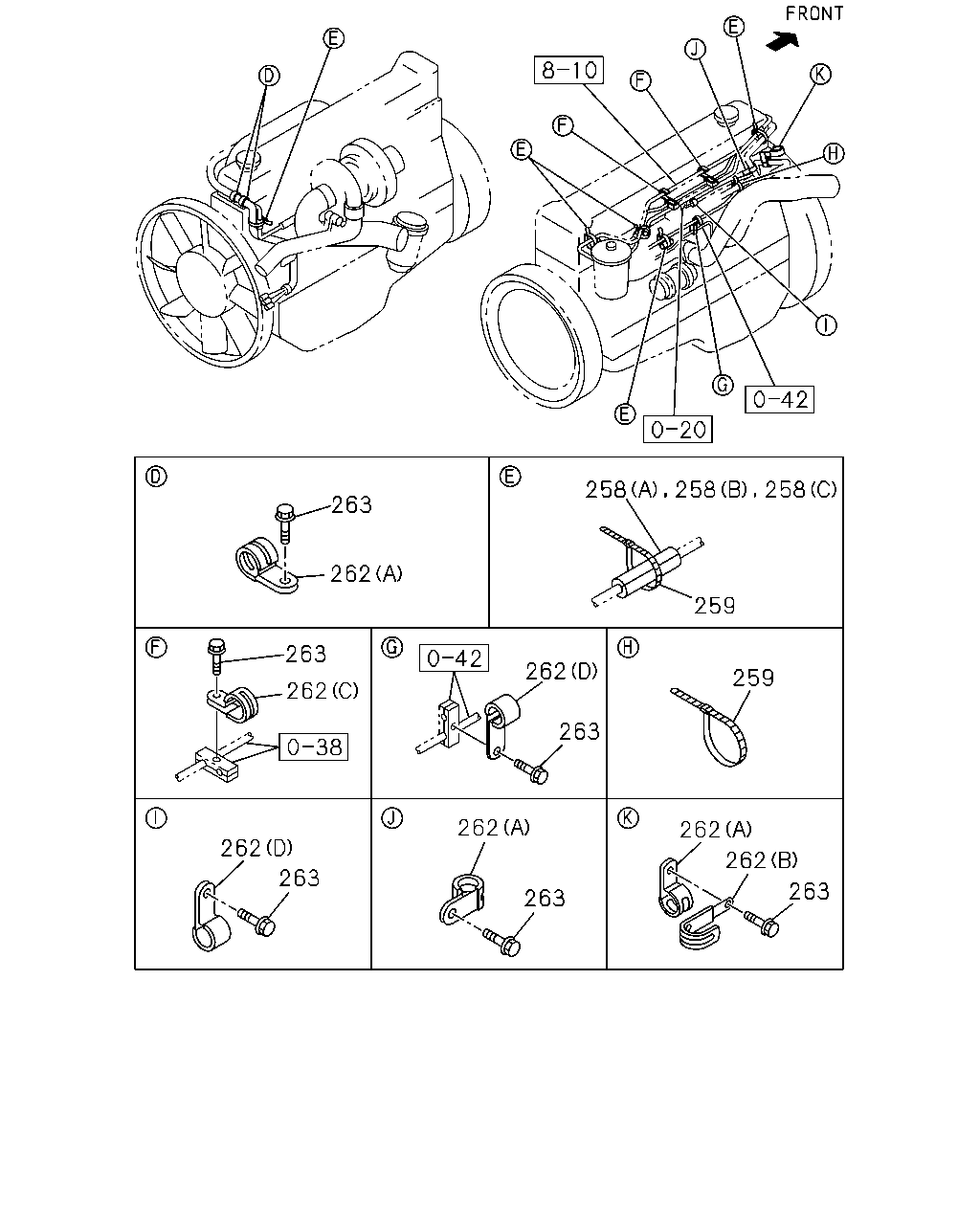

çizim 44972
258 263 262 259 263 262 259 262 263 262 262 262 262 263 263 263 258 258
BalonParca AdiParca NoAdetTipApplied Date A B C D
258 SLEEVE; RUBBER OIL PIPE
(A) ID=6 L=30 		5-09360-352-0 02 1 0211- ●
258 SLEEVE; RUBBER OIL PIPE
(B) ID=18 OD=22 L=25 		8-94412-773-0 05 1 0211- ●
258 SLEEVE; RUBBER OIL PIPE
(C) ID=10 OD=14 L=30 		9-09956-682-0 02 1 0211- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		5-09707-030-1 05 1 0211-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=250 		8-98216-430-0 05 1 1206- ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		5-09707-031-1 05 1 0211-1205 ●
259 CLIP; BAND,HARNESS TO OIL PIPE
L=140 		8-98216-431-0 05 1 1206- ●
262 CLIP; HARNESS
(A) ID=31 L=35 		1-09700-329-1 06 1 0211- ●
262 CLIP; HARNESS
(B) ID=18 L=44 		8-94225-185-0 03 1 0211-0304 ●
262 CLIP; HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0305-0801 ●
262 CLIP; HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ●
262 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-035-0 06 1 0211-0606 ●
262 CLIP; HARNESS
(D) ID=11 L=20 		0-95235-035-0 06 1 0607- ●
262 CLIP; HARNESS
(C) ID=19 L=28 		9-09525-856-0 03 1 0211-0606 ●
262 CLIP; HARNESS
(C) ID=19 L=28 		0-95235-856-0 03 1 0607- ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 16 1 0211-0512 ●
263 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 16 1 0601- ●

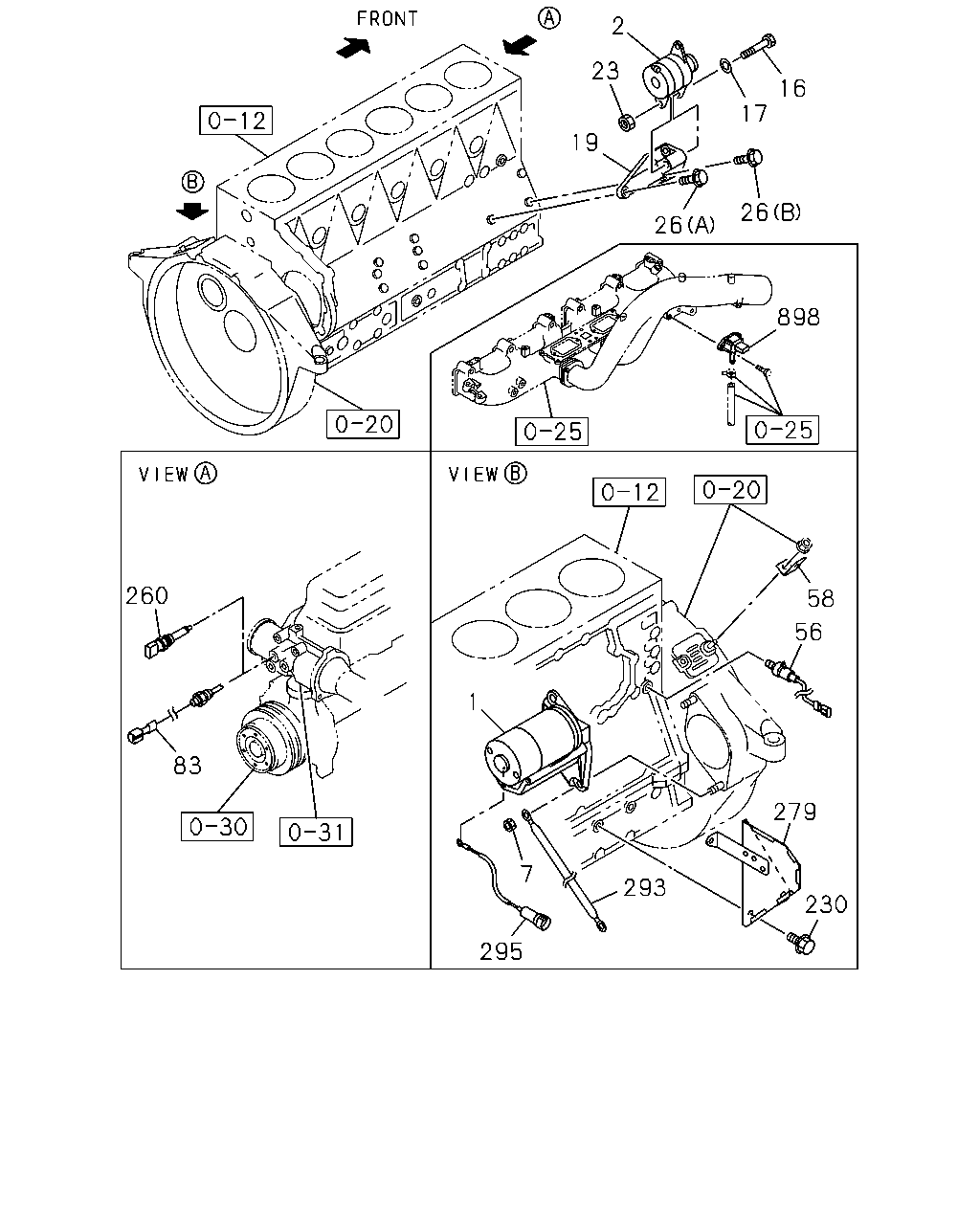

çizim 45203
2 23 16 17 19 26 26 898 260 58 56 1 83 279 7 293 230 295
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-94394-151-2 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0109-0210 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO 		1-81100-324-0 01 1 0005-0210 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-230-2 01 1 0005-0108 ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 5.5KW DENSO 		1-81100-422-0 01 1 0109- ●
1 STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW DENSO 		8-97602-169-1 01 1 0303- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		1-81200-417-3 01 1 0005-0008 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-608-3 01 1 0009-0210 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-576-2 01 1 0005-0008 ● ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A NIKKO 		1-81200-465-1 01 1 0005- ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-576-5 01 1 0303-0303 ●
2 GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 60A MITSUBISHI 		1-81200-608-5 01 1 0303- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0005-0210 ● ●
7 NUT; STARTER
M14 FLANGE 		0-91150-114-0 02 1 0005- ●
7 NUT; STARTER
M14 		9-99110-414-0 02 1 0303-0512 ●
7 NUT; STARTER
M14 		0-91110-514-0 02 1 0601- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0005-0210 ● ●
16 BOLT; GEN
M14X123 		9-09801-204-1 01 1 0005- ●
16 BOLT; GEN
M14X135 		1-09000-133-1 01 1 0303- ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0005-0210 ● ● ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0211-0302 ●
17 WASHER; PL,GEN
ID=15 		9-09160-514-0 01 1 0303-0605 ● ●
17 WASHER; PL,GEN
ID=15 		0-91610-514-0 01 1 0606- ● ●
19 BRACKET; GEN 8-94396-297-0 01 1 0005-0112 ● ●
19 BRACKET; GEN 8-97602-318-0 01 1 0201-0210 ● ●
19 BRACKET; GEN 1-19711-038-0 01 1 0005- ●
19 BRACKET; GEN 8-94395-470-4 01 1 0303- ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0005-0210 ● ●
23 NUT; GEN
M14 FLANGE 		0-91150-114-0 01 1 0005- ●
23 NUT; GEN
M14 		9-99110-414-0 01 1 0303-0512 ●
23 NUT; GEN
M14 		0-91110-514-0 01 1 0601- ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0005-0210 ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 0005-0210 ● ● ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 01 1 0211-0512 ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28151-040-0 01 1 0601- ●
26 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28181-070-0 02 1 0005-0512 ●
26 BOLT; GEN BRKT
(B) M10X70 FLANGE 		0-28151-070-0 02 1 0601- ●
26 BOLT; GEN BRKT
(A) M10X40 FLANGE 		0-28181-040-0 02 1 0303-0401 ●
26 BOLT; GEN BRKT
(B) M10X80 FLANGE 		0-28181-080-0 02 1 0303-0401 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0005-0210 ● ● ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-0 01 1 0211-0302 ●
56 SWITCH; OIL PRESSURE WARNING 1-82410-170-1 01 1 0303- ● ●
58 BRACKET; CLIP
L=55 		1-47475-304-0 01 1 0005- ●
83 THERMOMETER UNIT 1-83161-031-1 01 1 0005-0210 ● ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28181-016-0 02 1 0005-0512 ●
230 BOLT; HEAT PROTECTOR
M10X16 FLANGE 		0-28151-016-0 02 1 0601- ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 0005-0210 ●
260 SENSOR; WATER TEMP 1-80210-005-0 01 1 0211-0302 ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0303- ● ●
279 PROTECTOR; STARTER 1-14181-292-0 01 1 0005- ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0006-0210 ● ●
293 CABLE; STARTER EARTH
L=350 		1-82650-266-0 01 1 0005-0005 ●
293 CABLE; STARTER EARTH
L=550 		1-82650-239-0 01 1 0005-0210 ●
293 CABLE; STARTER EARTH 1-82650-396-0 01 1 0211- ●
293 CABLE; STARTER EARTH
L=320 		1-82650-324-0 01 1 0303- ●
295 HARNESS; STARTER 1-82640-527-1 01 1 0005- ●
898 SENSOR; BOOST 1-80220-005-0 01 1 0211- ●

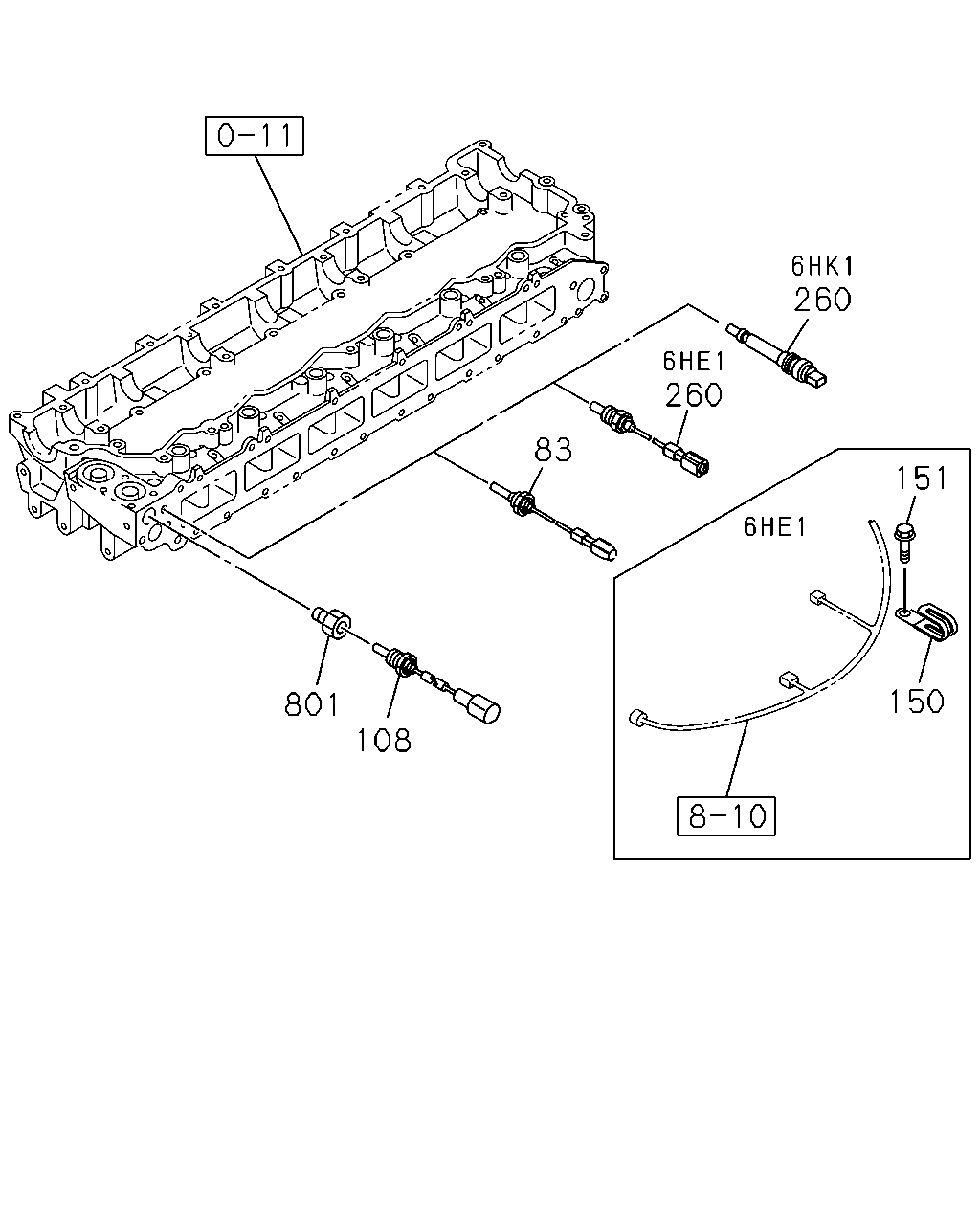

çizim 46639
260 260 83 151 150 801 108
BalonParca AdiParca NoAdetTipApplied Date A B C D
83 THERMOMETER UNIT 1-83161-031-1 01 1 0005-0210 ● ●
108 SWITCH; THERMO 1-83161-030-0 01 1 0005-0210 ●
150 CLIP; HARNESS,SOLENOID VLV
ID=18 L=44 		8-94225-185-0 02 1 0005-0210 ●
151 BOLT; HARNESS CLIP,SOLENOID VLV
M8X12 FLANGE 		0-28080-812-0 02 1 0005-0210 ●
260 SENSOR; WATER TEMP 1-80210-004-0 01 1 0005-0210 ●
260 SENSOR; WATER TEMP 1-80210-005-0 01 1 0211-0302 ●
260 SENSOR; WATER TEMP 1-80210-005-1 01 1 0303- ● ●
801 ADAPTER; THERMO SWITCH 8-94395-352-0 01 1 0005-0210 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
