Sayfa 0-40 - Isuzu EPC

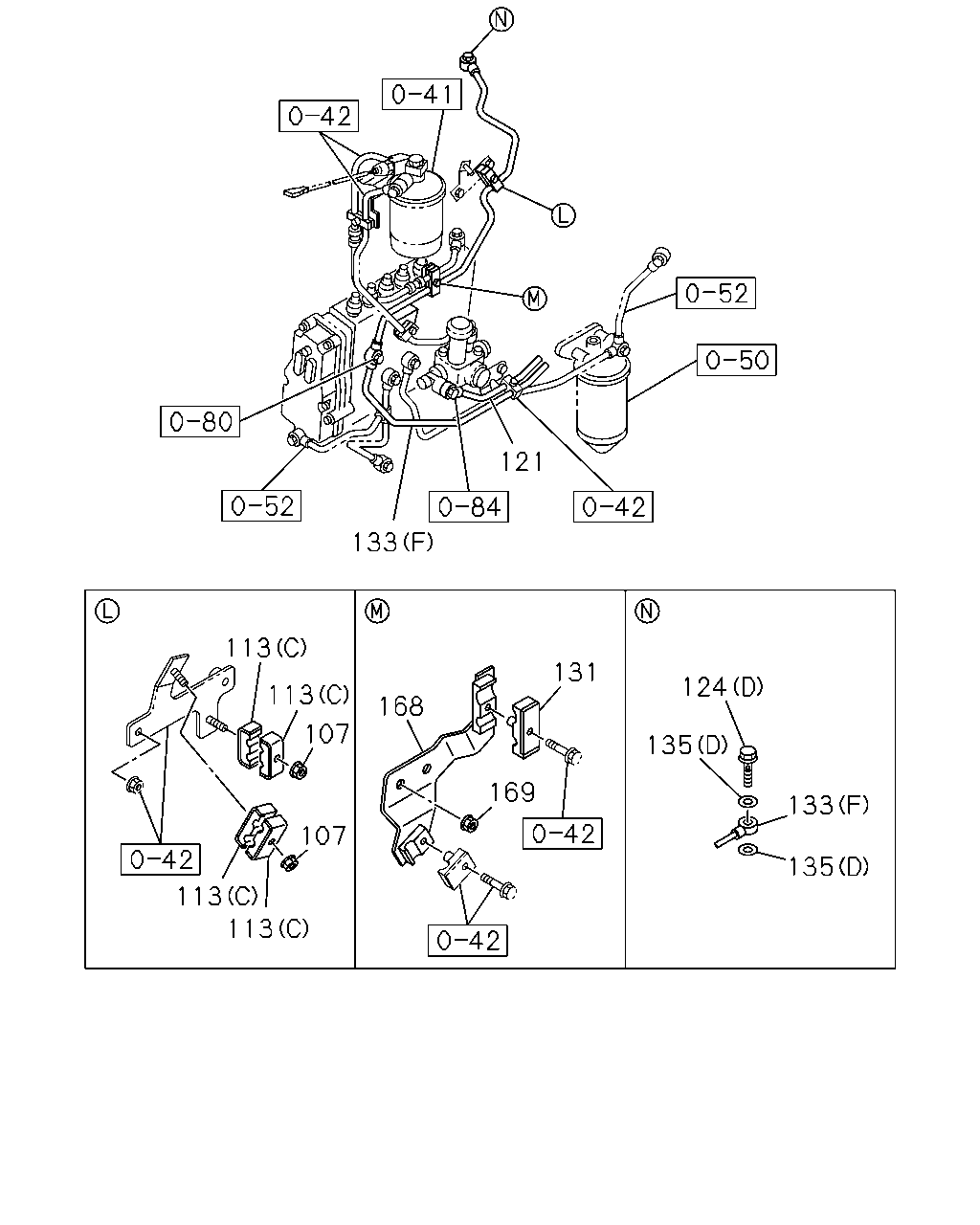

0-40 — FUEL INJECTION SYSTEM (#8617) — 1105 parça

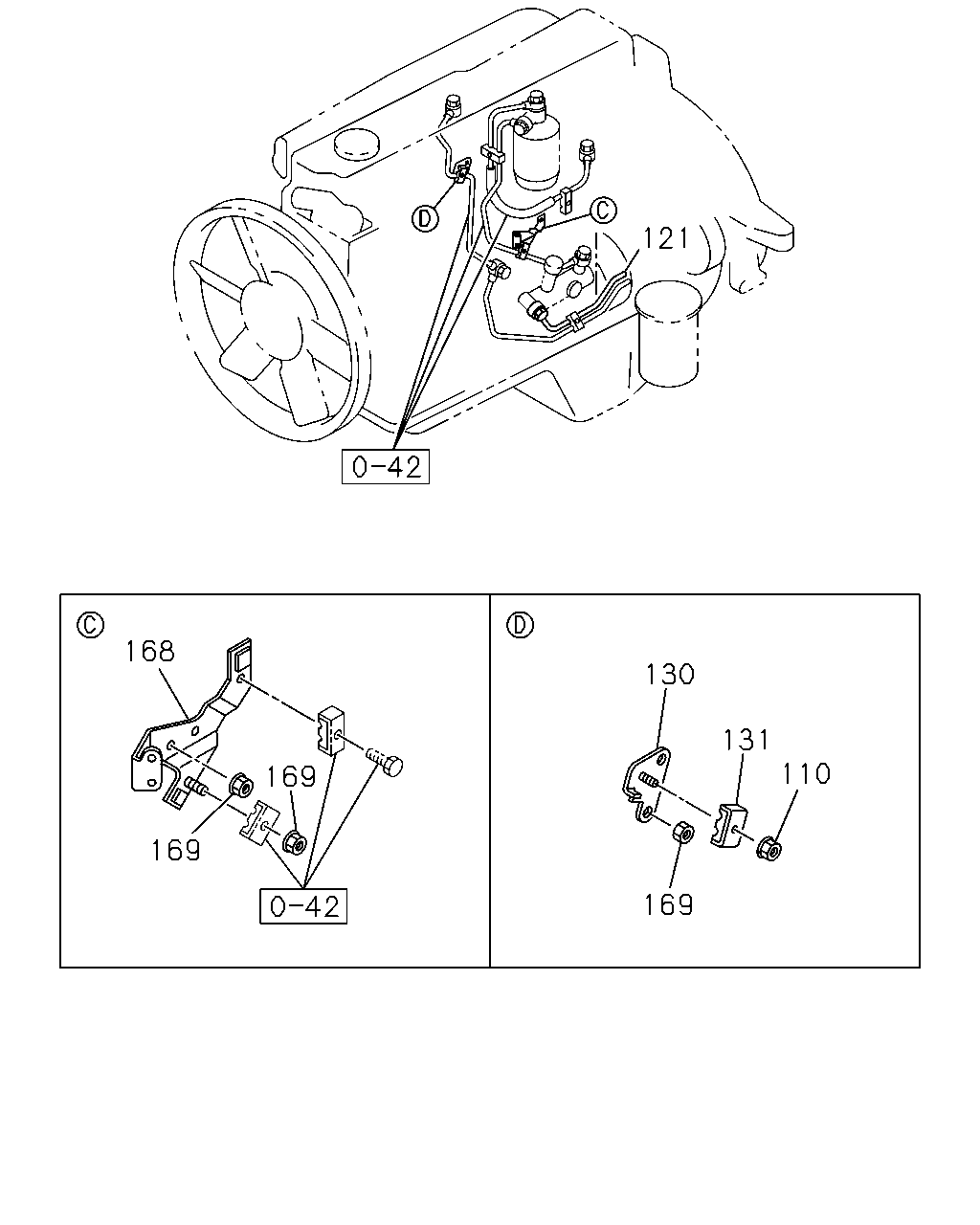

121 168 130 131 110 169 169 169

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0005-0210	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	0005-0210		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0005-0210	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0005-0210			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0005-0210		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-689-0	01	1	0211-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0303-				●
130	BRACKET; OVERFLOW TO LEAK OFF	8-94394-980-2	01	1	0005-0210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0005-0210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-0	02	1	0005-0210		●
131	CLIP; OVERFLOW LEAK OFF L=48	5-09709-103-0	01	1	0303-				●
168	BRACKET; FUEL PIPE	8-94395-046-2	01	1	0005-0210	●
168	BRACKET; FUEL PIPE	8-97602-186-0	01	1	0303-				●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
169	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●

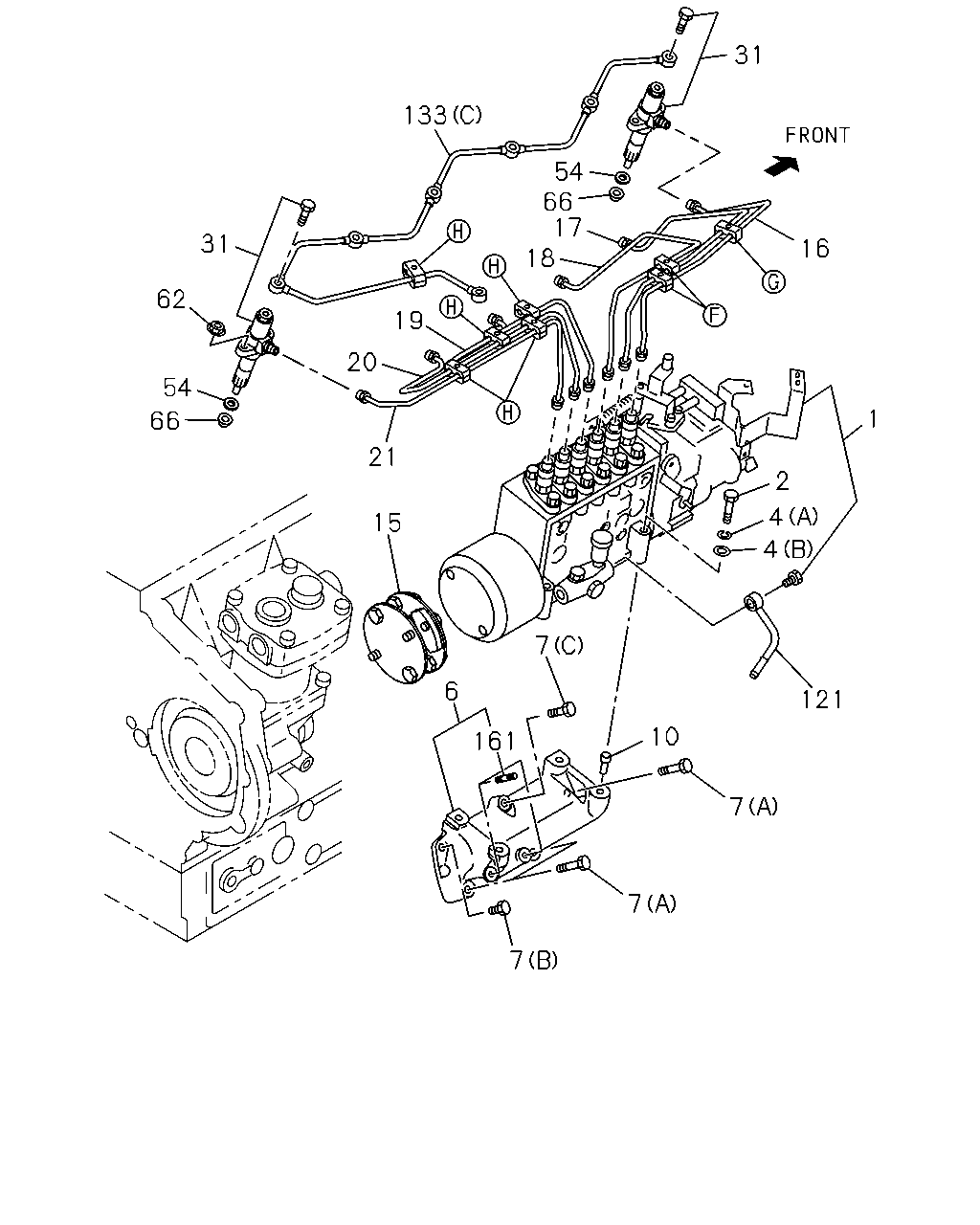

124 124 135 135 135 31 135 124 133 135 20 135 19 135 62 21 18 17 16 31 57 66 15 1 2 6 10 7 7 113 113 107 107 113 113 113 113 107 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0005-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-333-0	01	1	0005-0210			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-258-3	01	1	0005-0111		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D>	1-15603-258-3	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-129-5	01	1	0211-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	1-15603-287-1	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97600-665-4	01	1	0303-				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0005-0210	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0005-0210			●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0005-0210		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0211-0512		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0303-0512				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-				●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0005-0210	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0005-0210			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0005-0210		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-158-1	01	1	0211-		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0303-				●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28181-000-0	02	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28181-035-0	03	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28181-040-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28151-040-0	03	1	0601-				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28181-080-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28151-080-0	03	1	0601-				●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0005-0210	●	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0211-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0303-				●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0005-0210	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	0005-0210			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	0005-0210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0211-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0303-				●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	0005-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0210	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	0005-0210			●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0005-0210		●
16	PIPE; INJ NO.1	1-15416-329-1	01	1	0211-		●
16	PIPE; INJ NO.1	8-97600-667-0	01	1	0303-				●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0005-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0210	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	0005-0210			●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0005-0210		●
17	PIPE; INJ NO.2	1-15416-175-1	01	1	0211-		●
17	PIPE; INJ NO.2	8-97600-668-0	01	1	0303-				●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0005-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0210	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	0005-0210			●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0005-0210		●
18	PIPE; INJ NO.3	1-15416-474-1	01	1	0211-		●
18	PIPE; INJ NO.3	8-97600-669-0	01	1	0303-				●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0005-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0210	●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	0005-0210			●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0005-0210		●
19	PIPE; INJ NO.4	1-15416-372-1	01	1	0211-		●
19	PIPE; INJ NO.4	8-97600-670-0	01	1	0303-				●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0005-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0210	●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	0005-0210			●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0005-0210		●
20	PIPE; INJ NO.5	1-15416-397-1	01	1	0211-		●
20	PIPE; INJ NO.5	8-97600-671-1	01	1	0303-				●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0005-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0210	●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	0005-0210			●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0005-0210		●
21	PIPE; INJ NO.6	1-15416-332-1	01	1	0211-		●
21	PIPE; INJ NO.6	8-97600-672-0	01	1	0303-				●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	9-09563-215-0	06	1	0005-0210	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0005-0210	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0211-0602		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	06	1	0005-0210	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0210			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0005-0006		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0303-0909				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-				●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	0005-0108	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-0210	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0005-0210			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0303-0602				●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	04	1	0603-				●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	0005-0108	●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0109-0210	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0005-0108	●		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0109-0210			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0005-0210			●
113	CLIP; INJ PIPE (C)	1-09701-132-0	14	1	0005-0210		●
113	CLIP; INJ PIPE (C)	1-09701-132-1	08	1	0303-1202				●
113	CLIP; INJ PIPE (C)	1-09701-240-0	08	1	1203-				●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	05	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (C) M8X20 EYE-BOLT	5-09675-018-1	06	1	0211-		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94390-071-0	01	1	0005-0210	●		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94390-178-0	01	1	0005-0210			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	1-15415-777-0	01	1	0005-0210		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	1-15416-693-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (E)	8-94390-451-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (F)	8-97600-692-2	01	1	0303-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	13	1	0005-0210	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3	8-98065-992-0	07	1	0703-0704		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0705-1312		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-98246-930-0	07	1	1401-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	15	1	0005-0210			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-97600-925-0	06	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-98065-992-0	06	1	0909-				●

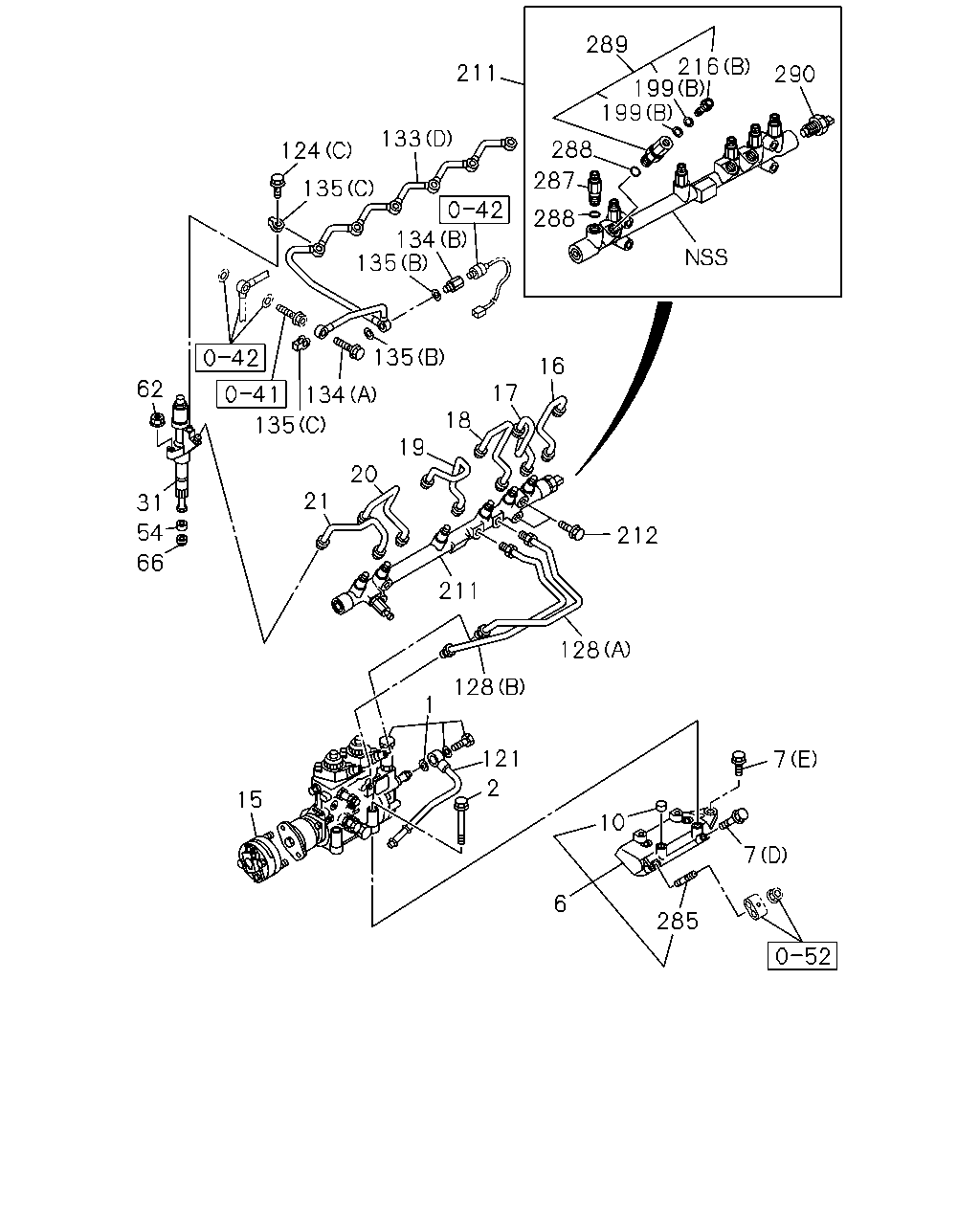

124 134 133 135 135 113 113 135 135 133 107 135 124 20 135 184 19 135 17 18 21 31 54 16 15 66 2 4 160 1 160 6 7 121 7 106 339 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0005-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-333-0	01	1	0005-0210			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-258-3	01	1	0005-0111		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D>	1-15603-258-3	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-129-5	01	1	0211-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	1-15603-287-1	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97600-665-4	01	1	0303-				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0005-0210	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0005-0210			●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0005-0210		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0211-0512		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0303-0512				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-				●
4	WASHER; INJ PUMP (C) ID=8.5 MITSUBISHI	9-09851-934-0	04	1	0005-0210			●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	0005-0210		●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	0005-0210		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0005-0210	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0005-0210			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0005-0210		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-158-1	01	1	0211-		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0303-				●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28181-000-0	02	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28181-035-0	03	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28181-040-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28151-040-0	03	1	0601-				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28181-080-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28151-080-0	03	1	0601-				●

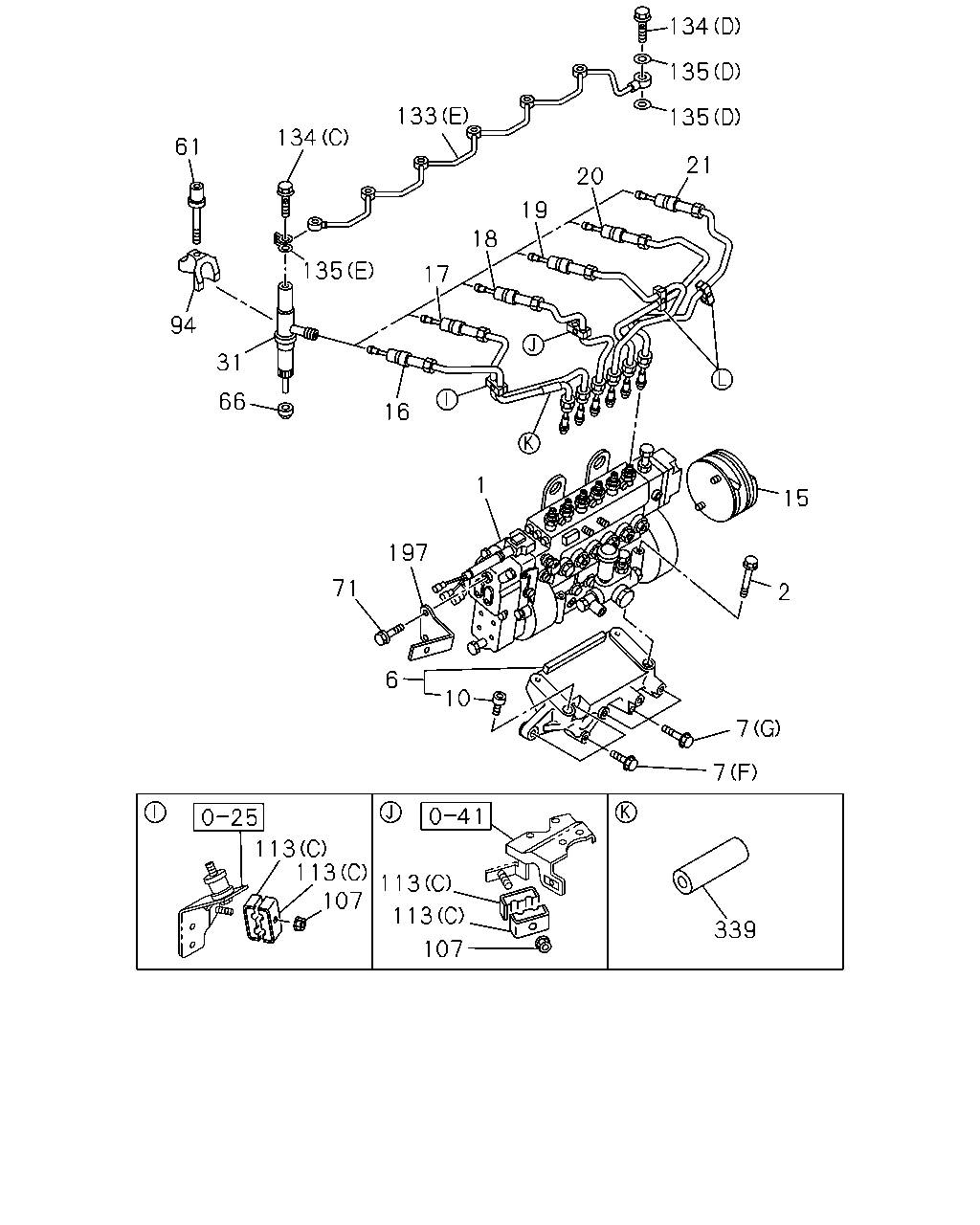

15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0005-0210	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	0005-0210			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	0005-0210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0211-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0303-				●

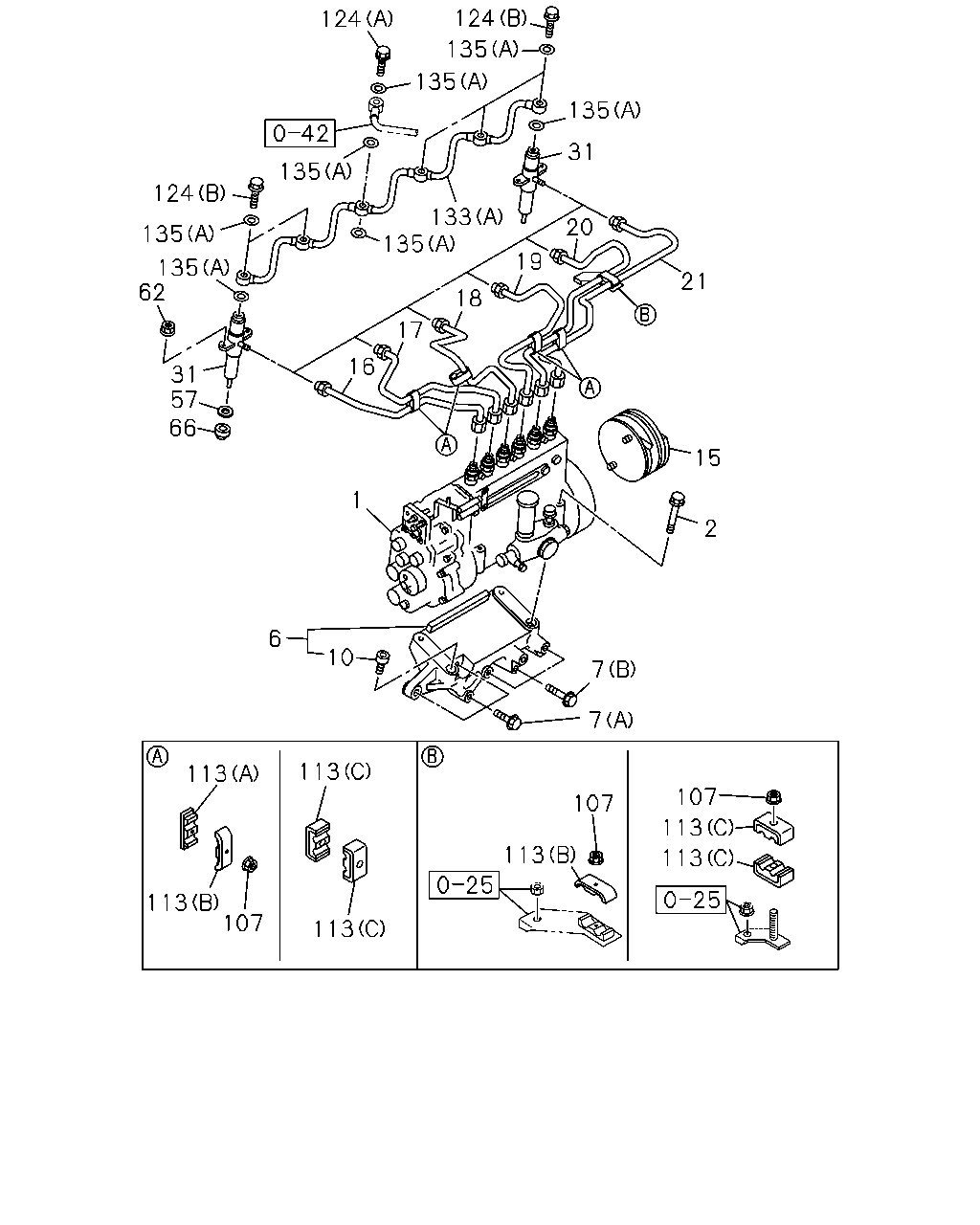

16	PIPE; INJ NO.1	8-94394-223-1	01	1	0005-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0210	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	0005-0210			●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0005-0210		●
16	PIPE; INJ NO.1	1-15416-329-1	01	1	0211-		●
16	PIPE; INJ NO.1	8-97600-667-0	01	1	0303-				●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0005-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0210	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	0005-0210			●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0005-0210		●
17	PIPE; INJ NO.2	1-15416-175-1	01	1	0211-		●
17	PIPE; INJ NO.2	8-97600-668-0	01	1	0303-				●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0005-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0210	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	0005-0210			●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0005-0210		●
18	PIPE; INJ NO.3	1-15416-474-1	01	1	0211-		●
18	PIPE; INJ NO.3	8-97600-669-0	01	1	0303-				●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0005-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0210	●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	0005-0210			●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0005-0210		●
19	PIPE; INJ NO.4	1-15416-372-1	01	1	0211-		●
19	PIPE; INJ NO.4	8-97600-670-0	01	1	0303-				●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0005-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0210	●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	0005-0210			●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0005-0210		●
20	PIPE; INJ NO.5	1-15416-397-1	01	1	0211-		●
20	PIPE; INJ NO.5	8-97600-671-1	01	1	0303-				●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0005-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0210	●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	0005-0210			●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0005-0210		●
21	PIPE; INJ NO.6	1-15416-332-1	01	1	0211-		●
21	PIPE; INJ NO.6	8-97600-672-0	01	1	0303-				●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0005-0210		●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0211-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	06	1	0005-0210	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0210			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0005-0006		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0303-0909				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-				●

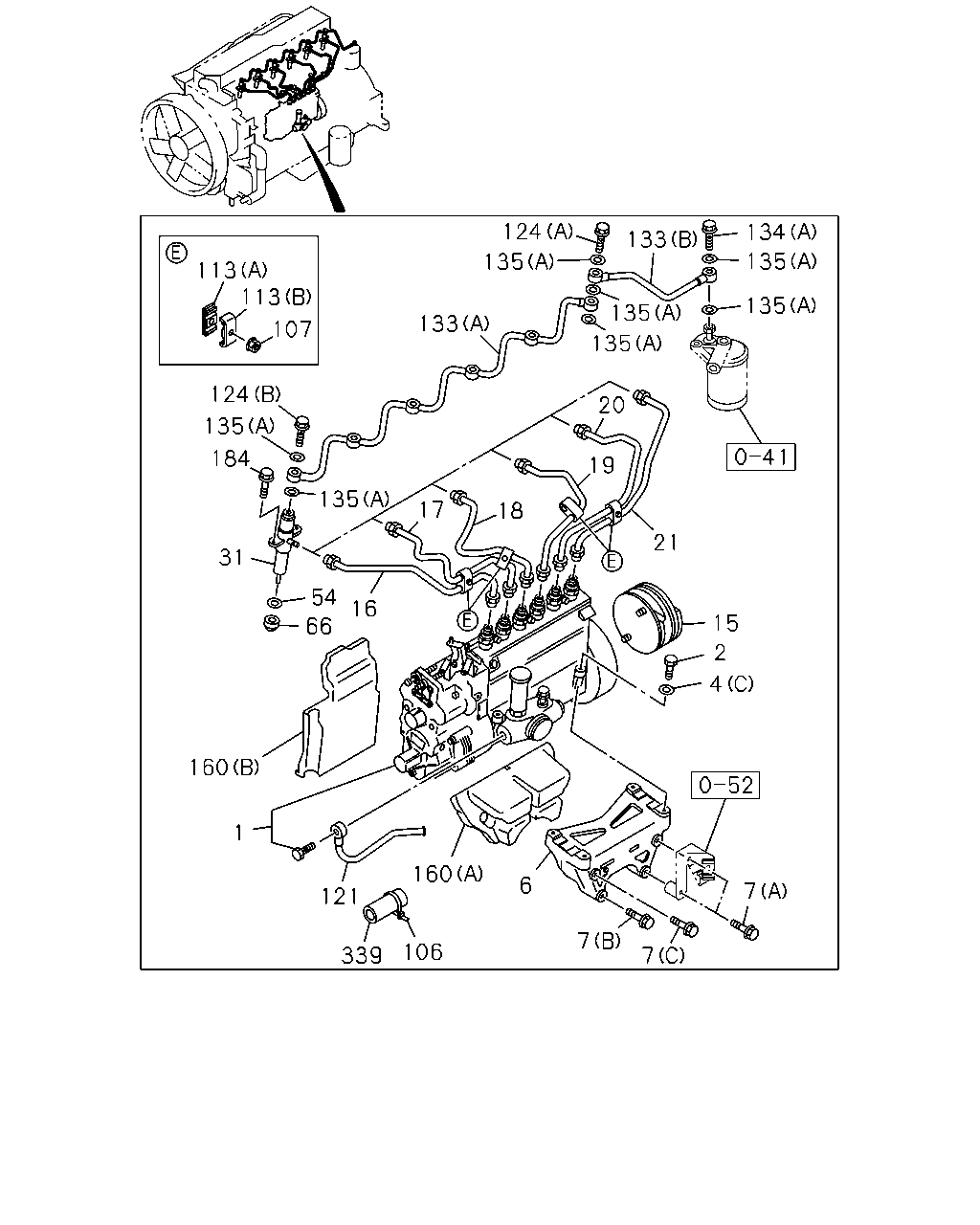

106	CLIP; INJ PIPE L=140	5-09707-031-1	01	1	0005-0106			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	0005-0108	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-0210	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0005-0210			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0303-0602				●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	04	1	0603-				●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	0005-0108	●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0109-0210	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0005-0108	●		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0109-0210			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0005-0210			●
113	CLIP; INJ PIPE (C)	1-09701-132-0	14	1	0005-0210		●
113	CLIP; INJ PIPE (C)	1-09701-132-1	08	1	0303-1202				●
113	CLIP; INJ PIPE (C)	1-09701-240-0	08	1	1203-				●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0005-0210	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0005-0210			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0005-0210		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-689-0	01	1	0211-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0303-				●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	05	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (C) M8X20 EYE-BOLT	5-09675-018-1	06	1	0211-		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94390-071-0	01	1	0005-0210	●		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94390-178-0	01	1	0005-0210			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	1-15415-777-0	01	1	0005-0210		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	1-15416-693-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (E)	8-94390-451-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (F)	8-97600-692-2	01	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-0210		●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	13	1	0005-0210	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3	8-98065-992-0	07	1	0703-0704		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0705-1312		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-98246-930-0	07	1	1401-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	15	1	0005-0210			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-97600-925-0	06	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-98065-992-0	06	1	0909-				●
160	SPACER; INJ PUMP (B)	8-94390-169-0	01	1	0005-0210			●
160	SPACER; INJ PUMP (A)	8-94395-673-1	01	1	0005-0210			●
184	BOLT; NOZZLE HOLDER M8X40 FLANGE	0-28080-840-0	12	1	0005-0210			●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0005-0210			●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0303-				●

99 110 113 113 99 18 113 17 16 17 113 16 113 120 113 112 110 113 110 110 113 113 110 113 113 113 19 113 110 20 134 21 131 135 113 133 71 135 131 120

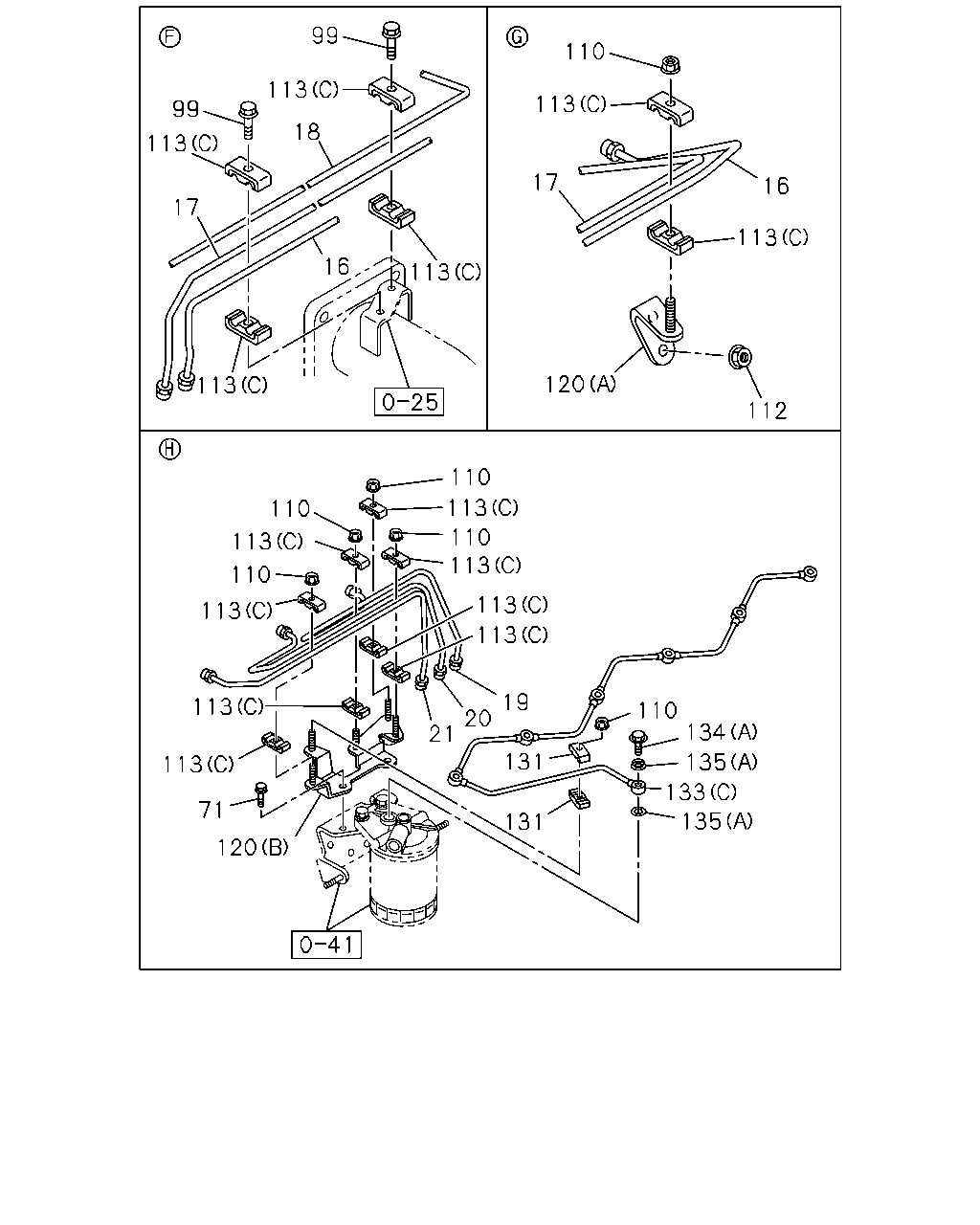

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	PIPE; INJ NO.1	8-94394-223-1	01	1	0005-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0210	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	0005-0210			●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0005-0210		●
16	PIPE; INJ NO.1	1-15416-329-1	01	1	0211-		●
16	PIPE; INJ NO.1	8-97600-667-0	01	1	0303-				●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0005-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0210	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	0005-0210			●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0005-0210		●
17	PIPE; INJ NO.2	1-15416-175-1	01	1	0211-		●
17	PIPE; INJ NO.2	8-97600-668-0	01	1	0303-				●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0005-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0210	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	0005-0210			●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0005-0210		●
18	PIPE; INJ NO.3	1-15416-474-1	01	1	0211-		●
18	PIPE; INJ NO.3	8-97600-669-0	01	1	0303-				●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0005-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0210	●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	0005-0210			●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0005-0210		●
19	PIPE; INJ NO.4	1-15416-372-1	01	1	0211-		●
19	PIPE; INJ NO.4	8-97600-670-0	01	1	0303-				●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0005-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0210	●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	0005-0210			●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0005-0210		●
20	PIPE; INJ NO.5	1-15416-397-1	01	1	0211-		●
20	PIPE; INJ NO.5	8-97600-671-1	01	1	0303-				●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0005-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0210	●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	0005-0210			●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0005-0210		●
21	PIPE; INJ NO.6	1-15416-332-1	01	1	0211-		●
21	PIPE; INJ NO.6	8-97600-672-0	01	1	0303-				●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0005-0210		●
71	BOLT; BRKT M6X12 FLANGE	0-28080-612-0	02	1	0303-0512				●
71	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	0601-				●
99	BOLT; CLIP,INJ,PIPE M6X35 FLANGE	0-28080-635-0	02	1	0005-0210		●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0005-0210	●
110	NUT; CLIP M6 FLANGE	0-91150-106-0	06	1	0005-0210		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0005-0210		●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	0005-0108	●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0109-0210	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0005-0108	●		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0109-0210			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0005-0210			●
113	CLIP; INJ PIPE (C)	1-09701-132-0	14	1	0005-0210		●
113	CLIP; INJ PIPE (C)	1-09701-132-1	08	1	0303-1202				●
113	CLIP; INJ PIPE (C)	1-09701-240-0	08	1	1203-				●
120	BRACKET; INJ PIPE (A)	1-15419-430-0	01	1	0005-0210		●
120	BRACKET; INJ PIPE (B)	1-15419-431-0	01	1	0005-0210		●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0005-0210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-0	02	1	0005-0210		●
131	CLIP; OVERFLOW LEAK OFF L=48	5-09709-103-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94390-071-0	01	1	0005-0210	●		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94390-178-0	01	1	0005-0210			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	1-15415-777-0	01	1	0005-0210		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	1-15416-693-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (E)	8-94390-451-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (F)	8-97600-692-2	01	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-0210		●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	13	1	0005-0210	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3	8-98065-992-0	07	1	0703-0704		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0705-1312		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-98246-930-0	07	1	1401-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	15	1	0005-0210			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-97600-925-0	06	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-98065-992-0	06	1	0909-				●

289 216 199 199 211 290 133 288 124 287 135 288 134 135 135 16 62 17 134 18 135 19 20 21 31 54 212 66 211 128 128 1 121 7 2 15 10 7 6 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

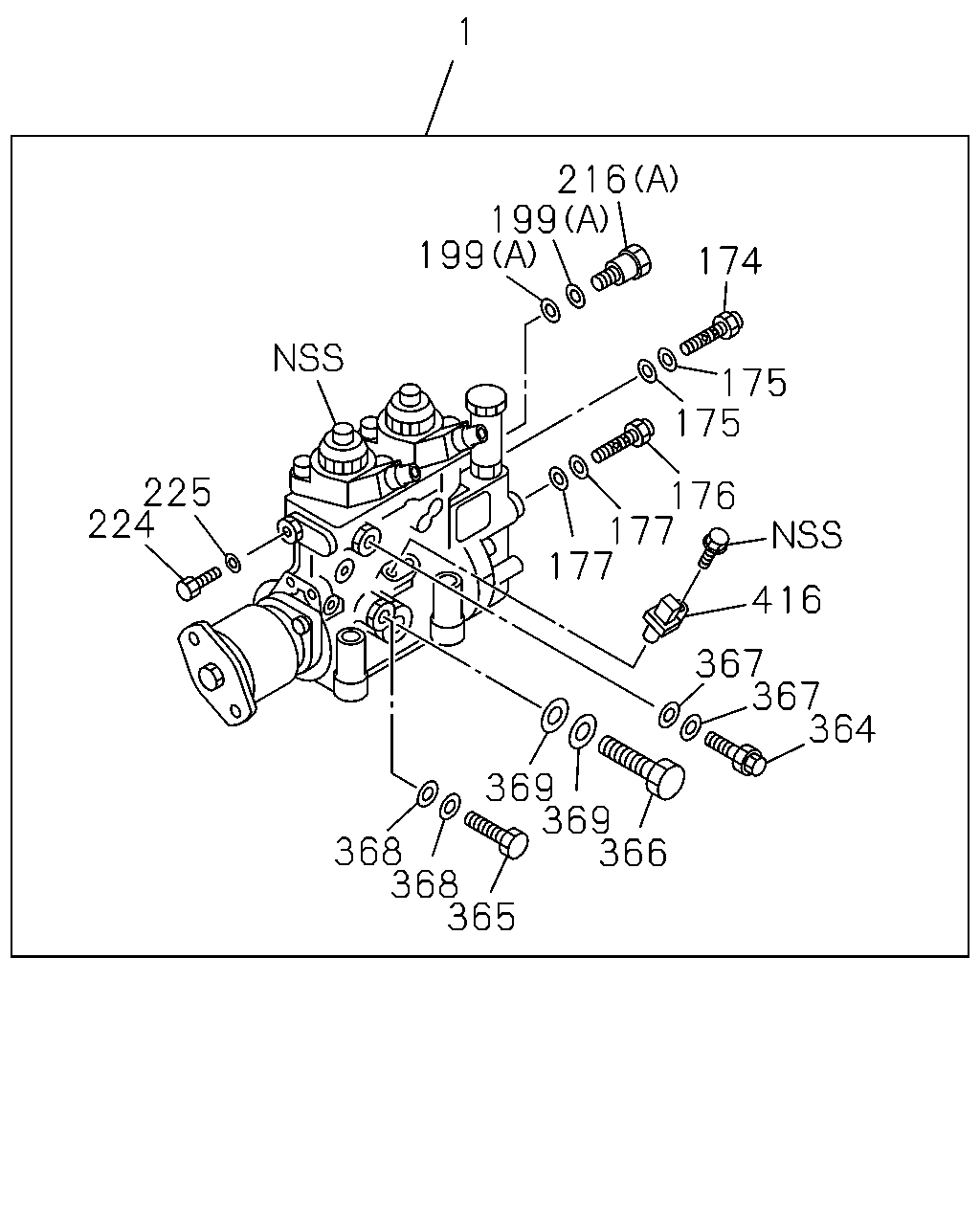

1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0005-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-333-0	01	1	0005-0210			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-258-3	01	1	0005-0111		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D>	1-15603-258-3	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-129-5	01	1	0211-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	1-15603-287-1	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97600-665-4	01	1	0303-				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0005-0210	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0005-0210			●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0005-0210		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0211-0512		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0303-0512				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-				●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0005-0210	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0005-0210			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0005-0210		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-158-1	01	1	0211-		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0303-				●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28181-000-0	02	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28181-035-0	03	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28181-040-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28151-040-0	03	1	0601-				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28181-080-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28151-080-0	03	1	0601-				●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0005-0210	●	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0211-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0303-				●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0005-0210	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	0005-0210			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	0005-0210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0211-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0303-				●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	0005-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0210	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	0005-0210			●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0005-0210		●
16	PIPE; INJ NO.1	1-15416-329-1	01	1	0211-		●
16	PIPE; INJ NO.1	8-97600-667-0	01	1	0303-				●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0005-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0210	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	0005-0210			●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0005-0210		●
17	PIPE; INJ NO.2	1-15416-175-1	01	1	0211-		●
17	PIPE; INJ NO.2	8-97600-668-0	01	1	0303-				●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0005-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0210	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	0005-0210			●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0005-0210		●
18	PIPE; INJ NO.3	1-15416-474-1	01	1	0211-		●
18	PIPE; INJ NO.3	8-97600-669-0	01	1	0303-				●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0005-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0210	●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	0005-0210			●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0005-0210		●
19	PIPE; INJ NO.4	1-15416-372-1	01	1	0211-		●
19	PIPE; INJ NO.4	8-97600-670-0	01	1	0303-				●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0005-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0210	●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	0005-0210			●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0005-0210		●
20	PIPE; INJ NO.5	1-15416-397-1	01	1	0211-		●
20	PIPE; INJ NO.5	8-97600-671-1	01	1	0303-				●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0005-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0210	●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	0005-0210			●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0005-0210		●
21	PIPE; INJ NO.6	1-15416-332-1	01	1	0211-		●
21	PIPE; INJ NO.6	8-97600-672-0	01	1	0303-				●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0005-0210		●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0211-		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0005-0210	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0211-0602		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	06	1	0005-0210	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0210			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0005-0006		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0303-0909				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-				●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0005-0210	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0005-0210			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0005-0210		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-689-0	01	1	0211-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0303-				●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	05	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (C) M8X20 EYE-BOLT	5-09675-018-1	06	1	0211-		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
128	PIPE ASM; INJ (A)	1-15416-266-1	01	1	0211-		●
128	PIPE ASM; INJ (B)	1-15416-374-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94390-071-0	01	1	0005-0210	●		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94390-178-0	01	1	0005-0210			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	1-15415-777-0	01	1	0005-0210		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	1-15416-693-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (E)	8-94390-451-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (F)	8-97600-692-2	01	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-0210		●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	13	1	0005-0210	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3	8-98065-992-0	07	1	0703-0704		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0705-1312		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-98246-930-0	07	1	1401-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	15	1	0005-0210			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-97600-925-0	06	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-98065-992-0	06	1	0909-				●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0211-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0211-		●
211	RAIL ASM; COMMON	1-15651-003-2	01	1	0211-		●
212	BOLT; RAIL ASM M10X50 FLANGE	0-28181-050-0	04	1	0211-0512		●
212	BOLT; RAIL ASM M10X50 FLANGE	0-28151-050-0	04	1	0601-		●
216	BOLT; EYE (B)	8-97351-388-0	01	1	0211-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0211-		●
285	STUD; BRKT M6X30 L=38	9-04110-630-0	02	1	0211-0604		●
285	STUD; BRKT M6X30 L=38	0-41010-630-0	02	1	0605-		●
287	DAMPER; FUEL FLOW	1-15641-053-0	06	1	0211-		●
288	GASKET ID=11 OD=16.3	1-15641-046-0	07	1	0211-		●
289	LIMITER; FUEL PRESS	1-15641-047-1	01	1	0211-		●
290	SENSOR; PRESS	1-80220-012-0	01	1	0211-		●

31 32 37 38 39 40 143 140 44 138 141 43 140 142 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0005-0210	●
32	HOLDER ASM; NOZZLE	8-94395-990-1	06	1	0005-0210			●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	0005-0210		●
32	HOLDER ASM; NOZZLE	8-97602-022-0	06	1	0303-				●
33	NOZZLE; INJ	8-94394-699-0	06	1	0005-0210	●
33	NOZZLE; INJ	8-94395-988-0	06	1	0005-0210			●
33	NOZZLE; INJ	1-15311-265-0	06	1	0005-0210		●
33	NOZZLE; INJ	8-97602-021-0	06	1	0303-				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0005-0210	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	0005-0210			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	0005-0210		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-142-0	06	1	0303-				●
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	0005-0210		●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	0005-0210		●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	0005-0210		●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	06	1	0005-0210		●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	0005-0210	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	1-15341-004-0	06	1	0005-0210			●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0005-0210	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	0005-0210		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0303-				●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	06	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-120-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-121-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	1-15349-122-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	1-15349-123-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	1-15349-124-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	1-15349-125-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	1-15349-126-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	1-15349-127-0	AR	1	0303-				●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-006-0	06	1	0005-0210		●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15349-132-0	06	1	0303-				●
142	SPACER; PUSH ROD	1-15339-093-0	06	1	0005-0210		●	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	06	1	0005-0210		●	●

31 32 34 36 36 37 38 39 40 140 143 138 45 44 141 42 140 142 41 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0005-0210	●
32	HOLDER ASM; NOZZLE	8-94395-990-1	06	1	0005-0210			●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	0005-0210		●
32	HOLDER ASM; NOZZLE	8-97602-022-0	06	1	0303-				●
33	NOZZLE; INJ	8-94394-699-0	06	1	0005-0210	●
33	NOZZLE; INJ	8-94395-988-0	06	1	0005-0210			●
33	NOZZLE; INJ	1-15311-265-0	06	1	0005-0210		●
33	NOZZLE; INJ	8-97602-021-0	06	1	0303-				●
34	BOLT; EYE,NOZZLE HOLDER	1-15339-009-0	06	1	0005-0210		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0005-0210	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	0005-0210			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	0005-0210		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-142-0	06	1	0303-				●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0005-0210	●	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-010-0	06	1	0005-0210		●	●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	9-15339-056-0	06	1	0005-0210		●	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-004-0	06	1	0005-0210		●	●
40	NUT; ADJ SCREW,NOZZLE HOLDER	1-15332-011-0	06	1	0005-0210		●	●
41	CONNECTOR; FUEL INL,NOZZLE HOLDER	1-15351-005-0	06	1	0005-0210		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0005-0210		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-09561-112-0	06	1	0303-				●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0005-0210	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	0005-0210		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0303-				●
45	ROD; PUSH,NOZZLE HOLDER	1-15341-004-0	06	1	0005-0210		●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	8-94174-139-0	12	1	0005-0210	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	0005-0210		●
46	PIN; NOZZLE SET,NOZZLE HOLDER (C)	1-15347-001-1	12	1	0303-				●
46	PIN; NOZZLE SET,NOZZLE HOLDER (D)	9-15347-003-0	12	1	0303-				●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER	1-15343-001-0	06	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-120-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-121-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	1-15349-122-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	1-15349-123-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	1-15349-124-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	1-15349-125-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	1-15349-126-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	1-15349-127-0	AR	1	0303-				●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-006-0	06	1	0005-0210		●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15349-132-0	06	1	0303-				●
142	SPACER; PUSH ROD	1-15339-093-0	06	1	0005-0210		●	●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER	1-15345-003-0	06	1	0005-0210		●	●

31 133 54 66 17 18 31 16 62 19 20 54 1 66 21 2 4 15 4 7 6 121 10 161 7 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0005-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-333-0	01	1	0005-0210			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-258-3	01	1	0005-0111		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D>	1-15603-258-3	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-129-5	01	1	0211-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	1-15603-287-1	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97600-665-4	01	1	0303-				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0005-0210	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0005-0210			●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0005-0210		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0211-0512		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0303-0512				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-				●
4	WASHER; INJ PUMP (C) ID=8.5 MITSUBISHI	9-09851-934-0	04	1	0005-0210			●
4	WASHER; INJ PUMP (A) ID=10.2	9-09150-510-0	04	1	0005-0210		●
4	WASHER; INJ PUMP (B) ID=10.5 OD=18	9-09160-510-0	04	1	0005-0210		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0005-0210	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0005-0210			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0005-0210		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-158-1	01	1	0211-		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0303-				●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28181-000-0	02	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28181-035-0	03	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28181-040-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28151-040-0	03	1	0601-				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28181-080-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28151-080-0	03	1	0601-				●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0005-0210	●	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0211-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0303-				●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0005-0210	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	0005-0210			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	0005-0210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0211-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0303-				●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	0005-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0210	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	0005-0210			●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0005-0210		●
16	PIPE; INJ NO.1	1-15416-329-1	01	1	0211-		●
16	PIPE; INJ NO.1	8-97600-667-0	01	1	0303-				●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0005-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0210	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	0005-0210			●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0005-0210		●
17	PIPE; INJ NO.2	1-15416-175-1	01	1	0211-		●
17	PIPE; INJ NO.2	8-97600-668-0	01	1	0303-				●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0005-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0210	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	0005-0210			●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0005-0210		●
18	PIPE; INJ NO.3	1-15416-474-1	01	1	0211-		●
18	PIPE; INJ NO.3	8-97600-669-0	01	1	0303-				●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0005-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0210	●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	0005-0210			●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0005-0210		●
19	PIPE; INJ NO.4	1-15416-372-1	01	1	0211-		●
19	PIPE; INJ NO.4	8-97600-670-0	01	1	0303-				●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0005-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0210	●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	0005-0210			●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0005-0210		●
20	PIPE; INJ NO.5	1-15416-397-1	01	1	0211-		●
20	PIPE; INJ NO.5	8-97600-671-1	01	1	0303-				●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0005-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0210	●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	0005-0210			●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0005-0210		●
21	PIPE; INJ NO.6	1-15416-332-1	01	1	0211-		●
21	PIPE; INJ NO.6	8-97600-672-0	01	1	0303-				●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0005-0210		●	●
54	COVER; DUST,NOZZLE HOLDER	9-15339-051-0	06	1	0211-		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0005-0210	●	●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91150-108-0	12	1	0211-0602		●
62	NUT; NOZZLE HOLDER M8 FLANGE	0-91180-108-0	12	1	0603-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	06	1	0005-0210	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0210			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0005-0006		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0303-0909				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-				●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0005-0210	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0005-0210			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0005-0210		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-689-0	01	1	0211-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94390-071-0	01	1	0005-0210	●		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94390-178-0	01	1	0005-0210			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	1-15415-777-0	01	1	0005-0210		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	1-15416-693-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (E)	8-94390-451-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (F)	8-97600-692-2	01	1	0303-				●
161	STUD; INJ PUMP M8X20 L=32	9-04110-820-0	02	1	0005-0210		●

31 32 36 36 58 145 140 44 43 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0005-0210	●
32	HOLDER ASM; NOZZLE	8-94395-990-1	06	1	0005-0210			●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	0005-0210		●
32	HOLDER ASM; NOZZLE	8-97602-022-0	06	1	0303-				●
33	NOZZLE; INJ	8-94394-699-0	06	1	0005-0210	●
33	NOZZLE; INJ	8-94395-988-0	06	1	0005-0210			●
33	NOZZLE; INJ	1-15311-265-0	06	1	0005-0210		●
33	NOZZLE; INJ	8-97602-021-0	06	1	0303-				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0005-0210	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	0005-0210			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	0005-0210		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-142-0	06	1	0303-				●
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15339-010-0	12	1	0005-0210	●	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	8-94329-555-0	06	1	0005-0210	●
43	SEAT; NOZZLE SPRING,NOZZLE HOLDER	1-15341-004-0	06	1	0005-0210			●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0005-0210	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	0005-0210		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0303-				●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	8-94174-139-0	12	1	0005-0210	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	0005-0210		●
46	PIN; NOZZLE SET,NOZZLE HOLDER (C)	1-15347-001-1	12	1	0303-				●
46	PIN; NOZZLE SET,NOZZLE HOLDER (D)	9-15347-003-0	12	1	0303-				●
58	FLANGE; INJ,NOZZLE HOLDER	8-97065-713-0	06	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-120-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-121-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	1-15349-122-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	1-15349-123-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	1-15349-124-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	1-15349-125-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	1-15349-126-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	1-15349-127-0	AR	1	0303-				●
145	GASKET; RET NUT	8-94128-915-0	06	1	0005-0210	●
145	GASKET; RET NUT ID=23.3	8-94173-412-0	06	1	0303-				●
146	SPACER; NOZZLE	1-15339-095-0	06	1	0005-0210	●
146	SPACER; NOZZLE	1-15349-133-0	06	1	0303-				●

134 135 133 135 134 61 21 20 19 18 135 17 94 31 66 16 1 15 197 71 2 6 10 7 7 113 113 107 113 113 339 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0005-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-333-0	01	1	0005-0210			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-258-3	01	1	0005-0111		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D>	1-15603-258-3	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-129-5	01	1	0211-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	1-15603-287-1	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97600-665-4	01	1	0303-				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0005-0210	●
2	BOLT; INJ PUMP M8X75	0-10810-875-0	04	1	0005-0210			●
2	BOLT; INJ PUMP M10X90	0-16806-090-0	04	1	0005-0210		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28090-890-0	04	1	0211-0512		●
2	BOLT; INJ PUMP M8X90 FLANGE	0-28060-890-0	04	1	0601-		●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28080-880-0	04	1	0303-0512				●
2	BOLT; INJ PUMP M8X80 FLANGE	0-28050-880-0	04	1	0601-				●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0005-0210	●
6	BRACKET; INJ PUMP TO C/BL	8-94393-689-2	01	1	0005-0210			●
6	BRACKET; INJ PUMP TO C/BL	1-19751-168-0	01	1	0005-0210		●
6	BRACKET; INJ PUMP TO C/BL	1-19751-158-1	01	1	0211-		●
6	BRACKET; INJ PUMP TO C/BL	8-94395-540-1	01	1	0303-				●
7	BOLT; INJ PUMP BRKT (A) M10X40 FLANGE	0-28181-040-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (B) M10X80 FLANGE	0-28181-080-0	03	1	0005-0210	●
7	BOLT; INJ PUMP BRKT (A) M10X80 FLANGE	0-28181-080-0	02	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (B) M10X75 FLANGE	8-94399-669-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (C) M10X55 FLANGE	8-94399-863-1	01	1	0005-0210			●
7	BOLT; INJ PUMP BRKT (A) M10X60 FLANGE	0-28181-060-0	03	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (B) M10X25 FLANGE	0-28781-025-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28181-000-0	02	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (D) M10X100 FLANGE	0-28151-000-0	02	1	0601-		●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28781-040-0	01	1	0005-0210		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28181-035-0	03	1	0211-0512		●
7	BOLT; INJ PUMP BRKT (E) M10X35 FLANGE	0-28151-035-0	03	1	0601-		●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28181-040-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (F) M10X40 FLANGE	0-28151-040-0	03	1	0601-				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28181-080-0	03	1	0303-0512				●
7	BOLT; INJ PUMP BRKT (G) M10X80 FLANGE	0-28151-080-0	03	1	0601-				●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0005-0210	●	●
10	DOWEL; INJ PUMP	1-11229-012-1	02	1	0211-		●
10	DOWEL; INJ PUMP OD=14 L=9	9-19759-019-1	02	1	0303-				●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0005-0210	●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94395-308-0	01	1	0005-0210			●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-111-1	01	1	0005-0210		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	1-15780-192-0	01	1	0211-		●
15	COUPLING ASM; INJ PUMP SEE FIG-NO 0-87 FOR COMPONENT.	8-94396-483-1	01	1	0303-				●
16	PIPE; INJ NO.1	8-94394-223-1	01	1	0005-0108	●
16	PIPE; INJ NO.1	8-94391-422-0	01	1	0109-0210	●
16	PIPE; INJ NO.1	8-94393-845-1	01	1	0005-0210			●
16	PIPE; INJ NO.1	1-15415-763-0	01	1	0005-0210		●
16	PIPE; INJ NO.1	1-15416-329-1	01	1	0211-		●
16	PIPE; INJ NO.1	8-97600-667-0	01	1	0303-				●
17	PIPE; INJ NO.2	8-94394-224-1	01	1	0005-0108	●
17	PIPE; INJ NO.2	8-94391-423-0	01	1	0109-0109	●
17	PIPE; INJ NO.2	8-97602-329-0	01	1	0110-0210	●
17	PIPE; INJ NO.2	8-94393-846-1	01	1	0005-0210			●
17	PIPE; INJ NO.2	1-15415-764-0	01	1	0005-0210		●
17	PIPE; INJ NO.2	1-15416-175-1	01	1	0211-		●
17	PIPE; INJ NO.2	8-97600-668-0	01	1	0303-				●
18	PIPE; INJ NO.3	8-94390-830-0	01	1	0005-0108	●
18	PIPE; INJ NO.3	8-97602-257-0	01	1	0109-0210	●
18	PIPE; INJ NO.3	8-94393-897-1	01	1	0005-0210			●
18	PIPE; INJ NO.3	1-15415-765-0	01	1	0005-0210		●
18	PIPE; INJ NO.3	1-15416-474-1	01	1	0211-		●
18	PIPE; INJ NO.3	8-97600-669-0	01	1	0303-				●
19	PIPE; INJ NO.4	8-94394-226-1	01	1	0005-0108	●
19	PIPE; INJ NO.4	8-94391-425-0	01	1	0109-0210	●
19	PIPE; INJ NO.4	8-94394-145-0	01	1	0005-0210			●
19	PIPE; INJ NO.4	1-15415-766-0	01	1	0005-0210		●
19	PIPE; INJ NO.4	1-15416-372-1	01	1	0211-		●
19	PIPE; INJ NO.4	8-97600-670-0	01	1	0303-				●
20	PIPE; INJ NO.5	8-94394-227-1	01	1	0005-0108	●
20	PIPE; INJ NO.5	8-94391-426-0	01	1	0109-0210	●
20	PIPE; INJ NO.5	8-94394-146-0	01	1	0005-0210			●
20	PIPE; INJ NO.5	1-15415-767-0	01	1	0005-0210		●
20	PIPE; INJ NO.5	1-15416-397-1	01	1	0211-		●
20	PIPE; INJ NO.5	8-97600-671-1	01	1	0303-				●
21	PIPE; INJ NO.6	8-94394-228-1	01	1	0005-0108	●
21	PIPE; INJ NO.6	8-94391-427-0	01	1	0109-0210	●
21	PIPE; INJ NO.6	8-94394-147-0	01	1	0005-0210			●
21	PIPE; INJ NO.6	1-15415-768-0	01	1	0005-0210		●
21	PIPE; INJ NO.6	1-15416-332-1	01	1	0211-		●
21	PIPE; INJ NO.6	8-97600-672-0	01	1	0303-				●
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
61	BOLT; CLAMP NOZZLE HOLDER	8-94390-989-1	06	1	0303-0412				●
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	06	1	0501-				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94391-472-0	06	1	0005-0210	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0007-0210			●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0005-0006		●	●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-15315-013-1	06	1	0007-		●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-97601-447-2	06	1	0303-0909				●
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=9.2 T=8.1	8-98079-248-0	06	1	0910-				●
71	BOLT; BRKT M8X25 FLANGE	0-28080-825-0	02	1	0005-0210		●
71	BOLT; BRKT M6X12 FLANGE	0-28080-612-0	02	1	0303-0512				●
71	BOLT; BRKT M6X12 FLANGE	0-28050-612-0	02	1	0601-				●
94	BRACKET; INJ NOZZLE	8-94390-988-0	06	1	0303-0410				●
94	BRACKET; INJ NOZZLE	8-97306-074-1	06	1	0411-0606				●
94	BRACKET; INJ NOZZLE	8-98028-999-1	06	1	0607-				●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	0005-0108	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-0210	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0005-0210			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0303-0602				●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	04	1	0603-				●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	0005-0108	●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0109-0210	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0005-0108	●		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0109-0210			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0005-0210			●
113	CLIP; INJ PIPE (C)	1-09701-132-0	14	1	0005-0210		●
113	CLIP; INJ PIPE (C)	1-09701-132-1	08	1	0303-1202				●
113	CLIP; INJ PIPE (C)	1-09701-240-0	08	1	1203-				●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94390-071-0	01	1	0005-0210	●		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94390-178-0	01	1	0005-0210			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	1-15415-777-0	01	1	0005-0210		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	1-15416-693-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (E)	8-94390-451-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (F)	8-97600-692-2	01	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0005-0210		●	●
134	BOLT; JOINT,LEAK OFF PIPE (A) M8X18 EYE-BOLT	1-09675-037-1	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (B) M14X27 FLANGE	1-09675-086-0	01	1	0211-		●
134	BOLT; JOINT,LEAK OFF PIPE (C) M8X18 EYE-BOLT	1-09675-037-1	06	1	0303-				●
134	BOLT; JOINT,LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	13	1	0005-0210	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3	8-98065-992-0	07	1	0703-0704		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0705-1312		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-98246-930-0	07	1	1401-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	15	1	0005-0210			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-97600-925-0	06	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-98065-992-0	06	1	0909-				●
197	BRACKET; FUEL CUT CABLE	8-97600-860-0	01	1	0303-0308				●
197	BRACKET; FUEL CUT CABLE	8-97603-534-0	01	1	0309-				●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0005-0210			●
339	RUBBER; COVER ID=6 OD=10 L=70	1-09376-512-0	01	1	0303-				●

31 42 32 145 140 44 141 46 146 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	NOZZLE ASM; INJ	8-94394-606-6	06	1	0005-0210	●
31	NOZZLE ASM; INJ	8-94395-696-3	06	1	0005-0210			●
31	NOZZLE ASM; INJ	1-15300-332-0	06	1	0005-0210		●
31	NOZZLE ASM; INJ	1-15300-415-1	06	1	0211-		●
31	NOZZLE ASM; INJ	8-97600-666-0	06	1	0303-				●
32	HOLDER ASM; NOZZLE	8-94395-197-1	06	1	0005-0210	●
32	HOLDER ASM; NOZZLE	8-94395-990-1	06	1	0005-0210			●
32	HOLDER ASM; NOZZLE	1-15330-054-1	06	1	0005-0210		●
32	HOLDER ASM; NOZZLE	8-97602-022-0	06	1	0303-				●
33	NOZZLE; INJ	8-94394-699-0	06	1	0005-0210	●
33	NOZZLE; INJ	8-94395-988-0	06	1	0005-0210			●
33	NOZZLE; INJ	1-15311-265-0	06	1	0005-0210		●
33	NOZZLE; INJ	8-97602-021-0	06	1	0303-				●
35	NUT; NOZZLE RET,NOZZLE HOLDER	8-94174-184-0	06	1	0005-0210	●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-135-0	06	1	0005-0210			●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15332-017-0	06	1	0005-0210		●
35	NUT; NOZZLE RET,NOZZLE HOLDER	1-15349-142-0	06	1	0303-				●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	5-15339-003-0	06	1	0005-0210		●
42	GASKET; INL CONNECTOR,NOZZLE HOLDER	9-09561-112-0	06	1	0303-				●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94174-141-0	06	1	0005-0210	●
44	SPRING; NOZZLE,NOZZLE HOLDER	8-94246-531-0	06	1	0005-0210		●	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15345-003-0	06	1	0303-				●
46	PIN; NOZZLE SET,NOZZLE HOLDER (A)	8-94174-139-0	12	1	0005-0210	●
46	PIN; NOZZLE SET,NOZZLE HOLDER (B)	9-15347-003-0	12	1	0005-0210		●
46	PIN; NOZZLE SET,NOZZLE HOLDER (C)	1-15347-001-1	12	1	0303-				●
46	PIN; NOZZLE SET,NOZZLE HOLDER (D)	9-15347-003-0	12	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-97027-432-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-97027-433-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-97027-434-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-97027-435-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	8-97027-436-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	8-97027-437-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	8-97027-438-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	8-97027-439-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	8-97027-440-0	AR	1	0005-0210	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	5-15339-007-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	5-15339-008-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	5-15339-009-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.80	5-15339-010-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.90	5-15339-011-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=1.00	5-15339-012-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	5-15339-018-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	5-15339-019-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	5-15339-020-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	5-15339-021-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.10	8-94128-982-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.20	8-94128-983-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.30	8-94128-984-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	8-94128-985-0	AR	1	0005-0210		●	●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.40	1-15349-120-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.50	1-15349-121-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.52	1-15349-122-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.54	1-15349-123-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.56	1-15349-124-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.58	1-15349-125-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.60	1-15349-126-0	AR	1	0303-				●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER T=0.70	1-15349-127-0	AR	1	0303-				●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15341-006-0	06	1	0005-0210		●	●
141	ROD; PUSH,UPR,NOZZLE HOLDER	1-15349-132-0	06	1	0303-				●
145	GASKET; RET NUT	8-94128-915-0	06	1	0005-0210	●
145	GASKET; RET NUT ID=23.3	8-94173-412-0	06	1	0303-				●
146	SPACER; NOZZLE	1-15339-095-0	06	1	0005-0210	●
146	SPACER; NOZZLE	1-15349-133-0	06	1	0303-				●

1 216 199 199 174 175 175 225 224 176 177 177 416 367 367 364 369 369 366 368 368 365

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94390-618-3	01	1	0005-0210	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-94391-333-0	01	1	0005-0210			●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-258-3	01	1	0005-0111		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. A/T<X9D>	1-15603-258-3	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15603-129-5	01	1	0211-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. A/T<X9D>	1-15603-287-1	01	1	0112-0210		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	8-97600-665-4	01	1	0303-				●
174	BOLT; EYE,FUEL OUTLET,FEED PUMP	5-15759-003-0	01	1	0211-		●
175	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP	1-15619-507-0	02	1	0211-		●
176	BOLT; EYE,FEED PUMP	1-15619-509-0	01	1	0211-		●
177	GASKET; EYE BOLT,INL,FUEL FEED PUMP	1-15619-507-0	02	1	0211-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	02	1	0211-		●
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0211-		●
216	BOLT; EYE (B)	8-97351-388-0	01	1	0211-		●
216	BOLT; EYE (A)	5-15759-003-0	01	1	0211-		●
224	PLUG; INJ PUMP	1-15619-500-0	01	1	0211-		●
225	GASKET; PLUG	1-15619-502-0	01	1	0211-		●
364	VALVE; OVER FLOW,INJ PUMP	1-15619-496-0	01	1	0211-		●
365	BOLT; EYE,OIL INLET	9-88130-088-0	01	1	0211-		●
366	BOLT; EYE,OIL OUTLET	1-15619-497-0	01	1	0211-		●
367	GASKET; VALVE,OVER FLOW	1-15619-501-0	02	1	0211-		●
368	GASKET; EYE BOLT,OIL INLET	1-15619-508-0	02	1	0211-		●
369	GASKET; EYE BOLT,OIL OUTLET	1-15619-504-0	02	1	0211-		●
416	SENSOR; POSITION,PUMP	8-97174-899-0	01	1	0211-		●

121 133 113 131 124 113 168 107 135 169 133 107 135 113 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	05	1	0005-0108	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	06	1	0109-0210	●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0005-0210			●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91150-106-0	04	1	0303-0602				●
107	NUT; INJ PIPE CLIP M6 FLANGE	0-91180-106-0	04	1	0603-				●
113	CLIP; INJ PIPE (B)	8-94397-444-0	05	1	0005-0108	●
113	CLIP; INJ PIPE (C)	1-09701-132-0	10	1	0109-0210	●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0005-0108	●		●
113	CLIP; INJ PIPE (A)	8-94396-793-0	04	1	0109-0210			●
113	CLIP; INJ PIPE (B)	8-94397-444-0	04	1	0005-0210			●
113	CLIP; INJ PIPE (C)	1-09701-132-0	14	1	0005-0210		●
113	CLIP; INJ PIPE (C)	1-09701-132-1	08	1	0303-1202				●
113	CLIP; INJ PIPE (C)	1-09701-240-0	08	1	1203-				●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0005-0210	●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94394-408-0	01	1	0005-0210			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15415-778-0	01	1	0005-0210		●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15416-689-0	01	1	0211-		●
121	PIPE; FUEL,FEED PUMP,SUCTION	8-94395-043-2	01	1	0303-				●
124	BOLT; EYE LEAK OFF PIPE (B) M8X18 EYE-BOLT	1-09675-037-1	05	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (C) M8X20 EYE-BOLT	5-09675-018-1	06	1	0211-		●
124	BOLT; EYE LEAK OFF PIPE (A) M8X30 FLANGE	1-09675-039-1	01	1	0005-0210	●		●
124	BOLT; EYE LEAK OFF PIPE (D) M10X21 FLANGE	8-94396-711-0	01	1	0303-				●
131	CLIP; OVERFLOW LEAK OFF	1-09701-091-0	01	1	0005-0210	●
131	CLIP; OVERFLOW LEAK OFF	1-09701-132-0	02	1	0005-0210		●
131	CLIP; OVERFLOW LEAK OFF L=48	5-09709-103-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (A)	8-94390-071-0	01	1	0005-0210	●		●
133	PIPE; INJ NOZZLE LEAK OFF (B)	8-94390-178-0	01	1	0005-0210			●
133	PIPE; INJ NOZZLE LEAK OFF (C)	1-15415-777-0	01	1	0005-0210		●
133	PIPE; INJ NOZZLE LEAK OFF (D)	1-15416-693-1	01	1	0211-		●
133	PIPE; INJ NOZZLE LEAK OFF (E)	8-94390-451-0	01	1	0303-				●
133	PIPE; INJ NOZZLE LEAK OFF (F)	8-97600-692-2	01	1	0303-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=17	8-98079-755-0	01	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	13	1	0005-0210	●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.3	8-98065-992-0	07	1	0703-0704		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-94395-214-0	07	1	0705-1312		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=8.6	8-98246-930-0	07	1	1401-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	15	1	0005-0210			●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=8.2 OD=13.2	1-09630-082-0	02	1	0005-0210		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0702		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=20	8-98065-990-0	02	1	0703-		●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	04	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (D) ID=10.2 OD=15.2	1-09630-083-0	02	1	0909-				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-97600-925-0	06	1	0303-0908				●
135	GASKET; JOINT BOLT,LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (E) ID=8.3	8-98065-992-0	06	1	0909-				●
168	BRACKET; FUEL PIPE	8-94395-046-2	01	1	0005-0210	●
168	BRACKET; FUEL PIPE	8-97602-186-0	01	1	0303-				●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	04	1	0005-0210	●
169	NUT; BRKT M8 FLANGE	0-91150-108-0	02	1	0303-0602				●
169	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0603-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
