Sayfa 0-39 - Isuzu EPC

0-39 — AIR COMPRESSOR; BRAKE (#8616) — 282 parça

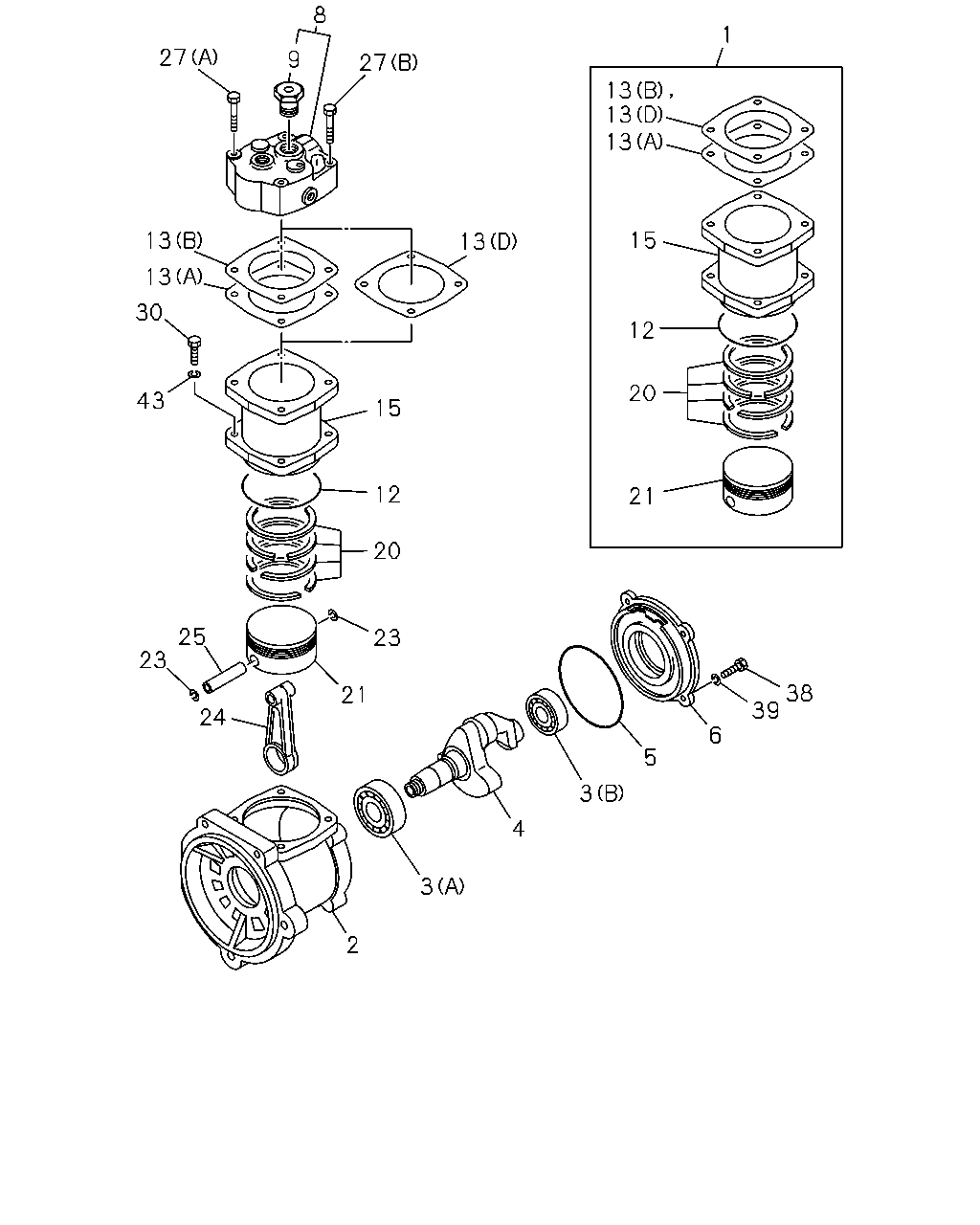

8 13 27 27 9 15 13 12 1 30 20 15 21 12 48 20 7 25 23 23 38 39 21 45 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0005-0210	●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	0005-0210		●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0303-0812			●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0005-0210	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0005-0210		●
2	CRANKCASE; AIR CMPR	1-19151-293-0	01	1	0005-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0303-			●
3	BEARING; AIR CMPR (C)	8-98171-672-0	03	1	0005-0210				●
3	BEARING; AIR CMPR (C)	8-98171-672-0	03	1	0211-				●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	0005-0210	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	0005-0210	●	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	0303-1202			●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	0303-			●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0005-0210	●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0005-0210		●
4	CRANKSHAFT; AIR CMPR	1-19171-084-0	01	1	0005-				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0303-1202			●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0005-0210	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0303-1107			●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-			●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0005-0210	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0005-0210		●
6	COVER ASM; BRG,AIR CMPR	1-19156-082-0	01	1	0005-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0303-1202			●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-			●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0005-0210		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0005-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0005-0210	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0005-0210		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-063-1	01	1	0005-0302				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0303-1012				●
8	HEAD ASM; CYL,AIR CMPR	8-98167-016-0	01	1	1101-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0303-			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0005-0210	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0303-			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-0210	●	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0005-				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0303-1107			●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-			●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0303-			●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	0005-0210	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	0005-0210	●
13	GASKET; AIR CMPR (C)	1-09623-626-0	01	1	0005-0210		●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0005-				●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0005-1306				●
13	GASKET; AIR CMPR (B)	8-98242-649-0	01	1	1307-1402				●
13	GASKET; AIR CMPR (B)	8-98269-488-0	01	1	1403-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0005-0210	●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0005-0210		●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0005-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0303-			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0210	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0005-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0303-0812			●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0210	●	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0005-				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0303-0812			●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0211-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0005-0210	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0210		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-003-0	02	1	0005-0210				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0303-0812			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0005-0210	●	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0005-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0303-1202			●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0210	●	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0005-0906				●
25	PIN; PISTON,AIR CMPR	1-19167-007-0	01	1	0907-				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0303-0812			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0005-0210	●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0005-0210	●	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0005-				●
27	BOLT; HD (B)	1-19119-024-0	04	1	0005-1012				●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-				●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0303-			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0303-			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-0210	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-0210		●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0005-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0303-			●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0005-0210	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0005-0210		●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0005-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0303-			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0005-0210	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0303-			●
45	WASHER; PL,COVER FIX,AIR CMPR ID=8.4	9-09160-508-0	04	1	0005-0210		●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0005-0210		●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0005-				●

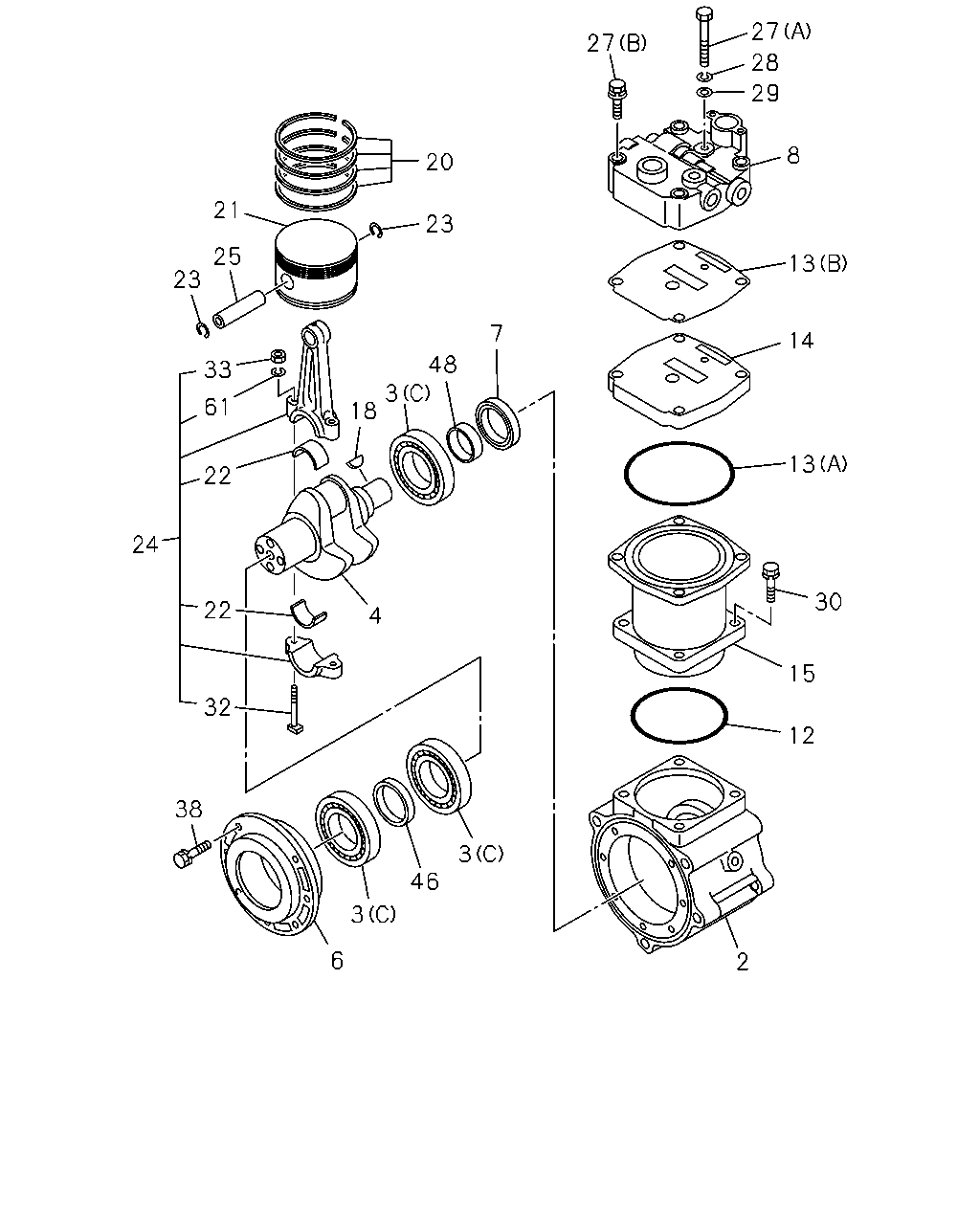

27 27 28 29 8 20 21 23 25 13 23 7 14 48 3 18 33 61 13 22 24 30 22 4 15 32 12 38 3 46 3 6 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0005-0210	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0005-0210		●
2	CRANKCASE; AIR CMPR	1-19151-293-0	01	1	0005-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0303-			●
3	BEARING; AIR CMPR (C)	8-98171-672-0	03	1	0005-0210				●
3	BEARING; AIR CMPR (C)	8-98171-672-0	03	1	0211-				●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	0005-0210	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	0005-0210	●	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	0303-1202			●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	0303-			●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0005-0210	●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0005-0210		●
4	CRANKSHAFT; AIR CMPR	1-19171-084-0	01	1	0005-				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0303-1202			●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-			●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0005-0210	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0005-0210		●
6	COVER ASM; BRG,AIR CMPR	1-19156-082-0	01	1	0005-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0303-1202			●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-			●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-19158-026-0	01	1	0005-0210		●
7	SEAL; OIL,BRG COVER,AIR CMPR	1-09625-619-0	01	1	0005-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0005-0210	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0005-0210		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-063-1	01	1	0005-0302				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0303-1012				●
8	HEAD ASM; CYL,AIR CMPR	8-98167-016-0	01	1	1101-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0303-			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-0210	●	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0005-				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0303-1107			●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-			●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0303-			●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	0005-0210	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	0005-0210	●
13	GASKET; AIR CMPR (C)	1-09623-626-0	01	1	0005-0210		●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0005-				●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0005-1306				●
13	GASKET; AIR CMPR (B)	8-98242-649-0	01	1	1307-1402				●
13	GASKET; AIR CMPR (B)	8-98269-488-0	01	1	1403-				●
14	PLATE; AIR CMPR	1-19110-064-1	01	1	0005-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0005-0210	●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0005-0210		●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0005-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0303-			●
18	KEY; AIR CMPR	9-08055-622-0	01	1	0005-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0210	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0005-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0303-0812			●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0210	●	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0005-				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0303-0812			●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-			●
22	METAL; CONNROD,AIR CMPR	1-19179-025-0	02	1	0005-				●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0211-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0005-0210	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0210		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-003-0	02	1	0005-0210				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0303-0812			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0005-0210	●	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0005-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0303-1202			●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0210	●	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0005-0906				●
25	PIN; PISTON,AIR CMPR	1-19167-007-0	01	1	0907-				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0303-0812			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0005-0210	●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0005-0210	●	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0005-				●
27	BOLT; HD (B)	1-19119-024-0	04	1	0005-1012				●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-				●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0303-			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0303-			●
28	WASHER; LK,HD BOLT ID=8.2	9-09150-508-0	08	1	0005-				●
29	WASHER; PL,HD BOLT ID=8.4	9-09160-508-0	01	1	0005-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-0210	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-0210		●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0005-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0303-			●
32	BOLT; CONNROD	1-19179-021-0	02	1	0005-				●
33	NUT; CONNROD BOLT	1-19179-026-0	02	1	0005-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0005-0210	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0005-0210		●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0005-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0303-			●
46	SPACER; BRG	1-19179-031-0	01	1	0005-				●
48	SLEEVE; CR/SHF	1-19179-014-0	01	1	0005-0210		●
48	SLEEVE; CR/SHF	1-19179-027-0	01	1	0005-				●
61	WASHER; LK,CONNROD BOLT	1-19179-022-0	02	1	0005-				●

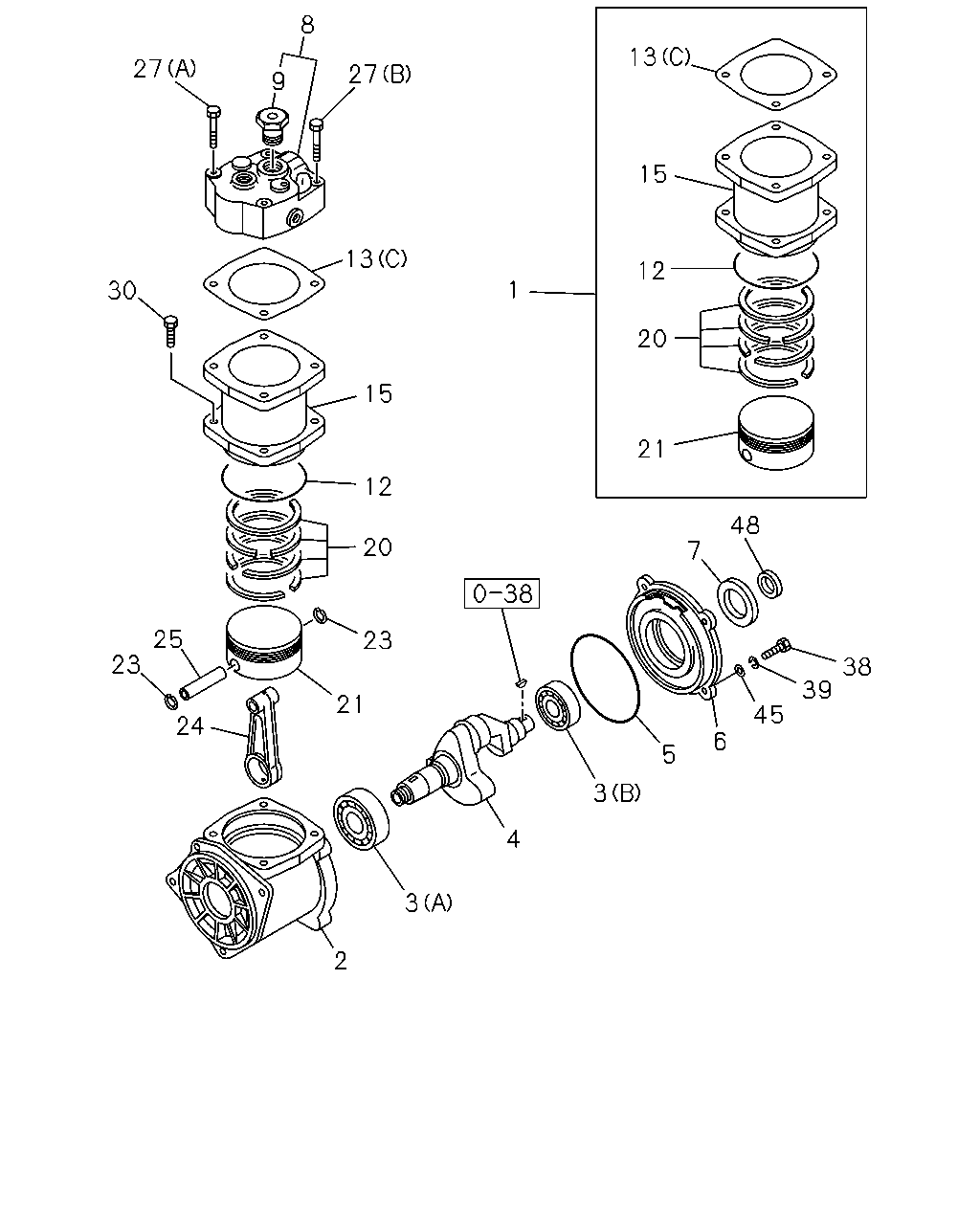

8 1 27 9 27 13 13 13 15 13 13 13 30 12 20 43 15 12 21 20 25 23 23 38 39 21 24 6 5 3 4 3 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0005-0210	●
1	LINER KIT; CYL,AIR CMPR	1-19163-053-2	01	1	0005-0210		●
1	LINER KIT; CYL,AIR CMPR	1-19163-052-1	01	1	0303-0812			●
1	LINER KIT; CYL,AIR CMPR	1-19163-075-0	01	1	0901-			●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0005-0210	●
2	CRANKCASE; AIR CMPR	1-19151-266-1	01	1	0005-0210		●
2	CRANKCASE; AIR CMPR	1-19151-293-0	01	1	0005-				●
2	CRANKCASE; AIR CMPR	1-19151-274-0	01	1	0303-			●
3	BEARING; AIR CMPR (C)	8-98171-672-0	03	1	0005-0210				●
3	BEARING; AIR CMPR (C)	8-98171-672-0	03	1	0211-				●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	0005-0210	●	●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	0005-0210	●	●
3	BEARING; AIR CMPR (A)	9-00006-206-0	01	1	0303-1202			●
3	BEARING; AIR CMPR (B)	9-00090-152-0	01	1	0303-			●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0005-0210	●
4	CRANKSHAFT; AIR CMPR	1-19171-048-1	01	1	0005-0210		●
4	CRANKSHAFT; AIR CMPR	1-19171-084-0	01	1	0005-				●
4	CRANKSHAFT; AIR CMPR	1-19171-028-0	01	1	0303-1202			●
4	CRANKSHAFT; AIR CMPR	8-98209-089-0	01	1	1203-			●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0005-0210	●	●
5	GASKET; AIR CMPR	1-09623-361-0	01	1	0303-1107			●
5	GASKET; AIR CMPR	8-98192-460-0	01	1	1108-			●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0005-0210	●
6	COVER ASM; BRG,AIR CMPR	1-19156-058-1	01	1	0005-0210		●
6	COVER ASM; BRG,AIR CMPR	1-19156-082-0	01	1	0005-				●
6	COVER ASM; BRG,AIR CMPR	1-19156-039-0	01	1	0303-1202			●
6	COVER ASM; BRG,AIR CMPR	8-98209-092-0	01	1	1203-			●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0005-0210	●
8	HEAD ASM; CYL,AIR CMPR	1-19110-052-1	01	1	0005-0210		●
8	HEAD ASM; CYL,AIR CMPR	1-19110-063-1	01	1	0005-0302				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-072-0	01	1	0303-1012				●
8	HEAD ASM; CYL,AIR CMPR	8-98167-016-0	01	1	1101-				●
8	HEAD ASM; CYL,AIR CMPR	1-19110-056-1	01	1	0303-			●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0005-0210	●	●
9	VALVE ASM; UNLOADER,AIR CMPR	1-19120-017-1	01	1	0303-			●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0005-0210	●	●
12	GASKET; AIR CMPR	1-09623-651-1	01	1	0005-				●
12	GASKET; AIR CMPR	1-09623-539-0	01	1	0303-1107			●
12	GASKET; AIR CMPR	8-98185-684-0	01	1	1108-			●
13	GASKET; AIR CMPR (D)	1-19139-016-0	01	1	0303-			●
13	GASKET; AIR CMPR (A)	1-19139-002-0	01	1	0005-0210	●
13	GASKET; AIR CMPR (B) T=0.8	1-19139-004-0	01	1	0005-0210	●
13	GASKET; AIR CMPR (C)	1-09623-626-0	01	1	0005-0210		●
13	GASKET; AIR CMPR (A)	1-09623-650-1	01	1	0005-				●
13	GASKET; AIR CMPR (B)	1-19139-019-0	01	1	0005-1306				●
13	GASKET; AIR CMPR (B)	8-98242-649-0	01	1	1307-1402				●
13	GASKET; AIR CMPR (B)	8-98269-488-0	01	1	1403-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0005-0210	●
15	CYLINDER; AIR CMPR	1-19151-219-0	01	1	0005-0210		●
15	CYLINDER; AIR CMPR	1-19163-065-0	01	1	0005-				●
15	CYLINDER; AIR CMPR	1-19151-218-0	01	1	0303-			●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0005-0210	●	●
20	RING KIT; PISTON,AIR CMPR	1-19163-064-0	01	1	0005-				●
20	RING KIT; PISTON,AIR CMPR	1-19163-051-1	01	1	0303-0812			●
20	RING KIT; PISTON,AIR CMPR	1-19163-058-0	01	1	0901-			●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0005-0210	●	●
21	PISTON; AIR CMPR	1-19161-023-0	01	1	0005-				●
21	PISTON; AIR CMPR	1-19161-016-0	01	1	0303-0812			●
21	PISTON; AIR CMPR	1-19161-027-0	01	1	0901-			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-001-0	02	1	0211-				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0005-0210	●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-003-0	02	1	0005-0210		●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-003-0	02	1	0005-0210				●
23	RING; SNAP,PISTON,AIR CMPR	9-19168-008-0	02	1	0303-0812			●
23	RING; SNAP,PISTON,AIR CMPR	1-19169-004-0	02	1	0901-			●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0005-0210	●	●
24	ROD ASM; CONN,AIR CMPR	1-19171-078-0	01	1	0005-				●
24	ROD ASM; CONN,AIR CMPR	1-19173-010-0	01	1	0303-1202			●
24	ROD ASM; CONN,AIR CMPR	8-98209-093-0	01	1	1203-			●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0005-0210	●	●
25	PIN; PISTON,AIR CMPR	1-19167-004-0	01	1	0005-0906				●
25	PIN; PISTON,AIR CMPR	1-19167-007-0	01	1	0907-				●
25	PIN; PISTON,AIR CMPR	9-19167-003-0	01	1	0303-0812			●
25	PIN; PISTON,AIR CMPR	1-19167-003-0	01	1	0901-			●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0005-0210	●	●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0005-0210	●	●
27	BOLT; HD (A)	1-09044-071-0	01	1	0005-				●
27	BOLT; HD (B)	1-19119-024-0	04	1	0005-1012				●
27	BOLT; HD (B) M10X75	8-98167-018-0	04	1	1101-				●
27	BOLT; HD (B) M10X45	9-01066-045-0	02	1	0303-			●
27	BOLT; HD (A) M10X60	9-01066-060-0	02	1	0303-			●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0005-0210	●
30	BOLT; CYL TO CRANKCASE M10X25	9-01911-025-0	04	1	0005-0210		●
30	BOLT; CYL TO CRANKCASE M10X30	1-19119-026-0	04	1	0005-				●
30	BOLT; CYL TO CRANKCASE M10X25	9-02051-025-0	04	1	0303-			●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0005-0210	●
38	BOLT; COVER FIX	9-81385-023-0	04	1	0005-0210		●
38	BOLT; COVER FIX M8X30	0-20800-830-0	07	1	0005-				●
38	BOLT; COVER FIX	1-19179-011-0	04	1	0303-			●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0005-0210	●	●
39	WASHER; LK,COVER FIX ID=8.2	9-09150-608-0	04	1	0303-			●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0005-0210	●
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR ID=10.2	9-09150-610-0	04	1	0303-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
