Sayfa 0-38 - Isuzu EPC

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#8615) — 772 parça

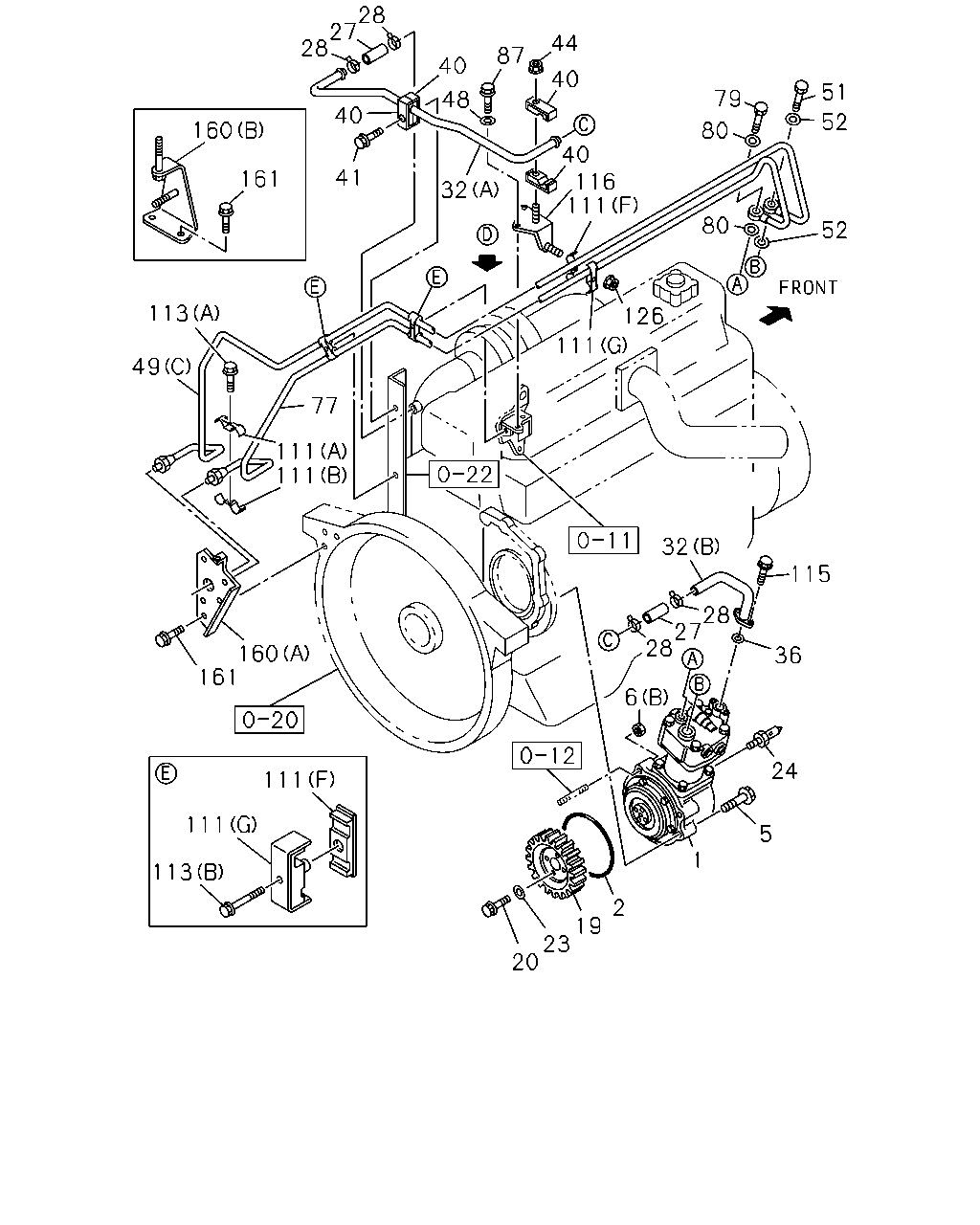

28 27 28 44 87 40 40 51 79 48 40 52 160 80 40 116 111 41 161 32 80 52 113 126 111 49 77 111 111 32 115 28 27 28 160 161 36 6 24 111 111 5 1 113 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0005-0302			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-1306			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-645-1	01	1	1307-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0303-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0005-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0303-				●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210		●
5	BOLT; AIR CMPR FIX M12X130 FLANGE	0-28196-213-0	02	1	0006-0210			●
5	BOLT; AIR CMPR FIX M12X15	0-28186-215-0	02	1	0211-0512			●
5	BOLT; AIR CMPR FIX M12X15	0-28156-215-0	02	1	0601-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	04	1	0005-0005			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	02	1	0006-0602			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	02	1	0603-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0303-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0005-			●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0005-			●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0005-			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0005-			●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0005-			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0303-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0005-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0303-				●
32	PIPE; AIR,AIR CMPR (B)	1-19193-272-1	01	1	0005-0210			●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO(SV1) (A)	1-19193-274-0	01	1	0005-0210			●
32	PIPE; AIR,AIR CMPR EXC. ENGINE REAR PTO(SV1) (A)	1-19193-271-0	01	1	0005-0210			●
32	PIPE; AIR,AIR CMPR (C)	1-19193-359-0	01	1	0211-0802			●
32	PIPE; AIR,AIR CMPR (C)	8-98100-017-0	01	1	0803-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0005-0802			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0803-			●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0005-0210			●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0211-			●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0005-0210			●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0211-0512			●
41	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	04	1	0601-			●
44	NUT M6 FLANGE	0-91150-106-0	01	1	0005-0210			●
48	WASHER; PL,BRKT ID=10.5 OD=18	9-09160-510-0	02	1	0005-0210			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0303-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-0302			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-			●	●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-452-0	01	1	0303-			●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-444-0	01	1	0211-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1)	1-19193-276-0	01	1	0005-0210			●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-227-1	01	1	0005-0210			●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0303-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-0302			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0303-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (H)	1-09701-091-0	01	1	0005-0210	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (C) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (E)	1-09701-208-0	06	1	0005-0210			●
111	CLIP; AIR PIPE (F)	1-09701-272-0	03	1	0005-0210			●
111	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (G)	8-94393-037-0	02	1	0005-0210			●
111	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (G)	8-94393-037-0	03	1	0005-0210			●
111	CLIP; AIR PIPE (I)	8-94396-371-0	01	1	0303-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (B) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28080-620-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
115	BOLT; AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512			●
115	BOLT; AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	0005-0210	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0005-0210			●
116	BRACKET; AIR PIPE	1-14119-468-0	02	1	0211-			●
126	NUT; CLIP FIX M6 FLANGE	0-91150-106-0	01	1	0005-0210			●
126	NUT; CLIP FIX ENGINE REAR PTO(SV1) M6 FLANGE	0-91150-106-0	02	1	0005-0210			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (F)	1-19199-408-0	01	1	0303-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (E)	1-19199-409-0	01	1	0303-			●
160	BRACKET; AIR PIPE (A)	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE (A)	1-19199-351-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE (D)	1-19199-394-1	01	1	0211-0301			●
160	BRACKET; AIR PIPE (D)	1-19199-407-0	01	1	0302-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-19199-368-1	01	1	0005-0210			●
160	BRACKET; AIR PIPE (C)	8-97601-489-0	01	1	0303-				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28080-612-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0005-0512			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●

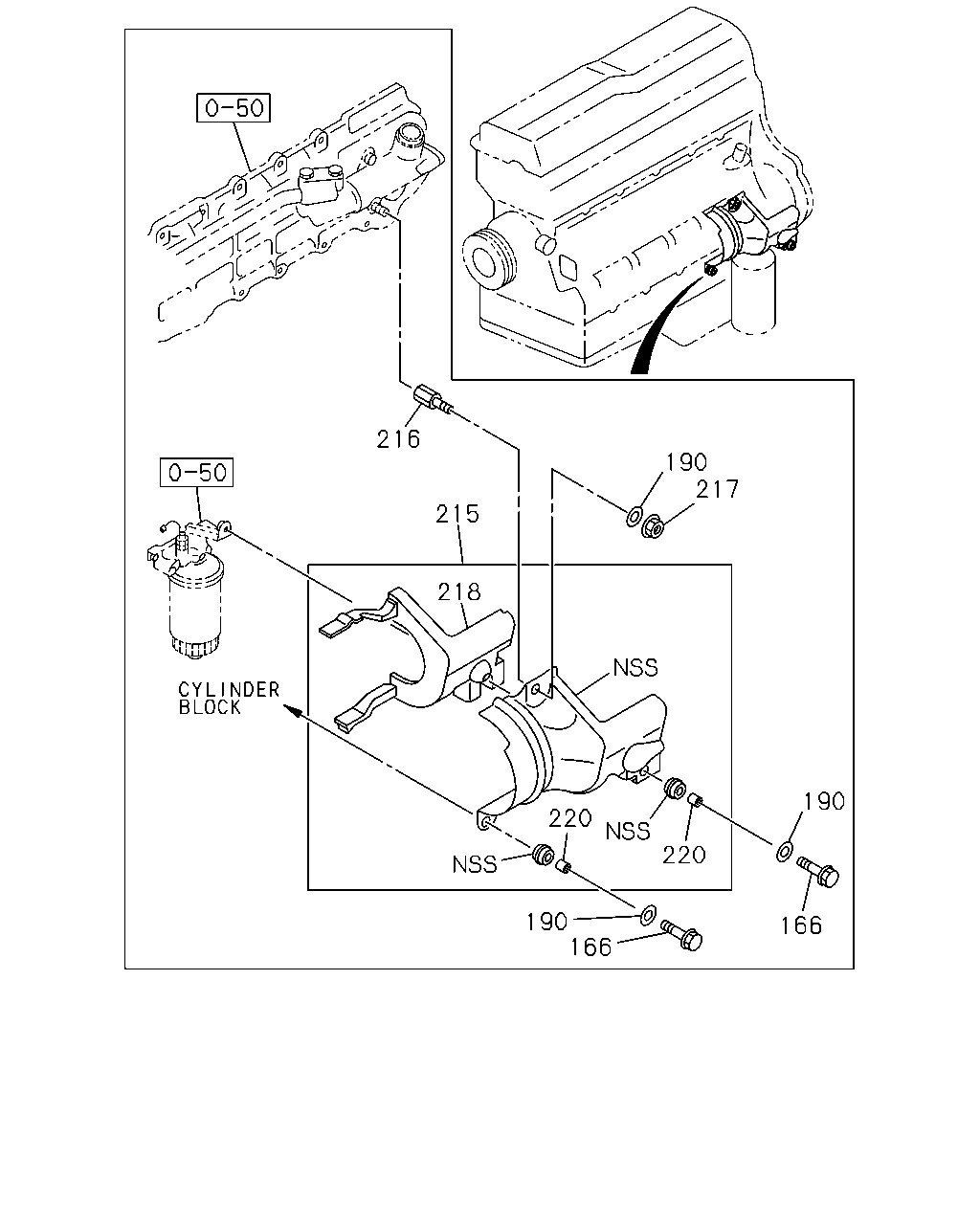

216 190 217 215 218 190 220 220 190 166 166

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B
166	BOLT; COVER FIX M10X25 FLANGE	0-28781-025-0	02	1	0005-0210	●
190	WASHER; PL,COVER ID=10.5 OD=26	9-09160-710-0	03	1	0005-0210	●
215	COVER; AIR CMPR	8-94390-408-0	01	1	0005-0210	●
216	SPACER; COVER	8-94394-990-1	01	1	0005-0210	●
217	NUT; COVER M10	9-09110-410-0	01	1	0005-0210	●
218	INSULATOR; COVER	8-94394-995-2	01	1	0005-0210	●
220	TUBE; DIST OD=13 T=9.5	8-94140-427-1	03	1	0005-0210	●

229 16 171 128 92 229 258 230 160

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
16	ADAPTER DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005	●	●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-0210	●	●
92	NUT; UNION M12	9-09840-280-0	01	1	0005-0210	●	●
92	NUT; UNION M12	9-09840-280-0	04	1	0211-			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0005-0210	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	04	1	0211-0603			●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	04	1	0604-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (F)	1-19199-408-0	01	1	0303-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (E)	1-19199-409-0	01	1	0303-			●
160	BRACKET; AIR PIPE (A)	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE (A)	1-19199-351-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE (D)	1-19199-394-1	01	1	0211-0301			●
160	BRACKET; AIR PIPE (D)	1-19199-407-0	01	1	0302-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-19199-368-1	01	1	0005-0210			●
160	BRACKET; AIR PIPE (C)	8-97601-489-0	01	1	0303-				●
171	UNION M12 L=56.5	9-09223-106-1	01	1	0005-0210	●	●
171	UNION M12 L=66.5	9-09223-306-1	04	1	0211-0607			●
171	UNION M12 L=66.5	0-92113-306-0	04	1	0608-			●
229	TUBE; NYLON WHEEL BASE 4200MM(42W) SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0007	●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0005-0007		●
229	TUBE; NYLON SERVICED BY L=2000 OD=8	1-87410-073-0	01	1	0008-0210	●	●
229	TUBE; NYLON WHEEL BASE 6000MM(60W) SERVICED BY L=2000 OD=8	1-87410-073-0	02	1	0005-0007	●
230	TUBE; CORRUGATE WHEEL BASE 6000MM(60W) SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0103-0210	●
230	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	0005-0102	●	●
230	TUBE; CORRUGATE WHEEL BASE 4200MM(42W) SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0103-0210	●
230	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87410-088-0	02	1	0103-0210		●
258	CLIP; BAND,NYLON TUBE L=250	1-09707-126-0	01	1	0005-0210	●	●

113 110 160 161 49 79 51 80 52 80 58 52 16 14 24 221 4 1 19 2 5 6 6 31 28 27 28

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0005-0302			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-1306			●

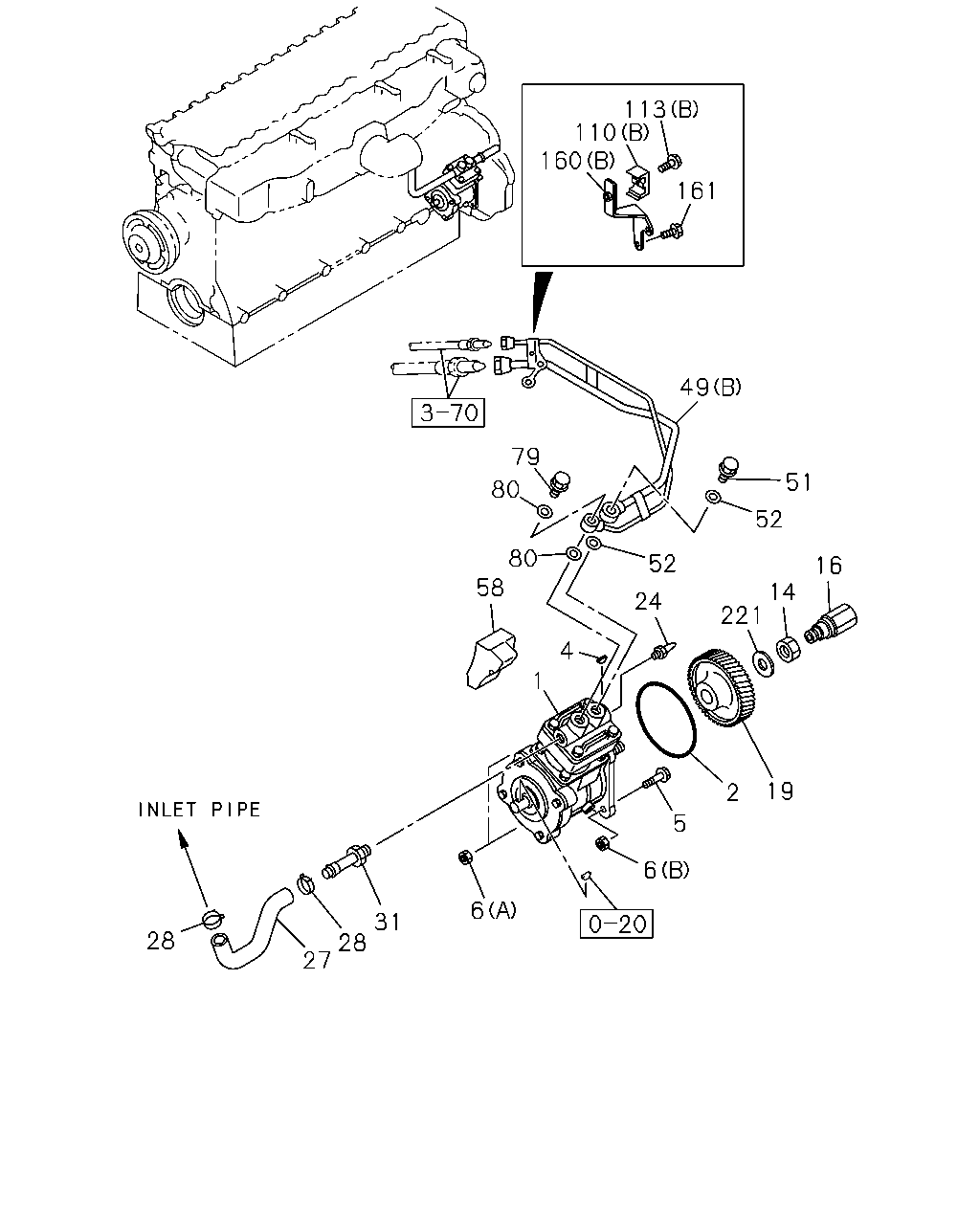

1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-645-1	01	1	1307-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0303-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●

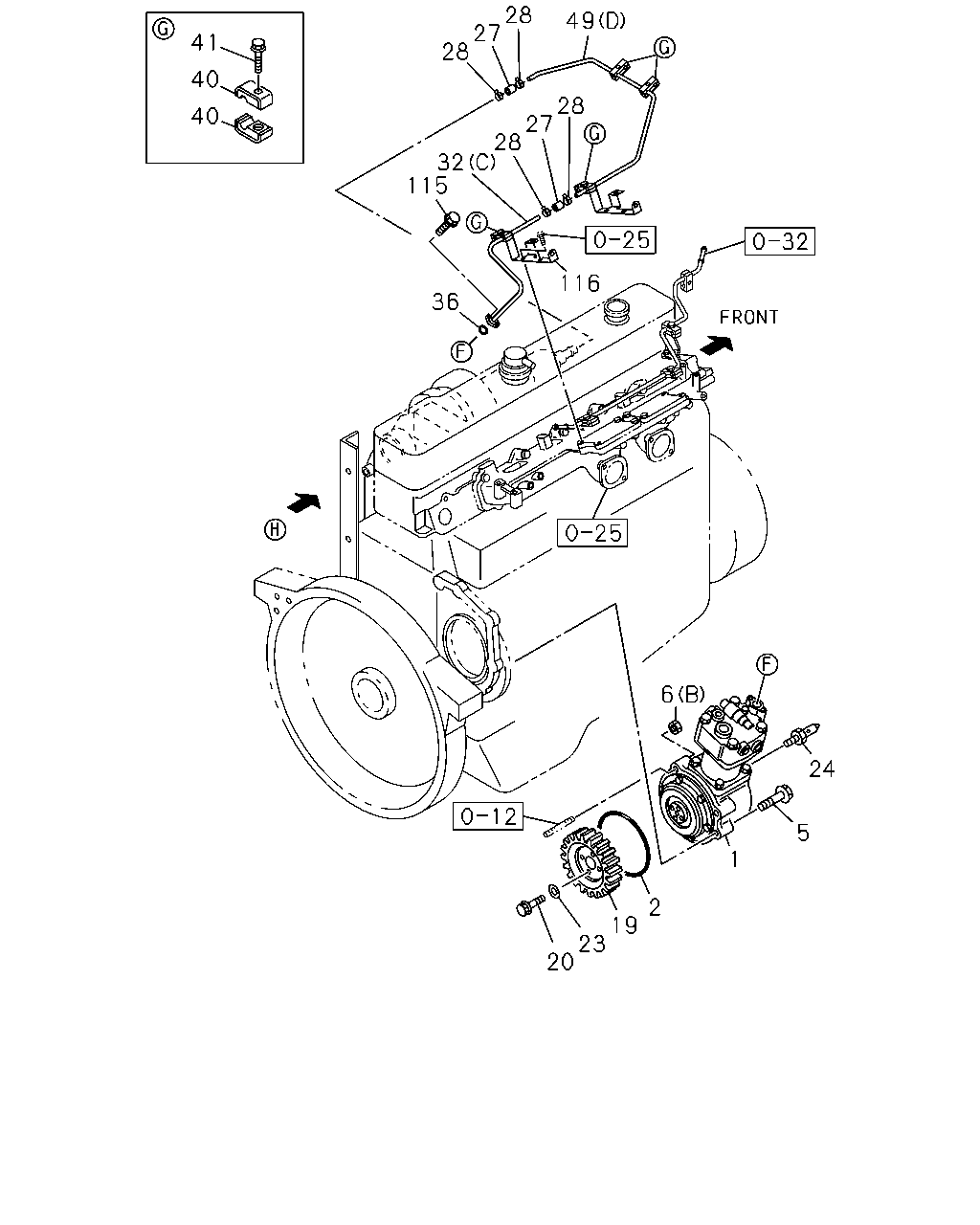

2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0005-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0303-				●
4	KEY; INJ PUMP GEAR	9-08055-516-0	01	1	0005-0210		●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210		●
5	BOLT; AIR CMPR FIX M12X130 FLANGE	0-28196-213-0	02	1	0006-0210			●
5	BOLT; AIR CMPR FIX M12X15	0-28186-215-0	02	1	0211-0512			●
5	BOLT; AIR CMPR FIX M12X15	0-28156-215-0	02	1	0601-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	04	1	0005-0005			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	02	1	0006-0602			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	02	1	0603-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0303-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0303-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09661-093-0	01	1	0005-0005	●	●
16	ADAPTER DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0006-0210	●	●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0005-			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0005-			●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0005-			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0303-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0005-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0303-				●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0303-				●

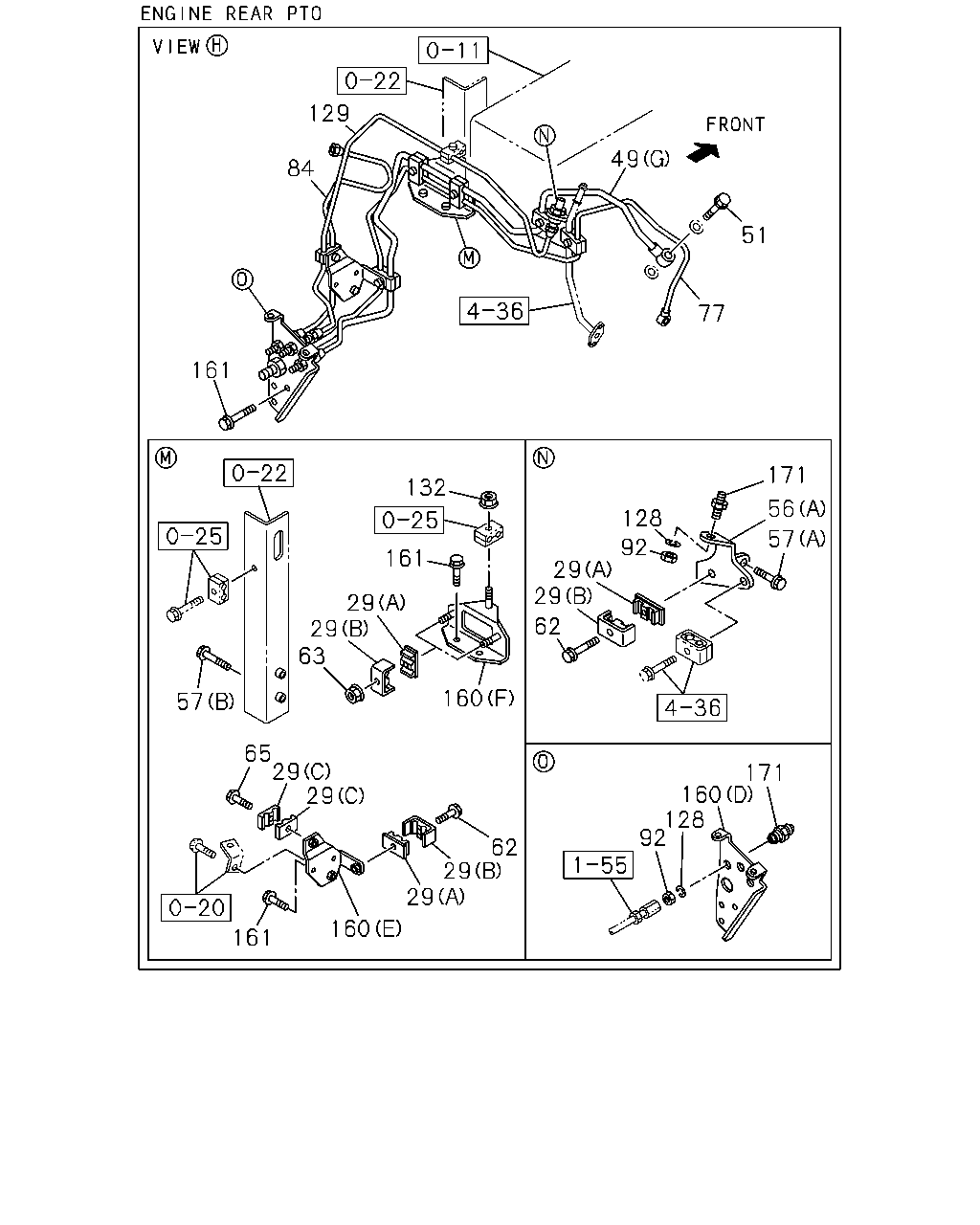

49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●

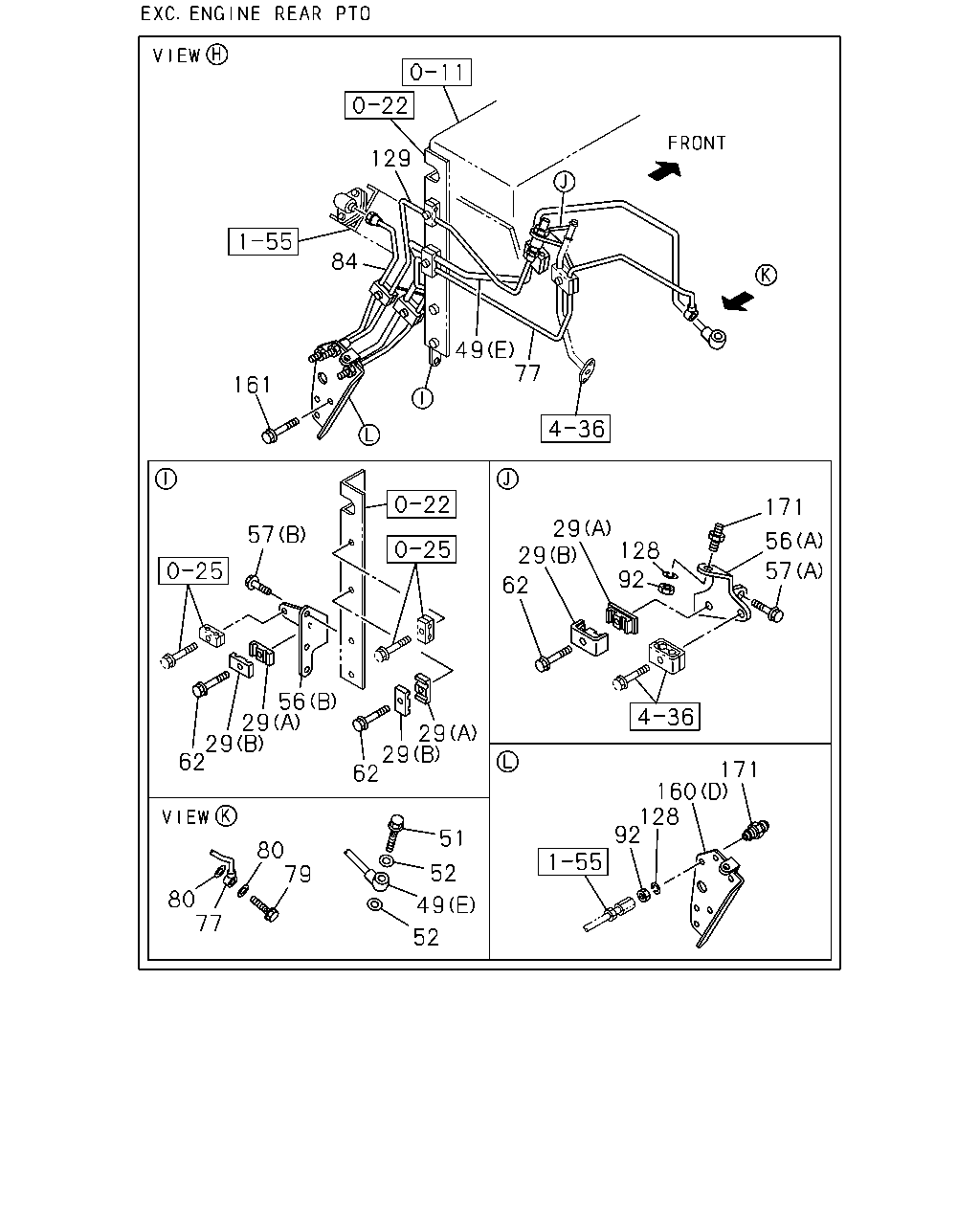

49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●

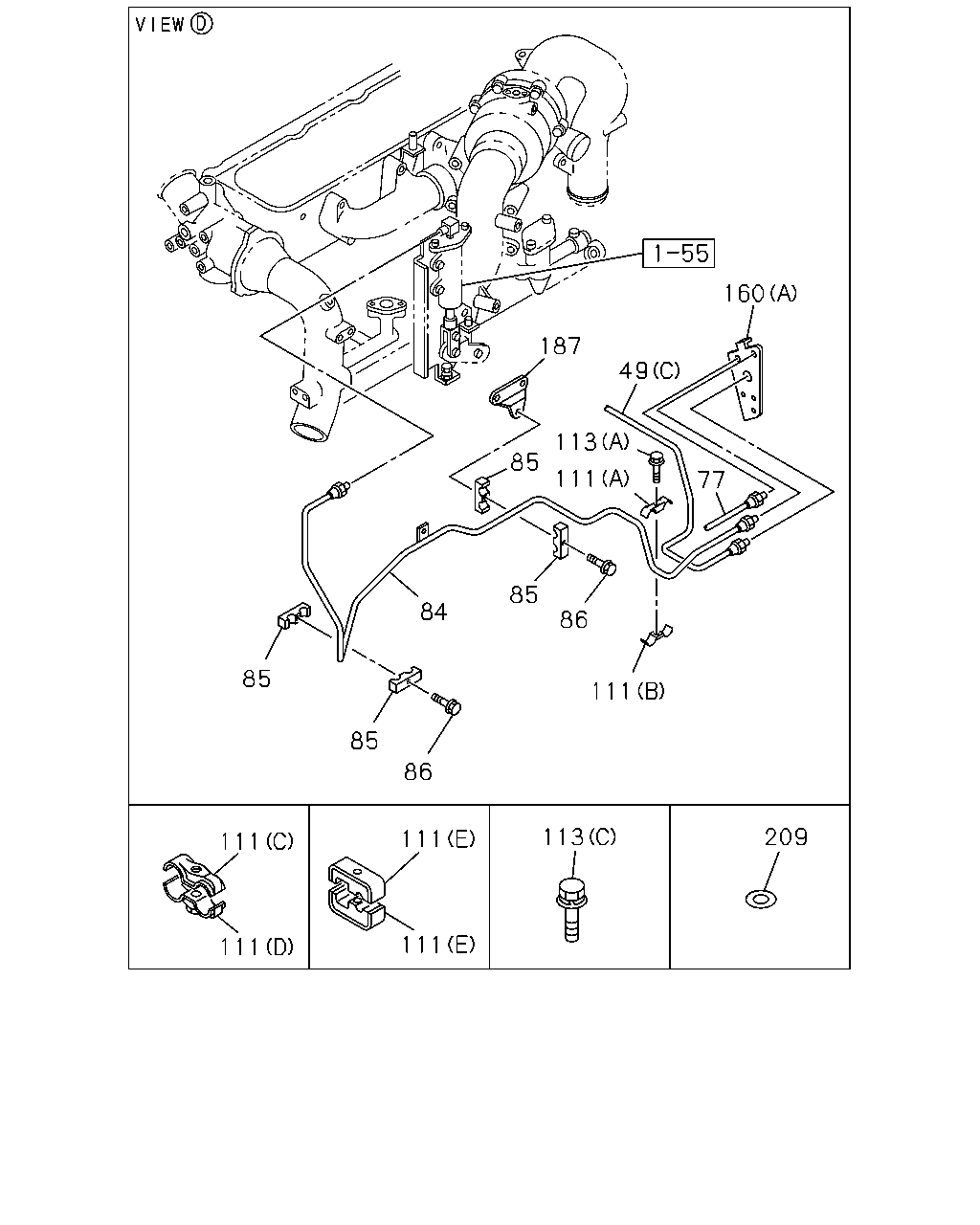

49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0303-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-0302			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-			●	●
58	SPACER; AIR CMPR	8-94395-675-1	01	1	0005-0210		●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-0302			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0303-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0005-0210		●
110	CLIP; AIR PIPE (C)	1-09701-282-0	02	1	0303-				●
110	CLIP; AIR PIPE (D)	8-94393-037-0	01	1	0303-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (B) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28080-620-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (F)	1-19199-408-0	01	1	0303-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (E)	1-19199-409-0	01	1	0303-			●
160	BRACKET; AIR PIPE (A)	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE (A)	1-19199-351-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE (D)	1-19199-394-1	01	1	0211-0301			●
160	BRACKET; AIR PIPE (D)	1-19199-407-0	01	1	0302-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-19199-368-1	01	1	0005-0210			●
160	BRACKET; AIR PIPE (C)	8-97601-489-0	01	1	0303-				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28080-612-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0005-0512			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0303-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

28 27 113 111 28 77 51 63 110 52 31 49 52 79 30 110 80 80 110 113 160 161 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D

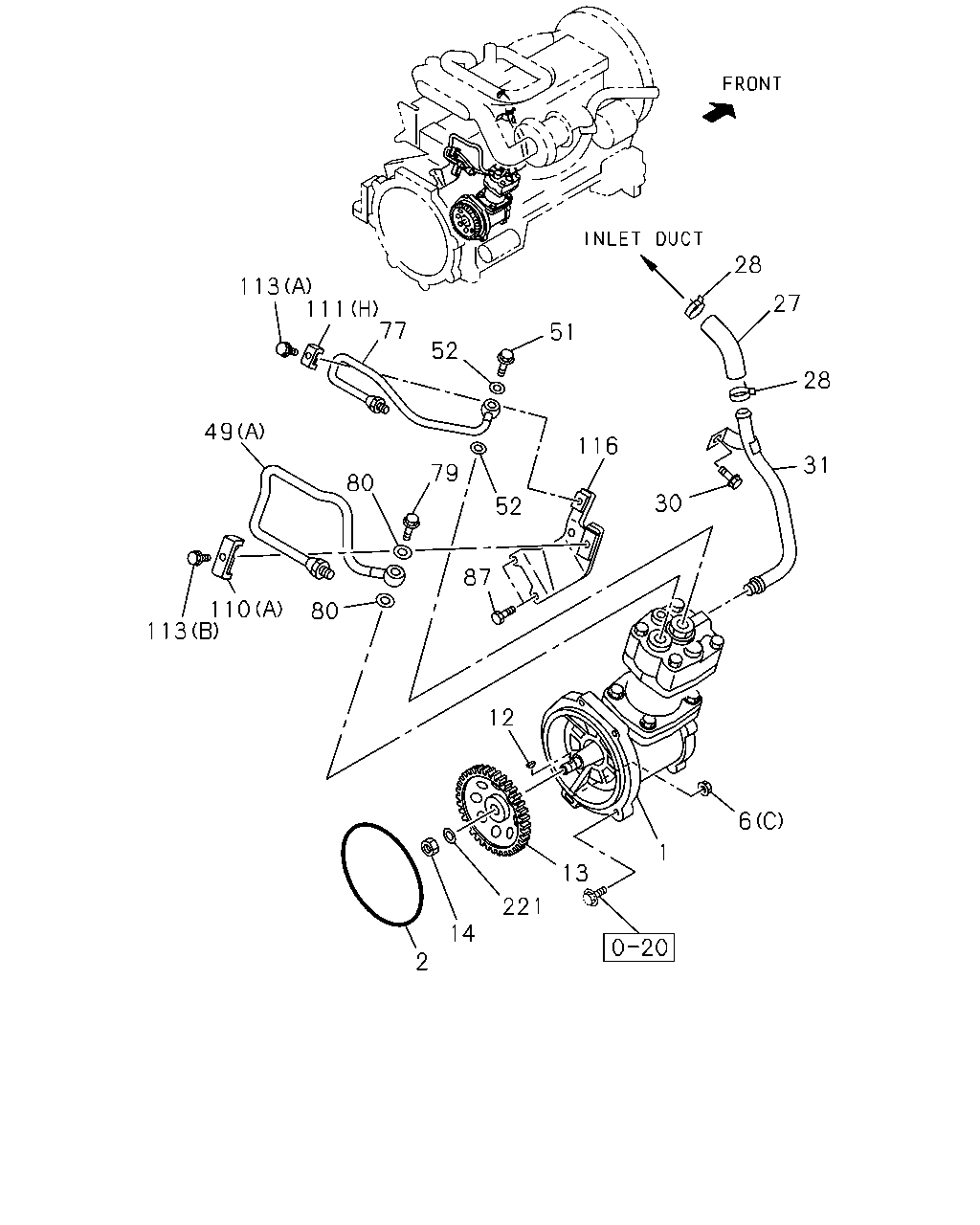

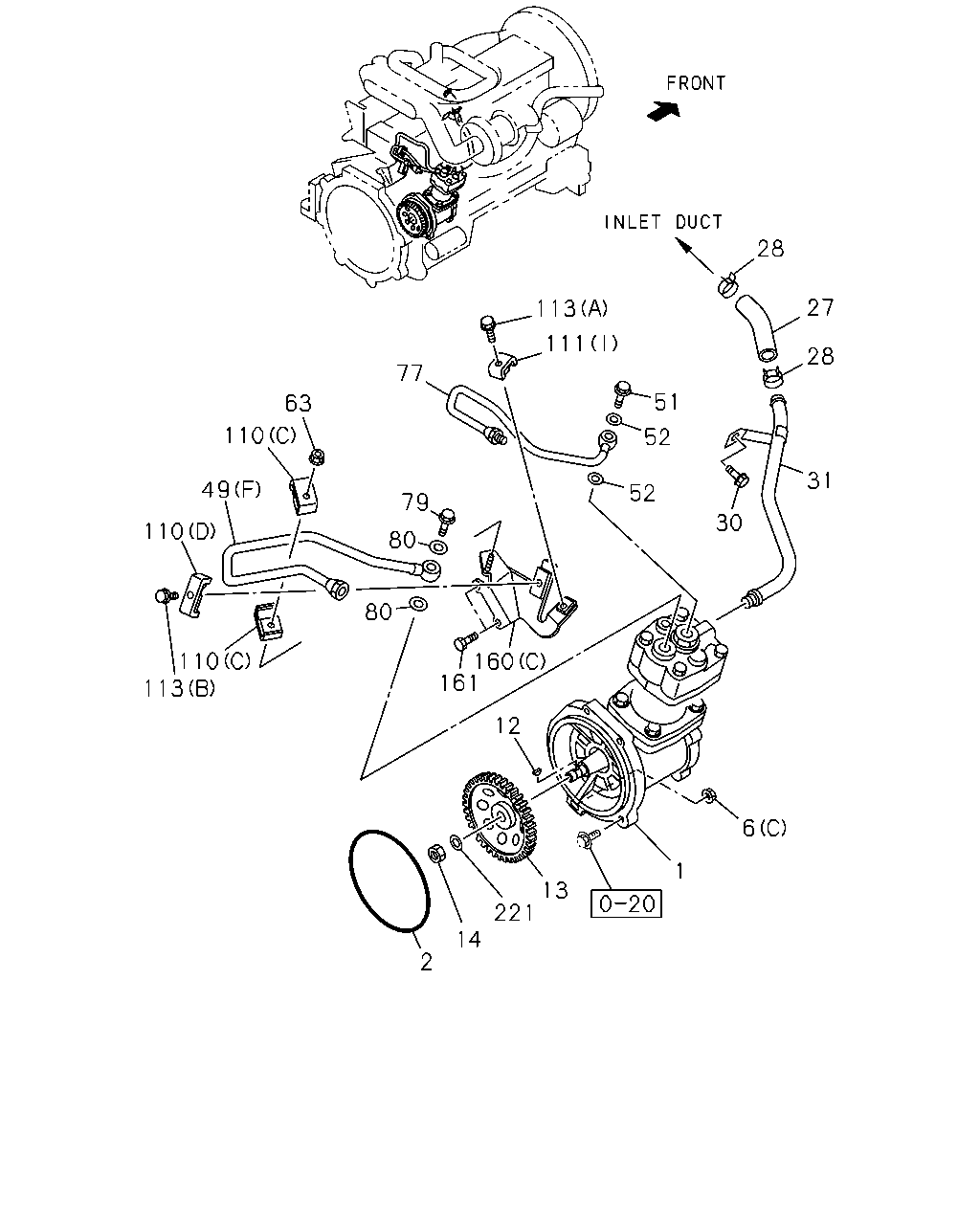

1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0005-0302			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-1306			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-645-1	01	1	1307-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0303-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0005-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0303-				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	04	1	0005-0005			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	02	1	0006-0602			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	02	1	0603-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0303-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0005-0210	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0303-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0005-0210	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0303-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0303-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0005-			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0303-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0005-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0303-				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0303-0512				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0303-				●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0303-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-0302			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-			●	●
63	NUT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6 FLANGE	0-91150-106-0	02	1	0303-0602			●
63	NUT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6 FLANGE	0-91180-106-0	02	1	0603-			●
63	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0303-0602				●
63	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-				●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-452-0	01	1	0303-			●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-444-0	01	1	0211-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1)	1-19193-276-0	01	1	0005-0210			●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-227-1	01	1	0005-0210			●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0303-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-0302			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0303-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0005-0210		●
110	CLIP; AIR PIPE (C)	1-09701-282-0	02	1	0303-				●
110	CLIP; AIR PIPE (D)	8-94393-037-0	01	1	0303-				●
111	CLIP; AIR PIPE (H)	1-09701-091-0	01	1	0005-0210	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (C) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (E)	1-09701-208-0	06	1	0005-0210			●
111	CLIP; AIR PIPE (F)	1-09701-272-0	03	1	0005-0210			●
111	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (G)	8-94393-037-0	02	1	0005-0210			●
111	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (G)	8-94393-037-0	03	1	0005-0210			●
111	CLIP; AIR PIPE (I)	8-94396-371-0	01	1	0303-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (B) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28080-620-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (F)	1-19199-408-0	01	1	0303-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (E)	1-19199-409-0	01	1	0303-			●
160	BRACKET; AIR PIPE (A)	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE (A)	1-19199-351-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE (D)	1-19199-394-1	01	1	0211-0301			●
160	BRACKET; AIR PIPE (D)	1-19199-407-0	01	1	0302-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-19199-368-1	01	1	0005-0210			●
160	BRACKET; AIR PIPE (C)	8-97601-489-0	01	1	0303-				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28080-612-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0005-0512			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0303-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

160 187 49 113 85 111 77 85 84 86 85 111 85 86 209 113 111 111 111 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-452-0	01	1	0303-			●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-444-0	01	1	0211-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1)	1-19193-276-0	01	1	0005-0210			●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-227-1	01	1	0005-0210			●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0303-				●
84	PIPE; AIR ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-454-0	01	1	0303-			●
84	PIPE; AIR ENGINE REAR PTO(SV1)	1-19193-277-0	01	1	0005-0210			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-354-0	01	1	0211-			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-284-0	01	1	0005-0008			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-337-0	01	1	0009-0210			●
85	CLIP; PIPE	1-09701-240-0	06	1	0005-0210			●
86	BOLT; CLIP M6X35 FLANGE	0-28080-635-0	03	1	0005-0210			●
111	CLIP; AIR PIPE (H)	1-09701-091-0	01	1	0005-0210	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (C) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (E)	1-09701-208-0	06	1	0005-0210			●
111	CLIP; AIR PIPE (F)	1-09701-272-0	03	1	0005-0210			●
111	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (G)	8-94393-037-0	02	1	0005-0210			●
111	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (G)	8-94393-037-0	03	1	0005-0210			●
111	CLIP; AIR PIPE (I)	8-94396-371-0	01	1	0303-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (B) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28080-620-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (F)	1-19199-408-0	01	1	0303-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (E)	1-19199-409-0	01	1	0303-			●
160	BRACKET; AIR PIPE (A)	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE (A)	1-19199-351-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE (D)	1-19199-394-1	01	1	0211-0301			●
160	BRACKET; AIR PIPE (D)	1-19199-407-0	01	1	0302-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-19199-368-1	01	1	0005-0210			●
160	BRACKET; AIR PIPE (C)	8-97601-489-0	01	1	0303-				●
187	BRACKET; AIR PIPE	1-19199-261-0	01	1	0005-0210			●
209	WASHER; PL ID=6.4 OD=18	9-09160-706-0	02	1	0005-0210			●

28 113 111 77 27 51 52 28 49 116 31 79 80 30 52 87 110 113 80 12 6 1 13 221 14 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0005-0302			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-1306			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-645-1	01	1	1307-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0303-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0005-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0303-				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	04	1	0005-0005			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	02	1	0006-0602			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	02	1	0603-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0303-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0005-0210	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	0303-				●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0005-0210	●
13	GEAR; AIR CMPR DRIVE Z=49	8-94394-511-4	01	1	0303-				●
14	NUT; GEAR M20	9-99110-520-0	01	1	0005-0210	●	●
14	NUT; GEAR M20	9-99110-520-0	01	1	0303-0512				●
14	NUT; GEAR M20	0-91110-520-0	01	1	0601-				●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0005-			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0303-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0005-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0303-				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28080-812-0	01	1	0303-0512				●
30	BOLT; PIPE CLIP M8X12 FLANGE	0-28050-812-0	01	1	0601-				●
31	PIPE; AIR,AIR CMPR SUCTION	8-94390-405-0	01	1	0005-0210	●
31	PIPE; AIR,AIR CMPR SUCTION	8-94399-954-0	01	1	0005-0210		●
31	PIPE; AIR,AIR CMPR SUCTION	8-97602-059-0	01	1	0303-				●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0303-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-0302			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-			●	●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-452-0	01	1	0303-			●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-444-0	01	1	0211-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1)	1-19193-276-0	01	1	0005-0210			●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-227-1	01	1	0005-0210			●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0303-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-0302			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0303-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
87	BOLT; BRKT FIX M10X20 FLANGE	0-28081-020-0	02	1	0005-0210			●
110	CLIP; AIR PIPE (A)	8-94393-037-0	02	1	0005-0210	●
110	CLIP; AIR PIPE (B)	8-94393-037-0	01	1	0005-0210		●
110	CLIP; AIR PIPE (C)	1-09701-282-0	02	1	0303-				●
110	CLIP; AIR PIPE (D)	8-94393-037-0	01	1	0303-				●
111	CLIP; AIR PIPE (H)	1-09701-091-0	01	1	0005-0210	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (C) ID=15 & 6 WO/NUT	1-09700-828-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (D) ID=15 & 6 W/NUT	1-09700-829-0	02	1	0005-0210			●
111	CLIP; AIR PIPE (E)	1-09701-208-0	06	1	0005-0210			●
111	CLIP; AIR PIPE (F)	1-09701-272-0	03	1	0005-0210			●
111	CLIP; AIR PIPE ENGINE REAR PTO(SV1) (G)	8-94393-037-0	02	1	0005-0210			●
111	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (G)	8-94393-037-0	03	1	0005-0210			●
111	CLIP; AIR PIPE (I)	8-94396-371-0	01	1	0303-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE EXC. ENGINE REAR PTO(SV1) (B) M6X40 FLANGE	0-28080-640-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28680-620-0	01	1	0005-0210	●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0005-0210		●
113	BOLT; CLIP,AIR PIPE (A) M6X25 FLANGE	0-28080-625-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (C) M6X32 W/LK WASHER	0-50040-632-0	02	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) (B) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210			●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28080-620-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (A) M6X20 FLANGE	0-28050-620-0	01	1	0601-				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28080-640-0	01	1	0303-0512				●
113	BOLT; CLIP,AIR PIPE (B) M6X40 FLANGE	0-28050-640-0	01	1	0601-				●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	0005-0210	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0005-0210			●
116	BRACKET; AIR PIPE	1-14119-468-0	02	1	0211-			●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0005-0210	●	●
221	WASHER; PL,GEAR ID=21	9-09160-520-0	01	1	0303-0605				●
221	WASHER; PL,GEAR ID=21	0-91610-520-0	01	1	0606-				●

129 49 84 51 77 161 171 132 56 128 57 92 161 29 29 29 29 63 62 160 57 65 29 29 171 160 128 92 62 29 29 160 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (C)	1-09701-132-1	02	1	0303-1210			●
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (C)	1-09701-240-0	02	1	1211-			●
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-272-0	04	1	0303-			●
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B)	8-94393-037-0	04	1	0303-			●
29	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (A)	1-09701-272-0	03	1	0211-			●
29	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94393-037-0	03	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0303-1404				●
56	BRACKET; AIR PIPE FIX (A)	1-19193-353-0	01	1	0211-			●
56	BRACKET; AIR PIPE FIX EXC. ENGINE REAR PTO(SV1) (B)	1-19199-379-0	01	1	0211-			●
57	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512			●
57	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512			●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
62	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X40 FLANGE	0-28680-640-0	02	1	0303-0512			●
62	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X40 FLANGE	0-28650-640-0	02	1	0601-			●
62	BOLT; CLIP M6X40 FLANGE	0-28680-640-0	03	1	0211-0512			●
62	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) M6X40 FLANGE	0-28650-640-0	03	1	0601-			●
63	NUT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6 FLANGE	0-91150-106-0	02	1	0303-0602			●
63	NUT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6 FLANGE	0-91180-106-0	02	1	0603-			●
63	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0303-0602				●
63	NUT; CLIP M6 FLANGE	0-91180-106-0	01	1	0603-				●
65	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X30 FLANGE	0-28080-630-0	01	1	0303-0512			●
65	BOLT; CLIP,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X30 FLANGE	0-28050-630-0	01	1	0601-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-452-0	01	1	0303-			●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-444-0	01	1	0211-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1)	1-19193-276-0	01	1	0005-0210			●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-227-1	01	1	0005-0210			●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0303-				●
84	PIPE; AIR ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-454-0	01	1	0303-			●
84	PIPE; AIR ENGINE REAR PTO(SV1)	1-19193-277-0	01	1	0005-0210			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-354-0	01	1	0211-			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-284-0	01	1	0005-0008			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-337-0	01	1	0009-0210			●
92	NUT; UNION M12	9-09840-280-0	01	1	0005-0210	●	●
92	NUT; UNION M12	9-09840-280-0	04	1	0211-			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0005-0210	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	04	1	0211-0603			●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	04	1	0604-			●
129	PIPE; AIR,VGS ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-453-0	01	1	0303-			●
129	PIPE; AIR,VGS EXC. ENGINE REAR PTO(SV1)	1-19193-355-0	01	1	0211-			●
132	NUT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6 FLANGE	0-91150-106-0	01	1	0303-0602			●
132	NUT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6 FLANGE	0-91180-106-0	01	1	0603-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (F)	1-19199-408-0	01	1	0303-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (E)	1-19199-409-0	01	1	0303-			●
160	BRACKET; AIR PIPE (A)	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE (A)	1-19199-351-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE (D)	1-19199-394-1	01	1	0211-0301			●
160	BRACKET; AIR PIPE (D)	1-19199-407-0	01	1	0302-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-19199-368-1	01	1	0005-0210			●
160	BRACKET; AIR PIPE (C)	8-97601-489-0	01	1	0303-				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28080-612-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0005-0512			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
171	UNION M12 L=56.5	9-09223-106-1	01	1	0005-0210	●	●
171	UNION M12 L=66.5	9-09223-306-1	04	1	0211-0607			●
171	UNION M12 L=66.5	0-92113-306-0	04	1	0608-			●

28 27 28 49 41 40 28 27 28 32 115 40 116 36 6 24 5 1 2 19 23 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-3	01	1	0005-0210	●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94396-892-8	01	1	0005-0210		●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-310-1	01	1	0005-0302			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-327-6	01	1	0303-1306			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98242-645-1	01	1	1307-			●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-94394-039-4	01	1	0303-1107				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-298-0	01	1	1108-1202				●
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97642-294-0	01	1	1203-				●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0005-0210	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0005-0210		●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE).	1-09623-449-0	01	1	0005-			●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=162.6	1-09623-570-0	01	1	0303-				●
5	BOLT; AIR CMPR FIX M12X95 FLANGE	8-94396-485-1	01	1	0005-0210		●
5	BOLT; AIR CMPR FIX M12X130 FLANGE	0-28196-213-0	02	1	0006-0210			●
5	BOLT; AIR CMPR FIX M12X15	0-28186-215-0	02	1	0211-0512			●
5	BOLT; AIR CMPR FIX M12X15	0-28156-215-0	02	1	0601-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0005-0210	●
6	NUT; AIR CMPR (A) M10 FLANGE	0-91150-110-0	02	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	01	1	0005-0210		●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	04	1	0005-0005			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91150-112-0	02	1	0006-0602			●
6	NUT; AIR CMPR (B) M12 FLANGE	0-91180-112-0	02	1	0603-			●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91150-212-0	01	1	0303-0602				●
6	NUT; AIR CMPR (C) M12 FLANGE	0-91180-212-0	01	1	0603-				●
19	GEAR; INJ PUMP Z=35	8-94336-157-4	01	1	0005-0210		●
19	GEAR; INJ PUMP Z=36	1-12524-098-1	01	1	0005-			●
20	BOLT; GEAR TO SHAFT M10X60 FLANGE	1-09070-076-0	04	1	0005-			●
23	WASHER; PL,PUMP GEAR ID=10.5	9-09851-866-0	04	1	0005-			●
24	POINTER; AIR CMPR L=21	9-11327-602-0	01	1	0005-0210		●
24	POINTER; AIR CMPR	9-11327-031-0	01	1	0005-			●
27	HOSE; AIR CMPR,SUCTION L=80 SERVICED BY L=1500	1-09360-476-0	01	1	0005-0210	●
27	HOSE; AIR CMPR,SUCTION	8-94394-967-0	01	1	0005-0210		●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	02	1	0005-			●
27	HOSE; AIR CMPR,SUCTION	8-97602-063-1	01	1	0303-				●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0005-0210	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	04	1	0005-			●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	0303-				●
32	PIPE; AIR,AIR CMPR (B)	1-19193-272-1	01	1	0005-0210			●
32	PIPE; AIR,AIR CMPR ENGINE REAR PTO(SV1) (A)	1-19193-274-0	01	1	0005-0210			●
32	PIPE; AIR,AIR CMPR EXC. ENGINE REAR PTO(SV1) (A)	1-19193-271-0	01	1	0005-0210			●
32	PIPE; AIR,AIR CMPR (C)	1-19193-359-0	01	1	0211-0802			●
32	PIPE; AIR,AIR CMPR (C)	8-98100-017-0	01	1	0803-			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8	1-09623-415-0	01	1	0005-0802			●
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5	8-94399-398-0	01	1	0803-			●
40	CLIP; AIR PIPE	1-09701-281-0	04	1	0005-0210			●
40	CLIP; AIR PIPE	1-09701-281-1	08	1	0211-			●
41	BOLT; CLIP M6X50 FLANGE	0-28080-650-0	01	1	0005-0210			●
41	BOLT; CLIP M8X50 FLANGE	0-28080-850-0	04	1	0211-0512			●
41	BOLT; CLIP M8X50 FLANGE	0-28050-850-0	04	1	0601-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
115	BOLT; AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0512			●
115	BOLT; AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
116	BRACKET; AIR PIPE	8-94394-594-1	01	1	0005-0210	●
116	BRACKET; AIR PIPE	1-19199-357-0	01	1	0005-0210			●
116	BRACKET; AIR PIPE	1-14119-468-0	02	1	0211-			●

129 84 49 77 161 171 29 29 57 56 128 57 92 62 56 29 29 62 29 29 62 171 160 128 92 51 80 79 52 80 77 49 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (C)	1-09701-132-1	02	1	0303-1210			●
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (C)	1-09701-240-0	02	1	1211-			●
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (A)	1-09701-272-0	04	1	0303-			●
29	CLIP; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (B)	8-94393-037-0	04	1	0303-			●
29	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (A)	1-09701-272-0	03	1	0211-			●
29	CLIP; AIR PIPE EXC. ENGINE REAR PTO(SV1) (B)	8-94393-037-0	03	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-451-0	01	1	0303-0304			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (G)	1-19193-464-0	01	1	0305-			●
49	PIPE; AIR,CHARGE (A)	8-94395-723-0	01	1	0005-0210	●
49	PIPE; AIR,CHARGE (D)	1-19193-357-0	01	1	0211-			●
49	PIPE; AIR,CHARGE (B)	8-94395-087-2	01	1	0005-0210		●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (E)	1-19193-397-0	01	1	0211-			●
49	PIPE; AIR,CHARGE ENGINE REAR PTO(SV1) (C)	1-19193-275-0	01	1	0005-0210			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-269-0	01	1	0005-0008			●
49	PIPE; AIR,CHARGE EXC. ENGINE REAR PTO(SV1) (C)	1-19193-338-0	01	1	0009-0210			●
49	PIPE; AIR,CHARGE (F)	8-97602-182-0	01	1	0303-				●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-0	01	1	0005-0210	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	0005-1404			●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-			●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0303-1404				●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0005-0210	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0211-0302			●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0303-			●	●
56	BRACKET; AIR PIPE FIX (A)	1-19193-353-0	01	1	0211-			●
56	BRACKET; AIR PIPE FIX EXC. ENGINE REAR PTO(SV1) (B)	1-19199-379-0	01	1	0211-			●
57	BOLT; BRKT,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512			●
57	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) (A) M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512			●
57	BOLT; BRKT,AIR PIPE (B) M8X20 FLANGE	0-28650-820-0	02	1	0601-			●
62	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X40 FLANGE	0-28680-640-0	02	1	0303-0512			●
62	BOLT; CLIP ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X40 FLANGE	0-28650-640-0	02	1	0601-			●
62	BOLT; CLIP M6X40 FLANGE	0-28680-640-0	03	1	0211-0512			●
62	BOLT; CLIP EXC. ENGINE REAR PTO(SV1) M6X40 FLANGE	0-28650-640-0	03	1	0601-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-452-0	01	1	0303-			●
77	PIPE; AIR,GOV	8-94394-960-1	01	1	0005-0210	●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-444-0	01	1	0211-			●
77	PIPE; AIR,GOV ENGINE REAR PTO(SV1)	1-19193-276-0	01	1	0005-0210			●
77	PIPE; AIR,GOV EXC. ENGINE REAR PTO(SV1)	1-19193-227-1	01	1	0005-0210			●
77	PIPE; AIR,GOV	8-97602-183-0	01	1	0303-				●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0005-0210	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0211-0302			●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	0303-			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-0302			●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312			●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-			●	●
84	PIPE; AIR ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-454-0	01	1	0303-			●
84	PIPE; AIR ENGINE REAR PTO(SV1)	1-19193-277-0	01	1	0005-0210			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-354-0	01	1	0211-			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-284-0	01	1	0005-0008			●
84	PIPE; AIR EXC. ENGINE REAR PTO(SV1)	1-19193-337-0	01	1	0009-0210			●
92	NUT; UNION M12	9-09840-280-0	01	1	0005-0210	●	●
92	NUT; UNION M12	9-09840-280-0	04	1	0211-			●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	01	1	0005-0210	●	●
128	WASHER; LK,UNION ID=12.2	9-09150-512-0	04	1	0211-0603			●
128	WASHER; LK,UNION ID=12.2	0-91510-512-0	04	1	0604-			●
129	PIPE; AIR,VGS ENGINE REAR PTO(SV1) EXC. A/T<X9D>	1-19193-453-0	01	1	0303-			●
129	PIPE; AIR,VGS EXC. ENGINE REAR PTO(SV1)	1-19193-355-0	01	1	0211-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (F)	1-19199-408-0	01	1	0303-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> (E)	1-19199-409-0	01	1	0303-			●
160	BRACKET; AIR PIPE (A)	8-94391-073-0	01	1	0005-0210	●
160	BRACKET; AIR PIPE (B)	8-94394-569-0	01	1	0005-0210		●
160	BRACKET; AIR PIPE (A)	1-19199-351-0	01	1	0005-0210			●
160	BRACKET; AIR PIPE (D)	1-19199-394-1	01	1	0211-0301			●
160	BRACKET; AIR PIPE (D)	1-19199-407-0	01	1	0302-			●
160	BRACKET; AIR PIPE ENGINE REAR PTO(SV1) (B)	1-19199-368-1	01	1	0005-0210			●
160	BRACKET; AIR PIPE (C)	8-97601-489-0	01	1	0303-				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28080-612-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M6X12 FLANGE	0-28050-612-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0005-0210		●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	03	1	0005-0512			●
161	BOLT; BRKT,AIR PIPE EXC. ENGINE REAR PTO(SV1) M8X16 FLANGE	0-28050-816-0	03	1	0601-			●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28080-816-0	02	1	0303-0512			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
161	BOLT; BRKT,AIR PIPE ENGINE REAR PTO(SV1) EXC. A/T<X9D> M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
161	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
171	UNION M12 L=56.5	9-09223-106-1	01	1	0005-0210	●	●
171	UNION M12 L=66.5	9-09223-306-1	04	1	0211-0607			●
171	UNION M12 L=66.5	0-92113-306-0	04	1	0608-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
