Sayfa 0-32 - Isuzu EPC

0-32 — WATER PIPING; ENGINE (#8610) — 276 parça

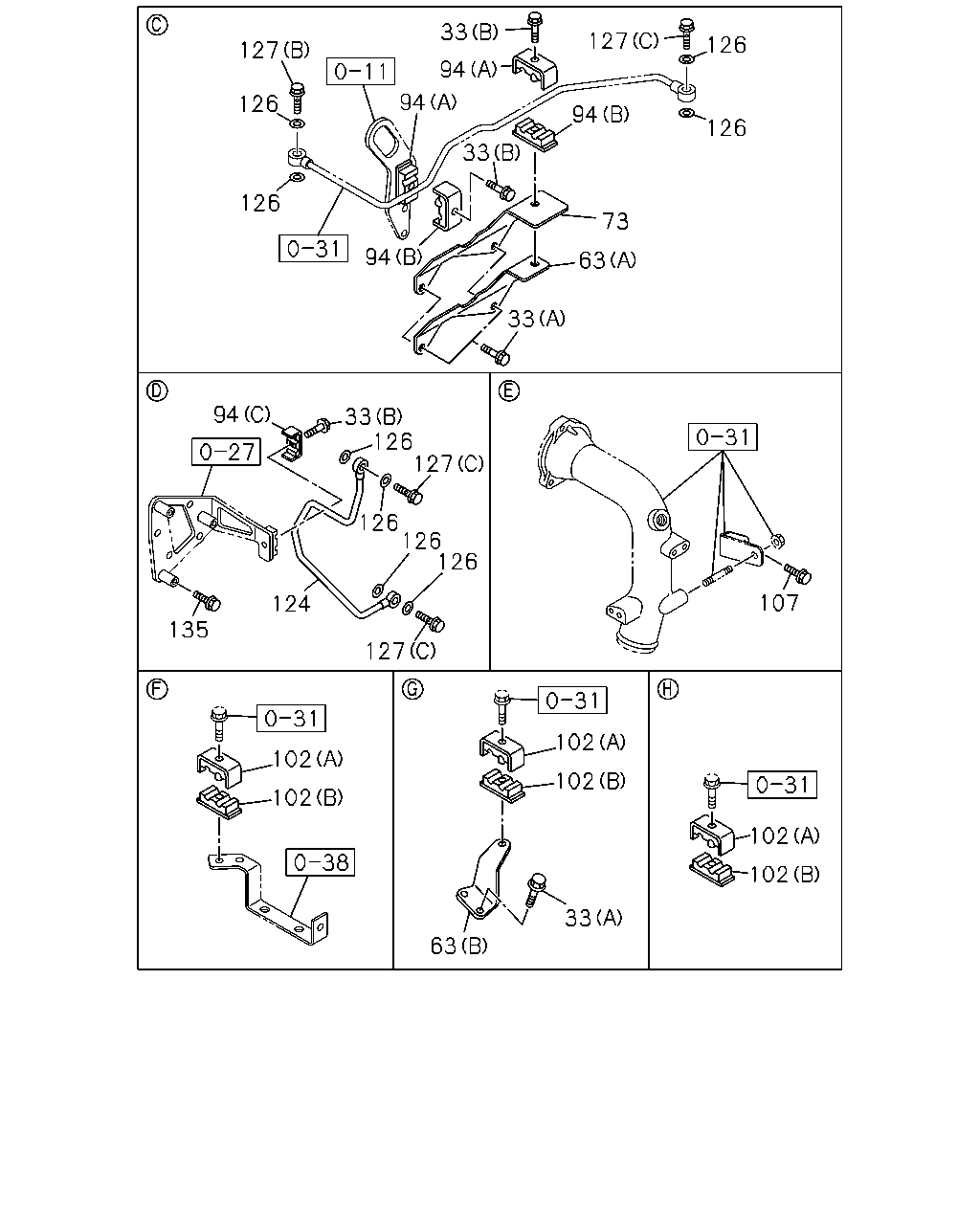

33 127 126 127 94 94 126 94 126 33 126 73 94 63 33 94 33 126 127 126 126 126 107 124 135 127 102 102 102 102 102 102 33 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28650-640-0	03	1	0601-	●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28080-816-0	02	1	0303-0512		●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
33	BOLT; BRKT (D) M10X16 FLANGE	0-28181-016-0	01	1	0303-0512		●
33	BOLT; BRKT (D) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
63	BRACKET; WATER PIPE (A)	1-13319-057-0	01	1	0211-	●
63	BRACKET; WATER PIPE (B)	1-13729-089-0	01	1	0211-	●
63	BRACKET; WATER PIPE (C)	8-94392-951-0	01	1	0303-		●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	0005-0210	●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-325-0	01	1	0211-	●
94	CLIP; WATER PIPE (A)	1-09701-230-1	02	1	0211-	●
94	CLIP; WATER PIPE (B)	1-09701-231-1	02	1	0211-	●
94	CLIP; WATER PIPE (C)	1-09701-265-1	01	1	0211-	●
94	CLIP; WATER PIPE (D)	8-94396-860-0	01	1	0303-		●
102	CLIP; WATER HOSE (A)	1-09701-172-3	04	1	0211-	●
102	CLIP; WATER HOSE (B)	1-09701-173-2	04	1	0211-	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	0005-0512	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28051-020-0	01	1	0601-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-0	01	1	0005-0210	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-948-0	01	1	0211-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0303-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	07	1	1401-		●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0005-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0005-	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-0210	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-0302	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0303-	●	●
127	BOLT; EYE (D) M16X30 FLANGE	1-09675-095-1	02	1	0303-		●
127	BOLT; EYE (E)	1-09675-109-0	01	1	0303-		●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0005-0512	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28050-825-0	01	1	0601-	●

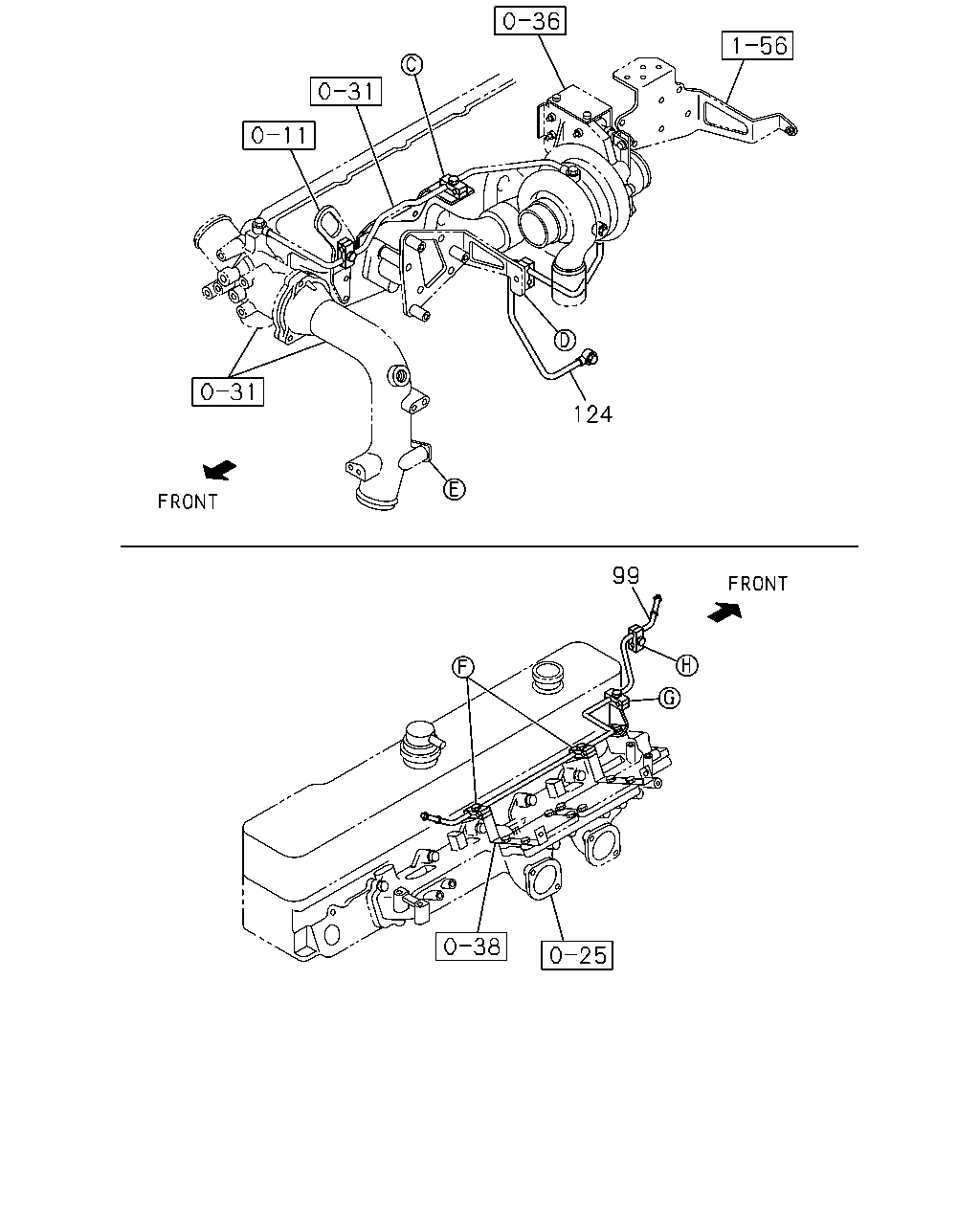

124 99

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	0005-0210	●
99	PIPE; WATER,OVERFLOW	1-13722-004-0	01	1	0211-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-0	01	1	0005-0210	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-948-0	01	1	0211-	●

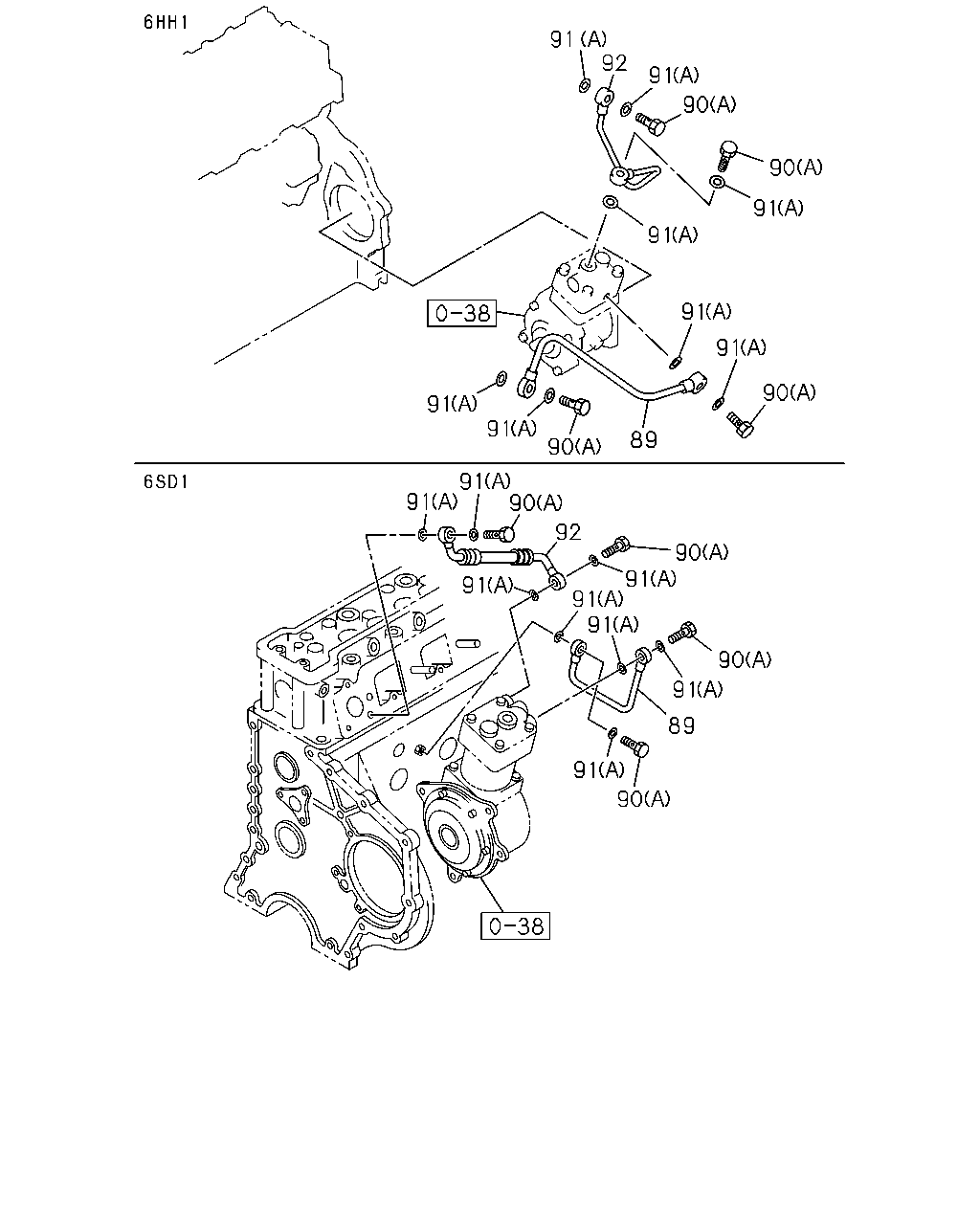

91 92 91 90 90 91 91 91 91 90 91 91 89 90 91 90 91 92 90 91 91 91 91 90 91 89 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0005-0210			●
89	PIPE; WATER,AIR CMPR,IN	8-94395-178-1	01	1	0005-0210				●
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0005-0203	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-	●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0303-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210	●			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0303-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210	●			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0303-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
92	PIPE; WATER,AIR CMPR,OUT	8-94390-070-0	01	1	0005-0210			●
92	PIPE; WATER,AIR CMPR,OUT	8-94395-742-1	01	1	0005-0210				●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-861-0	01	1	0005-0203	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0204-	●

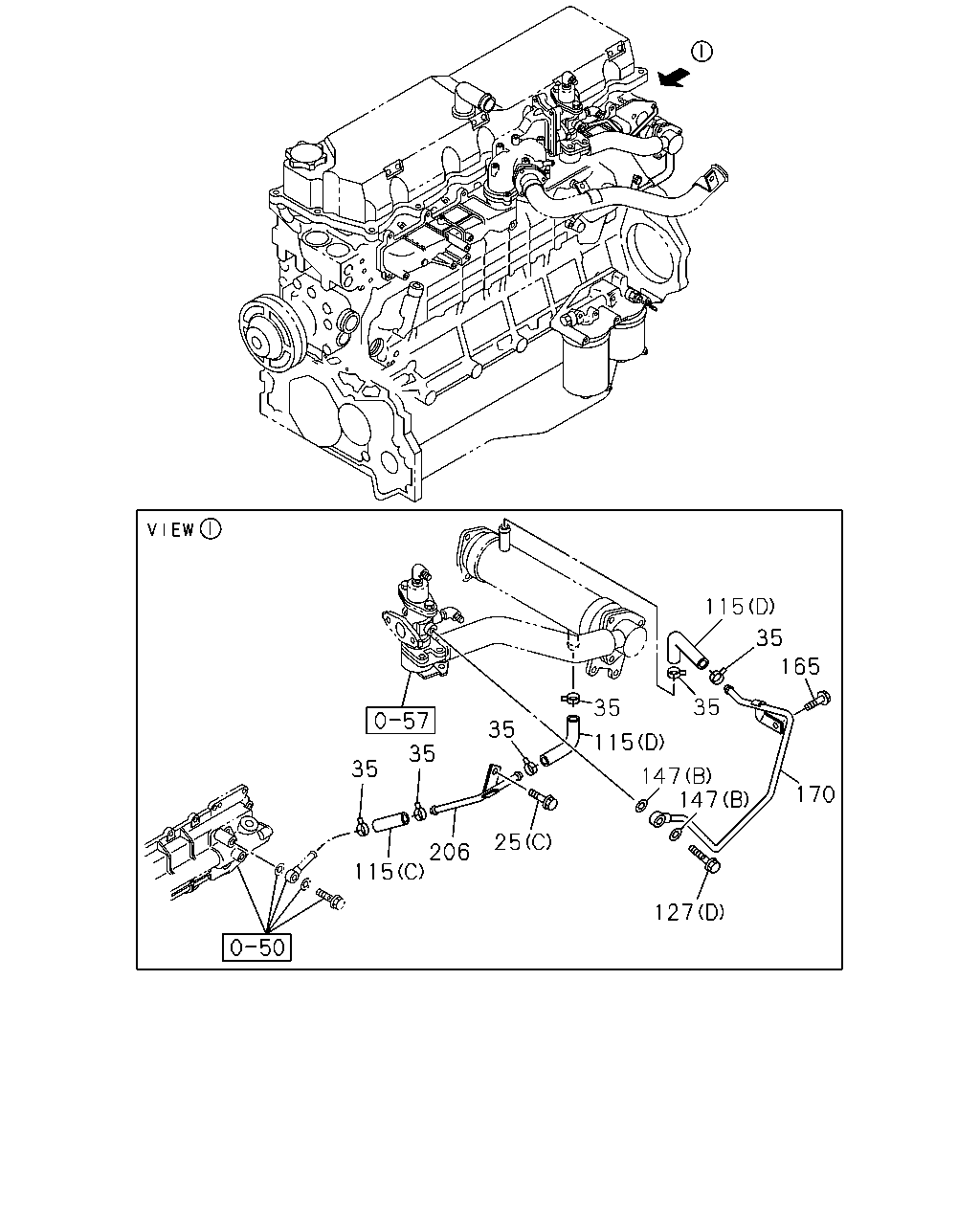

115 35 165 35 35 35 115 35 35 147 147 170 25 206 115 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	0005-0210				●
25	BOLT; WATER PIPE (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512		●
25	BOLT; WATER PIPE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
25	BOLT; WATER PIPE (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0303-		●
35	CLIP; RUBBER HOSE	1-09707-143-0	06	1	0303-		●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206			●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-0210			●
115	HOSE; RUBBER (B) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0303-		●
115	HOSE; RUBBER (C) L=60	8-97079-996-0	01	1	0303-		●
115	HOSE; RUBBER (D)	8-97119-655-0	02	1	0303-		●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0005-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0005-	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-0210	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-0302	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0303-	●	●
127	BOLT; EYE (D) M16X30 FLANGE	1-09675-095-1	02	1	0303-		●
127	BOLT; EYE (E)	1-09675-109-0	01	1	0303-		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0303-		●
165	BOLT; PIPE TO BRKT M8X16 FLANGE	0-28080-816-0	01	1	0303-0512		●
165	BOLT; PIPE TO BRKT M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
170	PIPE; WATER,INL	8-97601-485-0	01	1	0303-		●
206	PIPE; WATER,EGR COOLER	8-97601-484-0	01	1	0303-		●

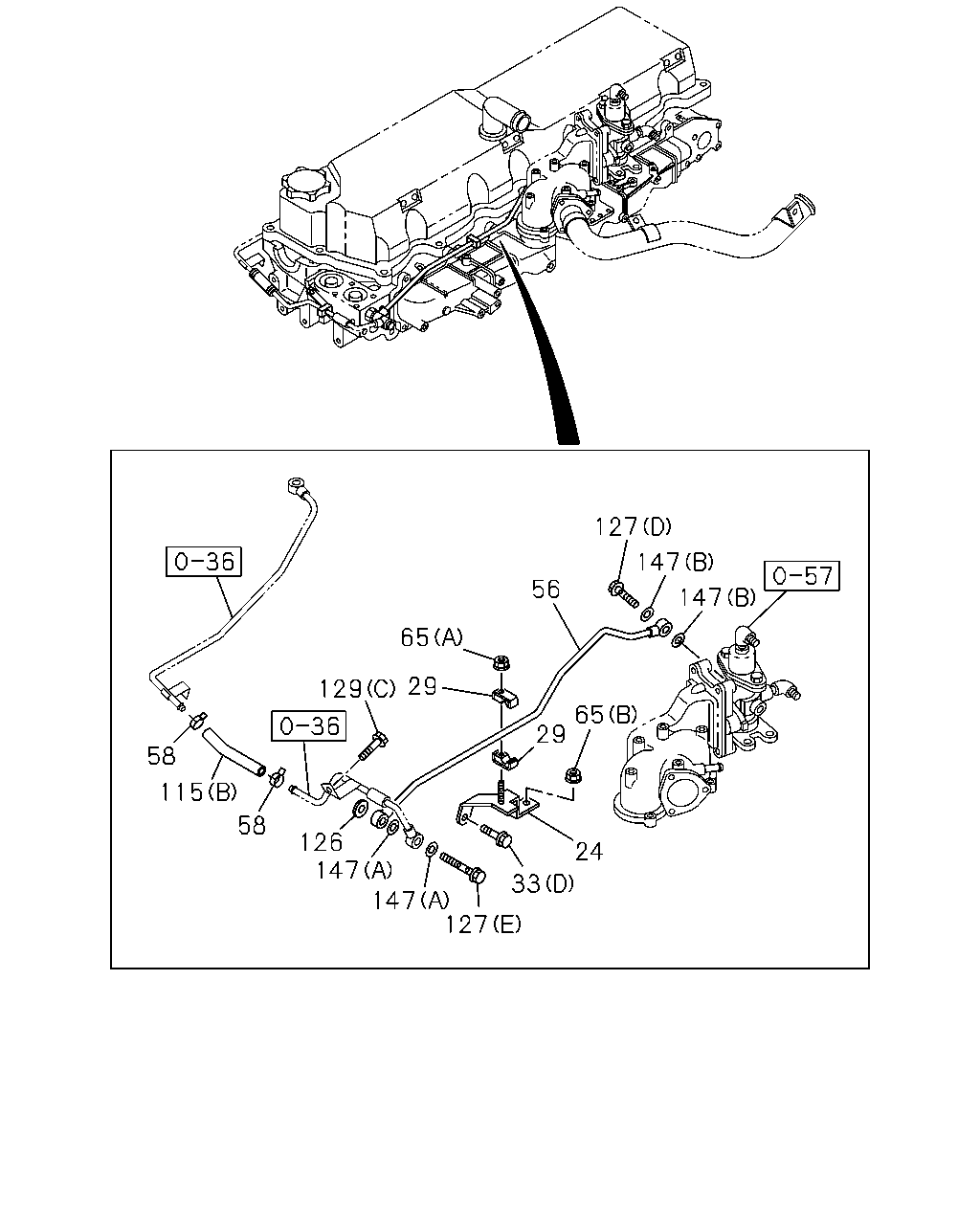

127 147 56 147 65 29 129 65 29 58 115 58 126 147 147 24 33 127

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	BRACKET; WATER PIPE	8-97601-487-0	01	1	0303-		●
29	CLIP; PIPE	1-09701-282-0	02	1	0303-		●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28650-640-0	03	1	0601-	●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28080-816-0	02	1	0303-0512		●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
33	BOLT; BRKT (D) M10X16 FLANGE	0-28181-016-0	01	1	0303-0512		●
33	BOLT; BRKT (D) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
56	PIPE; WATER OUTLET	8-97601-486-0	01	1	0303-		●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0005-0210			●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0303-		●
65	NUT (A) M6 FLANGE	0-91150-106-0	01	1	0303-0602		●
65	NUT (A) M6 FLANGE	0-91180-106-0	01	1	0603-		●
65	NUT (B) M8 FLANGE	0-91150-108-0	01	1	0303-0602		●
65	NUT (B) M8 FLANGE	0-91180-108-0	01	1	0603-		●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206			●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-0210			●
115	HOSE; RUBBER (B) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0303-		●
115	HOSE; RUBBER (C) L=60	8-97079-996-0	01	1	0303-		●
115	HOSE; RUBBER (D)	8-97119-655-0	02	1	0303-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0303-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	07	1	1401-		●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0005-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0005-	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-0210	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-0302	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0303-	●	●
127	BOLT; EYE (D) M16X30 FLANGE	1-09675-095-1	02	1	0303-		●
127	BOLT; EYE (E)	1-09675-109-0	01	1	0303-		●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210			●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-0210			●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512		●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28181-220-0	01	1	0303-0512		●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28151-220-0	01	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (E) M8X15	1-09000-114-0	01	1	0303-		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0303-1312		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-		●
147	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=16.2	1-09630-086-0	04	1	0303-		●

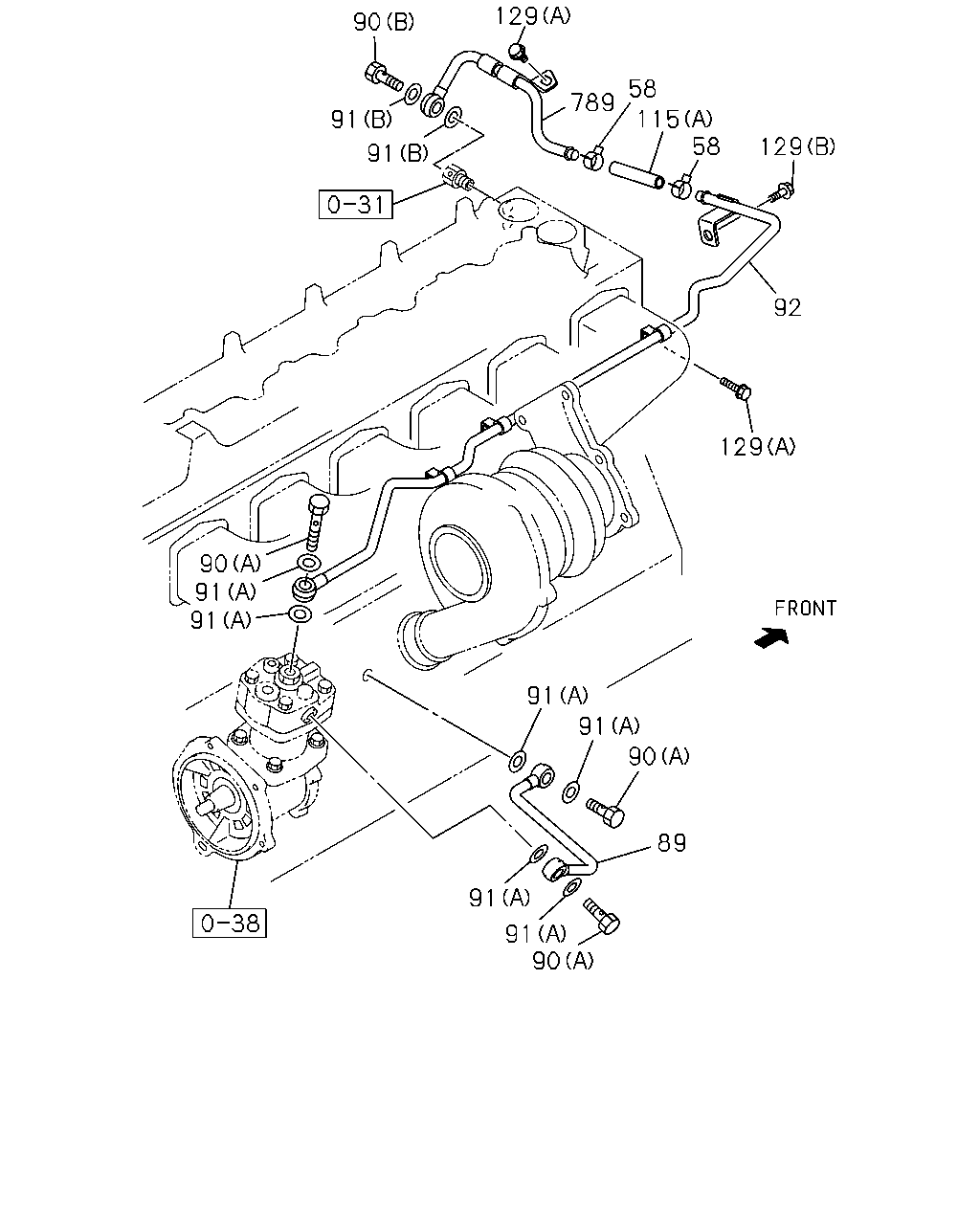

129 90 58 789 115 58 91 129 91 92 129 90 91 91 91 91 90 89 91 91 90

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0005-0210			●
58	CLIP; RUBBER HOSE ID=16	8-94392-924-0	02	1	0303-		●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0005-0210			●
89	PIPE; WATER,AIR CMPR,IN	8-94395-178-1	01	1	0005-0210				●
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0005-0203	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-	●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0303-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210	●			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0303-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210	●			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0303-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
92	PIPE; WATER,AIR CMPR,OUT	8-94390-070-0	01	1	0005-0210			●
92	PIPE; WATER,AIR CMPR,OUT	8-94395-742-1	01	1	0005-0210				●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-861-0	01	1	0005-0203	●
92	PIPE; WATER,AIR CMPR,OUT	1-13721-900-0	01	1	0204-	●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03711-300-0	01	1	0005-0206			●
115	HOSE; RUBBER (A) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0207-0210			●
115	HOSE; RUBBER (B) L=60 SERVICED BY L=3000	0-03561-300-0	01	1	0303-		●
115	HOSE; RUBBER (C) L=60	8-97079-996-0	01	1	0303-		●
115	HOSE; RUBBER (D)	8-97119-655-0	02	1	0303-		●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210			●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-0210			●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512		●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28181-220-0	01	1	0303-0512		●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28151-220-0	01	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (E) M8X15	1-09000-114-0	01	1	0303-		●
789	PIPE; WATER,AIR CMPR TO CYL HD	8-94395-454-4	01	1	0005-0210			●

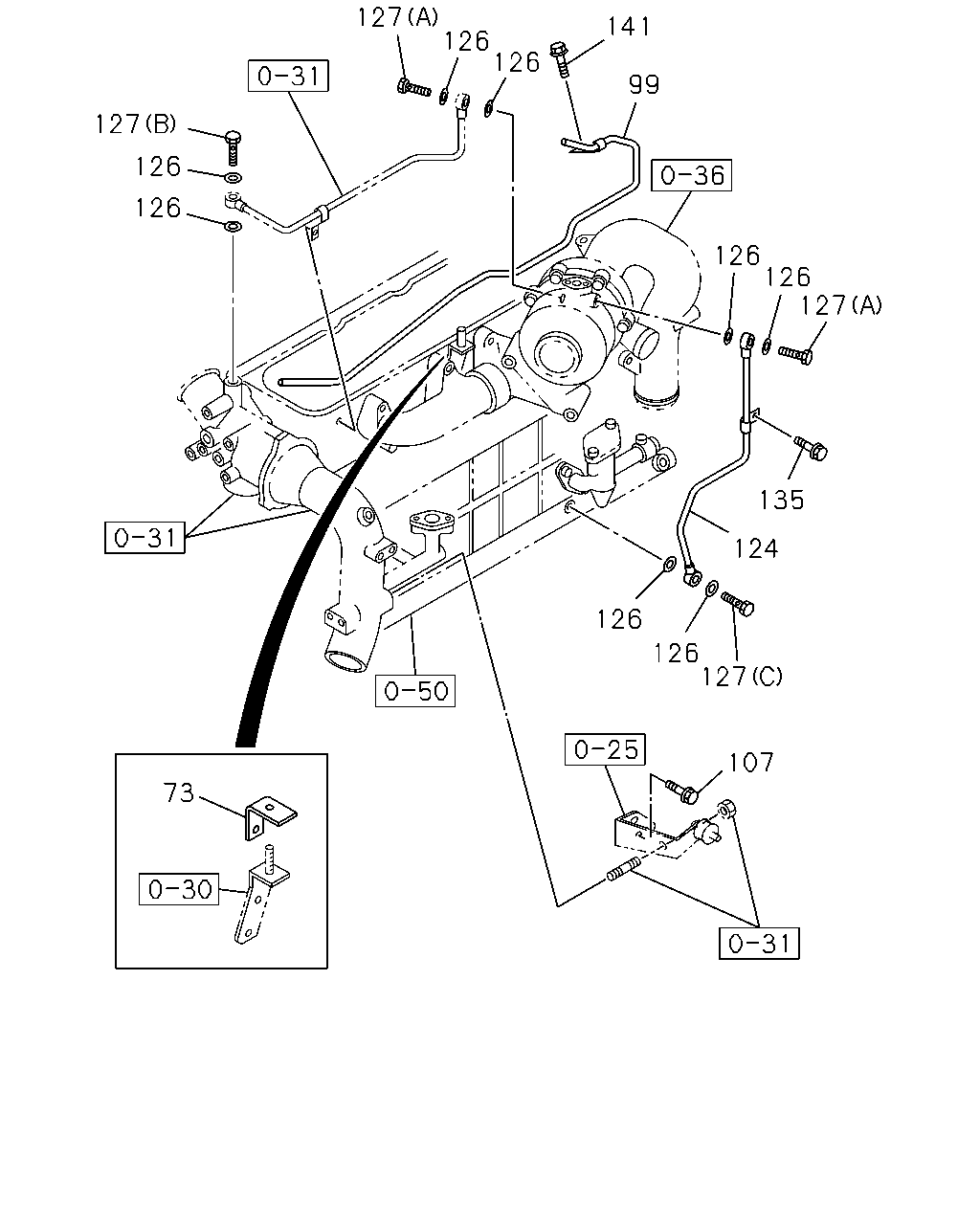

127 126 126 141 99 127 126 126 126 126 127 135 124 126 126 127 107 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
73	PROTECTOR; HEAT,WATER PIPE	1-14181-293-0	01	1	0005-0210	●
73	PROTECTOR; HEAT,WATER PIPE	1-14181-325-0	01	1	0211-	●
99	PIPE; WATER,OVERFLOW	1-13721-629-0	01	1	0005-0210	●
99	PIPE; WATER,OVERFLOW	1-13722-004-0	01	1	0211-	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28081-020-0	01	1	0005-0512	●
107	BOLT; WATER PIPE M10X20 FLANGE	0-28051-020-0	01	1	0601-	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-738-0	01	1	0005-0210	●
124	PIPE; WATER,C/BL TO THERMOSTAT HSG	1-13721-948-0	01	1	0211-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0303-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	07	1	1401-		●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0005-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0005-	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-0210	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-0302	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0303-	●	●
127	BOLT; EYE (D) M16X30 FLANGE	1-09675-095-1	02	1	0303-		●
127	BOLT; EYE (E)	1-09675-109-0	01	1	0303-		●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28080-825-0	01	1	0005-0512	●
135	BOLT; STAY,THERMOSTAT HSG M8X25 FLANGE	0-28050-825-0	01	1	0601-	●
141	BOLT; WATER PIPE M8X12 FLANGE	0-28080-812-0	01	1	0005-0210	●

63 33 129 94 31 127 126 126 127 126 126 91 91 129 90 127 126 91 91 90 89 126

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
31	BOLT; CLIP M6X35 FLANGE	0-28680-635-0	01	1	0303-0512		●
31	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	01	1	0601-		●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0211-0512	●
33	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	04	1	0601-	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28680-640-0	03	1	0211-0512	●
33	BOLT; BRKT (B) M6X40 FLANGE	0-28650-640-0	03	1	0601-	●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28080-816-0	02	1	0303-0512		●
33	BOLT; BRKT (C) M8X16 FLANGE	0-28050-816-0	02	1	0601-		●
33	BOLT; BRKT (D) M10X16 FLANGE	0-28181-016-0	01	1	0303-0512		●
33	BOLT; BRKT (D) M10X16 FLANGE	0-28151-016-0	01	1	0601-		●
63	BRACKET; WATER PIPE (A)	1-13319-057-0	01	1	0211-	●
63	BRACKET; WATER PIPE (B)	1-13729-089-0	01	1	0211-	●
63	BRACKET; WATER PIPE (C)	8-94392-951-0	01	1	0303-		●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0005-0210			●
89	PIPE; WATER,AIR CMPR,IN	8-94395-178-1	01	1	0005-0210				●
89	PIPE; WATER,AIR CMPR,IN	1-13721-862-0	01	1	0005-0203	●
89	PIPE; WATER,AIR CMPR,IN	1-13721-857-0	01	1	0204-	●
89	PIPE; WATER,AIR CMPR,IN	8-94395-452-2	01	1	0303-		●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	03	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0211-	●
90	BOLT; EYE,WATER PIPE,AIR CMPR (B) M16X25	5-09675-028-2	01	1	0005-0210			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (A) M14X27 EYE-BOLT	1-09675-193-0	04	1	0005-0210	●			●
90	BOLT; EYE,WATER PIPE,AIR CMPR (C) M14X27 EYE-BOLT	1-09675-193-0	02	1	0303-		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	06	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0211-1312	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=16.2	1-09630-086-0	02	1	0005-0210			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-0210	●			●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	1-09630-085-0	04	1	0303-1312		●
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-		●
94	CLIP; WATER PIPE (A)	1-09701-230-1	02	1	0211-	●
94	CLIP; WATER PIPE (B)	1-09701-231-1	02	1	0211-	●
94	CLIP; WATER PIPE (C)	1-09701-265-1	01	1	0211-	●
94	CLIP; WATER PIPE (D)	8-94396-860-0	01	1	0303-		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	08	1	0005-1312	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	08	1	1401-	●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	1-09630-085-0	07	1	0303-1312		●
126	GASKET; CAP NUT ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=19.2	8-98251-345-0	07	1	1401-		●
127	BOLT; EYE (A) M14X31	1-09675-191-0	02	1	0005-0210	●
127	BOLT; EYE (B) M14X27 FLANGE	1-09675-192-0	01	1	0005-	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	01	1	0005-0210	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0211-0302	●
127	BOLT; EYE (C) M14X27 EYE-BOLT	1-09675-193-0	03	1	0303-	●	●
127	BOLT; EYE (D) M16X30 FLANGE	1-09675-095-1	02	1	0303-		●
127	BOLT; EYE (E)	1-09675-109-0	01	1	0303-		●
129	BOLT; WATER PIPE TO BRKT (A) M8X16 FLANGE	0-28080-816-0	04	1	0005-0210			●
129	BOLT; WATER PIPE TO BRKT (B) M12X20 W/LK WASHER	0-50051-220-0	01	1	0005-0210			●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512		●
129	BOLT; WATER PIPE TO BRKT (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28181-220-0	01	1	0303-0512		●
129	BOLT; WATER PIPE TO BRKT (D) M12X20 FLANGE	0-28151-220-0	01	1	0601-		●
129	BOLT; WATER PIPE TO BRKT (E) M8X15	1-09000-114-0	01	1	0303-		●

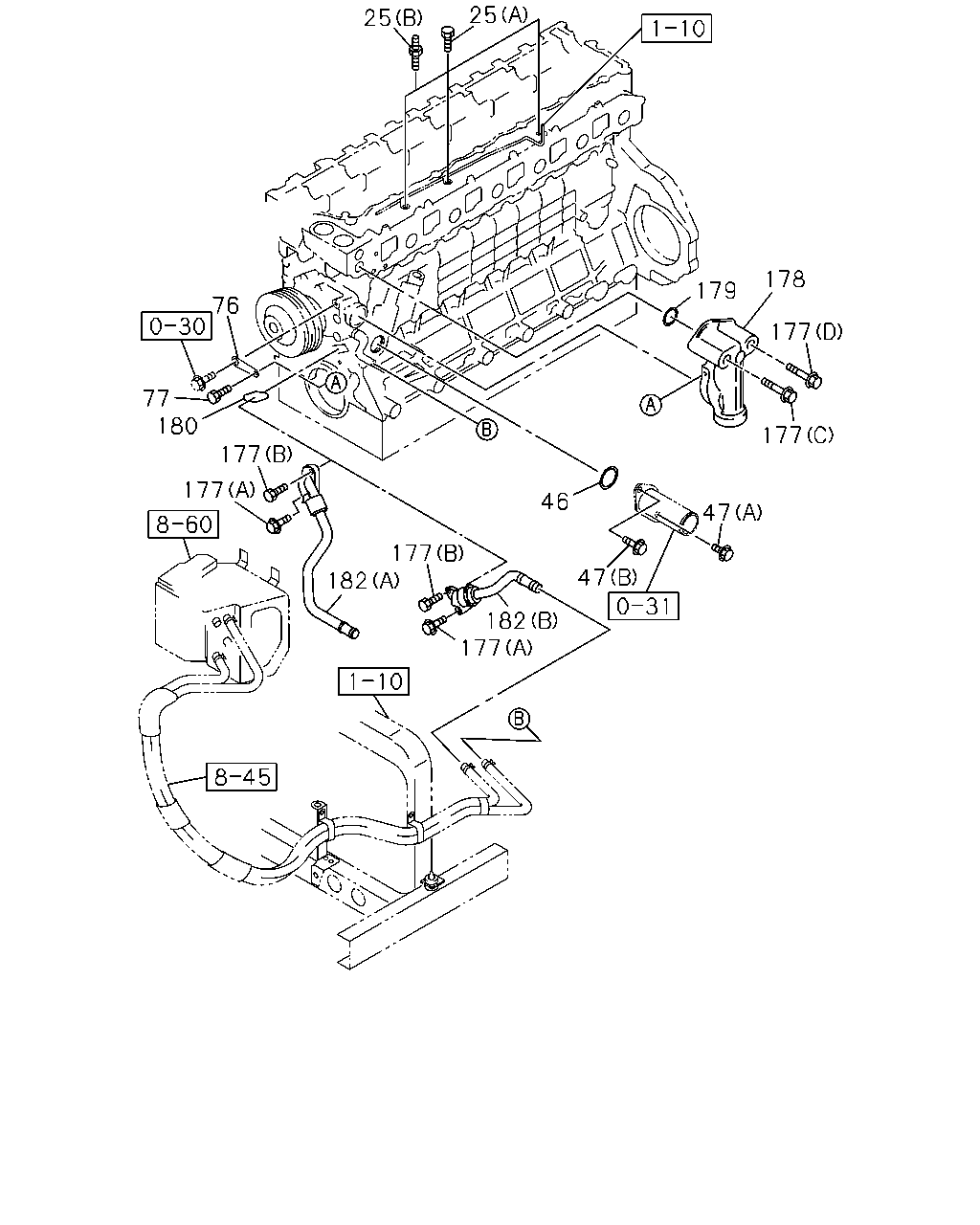

25 25 178 179 76 177 77 180 177 177 177 46 47 177 47 182 182 177

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	B	C	D
25	BOLT; WATER PIPE (A) M8X12 FLANGE	0-28080-812-0	03	1	0005-0210			●
25	BOLT; WATER PIPE (C) M8X16 FLANGE	0-28080-816-0	01	1	0303-0512	●
25	BOLT; WATER PIPE (C) M8X16 FLANGE	0-28050-816-0	01	1	0601-	●
25	BOLT; WATER PIPE (B) M8X14,M8X14 L=33	1-09300-058-1	02	1	0303-	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0005-0210		●	●
46	GASKET; WATER DUCT,TO OIL COOLER ALSO INCLUDED IN GASKET SET(ENGINE). ID=48.5 OD=53.3	8-94396-680-2	01	1	0303-	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0005-0210		●	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210		●	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28080-845-0	01	1	0303-0512	●
47	BOLT; DUCT,TO OIL COOLER (B) M8X45 FLANGE	0-28050-845-0	01	1	0601-	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28680-825-0	01	1	0303-0512	●
47	BOLT; DUCT,TO OIL COOLER (A) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0005-0210		●	●
76	BRACKET; WATER DUCT,PUMP	8-94394-784-0	01	1	0303-	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	02	1	0005-0210		●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0005-0210			●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28080-850-0	01	1	0303-0512	●
77	BOLT; BRKT,WATER DUCT M8X50 FLANGE	0-28050-850-0	01	1	0601-	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0005-0210		●	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0005-0210		●	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0005-0210		●	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0005-0210		●	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28080-880-0	01	1	0303-0512	●
177	BOLT; WATER DUCT (C) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28680-825-0	01	1	0303-0512	●
177	BOLT; WATER DUCT (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
177	BOLT; WATER DUCT (A) M8X65 FLANGE	1-09044-072-1	01	1	0303-	●
177	BOLT; WATER DUCT (D) M16X75 FLANGE	8-94397-360-1	01	1	0303-	●
178	DUCT; WATER,BYPASS	8-94396-627-2	01	1	0005-0210		●	●
178	DUCT; WATER,BYPASS	8-94396-627-3	01	1	0303-	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0005-0210		●	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-94396-679-0	01	1	0303-1408	●
179	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=31.2	8-98276-756-0	01	1	1409-	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0005-0210		●	●
180	GASKET; WATER DUCT ALSO INCLUDED IN GASKET SET(ENGINE).	8-94396-720-1	01	1	0303-	●
182	DUCT; WATER,HTR (A)	8-97600-236-1	01	1	0005-0210		●
182	DUCT; WATER,HTR (B)	8-94396-724-4	01	1	0005-0210			●
182	DUCT; WATER,HTR (B)	8-94394-348-5	01	1	0303-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
