◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 10627 - FTR-LHD ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#861) — 14 parça

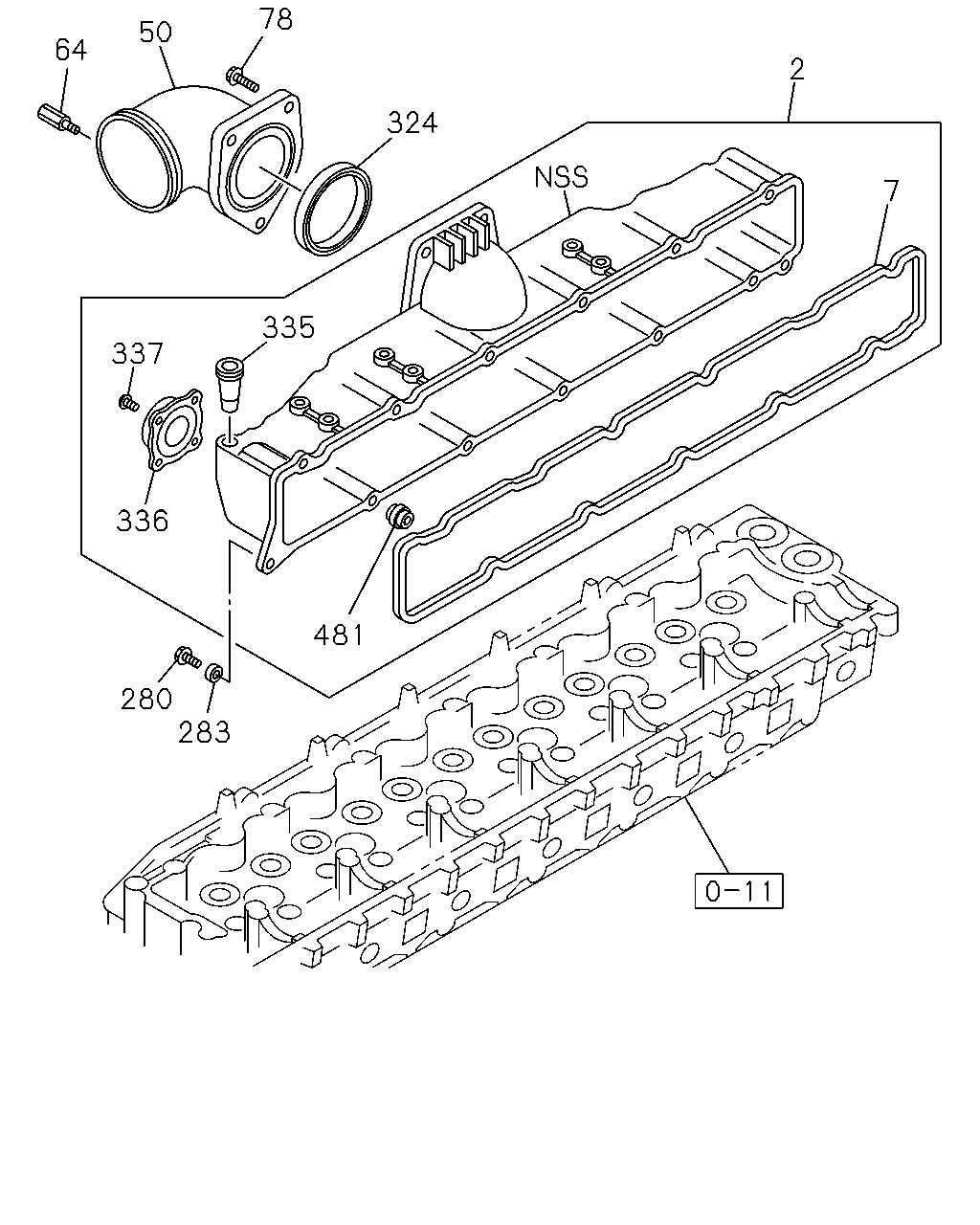

çizim 95499
78 50 64 2 324 7 335 337 336 481 280 283
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL 8-94396-348-0 01 1 9202-9504 ● ●
2 COVER; INL 8-94395-959-0 01 1 9505- ● ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94397-039-1 01 1 9202- ● ●
50 PIPE; INL 8-94397-063-2 01 1 9202- ● ●
64 STUD; INL PIPE
M10X25 L=75 		8-94397-086-0 01 1 9202- ● ●
78 BOLT; INL PIPE TO INL MANIF
M10X30 FLANGE 		0-28181-030-0 02 1 9202- ● ●
280 BOLT; INL COVER
M8X28 FLANGE 		0-28080-828-0 12 1 9202- ● ●
283 RUBBER 8-94397-059-1 12 1 9202-9504 ● ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94399-417-0 01 1 9202- ● ●
335 JOINT; BREATHER 8-94396-347-0 01 1 9202- ● ●
336 VALVE; VENTILATION 8-94396-346-0 01 1 9202- ● ●
337 BOLT; VENTILATION VLV
M4X8 W/LK WASHER 		9-03910-408-0 04 1 9202- ● ●
481 TUBE; DIST,INL COVER 8-94397-058-0 12 1 9202-9504 ● ●
481 TUBE; DIST,INL COVER
OD=22 		8-94395-684-0 12 1 9505- ● ●
