0-31 — THERMOSTAT AND HOUSING (#8609) — 140 parça

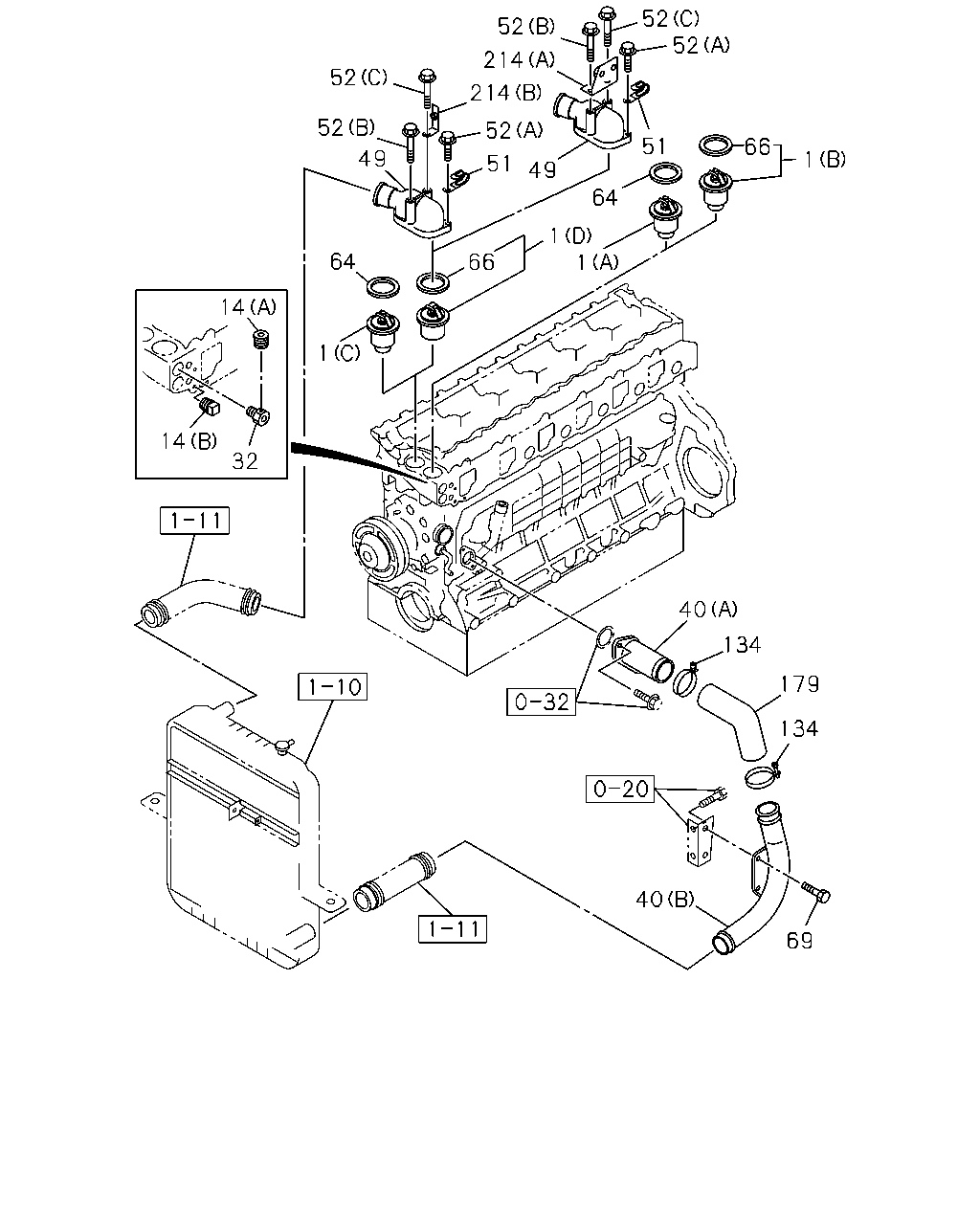

çizim 44840
52 52 52 214 52 214 52 52 51 66 49 1 51 49 64 1 1 64 66 14 1 14 32 40 134 179 134 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
(A) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0210 ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-1 01 1 0106-0210 ● ●
1 THERMOSTAT
(E) 76.5 CELSIUS 		1-13770-085-0 01 1 0005-0210 ●
1 THERMOSTAT
(F) 79 CELSIUS 		1-13770-097-0 01 1 0211-0609 ●
1 THERMOSTAT
(F) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-3 01 1 0303- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0303-1501 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0210 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005-0210 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0211- ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 0005- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0303- ●
32 CONNECTOR; HTR 8-94395-851-1 01 1 0005-0210 ●
32 CONNECTOR; HTR 8-97601-492-0 01 1 0303- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0210 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0210 ● ●
40 DUCT; WATER,SUCTION
(C) 		1-13711-675-0 01 1 0005- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0303- ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0303- ●
49 PIPE; WATER OUTLET 8-94399-499-1 01 1 0005-0105 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0106-0210 ● ●
49 PIPE; WATER OUTLET 8-97602-047-0 01 1 0303- ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0005-0210 ● ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-94225-185-0 01 1 0303-0801 ●
51 CLIP; JOINT,THERMOSTAT
ID=18 L=44 		8-97367-985-1 01 1 0802- ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0005-0005 ● ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 01 1 0006-0210 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0005-0210 ● ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 0005-0005 ● ●
52 BOLT; JOINT,THERMOSTAT
(B),(C) M8X85 FLANGE 		8-97023-062-0 02 1 0006-0210 ●
52 BOLT; JOINT,THERMOSTAT
(C) M8X85 FLANGE 		8-97023-062-0 01 1 0006-0210 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28080-880-0 02 1 0303-0512 ●
52 BOLT; JOINT,THERMOSTAT
(B) M8X80 FLANGE 		0-28050-880-0 02 1 0601- ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28680-825-0 02 1 0303-0512 ●
52 BOLT; JOINT,THERMOSTAT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0601- ●
64 GASKET; OUTLET PIPE TO HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94370-480-0 02 1 0005-0105 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0106-0210 ● ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97300-793-0 02 1 0303-1501 ●
66 GASKET; THERMOSTAT HSG
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-98280-281-0 02 1 1502- ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0005-0210 ● ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28680-820-0 02 1 0303-0512 ●
69 BOLT; DUCT,WATER OUTLET
M8X20 FLANGE 		0-28650-820-0 02 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0210 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0303- ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0005-0210 ● ●
179 HOSE; RUBBER,WATER DUCT 8-94394-535-2 01 1 0303- ●
214 BRACKET; HARNESS
(A) 		8-97601-383-0 01 1 0005-0210 ●
214 BRACKET; HARNESS
(B) 		8-94393-074-1 01 1 0005-0210 ●

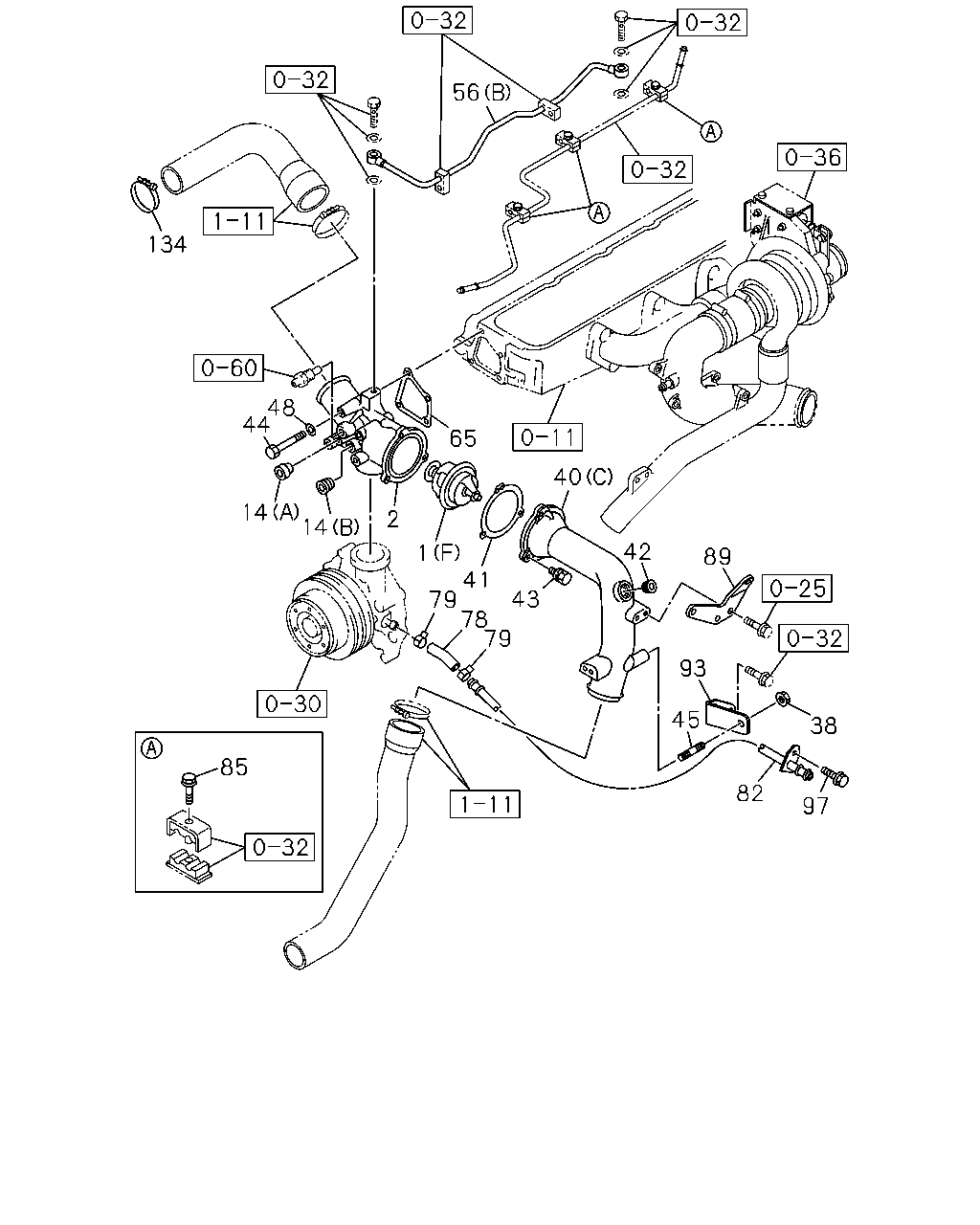

çizim 45000
56 134 48 44 65 40 14 14 2 42 1 41 79 78 79 89 43 93 45 38 85 82 97
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
(A) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0210 ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-1 01 1 0106-0210 ● ●
1 THERMOSTAT
(E) 76.5 CELSIUS 		1-13770-085-0 01 1 0005-0210 ●
1 THERMOSTAT
(F) 79 CELSIUS 		1-13770-097-0 01 1 0211-0609 ●
1 THERMOSTAT
(F) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-3 01 1 0303- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0303-1501 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
2 HOUSING; THERMOSTAT 1-13716-180-0 01 1 0005- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0210 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005-0210 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0211- ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 0005- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0303- ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91150-110-0 01 1 0005-0602 ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91180-110-0 01 1 0603- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0210 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0210 ● ●
40 DUCT; WATER,SUCTION
(C) 		1-13711-675-0 01 1 0005- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0303- ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0303- ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-026-0 01 1 0005- ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 0005- ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 0005-0906 ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50640-828-0 03 1 0907- ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 0005-0512 ●
44 BOLT; HSG TO HD
M8X100 		0-10855-800-0 04 1 0601- ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 0005- ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 0005-0605 ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ●
56 PIPE; WATER,THERMOSTAT HSG
(A) 		1-13721-628-0 01 1 0005-0210 ●
56 PIPE; WATER,THERMOSTAT HSG
(B) 		1-13721-949-0 01 1 0211- ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-028-0 01 1 0005- ●
78 HOSE; RUBBER,WATER PIPE 1-09360-626-0 01 1 0005- ●
79 CLIP; RUBBER HOSE
ID=20 		1-09707-084-1 02 1 0005- ●
82 PIPE; WATER,HTR 1-13711-698-1 01 1 0005- ●
85 BOLT; CLIP
M6X40 FLANGE 		0-28680-640-0 04 1 0211-0512 ●
85 BOLT; CLIP
M6X40 FLANGE 		0-28650-640-0 04 1 0601- ●
89 BRACKET 1-13719-122-0 01 1 0211- ●
93 STAY; WATER PIPE 1-13719-089-0 01 1 0211- ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28181-020-0 02 1 0005-0512 ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0005-0210 ● ●
134 CLIP; RUBBER HOSE
ID=63 		1-09704-067-0 02 1 0303- ●

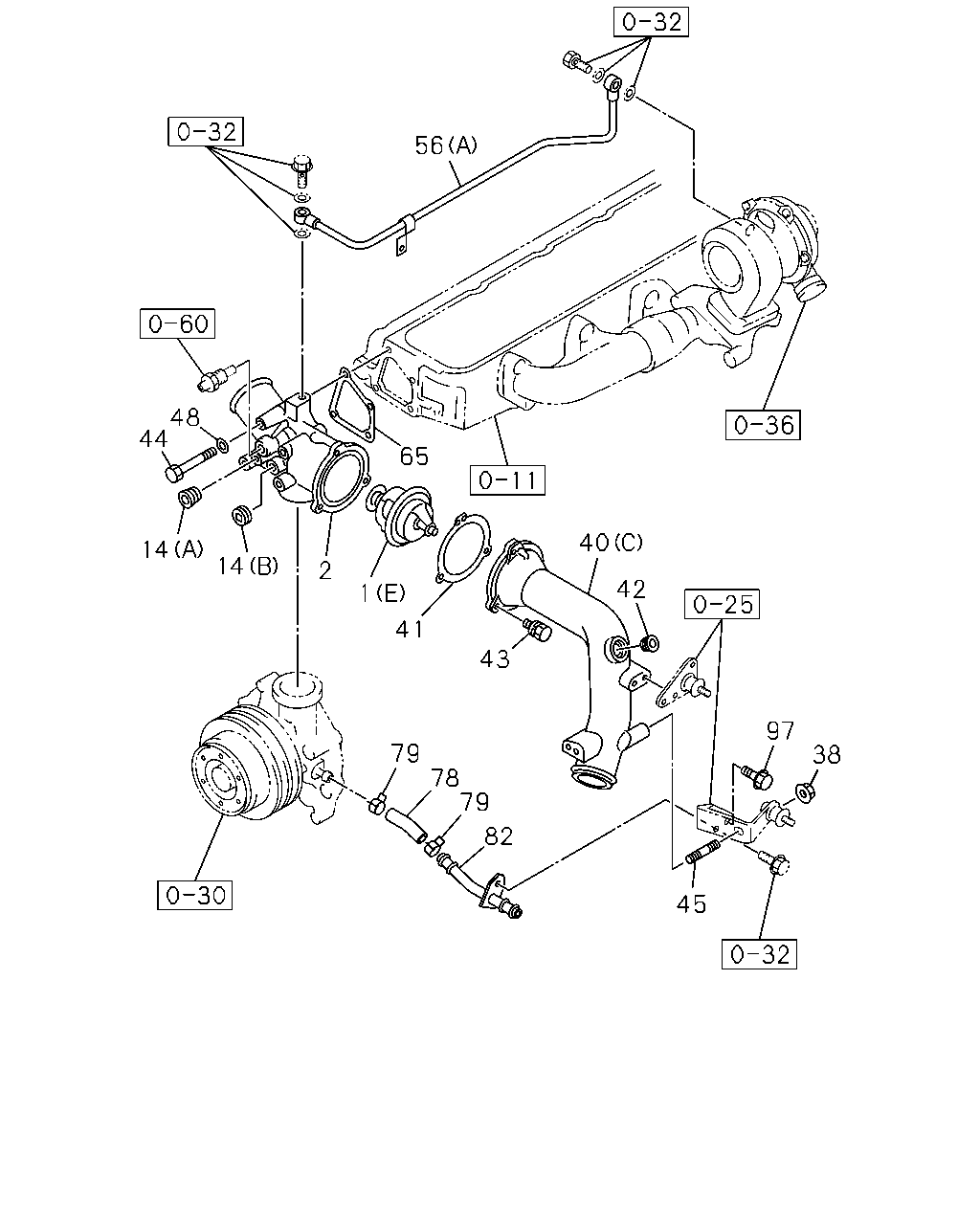

çizim 45460
56 48 44 65 40 14 14 2 42 1 41 43 97 79 38 78 79 82 45
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 THERMOSTAT
(A) 82 CELSIUS 		8-94392-817-0 01 1 0005-0105 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-037-0 01 1 0106-0112 ● ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-0 01 1 0201-0210 ● ●
1 THERMOSTAT
(C) 82 CELSIUS 		8-94397-310-0 01 1 0005-0105 ● ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-1 01 1 0106-0210 ● ●
1 THERMOSTAT
(E) 76.5 CELSIUS 		1-13770-085-0 01 1 0005-0210 ●
1 THERMOSTAT
(F) 79 CELSIUS 		1-13770-097-0 01 1 0211-0609 ●
1 THERMOSTAT
(F) 76.5 CELSIUS 		1-13770-085-0 01 1 0610- ●
1 THERMOSTAT
(D) 82 CELSIUS 		8-97602-048-3 01 1 0303- ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-97602-393-1 01 1 0303-1501 ●
1 THERMOSTAT
(B) 82 CELSIUS 		8-98295-921-0 01 1 1502- ●
2 HOUSING; THERMOSTAT 1-13716-180-0 01 1 0005- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0005-0210 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0005-0210 ● ●
14 PLUG; SW
(A) PT1/4 		1-09605-019-0 01 1 0211- ●
14 PLUG; SW
(B) PT3/8 T=8.0 		1-09605-066-0 01 1 0005- ●
14 PLUG; SW
(B) PT3/8 		8-94397-338-0 01 1 0303- ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91150-110-0 01 1 0005-0602 ●
38 NUT; DUCT,SUCTION
M10 FLANGE 		0-91180-110-0 01 1 0603- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-0 01 1 0005-0210 ● ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0005-0210 ● ●
40 DUCT; WATER,SUCTION
(C) 		1-13711-675-0 01 1 0005- ●
40 DUCT; WATER,SUCTION
(A) 		8-94391-091-1 01 1 0303- ●
40 DUCT; WATER,SUCTION
(B) 		8-94394-404-1 01 1 0303- ●
41 GASKET; DUCT TO HSG
ALSO INCLUDED IN GASKET SET(ENGINE). 		1-13742-026-0 01 1 0005- ●
42 PLUG; WATER DUCT
PT3/4 		9-09664-005-0 01 1 0005- ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50140-828-0 03 1 0005-0906 ●
43 BOLT; WATER DUCT
M8X28 W/LK&PL WASHER 		0-50640-828-0 03 1 0907- ●
44 BOLT; HSG TO HD
M8X100 		0-10805-800-0 04 1 0005-0512 ●
44 BOLT; HSG TO HD
M8X100 		0-10855-800-0 04 1 0601- ●
45 STUD; DUCT
M10X20 L=35 		9-04411-020-0 01 1 0005- ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 		9-09160-508-0 04 1 0005-0605 ●
48 WASHER; PL,THERMOSTAT HSG
ID=8.4 OD=16 		0-91610-508-0 04 1 0606- ●
56 PIPE; WATER,THERMOSTAT HSG
(A) 		1-13721-628-0 01 1 0005-0210 ●
56 PIPE; WATER,THERMOSTAT HSG
(B) 		1-13721-949-0 01 1 0211- ●
65 GASKET; HSG TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		1-13743-028-0 01 1 0005- ●
78 HOSE; RUBBER,WATER PIPE 1-09360-626-0 01 1 0005- ●
79 CLIP; RUBBER HOSE
ID=20 		1-09707-084-1 02 1 0005- ●
82 PIPE; WATER,HTR 1-13711-698-1 01 1 0005- ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28181-020-0 02 1 0005-0512 ●
97 BOLT; PIPE STAY
M10X20 FLANGE 		0-28151-020-0 02 1 0601- ●
