Sayfa 0-30 - Isuzu EPC

0-30 — WATER PUMP AND CORROSION RESISTOR (#8608) — 249 parça

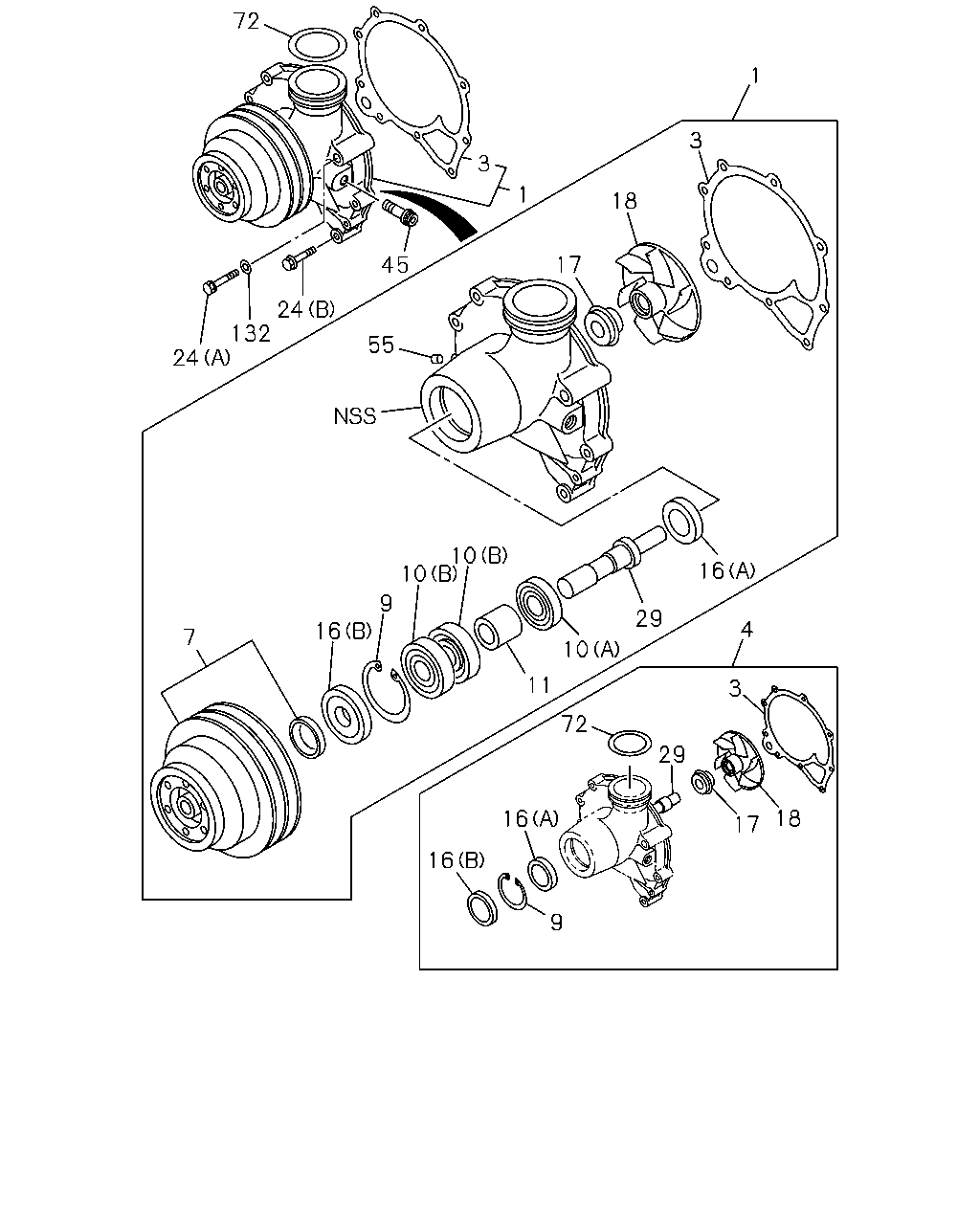

72 1 3 3 1 18 17 45 24 132 55 24 10 10 16 9 16 29 4 7 10 11 3 72 29 18 16 17 16 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; WATER,W/GASKET	8-97602-780-1	01	1	0303-1208	●
1	PUMP ASM; WATER,W/GASKET	1-87310-834-0	01	1	1209-1312	●
1	PUMP ASM; WATER,W/GASKET	1-87310-901-0	01	1	1401-1405	●
1	PUMP ASM; WATER,W/GASKET	1-87310-973-0	01	1	1406-	●
1	PUMP ASM; WATER,W/GASKET	8-97600-352-3	01	1	0005-0210		●
1	PUMP ASM; WATER,W/GASKET	8-94395-656-6	01	1	0005-0210			●
1	PUMP ASM; WATER,W/GASKET	1-13650-002-2	01	1	0005-				●
3	GASKET; PUMP TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	1-13614-018-1	01	1	0005-				●
4	REPAIR KIT; WATER PUMP	1-87814-166-0	01	1	1401-1405	●
4	REPAIR KIT; WATER PUMP	1-87814-606-0	01	1	1406-	●
4	REPAIR KIT; WATER PUMP	1-87812-028-0	01	1	0005-0210		●
4	REPAIR KIT; WATER PUMP	1-87812-029-0	01	1	0005-0210			●
4	REPAIR KIT; WATER PUMP	1-87812-019-1	01	1	0005-				●
4	REPAIR KIT; WATER PUMP	1-87812-041-1	01	1	0303-1208	●
4	REPAIR KIT; WATER PUMP	1-87813-953-0	01	1	1209-1312	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	0005-0210		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	0005-0210			●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-174-0	01	1	0005-				●
7	PULLEY; WATER PUMP 4-GROOVE	8-97600-389-0	01	1	0303-	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0005-0210		●	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0211-0302				●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0303-	●			●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0005-0210		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0005-0210		●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	0005-0210			●
10	BEARING; WATER PUMP (B)	1-09800-155-0	02	1	0005-				●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	0005-				●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0303-	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0303-	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0005-0210		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	0005-0210			●
11	SPACER; BRG,WATER PUMP	1-13634-029-0	01	1	0005-				●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0303-	●
16	SEAL; OIL,WATER PUMP (A)	1-09625-388-0	01	1	0005-				●
16	SEAL; OIL,WATER PUMP (B)	1-09625-389-0	01	1	0005-				●
17	SEAL UNIT; WATER PUMP	8-98272-791-0	01	1	1406-	●
17	SEAL UNIT; WATER PUMP	8-98221-159-0	01	1	1209-1312	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0005-0210		●	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0211-0302				●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0303-1208	●			●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1209-1312				●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1401-1405	●			●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1406-				●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0005-0210		●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	0005-0210			●
18	IMPELLER; WATER PUMP	1-13621-052-0	01	1	0005-				●
18	IMPELLER; WATER PUMP	8-97600-376-0	01	1	0303-	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0005-0210		●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0005-0210		●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0005-0210		●	●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	0005-0512				●
24	BOLT; WATER PUMP (A) M10X70	0-16856-070-0	02	1	0601-				●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	0005-0906				●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50640-845-0	07	1	0907-				●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0303-0512	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0303-	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0303-	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0005-0210		●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	0005-0210			●
29	SHAFT; WATER PUMP	1-13631-079-0	01	1	0005-				●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0303-	●
45	JOINT; HTR HOSE,WATER PUMP	8-94392-827-1	01	1	0005-0210		●
45	JOINT; HTR HOSE,WATER PUMP	8-94397-377-2	01	1	0005-0210			●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0005-				●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	0303-	●
55	NOZZLE; OIL FEED,WATER PUMP	1-13619-046-0	01	1	0005-				●
72	GASKET; PUMP TO THERMO HSG ALSO INCLUDED IN GASKET SET(ENGINE). ID=59.6	1-09623-307-0	01	1	0005-				●
132	WASHER; PL,WATER PUMP ID=10.5 OD=18	9-09160-510-0	02	1	0005-0605				●
132	WASHER; PL,WATER PUMP ID=10.5	0-91610-510-0	02	1	0606-				●

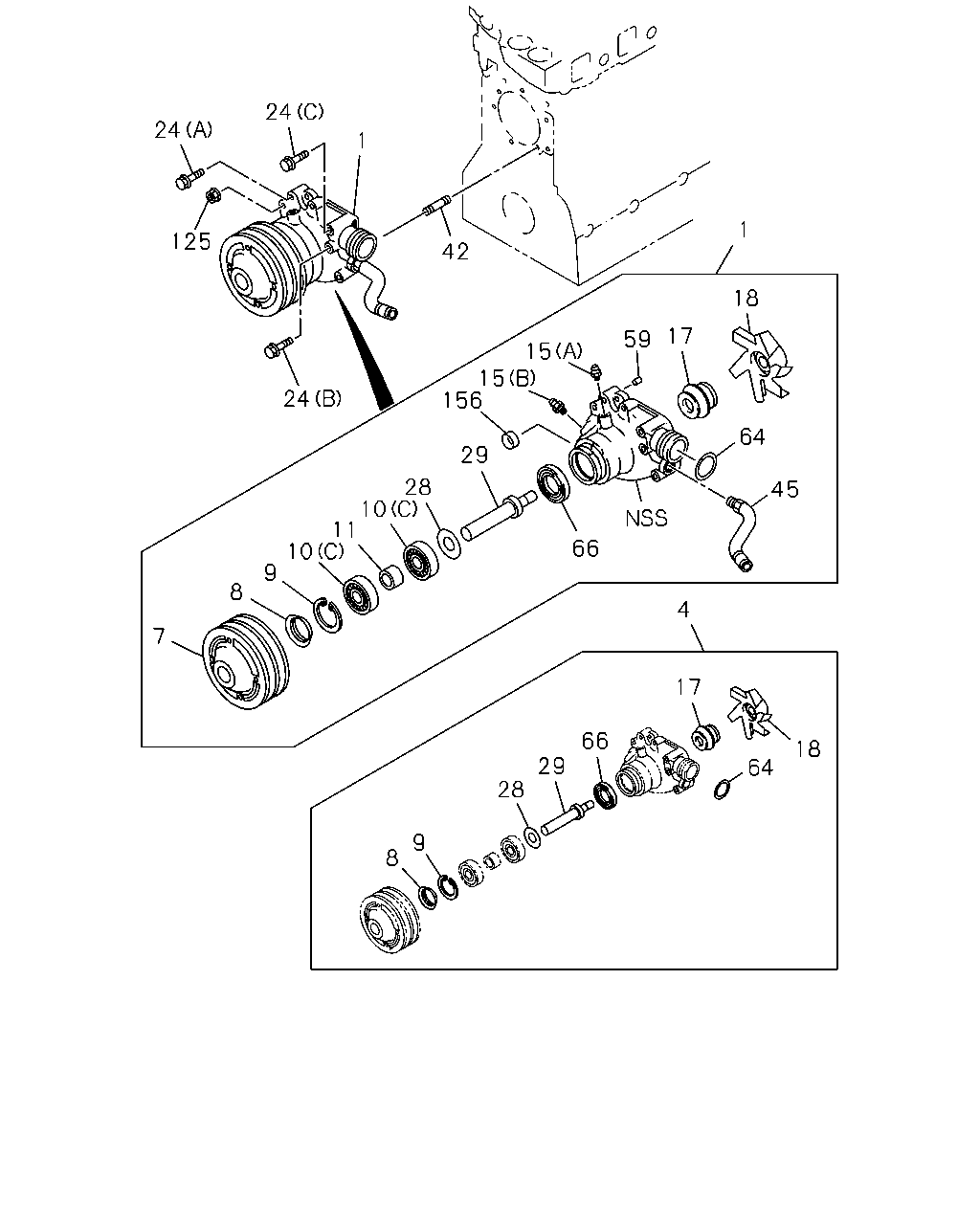

24 24 1 125 42 64 15 15 18 59 1 156 64 24 17 29 28 45 10 9 8 7 10 18 11 64 10 17 29 28 9 8 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; WATER,W/GASKET	8-97602-780-1	01	1	0303-1208	●
1	PUMP ASM; WATER,W/GASKET	1-87310-834-0	01	1	1209-1312	●
1	PUMP ASM; WATER,W/GASKET	1-87310-901-0	01	1	1401-1405	●
1	PUMP ASM; WATER,W/GASKET	1-87310-973-0	01	1	1406-	●
1	PUMP ASM; WATER,W/GASKET	8-97600-352-3	01	1	0005-0210		●
1	PUMP ASM; WATER,W/GASKET	8-94395-656-6	01	1	0005-0210			●
1	PUMP ASM; WATER,W/GASKET	1-13650-002-2	01	1	0005-				●
4	REPAIR KIT; WATER PUMP	1-87814-166-0	01	1	1401-1405	●
4	REPAIR KIT; WATER PUMP	1-87814-606-0	01	1	1406-	●
4	REPAIR KIT; WATER PUMP	1-87812-028-0	01	1	0005-0210		●
4	REPAIR KIT; WATER PUMP	1-87812-029-0	01	1	0005-0210			●
4	REPAIR KIT; WATER PUMP	1-87812-019-1	01	1	0005-				●
4	REPAIR KIT; WATER PUMP	1-87812-041-1	01	1	0303-1208	●
4	REPAIR KIT; WATER PUMP	1-87813-953-0	01	1	1209-1312	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	0005-0210		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	0005-0210			●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-174-0	01	1	0005-				●
7	PULLEY; WATER PUMP 4-GROOVE	8-97600-389-0	01	1	0303-	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0005-0210		●	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0303-	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0005-0210		●	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0211-0302				●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0303-	●			●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0005-0210		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0005-0210		●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	0005-0210			●
10	BEARING; WATER PUMP (B)	1-09800-155-0	02	1	0005-				●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	0005-				●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0303-	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0303-	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0005-0210		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	0005-0210			●
11	SPACER; BRG,WATER PUMP	1-13634-029-0	01	1	0005-				●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0303-	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0005-0210		●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0210		●	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0303-	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0303-0512	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
17	SEAL UNIT; WATER PUMP	8-98272-791-0	01	1	1406-	●
17	SEAL UNIT; WATER PUMP	8-98221-159-0	01	1	1209-1312	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0005-0210		●	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0211-0302				●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0303-1208	●			●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1209-1312				●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1401-1405	●			●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1406-				●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0005-0210		●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	0005-0210			●
18	IMPELLER; WATER PUMP	1-13621-052-0	01	1	0005-				●
18	IMPELLER; WATER PUMP	8-97600-376-0	01	1	0303-	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0005-0210		●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0005-0210		●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0005-0210		●	●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	0005-0512				●
24	BOLT; WATER PUMP (A) M10X70	0-16856-070-0	02	1	0601-				●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	0005-0906				●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50640-845-0	07	1	0907-				●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0303-0512	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0303-	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0303-	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0005-0210		●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0303-	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0005-0210		●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	0005-0210			●
29	SHAFT; WATER PUMP	1-13631-079-0	01	1	0005-				●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0303-	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0005-0210		●	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0303-0604	●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-	●
45	JOINT; HTR HOSE,WATER PUMP	8-94392-827-1	01	1	0005-0210		●
45	JOINT; HTR HOSE,WATER PUMP	8-94397-377-2	01	1	0005-0210			●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0005-				●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	0303-	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0005-0210		●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	0005-0210			●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0303-	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0005-0210		●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0303-	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0005-0210		●	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0303-0602	●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0603-	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0005-0210		●	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0303-	●

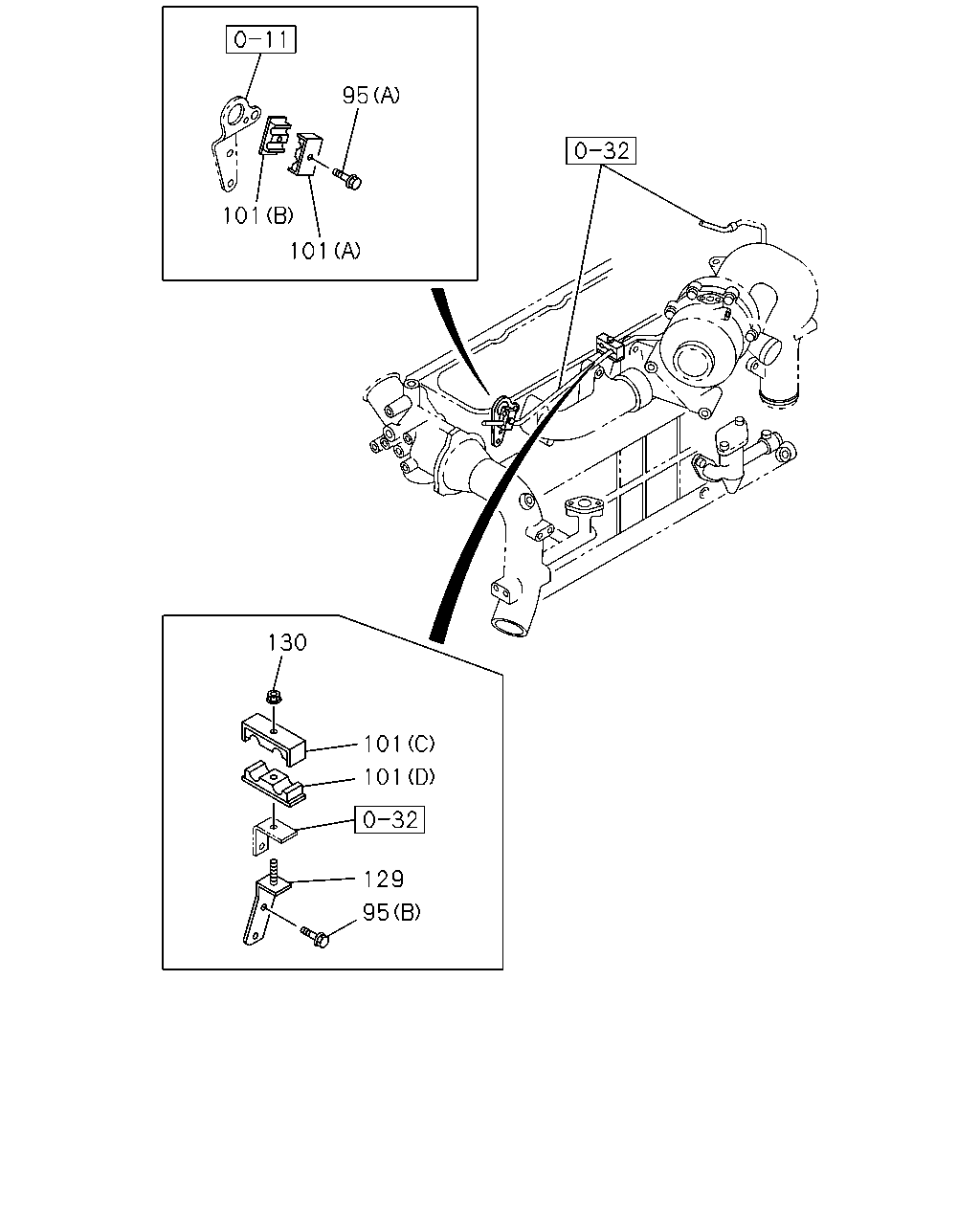

95 101 101 130 101 101 129 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	D
95	BOLT; BRKT (A) M6X35 FLANGE	0-28080-635-0	01	1	0005-0210	●
95	BOLT; BRKT (B) M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
101	CLIP; WATER PIPE (A)	1-09701-172-1	01	1	0005-0210	●
101	CLIP; WATER PIPE (B)	1-09701-173-0	01	1	0005-0210	●
101	CLIP; WATER PIPE (C)	1-09701-230-0	01	1	0005-0210	●
101	CLIP; WATER PIPE (D)	1-09701-231-0	01	1	0005-0210	●
129	BRACKET; CLIP	1-13319-038-0	01	1	0005-0210	●
130	NUT; CLIP M6 FLANGE	0-91150-106-0	01	1	0005-0210	●

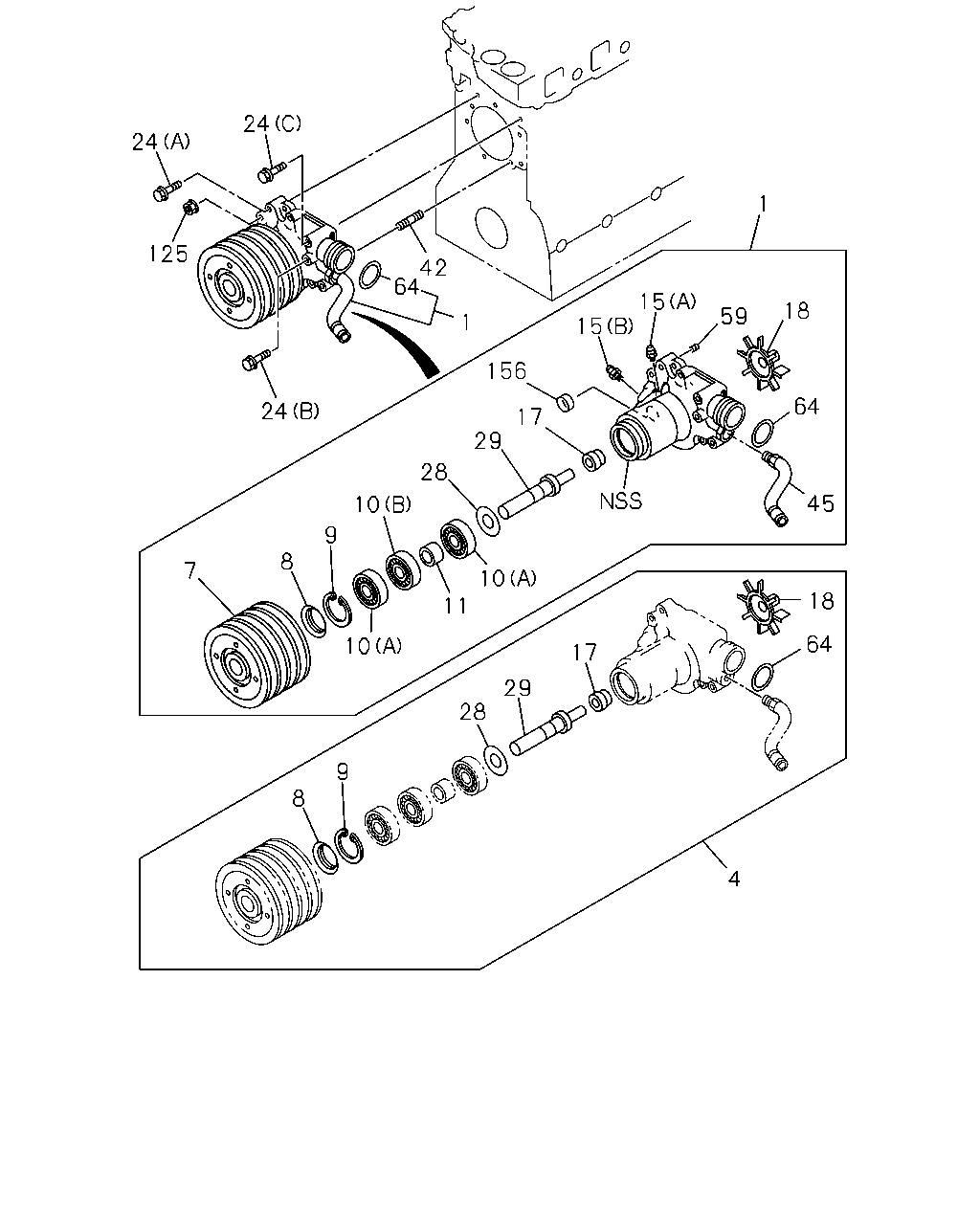

24 24 1 1 125 42 18 17 59 15 15 156 24 64 29 28 10 11 10 45 66 9 8 4 7 17 66 18 29 64 28 9 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	PUMP ASM; WATER,W/GASKET	8-97602-780-1	01	1	0303-1208	●
1	PUMP ASM; WATER,W/GASKET	1-87310-834-0	01	1	1209-1312	●
1	PUMP ASM; WATER,W/GASKET	1-87310-901-0	01	1	1401-1405	●
1	PUMP ASM; WATER,W/GASKET	1-87310-973-0	01	1	1406-	●
1	PUMP ASM; WATER,W/GASKET	8-97600-352-3	01	1	0005-0210		●
1	PUMP ASM; WATER,W/GASKET	8-94395-656-6	01	1	0005-0210			●
1	PUMP ASM; WATER,W/GASKET	1-13650-002-2	01	1	0005-				●
4	REPAIR KIT; WATER PUMP	1-87814-166-0	01	1	1401-1405	●
4	REPAIR KIT; WATER PUMP	1-87814-606-0	01	1	1406-	●
4	REPAIR KIT; WATER PUMP	1-87812-028-0	01	1	0005-0210		●
4	REPAIR KIT; WATER PUMP	1-87812-029-0	01	1	0005-0210			●
4	REPAIR KIT; WATER PUMP	1-87812-019-1	01	1	0005-				●
4	REPAIR KIT; WATER PUMP	1-87812-041-1	01	1	0303-1208	●
4	REPAIR KIT; WATER PUMP	1-87813-953-0	01	1	1209-1312	●
7	PULLEY; WATER PUMP 4-GROOVE	8-94394-927-0	01	1	0005-0210		●
7	PULLEY; WATER PUMP 2-GROOVE	8-94394-826-0	01	1	0005-0210			●
7	PULLEY; WATER PUMP 2-GROOVE	1-13641-174-0	01	1	0005-				●
7	PULLEY; WATER PUMP 4-GROOVE	8-97600-389-0	01	1	0303-	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0005-0210		●	●
8	THROWER; DUST,WATER PUMP	8-94399-457-0	01	1	0303-	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0005-0210		●	●	●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0211-0302				●
9	RING; SNAP,WATER PUMP ID=57.9	9-09180-162-0	01	1	0303-	●			●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0005-0210		●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0005-0210		●
10	BEARING; WATER PUMP (C)	1-09800-011-0	02	1	0005-0210			●
10	BEARING; WATER PUMP (B)	1-09800-155-0	02	1	0005-				●
10	BEARING; WATER PUMP (A)	1-09800-196-0	01	1	0005-				●
10	BEARING; WATER PUMP (A)	8-94391-298-0	02	1	0303-	●
10	BEARING; WATER PUMP (B)	8-94391-299-0	01	1	0303-	●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0005-0210		●
11	SPACER; BRG,WATER PUMP	1-13634-025-0	01	1	0005-0210			●
11	SPACER; BRG,WATER PUMP	1-13634-029-0	01	1	0005-				●
11	SPACER; BRG,WATER PUMP	1-13634-040-0	01	1	0303-	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0005-0210		●	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0005-0210		●	●
15	NIPPLE; GREASE,WATER PUMP (A) PT1/8 STRAIGHT	1-09380-002-0	01	1	0303-	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	9-09031-010-0	01	1	0303-0512	●
15	NIPPLE; GREASE,WATER PUMP (B) PT1/8 STRAIGHT	0-90301-410-0	01	1	0601-	●
17	SEAL UNIT; WATER PUMP	8-98272-791-0	01	1	1406-	●
17	SEAL UNIT; WATER PUMP	8-98221-159-0	01	1	1209-1312	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0005-0210		●	●	●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0211-0302				●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	0303-1208	●			●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1209-1312				●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1401-1405	●			●
17	SEAL UNIT; WATER PUMP	8-94392-090-0	01	1	1406-				●
18	IMPELLER; WATER PUMP	8-94397-375-0	01	1	0005-0210		●
18	IMPELLER; WATER PUMP	8-94392-922-0	01	1	0005-0210			●
18	IMPELLER; WATER PUMP	1-13621-052-0	01	1	0005-				●
18	IMPELLER; WATER PUMP	8-97600-376-0	01	1	0303-	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0005-0210		●	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0005-0210		●	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0005-0210		●	●
24	BOLT; WATER PUMP (A) M10X70	0-16806-070-0	02	1	0005-0512				●
24	BOLT; WATER PUMP (A) M10X70	0-16856-070-0	02	1	0601-				●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50140-845-0	07	1	0005-0906				●
24	BOLT; WATER PUMP (B) M8X45 W/LK&PL WASHER	0-50640-845-0	07	1	0907-				●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28080-880-0	01	1	0303-0512	●
24	BOLT; WATER PUMP (B) M8X80 FLANGE	0-28050-880-0	01	1	0601-	●
24	BOLT; WATER PUMP (A) M8X58 FLANGE	8-94130-055-1	03	1	0303-	●
24	BOLT; WATER PUMP (C) M10X85 FLANGE	8-94397-359-1	01	1	0303-	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0005-0210		●	●
28	WASHER; WATER PUMP ID=25.5 OD=50	8-94397-097-0	01	1	0303-	●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0005-0210		●
29	SHAFT; WATER PUMP	8-94397-374-0	01	1	0005-0210			●
29	SHAFT; WATER PUMP	1-13631-079-0	01	1	0005-				●
29	SHAFT; WATER PUMP	8-94396-130-1	01	1	0303-	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0005-0210		●	●
42	STUD; WATER PUMP M8X30 L=46	9-04010-830-0	01	1	0303-0604	●
42	STUD; WATER PUMP M8X30 L=46	0-40110-830-0	01	1	0605-	●
45	JOINT; HTR HOSE,WATER PUMP	8-94392-827-1	01	1	0005-0210		●
45	JOINT; HTR HOSE,WATER PUMP	8-94397-377-2	01	1	0005-0210			●
45	JOINT; HTR HOSE,WATER PUMP PT3/8 & OD=18.3 L=47	9-09903-631-0	01	1	0005-				●
45	JOINT; HTR HOSE,WATER PUMP	8-94394-389-0	01	1	0303-	●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0005-0210		●
59	DOWEL; WATER PUMP	9-13119-022-0	02	1	0005-0210			●
59	DOWEL; WATER PUMP OD=12 L=9	1-13119-003-0	02	1	0303-	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0005-0210		●	●
64	GASKET; WATER PUMP TO DUCT ALSO INCLUDED IN GASKET SET(ENGINE). ID=44.7	1-09623-383-0	01	1	0303-	●
66	SEAL; SECONDARY	1-09625-437-0	01	1	0005-0210			●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0005-0210		●	●
125	NUT; WATER PUMP M8 FLANGE	0-91150-108-0	04	1	0303-0602	●
125	NUT; WATER PUMP M8 FLANGE	0-91180-108-0	04	1	0603-	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0005-0210		●	●
156	CUP; SEALING OD=25	1-09600-016-0	01	1	0303-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
