Sayfa 0-27 - Isuzu EPC

0-27 — EXHAUST MANIFOLD (#8606) — 272 parça

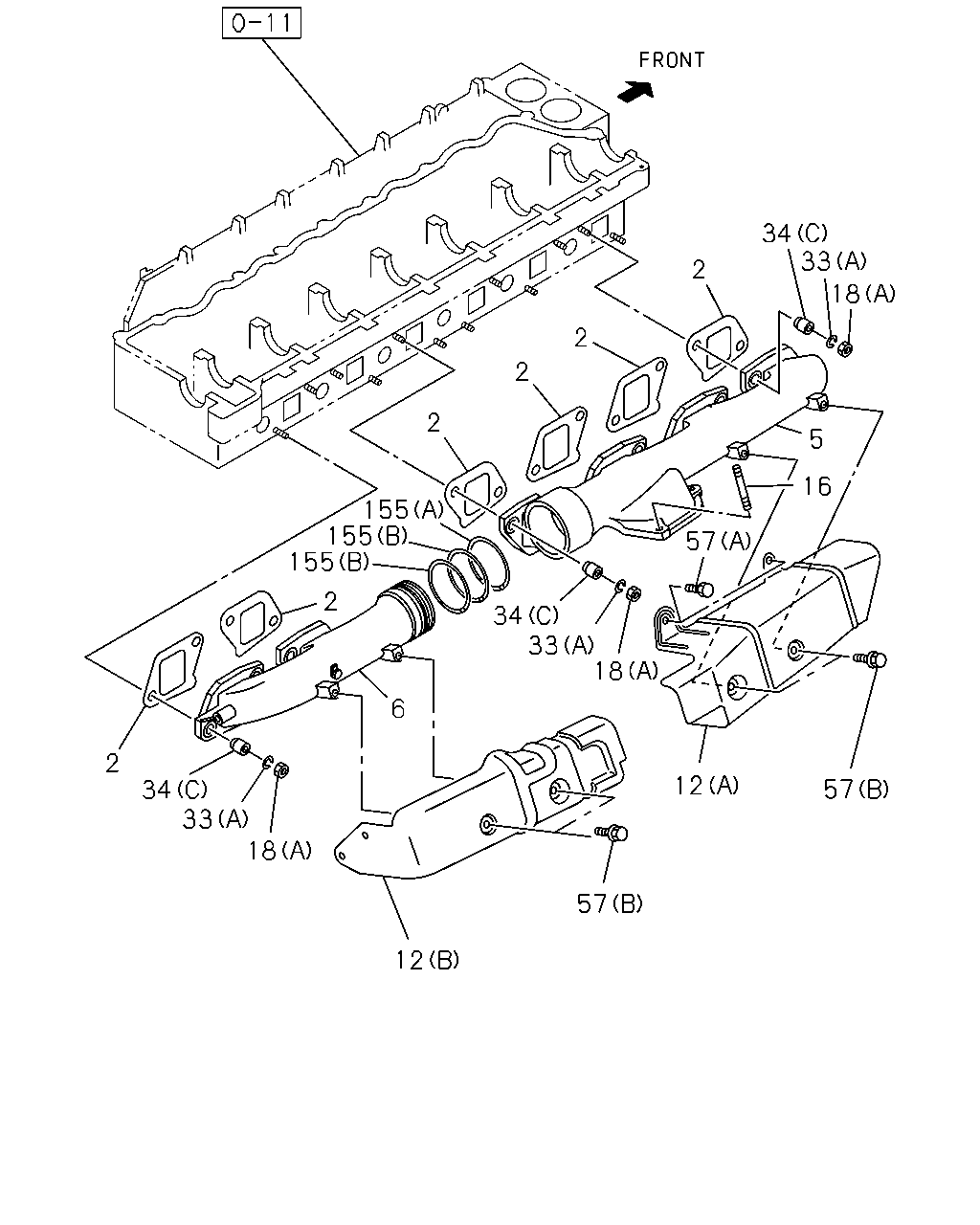

34 33 2 18 2 2 2 5 16 155 155 155 57 2 34 33 18 6 2 12 57 34 33 18 57 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-				●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-0210		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0303-				●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0210		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0303-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94392-947-0	01	1	0005-0210		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-0210		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	0005-0210			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0211-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	0005-0210			●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-0210		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0303-				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0211-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202				●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209	●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210	●	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-				●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0210		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-				●

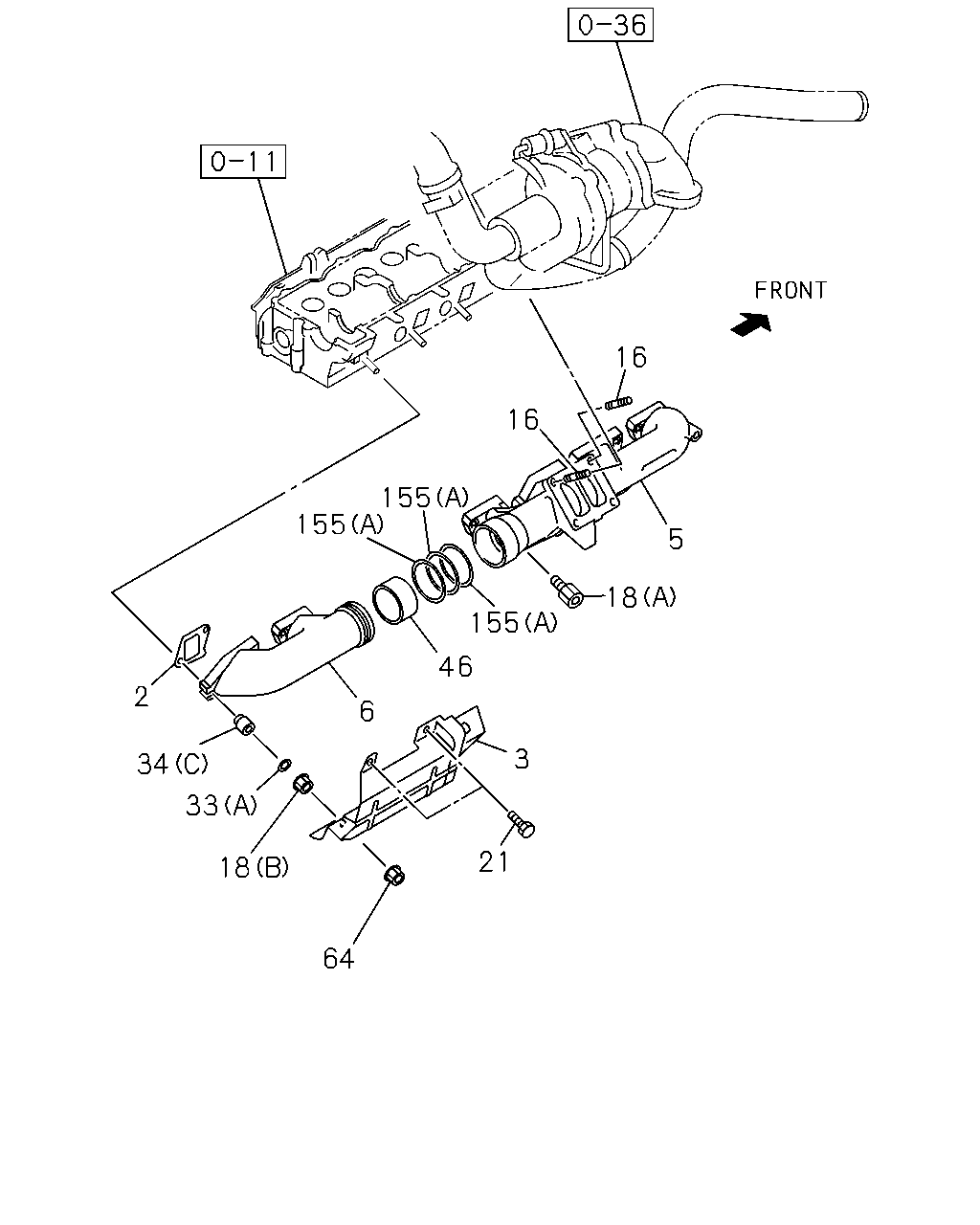

16 16 155 155 5 18 155 46 2 6 3 34 33 21 18 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-				●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-0210	●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0303-				●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-0210		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0303-				●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0210		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0303-				●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-0210		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0303-				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0211-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202				●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209	●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210	●	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-				●
46	PIPE; SEAL,EXH MANIF OD=49.5 L=43	1-14149-131-1	01	1	0005-0104	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0303-0602				●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-				●

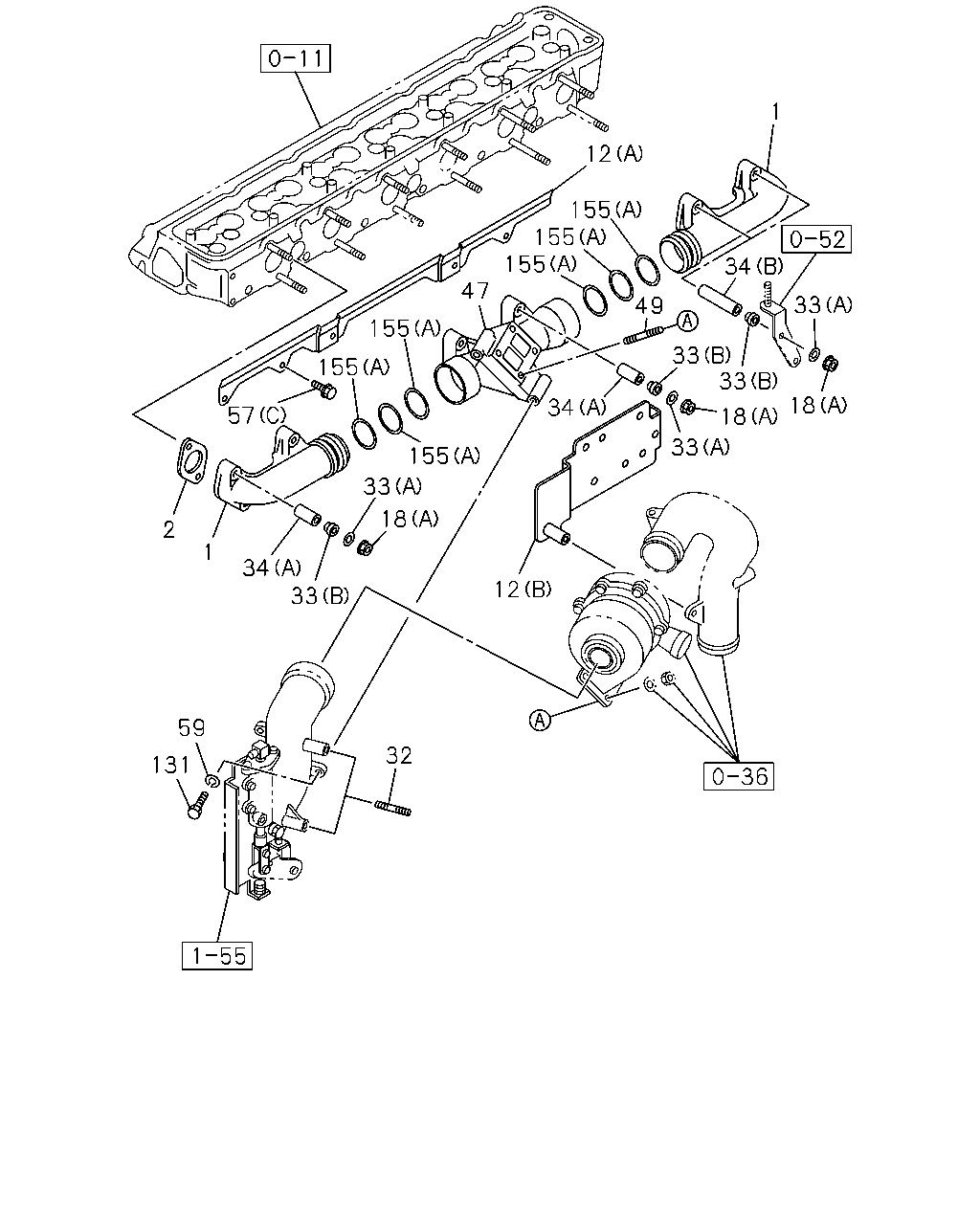

1 12 155 155 155 34 47 33 49 155 33 33 155 57 18 34 18 33 155 33 18 2 1 34 33 12 59 32 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0005-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94392-947-0	01	1	0005-0210		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-0210		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	0005-0210			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0211-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	0005-0210			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0211-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202				●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	0005-0210			●
32	STUD; EXH PIPE M8X55 L=67	9-04110-855-0	03	1	0303-0604				●
32	STUD; EXH PIPE M8X55 L=67	0-41010-855-0	03	1	0605-				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209	●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210	●	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-				●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0005-0210			●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0211-			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0005-0210			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0211-0408			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0210		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
59	WASHER; LK,EXH PIPE ID=10	1-09503-033-1	02	1	0005-0210			●
131	BOLT; MTG	9-09804-206-0	02	1	0005-0210			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-				●

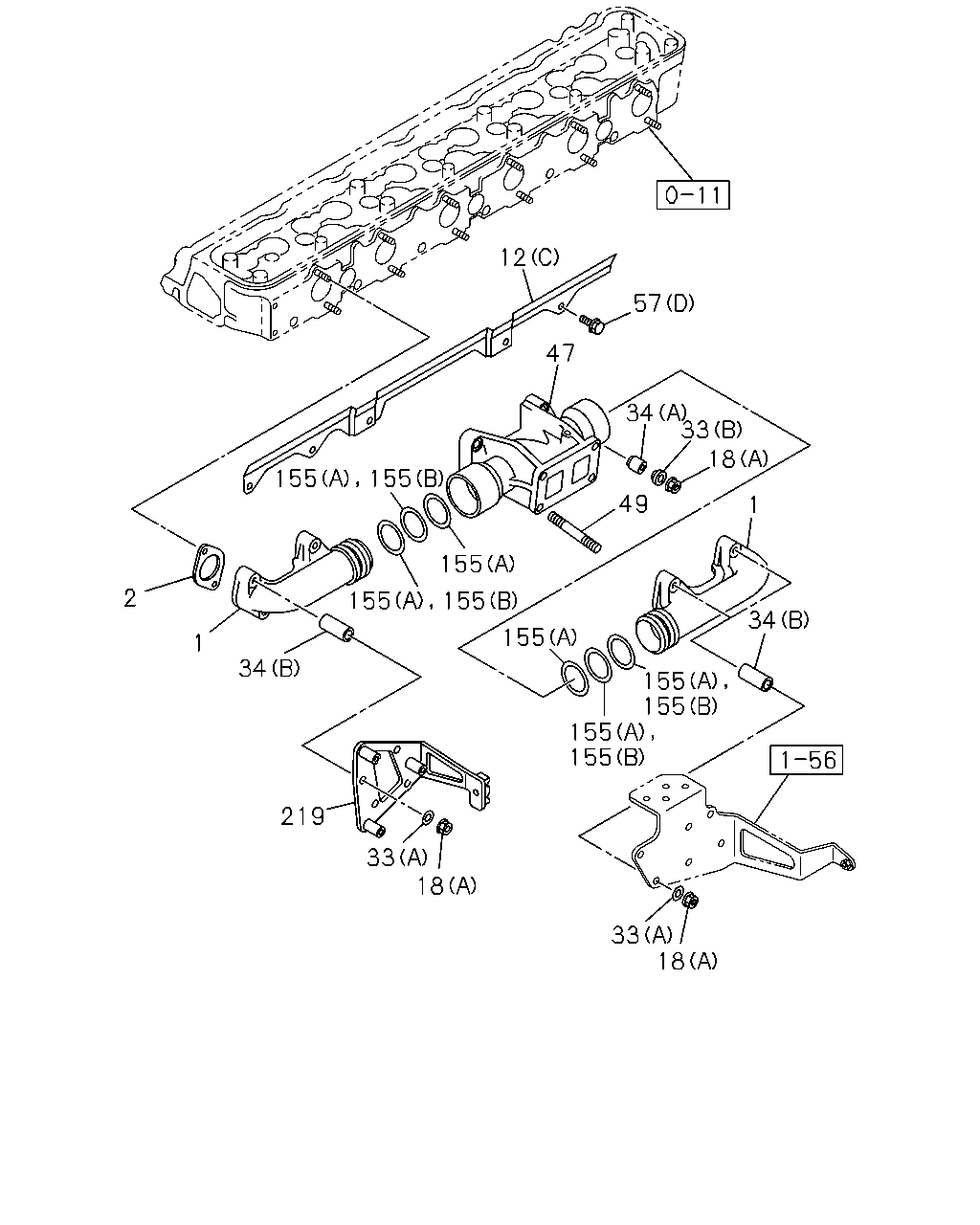

12 57 47 34 33 18 155 155 49 1 155 2 155 155 34 155 1 34 155 155 155 155 219 33 18 33 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
1	MANIFOLD; EXHAUST	1-14141-685-4	02	1	0005-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-				●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	8-94392-947-0	01	1	0005-0210		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	8-94395-204-0	01	1	0005-0210		●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (B)	1-14119-396-0	01	1	0005-0210			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (C)	1-14181-236-0	01	1	0211-			●
12	PROTECTOR; HEAT,TURBOCHARGER,EXH MANIF (A)	1-14181-234-0	01	1	0005-0210			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0211-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202				●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209	●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210	●	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-				●
47	MANIFOLD; EXH,CENTER	1-14141-880-0	01	1	0005-0210			●
47	MANIFOLD; EXH,CENTER	1-14141-994-0	01	1	0211-			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=40	9-04731-025-0	03	1	0005-0210			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	1-09302-167-1	04	1	0211-0408			●
49	STUD; CENTER MANIF TO TURBOCHARGER M10X25 L=47	8-97378-071-0	04	1	0409-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (A) M8X12 FLANGE	0-28080-812-0	02	1	0005-0210		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M10X16 FLANGE	0-28181-016-0	01	1	0211-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M10X16 FLANGE	0-28151-016-0	01	1	0601-			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (B) M8X14 FLANGE	8-94312-699-1	05	1	0005-0210		●
57	BOLT; HEAT PROTECTOR,EXH MANIF (C) M8X12 FLANGE	0-28080-812-0	01	1	0005-0210			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X16 FLANGE	0-28080-816-0	02	1	0211-0512			●
57	BOLT; HEAT PROTECTOR,EXH MANIF (D) M8X16 FLANGE	0-28050-816-0	02	1	0601-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-				●
219	BRACKET; DUCT	1-14149-244-0	01	1	0211-			●

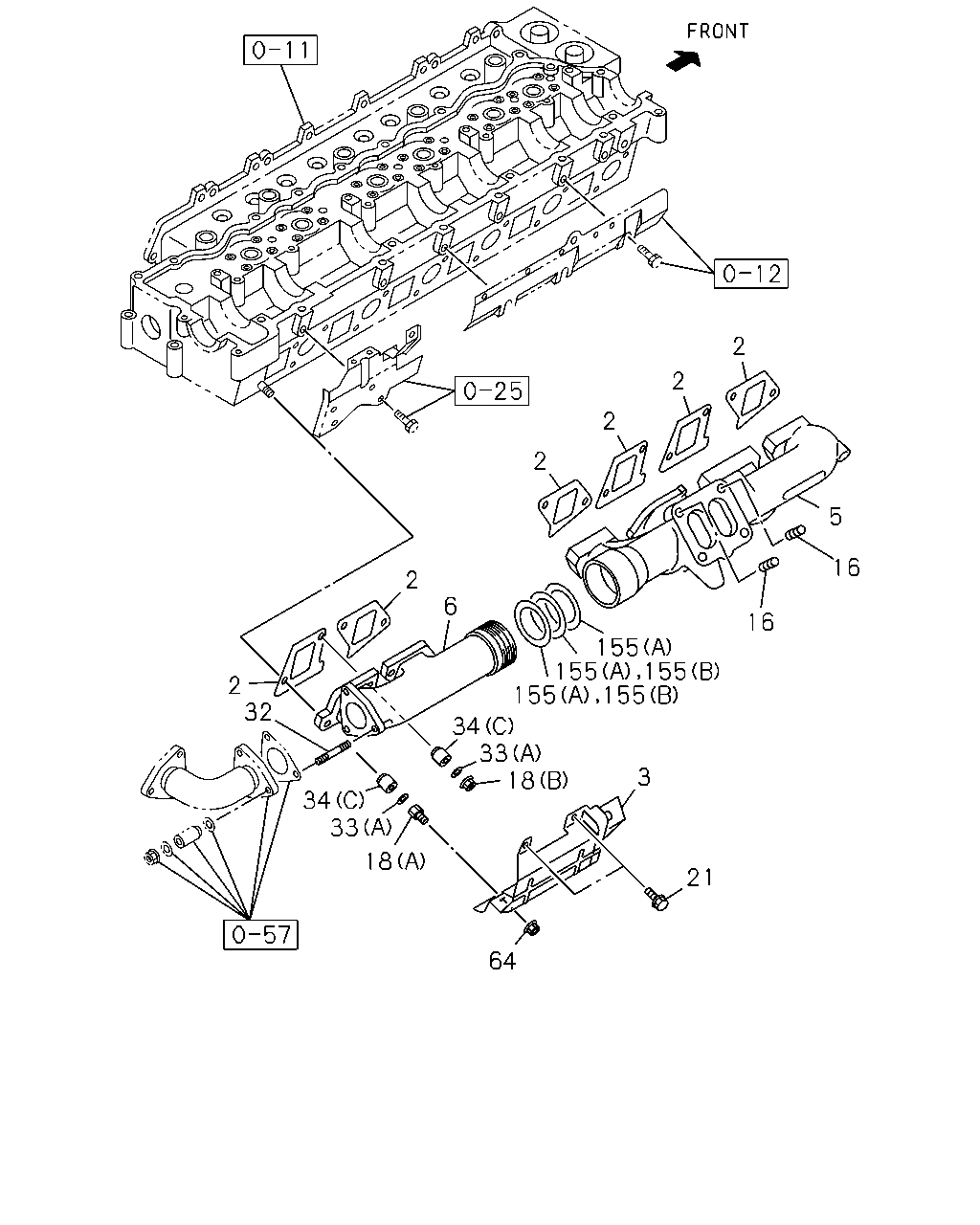

2 2 2 2 5 16 2 6 16 155 155 155 155 155 2 32 34 33 18 3 34 33 18 21 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-1	06	1	0005-0210	●	●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	1-14145-144-1	06	1	0005-			●
2	GASKET; EXH MANIF TO HD ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94393-672-4	06	1	0303-				●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0005-0210	●
3	PROTECTOR; HEAT,EXH MANIF	8-94391-582-1	01	1	0303-				●
5	MANIFOLD; EXH,FRT	8-94395-422-2	01	1	0005-0104	●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0105-0210	●
5	MANIFOLD; EXH,FRT	8-94394-753-1	01	1	0005-0210		●
5	MANIFOLD; EXH,FRT	8-97602-056-0	01	1	0303-				●
6	MANIFOLD; EXH,RR	8-94394-636-1	01	1	0005-0104	●
6	MANIFOLD; EXH,RR	8-97600-970-0	01	1	0105-0210	●
6	MANIFOLD; EXH,RR	8-94394-755-4	01	1	0005-0210		●
6	MANIFOLD; EXH,RR	8-97601-166-0	01	1	0303-				●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0005-0210	●
16	STUD; EXH PIPE TO MANIF M12X103 L=123	8-94394-656-0	03	1	0005-0210		●
16	STUD; EXH PIPE TO MANIF M10X25 L=40	9-04731-025-0	02	1	0303-				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0211-0602			●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	12	1	0603-			●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0005-0210	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	12	1	0005-0210		●	●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91150-210-0	10	1	0303-0602				●
18	NUT; EXH MANIF (A) M10 FLANGE	0-91180-210-0	10	1	0603-				●
18	NUT; EXH MANIF (B) M10 L=51	8-94394-991-1	02	1	0303-1202				●
18	NUT; EXH MANIF (B)	8-98205-394-0	02	1	1203-				●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0005-0210	●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28080-816-0	02	1	0303-0512				●
21	BOLT; HEAT PROTECTOR M8X16 FLANGE	0-28050-816-0	02	1	0601-				●
32	STUD; EXH PIPE M10X60 L=75	9-04411-060-0	02	1	0005-0210			●
32	STUD; EXH PIPE M8X55 L=67	9-04110-855-0	03	1	0303-0604				●
32	STUD; EXH PIPE M8X55 L=67	0-41010-855-0	03	1	0605-				●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0005-0210	●	●	●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0211-0302			●
33	WASHER; EXH MANIF (A) T=2.2	1-09556-015-0	12	1	0303-			●	●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	08	1	0005-0210			●
33	WASHER; EXH MANIF (B) T=5.5	1-14149-042-0	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-94395-679-0	12	1	0005-0209	●	●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0210-0210	●	●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	08	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (A) L=43	1-14149-048-1	03	1	0211-			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	04	1	0005-0210			●
34	COLLAR; DIST,EXH MANIF (B) L=83	1-14149-134-0	08	1	0211-			●
34	COLLAR; DIST,EXH MANIF (C) L=28	8-97250-073-1	12	1	0303-				●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91150-210-0	02	1	0303-0602				●
64	NUT; HEAT PROTECTOR M10 FLANGE	0-91180-210-0	02	1	0603-				●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	04	1	0502-			●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0502-				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0005-0210	●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0005-0210		●
155	RING; SEAL,EXH MANIF (B)	1-14149-184-0	02	1	0005-0210		●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	06	1	0005-0501			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	02	1	0502-			●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	03	1	0303-0501				●
155	RING; SEAL,EXH MANIF (A)	1-14149-151-0	01	1	0502-				●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
